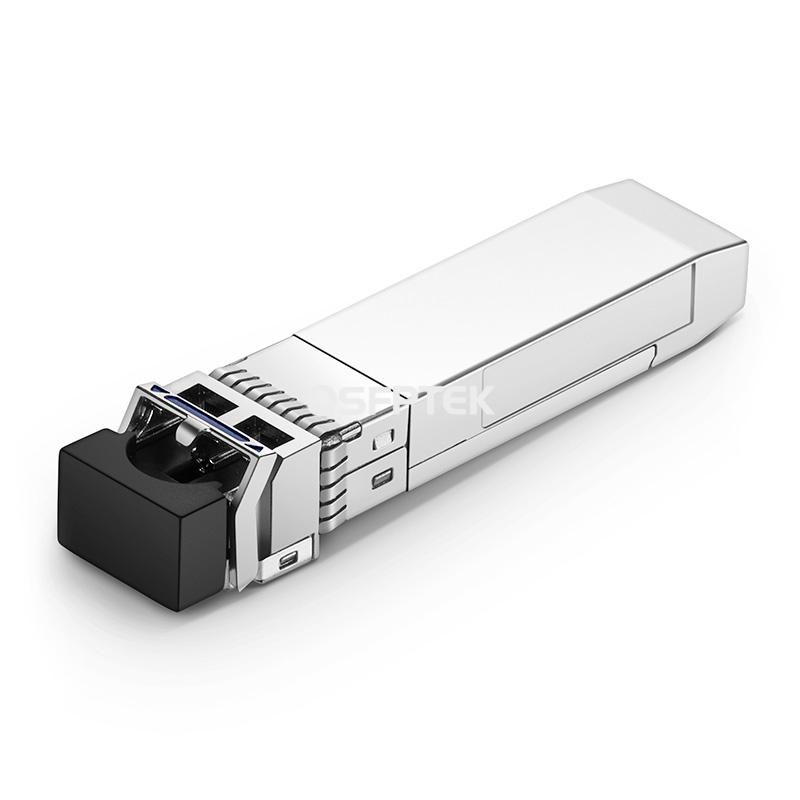

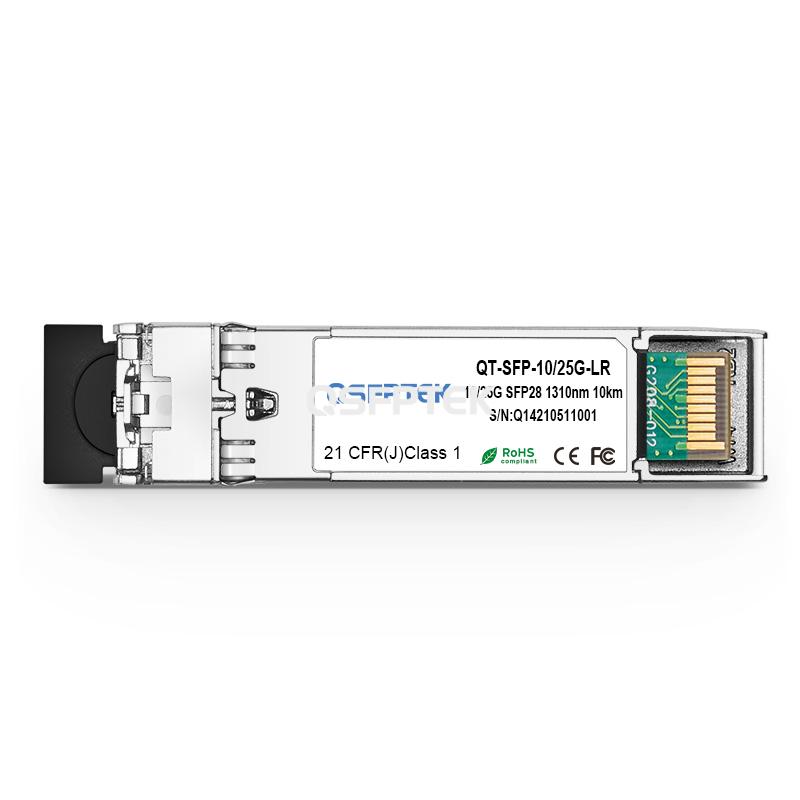

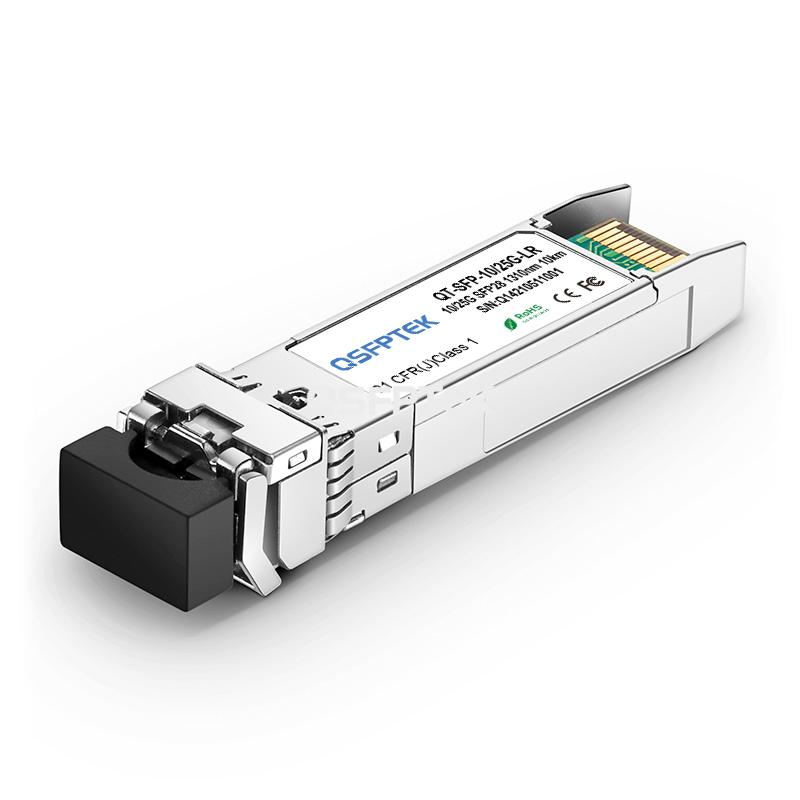

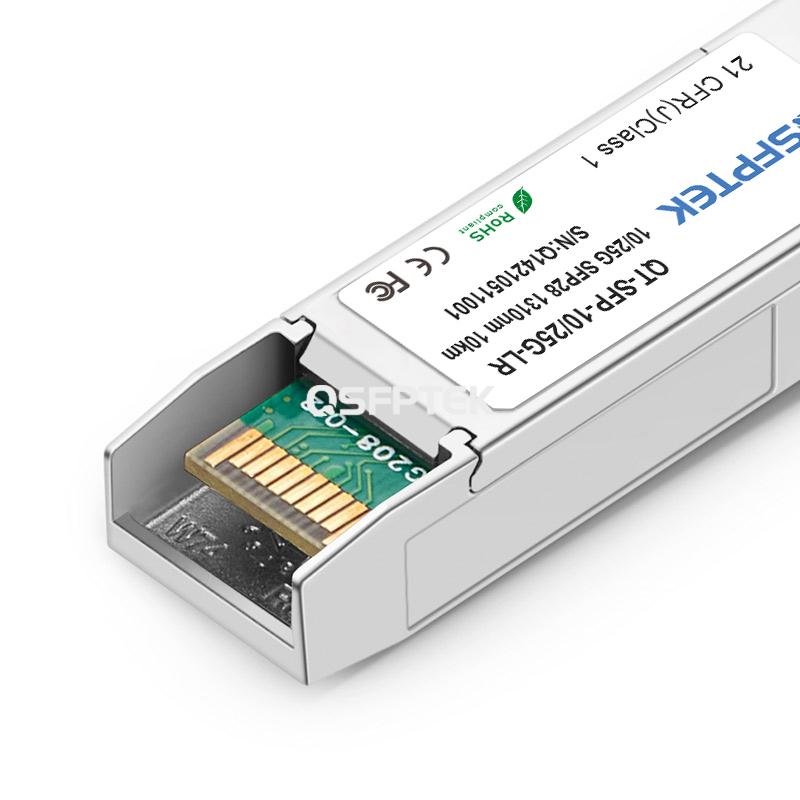

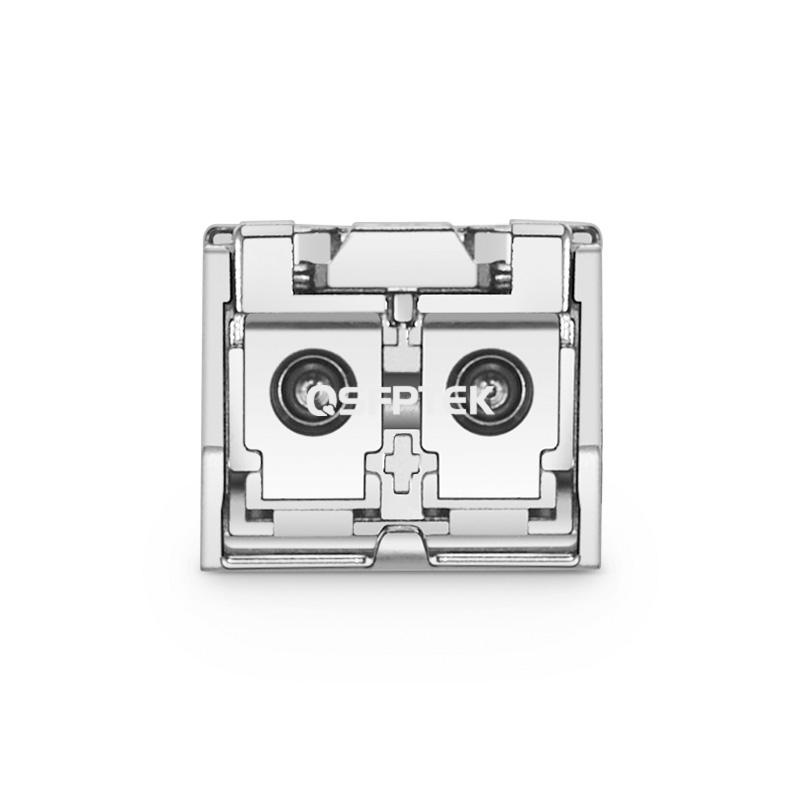

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Product No :100555
US$ 55.00  US$ 62.00
Compatible
5024 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

-
+
1.Low Power Consumption
2.Evaluated for enhanced performance, quality, and reliability in Targeted Switches
3.IEEE 802.3by Compliant
4.10G/25G Dual-rate Support
5.Digital Optical Monitoring capability provides robust diagnostic capabilities
6.Class 1 FDA Laser Safety and RoHS Compliant
See more

Specifications

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 Optical Transceiver Module for Data Center (SMF, 1310nm, 10km, DOM)



The Cisco SFP-10/25G-LR-S compatible SFP28 transceiver allows for data transmission at 10/25GBASE-LR speed over single mode fiber (SMF) for up to 10km, utilizing a 1310nm wavelength and an LC duplex connector. This transceiver offers connectivity options for 25G Ethernet, 10G Ethernet, and data centers. Furthermore, it complies with the SFP28 MSA, SFF-8472, SFF-8402, SFF-8432 standards, as well as relevant sections of the SFF-8431 standard.



Model Name

SFP-10/25G-LR-S

Vendor Name

QSFPTEK

Form Factor

SFP28

Max Data Rate

25.78Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transimitter Type

DFB

Receiver Type

PIN

TX Power

-7~2.5dBm

Receiver Sensitivity

<13.5dBm

Powerbudget

5.5dB

Receiver Overload

2.5dBm

Power Consumption

≤1.5W

Extinction Ratio

>3dB

Commercial Temperature Range

0 to 70°C

Protocols

SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR

Quality Testing Program
Quality Certifications

Features

  • 1. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 2. Protocols
    SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR
  • 3. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
  • 4. Convenient and Flexible Use, Easy to Install, Plug and Play.
    Convenient and flexible usage, ease of installation, and plug-and-play functionality.

Questions & Answers

more+
  • Have undergone any test programs? If yes, what are they?
    This module usually has the following tests: Normal/High Temperature Testing, Power Testing, Eye Diagram Testing, Sensitivity Testing, DDM Monitoring and Ping Package Testing.
  • Is it compatible with my Cisco C9500 series switch?
    You need to check whether the device is equipped with sfp28 ports or not by youself. Or tell us the specific switch model name (like C9500-48Y-4C) and then we'll check it for you. If the swich has bulit-in sfp28 ports, there will be no issue.
  • Can this 25G transceiver run at 10G? On your product page, I see it is connected with OM3/OM4 cables, but I only have OM2 cables, can I use OM2 directly?
    I'm sorry. It can only work at 25Gbps. However, you can use the OM2 cables to connect this 25G transceiver, but pls know the transmission distance would be less than 100m over OM2 cables.
See more
