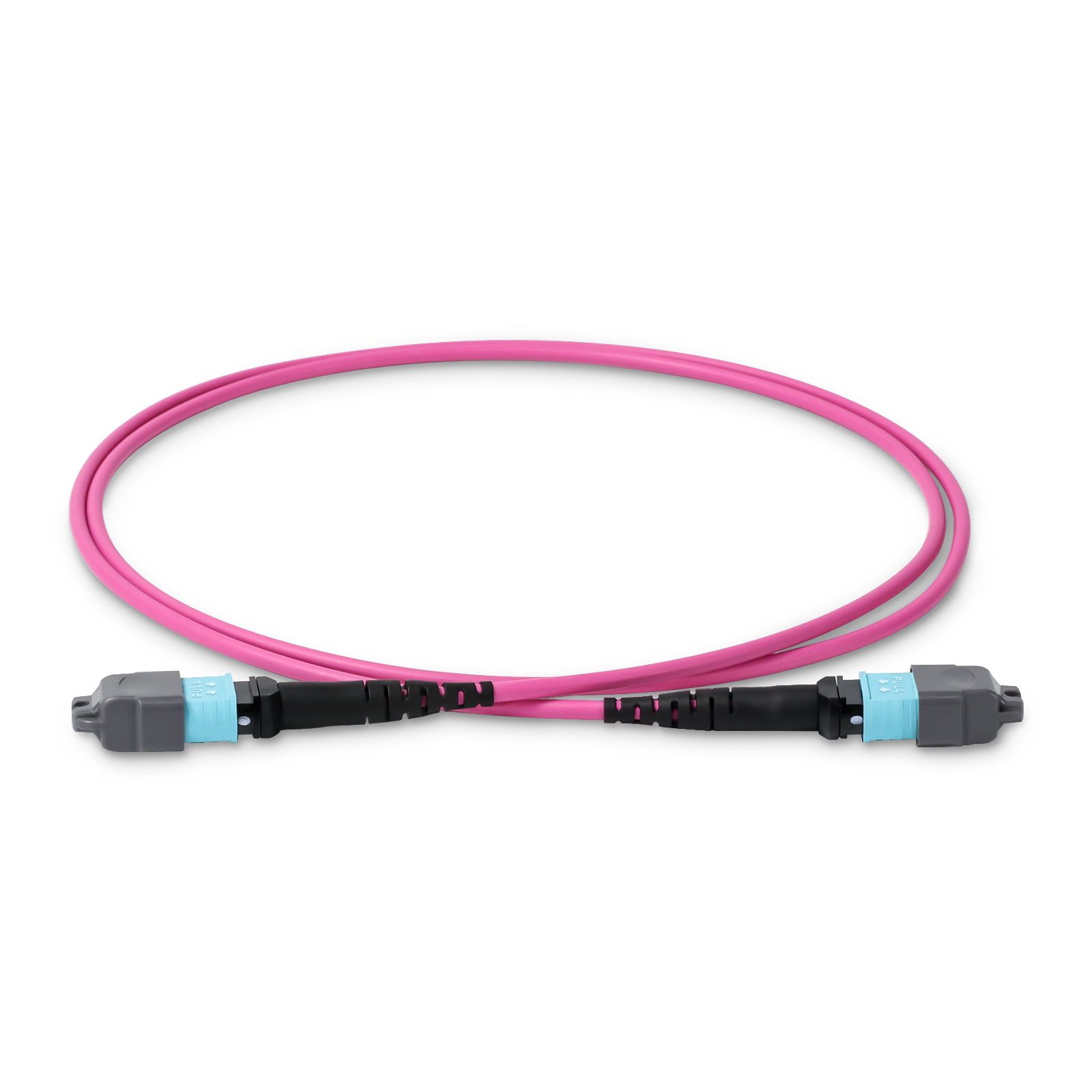

1m (3ft) MPO-16 APC (Female) to MPO-16 APC (Female) OM4 Multimode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Magenta

Product No :103129
US$ 24.10
Series
Length
50 in real-time stock, 20Jun, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. High-density cabling solutions for 100/200G data centers
5. Meticulous design and standard testing ensure stable high-speed data transmission
See more

Specifications

1m (3ft) MPO-16 (Female) to MPO-16 (Female) OM4 Elite Trunk Cable, 16 Fibers, Type B, LSZH



The MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 8 times the density of a standard duplex fiber optic cable connector. This 16 fibers MPO female to MPO female OM4 multimode mode trunk cable is specially optimized for high-speed 100G and beyond interconnection in data centers and telecommunications systems applications.



Connector A MPO Female Connector B MPO Female
Fiber Count 16 Fibers Fiber Type OM4 MMF 50/125μm
Polish Type APC to APC Cable Material LSZH
Armoured no Wavelength 850/1300nm
Insert Loss ≤0.35dB Return Loss ≥30dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius
(Fiber Core)		 7.5mm Min. Bend Radius
(Fiber Cable)		 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term) Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.



Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
