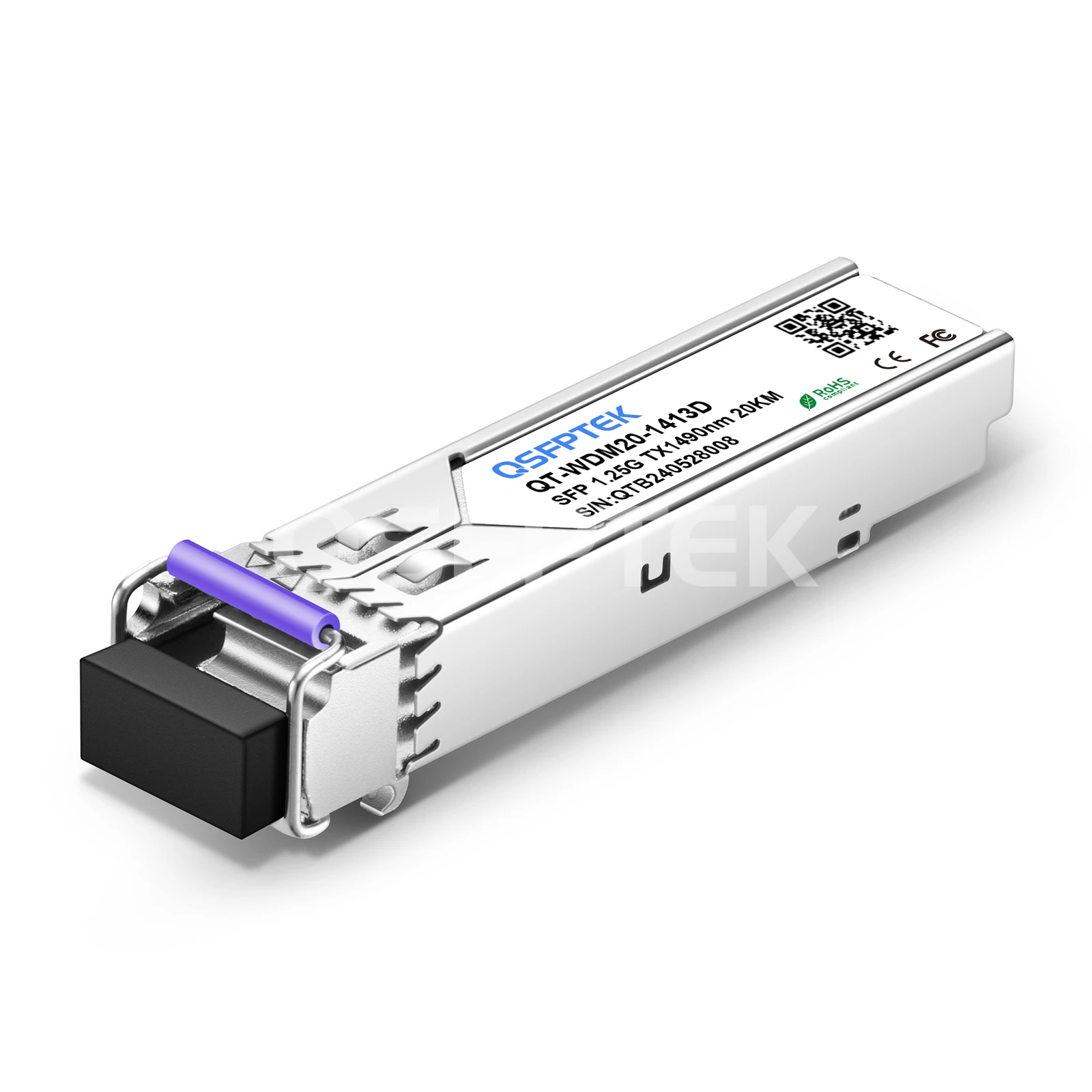

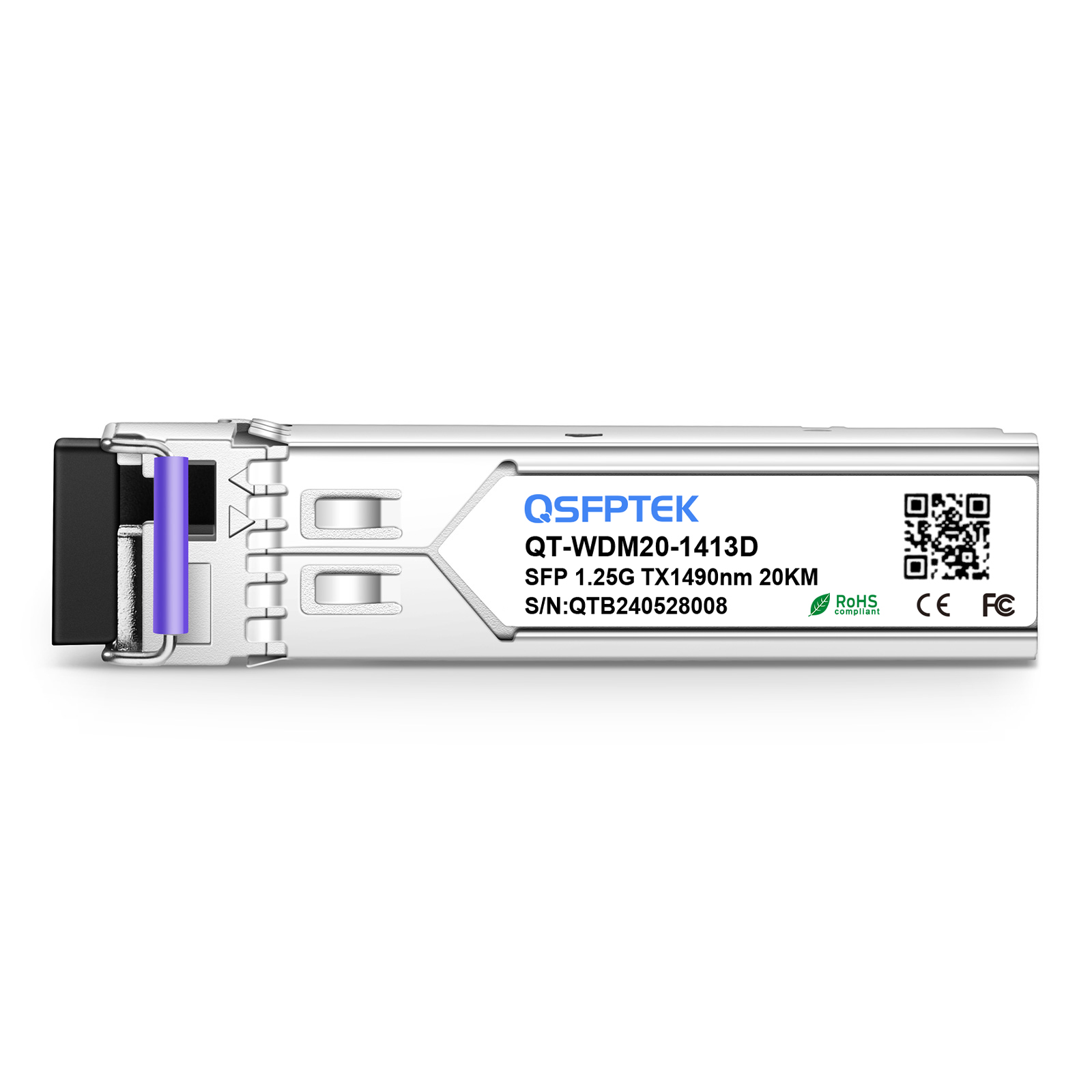

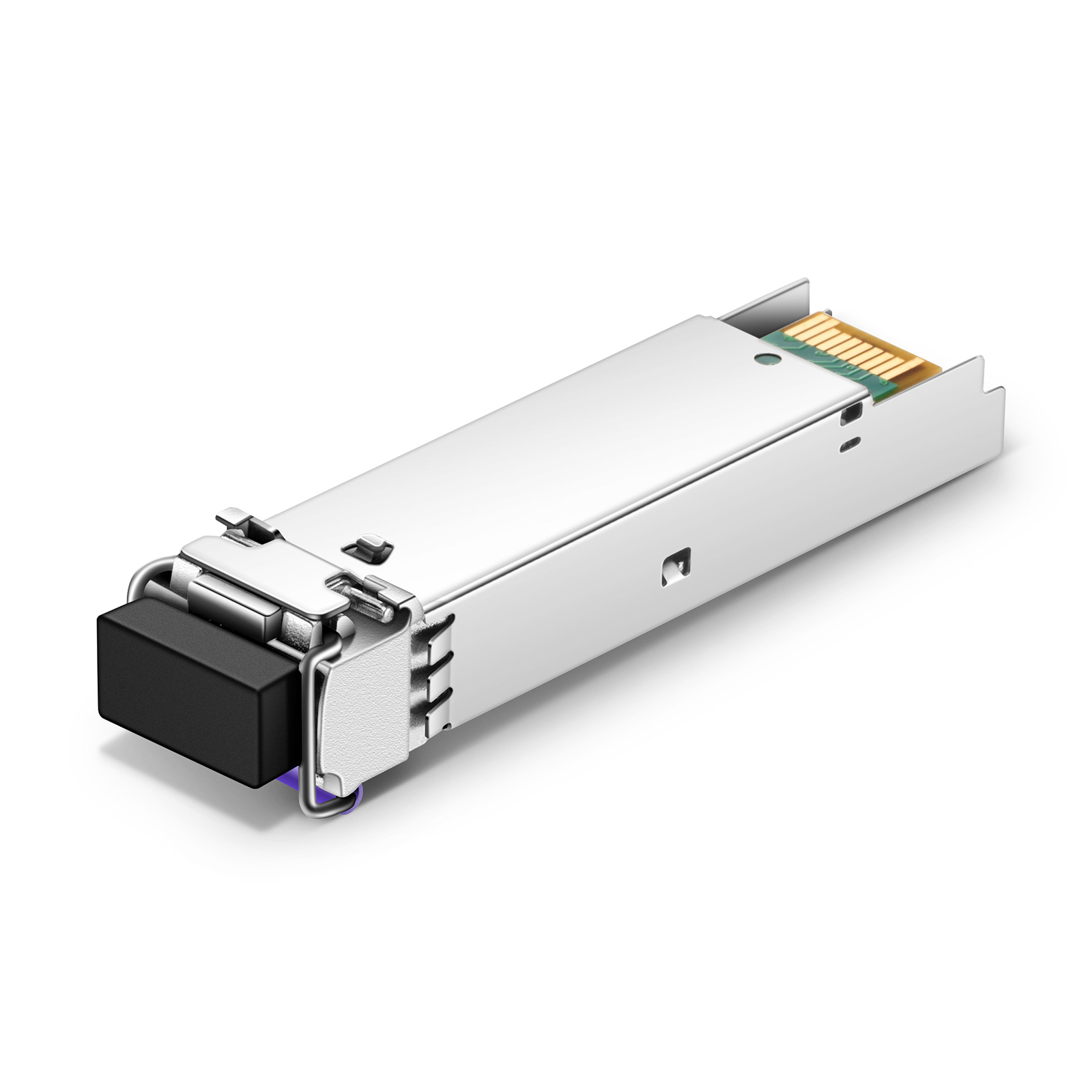

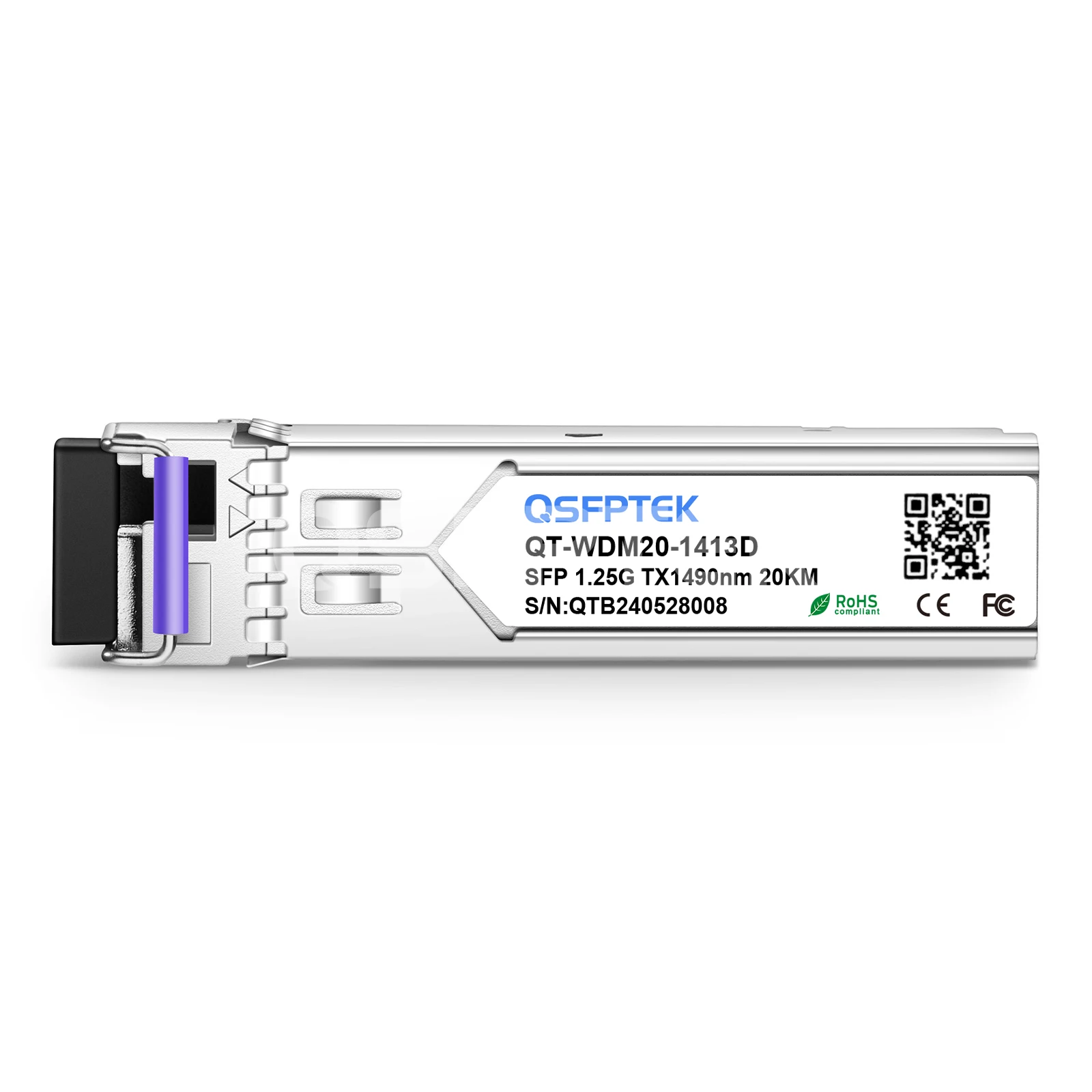

Extreme Networks MGBIC-BX20-D Compatible 1000BASE-BX BiDi SFP 1490nm-TX/1310nm-RX 20km Transceiver Module

Product No :99085
US$ 8.90  US$ 11.13

Specifications

Extreme Networks MGBIC-BX20-D Compatible 1000BASE-BX BiDi SFP 1490nm-TX/1310nm-RX 20km Transceiver Module



The Extreme Networks MGBIC-BX20-D compatible SFP optical transceiver module is equipped with an LC simplex connector, reaching a link up to 3km. This 1G BiDi SFP transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 1G SFP optical transceiver is compliant with MSA, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all OEM brand devices.



Part Number: SFP 1.25G TX49/Rx31 20km Vendor Name: QSFPTEK
Form Factor: SFP Data Rate: 1.25Gbps
Wavelength: 1490nm-TX/1310nm-RX Distance: 20km

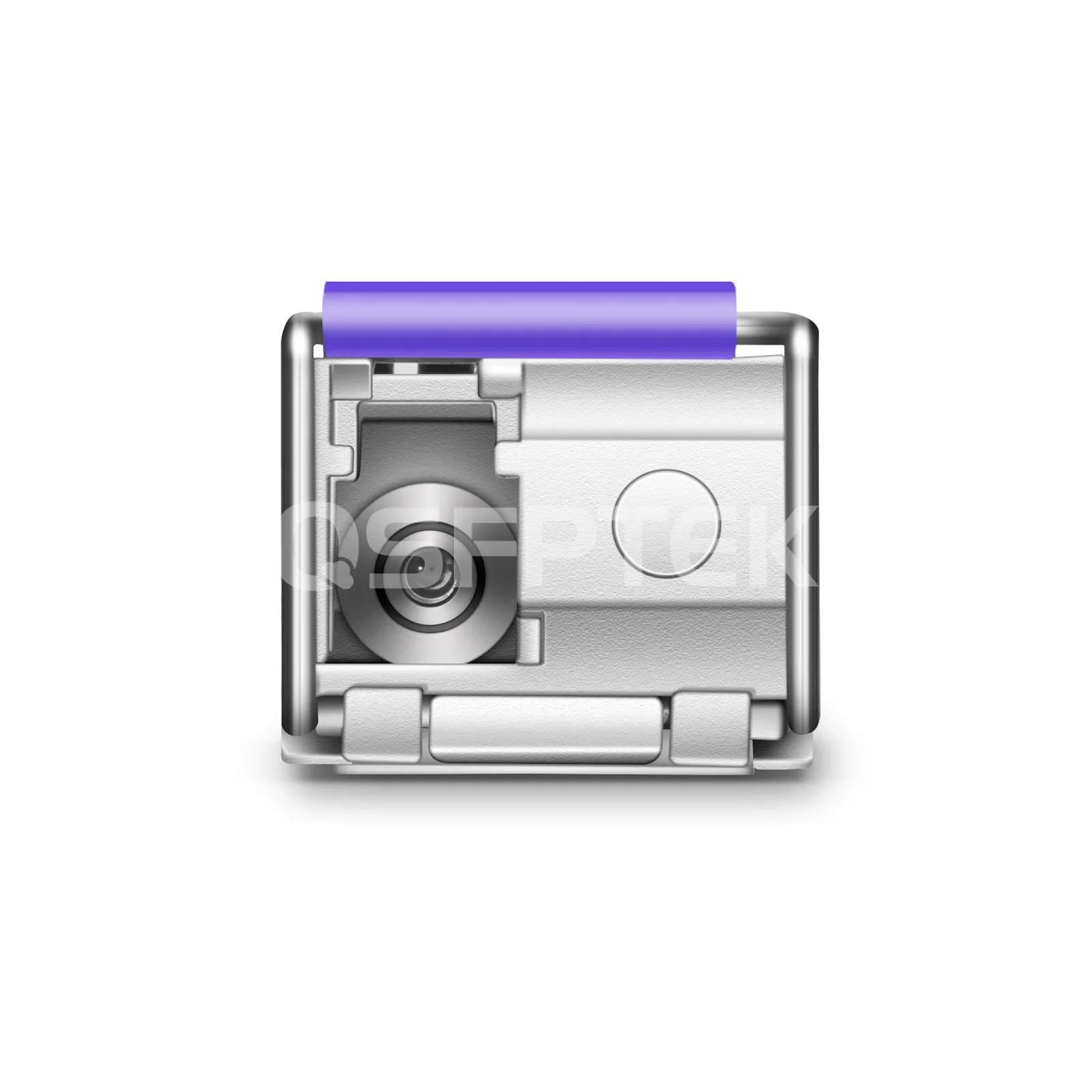

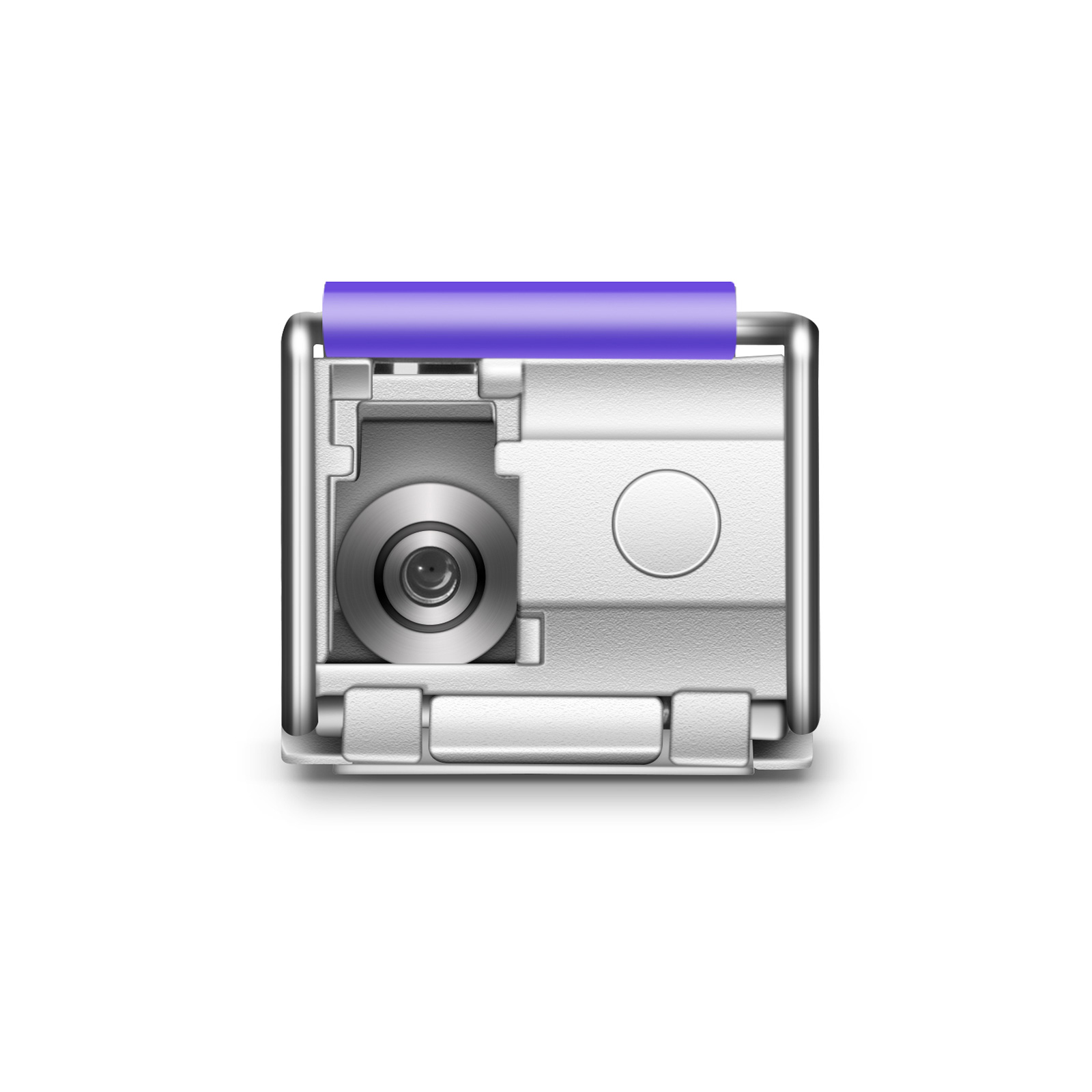

Connector: LC Simplex Cable Type: OS2 SMF
Transmitter: FP Receiver Type: PIN
TX Power: -9~-3dBm Receiver Sensitivity: <-22dBm
Power Consumption: <1W Modulation Format: NRZ
DDM: Support Bit Error Ratio (BER): 1E-12
Protocols: Fast Ethernet, Gigabit Fibre Channel, MSA Compliant Warranty: 3 Years
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Double Your Network Capacity
    One strand is used to carry information in both directions.
  • 3.EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Bidirectional (BiDi) SFP module interconnection over a single fiber





Related Product:

LC to LC OS2 Simplex Fiber Optic Patch Cable for Bidirectional Fiber Optic Transceiver

Product details

Save 50% On Fiber Resources



BiDi SFP module allows data transmitting and receiving over one single fiber, greatly saving network fiber resources and costs.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • I am going to place a 1G BD connection. But I only have OM2. Can the module use om2?
    Pls noted that 1g bidi modules should be used with single-mode fiber, so you can't use om2.
  • I want to use Cisco compatible modules on ub switch, will it work?
    Generally, it will work well. We suggest you send us the model name of your UB switch to help us confirm the compatibility.
  • Can these bidi modules be used for short links (30...100 meters)?
    Yes. You can use the 10km bidi module for short links.
