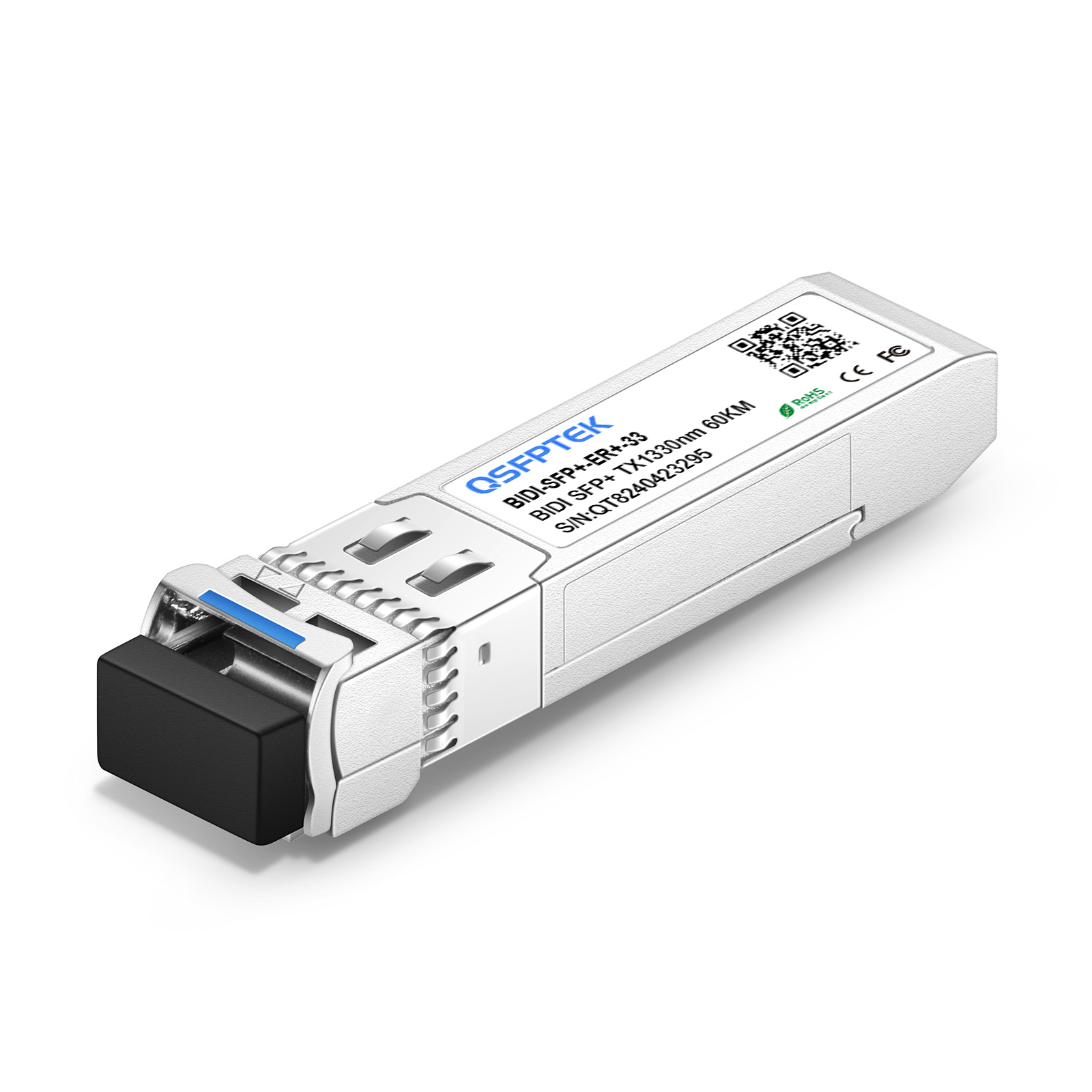

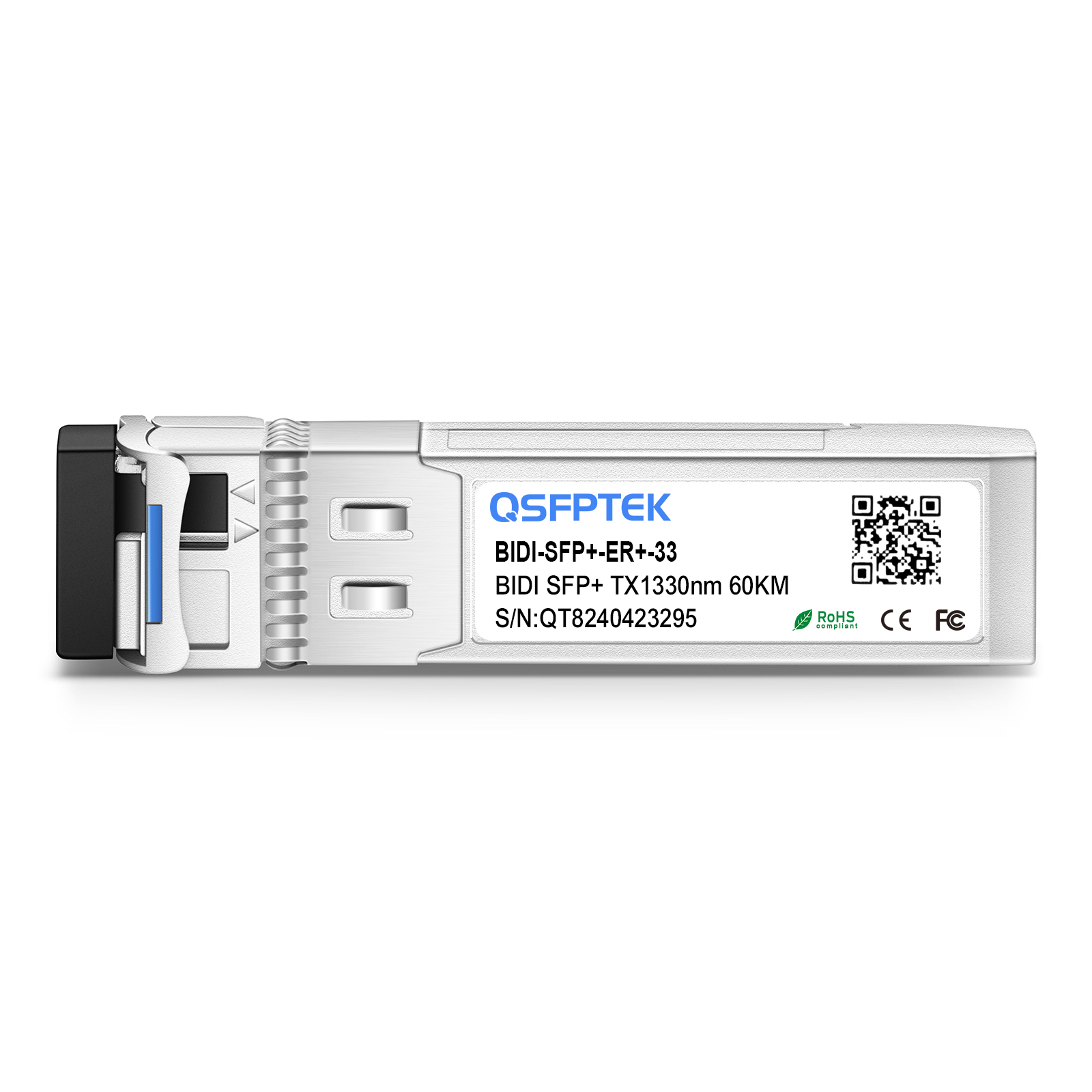

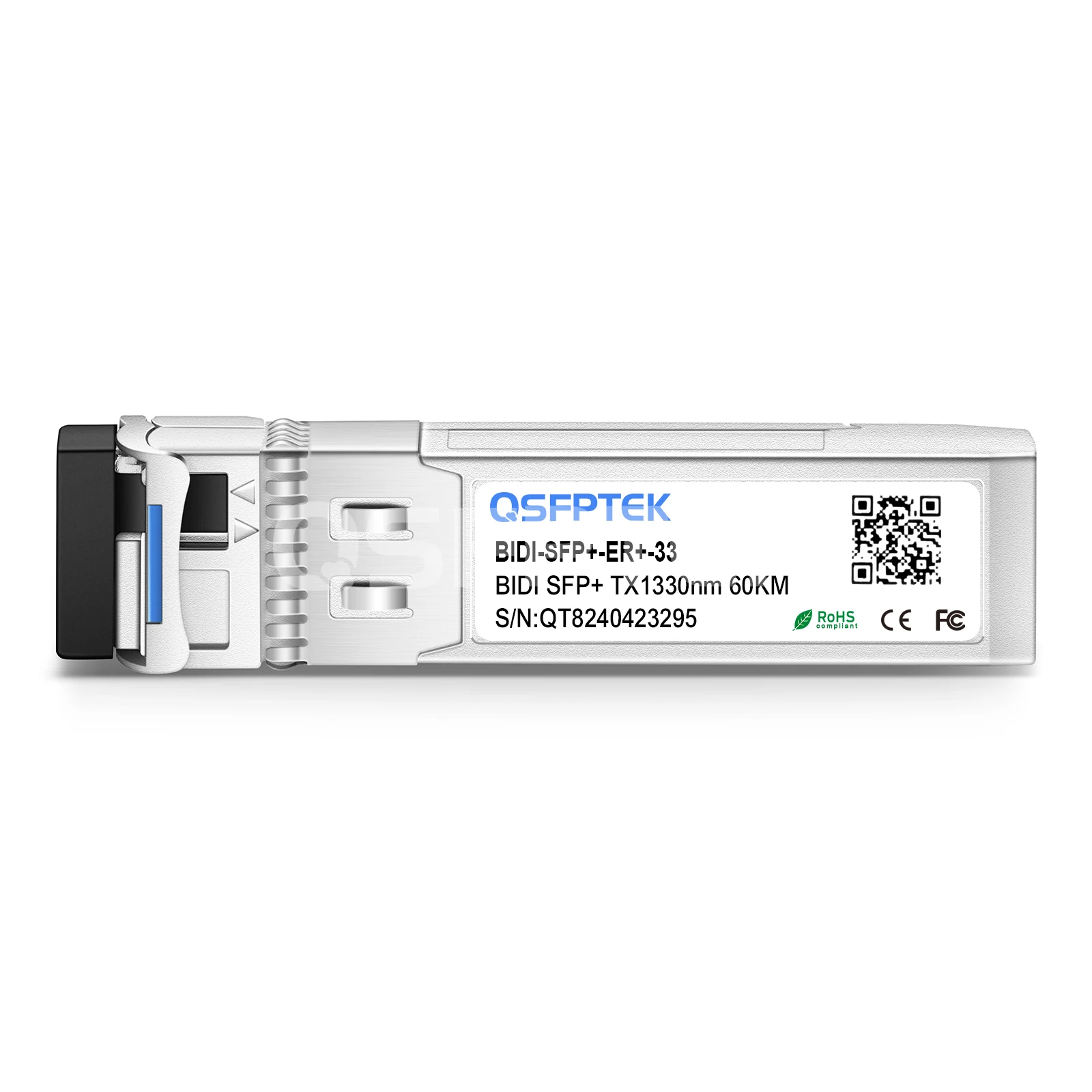

Extreme 10GB-BX60-D Compatible 10GBASE-BX60-D BiDi SFP+ 1330nm-TX/1270nm-RX 60km DDM LC SMF Transceiver

Product No :100121
US$ 49.90  US$ 79.90
200 in stock
Free Shipping over US$ 84.9 US/EU Warehouses in stock, Overnight Shipping
Connector: Duplex LC; with DDM
Low Power Consumption <1W
Ideal for Campus network, Metro network, Long-Haul etc
Compatible with 200+ Vendors
Hot Pluggable SFP MSA Compliant
See more

Specifications

Extreme 10GB-BX60-D Compatible 10GBASE-BX60-D BiDi SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX,60km, LC, DDM)



Extreme 10GB-BX60-D compatible SFP+ optical transceiver is equipped with an LC simplex connector, reaching a link up to 60km over G.652. This 10G BiDi SFP+ transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. QSFPTEK manufactured 10GBASE-BX BiDi SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Cisco devices.



Model Name:

SFP-10G-BX60D

Vendor Name:

QSFPTEK

Form Factor:

SFP+

Data Rate:

10Gbps

Wavelength:

1330nm-TX/1270nm-RX

Distance:

60km

Connector:

LC Simplex

Cable Type:

OS2 SMF

Transmitter Type:

DFB

Receiver Type:

PIN

TX Power:

1~-5dBm

Receiver Sensitivity:

<-20dBm

Power Consumption:

<1W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1E-12

Protocols:

Fast Ethernet, Gigabit Fibre Channel, MSA Compliant

Warranty:

3 Years





Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Double Your Network Capacity
    One strand is used to carry information in both directions.
  • 3. Protocols
    Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Bidirectional (BiDi) SFP+ module interconnection over a single fiber





Related Product:

LC to LC OS2 Simplex Fiber Optic Patch Cable for Bidirectional Fiber Optic Transceiver

Product details

Save 50% On Fiber Resources



BiDi SFP+ module allows data transmitting and receiving over one single fiber, greatly saving network fiber resources and costs.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • Are QSFPTEK SFP+ BiDi modules MSA compliant?
    Yes, our SFP+ BiDi transceivers are IEEE 802.3ae, SFP+ MSA compliant, and support multi-vendor devices.
  • Does anyone know if the BiDi SFP+ transceiver will work in Cisco (WS-C3850-48F and Nexus 93180YC-FX) and Mikrotik (RB3011UiAS-RM) switches?
    Yes, it compatible with your Cisco and Mikrotik switches, and the BIDI transceivers should be used in pairs.
