1U Cat6 Patch Panel 24-Port - RJ45, UTP, Rackmount, Feed-Through, 19 inch

Product No :100069
US$ 27.00  US$ 40.00
Accessory Series
Accessory Models
100 in stock
1. Meets TIA/EIA 568-B/EC11801 standard
2. 24 ports for high-density cabling solution
3. Compatible with Cat5e/Cat6
4. For 1000BASE-T & 10GBASE-T Application
5. Terminates 4-pair, 22–26 AWG Twisted Pair Cable with T568A/B Schemes
See more +

Specifications

1U 24-Port Cat6 Patch Panel ( RJ45, UTP, Rackmount, Feed-through, 19 inches) for 10/100/1000BASE-T and 10G-T Cable Management



QSFPTEK Cat6 patch panel is equipped with 24 ports for patching up to 24 Ethernet cable bundles and a wide range of cable options, Cat5e Cat6 are all compatible. The Category 6 patch panel is compliant with EIA/TIA standards. This rack mount patch panel can be installed in any 1U 19-inch rack or cabinet in data centers. Each of the 24 ports front and back is number-coded in a line to offer easy identification of cable runs. Besides, every front port on the Cat 6 feed-through patch panel is reserved with a blank label for custom annotation.



The UTP patch panel 24 port Cat6 is a plug-n-play cable management solution to organize high-density Ethernet copper cables for 1000BASE-T & 10GBASE-T applications and boost rack space utilization.



Rack Unit 1U Ports 24
Compatibility Cat5e/Cat6 Shielding Type Unshielded (UTP)
Connectors RJ45 Standard TIA/EIA 568-B/EC11801
Installation Rackmount Dimensions(HxWxD) 1.75"x19"x3.62" (44.5x482.5x92mm)
Quality Certifications

Features

  • Number coded and blank label support custom mark
  • Cat5e/Cat6 Cables/Couplers Compatible
  • For 1000BASE-T & 10GBASE-T Appliaction
  • Rack-mounted to any 1U 19'' rack
Number coded and blank label support custom mark
Cat5e/Cat6 Cables/Couplers Compatible
For 1000BASE-T & 10GBASE-T Appliaction
Rack-mounted to any 1U 19'' rack

Applications

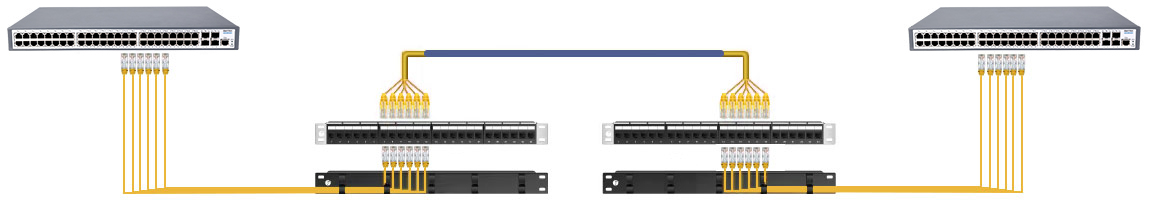

Deploying the Cat 6 patch panel to organize copper patch cable runs







Cable Management Products:

1. Cat6 patch panel 24 port

2. D-ring horizontal cable manager

Product details







Questions & Answers

more+
  • Can I use this Cat6 patch panel for a mix of Cat5e and Cat6 cabling?
    Yes, this model is compatible with both Cat5e and Cat6 patch cables.
  • Are the cable ties included in the product?
    I'm sorry it is not covered. If you need cable ties to fix the cable, please consult our sales for a quotation.
  • Do I need to buy extra RJ45 adapters?
    This patch panel has pre-assembled 24 RJ45 couplers. Unless you need to color-code specific ports, no need to purchase extra couplers to replace the reloaded ones.
