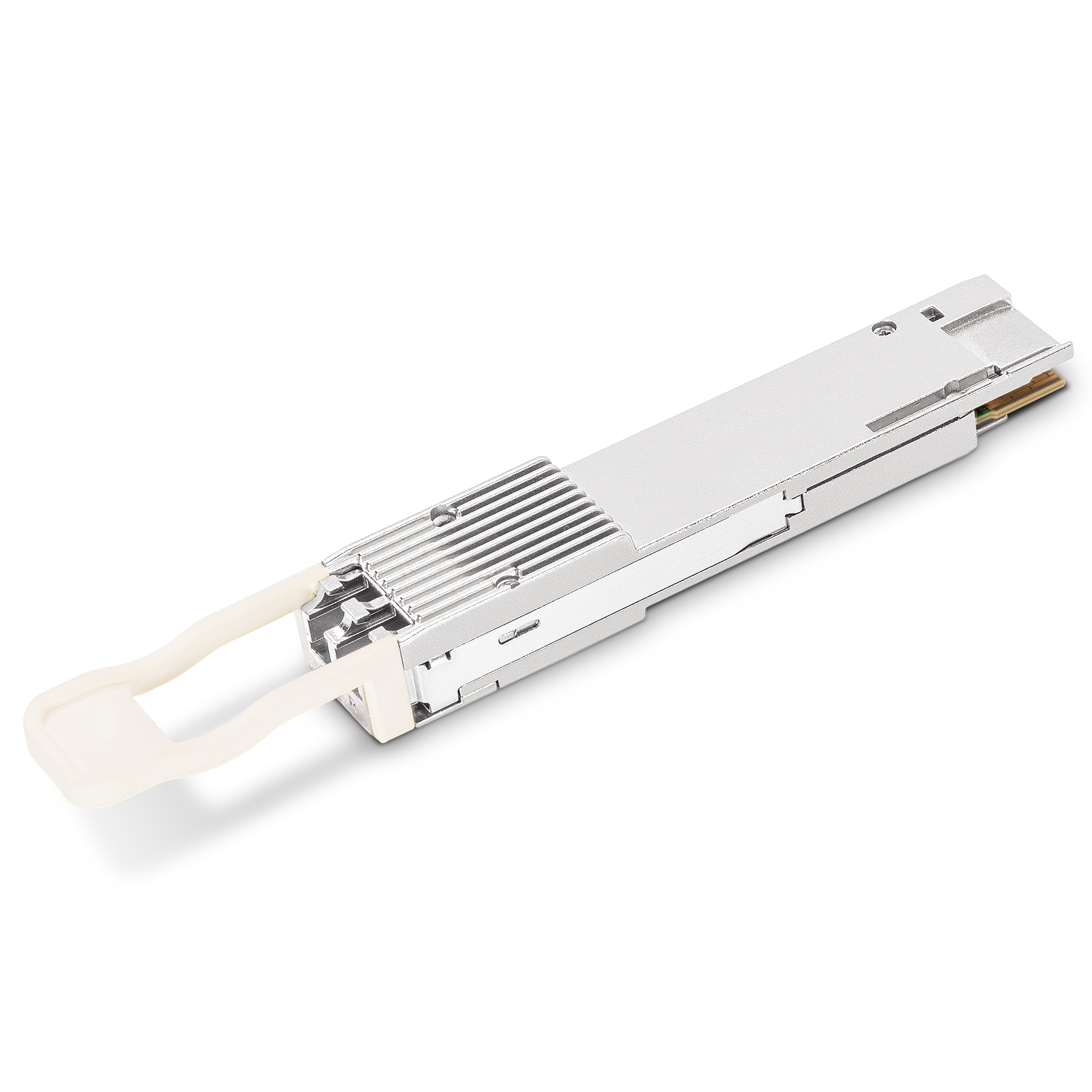

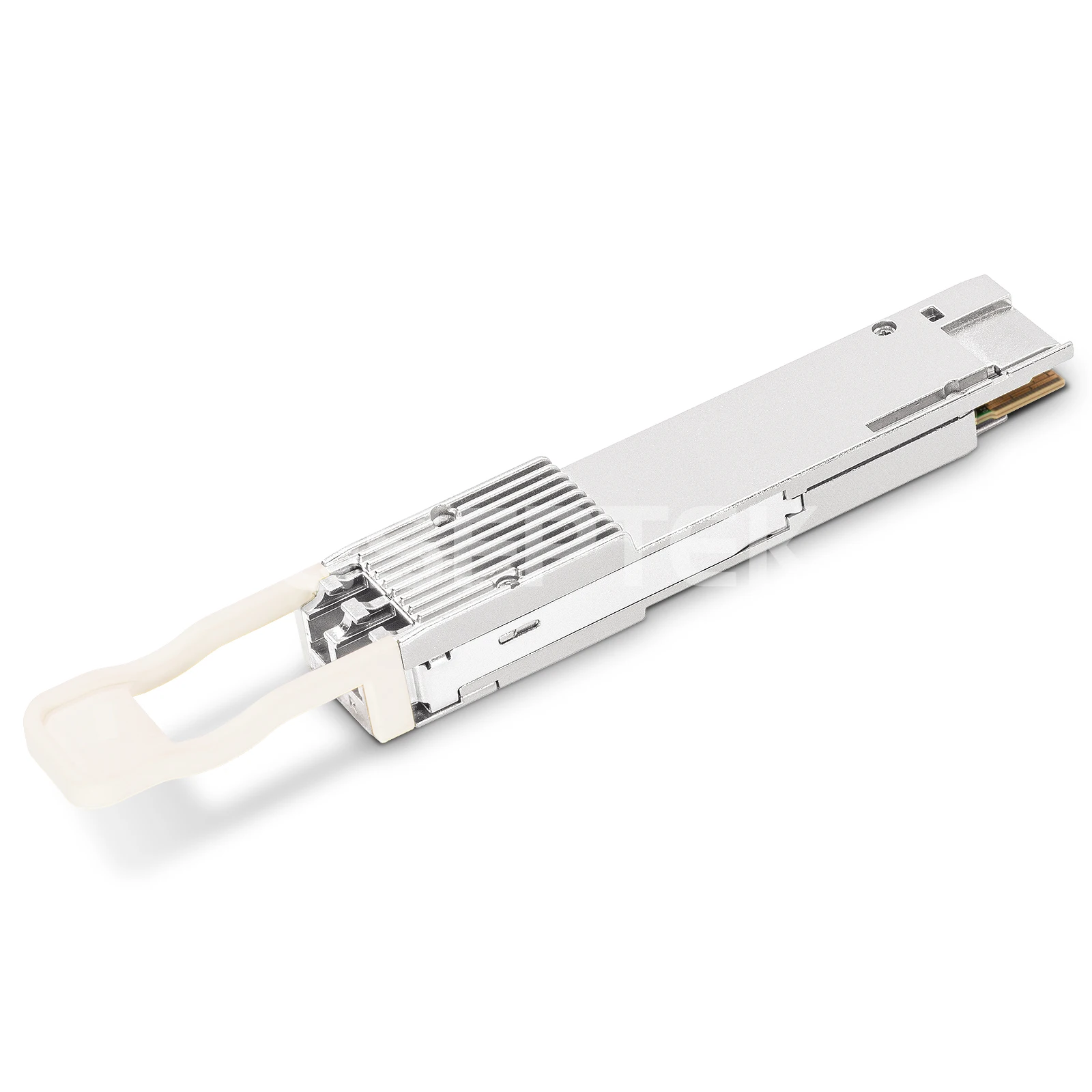

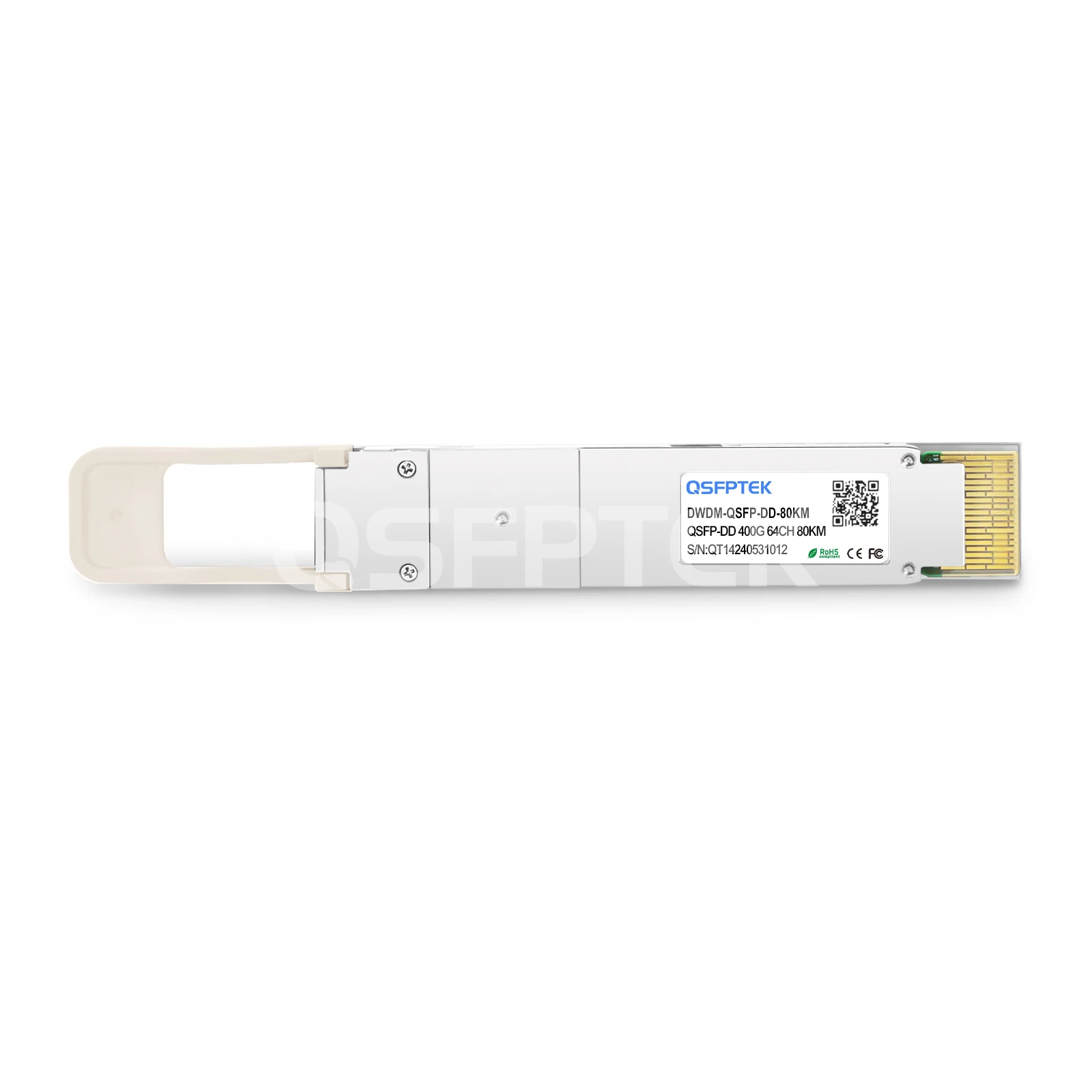

Generic Compatible 400G DWDM Tunable QSFP-DD DCO 80km DOM Duplex LC SMF Transceiver Module

Product No :100528
US$ 4699.00  US$ 5799.00
Compatible
Transceivers type
0 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=61D122AC0E56E3DA7B907755B2A87DB8
-
+
Add to Cart Bulk Order Quotes
1. The Inphi Chip integrated into the device has a maximum power consumption of 16.5W.
2. Tested in specific switches to ensure superior performance, quality, and reliability.
3. Using DWDM technology, multiple applications can be transmitted over a single duplex fiber.
4. By adjusting the wavelength, the network can become more adaptable to future growth.
5. The hot-pluggable QSFP-DD form factor
6. Adhering to the high-speed electrical compliance standard IEEE Std 802.3™-2018.
7. Fully compliant with QSFP-DD MSA CMIS Rev5.1 and OIF 400ZR.

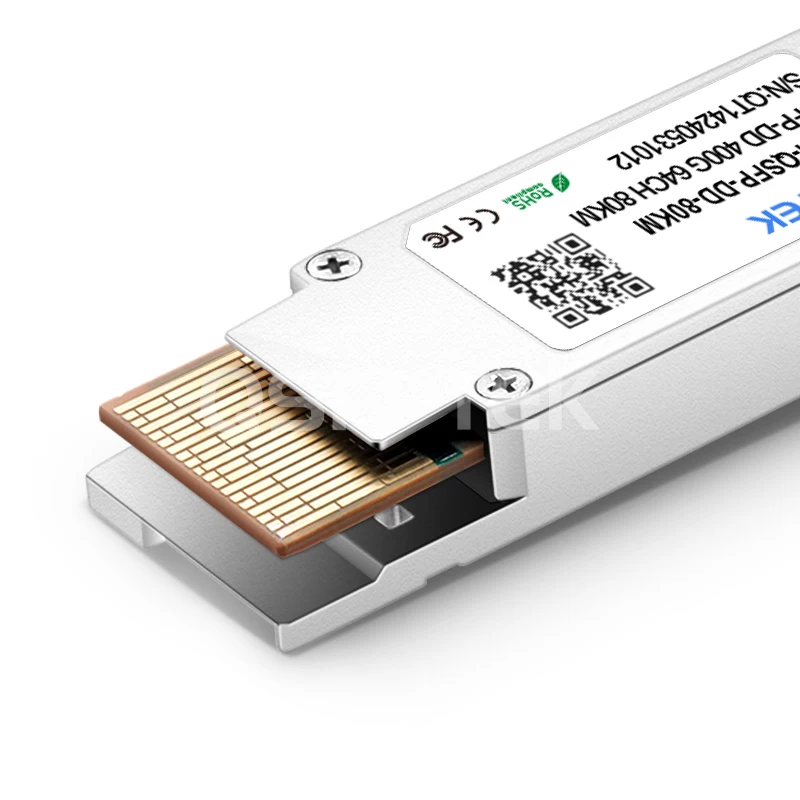

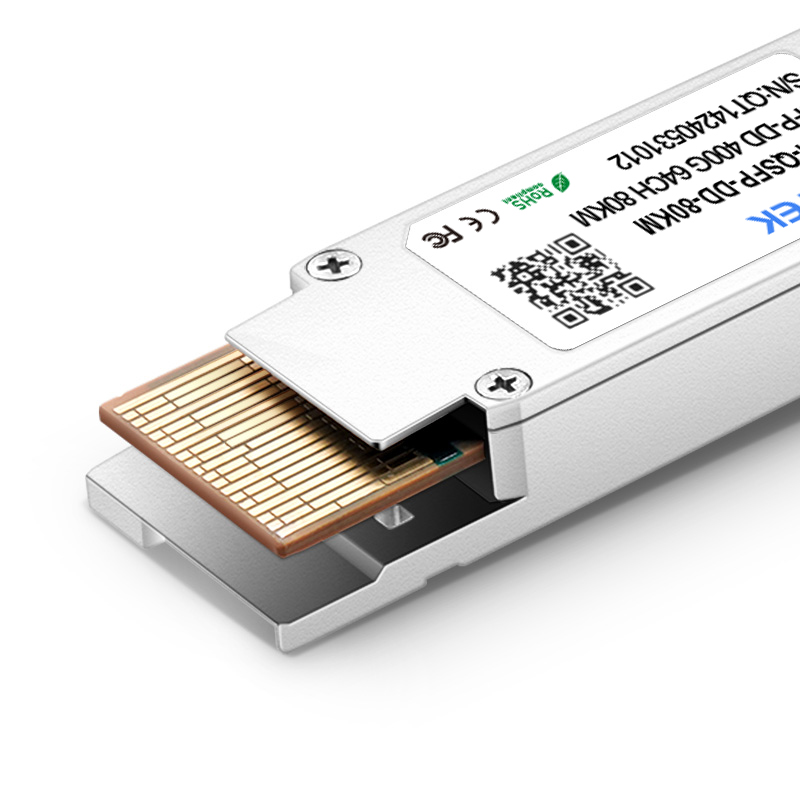

8. The 8x50G PAM4 retimed 400GAUI-8 electrical interface.
See more

Specifications

Generic Compatible 400G Tunable DWDM Coherent QSFP-DD DCO Transceiver (80km, 1567.13nm-1528.77nm, LC Connector, DOM)



The 400GBASE-ZR transceiver conforms to OIF 400ZR and QSFP-DD MSA standards and is designed to be used with a host platform for 400G transmission over optical links in DCI applications. It can provide 400Gb/s of optical bandwidth using coherent, Dual Polarization-16QAM modulation with a single optical wavelength. The transceiver can support link lengths up to 80km using EDFA over SMF and comes equipped with duplex LC connectors.



Part Number QSFPDD-ZR-400G Vendor Name QSFPTEK
Form Factor QSFP-DD Max Data Rate 425Gbps (8x 53.125Gb/s)
Wavelength 1528.77-1567.13nm Max Cable Distance 80km

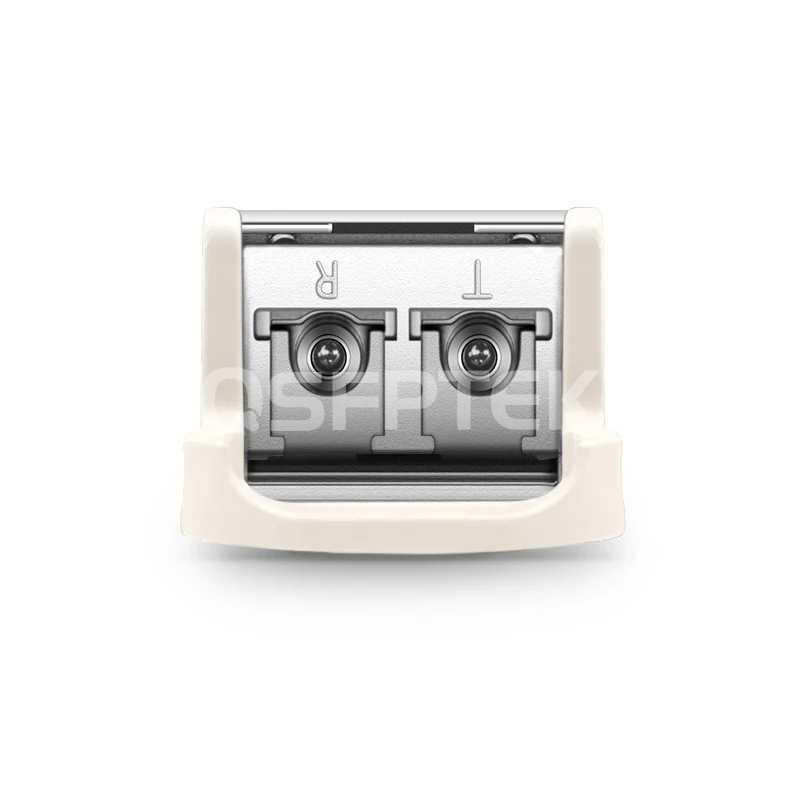

Connector Duplex LC Media SMF
Transmitter Type TROSA Receiver Type PIN
TX Power -10~-6dBm Minimum Receiver Power -12dBm
Power budget 2dB Receiver Overload 0dBm
Power Consumption ≤16.5W Extinction Ratio NA
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
Inbuilt FEC No Modulation Format 16-QAM
Protocols IEEE Std 802.3™-2018, QSFP-DD MSA, CMIS 4.0, OIF-400ZR-01.0 Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. Advanced Technology
    Features DP-16QAM modulation technology and built-in inphi chip
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Compliant with IEEE 802.3 standards and CFP2 MSA and QSFP-DD MSA standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Scenario 1: 400G Direct Connection



400G QSFP-DD Direct Connection



Scenario 2: 400G Mixed-transmission



400G Mixed-transmission

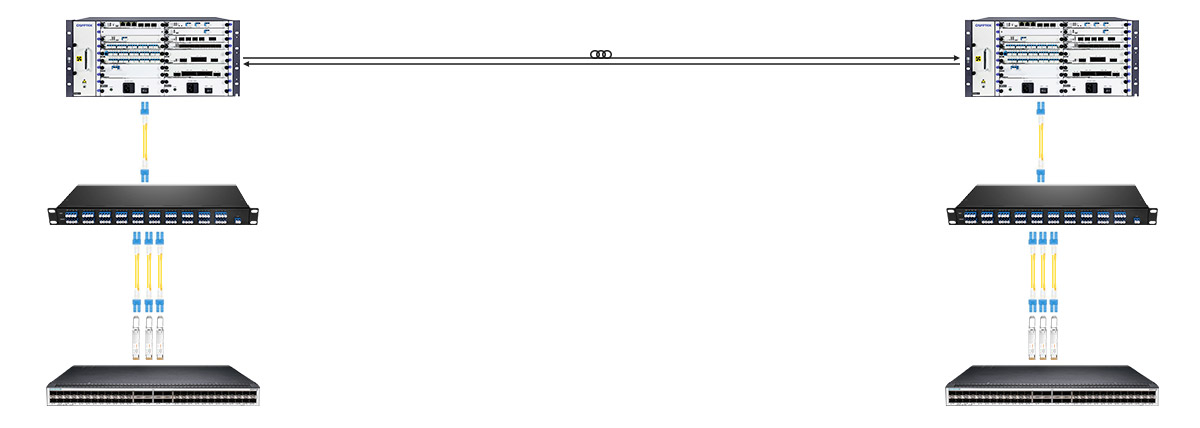

Scenario 3: 400G Structured Cabling Connection



400G Structured Cabling Connection

Product details

Move To 400G Ethernet Network



With its attributes of 18W low power consumption, high density, and rapid data transmission capabilities, the QSFP-DD transceiver provides an efficient solution for swiftly achieving 400G data transmission.



400G QSFP-DD Connection

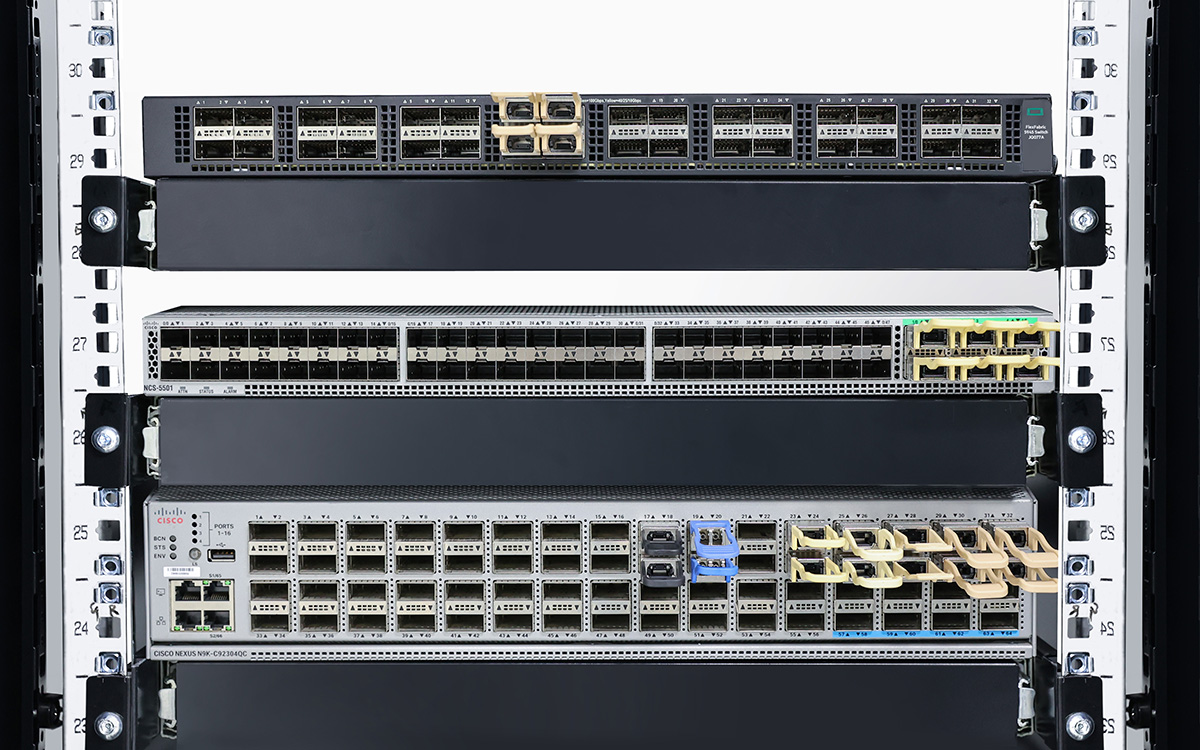

Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.







 400G Coherent Network Application For Data Center



QSFPTEK has unveiled a pair of cutting-edge 400G pluggable optical modules. The first variant, the QSFP-DD module, is designed primarily for -ZR 80km applications, while the CFP2 module caters to comprehensive multi-service DWDM requirements. Employ these state-of-the-art 400G modules to seamlessly transition your data center into the forefront of 400G network technology.



400G Application



 Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



Every module is qualified

;jsessionid=61D122AC0E56E3DA7B907755B2A87DB8

Questions & Answers

more+
  • I want 400G ZR optics for DCI applications up to 400km reach, can you recommend a product?
    Go for DWDM-QSFP-DD-480KM, which is not online, please contact sales for a quotation.
  • What is the maximum supported distance for 400G coherent DWDM transceivers?
    The maximum distance currently supported by QSFPTEK 400G ZR QSFP-DD transceivers is about 480km while 400G CFP2 DCO is 640km.
  • What type of optical connectors do the transceivers use?
    The 400G ZR QSFP-DD DCO and CFP2-DCO modules use duplex LC fiber connectors.
