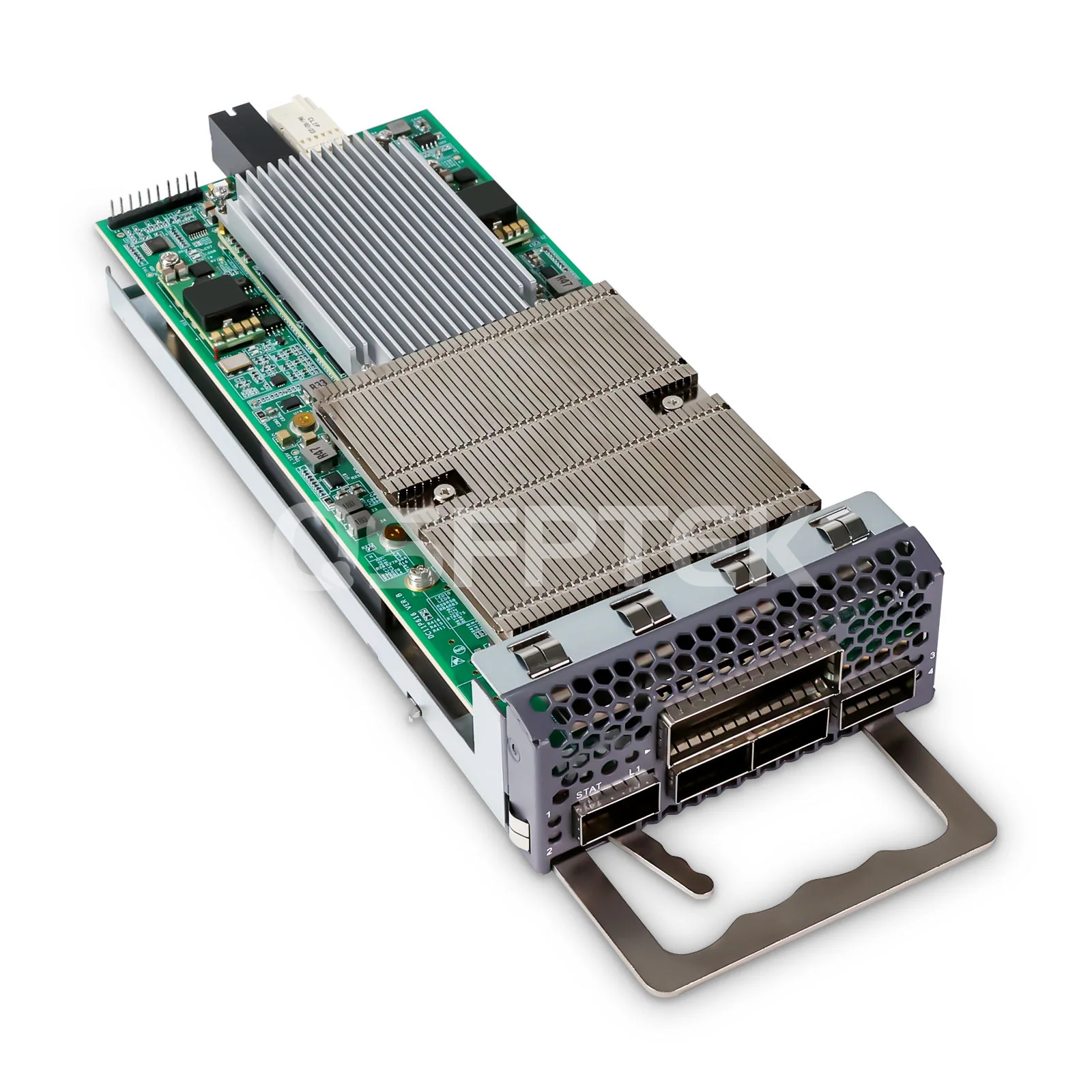

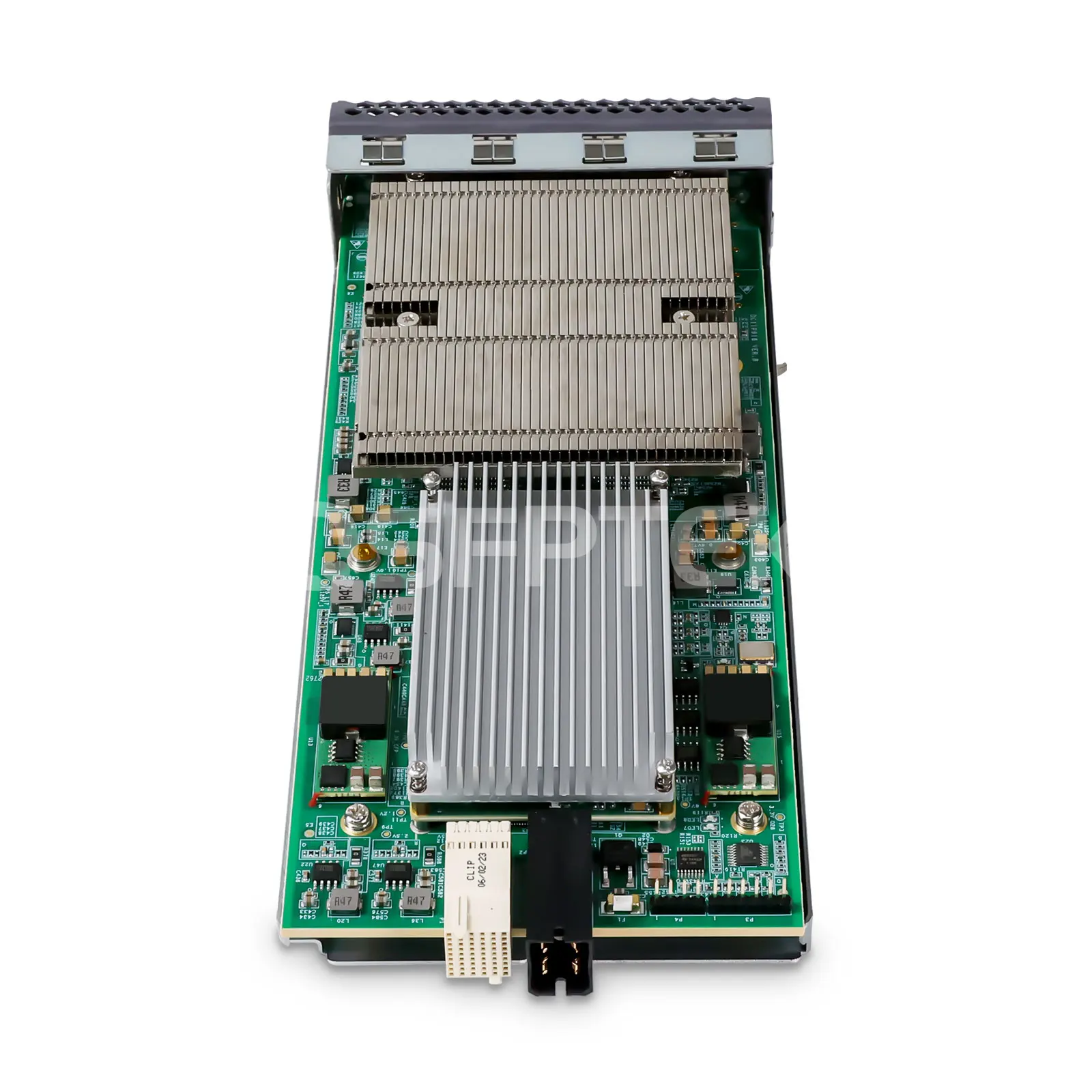

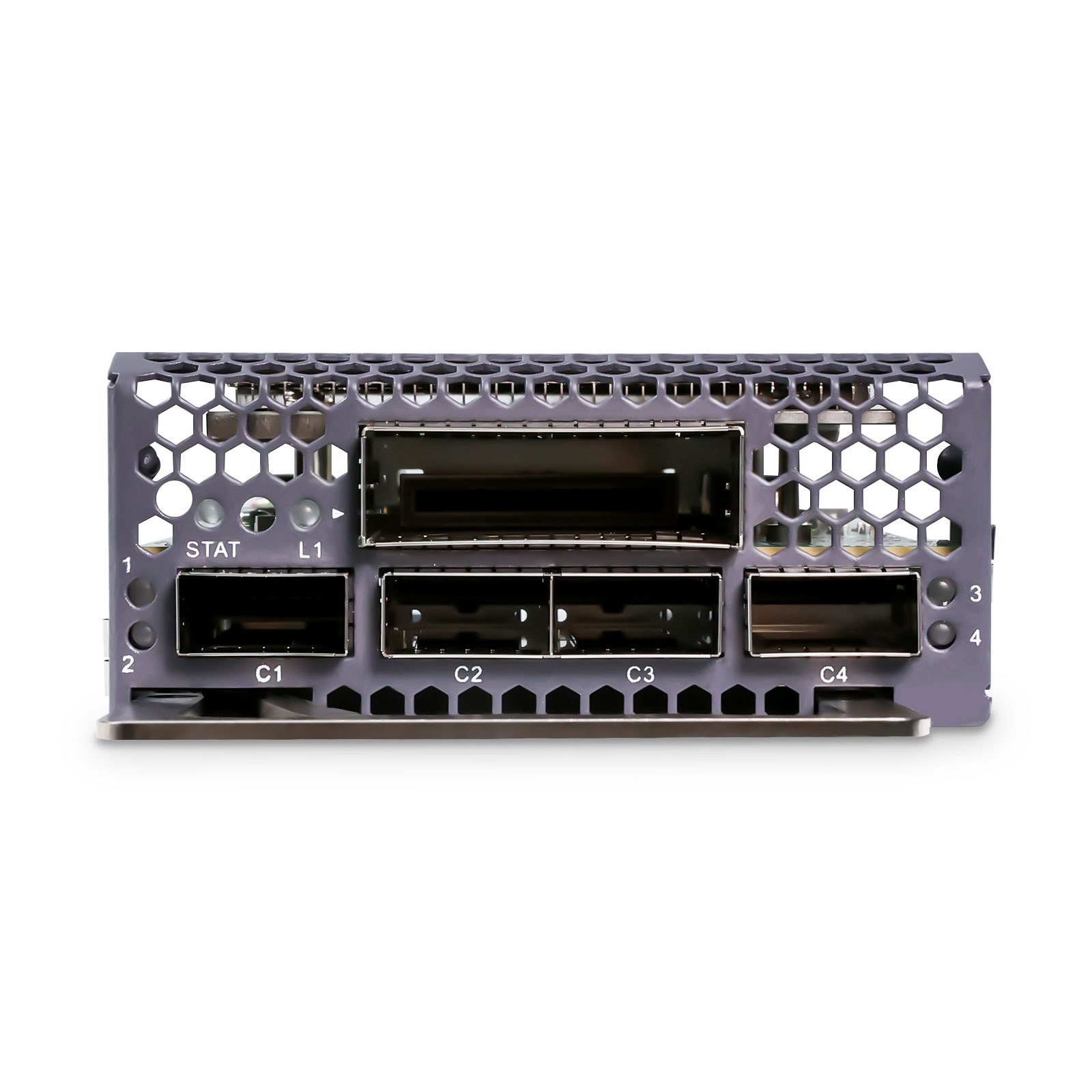

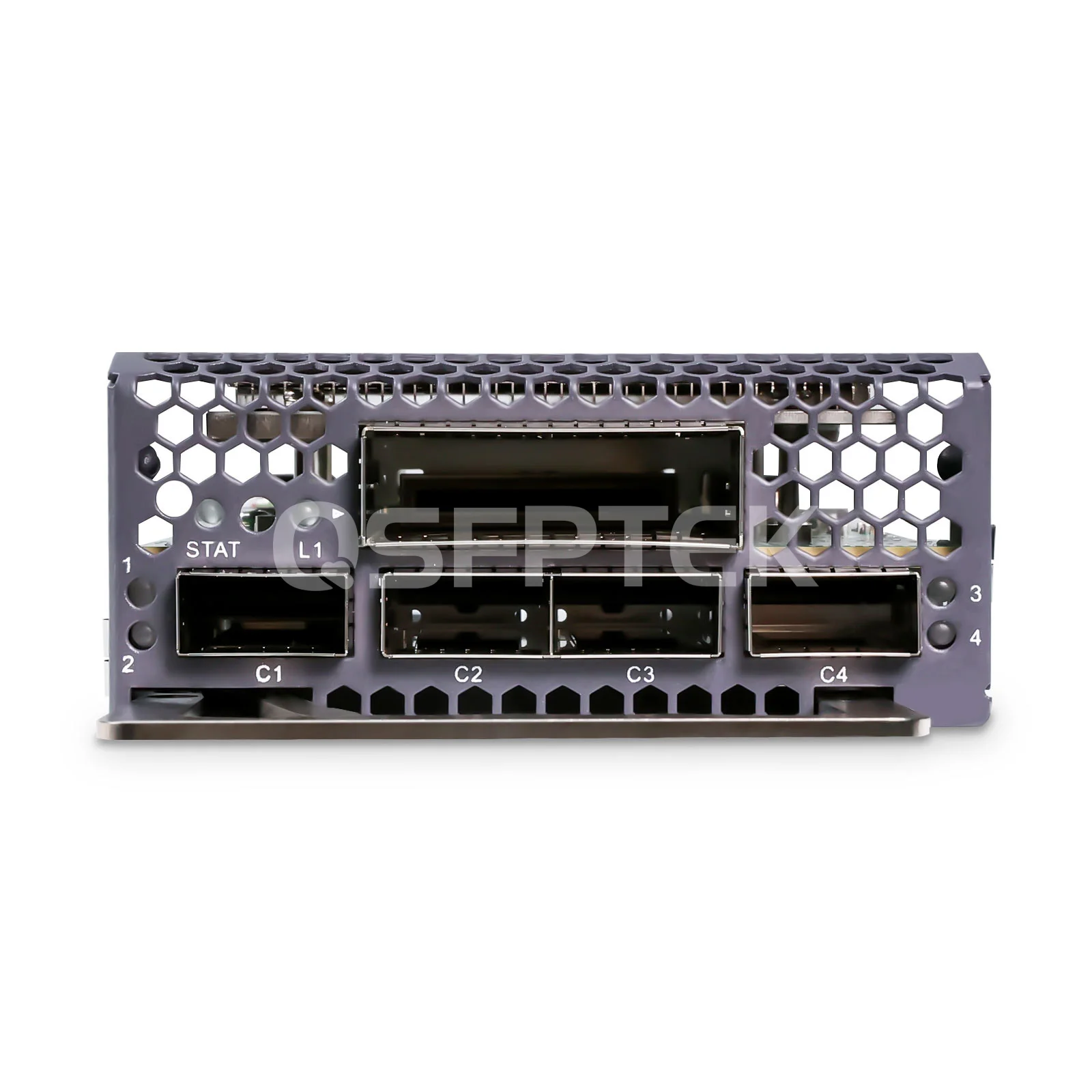

QT900-400GCM41, 1x400G QSFP-DD/4x100G QSFP28 to 1x400G CFP2 Muxponder for QT900 Chassis

Product No :102416
US$ 1961.90  US$ 1999.00
Series
100 in stock
;jsessionid=EE7349C1E97F78AA18728B38634A5F46
-
+
1. 400G PDM-16QAM modulation for the highest capacity up to 600km
2. Supports Telemetry and LLDP
3. Employing Super-FEC for Robust Error Correction and Enhanced Fault Tolerance
4. Provides multiple multi-layer network-level and device-level protection solutions
5. Supports CLI, NETCONF and B/S based GUI management platform
See more

Specifications

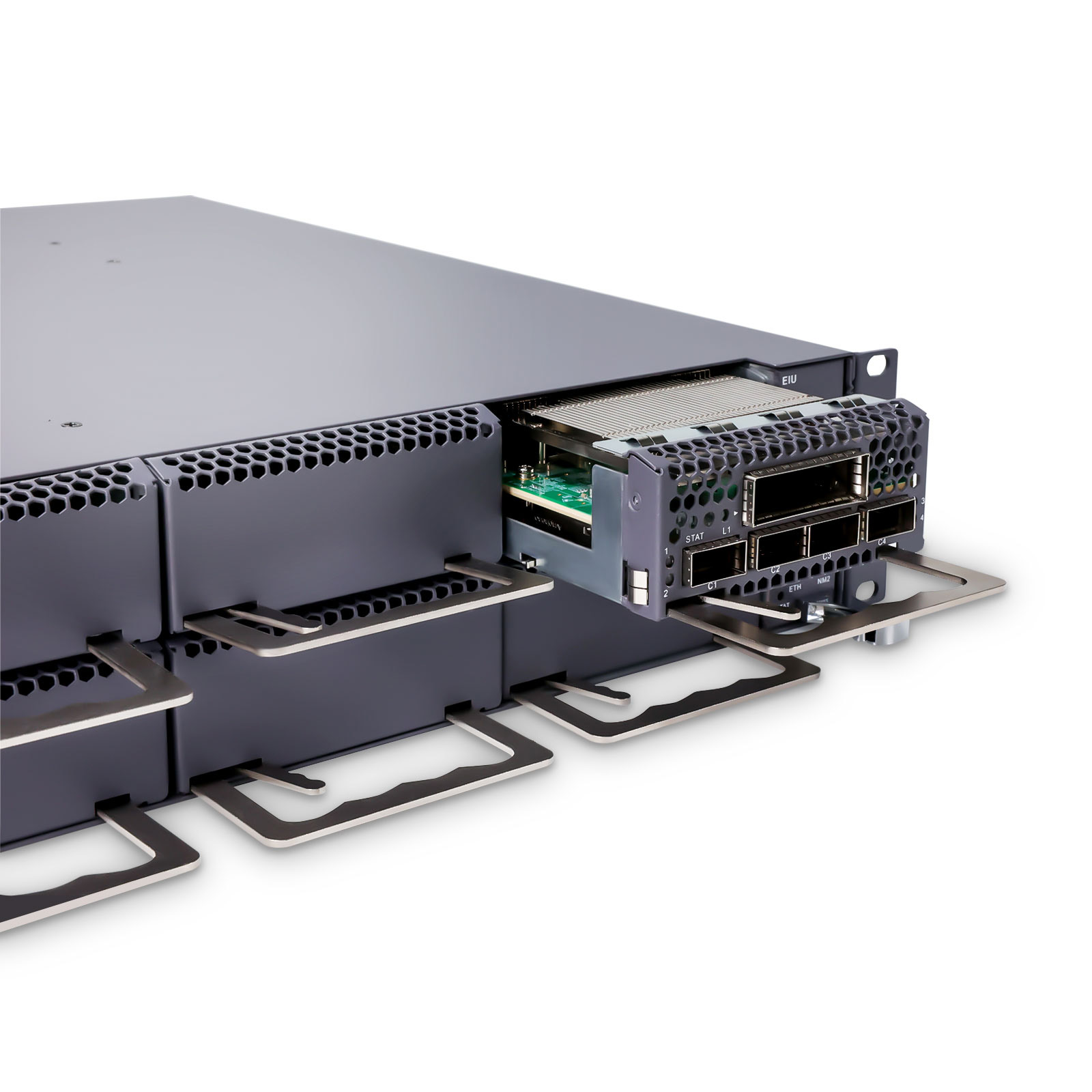

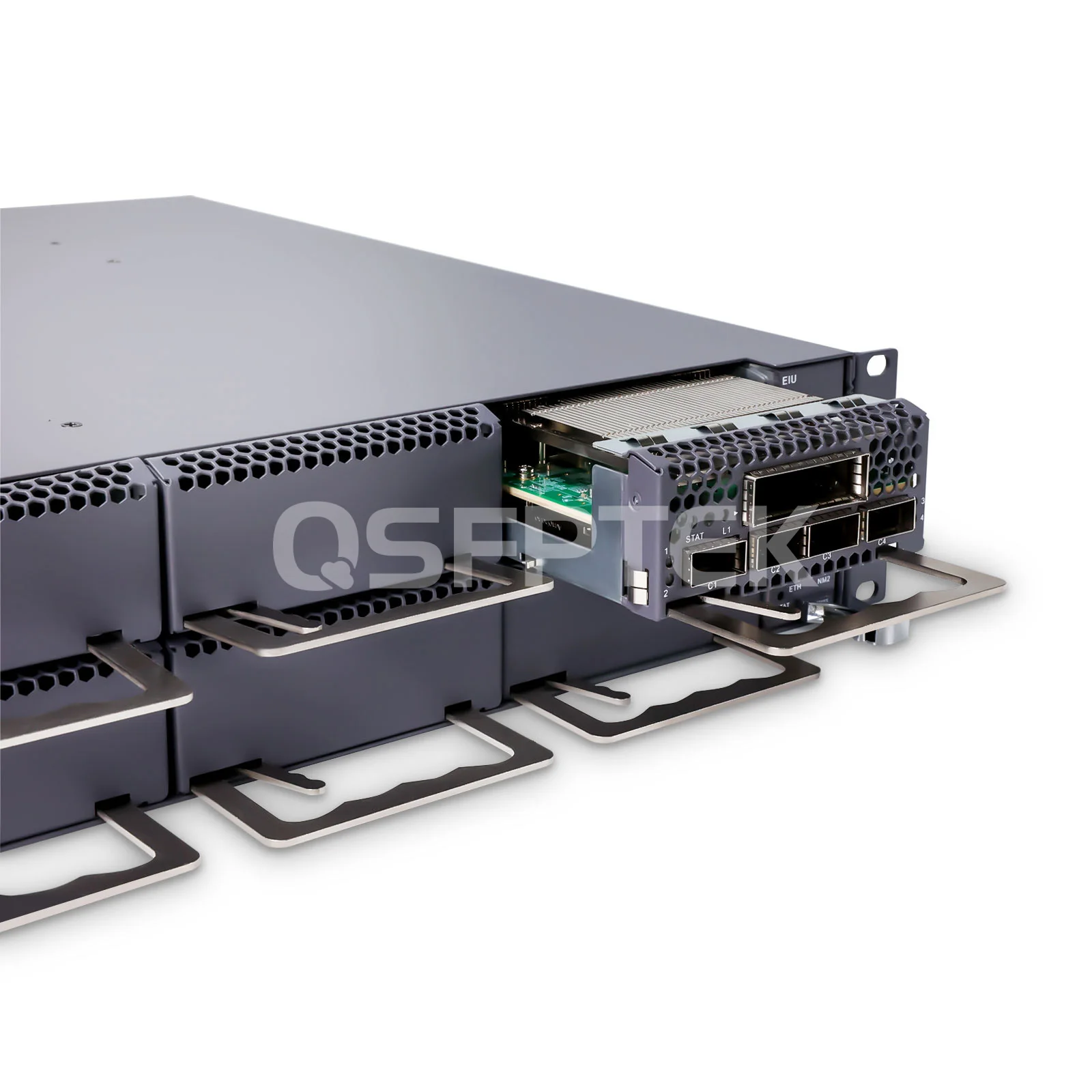

QT900-400GCM41, 1x400G QSFP-DD/4x100G QSFP28 to 1x400G CFP2 Muxponder for QT900 Chassis, 1/4 slot



The 900 series QT900-400GCM41 400G multiplexing transponder is specially designed for building high-capacity optical transmission with in 600km. Its flexible architecture features 4 QSFP28 client interfaces, the first client port support both QSFP28 and QSFP-DD. Suitable for high-capacity DCI network transmission for finance system, metro politian area network, cloud computing, etc.



In order to meet future multi-brand equipment management needs, it supports NETCONF/YANG standard open interface and GUI management platform based on B/S architecture. It caters to surging DC bandwidth demands, enabling adaptable equipment deployment, establishing an open optical network architecture, and ushering the DCI market into a new era of high-speed all-optical interconnection.



Client Interface 100G QSFP28, 400G QSFP-DD(First port) Client Interface Protocols 100GE/400GE/OTU4 Ethernet Services
Line Interface 400G CFP2 Line Interface Protocol

OTUC4

Line Interface FEC oFEC Line Modulation PDM-16QAM
Channel Spacing

75GHz

100GHz

Out-Band Management 1000M Ethernet
Protection Scheme

OChP(with OLP)

Weight 1.02kg
Power Consumption

71W(Max.)

Temperature

0℃ ~ +40℃(Operating)

-40℃ ~ +70℃(Storage)

Quality Testing Program
Quality Certifications

Applications

1x400G QSFP-DD/4x100G QSFP28 to 1x400G CFP2 Muxponder



400G Muxponder

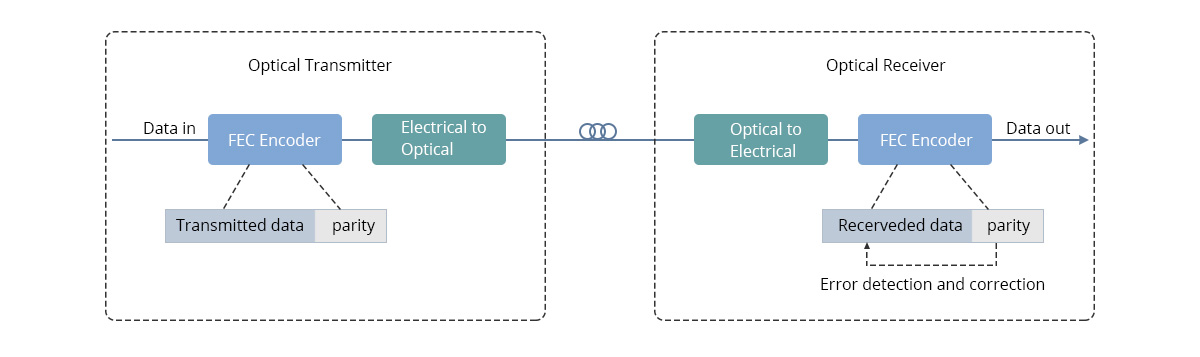

Rectify Inaccurate Messages for Enhanced Fault Tolerance

Forward Error Correction (FEC) enhances the bit error rate of communication links by incorporating redundant information into the data at the transmitter side. This allows the receiver side to detect and rectify errors using the provided supplementary data.

FEC

Product details

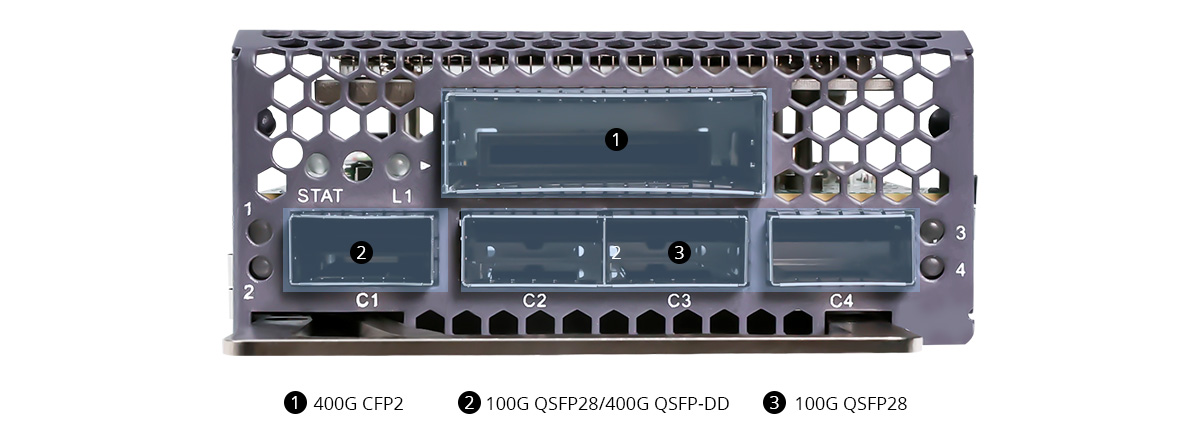

High Density and Capacity in a Compact Design



The QT900-400GCM41 achieves substantial capacity, supporting up to 400 Gb/s of line capacity along with 100 Gb/s of client Ethernet ports, enabling efficient transport of 400G over a single wavelength. Besides, the first Client port can support 400G QSFP-DD to achieve future demand.

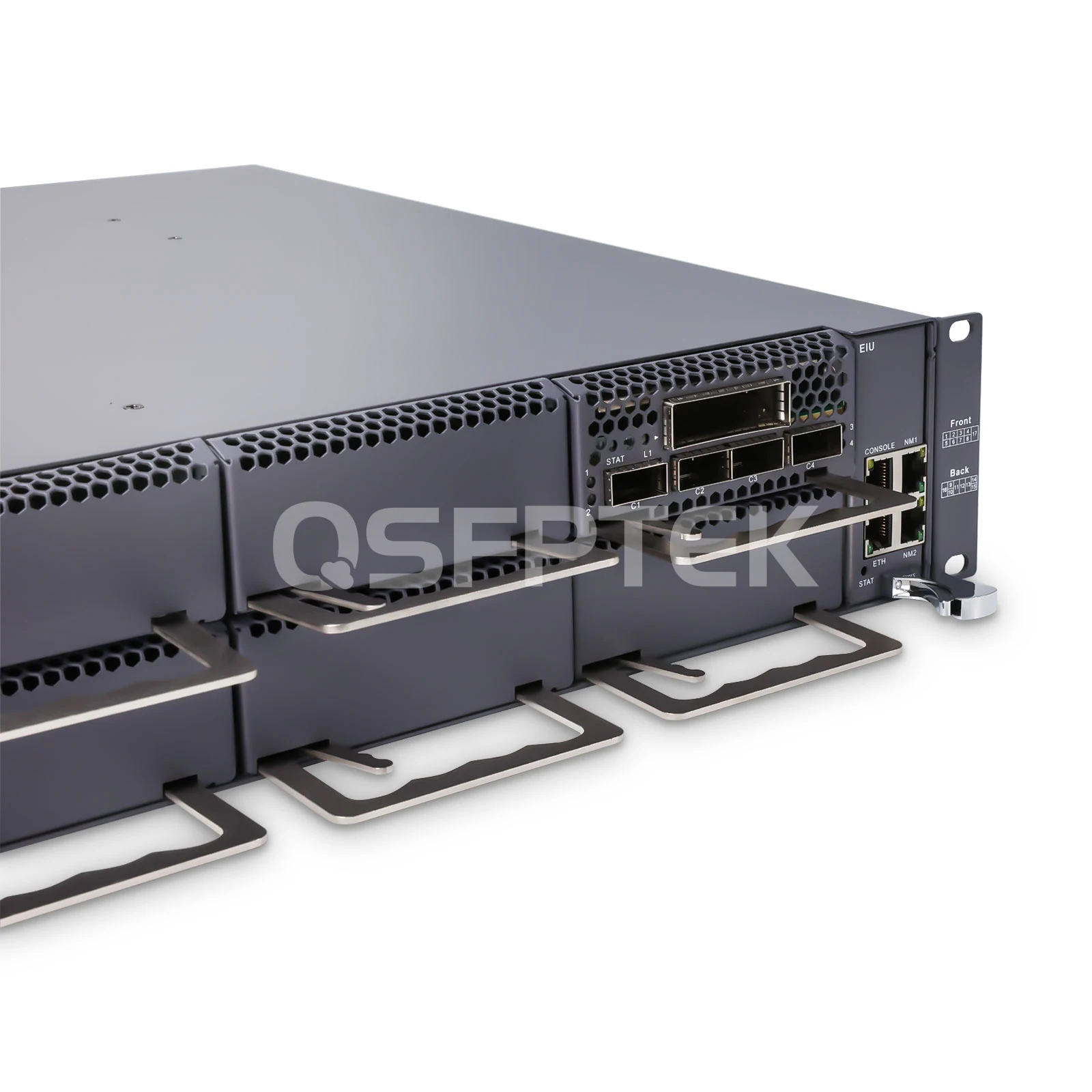

QT900-400GCM41

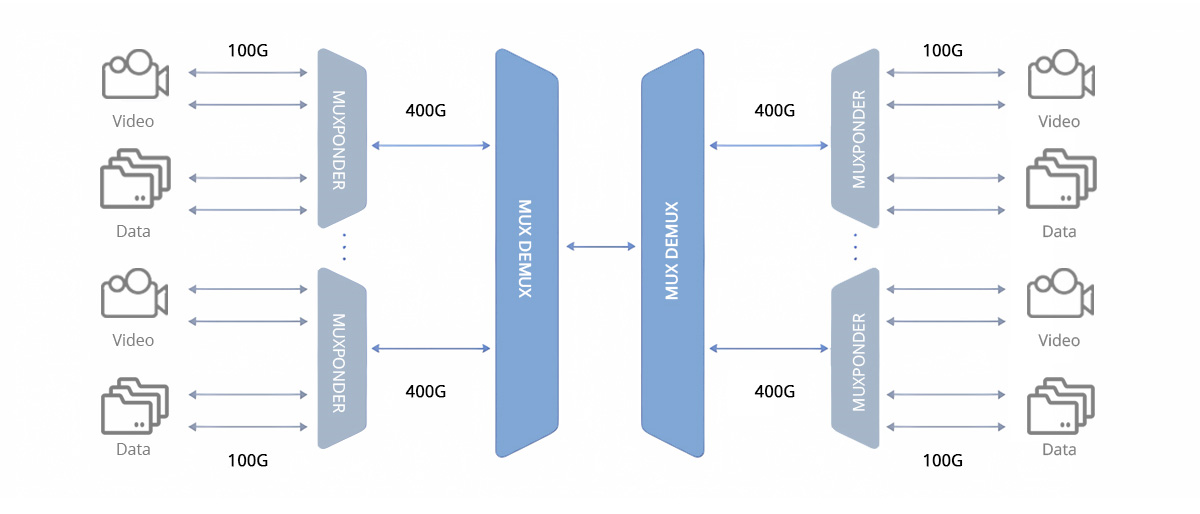

Massive Capacity through 96CH/64CH DWDM MUX/DEMUX



Combining 4 client 100G signals into a single 400G and establishing connectivity with MUX/DEMUX, the product addresses market demands for increased transmission capacity, efficient rack space utilization, and minimized optical fiber occupation. The maximum transmission capacity of the entire system can reach 25.6Tbps (400G 75GHz).



Mux

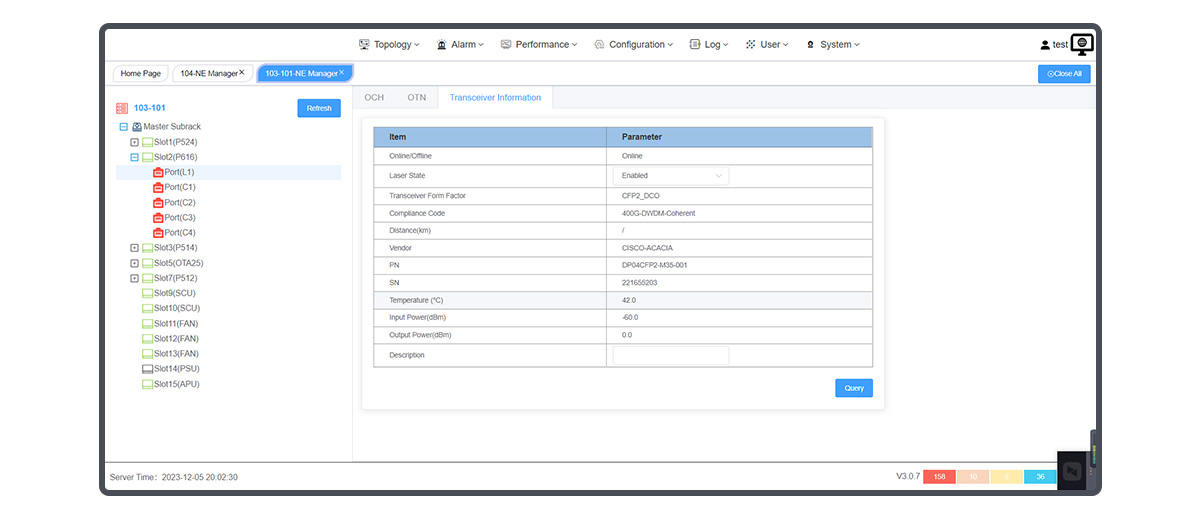

Easy to Use Management



You can easily manage critical data, alerts, reports, etc., on-site or remotely at any time through the CLI, NETCONF, and B/S based GUI management platform



QT900 Manage UI
