1. 800G PDM-16QAM modulation for the highest capacity up to 450km 2. Supports Telemetry and LLDP 3. Employing Super-FEC for Robust Error Correction and Enhanced Fault Tolerance 4. Provides multiple multi-layer network-level and device-level protection solutions 5. Supports CLI, NETCONF and B/S based GUI management platformSee more

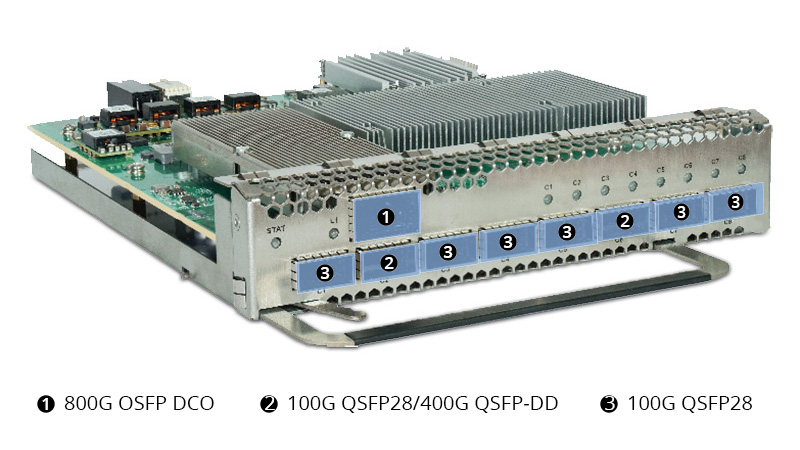

The 900 series QT900-800GOM81 800G multiplexing transponder is specially designed for building high-capacity optical transmission with in 450km. Its flexible architecture features 8 QSFP28 client interfaces, the 2&6th client port support both QSFP28 and QSFP-DD. Suitable for high-capacity DCI network transmission for finance system, metro politian area network, cloud computing, etc.
In order to meet future multi-brand equipment management needs, it supports NETCONF/YANG standard open interface and GUI management platform based on B/S architecture. It caters to surging DC bandwidth demands, enabling adaptable equipment deployment, establishing an open optical network architecture, and ushering the DCI market into a new era of high-speed all-optical interconnection.
WDM Optical Network Solution
2x 400G QSFP-DD/6x 100G QSFP28 to 1x 800G OSFP Muxponder
Rectify Inaccurate Messages for Enhanced Fault Tolerance
Forward Error Correction (FEC) enhances the bit error rate of communication links by incorporating redundant information into the data at the transmitter side. This allows the receiver side to detect and rectify errors using the provided supplementary data.
The QT900-800GOM81 achieves substantial capacity, supporting up to 800 Gb/s of line capacity along with 100 Gb/s or 400 Gb/s of client Ethernet ports, enabling efficient transport of 800G over a single wavelength. Besides, the 2&6th Client port can support 800G OSFP DCO to achieve future demand.

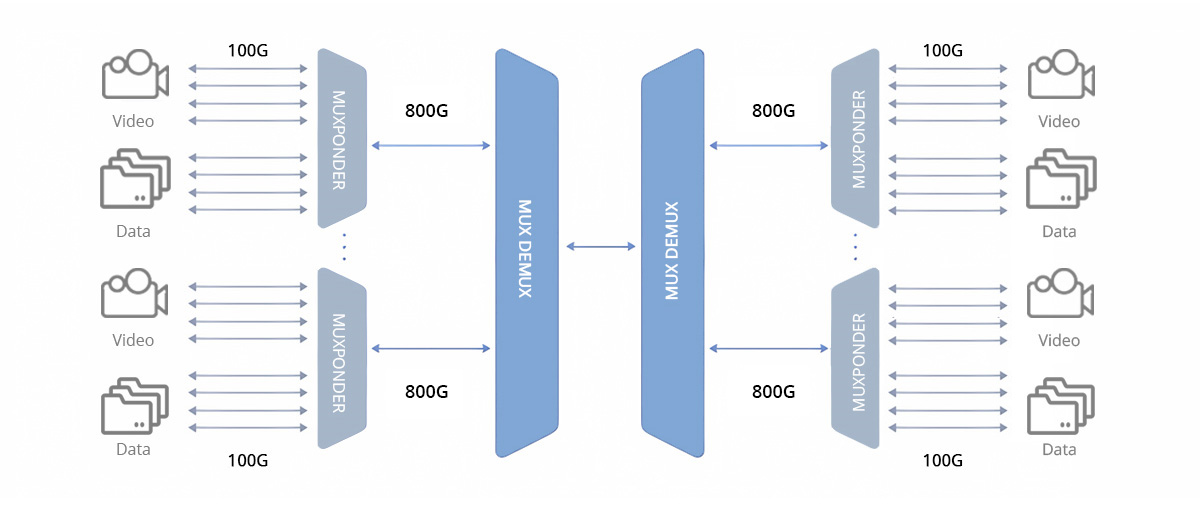

Combining 8 client 100G (or 2x 400G) signals into a single 800G and establishing connectivity with MUX/DEMUX, the product addresses market demands for increased transmission capacity, efficient rack space utilization, and minimized optical fiber occupation. The maximum transmission capacity of the entire system can reach 51.2Tbps (800G 75GHz).
You can easily manage critical data, alerts, reports, etc., on-site or remotely at any time through the CLI, NETCONF, and B/S based GUI management platform
