    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 103558
    Product image
    Product image

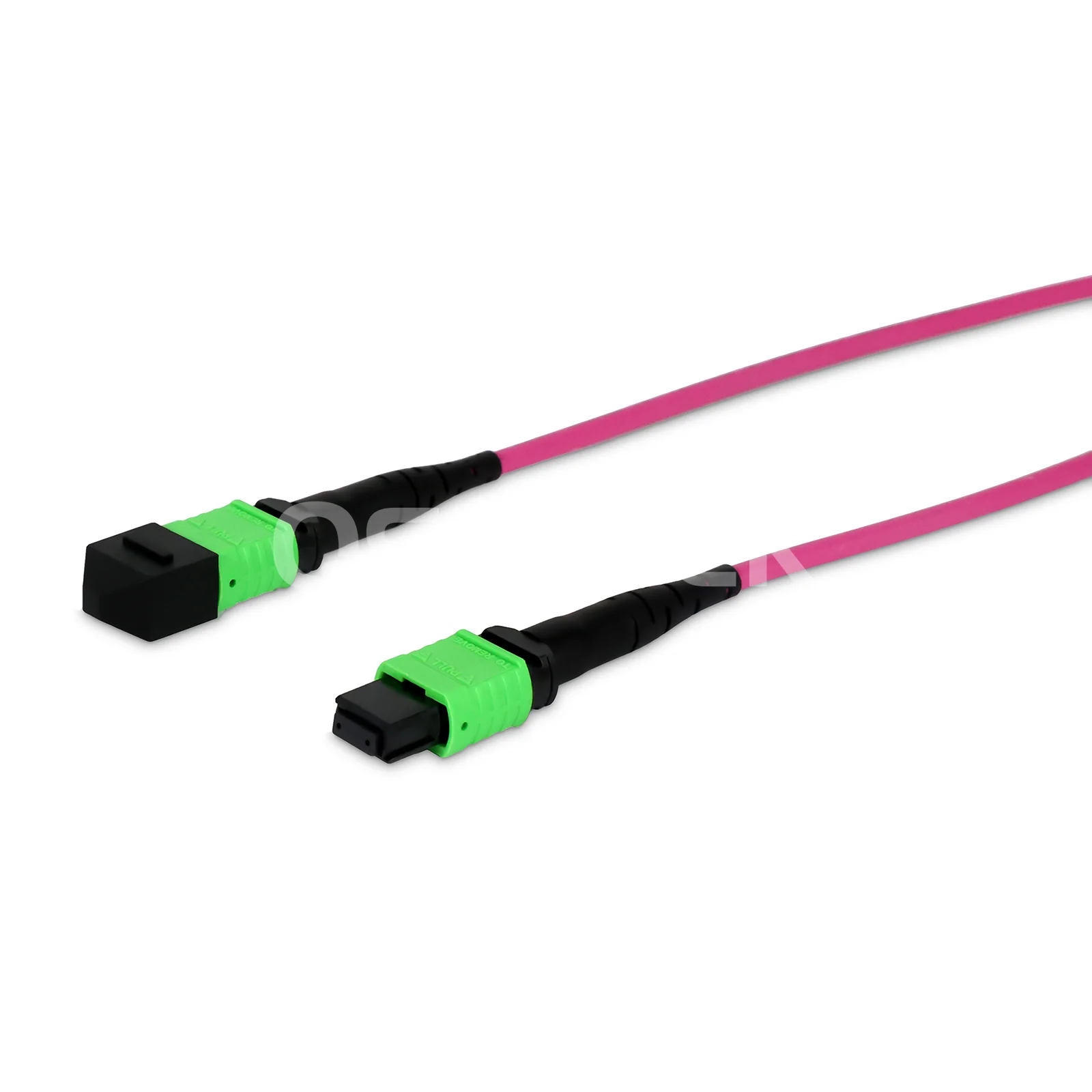

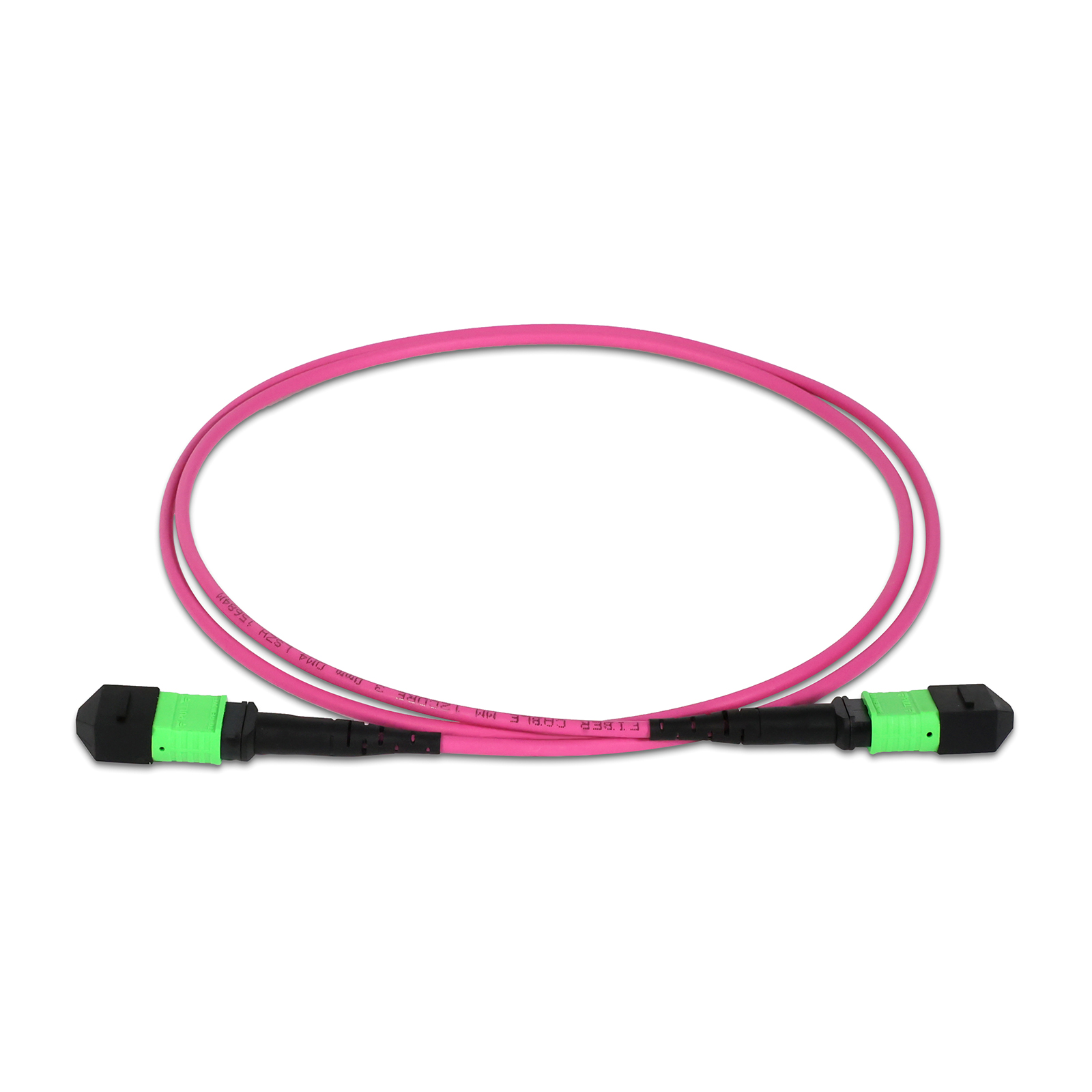

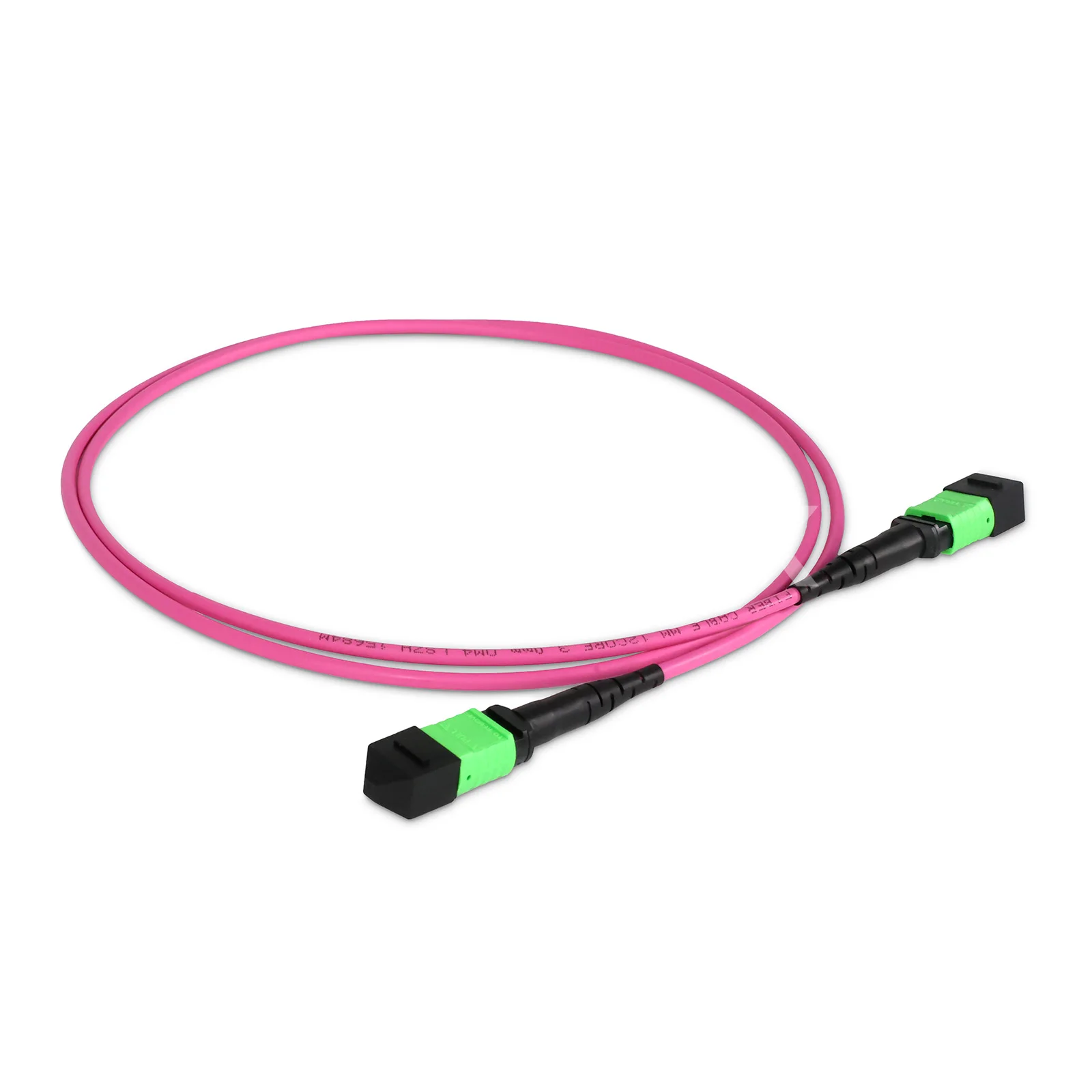

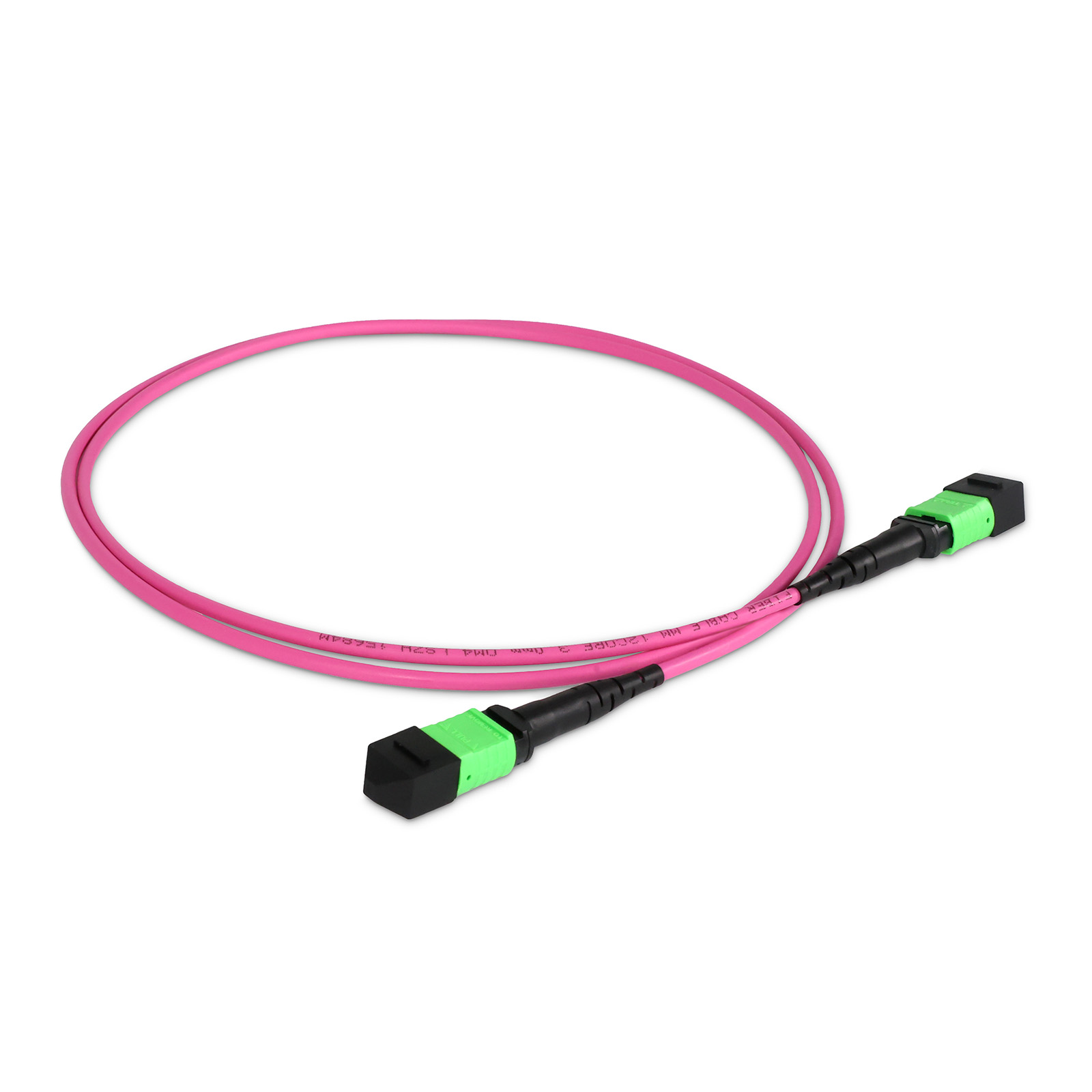

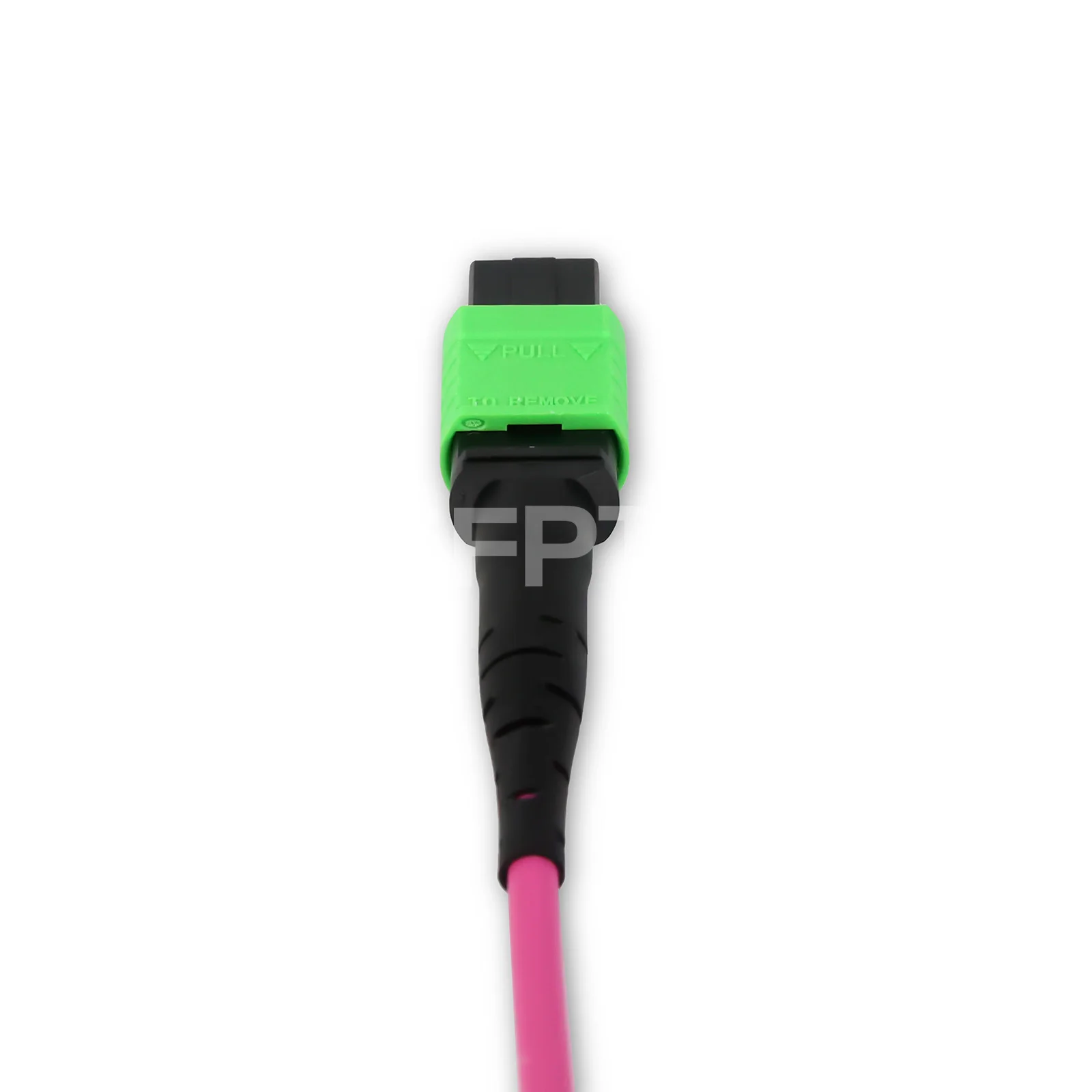

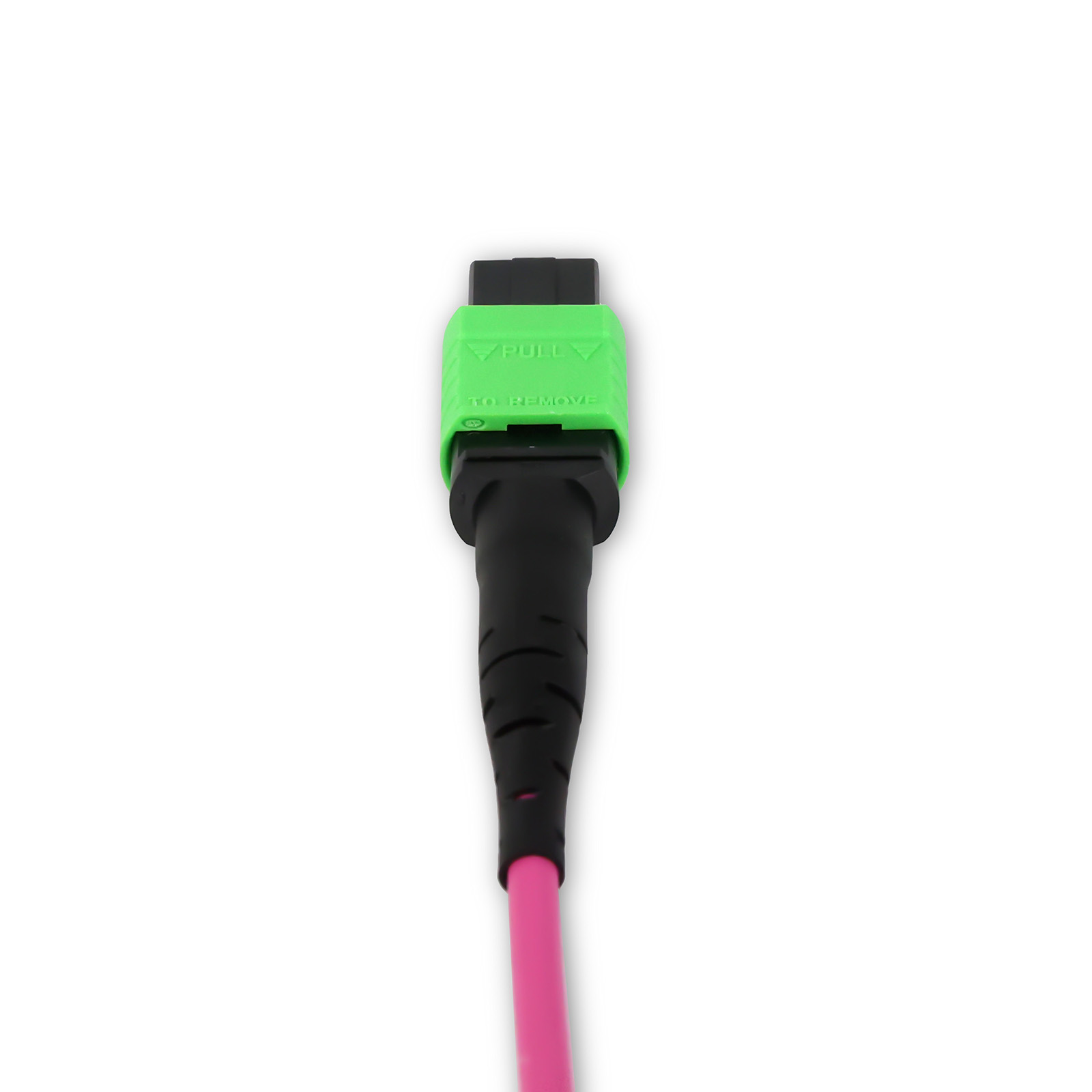

    5m (16ft) MPO-12 APC (Female) to MPO-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    Product No: 103558
    0 Reviews
    137 Sold
    $23.00
    Series
    Length
    87 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. High-density cabling solutions for 400G QSFP-DD SR4
5. Meticulous design and standard testing ensure stable high-speed data transmission
    See more

    Specifications

    5m (16ft) MPO-12 (Female) APC to MPO-12 (Female) APC OM4 Elite Trunk Cable, 12 Fibers, Type B, LSZH, APC



    The MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of standard duplex fiber optic cable connector. This MPO female APC to MPO female APC OM4 multimode trunk cable is specially optimized for 400G QSFP-DD SR4 optics direct connection, data centers and telecommunications systems applications.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 12 Fibers Fiber Type OM4 MMF 50/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured no Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 7.5mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Cisco Compatible 400GBASE-SR4 QSFP-DD PAM4 850nm 100m DOM MPO-12/APC MMF Optical Transceiver Module

    $532.90 $711.90
    145 Sold
    1 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 7.5mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term) Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Scenario 1: 400G to 400G Direct Connectivity

    Scenario 1: 400G to 400G Direct Connectivity MPO-12 Fibers OM4 APC

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Questions & Answers

    • All (6)
    • Hi, I just want to wonder what is the difference between MTP and MPO cables? I am always confused about the two cables.
      In fact, it is easy to distinguish them. The key difference between them lies in their different connectors. MTP trunk cables use MTP® connector, this is an enhanced version so that MTP cables have better mechanical designs and optical performances.
    • What is the maximum throughput?
      The maximum data throughput is 400G.
    • What's the difference between the male and female connectors of an MTP cable?
      The difference between the male and female connectors of an MTP cable lies in the position of the alignment key. The male connector features an alignment key located at the top, while the female connector has an alignment key positioned at the bottom.
