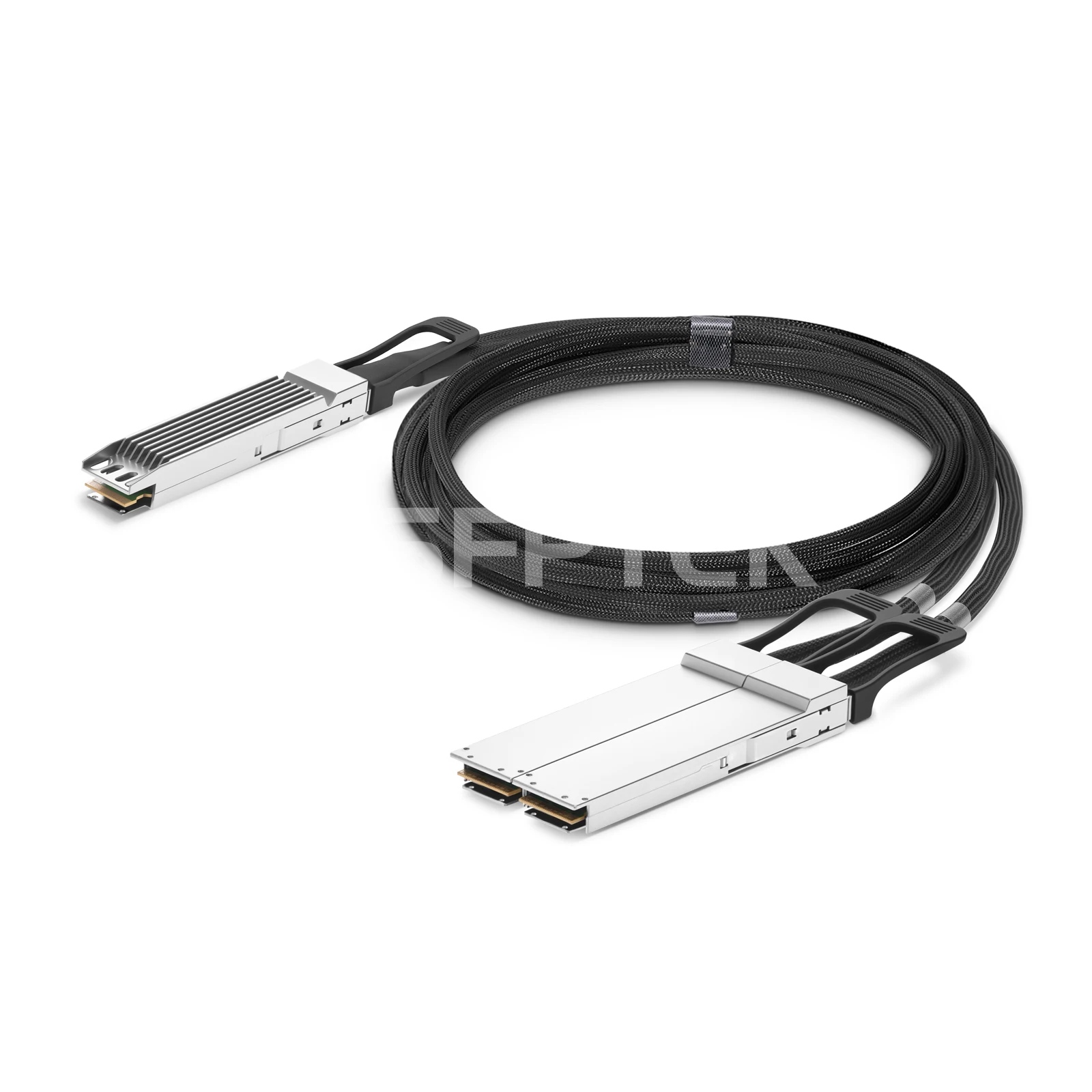

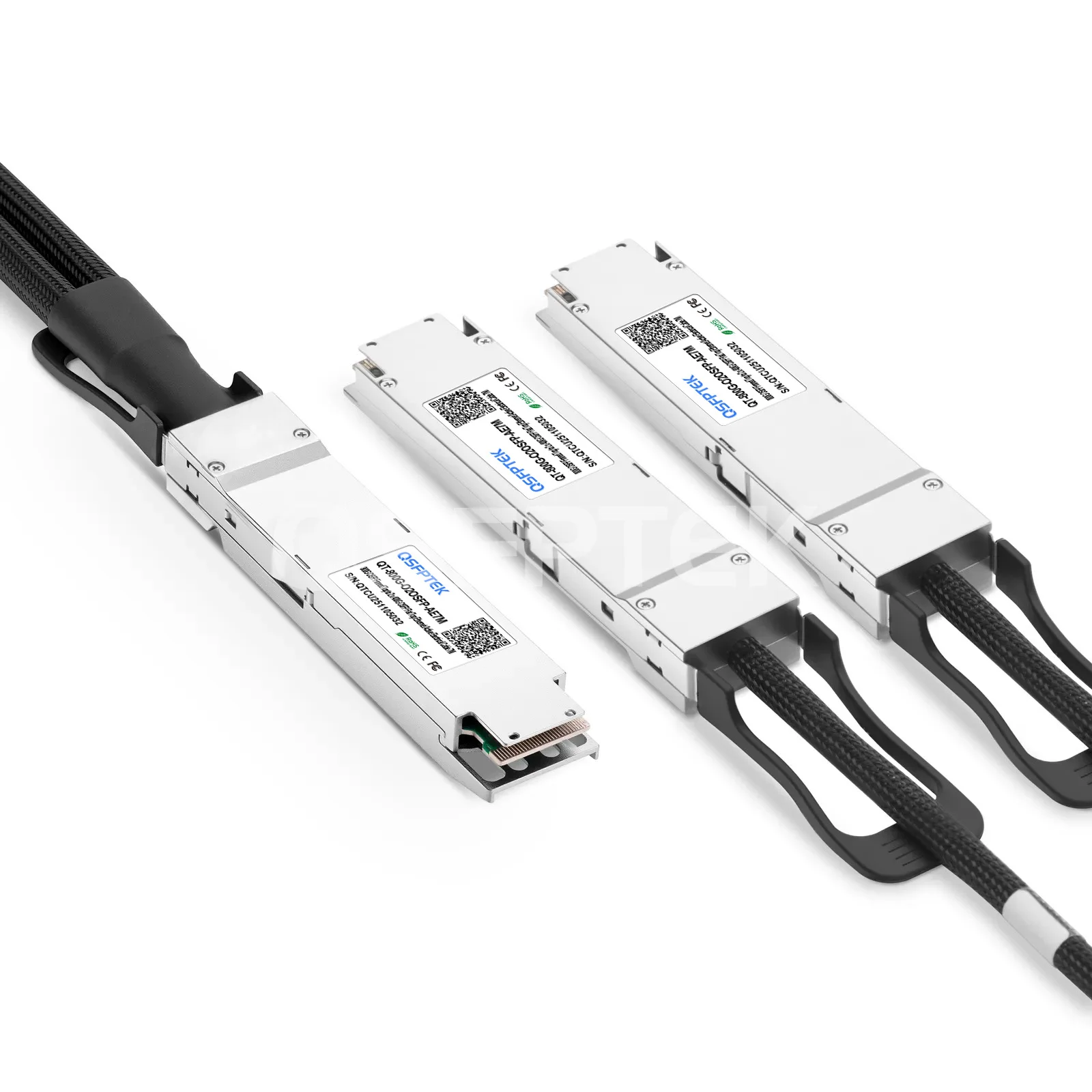

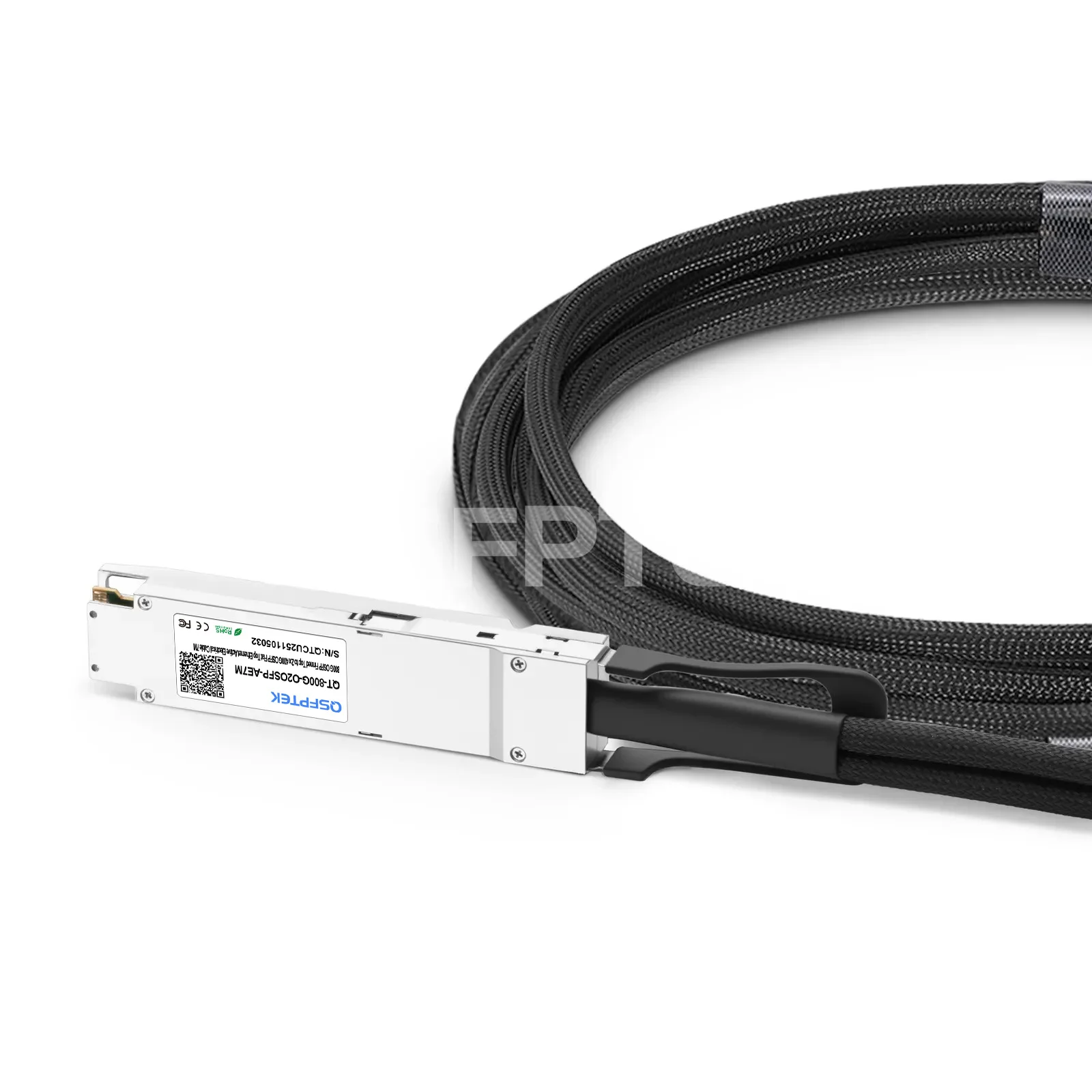

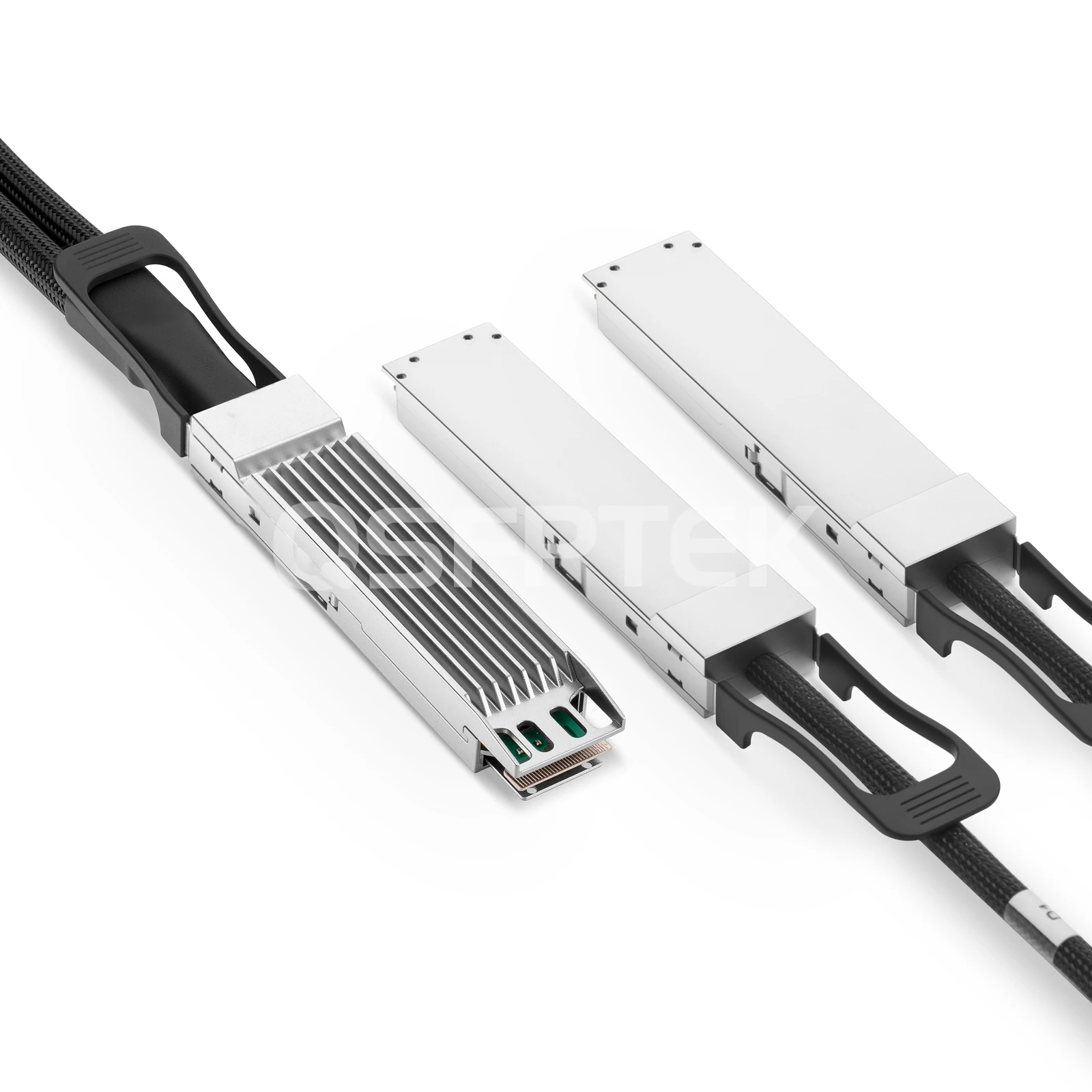

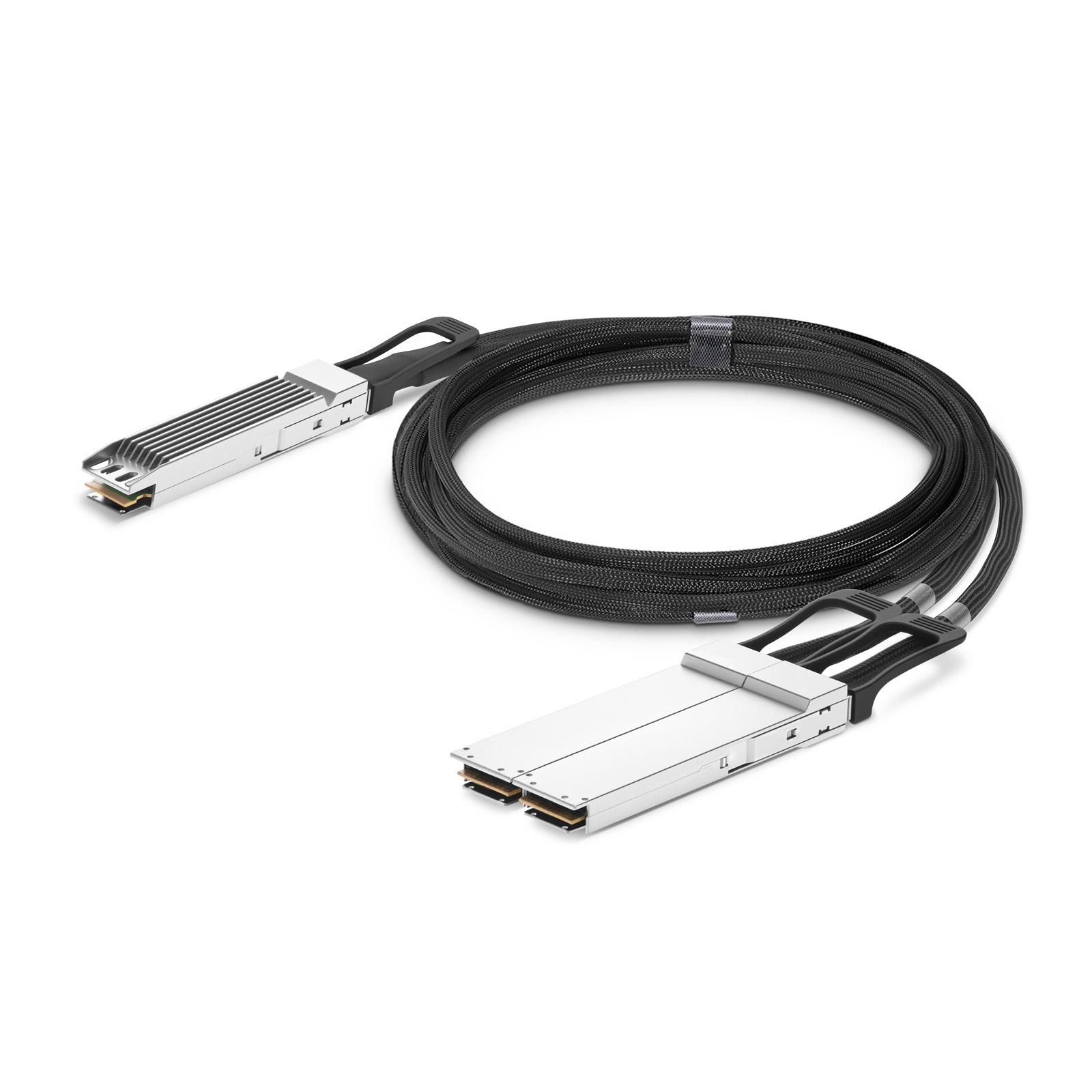

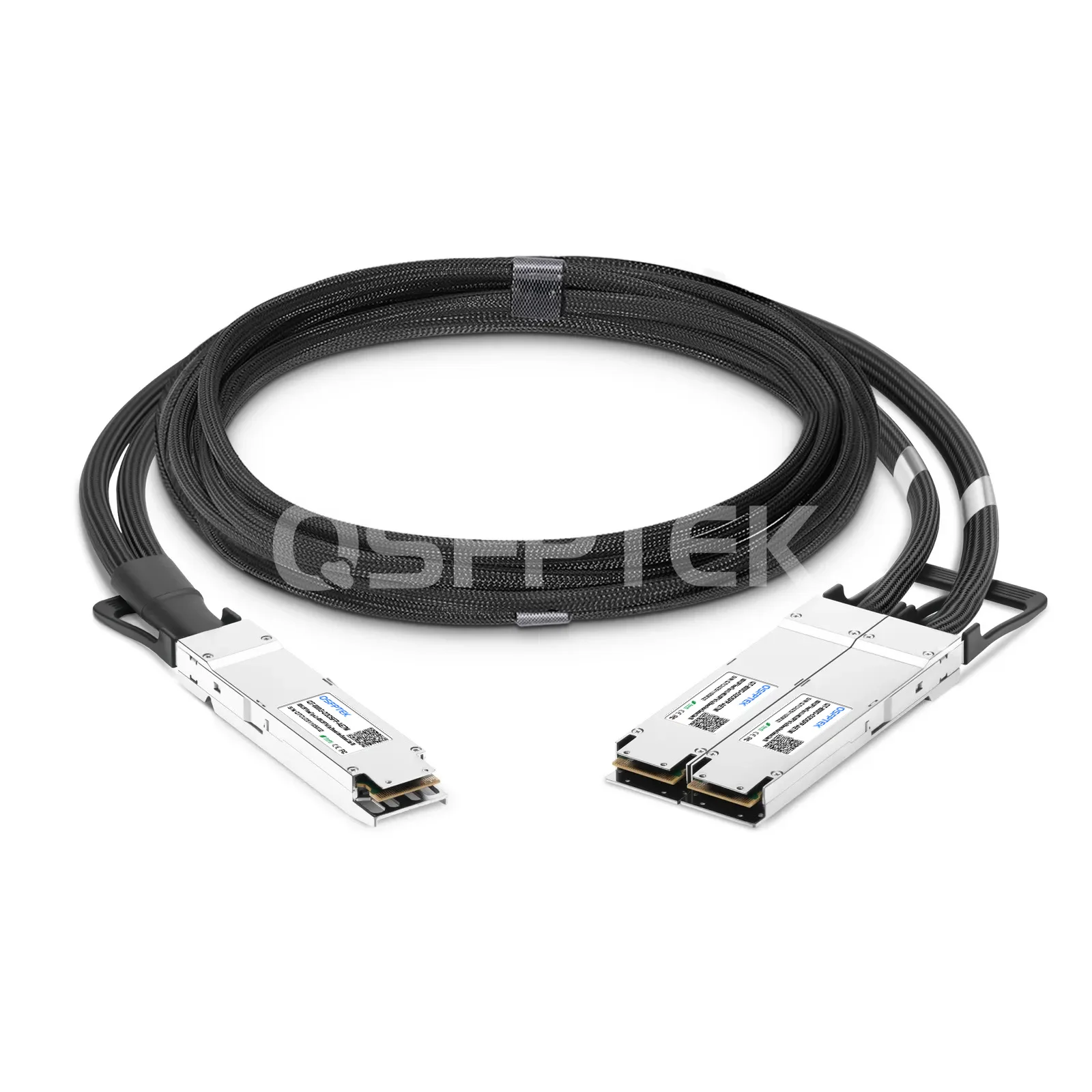

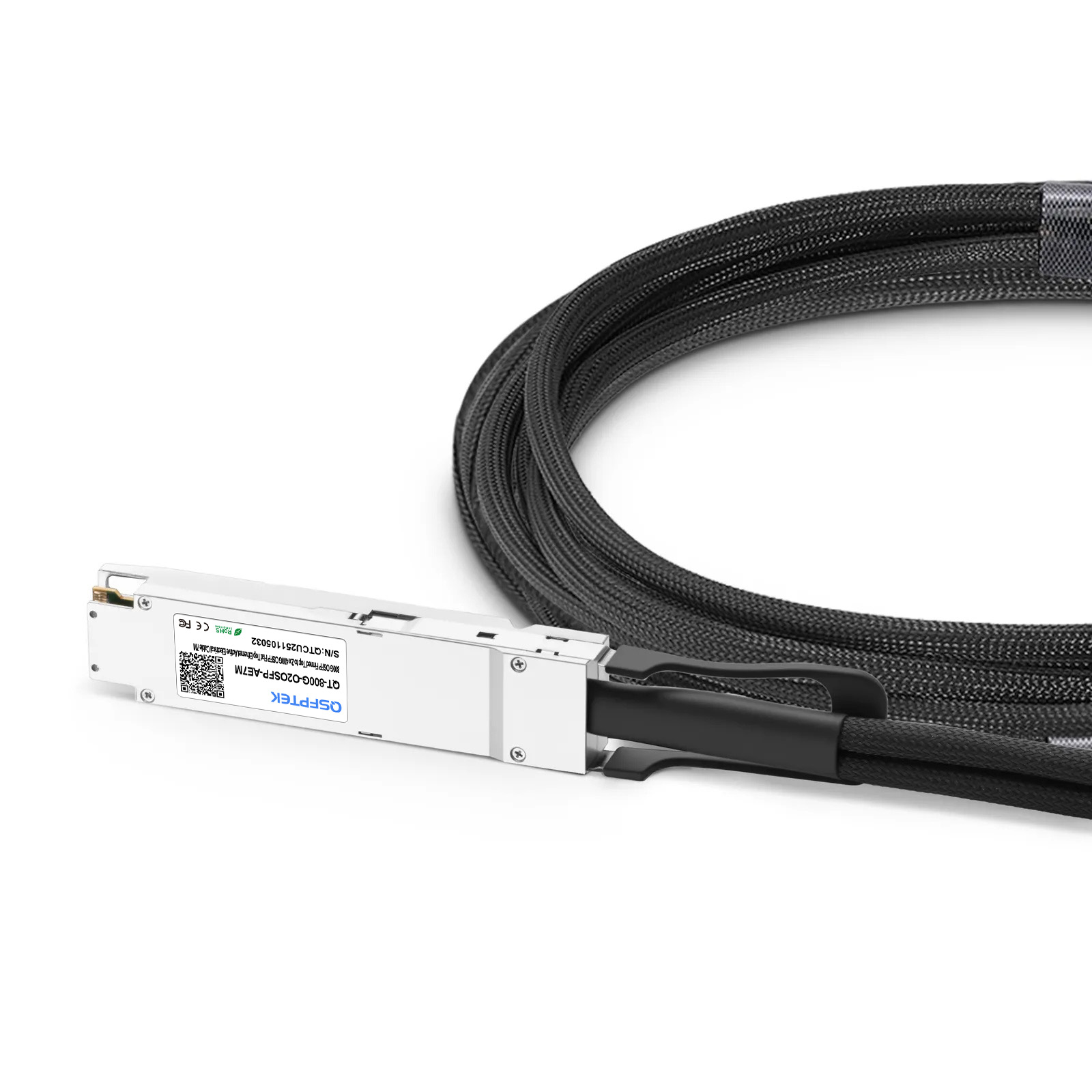

    7m (23ft) Juniper Compatible Twin-port 800G OSFP Finned Top to 2x 400G OSFP Flat Top Ethernet Active Electrical Breakout Cable (AEC)

    Product No: 103822
    0 Reviews
    0 Sold
    US$ 1,832.40
    Compatible
    Transceivers type
    15 in real-time stock, 03 Jun, 2026
    Delivered in 5 business days in the U.S.
    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Support 800G Ethernet and InfiniBand NDR
2. Max copper link length up to 7M
3. Max. power consumption < 9w
4. BER (Post-FEC) <10-15
5. Support 8x100G-PAM4 to Dual 4x100G-PAM
6. Optimized construction to minimize insertion loss and crosstalk
7. 26 AWG, 28AWG, 30AWG, 32AWG, 34AWG selectable
8. Straight and break-out assembly configurations available
9. Supports device programming by MCU with I2C
    See more

    Specifications

    Juniper Compatible 800G OSFP Finned Top to 2x 400G OSFP Flat Top AEC Breakout Cable (7-meter, Active, OSFP to 2x OSFP, 26/28/30/32/34 AWG)



    QT-800G-O2OSFP-AExM is an 800G OSFP finned top to 2x 400G OSFP flat top active electrical cable (AEC) with pull-to-release slide latch design.  It is comprised of sixteen differential copper pairs, providing eight data transmission channels at speeds up to 106.25Gbps (PAM4) per channel. The AEC cable achieves 800 to 2x400Gbps signal conversion through 8 channels 100G-PAM4 to dual 4x100G-PAM4 signals for transmission, and it is backward compatible to 53.125Gbps (PAM4) and 25.78125Gbps (NRZ) operating modes.



    Available in a broad range of wire gages-from 26AWG to 34AWG, this 800G copper cable assembly features low insertion loss. The 800G OSFP AEC breakout cable supports both 800G Ethernet and InfiniBand Next Data Rate (NDR) systems, is ideal for rack-to-rack connectivity scenarios such as between router, server, storage, and switch.



    Part Number QT-800G-O2OSFP-AE7M Vendor Name QSFPTEK
    Form Factor 800G OSFP Finned Top to 2x 400G OSFP Flat Top Max Data Rate 800 Gbps
    Media Copper Cable Type Active DAC (AEC) Breakout
    Cable Length 7m (23ft) Minimum Bend Radius 38mm
    BER (Post-FEC) <10-15 Wire AWG 26/28/30/32/34 AWG
    Power Consumption < 9W Modulation Format 8x100G-PAM4 to Dual 4x100G-PAM4
    Power supply 3.3V Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, InfiniBand NDR, CMlS 5.2, RoHs Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

    800G to 2x 400G Breakout Connectivity:



    800G to 2x 400G Breakout Connectivity

    Product details

    Various Switch Tests



    Every cable is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    QSPFTEK LAB All Brands Switches Show



    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack



    Comprehensive Testing



    Every cable is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    QSFPTEK Test Devices
