SFP Media Converter vs. SFP Module: What's the Difference?

Author Yana

Date 06/17/2025

Confused about SFP modules vs. SFP media converters? Learn how they work, where to use them, and which is the better fit for your setup.

SFP media converters and SFP modules are two common types of equipment in network construction. Although they both serve the function of converting electrical and optical signals, they differ in terms of structural form, usage, and applicable scenarios. To rationally select and enhance the efficiency of network deployment, it is particularly important to understand the differences between the two. In this article, we will make a comparison of SFP modules vs. SFP media converters to help you clarify their respective advantages and applications.



SFP Fiber Media Converters Overview



What is a Media Converter SFP?



SFP media converter is a device used to realize the conversion between different network media, which is usually used to convert fiber optic signals and RJ45 electrical ports to each other. It is equipped with one or more SFP slots, which can be inserted into different types of SFP optical modules according to the need to achieve flexible transmission distance and rate selection. SFP media converters are widely used to extend optical fiber to a copper network or convert between different types of optical fibers in various scenarios.



Types of Media Converters



Fiber to Fiber Media Converter

Fiber to fiber media converter is a device for converting signals between different types of optical fibers. It can be used to convert between multimode and singlemode fibers, between different wavelengths, or to connect different fiber interface types. For example, a fiber-to-fiber media converter can be used when a short multimode link needs to be extended to a long single-mode link.

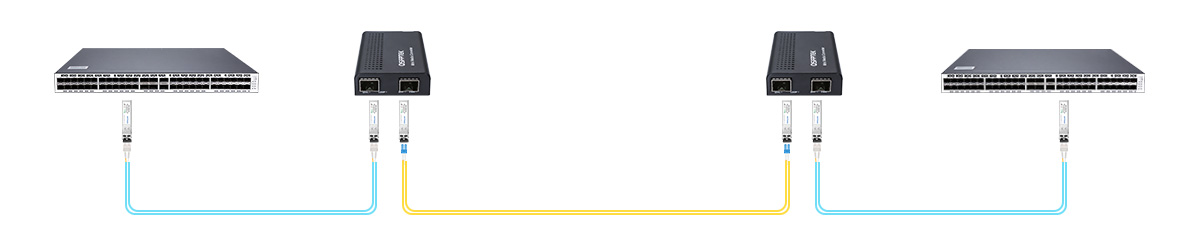

Fiber to Fiber Media Converter

Copper to Fiber Media Converter

Copper to Fiber Media Converter is a device used to convert traditional Ethernet electrical signals (usually transmitted through the RJ45 interface of copper cable) into optical signals (transmitted through the fiber optic interface). Its role is to achieve interoperability between different transmission media, to solve the problem of short distance and electromagnetic interference of copper cable, so that the network can achieve a longer distance and more stable data transmission with the help of optical fiber.

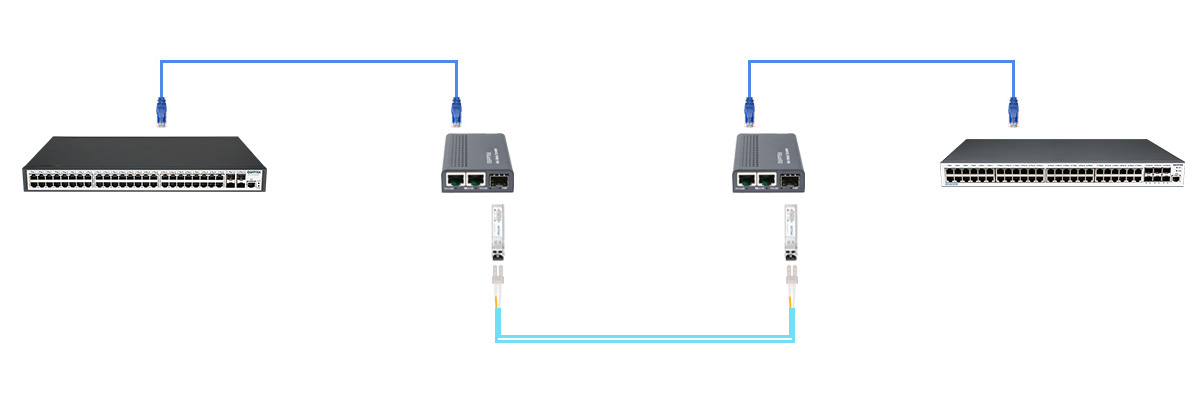

Copper to Fiber Media Converter

Managed Media Converters

Managed media converter is a media conversion device with a network management function, which can not only realize the conversion between electrical and optical signals, but more importantly, it has a network management function. This means that administrators can remotely monitor device status, configure parameters, view performance statistics and receive alarm notifications through standard network management protocols, thus realizing centralized management and troubleshooting of access points at the edge of the network, and enhancing the visibility and maintainability of the network.



Unmanaged Media Converters

An unmanaged media converter is a plug-and-play device used to convert Ethernet electrical signals and fiber optic signals to each other for seamless connection between copper and fiber optic cables. It does not have remote configuration or monitoring functions and cannot be controlled by network management tools, but due to its simple operation and low cost, it is widely used in small network environments or scenarios that do not have high requirements for network management, such as surveillance systems and internal wiring in buildings.



PoE Media Converters

A PoE media converter is a device that provides power to end devices through the network cable while converting optical and electrical signals. It combines Power over Ethernet technology and traditional photoelectricity conversion, which can realize data transmission between optical fiber and electric port, and also power PoE-enabled devices such as IP cameras, wireless AP, VoIP phones, etc. It is widely used in security monitoring, building automation and remote network deployment scenarios.

PoE Media Converters

SFP Transceivers Overview



What is the SFP Module?



SFP 1G optical module is a kind of small hot-swappable optical module with a transmission rate of 1 Gigabit per second, which adopts SFP form factor,  its core function is to realize the conversion of optoelectronic, converting electrical signals sent out by network equipment (such as switches, routers) into optical signals, or converting received optical signals back to electrical signals, so as to transmit data over optical fiber for hundreds of meters to hundreds of kilometers, it depends on the type of module and the type of optical fiber.  With small size, low power consumption, and hot-swappable, it is widely used in enterprise networks, data center access layer and other scenarios that require gigabit fiber connection.



Types of Small Form Factor Pluggable Transceivers



SFP modules can be categorized into various forms according to different interface types and transmission media, mainly including two categories of SFP RJ45 modules and SFP optical modules, to meet the needs of network deployment in different scenarios.



SFP RJ45 Module

SFP RJ45 module is a transceiver module that uses standard Ethernet copper cable for transmission, usually used for short distance data transmission up to 100 meters. It adopts RJ45 interface, compatible with Cat5e, Cat6 and other network cables, and supports 1G rate. The module is commonly used for copper connection between switches or as a bridge between optical port devices and ordinary electrical port devices, especially suitable for use in cost-sensitive scenarios where long-distance transmission is not required.

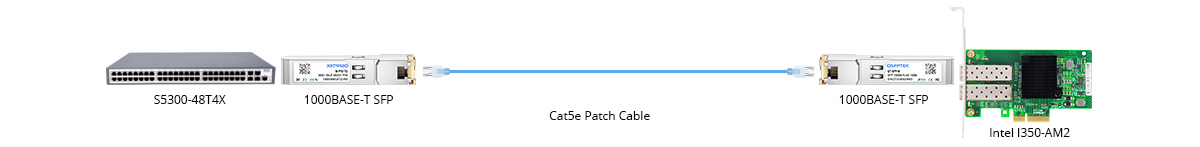

SFP RJ45 Module

SFP Optical Transceiver

SFP optical modules transmit data over optical fibers and can be divided into multimode and singlemode modules depending on the transmission distance and fiber type. Multimode SFP modules are usually suitable for short-distance transmission, such as up to 300 meters, while single-mode SFP modules support longer distances, from 10 kilometers to 80 kilometers or even more, and are suitable for scenarios requiring long-distance connectivity, such as cross-buildings and campus networks.

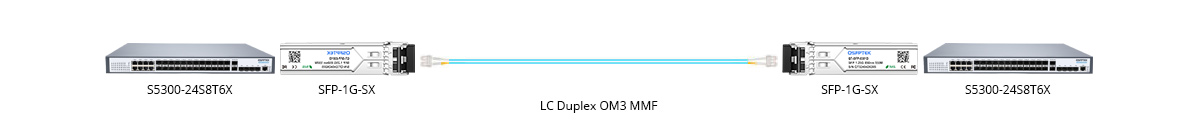

SFP Optical Transceiver

Comparing SFP Transceiver Module and Ethernet Media Converter



Feature

SFP Transceiver

SFP Media Converter

Definition

A hot-pluggable optical transceiver used in SFP ports of network devices

A standalone device that converts signals between fiber and copper (RJ45)

Application Scenarios

SFP optical module is suitable for network environments that already have SFP interface devices, and only need to select the appropriate module according to the required transmission distance and media to complete the construction of fiber links. It is commonly used in campus networks and enterprise LANs.

SFP media converters are more suitable for the following types of scenarios. First, docking traditional equipment without optical ports to fiber optic networks. Second, temporary deployment or network environments that require flexible conversion. Third, upgrading part of the link to fiber optic transmission without replacing core network equipment. It provides an economical and convenient way to realize hybrid transmission of optoelectronics.

Standalone Operation

No, requires a device with SFP ports

Yes, operates independently when a suitable SFP module is inserted

Flexibility

Limited by the host device's capabilities

Highly flexible, supports different SFP modules and network types

Power Consumption

Low

Higher

Form Factor

Small size

Larger size

Installation Method

Installed directly into the SFP ports of switches/routers

Independently installed

Cost

The price itself is lower, but only if your network equipment already has SFP ports, otherwise, you will also need to buy a switch or router with SFP slots, which will increase the overall cost.

The SFP media converter is a stand-alone device that typically costs more per unit than a single SFP module, but it does not require replacement of the original switch, so costs are limited.

Maintenance

Easy to replace individual modules in SFP slots

More complex, it requires extra cabling and power



The Product Matching Between SFP Modules and Media Converters



In optoelectronic conversion applications, SFP optical transceivers are typically paired with media converters in a complementary manner. The media converter itself does not have specific transmission capabilities; instead, it relies on the inserted SFP module to determine network parameters, such as rate, distance, and fiber type. On the other hand, SFP optical modules also need to be attached to media converters or other devices with SFP interfaces in order to function. Together, they form a flexible network access solution. Users can combine them flexibly according to their actual needs, such as replacing different types of SFP transceivers in the same media converter, which can be quickly adapted to different network environments without requiring the replacement of the entire machine.



Things to Consider When Connecting SFP Optical Modules and Media Converters



When using SFP optical modules with media converters, there are several key factors that require extra attention to ensure compatibility between devices, link stability, and network transmission reliability.



First, confirm that the transceivers and media converter rates match. For example, a 1G optical module should be used with the converter to support a 1G rate, thereby avoiding communication failure due to a rate mismatch. Secondly, although media converters are usually equipped with standard SFP slots, which can be adapted to various types of SFP modules, it is still necessary to confirm that the interface specification is consistent.



In terms of optical fiber, the type of optical transceiver must be consistent with the type of fiber connected to avoid link interruption or signal attenuation due to media incompatibility. At the same time, the wavelength and transmission distance of the optical module should also be consistent or within the compatible range.  Additionally, attention should be paid to the matching of the fiber cable's interface type. For example, if the optical module has an LC interface, then the fiber optic cable should also be of the LC type.



Conclusion



Although both SFP optical modules and SFP media converters are used for photoelectric conversion, they have different applications. SFP transceivers are ideal for devices with existing SFP interfaces, offering a compact design and low cost. Meanwhile, SFP 1G media converters offer flexibility and independence, which are ideal for connecting devices without optical ports or for temporary setups. The SFP media converters and SFP optical modules can be used flexibly together, and choosing the right product according to specific needs helps build an efficient and stable network.
