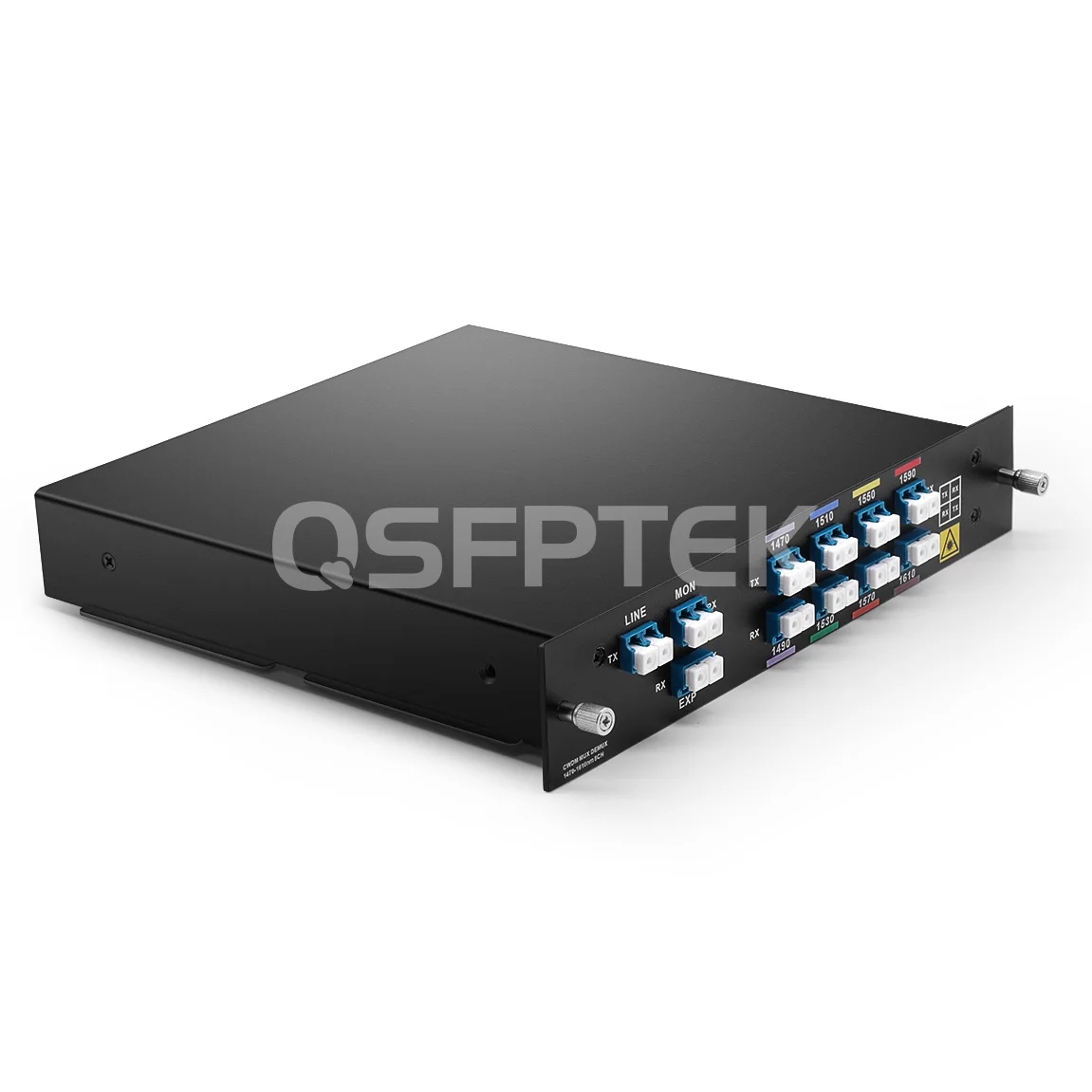

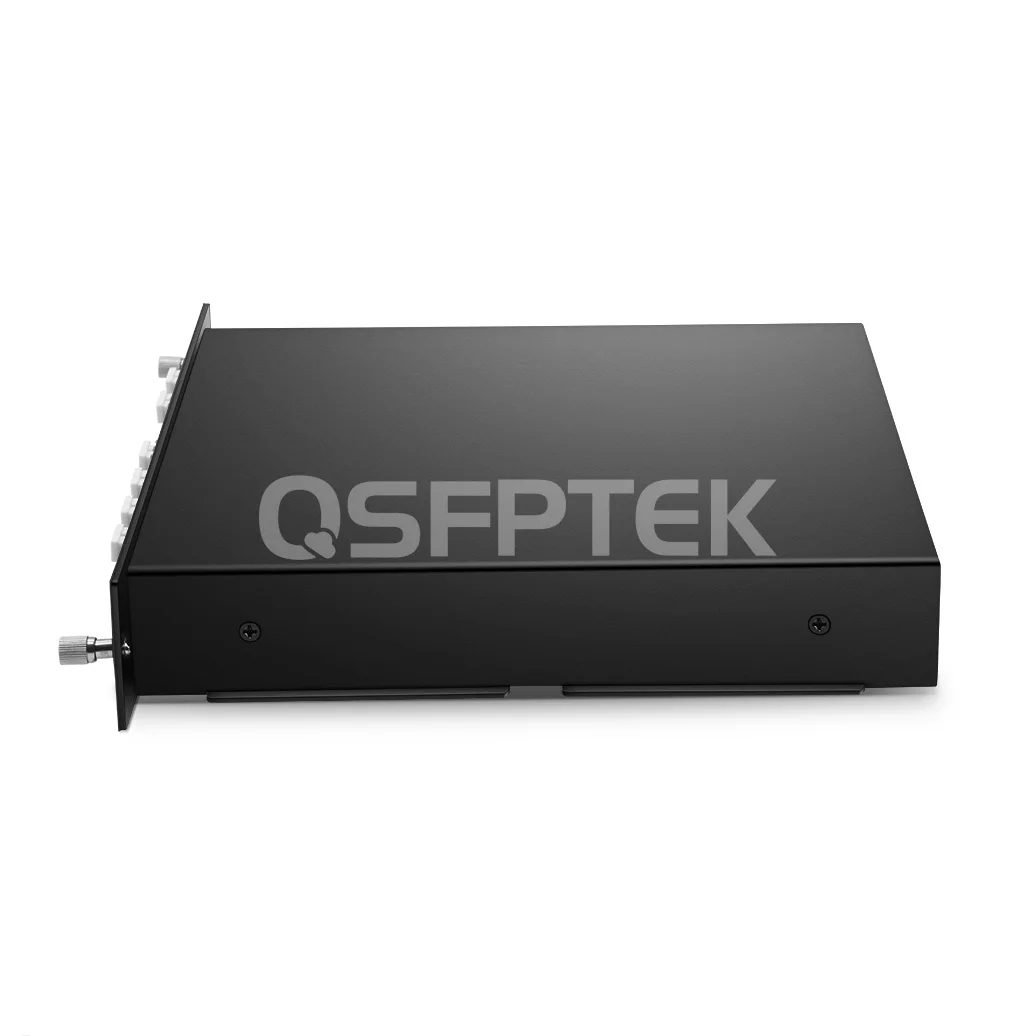

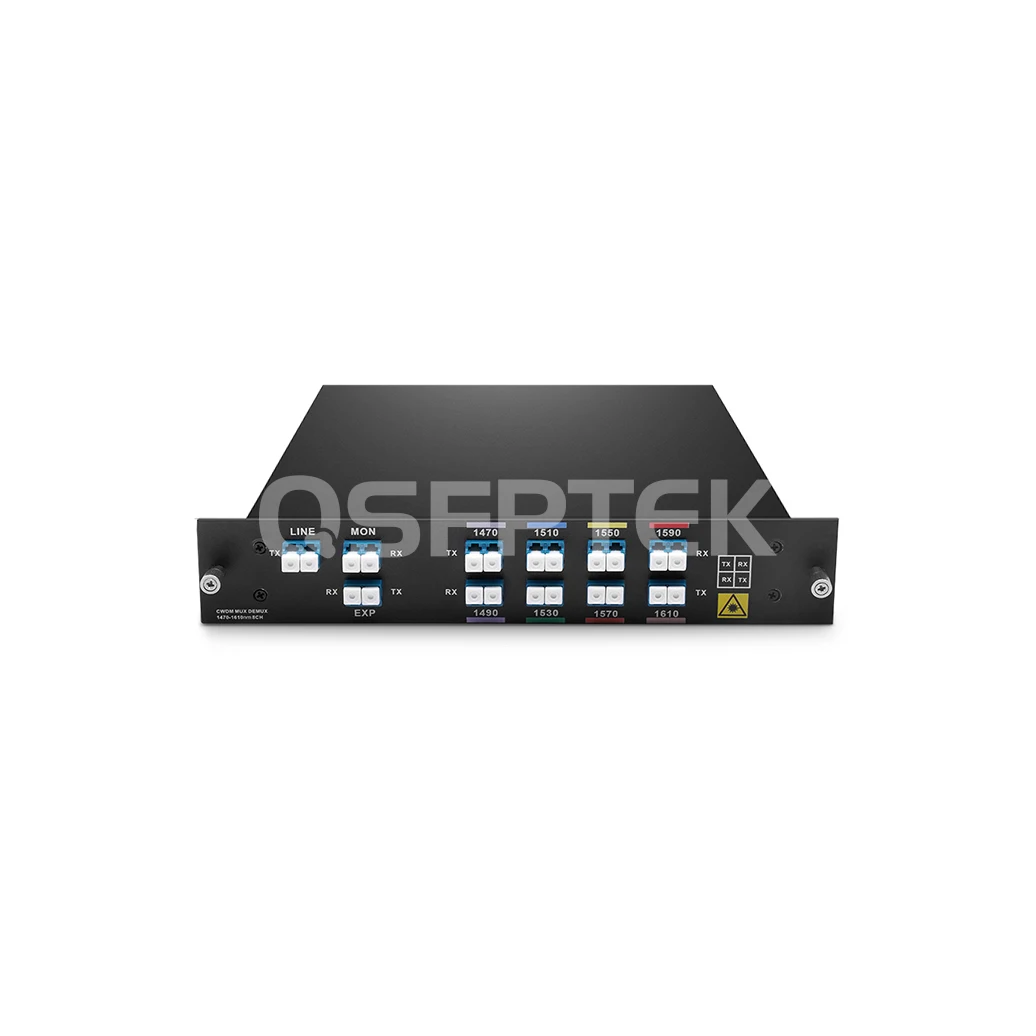

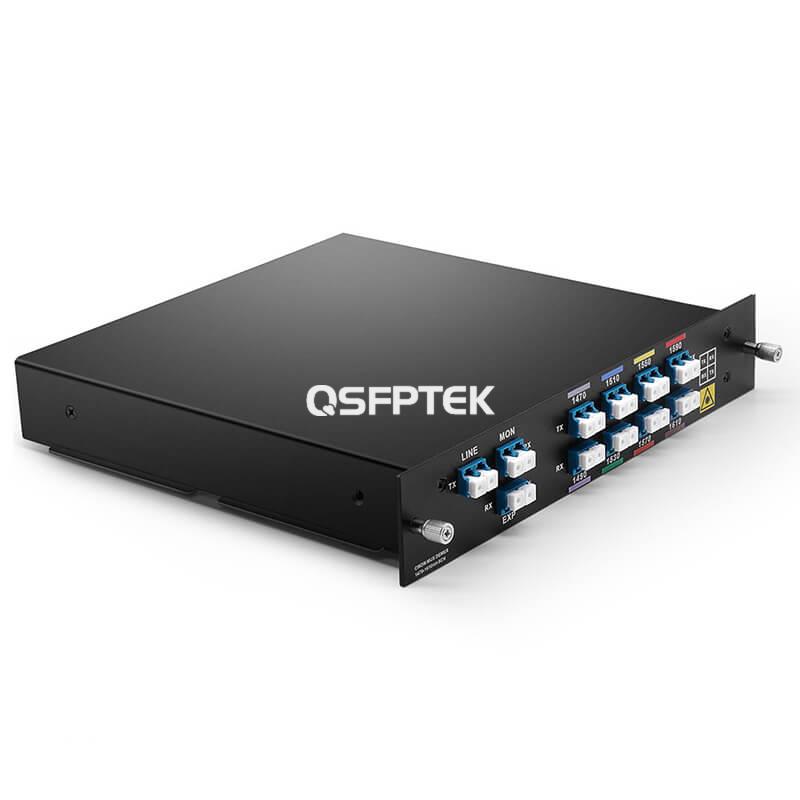

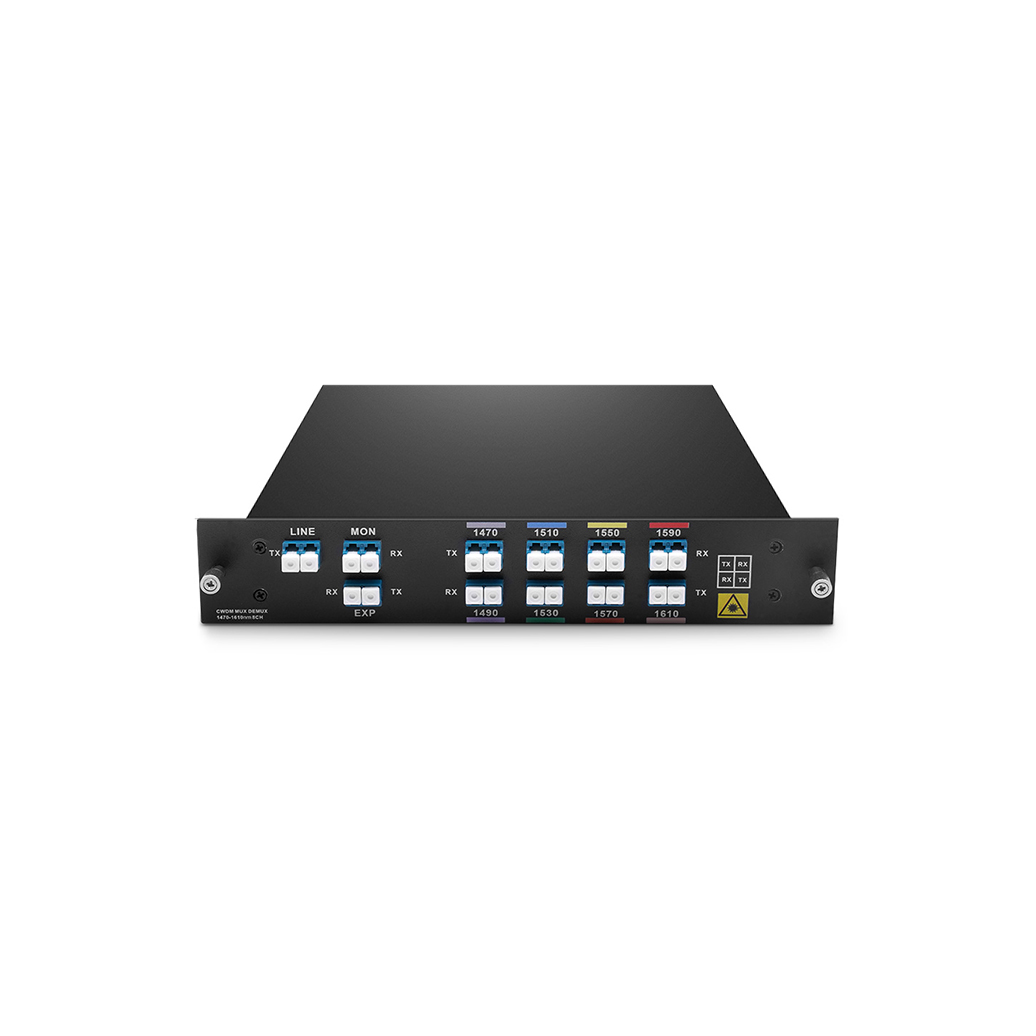

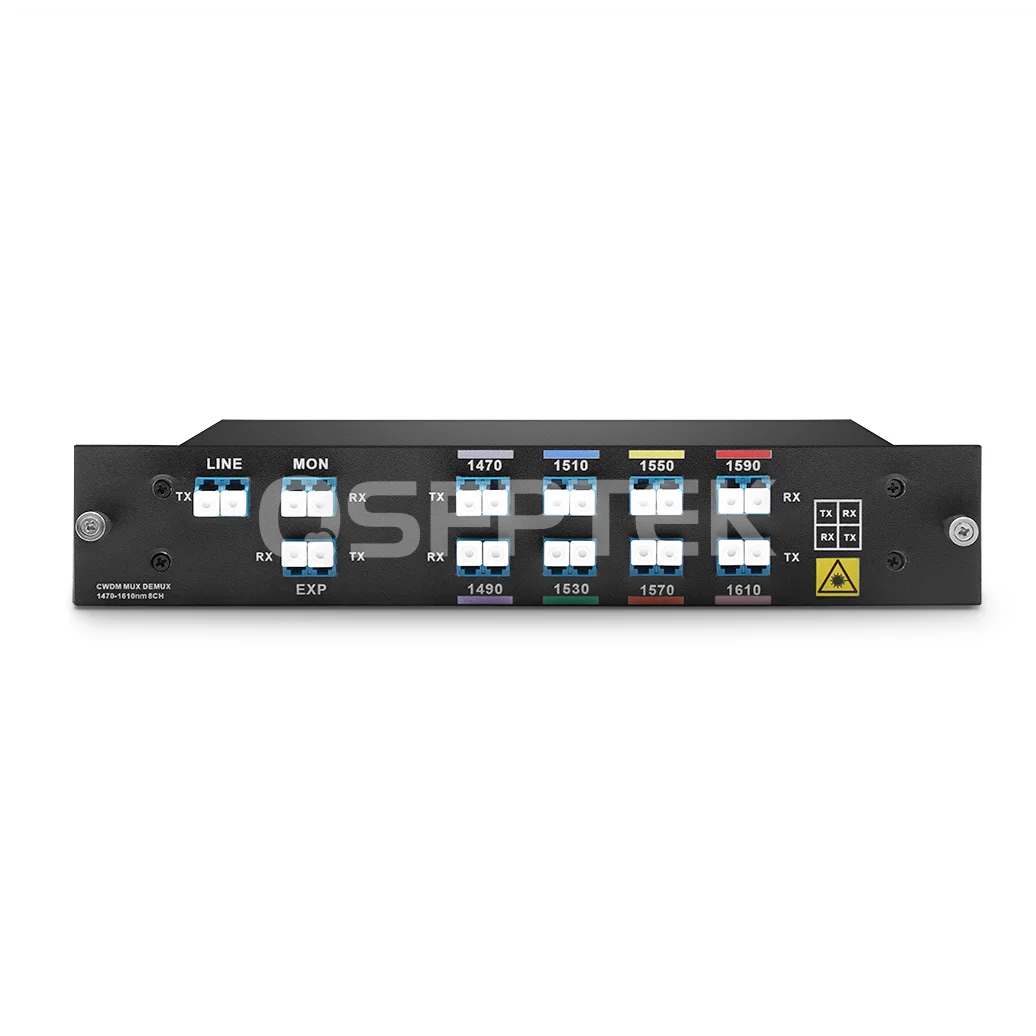

8 Channels Passive CWDM Mux Demux 1470-1610nm, with Monitor and Expansion Port, Dual Fiber, LC Connector, Low Insertion Loss

Product No :100076
US$ 149.00  US$ 199.00
100 in stock
-
+
1. CWDM multiplexer and demultiplexer 8 channels over dual SMF
2. 100% Passive, no power suppliy and no temperature control required
3. Low insert loss  ≤ 2.4dB
4. High channel isolation ≥ 30dB

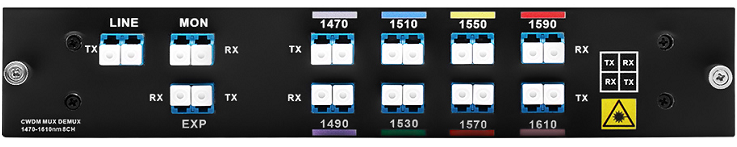

5. Monitor Port for easy troubleshooting
6. Expansion port for expanding with additional wavelengths

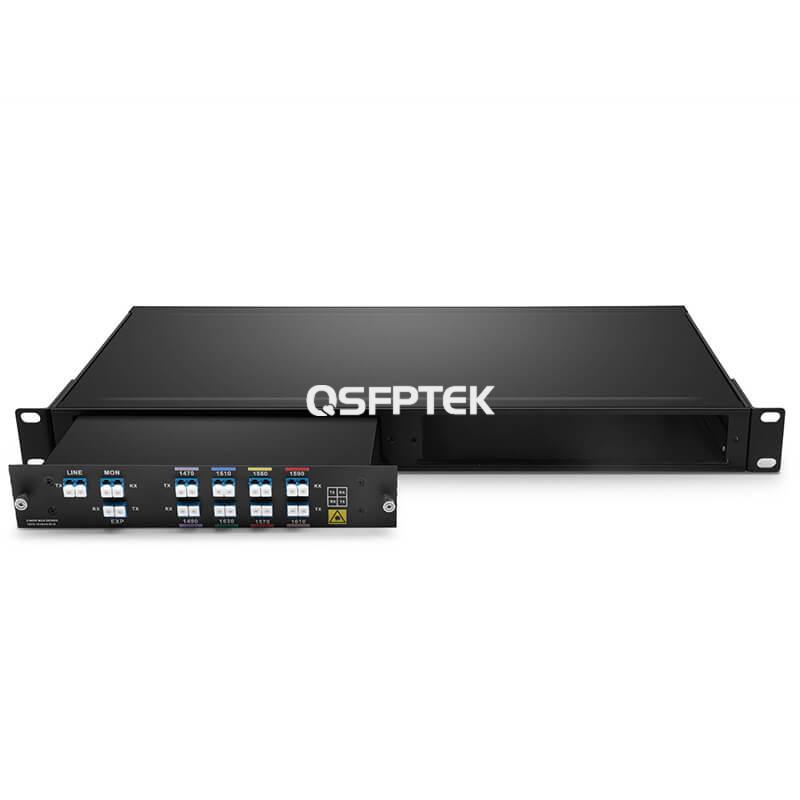

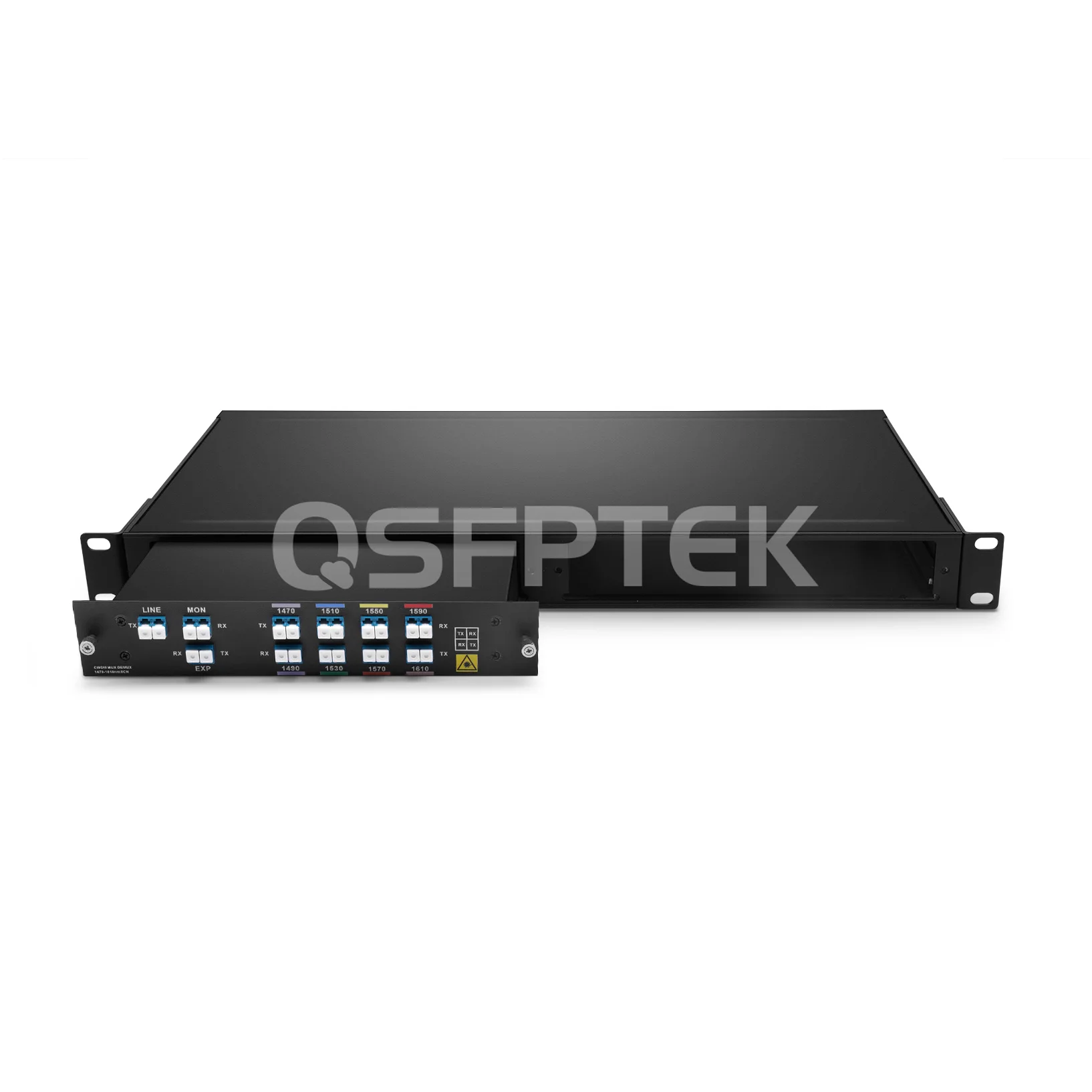

7. Easy to be installed on FMU 2-slot 1U 19-inch racks
See more

Specifications

8 Channels Passive CWDM Mux Demux, High-band of 1470-1610nm, Dual Fiber Plug-in Module, with Monitor and Expansion Port



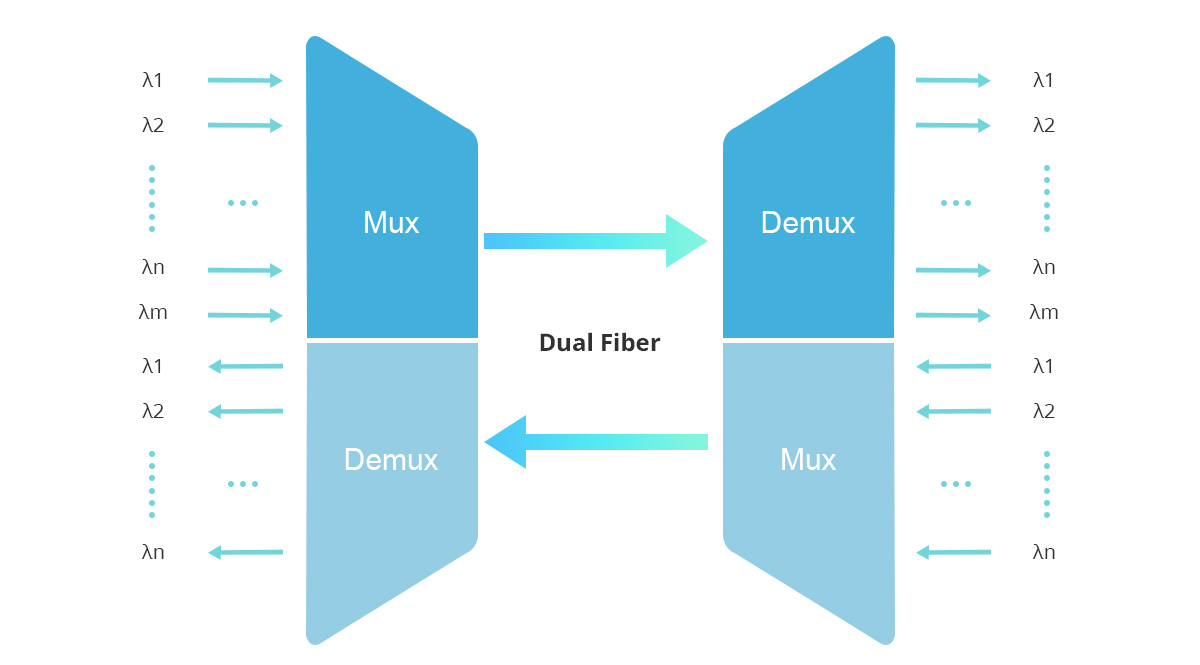

The 8CH CWDM Mux Demux contains an 8-channel fiber optic multiplexer and an 8-channel optical demultiplexer. Based on free-space technology, it combines 8-channels of CWDM wavelengths into a composite signal and separates the combined CWDM signal into 8-channels individual wavelengths ​over a pair of single-mode optical fiber. QSFPTEK 8CH CWDM Mux Demux integrated with a monitor port and an expansion port. The 1% monitor port allows easy troubleshooting without downtime and the expansion port supports expanding the capacity of existing fiber infrastructure. QSFPTEK is also devoted to providing maximally low insertion loss, the Max insertion loss is only 2.4dB. And the device is fully passive with no power supply and temperature control requirements. It is also easy to be installed on FMU 2-slot 1U 19-inch racks. It is recognized as an ideal and cost-effective solution for building point-to-point networks with limited scale requirements.





Wavelength:

 8 Channels 1470-1610nm

Channel Spacing:

 20nm

Expansion Port Passband:

1260nm~1457nm

Channel Passband:

±0.11nm

Insertion Loss:

≤ 2.4dB

Insertion Loss(Monitor Port):

≤ 24.3dB

Insertion Loss(Expansion Port):

≤ 2.4dB

Technology:

 Free Space

Drop Adjacent Channel Isolation:

 ≥ 30dB

Drop nonadjacent channel isolation:

≥ 40dB

Passband Ripple:

≤ 0.5dB

Return Loss:

 ≥ 45dB

Polarization Dependent Loss (PDL)

 ≤ 0.3dB

Polarization Mode Dispersion (PMD):

≤ 0.1ps

Operating Temperature Range:

-5 to 65°C (23 to 149°F)

Storage Temperature Range:

 -40 to 85°C (-40 to 185°F)

Quality Testing Program
Quality Certifications

Features

  • 1. Optimal Optical Performance
    Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.

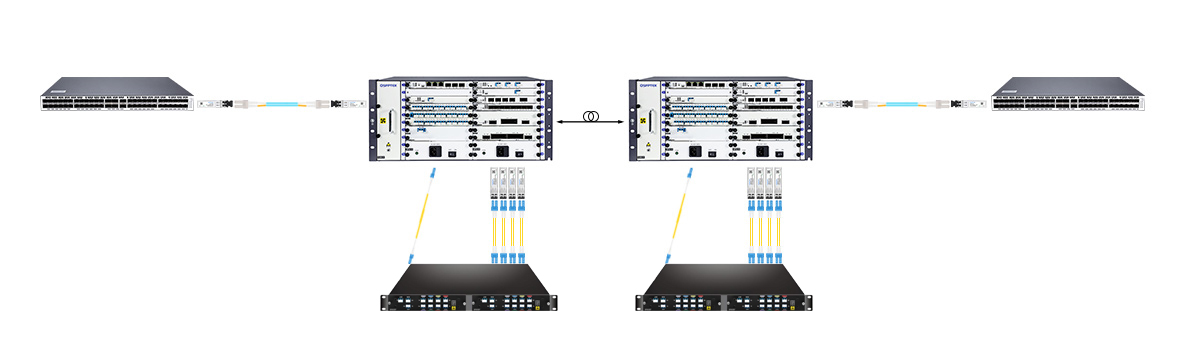

  • 2. Widely Application Scenarios
    It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel.
  • 3. Integrated with MON Port and EXP Port
    The monitor port allows easy troubleshooting without downtime, the expansion port supports capacity expansion.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
