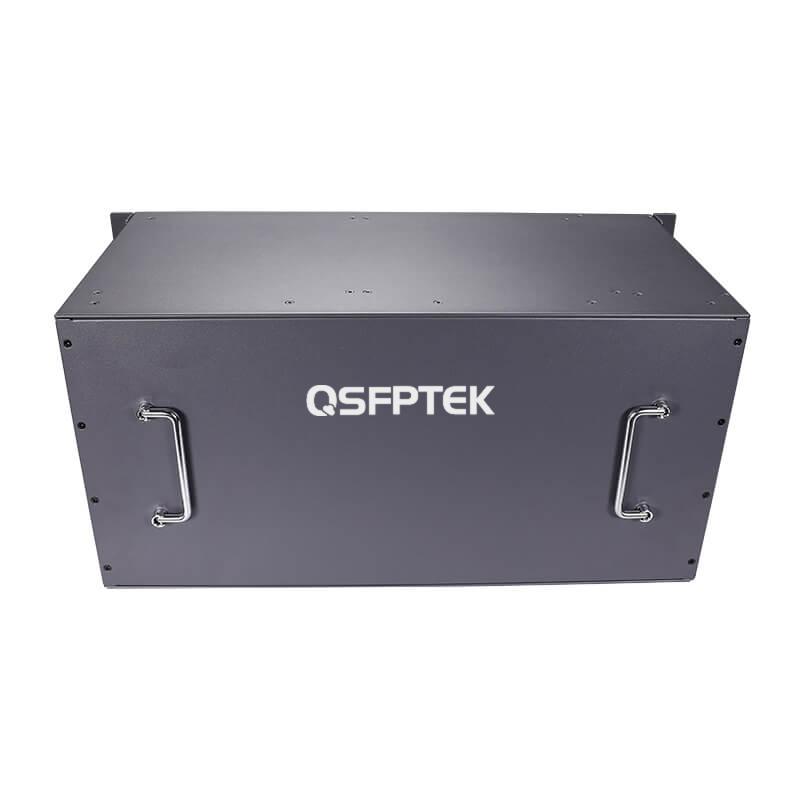

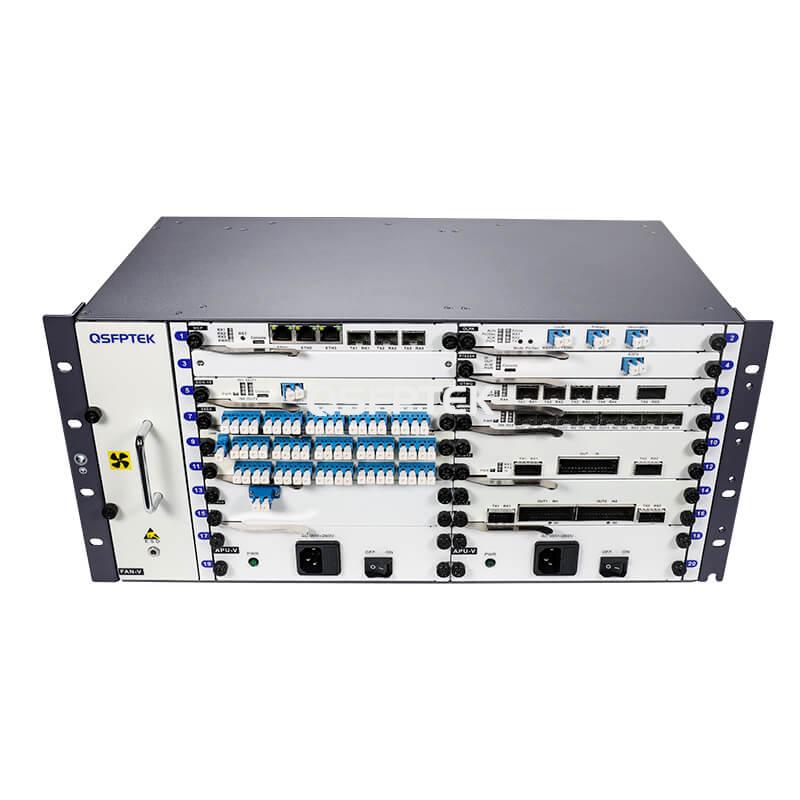

QT860-CH5U15, 15 Slot 5U Managed Chassis Platform Unloaded for OTN Transmission

Product No :100152
US$ 738.90  US$ 799.00
Series
Model
100 in stock
;jsessionid=2DBAC7C01287AE35E8CBB5774CAC1698
-
+
Add to Cart Bulk Order Quotes
1. Support various management types including CLI、Telnet、SNMPv2、Web
2. Support up to 15x MUX/DEMUX/EDFA/OEO/OLP/DCM Cards
3. Meet the requirements of multi-service access
4. Low power consumption, the power consumption of the whole machine is less than 450W (typical value)
5. Support 3x SFP LAN Ports and 3x RJ45 LAN Ports.
See more

Specifications

Highly Integrated, Optoelectronic Integration 5U Managed Chassis

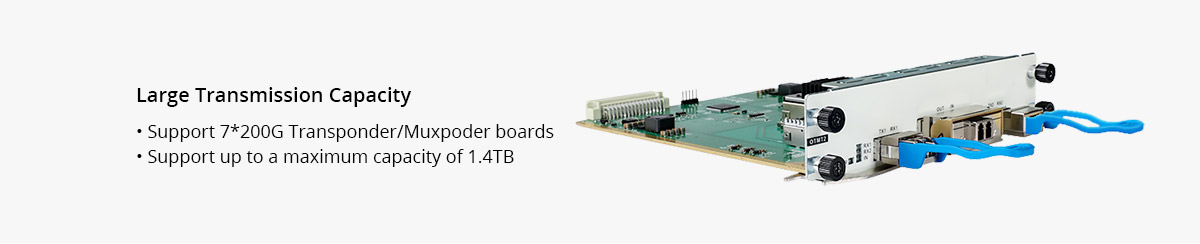

The QT860 series 5U network management chassis supports up to 15x 100G Transponder/Muxpoder boards, up to a maximum capacity of 1.4Tbps. All boards, power supplies, and fans support hot swapping. The platform supports multiple service types, including FC/Ethernet/SDH, etc. The network management platform supports CLI, Telnet, SNMPv2, and Web, with flexible management methods.



Slot Count 15 Enclosure Type Rack Mountable

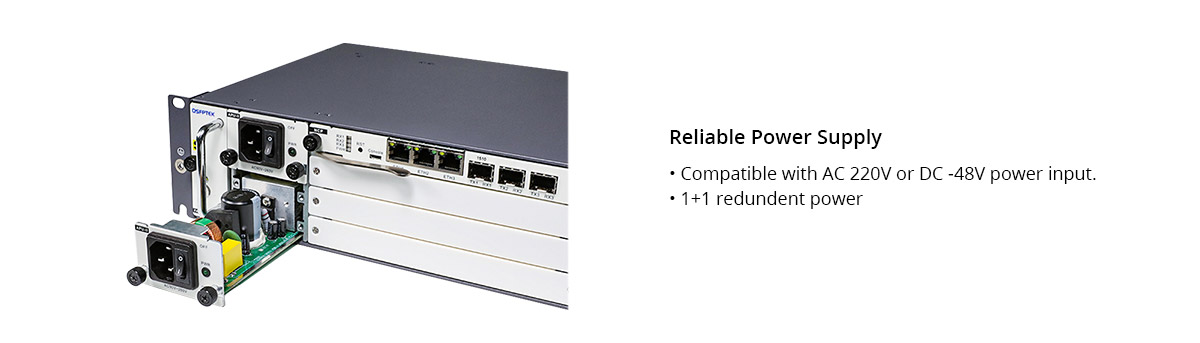

Power Supply

1+1 Redundant Power

AC: 90 ~ 260V

DC: -36 ~ -72 V

 Power Consumption < 450W
Management Type CLI、Telnet、SNMPv2、Web Network Interface 3× SFP LAN Ports 1000Base-X
3× RJ45 LAN Ports 1000Base-T
Relative Humidity(non-condensing) 5% ~ 95% Dimensions (HxWxD) 220mm x 442mm x 220mm
Board Hot Pluggable Supports Single Channel Max. Rate 100Gbit/s
Operating Temperature -10 to 60°C Storage Temperature -40 to 85°C
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

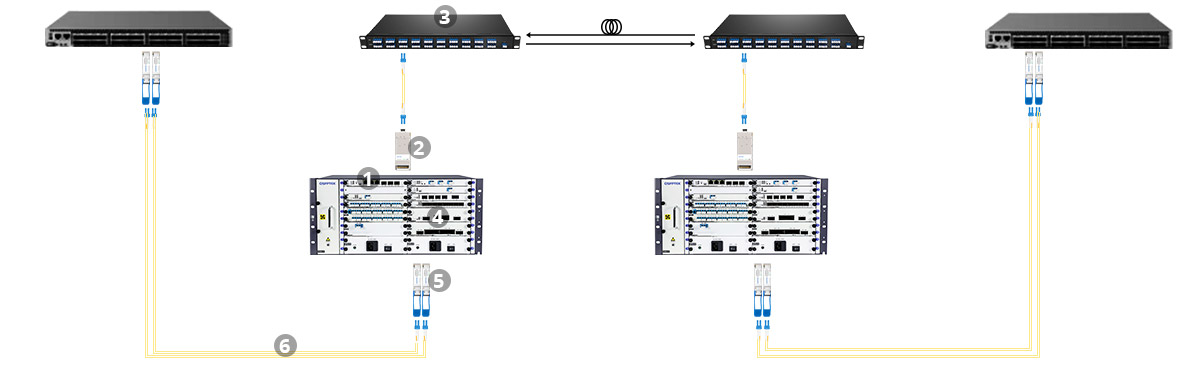

Applications



① QT860 Series 5U Managed Chassis Platform

② 100G/200G Tunable CFP2-DCO Coherent Transceiver

③ 40 Channels Passive DWDM Mux Demux

④ 200G OTN Muxponder, 2x QSFP28 to 1x CPF2

⑤ 100GBASE-LR4 QSFP28 1310nm 10km Optical Transceiver Module

⑥ LC UPC to LC UPC Duplex OS2 Fiber Optic Patch Cable



Product details

QT860 Series 2U/5U OTN Platform



QSFPTEK QT860 is a series of box architecture Optical Transport Network (OTN) transmission equipment that supports highly integrated MUX/DEMUX/OEO/EDFA/DCM/OLP devices. 2U and 5U chassis are available.

QT860 Chassis Platform

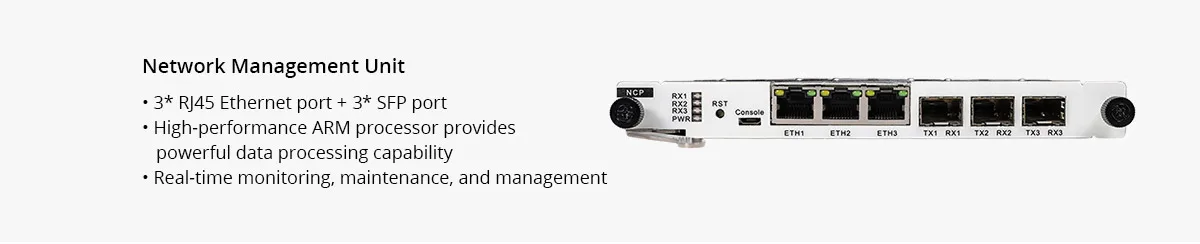

management unit








QT860 Series OTN Chassis Platform


Type

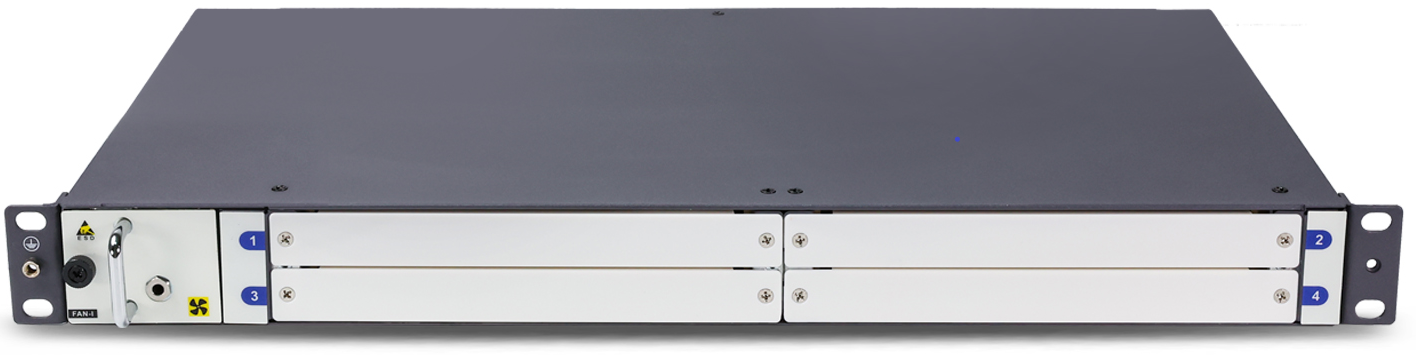

5U 2U 1U

Dimensions (HxWxD)

220x442x220mm

88×442×220mm

44x442x280mm

Slots

15

7

3

Power Consumption

< 450W

< 180W

< 120W

Maximum Channel No.

CWDM: 18CH, DWDM: 96CH (50GHz)

Max Rate per Channel

100Gbit/s

Line rates

1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s

Management Type

CLI, Telnet, SNMPv2, Web

Mount Type

The Standard Configuration Comes with EIA 19" Rack

21", 23", and Extended Rack Hanging Ear Size Customization Available

Network Protection

Optical Channel 1+1 Protection, Optical Multiplex 1+1 Protection, Optical Line 1+1 Protection

Device Protection

1+1 Redundant Power

Operating Temperature

-10 to 60°C

Storage Temperature

-40 to 85°C

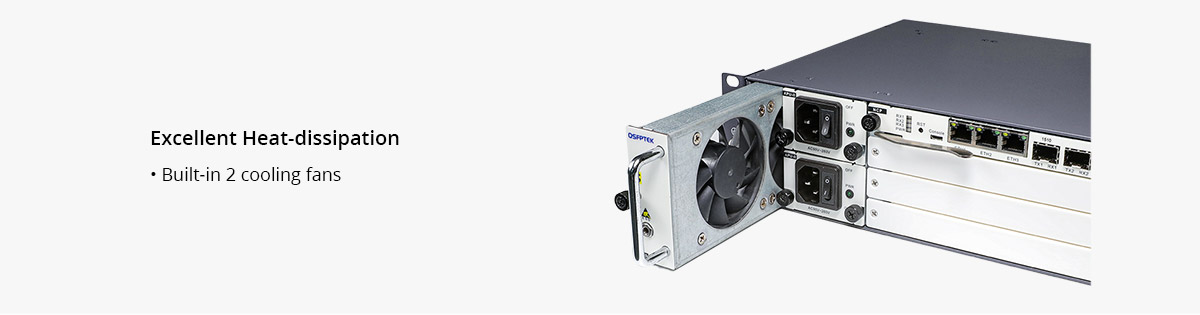

Heat Dissipation

Fan Cooling

Power Supply

AC: 90 ~ 260V or DC: -36 ~ -72V



Questions & Answers

more+
  • When I purchase the QT860 Chassis, does it come with a power supply?
    Yes. The QT860 series comes standard with two power supplies, one fan, and one main control board.
  • Are the main control boards used on the QT860 chassis universal?
    Yes, you can use the main control board of QT860-CH2U07 on QT860-CH5U15.
  • What is the maximum line rates of QT860 series Chassis?
    400Gbit/s.
