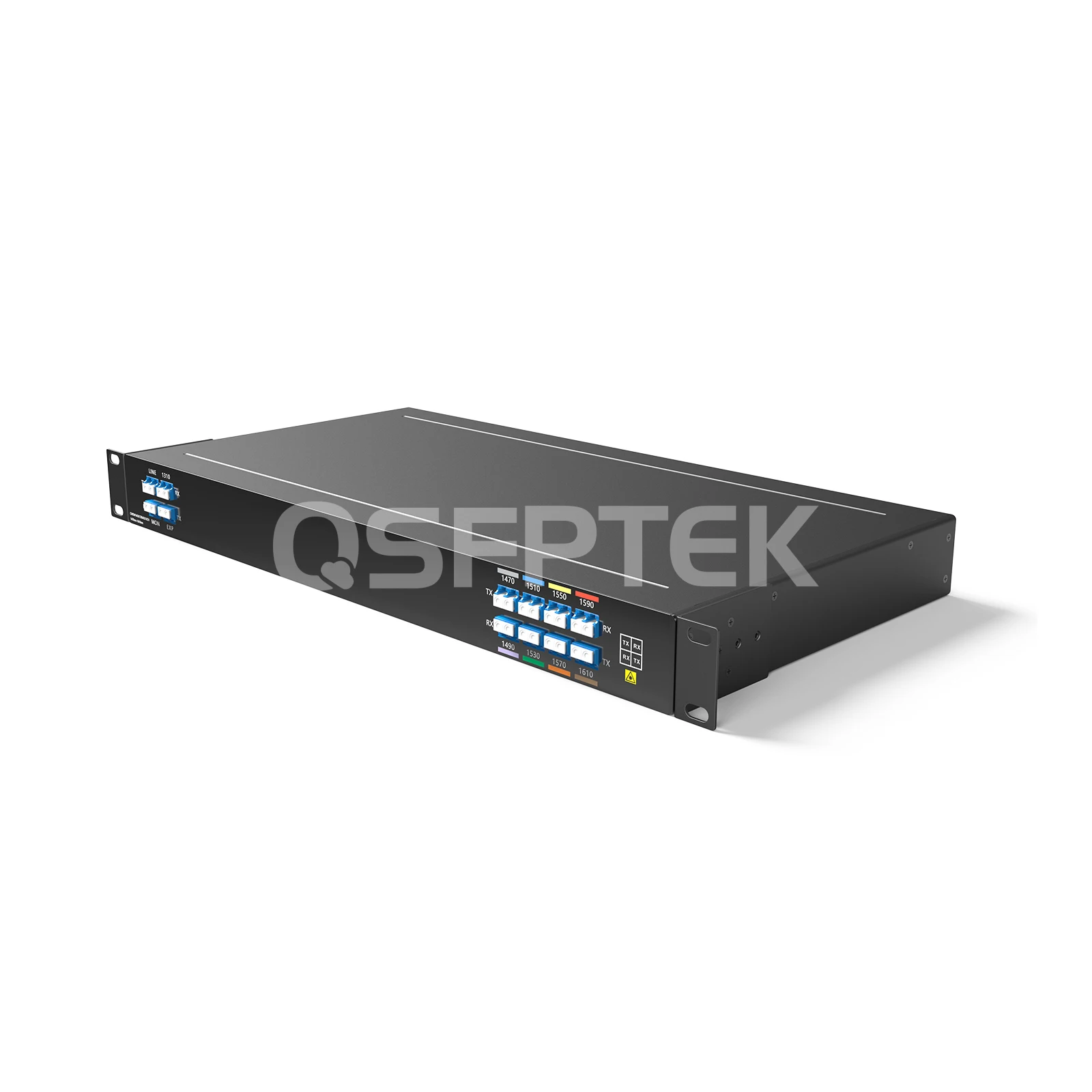

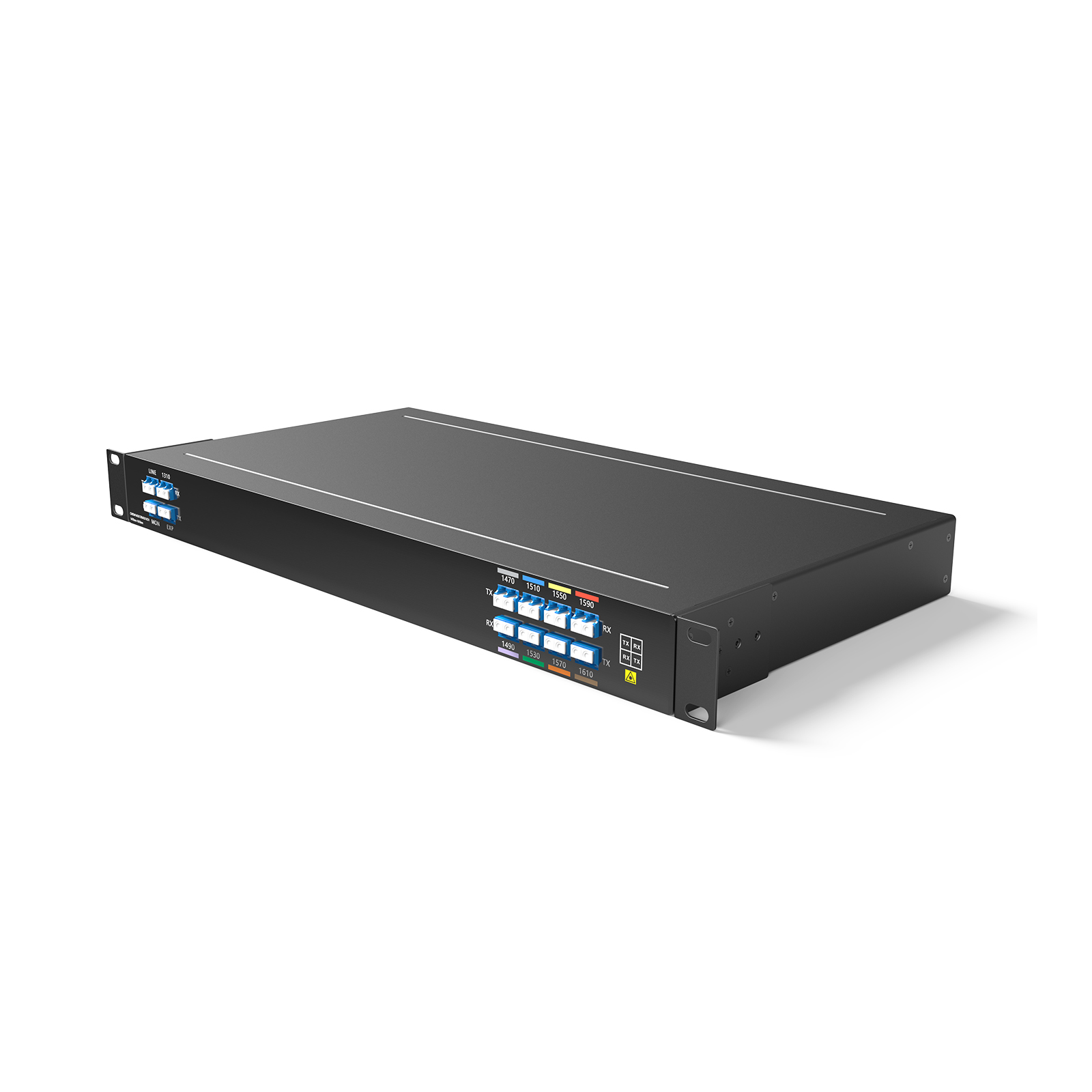

    8CH Dual Fiber 1470-1610nm CWDM MUX DEMUX With 1310nm, Monitor and EXP Port, LC/UPC, 1U Rack

    Product No: 102390
    7 Reviews
    79 Sold
    US$ 212.90  US$ 299.90
    Series
    Model
    112 in real-time stock, 04 Jun, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. CWDM multiplexer and demultiplexer 8 channels over dual SMF.
2. 100% passive, no power supply and no temperature control required.
3. Low insert loss  ≤ 2.7dB.
4. Monitor port for easy troubleshooting.
5. Expansion port for expanding with additional wavelengths.
    See more

    Specifications

    8CH Dual Fiber 1470-1610nm CWDM MUX DEMUX With 1310nm, Monitor and EXP Port, LC/UPC, 1U Rack



    Crafted by QSFPTEK, the 8-channel CWDM MUX/DEMUX spans wavelengths from 1470nm to 1610nm, inclusive of a dedicated 1310nm port. As a passive CWDM apparatus, it facilitates the simultaneous transmission of 8 distinct channels over a dual-fiber link, streamlining point-to-point communications.



    This versatile device is instrumental across various sectors including Broadcast, Television, Data Centers, Government Entities, and Cloud Computing, particularly in scenarios where there's a scarcity of optical fiber resources. By optimizing the use of limited fiber infrastructures, it provides an efficient solution for expanding network capacity without extensive fiber enhancements.

    Part Number QT-1U-C84761EM3 Installation Method 1U Rack Mount
    Wavelength 8 Channels 1470nm-1610nm Channel Spacing 20nm
    Channel Passband ±6.5nm Passband Ripple ≤ 0.2dB
    Insertion Loss ≤ 2.7dB Insertion Loss @Monitor Port ≤ 26dB
    Directivity ≥45dB Technology TFF (Thin Film Filter)
    Polarization Mode Dispersion (PMD) ≤ 0.1ps Link Loss ≤ 3.0dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Return Loss ≥ 45dB
    1310nm Port Passband 1260nm~1360nm Channel Isolation Adjacent ≥30dB
    Non-adjacent ≥ 45dB
    Center Wavelength Accuracy ±0.05dB Temperature Operating: -40 to 85°C (-40 to 185°F)
    Storage: -40 to 85°C (-40 to 185°F)
    Dimensions (H x W x D) 44 x 440 x 230mm Net Weight 1.5KG
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel.
    • 3. Integrated with MON Port and EXP Port
      The monitor port allows easy troubleshooting without downtime, the expansion port supports capacity expansion.
    • 4. Quality Certifications
      Backed by CE, FCC, ISO9001, ISO14001.

    Applications

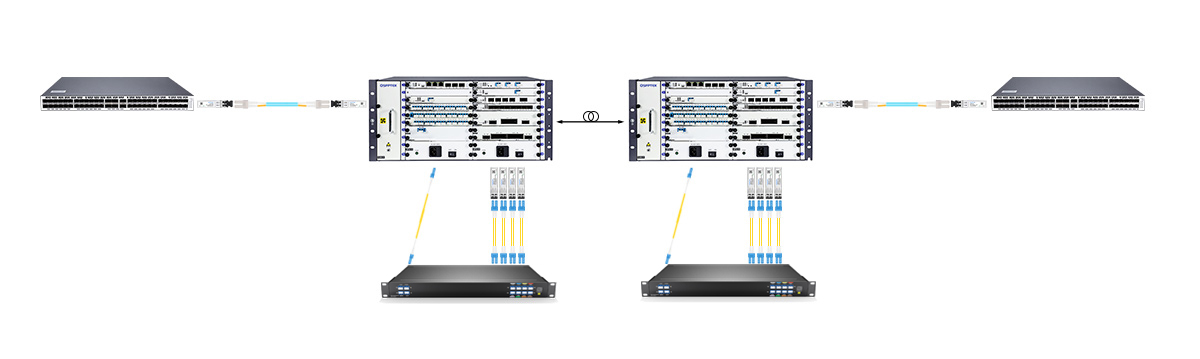

    Use Dual Fiber CWDM Mux Demux for Bidirectional 10G CWDM Network up to 10KM



    Use Dual Fiber DWDM Mux Demux for Bidirectional 10G CWDM Network up to 10KM

    Product details

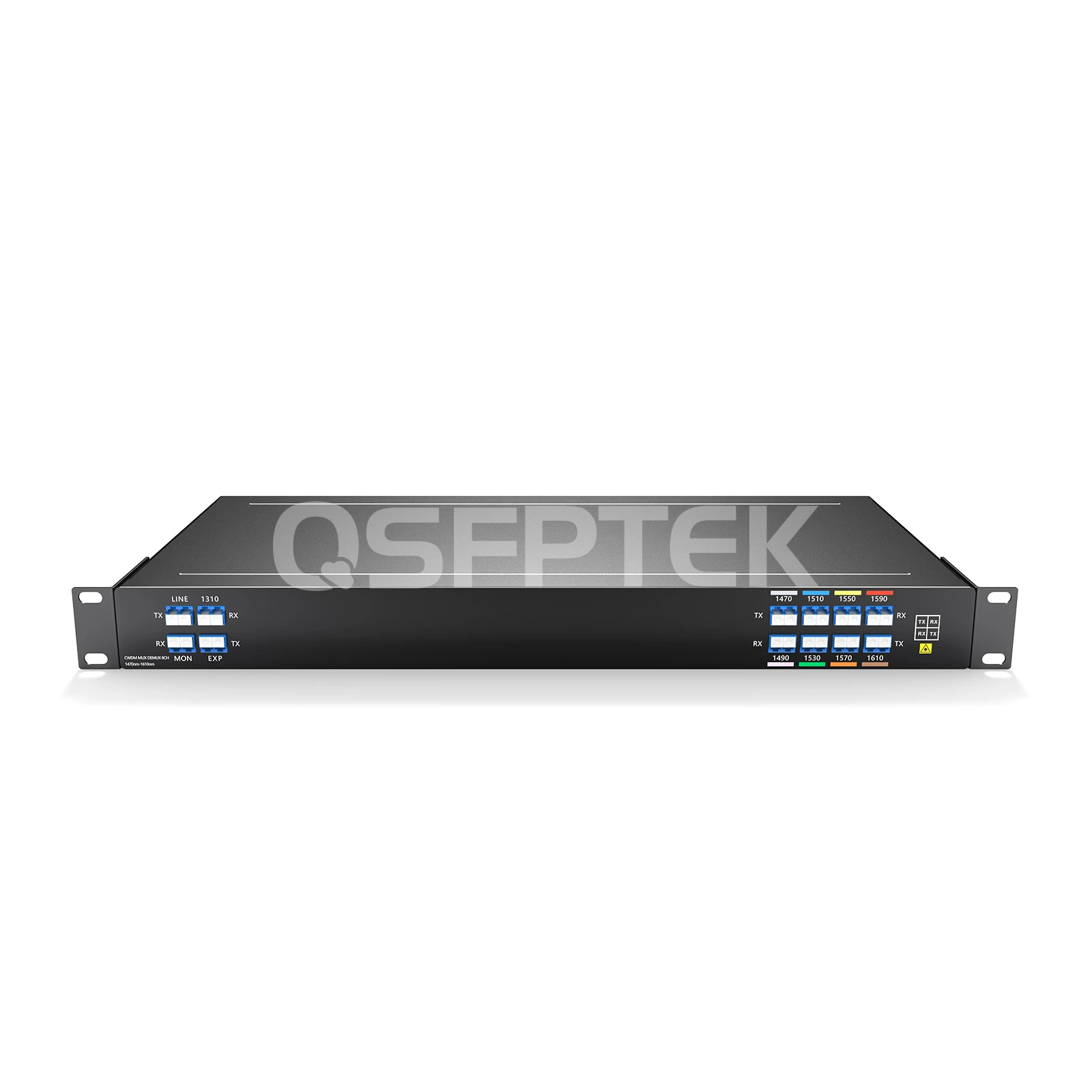

    Rich Ports for 8 Channels CWDM Mux Demux

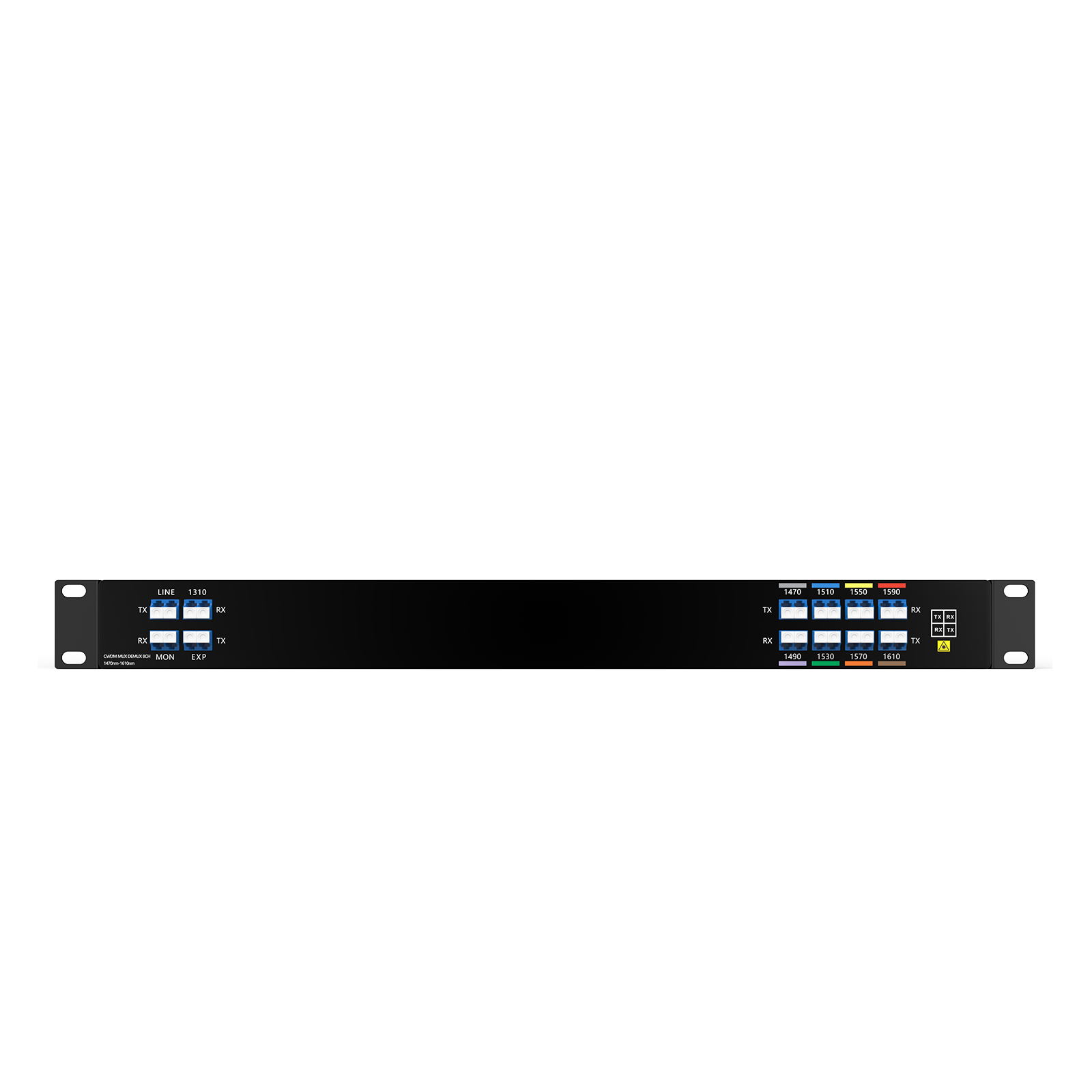

    The channel port 1470-1610nm is designed for CWDM traffic, with the EXP port allowing network expansion, and the MON port for link monitoring.



    Rich Ports for 8 Channels CWDM Mux Demux

    Basic Principles of CWDM Multiplexing and Demultiplexing



    The CWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.

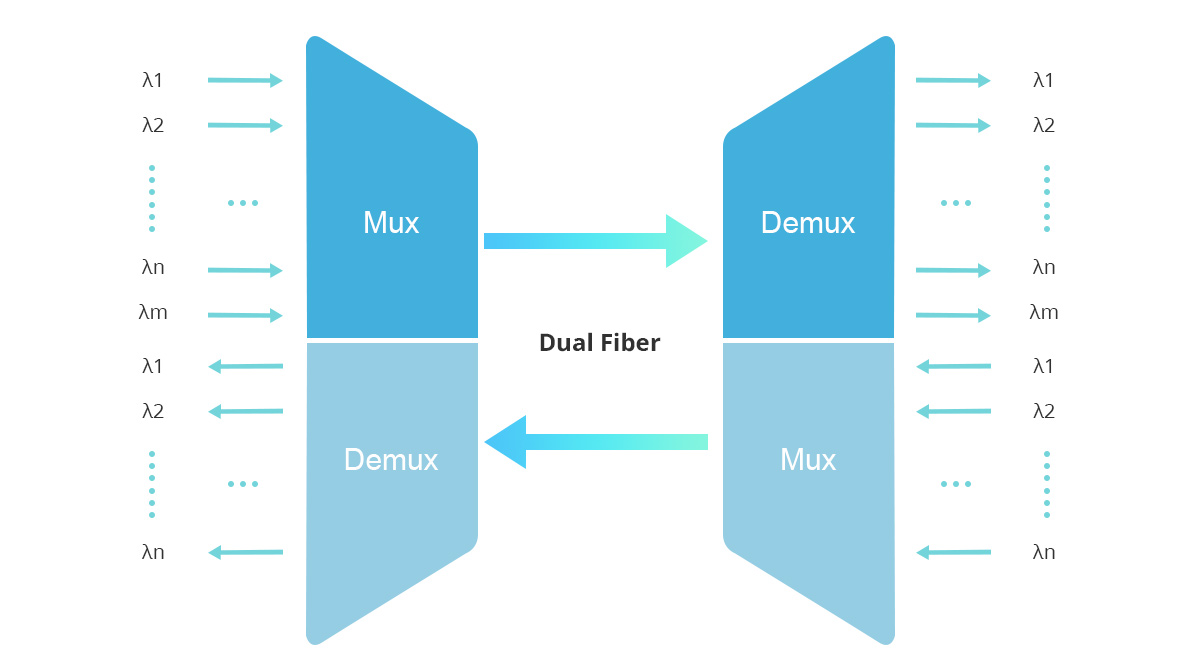

    Dual Fiber Wavelength



    Maximize Your Fiber Resources with Passive WDM Network



    WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.

    It serves as a cost-effective network solution by optimizing the utilization of optical fibers.





    Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly.
