QT860-2M200GCFP2, 200G OTN Muxponder, 2x QSFP28 to 1x CFP2

Product No :100154
US$ 2124.90  US$ 2625.90
Series
Model
100 in stock
;jsessionid=5366126050167BEE54D7B9F19A524996
-
+
Add to Cart Bulk Order Quotes
1. DP-8QAM/16QAM modulation.
2. 800km transmission without an electrical relay.
3. C-band 96 waves (50Ghz) tunable.
4. Supports SDFEC and G.709 FEC.
5. The maximum power consumption is less than 30W (including optical modules).
See more

Specifications

200G Muxponder for Multi-Service Transmission



200G multi-protocol multi-rate transponder/muxponder is designed for building high-capacity optical transport networks. Its flexible architecture with 2x QSFP28 client interface enables the same device to be used in multiple applications. It supports a flexible mix of 100GbE and OTU4 services in various muxponder and transponder operation modes, combining different protocols and rates over a single 200G CFP2-DCO coherent uplink.



It allows maximum flexibility and scalability for fiber optic connectivity in wavelength division multiplexing (WDM) and dark fiber applications and provides an ideal solution for enterprises, data centers, campus networks, and metro networks.



Client Interface QSFP28 Client Interface Protocols 100Gbe/OTU4
Line Interface CFP2 Line Interface Protocol C-Band Tunable Coherent CFP2
Line Interface Wavelength Range 1528~1568nm (C-Band) Line Modulation DP-8QAM/16QAM
Out-Band Management SNMP v2, WEB Power Consumption

＜30w
Operating Temperature -5 to 50°C Storage Temperature -40 to 70°C



Quality Certifications

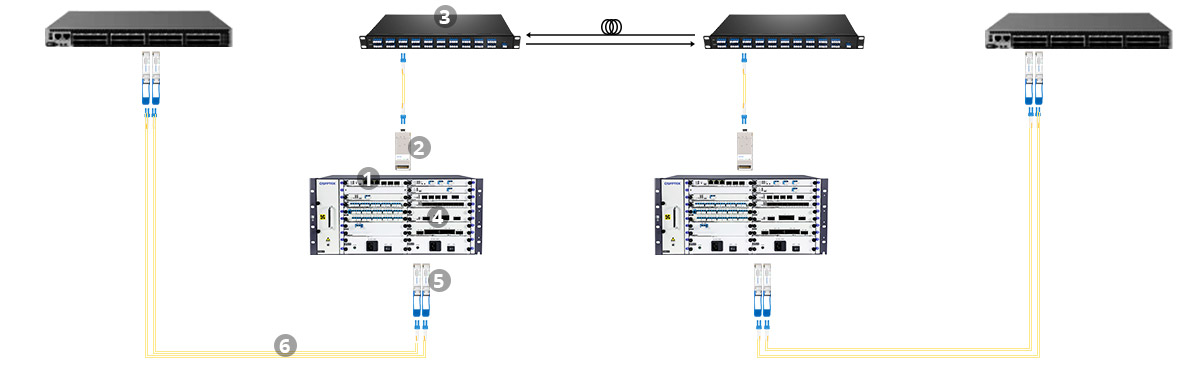

Applications



① QT860 Series 5U Managed Chassis Platform

② 100G/200G Tunable CFP2-DCO Coherent Transceiver

③ 40 Channels Passive DWDM Mux Demux

④ 200G OTN Muxponder, 2x QSFP28 to 1x CPF2

⑤ 100GBASE-LR4 QSFP28 1310nm 10km Optical Transceiver Module

⑥ LC UPC to LC UPC Duplex OS2 Fiber Optic Patch Cable

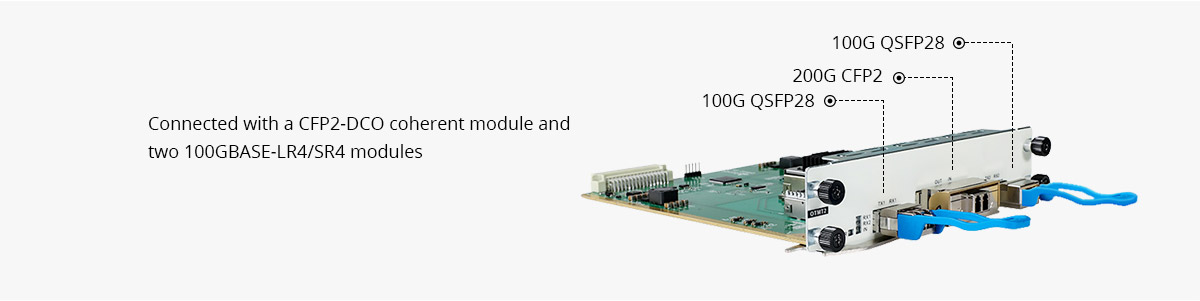

Product details

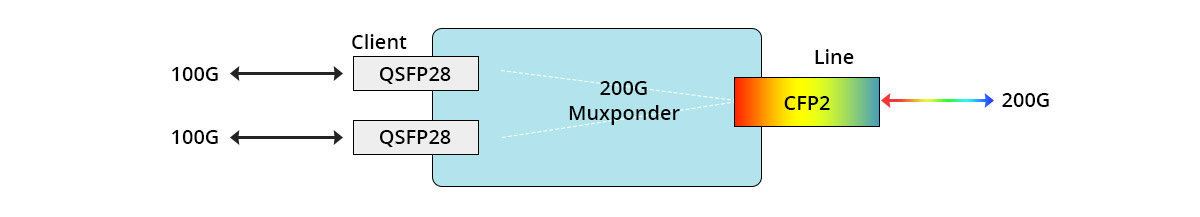

Support 2x 100G ↔ 200G Multiplexing/Demultiplexing



Convert two channels of 100G signal into one channel of 200G coherent DWDM optical signal (200G CFP2-DCO).









;jsessionid=5366126050167BEE54D7B9F19A524996

Questions & Answers

more+
  • Hello, I need to deploy 10G Ethernet business and 100G Ethernet business on the client side. Can you recommend one for me?
    I will recommend QT900-200GCM111 to you, this card can support 2x100G QSFP28 client interface or 1x100G QSFP28 with 10G SFP+ dual client interface.
  • What is the QT900 series management method
    The QT900 series support NETCONF/YANG standard open interface and GUI management platform based on B/S architecture.
  • What is the line modulation for QT900 series?
    The 200G muxponder support PDM-8QAM/16QAM/QPSK modulation, and the 400G muxponder support PDM-16QAM modulation.
