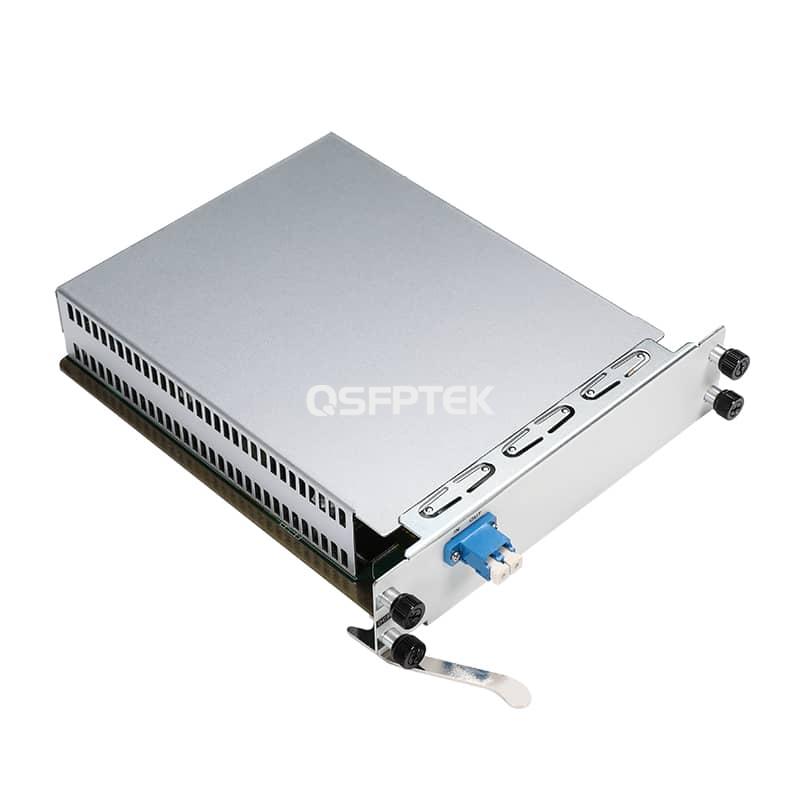

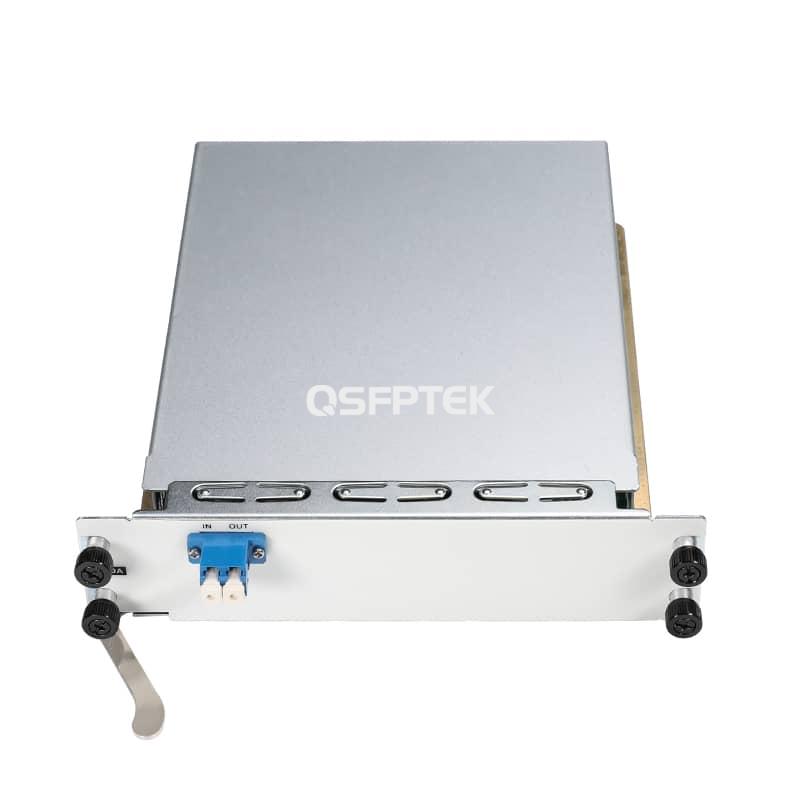

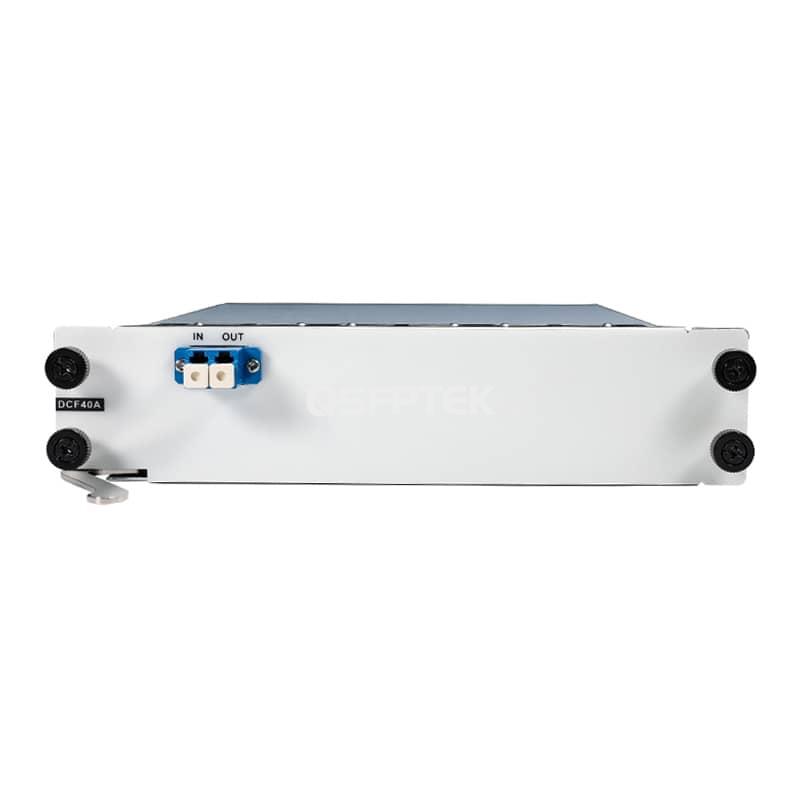

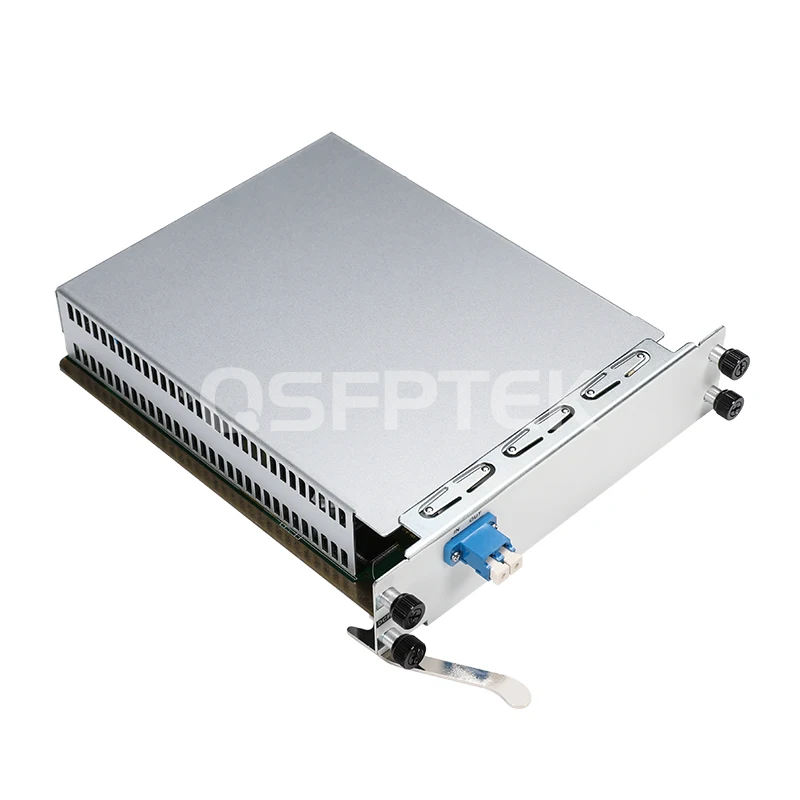

QT860-DCM40, 40KM DCF Passive Dispersion Compensation Fiber Based Module

Product No :100157
US$ 581.90  US$ 689.00
Series
100 in stock
;jsessionid=2C8D928DE53A8E49163CCE28D2A2F2BD
-
+
1. Dispersion Compensation Fiber Technology, totally passive
2. Ultra-low Polarization Mode Dispersion≤0.8ps
3. Ultra-low Noise Figure≤4.5dB(Typical)
4. Compliant with RoShH-6 lead-free standard
See more

Specifications

40km Dispersion Compensation Fiber Pluggable Module



DCM dispersion compensation is a pure passive device, which can perform broadband dispersion slope compensation in C-band for standard single-mode fiber (G.652), and is used in optical transmission systems to repair optical signals distorted by dispersion Compensate for damaged signals, and improve the performance of the optical transmission system, thereby realizing high-speed, large-capacity, and long-distance communication. The dispersion range of QSFPTEK's DCM at 1550nm wavelength can reach -10 to -2100ps/nm and can provide products with special requirements for center wavelength and dispersion.



Compensation Length 40km Wavelength Range C-band
Dispersion (ps/nm) -670±30ps/nm Connector LC/UPC
Insertion Loss

5.0dB

Housing Pluggable Module (Occupy 2 slots)
Polarization Mode Dispersion ≤0.8ps Polarization Dependence Loss ≤0.1ps
Noise Figure 4.5dB (Typical) Operating Temperature –5 to 70°C



Quality Testing Program
Quality Certifications

Applications

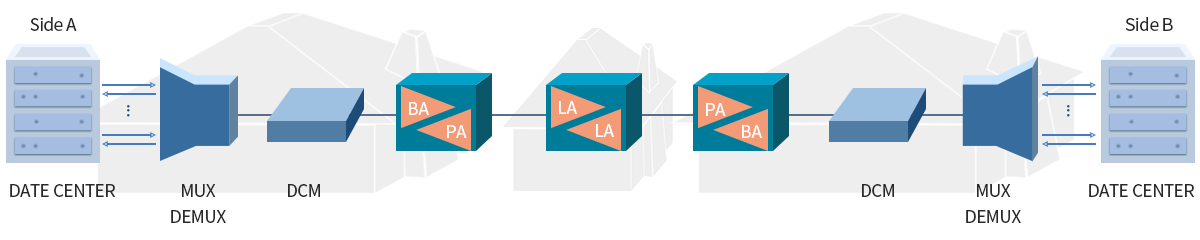

Point-to-Point Long-Haul DWDM Solution



DCM has wide adoption in distance extension applications to compensate for chromatic dispersion.



Product details

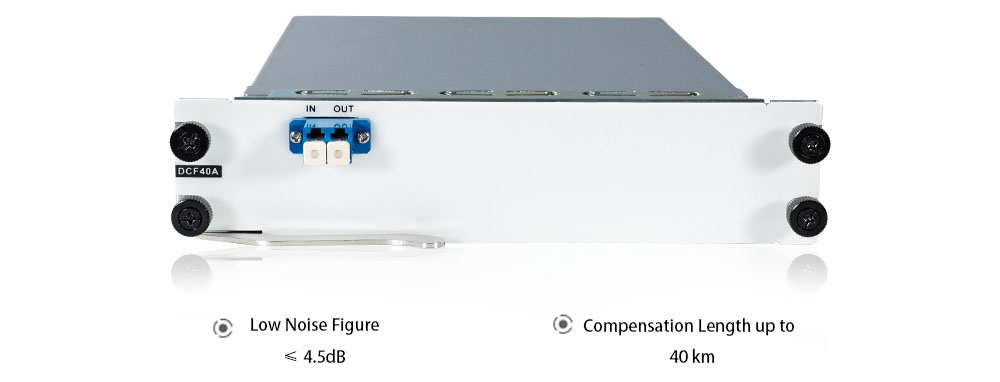

Compensate Dispersion for Reliable Signals

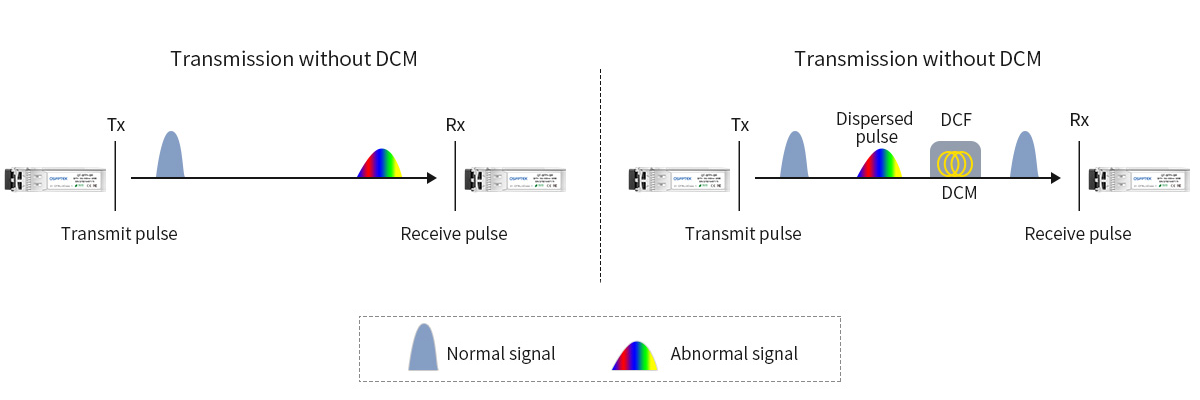

Fix Signal Dispersion to Extend Transmission Distance



A DCM-based DWDM solution can compensate for dispersion, ensuring

signals are received over a longer transmission distance.

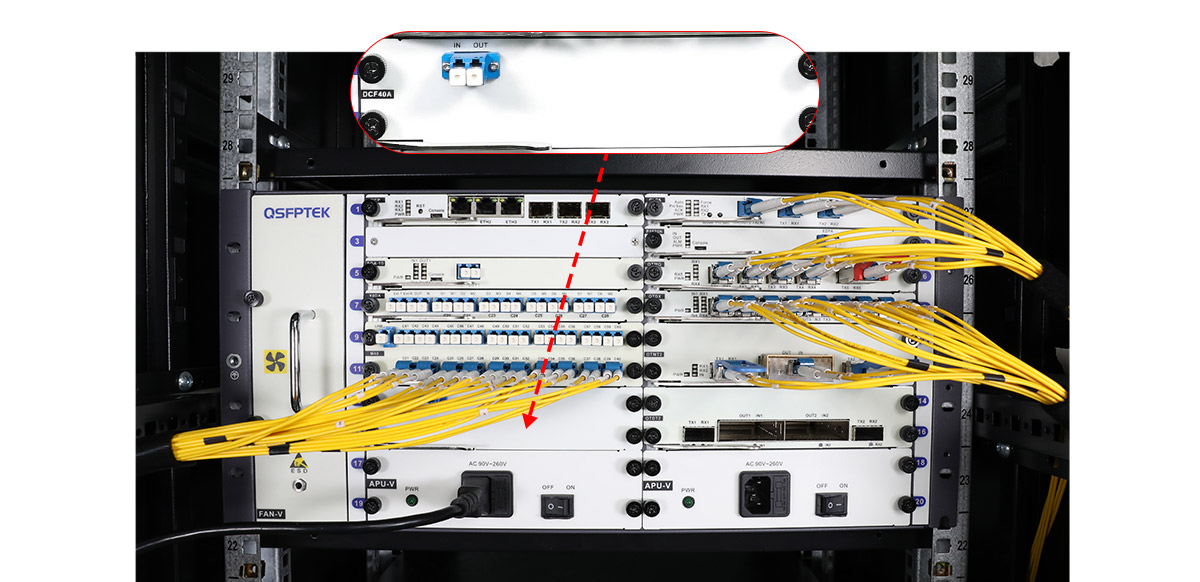

40km DCM for Highly Converged WDM Platform



The 40km DCM can be integrated into the QT860 series OTN Chassis Platform and works together

with other QT860 series OTN products such as OLP, EDFA, Transponders, etc.



Questions & Answers

more+
  • I didn't see my required DCM distance, can I customize it?
    Yes, you can consult your account manager to confirm your desired distance and connectors. Distract from LC/SC/FC connector, UPC/APC polish, 10-140km distance, and pulg-in module or 1U rack mount housing customize available.
  • What is a DCM and when should I use it?
    DCM stands for Dispersion Compensation Module. It's a device designed to rectify optical signals that have been distorted by dispersion during their transmission. By compensating for signal degradation within optical transmission systems, thereby improving the performance of the optical transmission system (i.e. extending the transmission distance). When you need to increase the transmission distance in your optical transmission link, EDFA paired with DCM would be a good choice.
