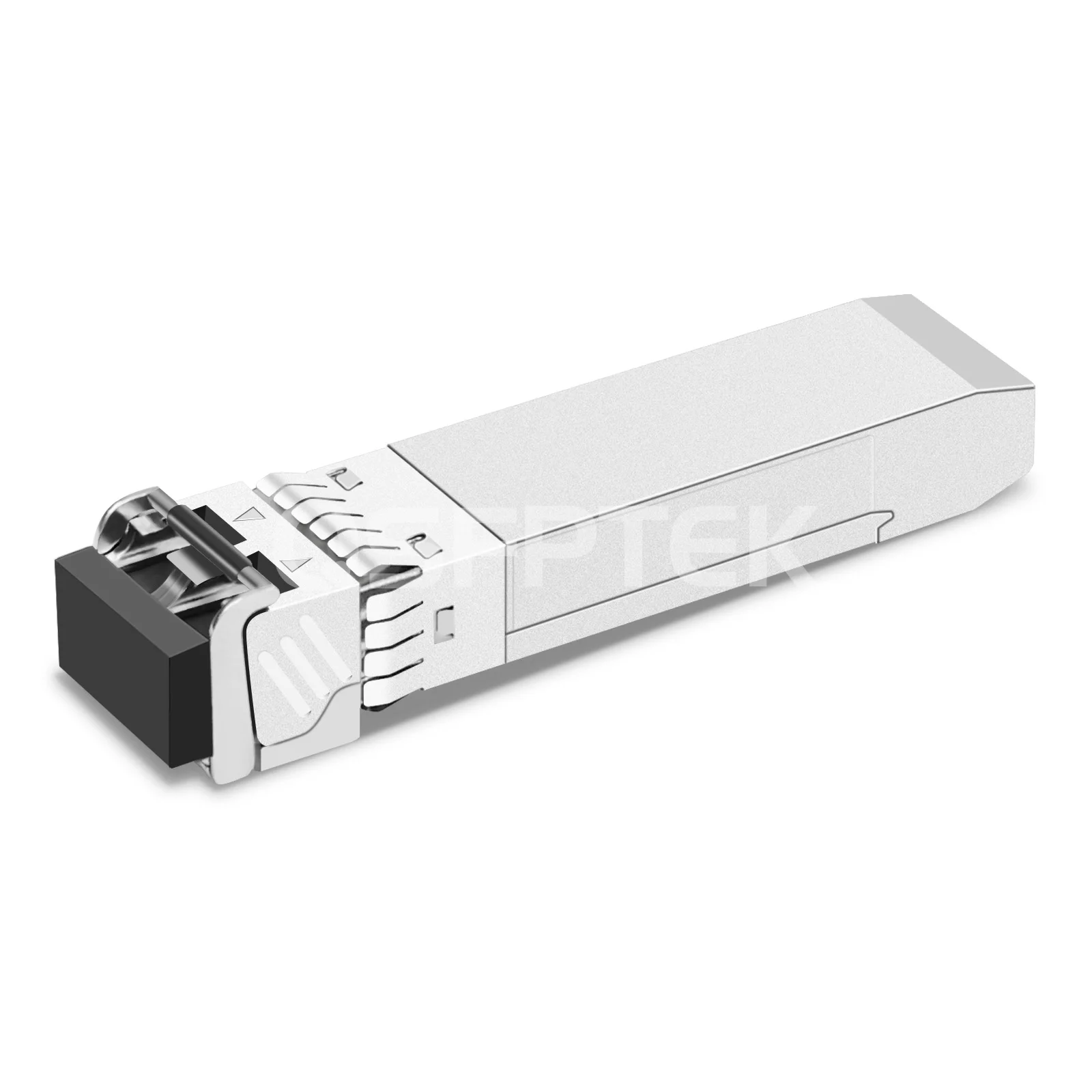

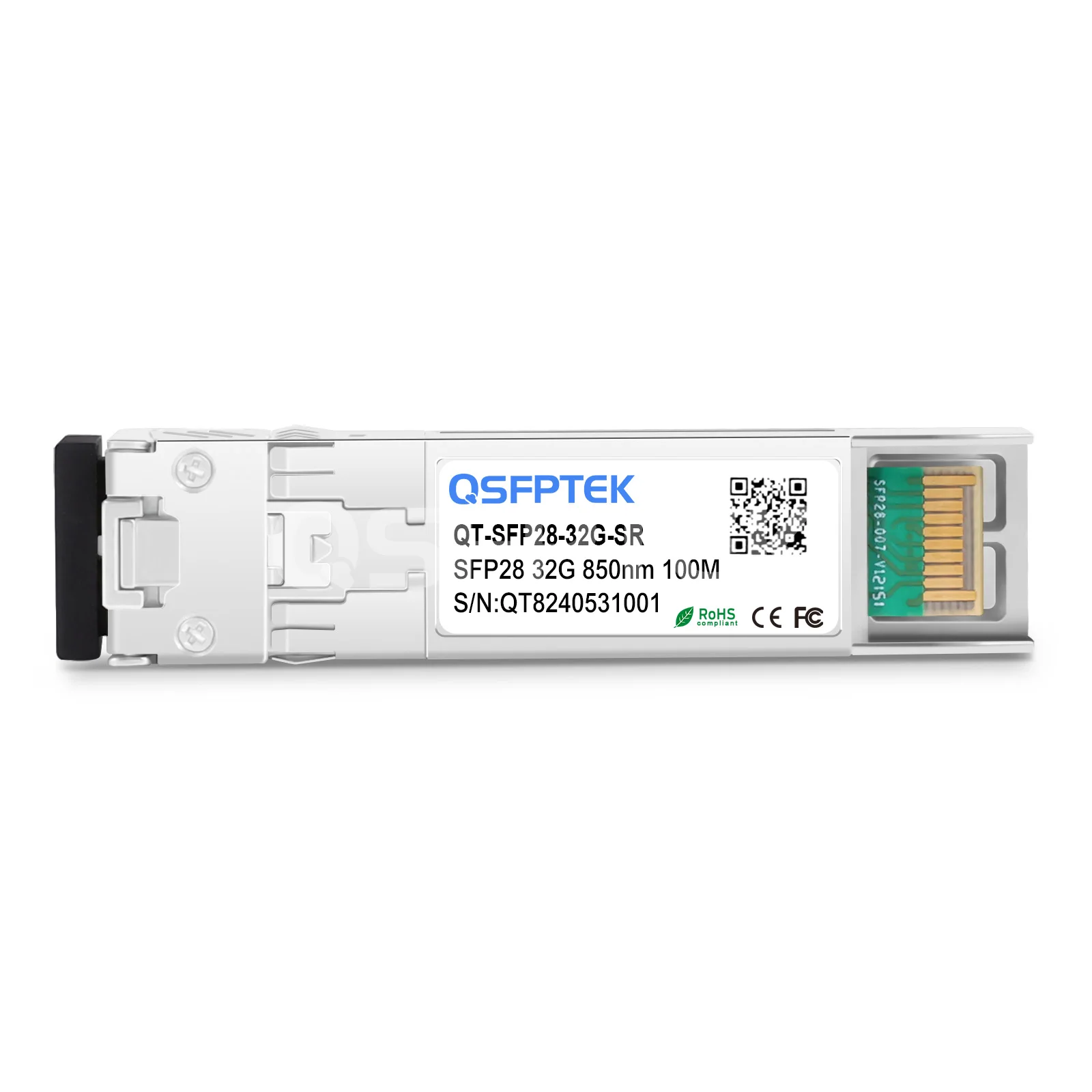

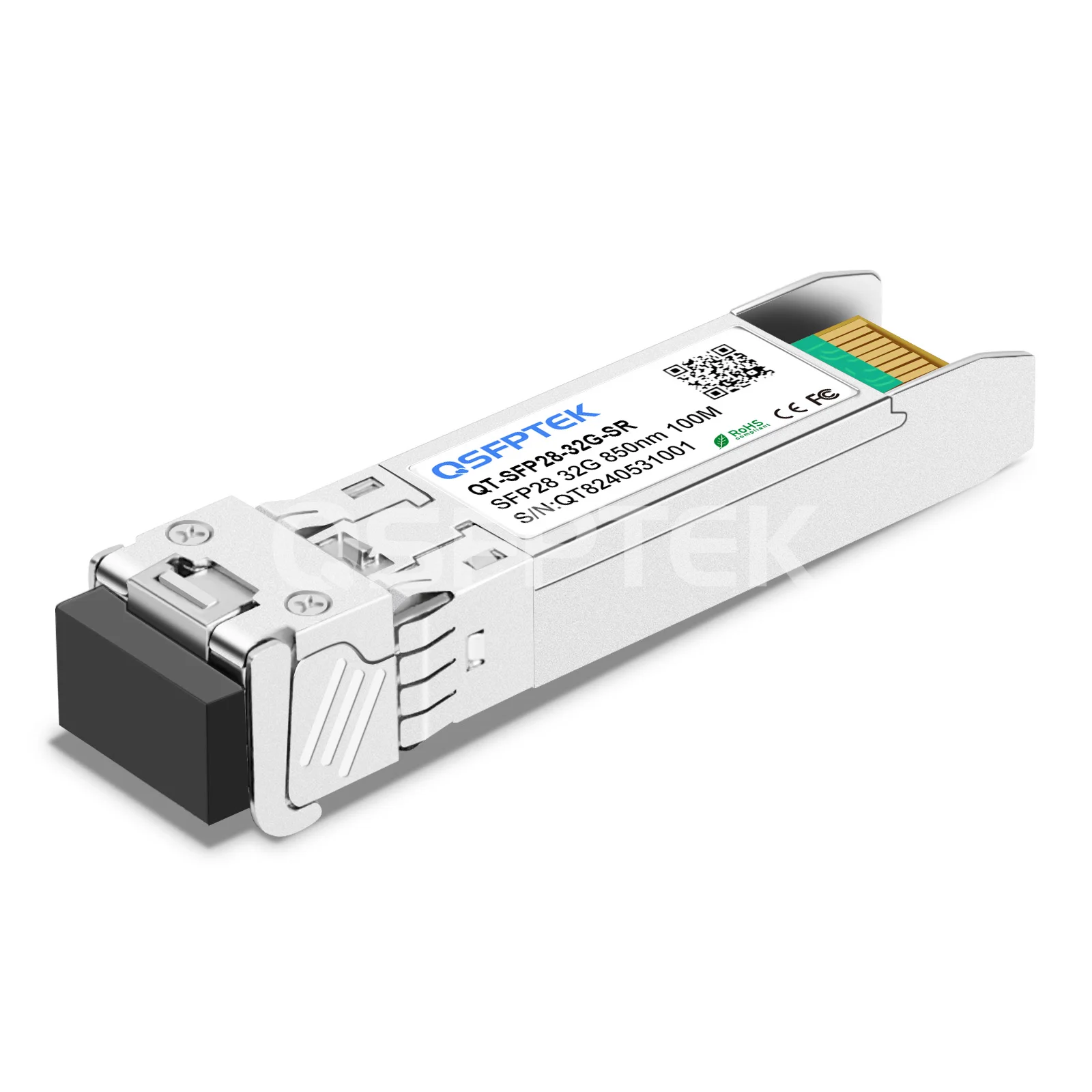

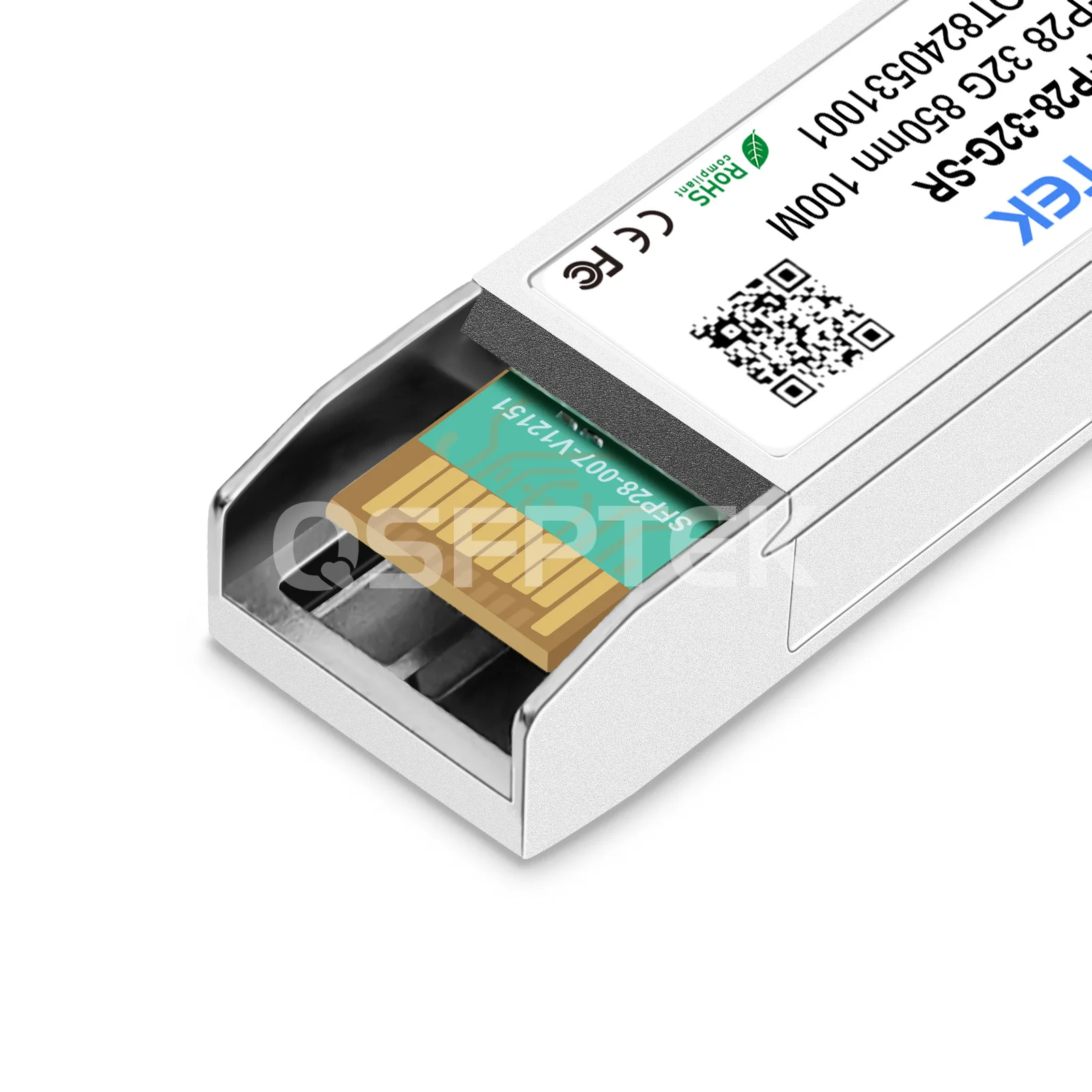

Cisco Compatible DS-SFP-FC32G-SW 32G Fibre Channel SFP28 850nm 100m DOM LC MMF Transceiver Module

Product No :100551
US$ 103.00  US$ 127.00
Compatible
Transceivers type
999 in stock

Free Shipping over US$ 84.9

US/EU Warehouses in stock

14-day Return and Refund

Bulk Order Quotes Shop Online
1. Max. Power Consumption 1W
2. Evaluated for enhanced performance, quality, and reliability in Targeted Switches
3. FC-PI-6 Compliance for 28.05/14.025/8.5Gb/s Operation
4. Provide In-order and Lossless Delivery of Raw Block Data
5. Used for Fibre Channel Storage Network in Data Centers
6. Hot-pluggable SFP+ MSA Form Factor
7. Digital Optical Monitoring capability provides robust diagnostic capabilities
8. Class 1 Laser Safety and RoHS Compliant
See more

Specifications

Cisco Compatible DS-SFP-FC32G-SW 32G Fibre Channel SFP28 Transceiver Module (MMF, 850nm, 100m, LC, DOM)

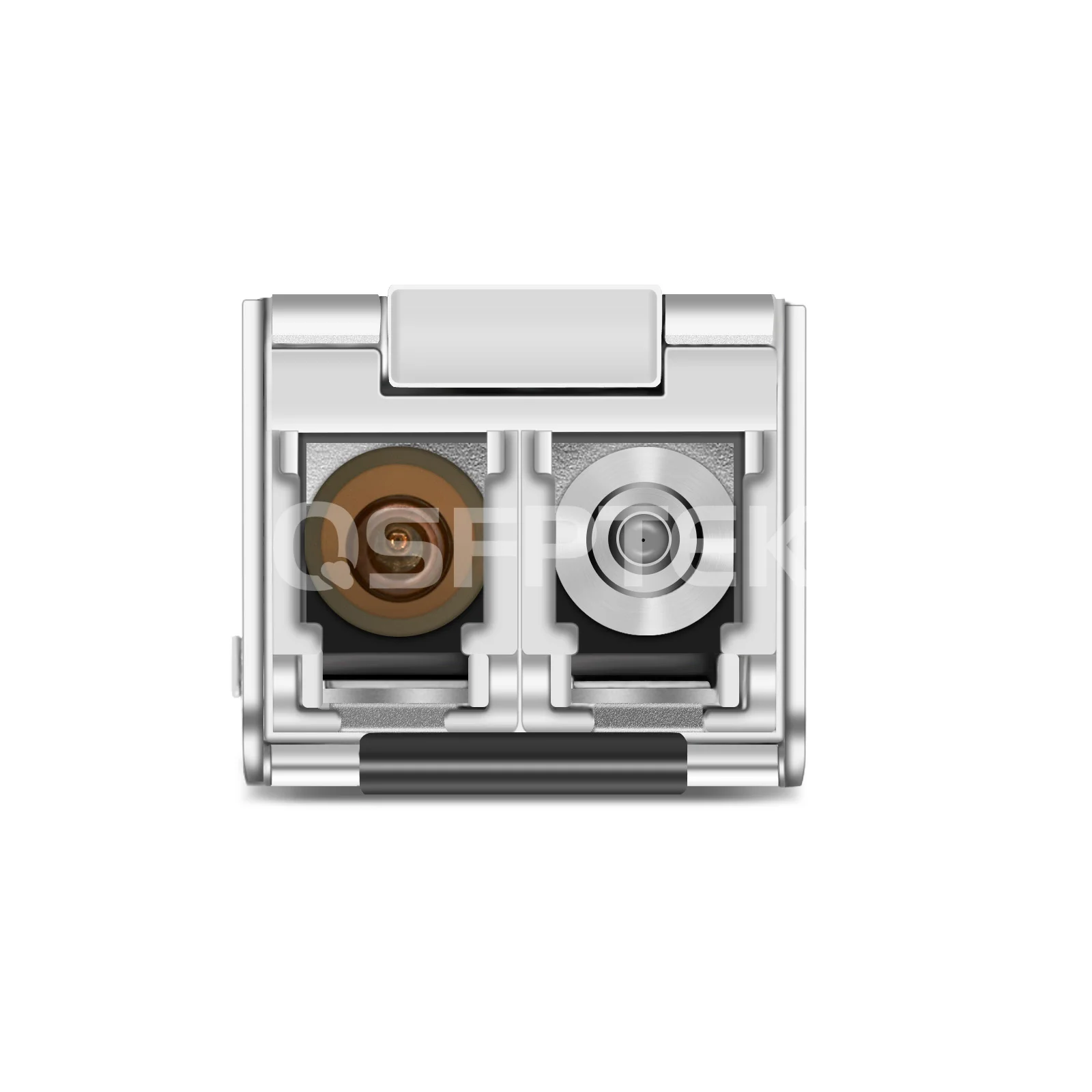

Cisco  DS-SFP-FC32G-SW Compatible 32G Fibre Channel SFP28 is equipped with an LC duplex connector, reaching a link of 100m over multimode fiber (MMF) at a wavelength of 850nm.The 32G Fibre Channel transceiver complies with SFP+ MSA and 28.05/14.025/8.5Gb Fibre Channel specifications. DOM/DDM (digital diagnostics monitoring) function is supported on the 32G Fibre Channel SFP28  optic transceiver to achieve real-time operating parameters monitoring.





Model Name

DS-SFP-FC32G-SW

Vendor Name

QSFPTEK

Form Factor

SFP28

Max Data Rate

28.05Gbps

Wavelength

850nm

Max Cable Distance

100m

Connector

LC duplex

Optical Components

VCSEL 850nm

Media

MMF

DOM Support

Yes

TX Power

-6.7~2dBm

Receiver Sensitivity

<-10.2dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

MSA Compliant
Quality Certifications

Features

  • 1. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 2. Protocols
    MSA Compliant
  • 3. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.
  • 4. Convenient and Flexible Use, Easy to Install, Plug and Play.
    Convenient and flexible usage, ease of installation, and plug-and-play functionality.

Applications

Questions & Answers

more+
  • What is the difference between Cisco qspf-40g-lr4 and qsfp-40g-lr4-s?
    They are actually the same one.
  • Does the qsfp-40g-sr4 transceivers allow 4x 10g connectivity?
    Yes. The connectivity is achieved by using an 8-fibers OM4 MTP-LC Type B break-out cable, which connects the qfp-40g-sr4 transceivers to four sfp-10g-sr optical interfaces.
  • Can this module work at 80°C?
    No, it can't. The working temperature range is 0 to 70°C.
