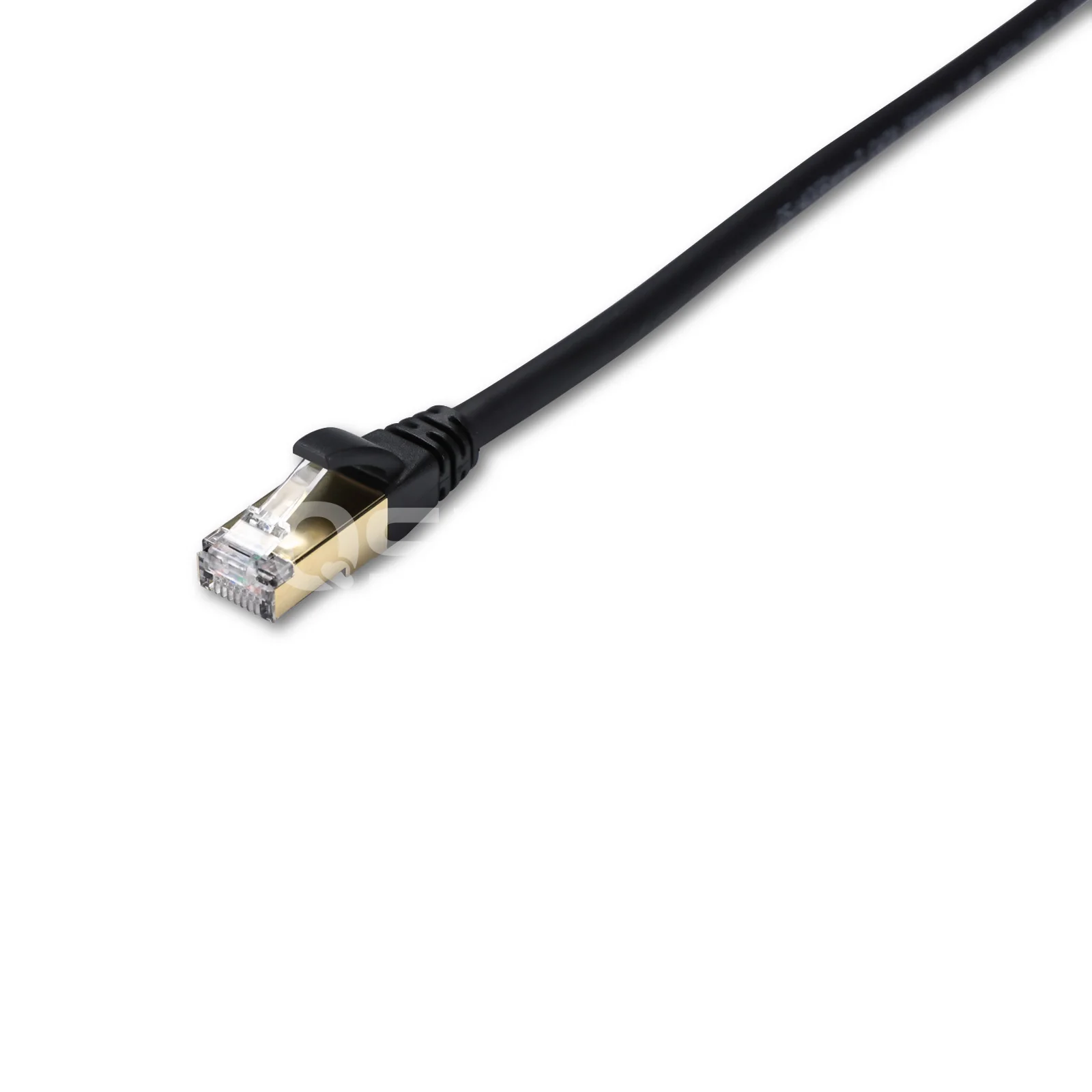

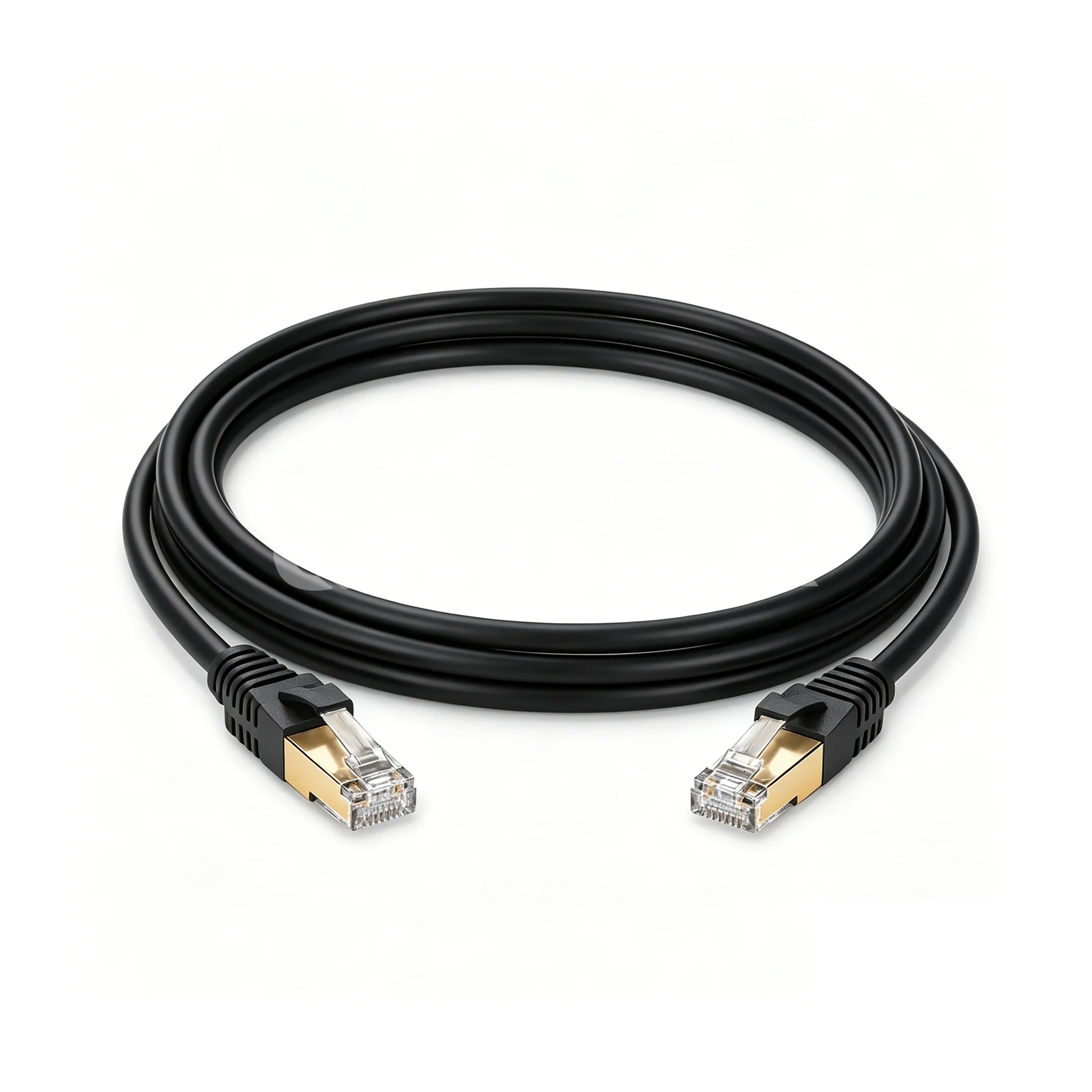

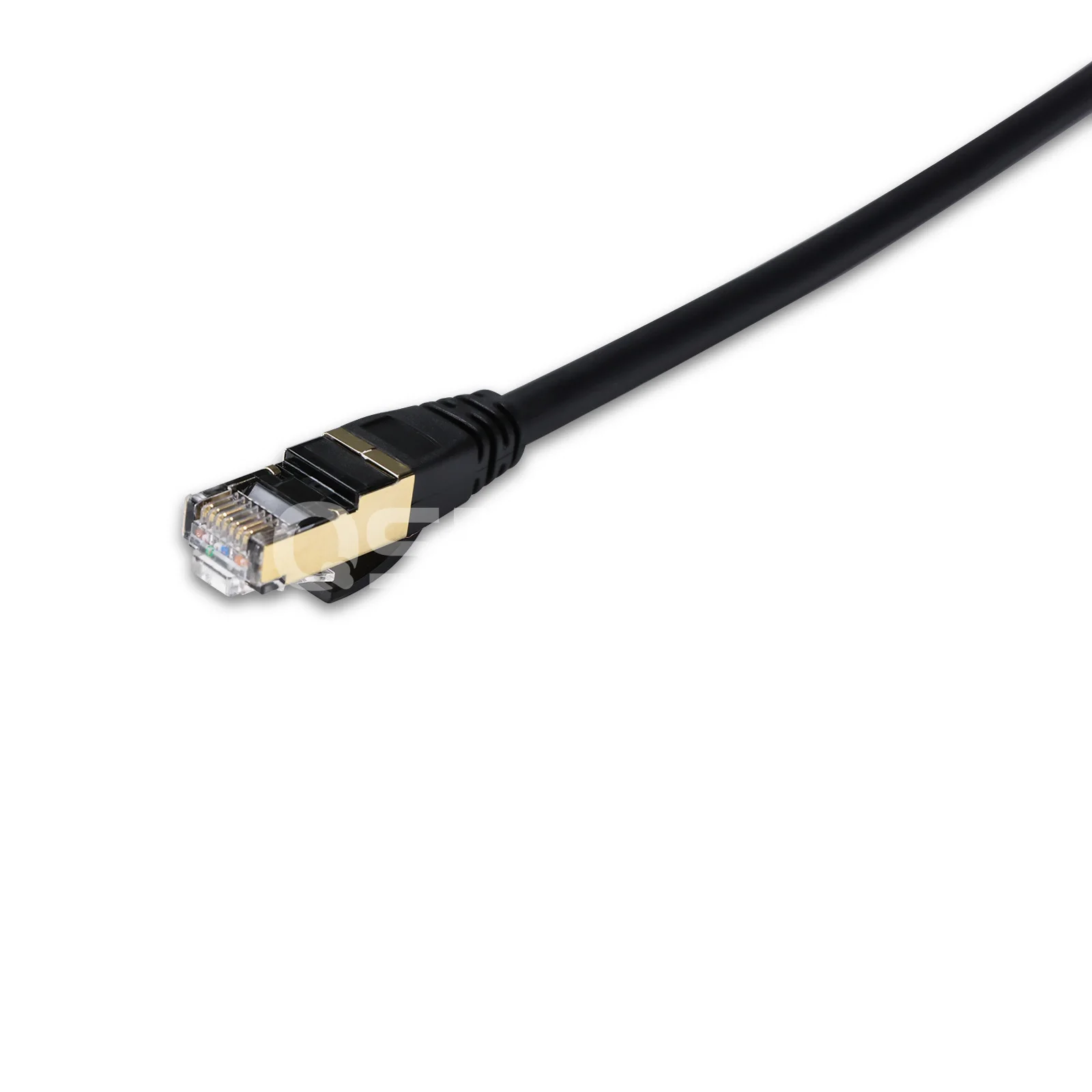

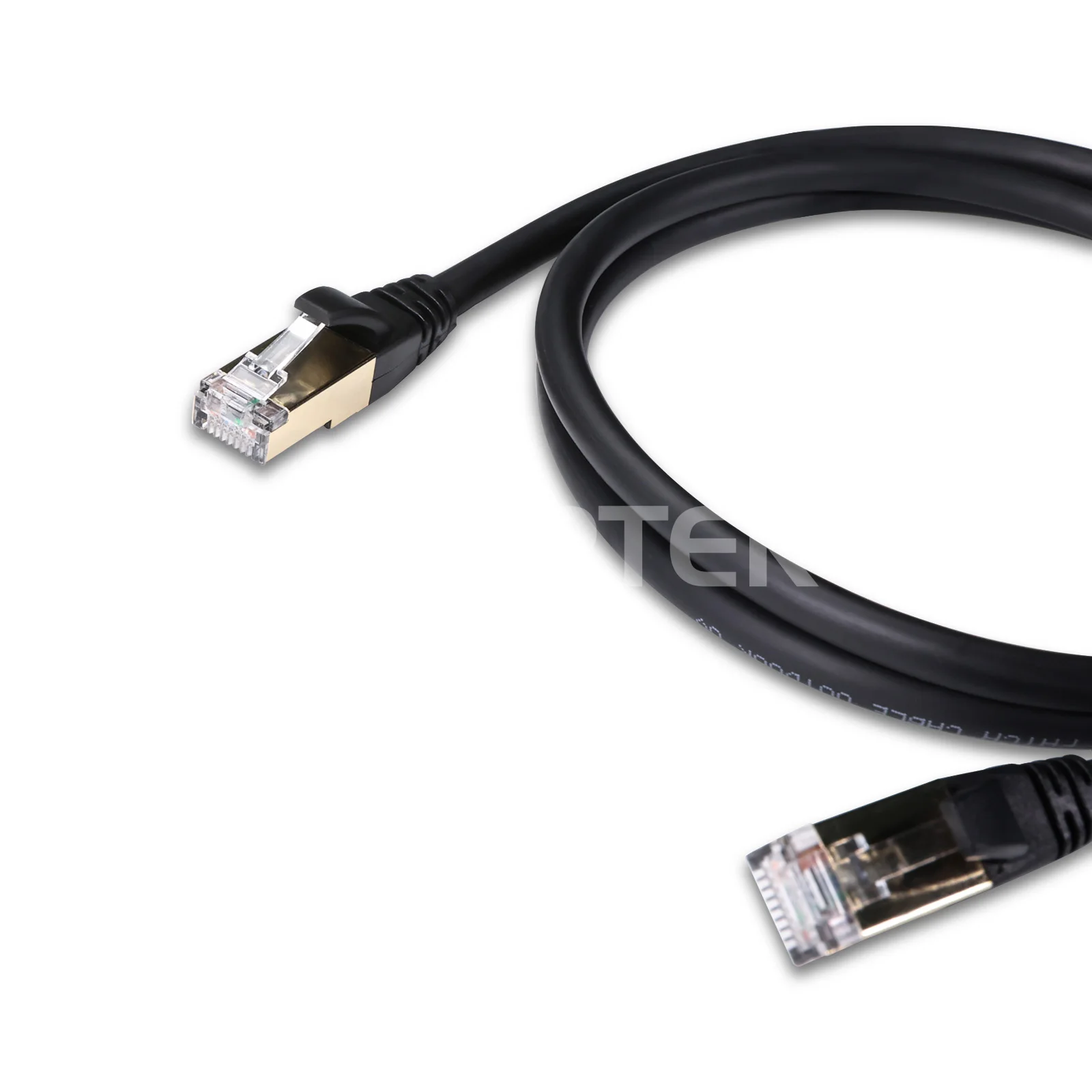

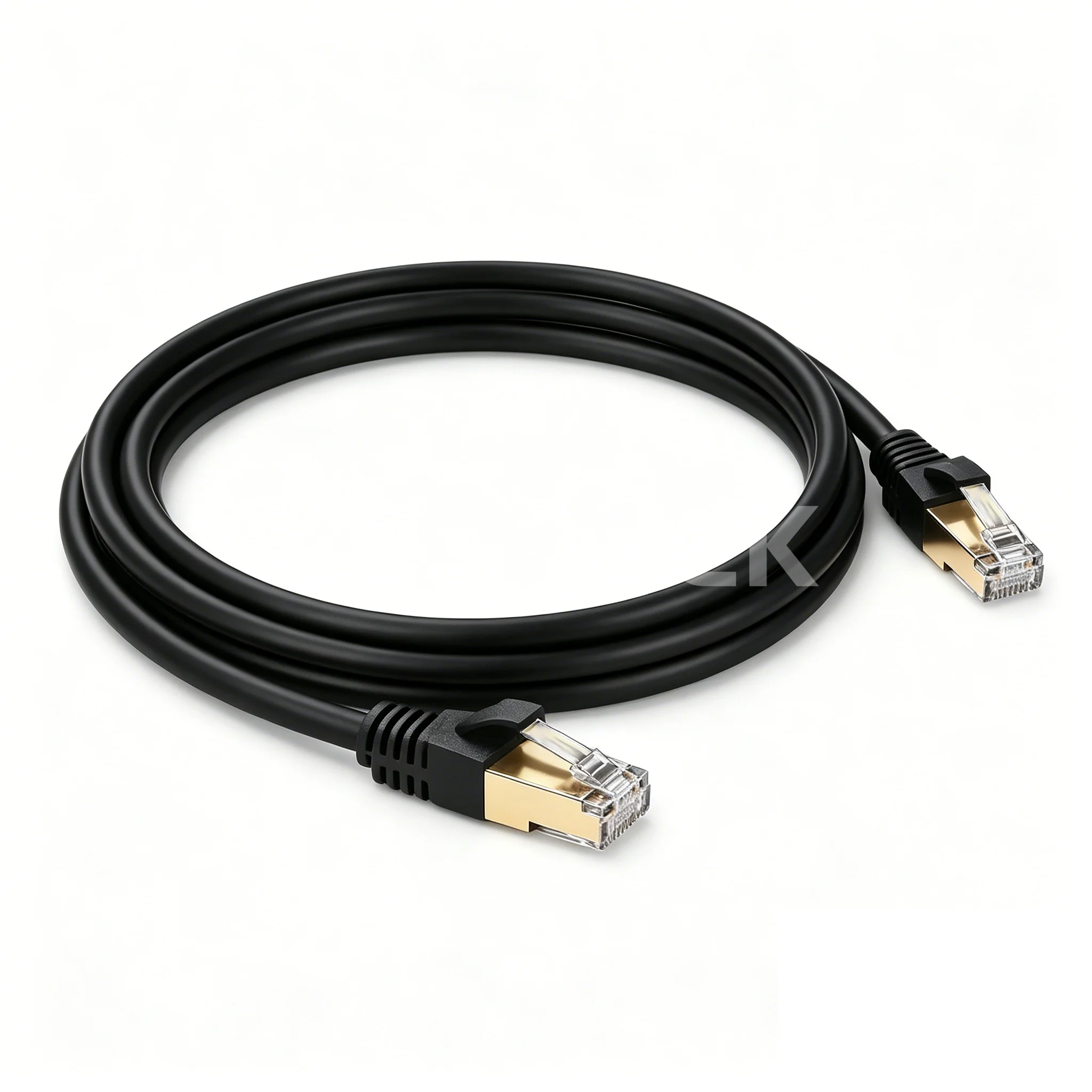

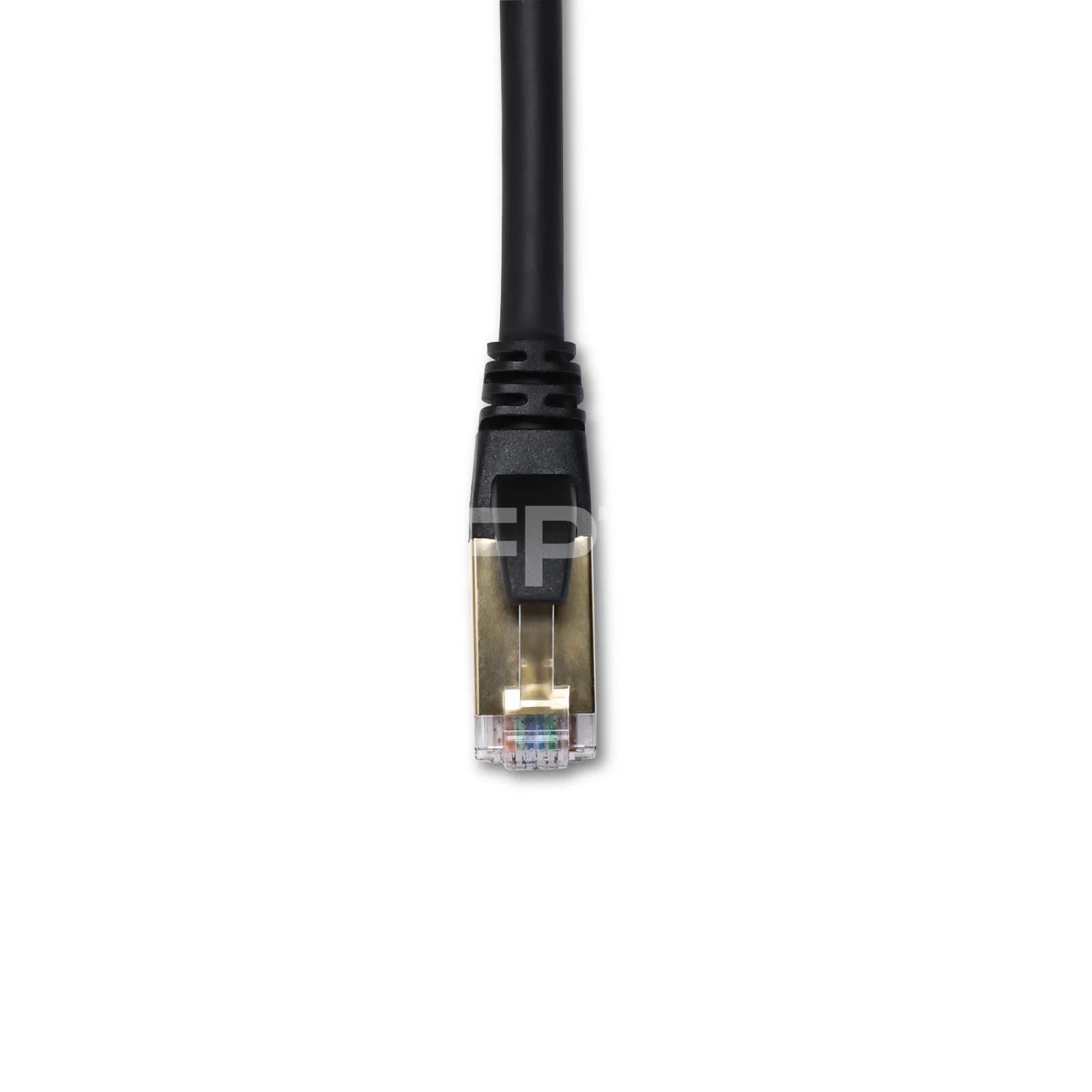

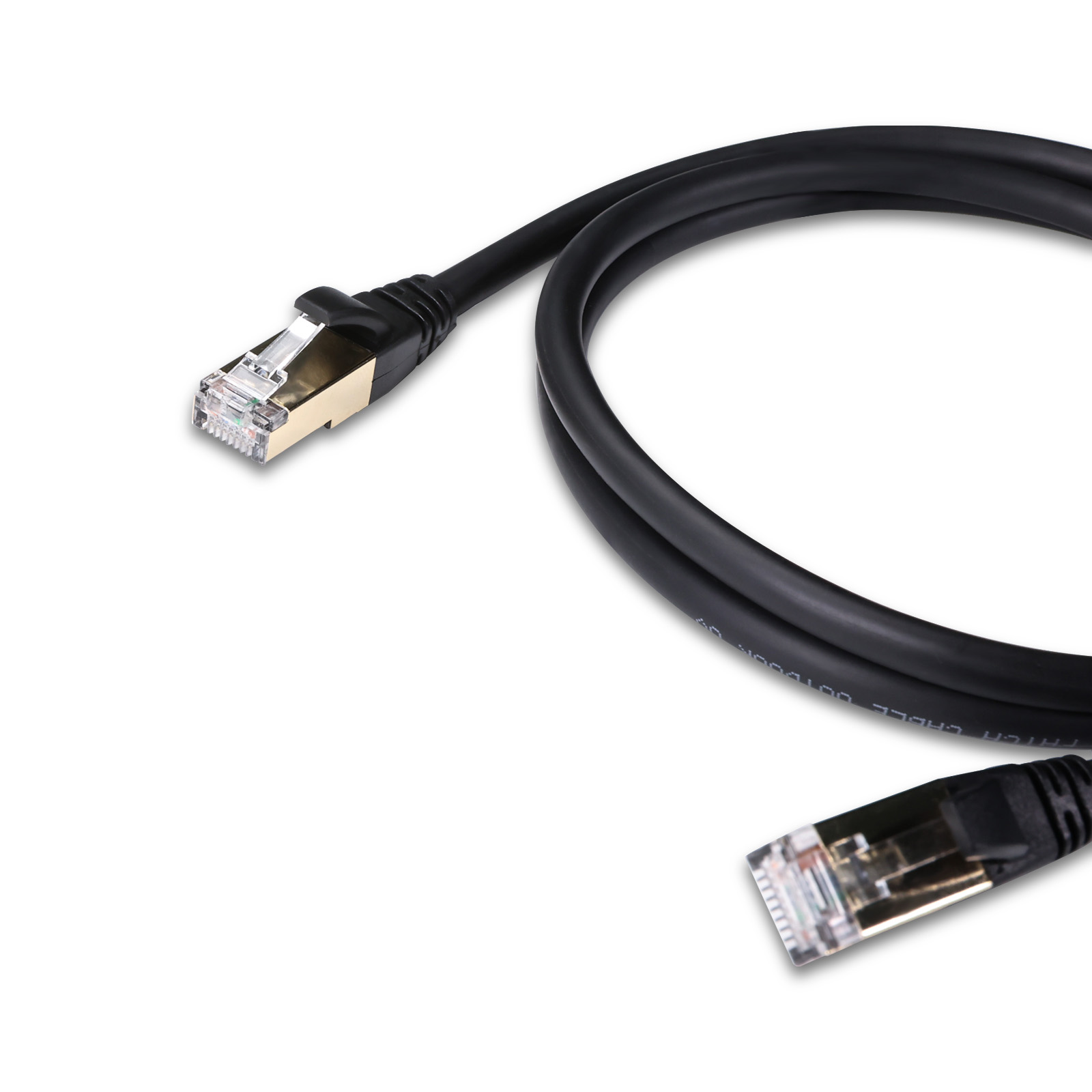

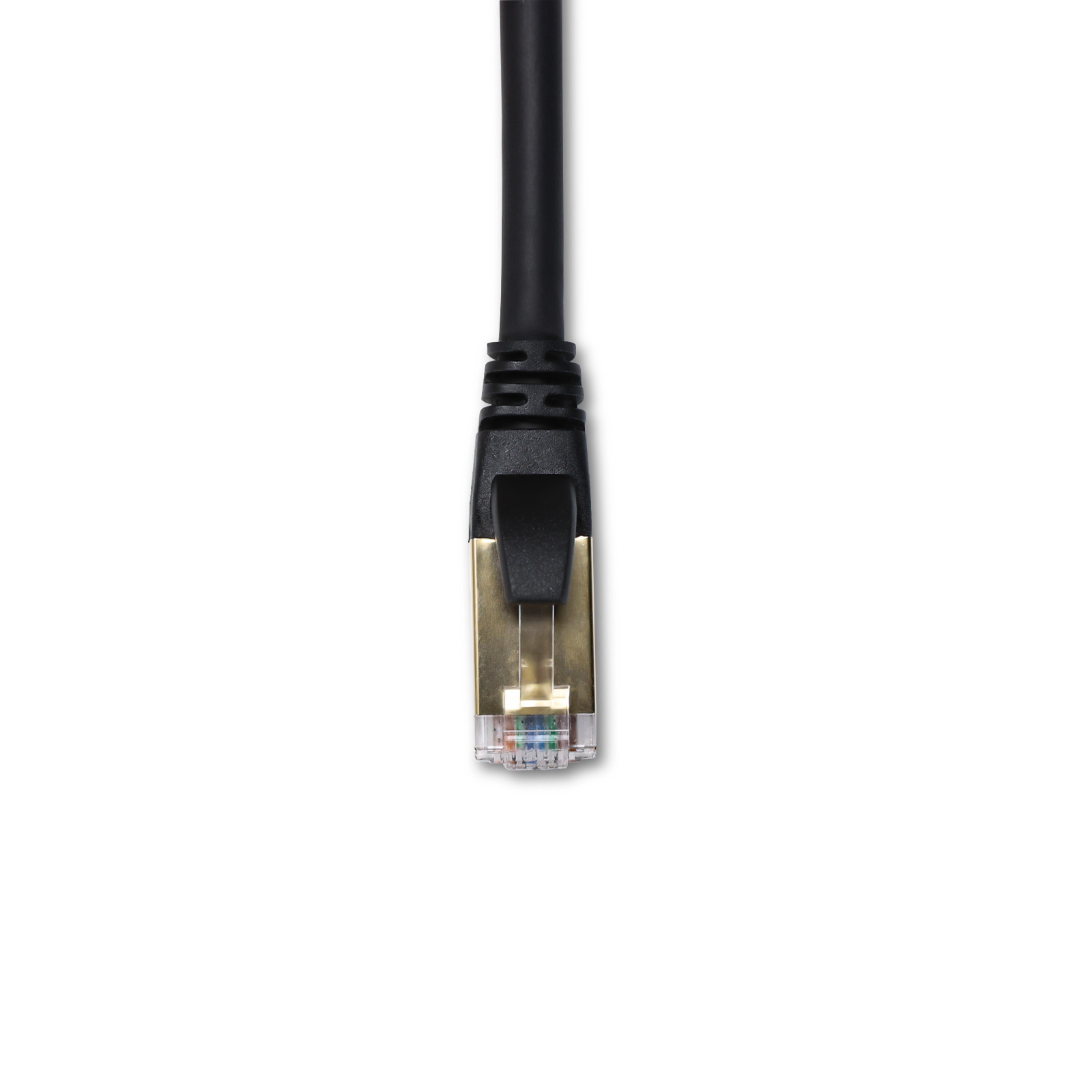

7ft (2.1m) Cat8 Network Ethernet Patch Cable Snagless shielded (SFTP), PVC CM, Black

Product No :100628

US$ 4.80 ~~US$ 6.40~~

Types

Cat8

Length

1ft (0.3m) 1.5ft (0.45m) 3ft (0.9m) 5ft (1.5m) 7ft (2.1m) 10ft (3m) 16ft (4.9m)

20 in stock

Bulk Order Quotes Shop Online

1. Up to 2000MHz with 10G/40G Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)
2. Exceed ANSI/TIA-568-D.2 Category 6 and ISO 11801 Class E Standards
3. Performance Tested with Fluke and Wired T568B
4. Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
5. Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
6. A Cost-effective and Future-proof Solution for a Data Center.
7. Support Current and Future Category 8/7/6a/6/5e/5 Applications

Specifications

Cat8 Snagless Shielded (SFTP) Ethernet Network Patch Cable, 28AWG, 25/40GBase-T

The Cat8 SFTP patch cable features 28AWG unshielded twisted pair stranded copper cable with a high-performance modular plug at each end. The snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation. It exceeds the performance of the Cat6 Ethernet network cable standard and offers a cost-effective solution for indoor data center applications, supporting up to 40Gbps and 2000MHz within 30 meters of cable.

Cable Type	Cat8 Snagless	Shielding Type	Shielded
Cable Outer Jacket	PVC CM (Round)	Length	7ft (2.1m) (Including Plugs)
Data Rate	25/40GBase-T	Maximum (Tested) Frequency	2000MHz
Conductor Type	Stranded Pure Bare Copper	Connectors	RJ45 (Male)
Gauge (AWG)	28 (7/0.20mm)	Cable Outer Diameter	6.0mm ± 0.2mm
PoE Compatibility	PoE/PoE+/PoE++	Wire Scheme	T568B, Straight
Operating Temperature	-20 to +75°C	Installation Temperature	-10 to +50°C

Quality Certifications

Features

Applications

Scenario 1

Scenario 2

Scenario 3

Product details

High-Bandwidth Transmission

Supports a maximum bandwidth of 2000MHz at 40Gbps, making it ideal for Fast Ethernet, 25-Gigabit Ethernet, and 40-Gigabit Ethernet.

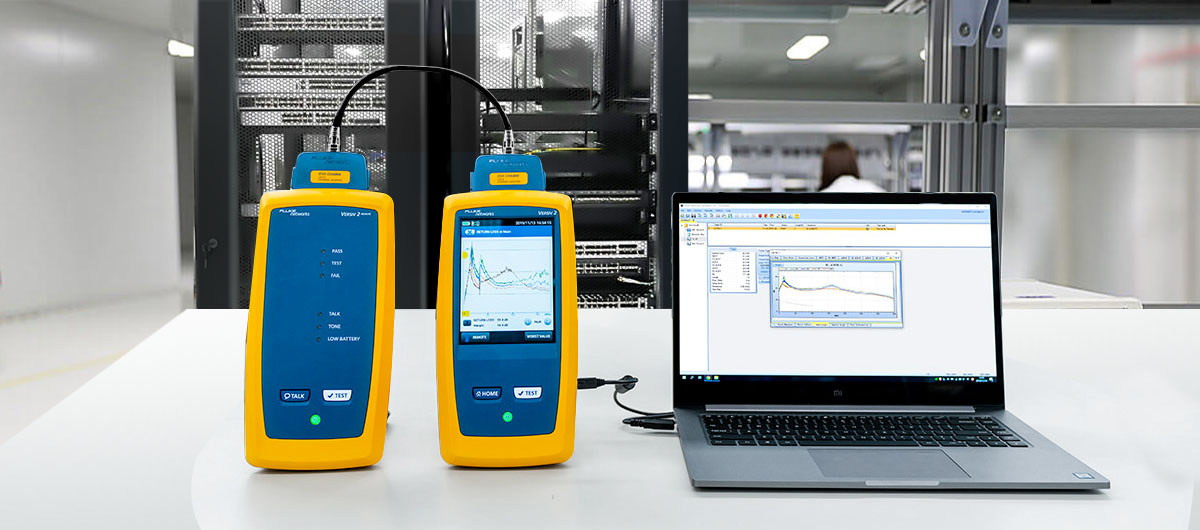

transceiver compatibility tests

Multiple Shielded Ethernet Cabling

The cable is easy to plug, and well-protected with an RJ45 modular plug and PVC jacket, which greatly improves the service life of the cable, making it highly compatible with routers, switch boxes, network printers, and other devices.
