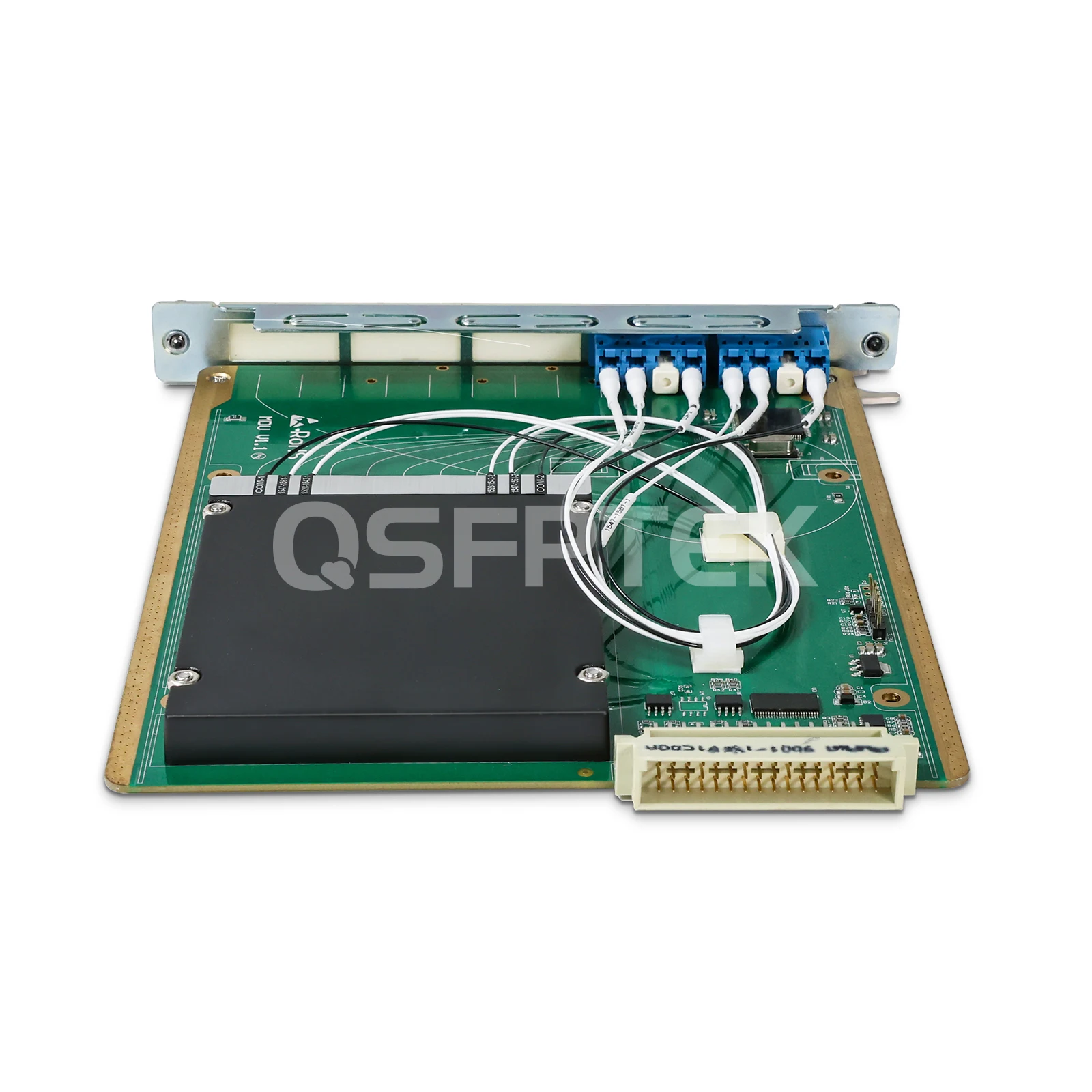

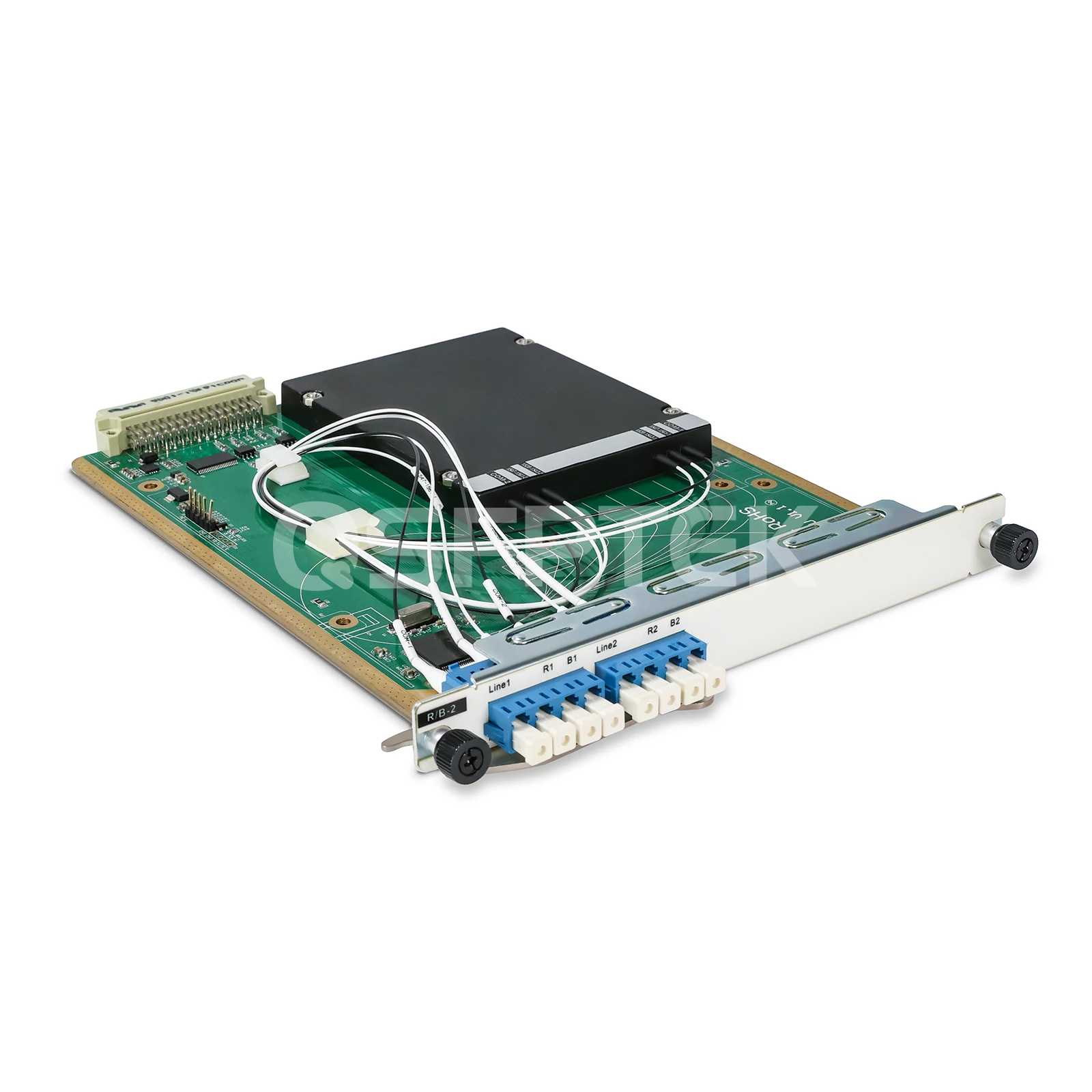

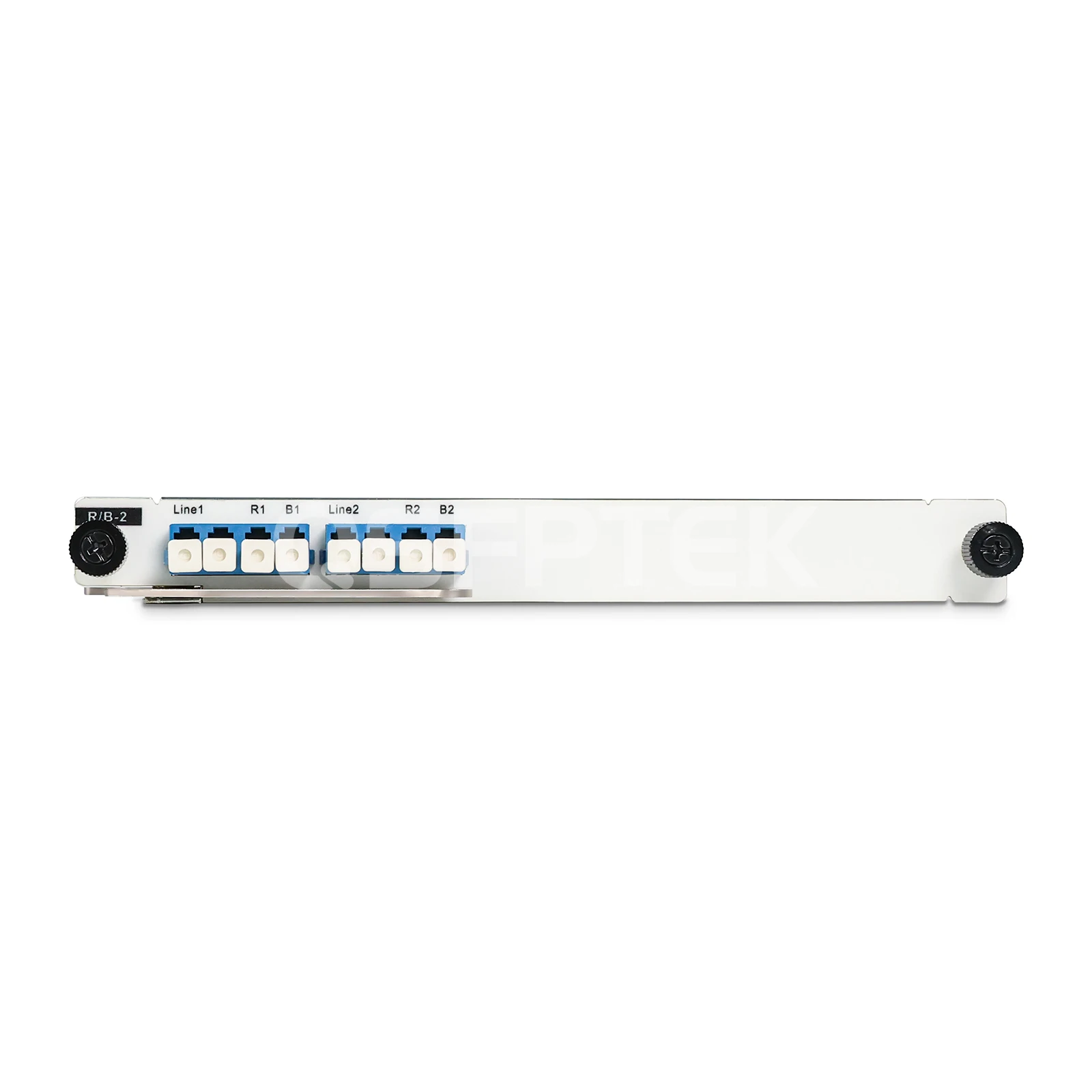

QT860-2RB, 1 x 2 Single Fiber DWDM Red/Blue Filter

Product No :102412
US$ 179.90  US$ 229.00
Series
50 in stock
;jsessionid=5328CACBB12D0652FA8DBEBEFEDBE55C
-
+
1. Adopting TFF Technology
2. Low Insertion Loss, Pass≤1.0dB, PMD≤0.1dB
3. High Channel Isolation (≥ 25dB)
4. WEB, SNMP v2 Management
5. Support WDM, OTN, PDH Systems
Tube/ ABS Pigtail/ 860 Card Types Optional
See more

Specifications

1 x 2 Single Fiber DWDM Red/Blue Filter, 1 Slot



The 1x2 DWDM Red/Blue Band Filter is a 3-port filter that can separate or combine wavelength signals in the red and blue bands within the C-band. It is designed for separating or combining bidirectional signals in single-fiber DWDM systems and high-power amplification systems.



This device features low insertion loss, high return loss, and excellent environmental stability. It can be designed in various packaging styles, such as a steel tube type, to save space.



Pass Band Wavelength Range 1529.35(λ1) ~ 1541.55(CH45-CH60 Reflect Band Wavelength Range 1548.31(λ2) ~ 1560.81(CH21-CH36)
Channel Insertion Loss Pass ≤ 1.0dB Reflection ≤ 1.0dB Non-adjacent channel Isolation ≥ 15dB
Adjacent channel Isolation ≥ 25dB Directivity ≥ 50dB
Return Loss ≥ 50dB Polarization Mode Dispersion

≤ 0.1dB

Polarization Dependent Loss ≤ 0.1dB Temperature Operating -5 to 70℃ (23 to 158°F) Storage -40 to 85℃ (-40 to 185°F)



Quality Testing Program
Quality Certifications

Applications

In DWDM BIDI Fiber System, the Red/Blue Filter is employed to segregate and combine signals in the red and blue bands, facilitating the amplification of bidirectional signals.

;jsessionid=5328CACBB12D0652FA8DBEBEFEDBE55C

Product details

Comprehensive Integration on a Unified Platform



The QT860 series platform serves as an all-in-one solution, delivering 10G DWDM long-haul services. It features a user-friendly GUI management system, facilitating seamless network-wide administration.
