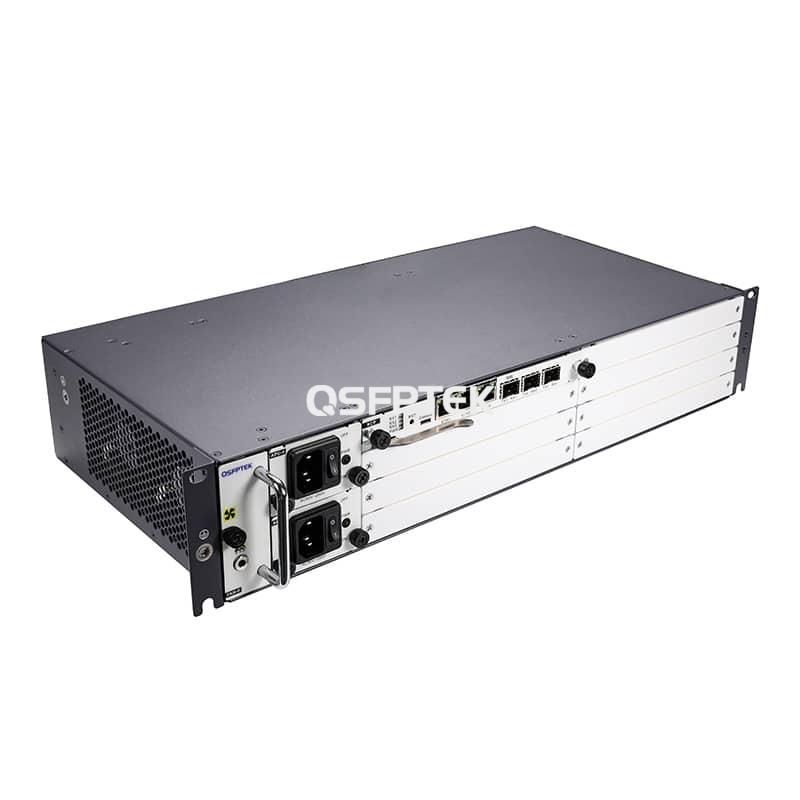

7 Slot 2U Managed Chassis Platform Unloaded for OTN Transmission

Product No :100153

US$ 555.00 ~~US$ 599.00~~

Series

QT860

Model

5U Chassis Platform 2U Chassis Platform 1+1 OLP

in stock

Bulk Order Quotes Shop Online

1. Support various management types including CLI、Telnet、SNMPv2、Web.
2. Support up to 7x MUX/DEMUX/EDFA/OEO/OLP/DCM Cards.
3. Meet the requirements of multi-service access.
4. Low power consumption, the power consumption of the whole machine is less than 180W (typical value).
5. Support ZTP, easy to use and install.

Specifications

Highly integrated, optoelectronic integration 2U Managed Chassis

The QT860 series 2U network management chassis supports up to 3x 200G Transponder/Muxpoder boards, up to a maximum capacity of 600G. It supports ZTP installation and can be used after installation without configuration. All boards, power supplies, and fans support hot swapping. The platform supports multiple service types, including FC/Ethernet/SDH, etc. The network management platform supports CLI, Telnet, SNMPv2, and Web, with flexible management methods.

Slot Count	7	Enclosure Type	Rack Mountable
Power Supply	1+1 redundent power, -48VDC or 220V AC	Power Consumption	< 180W
Management Type	CLI、Telnet、SNMPv2、Web	Network Interface	3× SFP LAN Ports 100Base-X 2× RJ45 LAN Ports 10/100Base-T
Relative Humidity(non-condensing)	5% ~ 95%	Dimensions (HxWxD)	88mm x 442mm x 220mm
Board Hot Pluggable	Supports	ZTP	Supports
Operating Temperature	-10 to 60°C	Storage Temperature	-40 to 80°C

Quality Certifications

Features

Applications

① QT860 Series 2U Managed Chassis Platform

② 100G/200G Tunable CFP2-DCO Coherent Transceiver

③ 40 Channels Passive DWDM Mux Demux

④ 200G OTN Muxponder, 2x QSFP28 to 1x CPF2

⑤ 100GBASE-LR4 QSFP28 1310nm 10km Optical Transceiver Module

⑥ LC UPC to LC UPC Duplex OS2 Fiber Optic Patch Cable

Product details

QT860 Series 2U/5U OTN Platform

QSFPTEK QT860 is a series of box architecture Optical Transport Network (OTN) transmission equipment that supports highly integrated MUX/DEMUX/OEO/EDFA/DCM/OLP devices. 2U and 5U chassis are available.

QT860 Series OTN Chassis Platform
Type
	5U	2U
Dimensions (HxWxD)	220x442x220mm	88×442×220mm
Slots	15	7
Power Consumption	< 450W	< 180W
Maximum Channel No.	CWDM: 18CH, DWDM: 96CH (50GHz)
Max Rate per Channel	200Gbit/s
Line rates	1.25Gbit/s, 2.5Gbit/s, 10Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s, 200Gbit/s
Management Type	CLI, Telnet, SNMPv2, Web
Mount Type	Standard EIA 19" Rack
Network Protection	1+1 Optical Line Protection, 1+1 Multiplex Section Protection
Device Protection	1+1 redundant power
Operating Temperature	-10 to 60°C
Storage Temperature	-40 to 80°C
Heat Dissipation	Fan cooling
Power Supply	-48V DC or 220V AC
