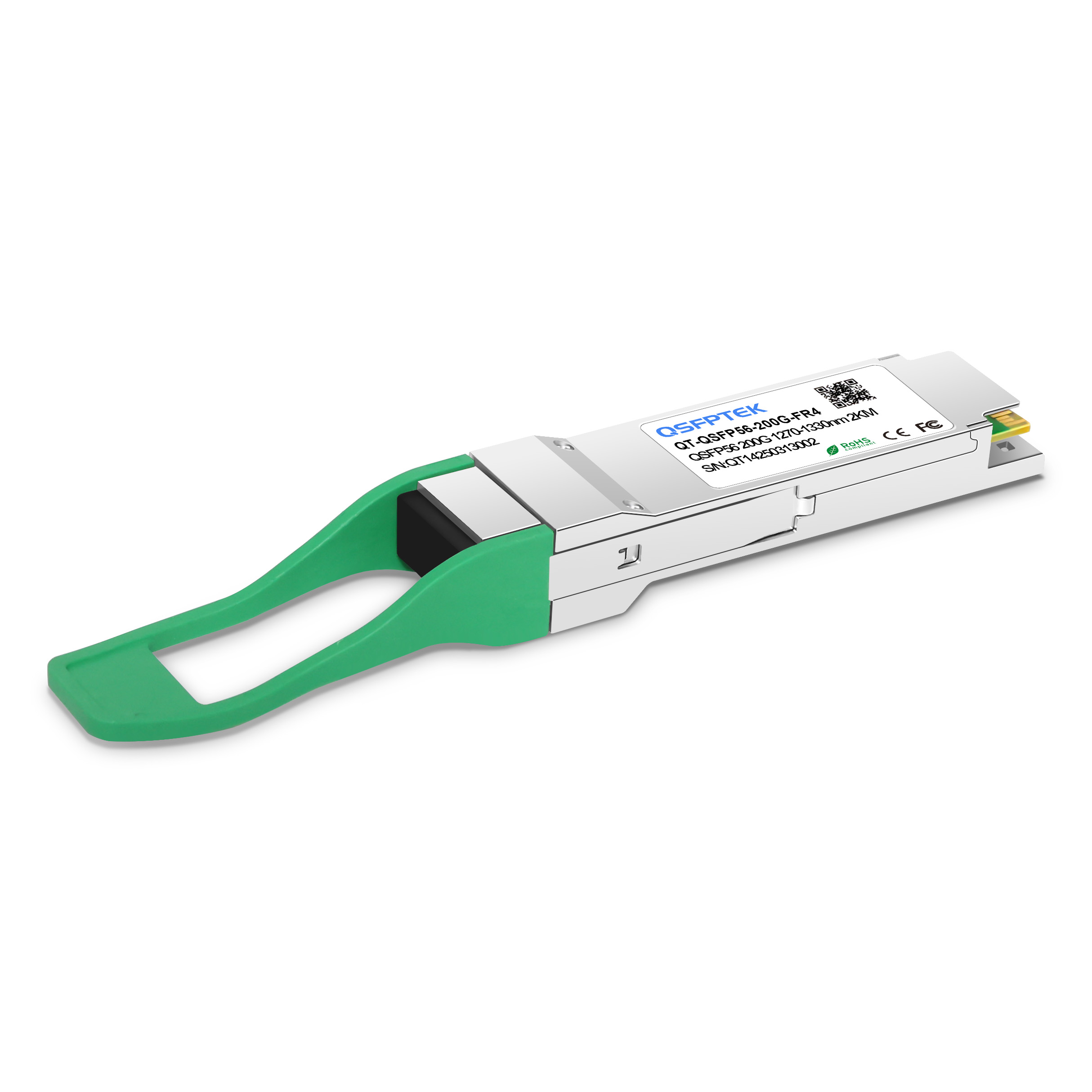

Name: NVIDIA/Mellanox MMS1W50-HM Compatible InfiniBand HDR QSFP56 200G FR4 PAM4 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module
Brand: QSFPTEK
SKU: 102988
Price: 529.0 USD
Rating: 5.0 (1 reviews)

NVIDIA/Mellanox MMS1W50-HM Compatible InfiniBand HDR QSFP56 200G FR4 PAM4 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module

Product No :102988

US$ 529.00 ~~US$ 599.00~~

Compatible

NVIDIA InfiniBand

Transceivers type

MMA1T00-HS QSFP56 SR4 | 100m MMS1W50-HM QSFP56 FR4 | 2km

12 in real-time stock, 03May, 2025

Free Shipping over US$ 79.8

US/EU/Global warehouses in stock

Add to Cart Bulk Order Quotes

1. DSP chip. Max. Power Consumption ≤5.5W.
2. Support both 4x 50G Ethernet and InfiniBand NDR.
3. 4x 50G-PAM4 modulation.
4. Max. data rate 200Gbps up to 2km over SMF.
5. DML transmitter and PIN receiver

Specifications

NVIDIA/Mellanox MMS1W50-HM Compatible InfiniBand HDR QSFP56 200G FR4 PAM4 Optical Transceiver Module (SMF, 1310nm, 2km, Duplex LC Connector, DOM)

The 200G QSFP56 FR4 InfiniBand HDR optical module supports speeds up to 200 Gb/s, short-range distance reaching up to 2km over OS2 Singlemode fiber (SMF). QSFP56-200G-FR4 is designed based on PAM4 (Pulse Amplitude Modulation 4-level) modulation technology, DSP (Digital Signal Processing) chip, and QSFP56 form factor. The 200GBASE-FR4 QSFP56 transceiver is compliant with the CMIS4.0, IEEE 802.3bs, QSFP MSA, SFF-8665. QSFPTEK 200G NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, supporting both 200G Ethernet and InfiniBand HDR, it is ideal for InfiniBand HDR end-to-end systems. Used in QM8700 Switches.

Part Number	QT-QSFP56-200G-FR4	Vendor Name	QSFPTEK
Form Factor	QSFP56	Interface Type	FR4
Max Data Rate	200Gbps	Wavelength	1310nm
Connector	Duplex LC/UPC	Cable Type	SMF
Max Cable Distance	2km	Modulation	PAM4
TX Power	-4.2 to 4.7 dBm	Receiver Sensitivity	<-8.2dBm
Transmitter Type	DML	Receiver Type	PIN
Power Consumption	≤5.5W	Temperature Range	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Application	InfiniBand HDR, 200G Ethernet
Protocols	IEEE 802.3bs, QSFP MSA, SFF-8665	Warranty	1 Year

Quality Testing Program

Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

1. Advanced Technology

Features PAM4 modulation technology and built-in DSP chip.

2. Best Price and High Quality

Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.

3. Protocols

CMIS4.0, IEEE 802.3bs, QSFP MSA, SFF-8665.

4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

QSFPTEK Test Rack

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Read reviews that mention

This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!
