    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 103039
    Product image
    Product image

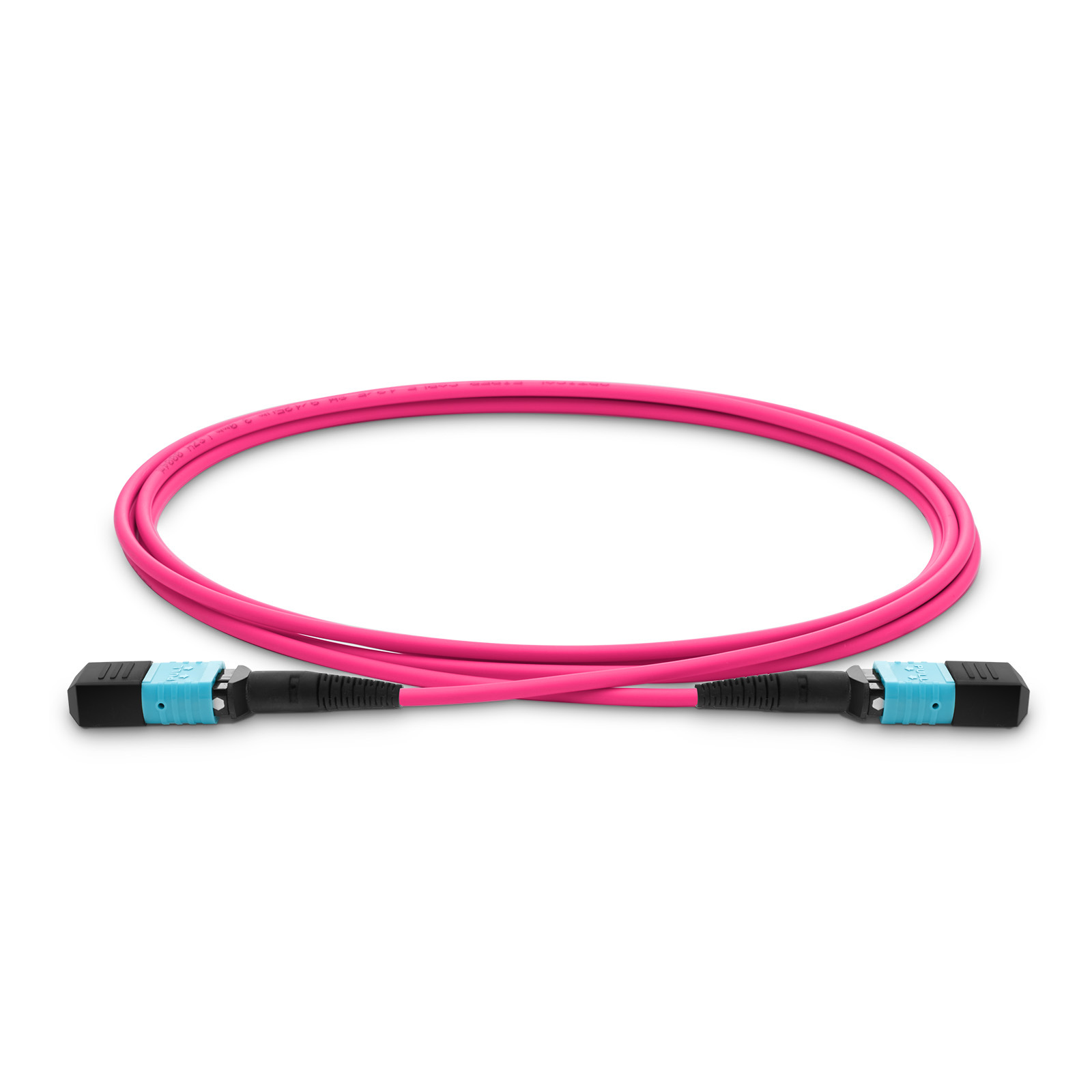

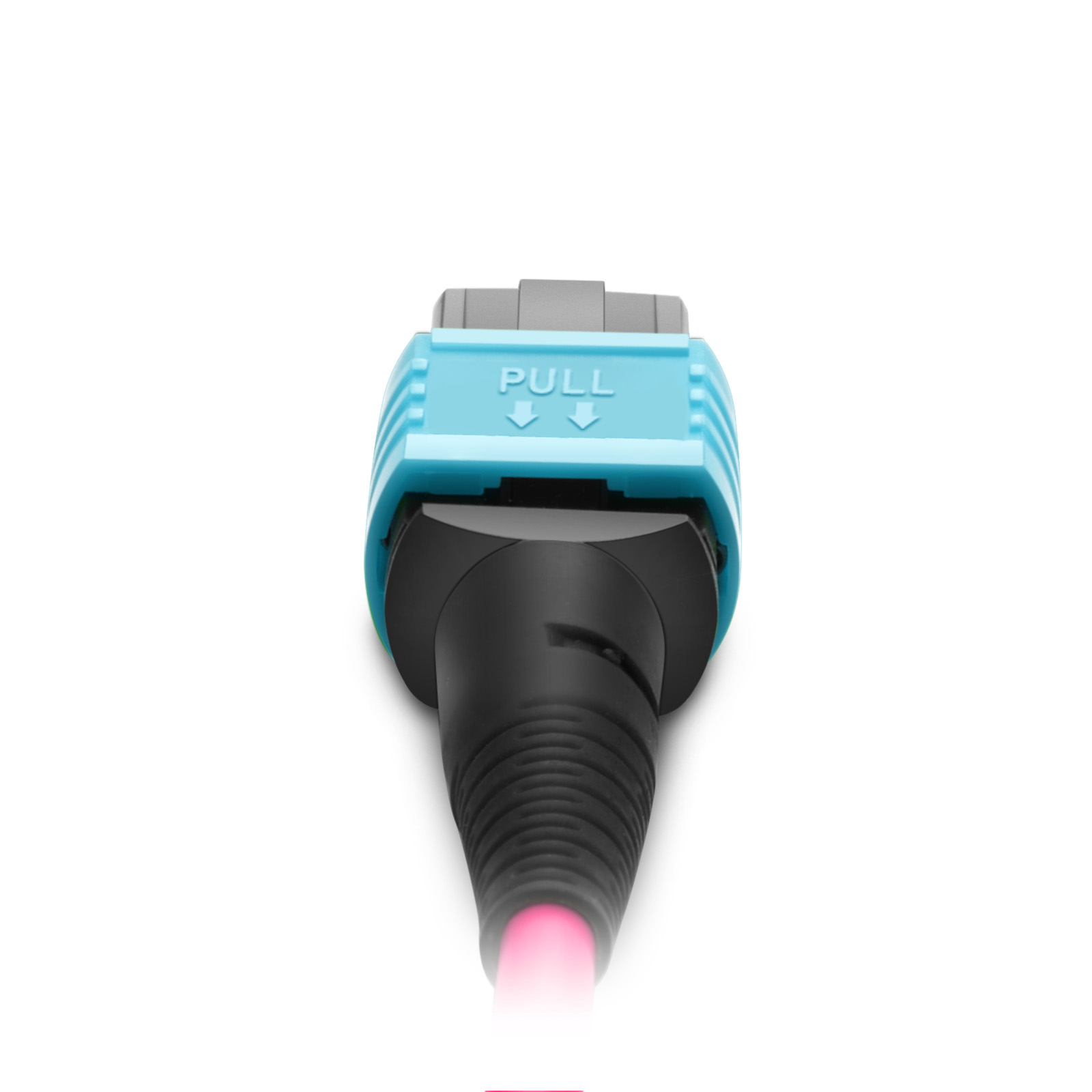

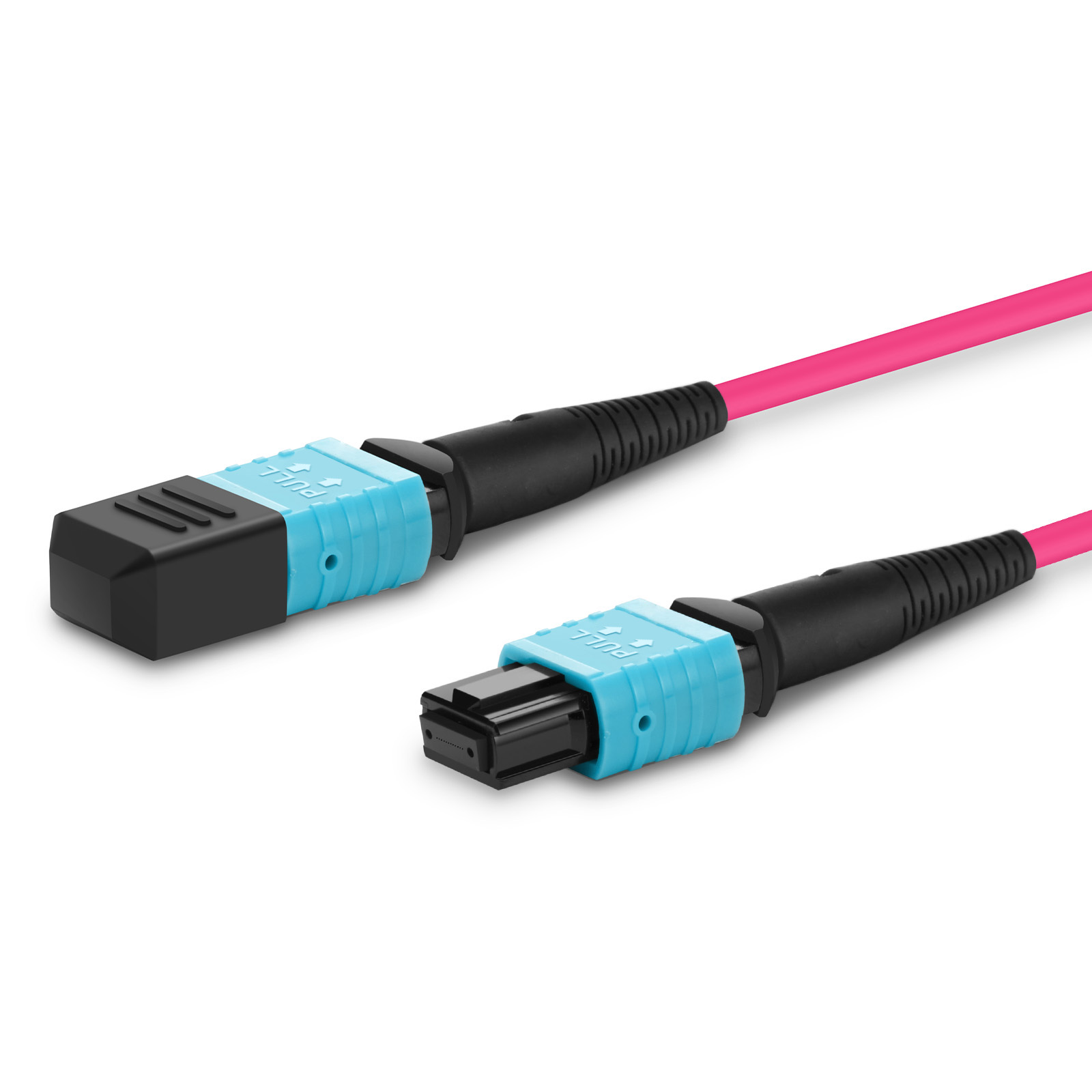

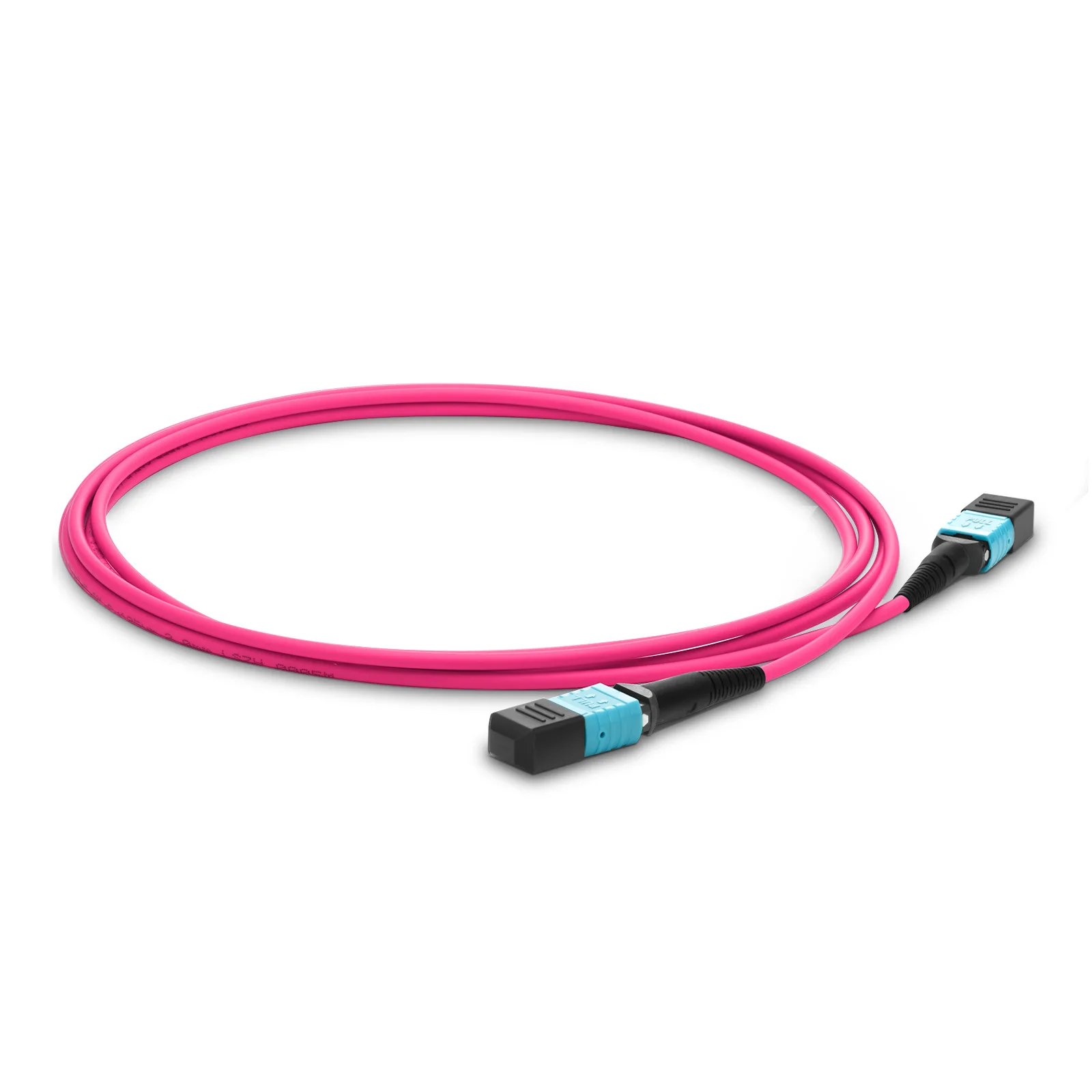

    3m (10ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Magenta

    Product No: 103039
    0 Reviews
    2.7K Sold
    $40.80
    Series
    Length
    47 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Optimized for 100/200G and meet future-proof 400G/800G network requirements
5. Meticulous design and standard testing ensure stable high-speed data transmission
    See more

    Specifications

    3m (10ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers Jumper, Type B, LSZH, Magenta



    The MPO-24 trunk cable jumper deliver up to 12 times the fiber capacity of standard duplex LC connector, providing a cost-effective high-density cabling solution for scenarios where rack space saving and cable management is in concern. This 24 fibers MPO female to MPO female OM4 multimode mode trunk cable is specially optimized for high-speed 100G and beyond interconnection in data centers and telecommunications systems applications.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 24 Fibers Fiber Type OM4 MMF 50/125μm
    Polish Type UPC to UPC Cable Material LSZH
    Armoured No Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Operating Temperature -10℃~ to 70℃ Storage Temperature -40℃ to +85℃



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    3m (10ft) MTP-12 APC (Female) to MTP-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $52.80
    3.3K Sold
    18 Reviews

    3m (10ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) OM3 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Aqua

    $15.00
    2.7K Sold
    18 Reviews

    LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 3m

    $4.48
    2.7K Sold
    18 Reviews

    3m (10ft) 1× 24 MTP Female to 2× 12 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

    $120.70
    2.7K Sold
    18 Reviews

    LC UPC to FC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 3m

    $2.57
    2.7K Sold
    18 Reviews

    3m (10ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $17.80
    2.7K Sold
    18 Reviews

    3m (10ft) MPO-24 UPC (Female) to 12x LC UPC Duplex OM3 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Aqua

    $50.90
    2.7K Sold
    18 Reviews

    3m (10ft) 1× 24 MTP Female to 2× 12 MTP OM4 50/125 Multimode Elite Conversion Cable, 24 Fibers, Type B, LSZH

    $63.14
    2.7K Sold
    18 Reviews

    LC UPC to ST UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 3m

    $4.48
    2.7K Sold
    18 Reviews

    LC UPC to LC UPC Duplex OM3 2.0mm PVC Multimode Fiber Optic Patch Cable 3m

    $3.73
    2.6K Sold
    18 Reviews

    FC UPC to FC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 3m

    $2.57
    2.6K Sold
    18 Reviews

    3m (10ft) MTP-24 UPC (Female) to 12x LC UPC Duplex OM4 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Magenta

    $92.40
    2.6K Sold
    18 Reviews

    3m (10ft) MPO-8 UPC (Female) to 4x LC UPC Duplex OM3 Multimode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Aqua

    $18.20
    2.6K Sold
    18 Reviews

    LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable 3m

    $2.57
    2.6K Sold
    18 Reviews

    3m (10ft) MPO-8 UPC (Female) to 4x LC UPC Duplex OM4 Multimode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Magenta

    $20.20
    2.6K Sold
    18 Reviews

    LC UPC to SC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 3m

    $4.48
    2.6K Sold
    18 Reviews

    3m (10ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM3 Multimode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Aqua

    $34.80
    2.6K Sold
    18 Reviews

    SC UPC to SC UPC Simplex OS2 2.0mm LSZH Fiber Optic Patch Cable 3m

    $2.57
    2.6K Sold
    18 Reviews

    3m (10ft) MPO-16 APC (Female) to MPO-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    $40.44
    2.6K Sold
    18 Reviews

    LC UPC to LC UPC Duplex OM3 2.0mm Plenum (LSZH) Multimode Fiber Optic Patch Cable 3m

    $3.73
    2.6K Sold
    18 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 7.5mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage
    • 80/150N (Long/Short Term)
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    100G Direct Connectivity:

    100G Direct Connectivity

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    These cables prioritize attention to detail and high-quality construction. Additionally, MPO-24 connectors adopt optimized design and precise manufacturing processes, effectively reducing signal loss during optical transmission, ensuring the stability and reliability of data transmission.



    Excellent Transmission Stability Ensured by Superior Craftsmanship





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.






    Flexible High-Density Cabling Solutions



    Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.



    Flexible High-Density Cabling Solutions



    Spine-Leaf Architecture for Scalable Networks



    Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.



    Spine-Leaf Architecture for Scalable Networks



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.



    Maintain Performance by Cleaning Fiber

    Questions & Answers

    • All (6)
    • Hi, I just want to wonder what is the difference between MTP and MPO cables? I am always confused about the two cables.
      In fact, it is easy to distinguish them. The key difference between them lies in their different connectors. MTP trunk cables use MTP® connector, this is an enhanced version so that MTP cables have better mechanical designs and optical performances.
    • What is the maximum throughput?
      The maximum data throughput is 400G.
    • What's the difference between the male and female connectors of an MTP cable?
      The difference between the male and female connectors of an MTP cable lies in the position of the alignment key. The male connector features an alignment key located at the top, while the female connector has an alignment key positioned at the bottom.
