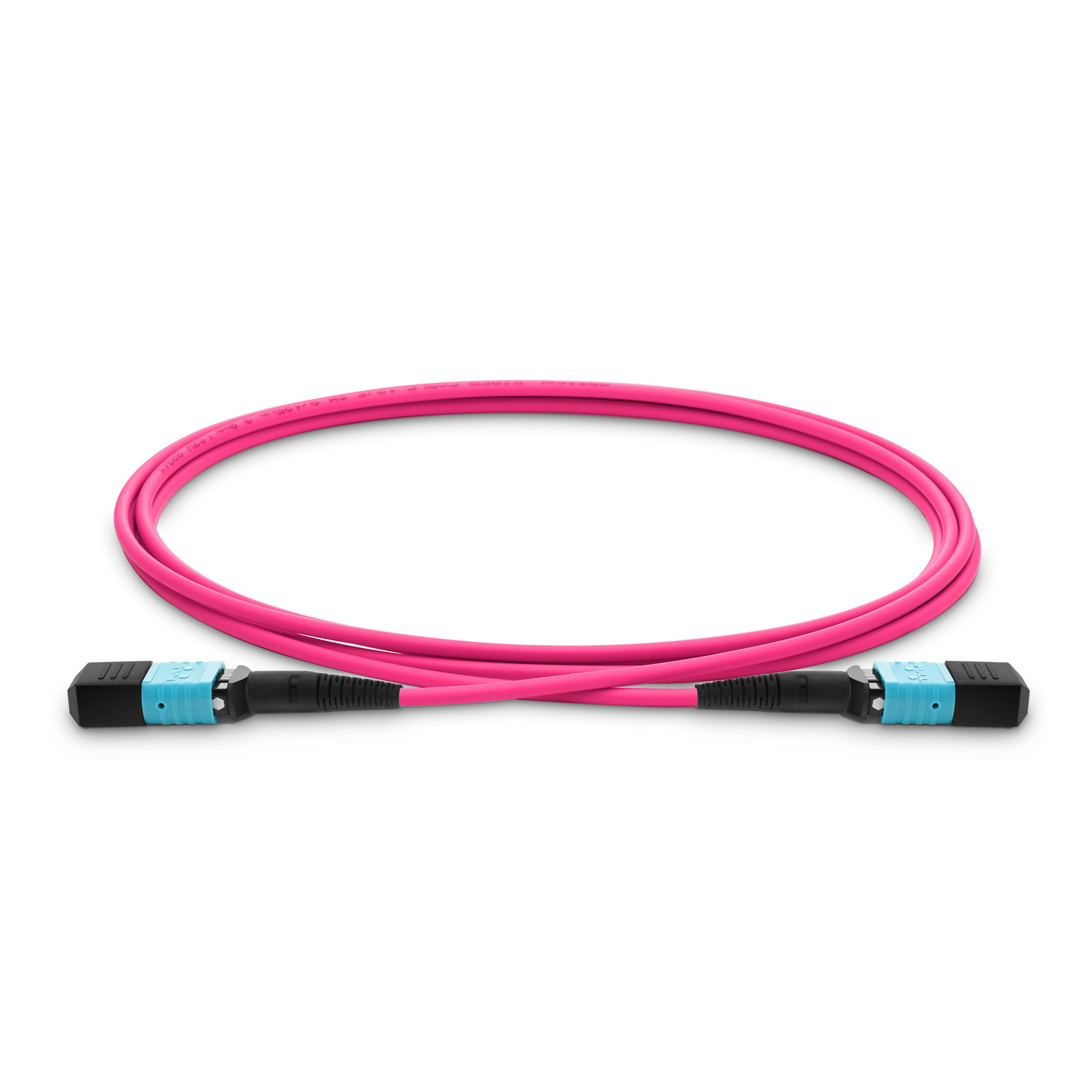

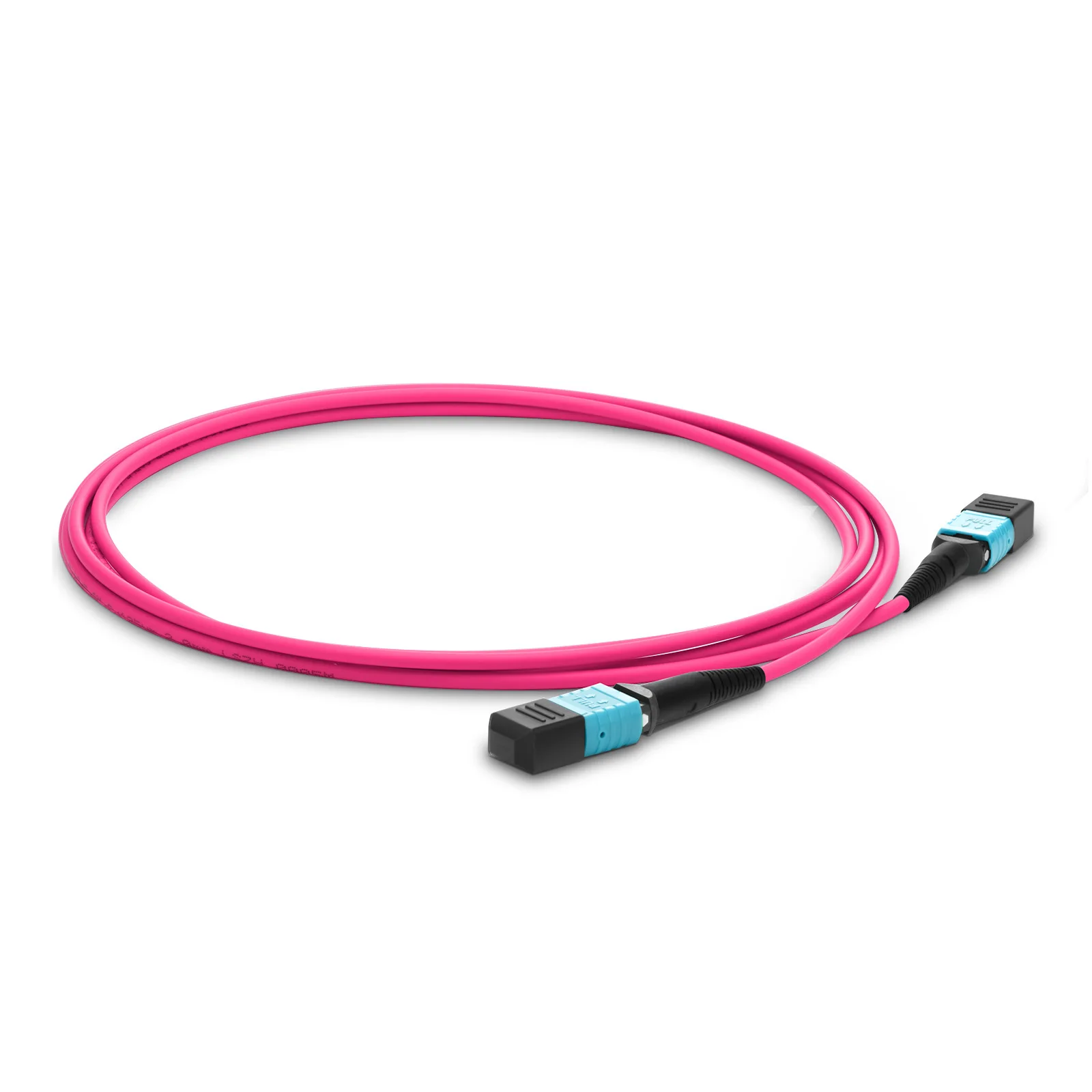

8m (26ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Magenta

Product No :103044
US$ 64.80
Series
Length
49 in real-time stock, 02Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Optimized for 100/200G and meet future-proof 400G/800G network requirements
5. Meticulous design and standard testing ensure stable high-speed data transmission
See more

Specifications

8m (26ft) MPO-24 UPC (Female) to MPO-24 UPC (Female) OM4 Multimode Elite Trunk Cable, 24 Fibers Jumper, Type B, LSZH, Magenta



The MPO-24 trunk cable jumper deliver up to 12 times the fiber capacity of standard duplex LC connector, providing a cost-effective high-density cabling solution for scenarios where rack space saving and cable management is in concern. This 24 fibers MPO female to MPO female OM4 multimode mode trunk cable is specially optimized for high-speed 100G and beyond interconnection in data centers and telecommunications systems applications.

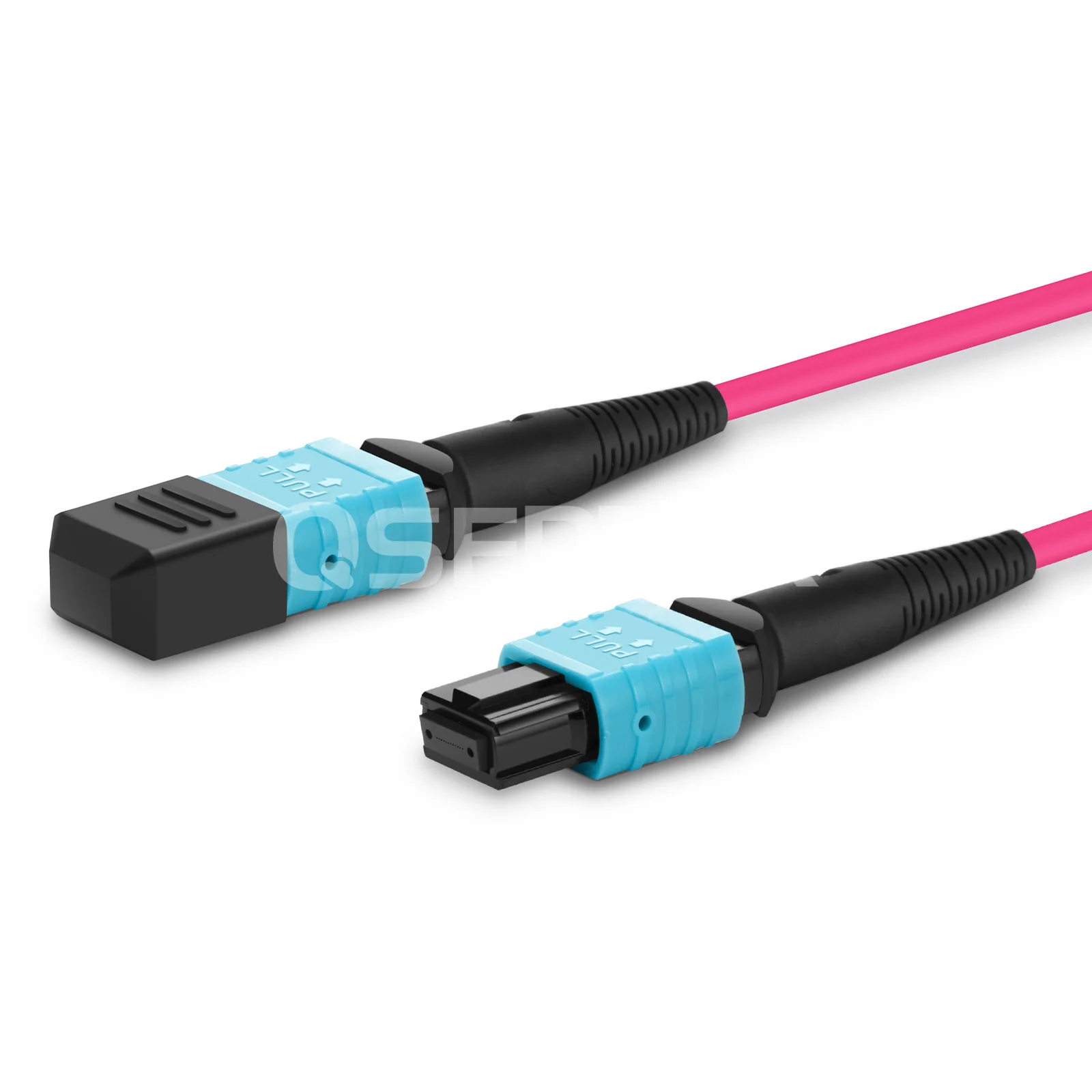

Connector A MPO Female Connector B MPO Female
Fiber Count 24 Fibers Fiber Type OM4 MMF 50/125μm
Polish Type UPC to UPC Cable Material LSZH
Armoured No Wavelength 850/1300nm
Insert Loss ≤0.35dB Return Loss ≥30dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
Operating Temperature -10℃~ to 70℃ Storage Temperature -40℃ to +85℃



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term)
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

100G Direct Connectivity:

100G Direct Connectivity

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship

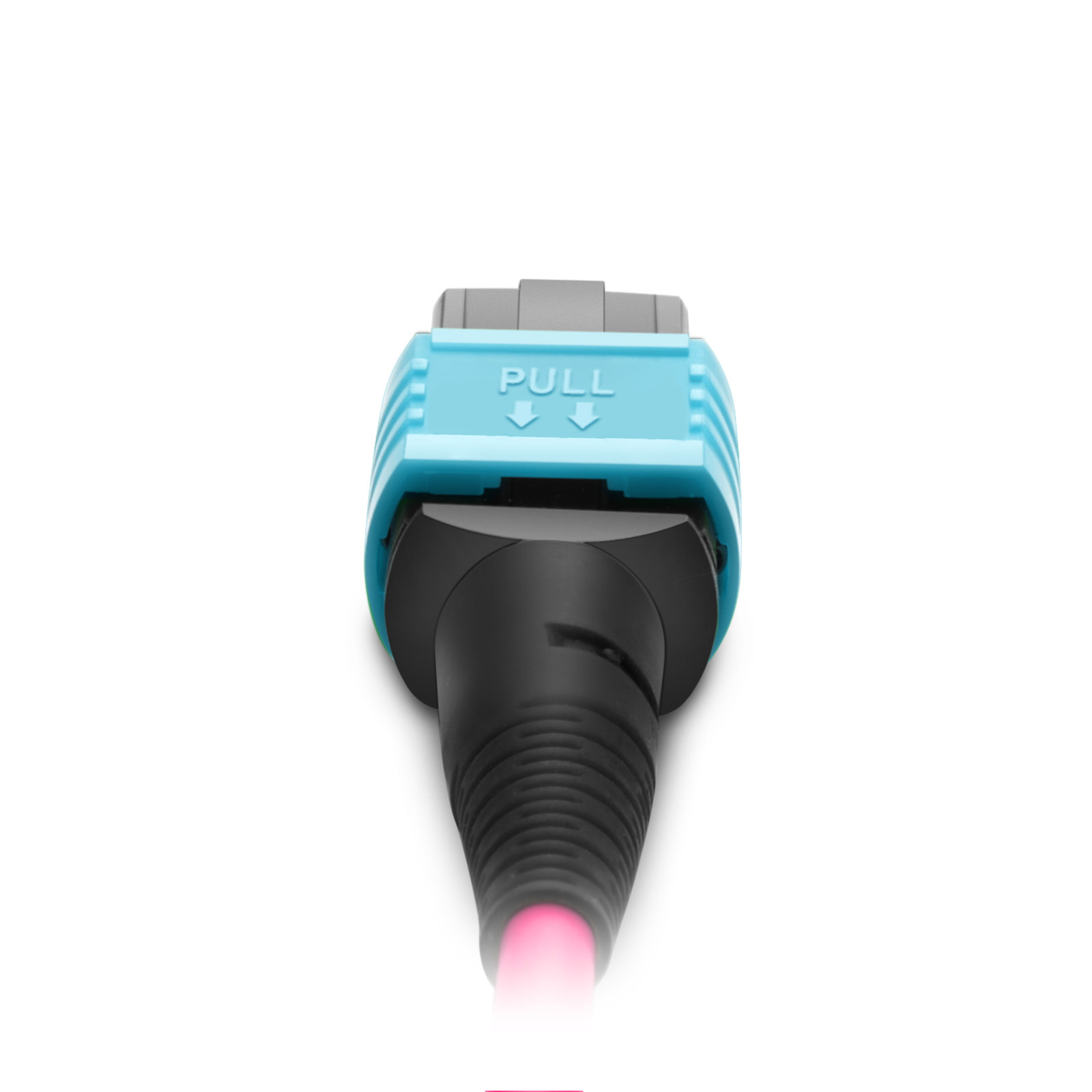

These cables prioritize attention to detail and high-quality construction. Additionally, MPO-24 connectors adopt optimized design and precise manufacturing processes, effectively reducing signal loss during optical transmission, ensuring the stability and reliability of data transmission.



Excellent Transmission Stability Ensured by Superior Craftsmanship





High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.






Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.



Flexible High-Density Cabling Solutions



Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.



Spine-Leaf Architecture for Scalable Networks



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.



Maintain Performance by Cleaning Fiber
