Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 103317

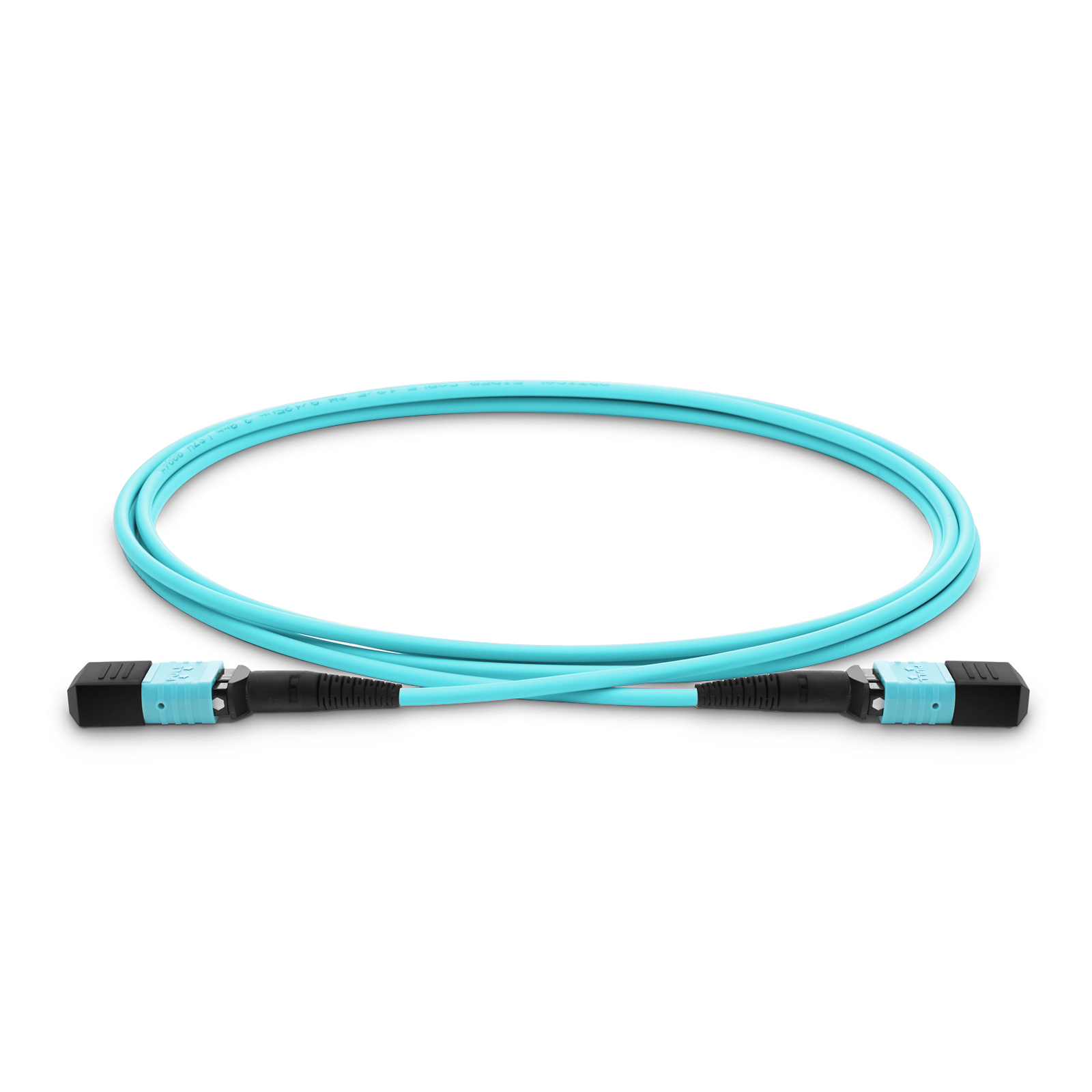

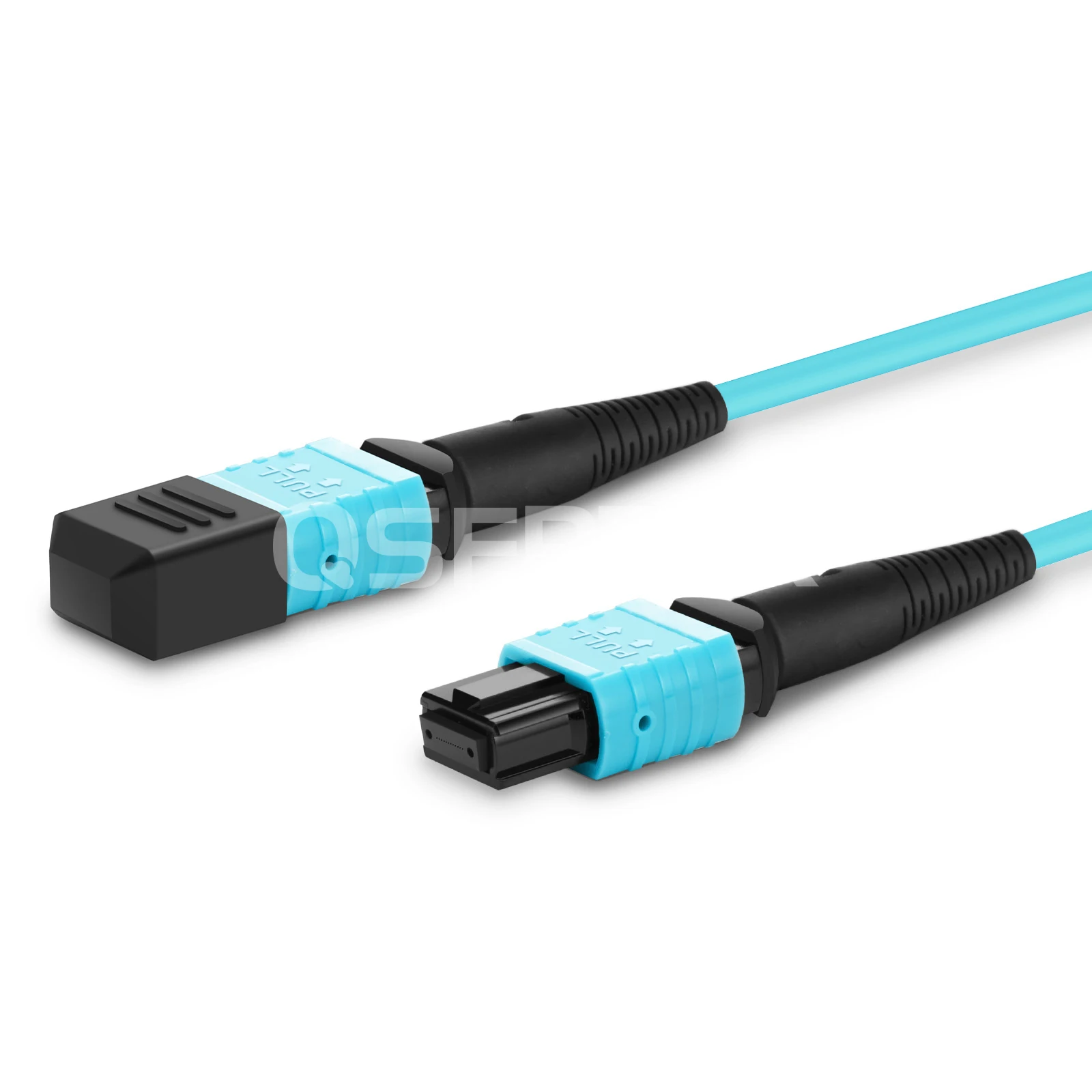

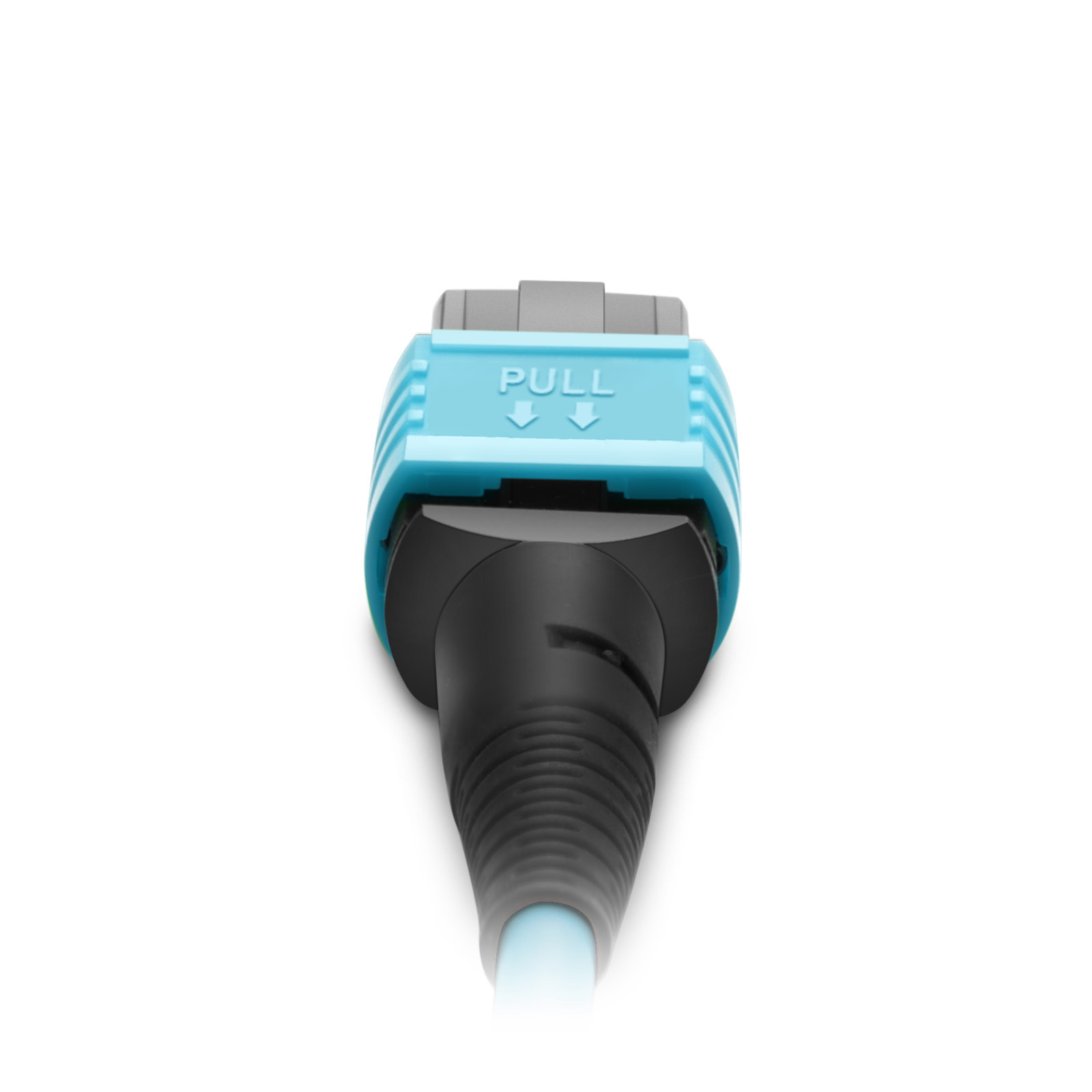

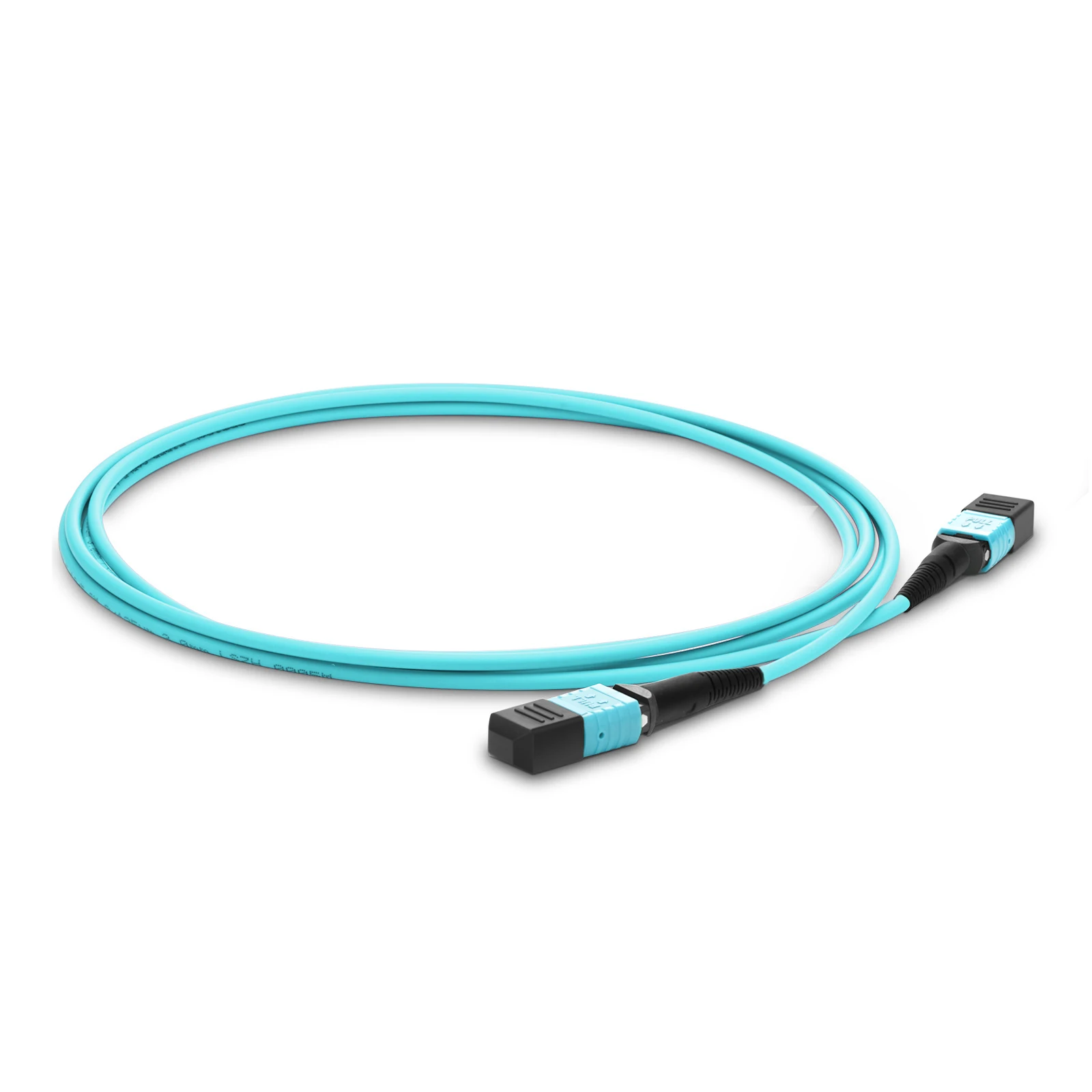

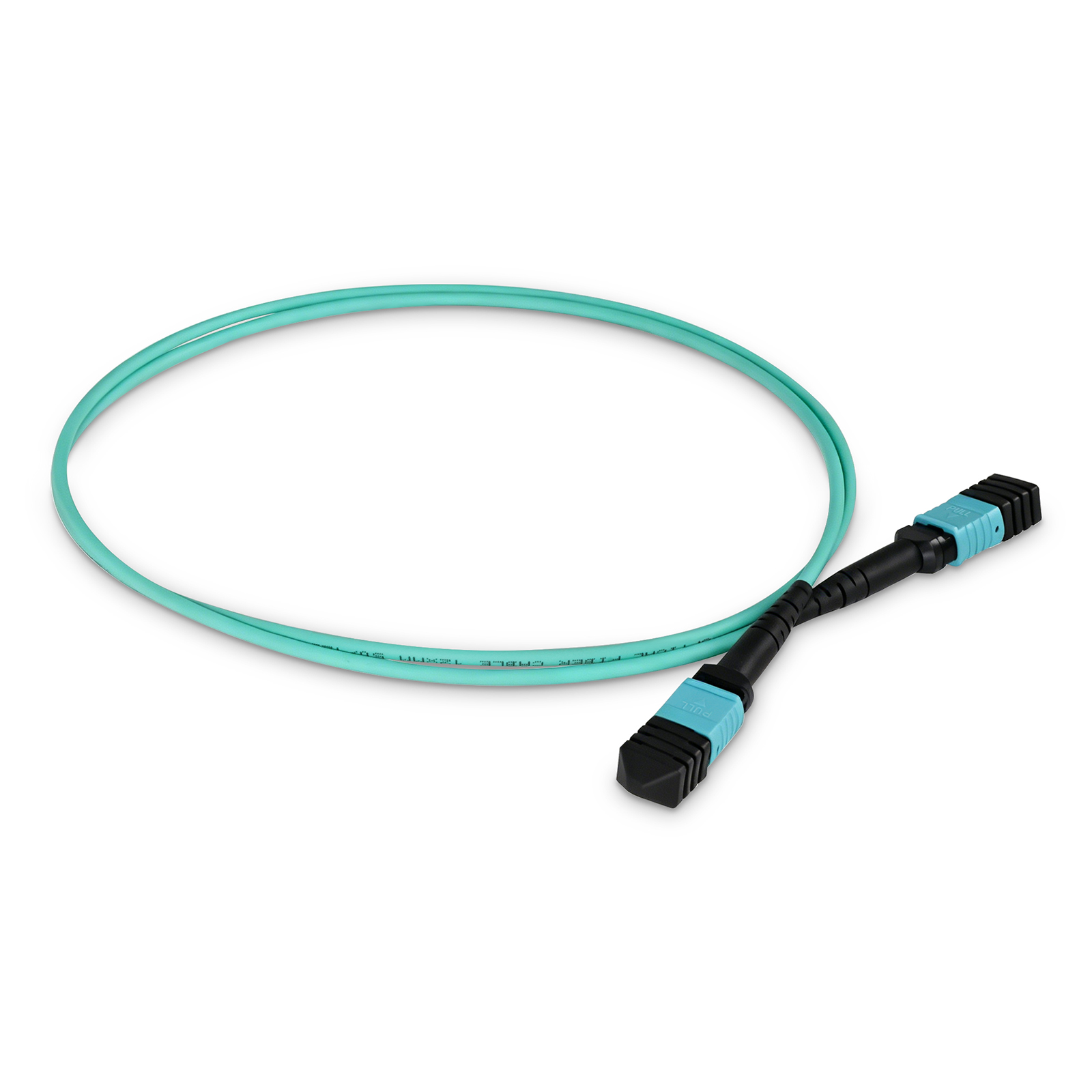

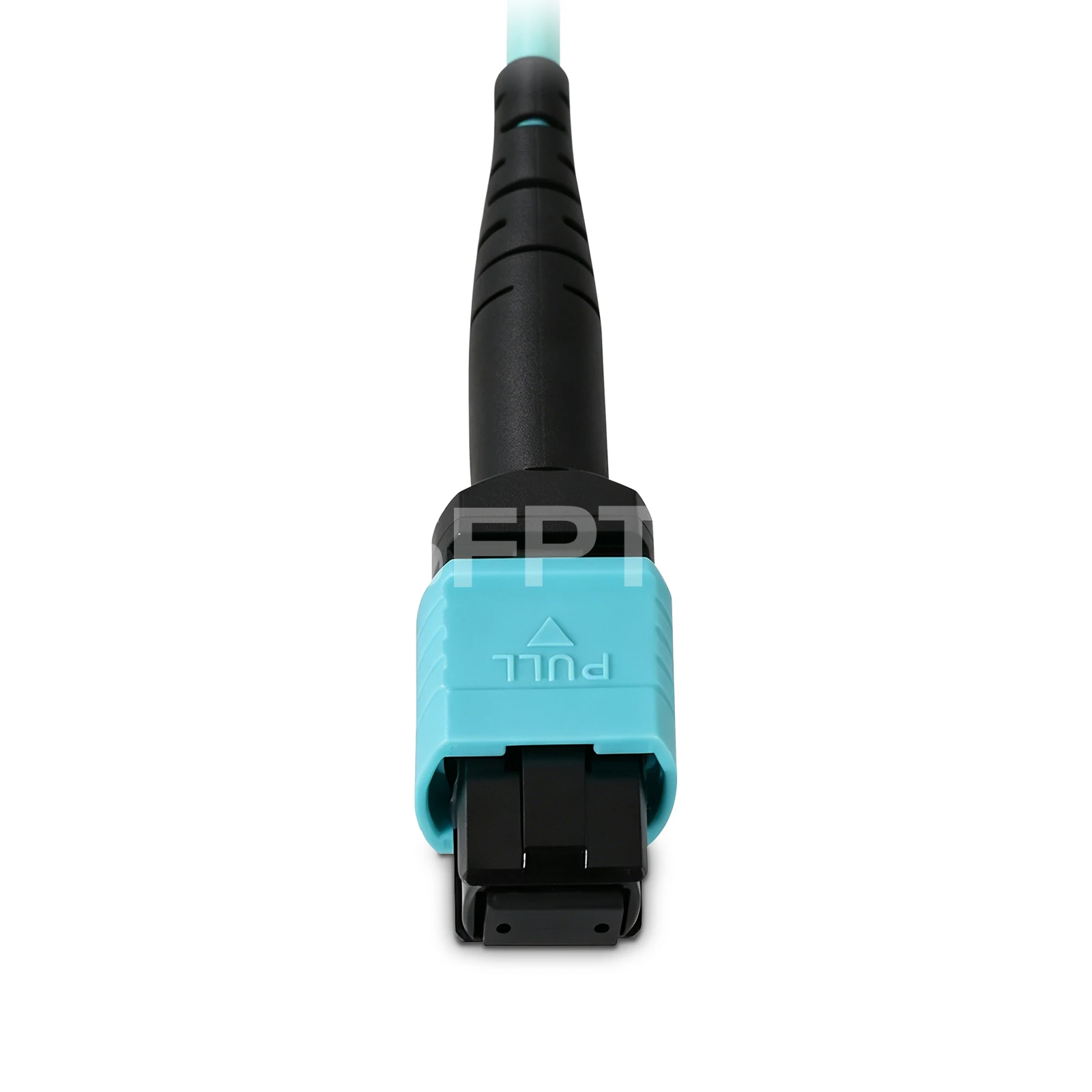

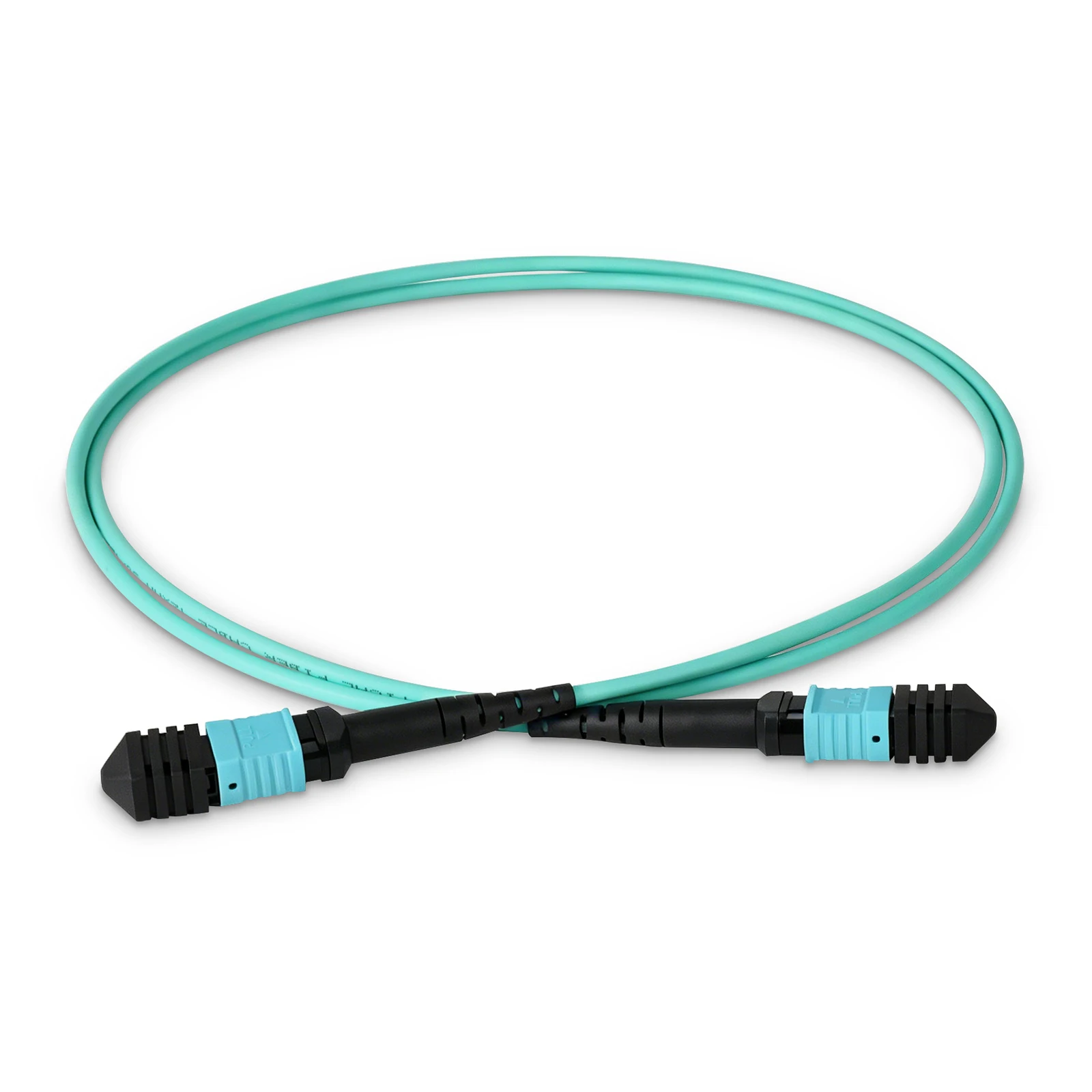

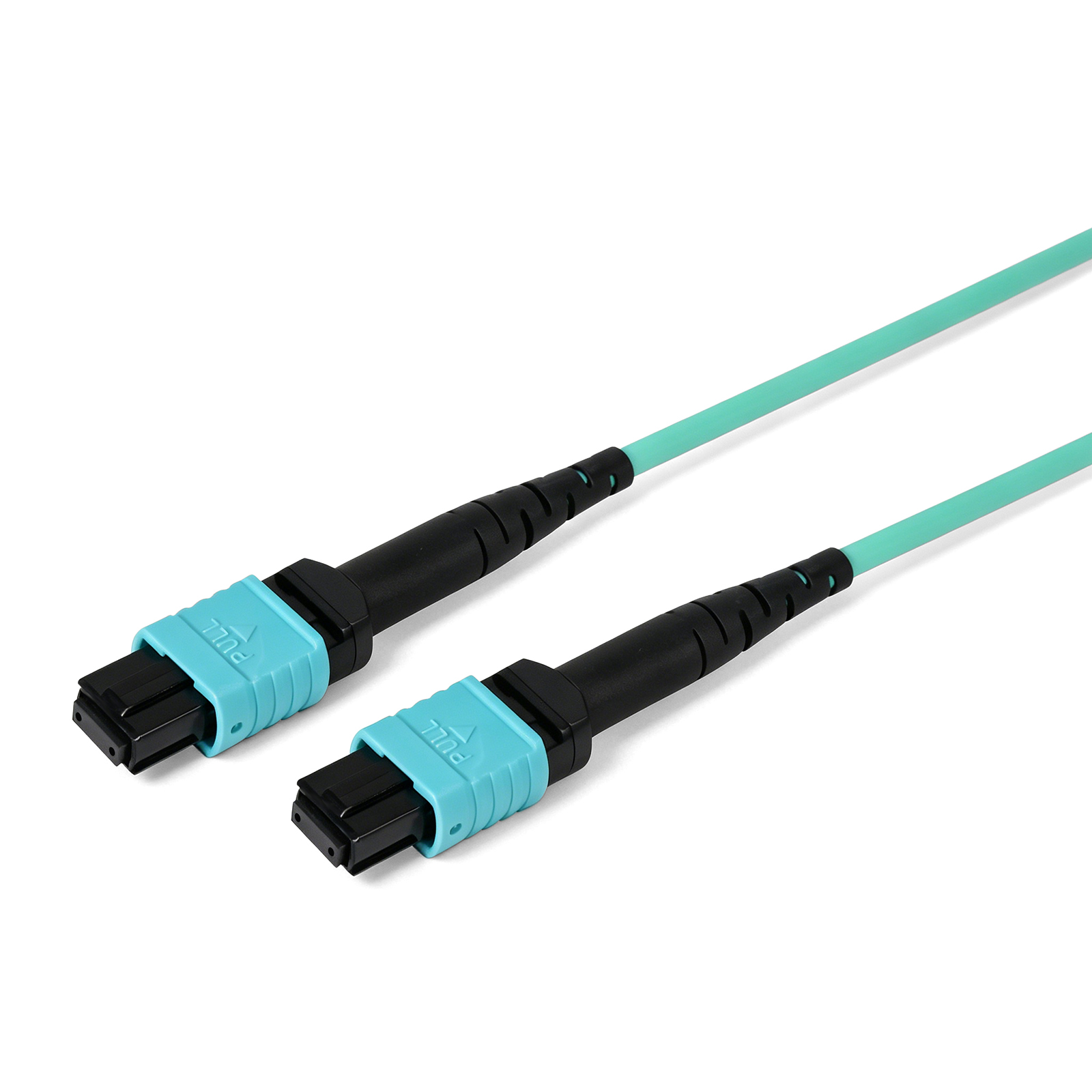

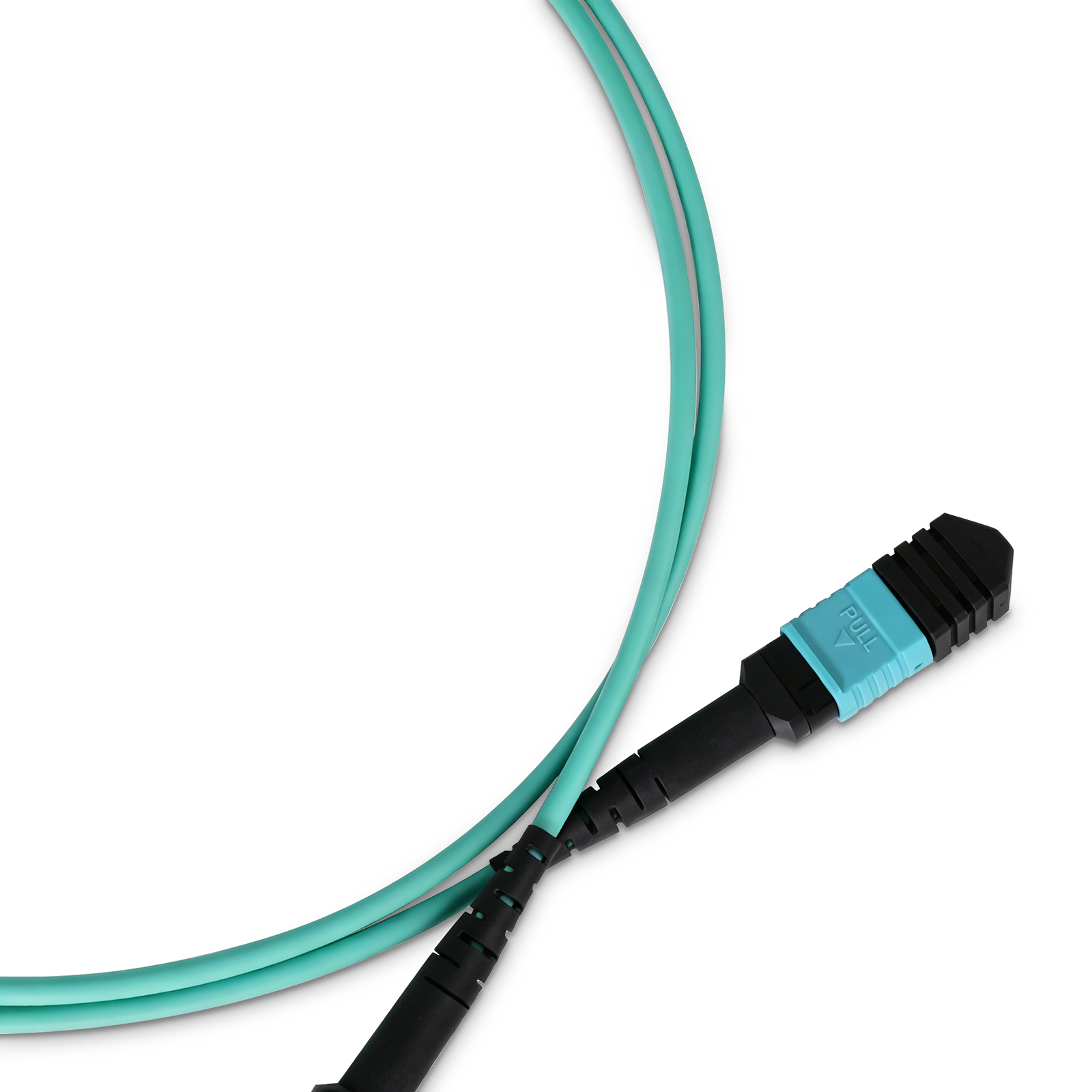

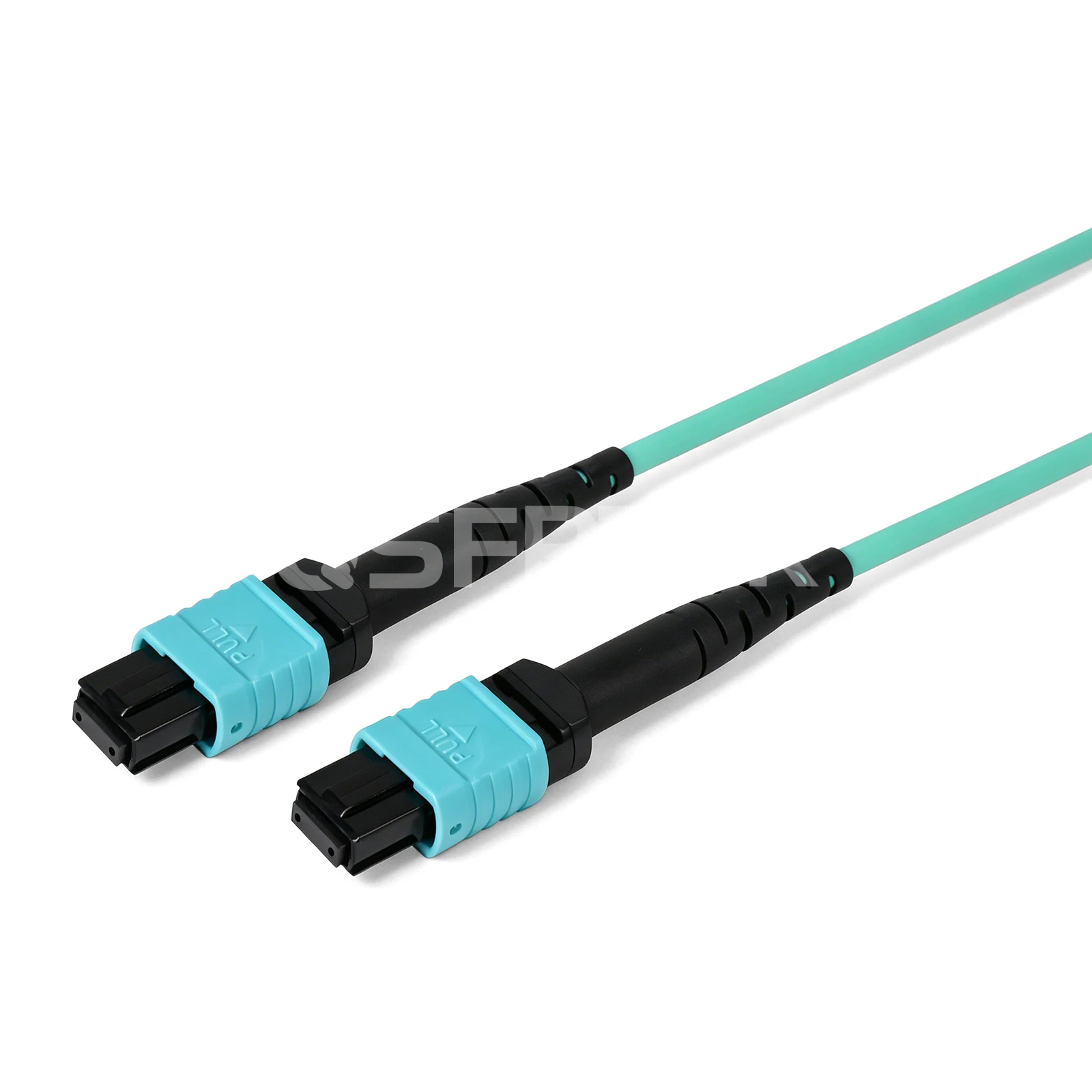

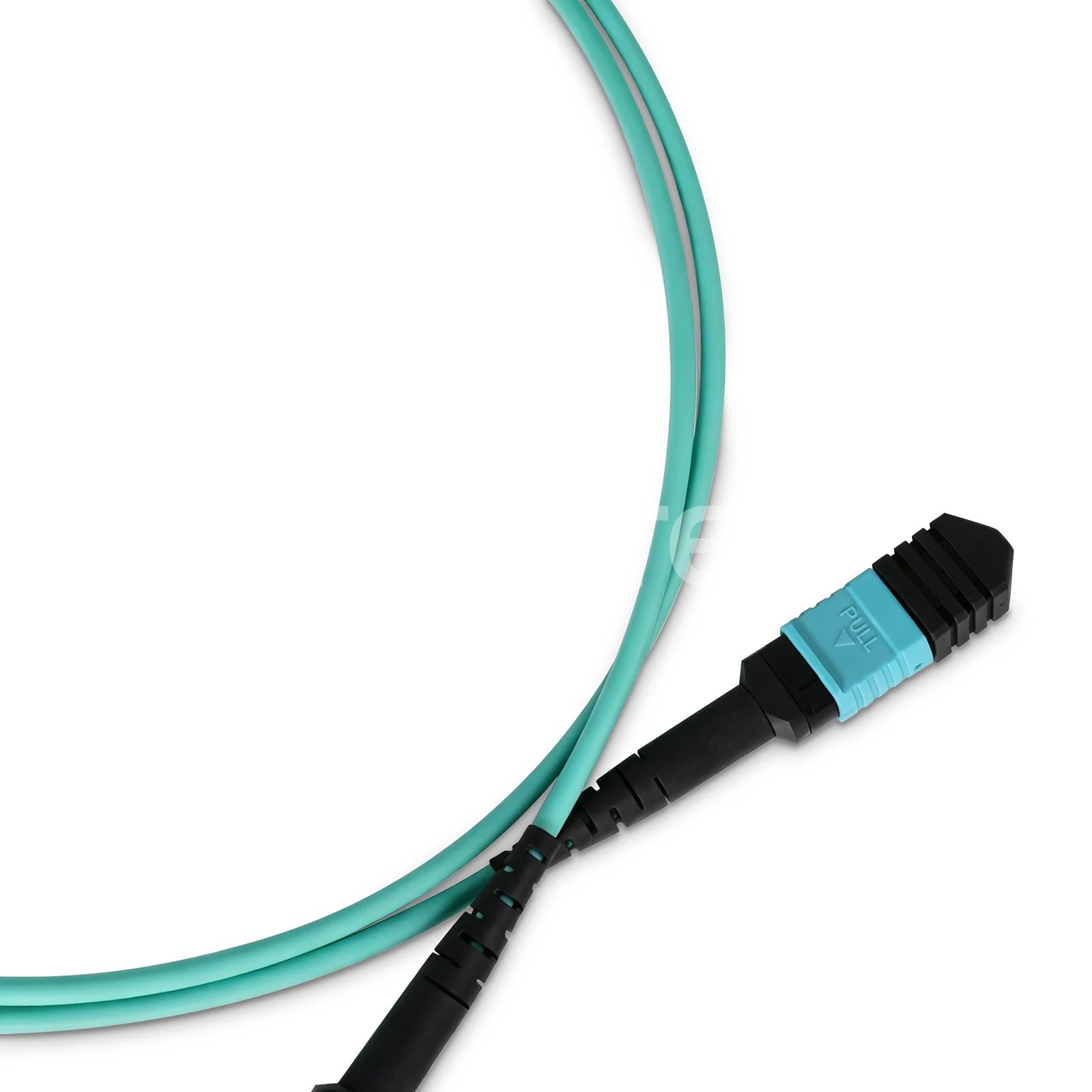

2m (7ft) MPO-12 UPC (Female) to MPO-12 UPC (Female) OM3 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Aqua

Product No :103317
US$ 11.40
Series
Length
48 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Full bandwidth ≥1500MHz·km at 850nm, ≥500MHz·km at 1300nm
5. Meticulous design and standard testing ensure stable high-speed data transmission
See more

Specifications

2m (7ft) MPO-12 (Female) to MPO-12 (Female) OM3 Elite Trunk Cable, 12 Fibers, Type B, LSZH



The MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. This 12 fibers MPO female to MPO female OM3 multimode mode trunk cable is specially optimized for 100G optics direct connection, data centers and telecommunications systems applications.



Connector A MPO Female Connector B MPO Female
Fiber Count 12 Fibers Fiber Type OM3 MMF 50/125μm
Polish Type UPC to UPC Cable Material LSZH
Armoured no Wavelength 850/1300nm
Insert Loss ≤0.35dB Return Loss ≥30dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius
(Fiber Core)		 7.5mm Min. Bend Radius
(Fiber Cable)		 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
Max Transmission Distance 300M Effective Bandwidth ≥2000MHz·km with 850nm
Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term) Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.



Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
