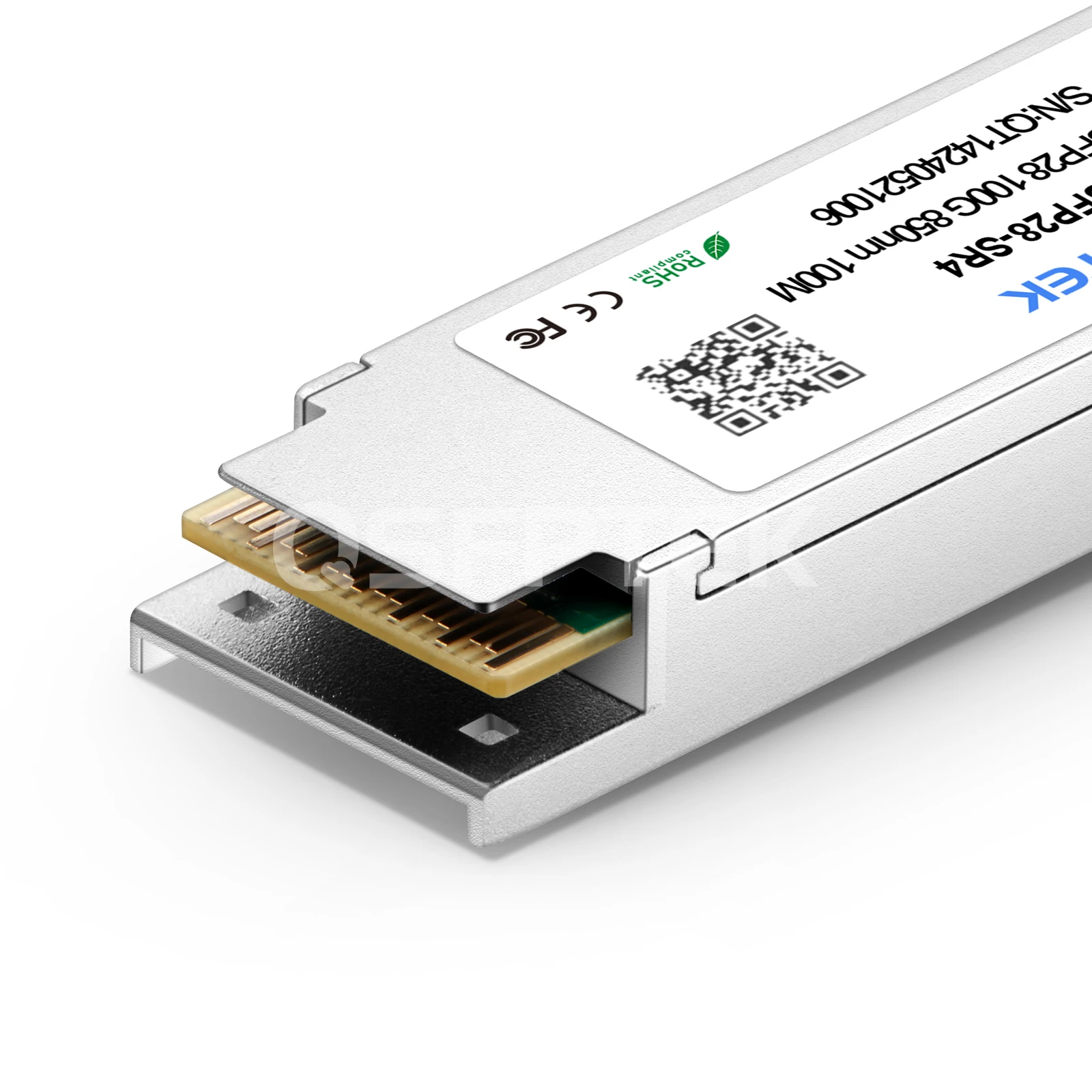

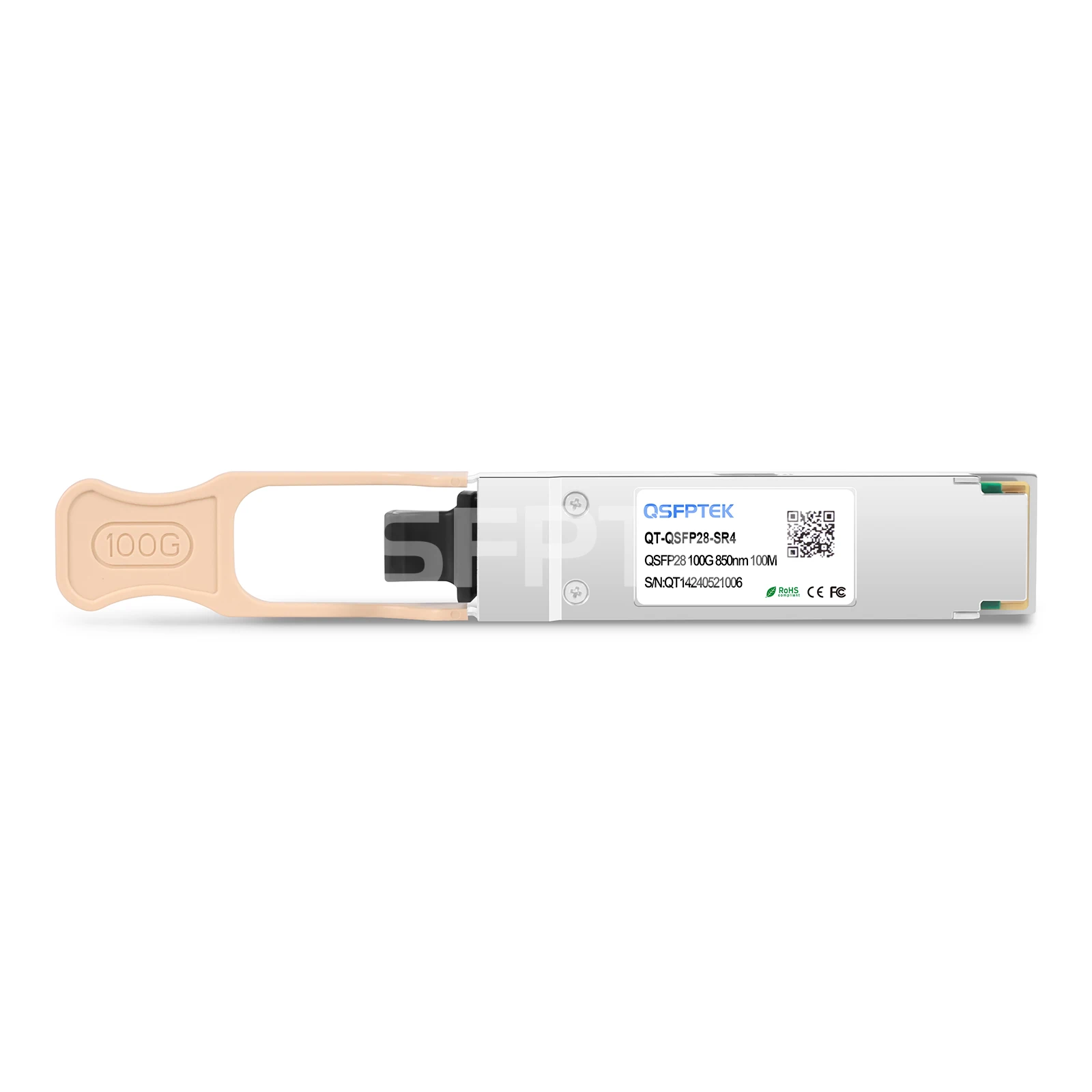

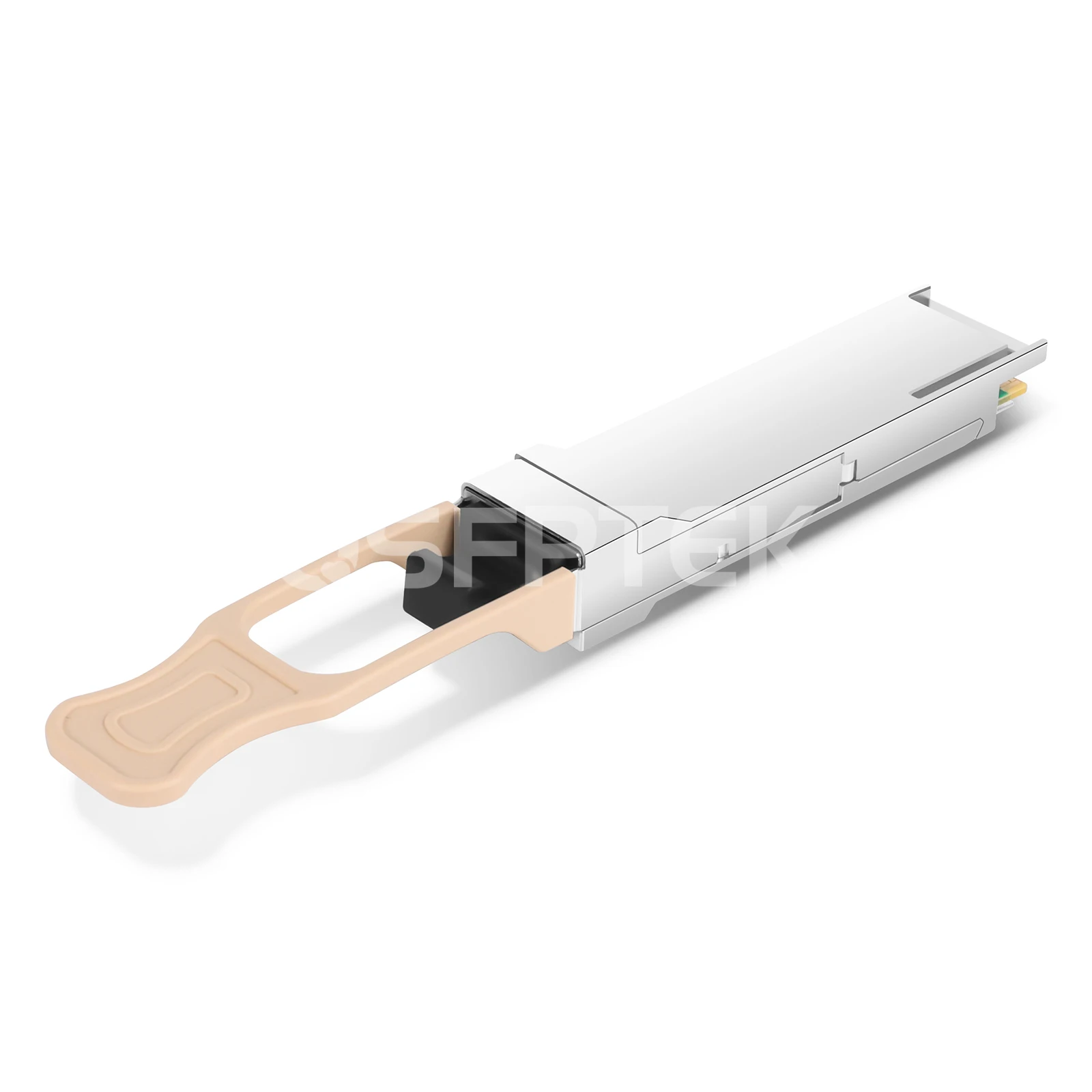

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Product No :56984
US$ 39.90  US$ 59.90
2000 in stock
Free Shipping over US$ 84.9. US/EU Warehouses in stock, Overnight Shipping
1. Rate: 100G; Connector: MTP/MPO; with DDM
2. VCSEL+PIN; Low Power Consumption ≤1.8W
3. Applied in Campus Network, Data Center and Enterprise Core Layer
4. Compatible with 100+ Vendors
5. Hot Pluggable QSFP28 MSA Compliant
See more

Specifications

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DDM)



The Cisco QSFP-100G-SR4-S compatible optical transceiver module is designed with MTP/MPO-12 male connectors, reaching a link up to 100m over OM4 (70m@OM3). QSFPTEK manufactured 100GBASE-SR4 QSFP28 transceiver module is compliant with IEEE 802.3bm, QSFP28 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, the enterprise core layer, etc.



Part Number:

QSFP-100G-SR4-S

Vendor Name:

QSFPTEK

Form Factor:

QSFP28

Data Rate:

100Gbps

Wavelength:

850nm

Distance:

100m@OM4/70m@OM3

Connector:

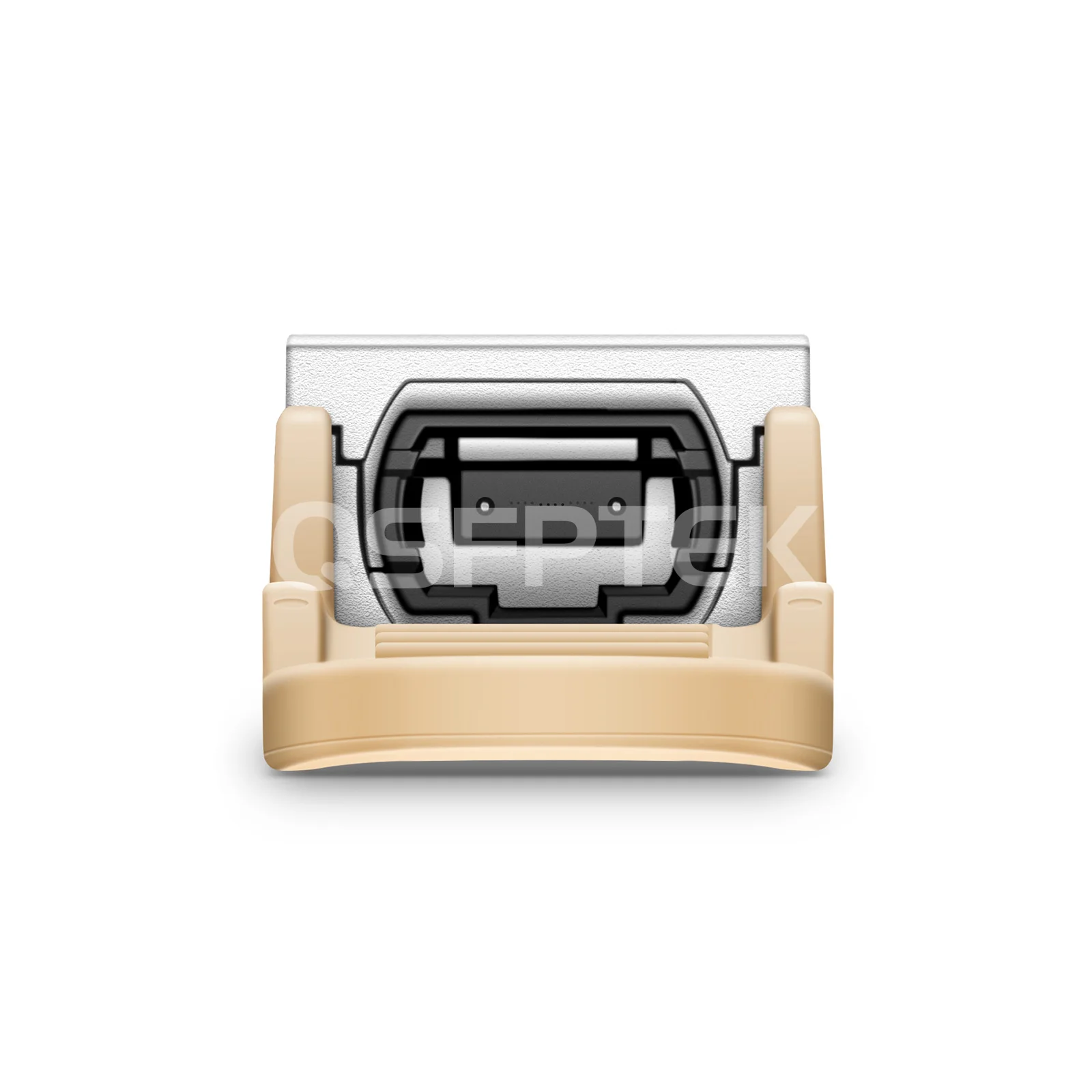

MTP/MPO-12 Male

Cable Type:

OM4/OM3 MMF

Transmitter:

VCSEL 850nm

Receiver Type:

PIN

TX Power:

-7~1dBm

Receiver Sensitivity:

<-9.5dBm

Power Consumption:

P≤1.8W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

EEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI

Warranty:

3 Years

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Cisco devices. Ideal for data centers, campus network, enterprise core layer, etc.
  • 3. Protocols
    Compliant with IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636, CPRI, eCPRI.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Data Center and Campus Network Solution for 100G Gigabit Ethernet Switches



100G to 4X25G Break-out connection



Relative products:

SFP28-25G-SR(click here)

MTP  to 4 LC UPC Duplex 8 Fibers OM4 Breakout Cable(click here)



The 100GBASE-SR Optical Module Connectivity Testing on Switches





Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • What is the laser level of 100G SR4? Can you provide a test report of the laser level of this module?
    Class I. Of course, you can contact our sales to get the report.
  • The transmission distance is less than 550m, should I use multi-mode?
    I'm afraid you should purchase the single-mode optics, like 100G LR4.
  • What is the Packaging Technology of the 100g lr4?
    BOX Packaging
