    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G QSFP-DD / 103711
    Product image
    Product image

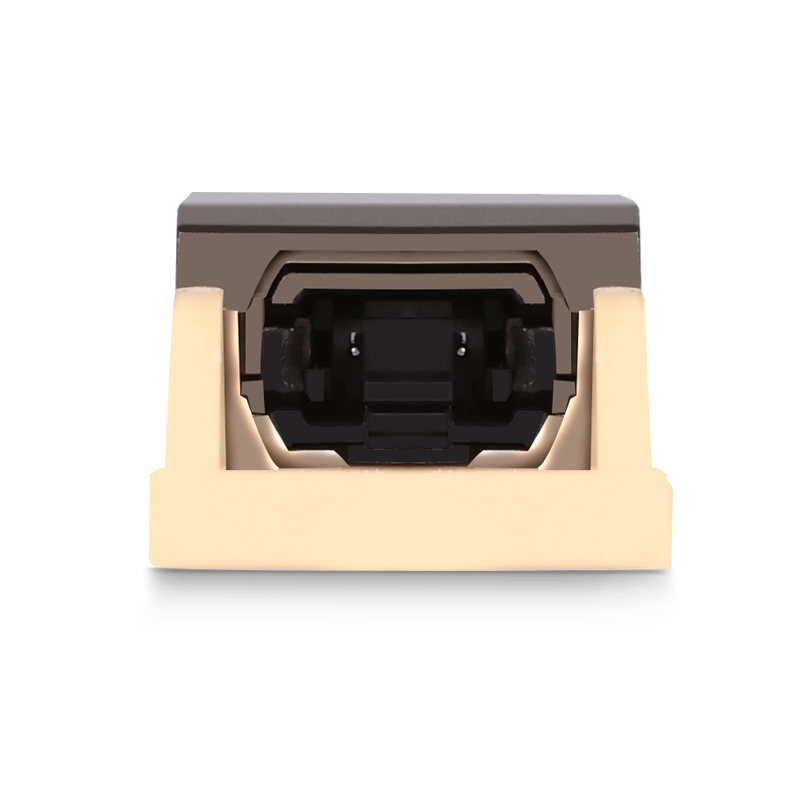

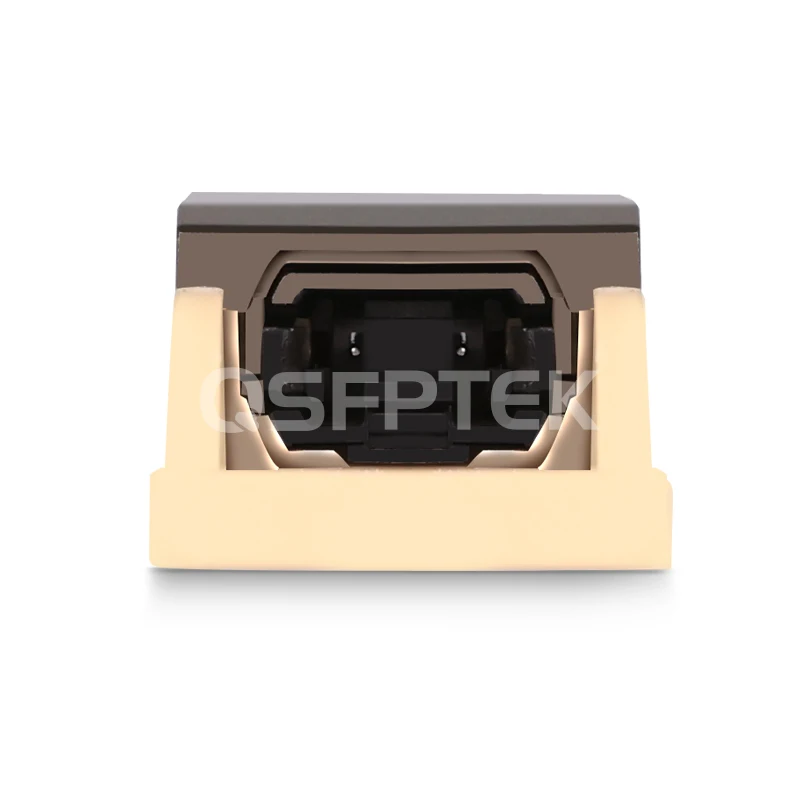

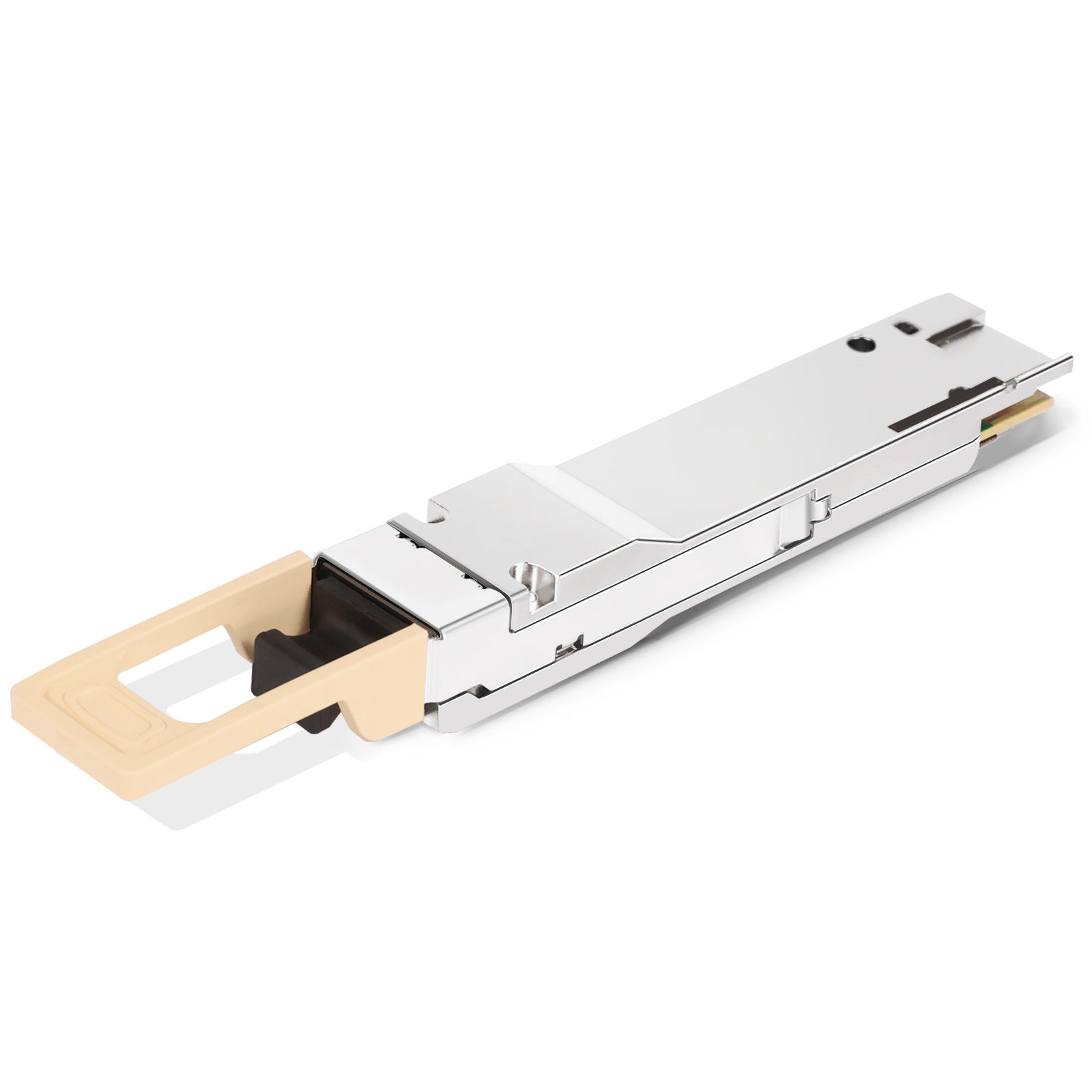

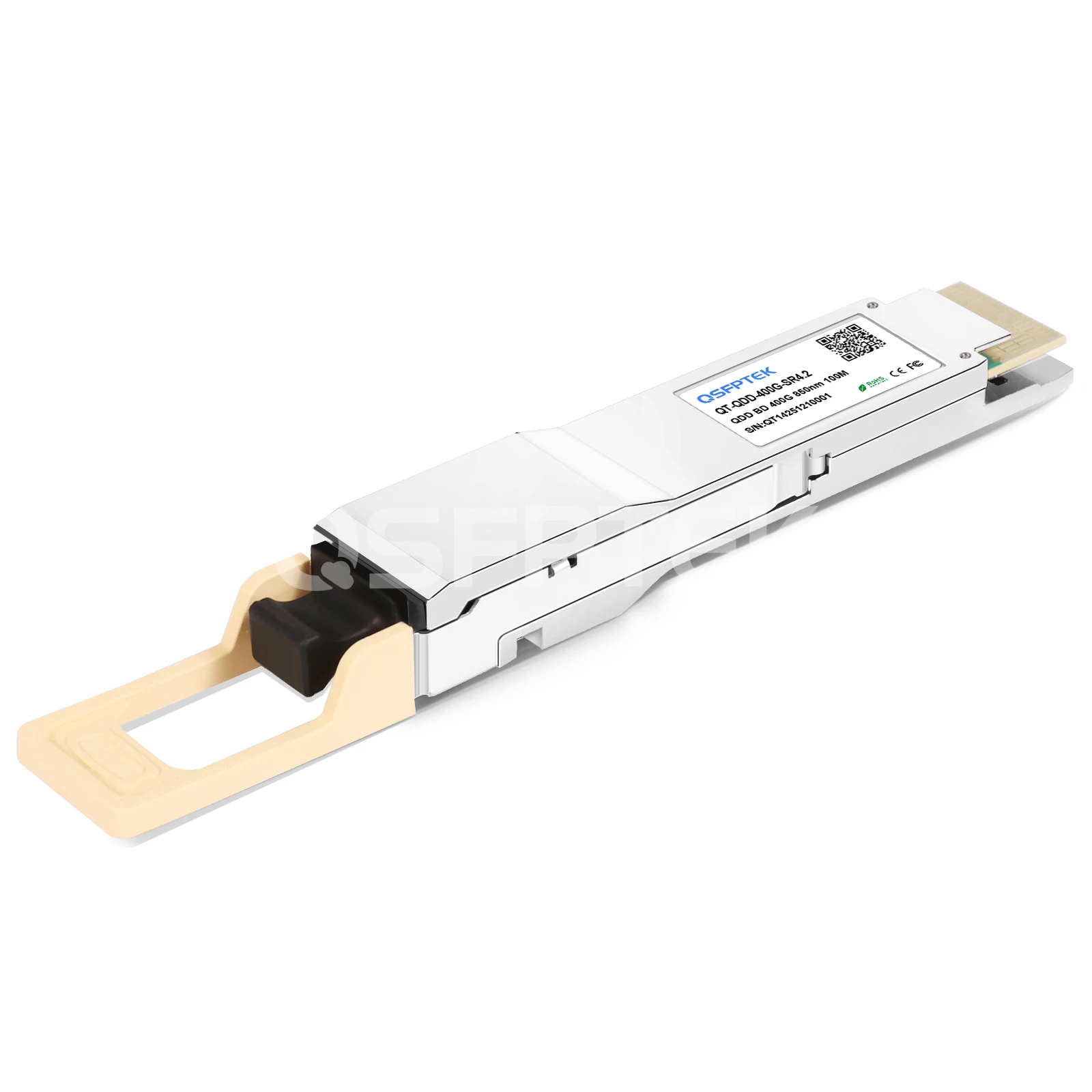

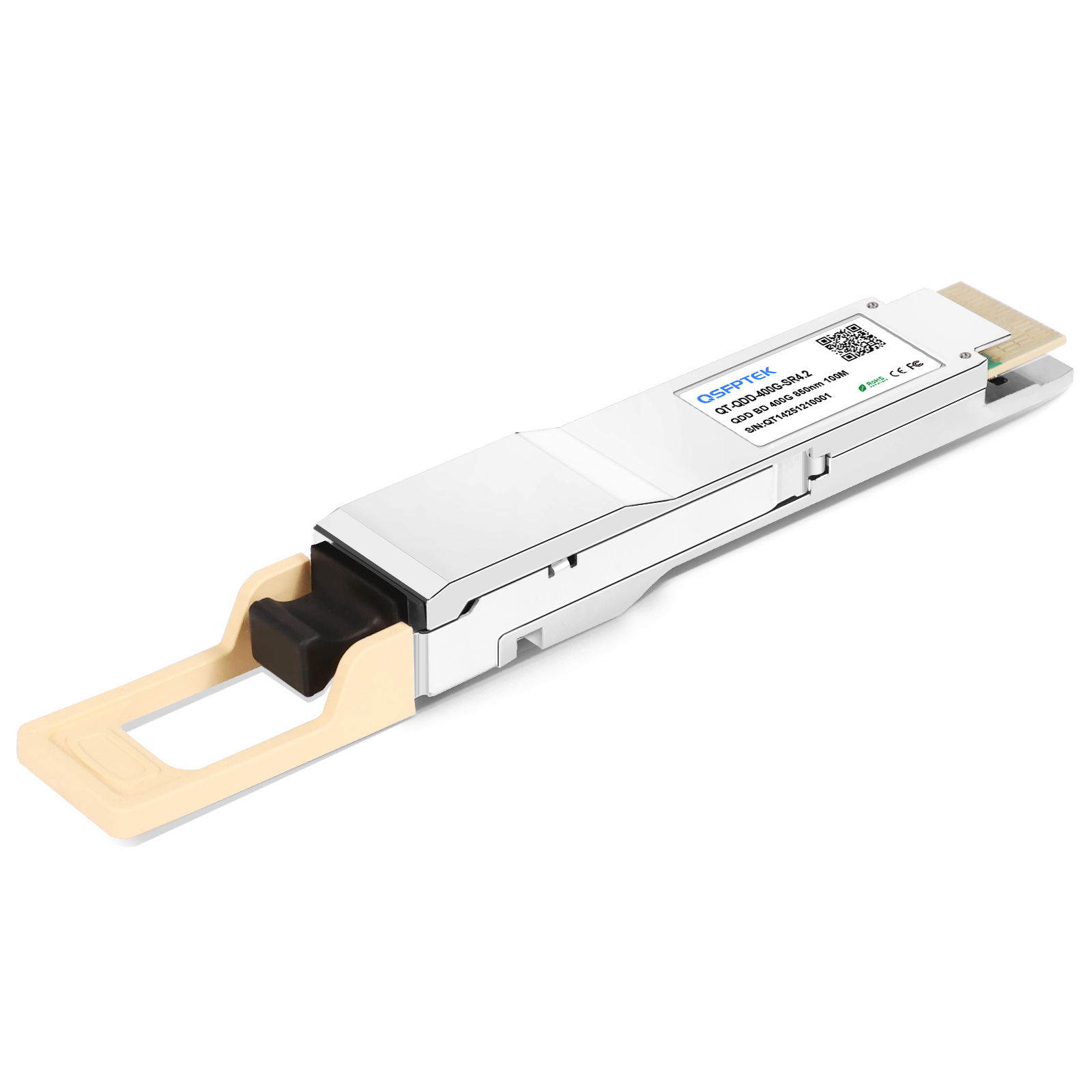

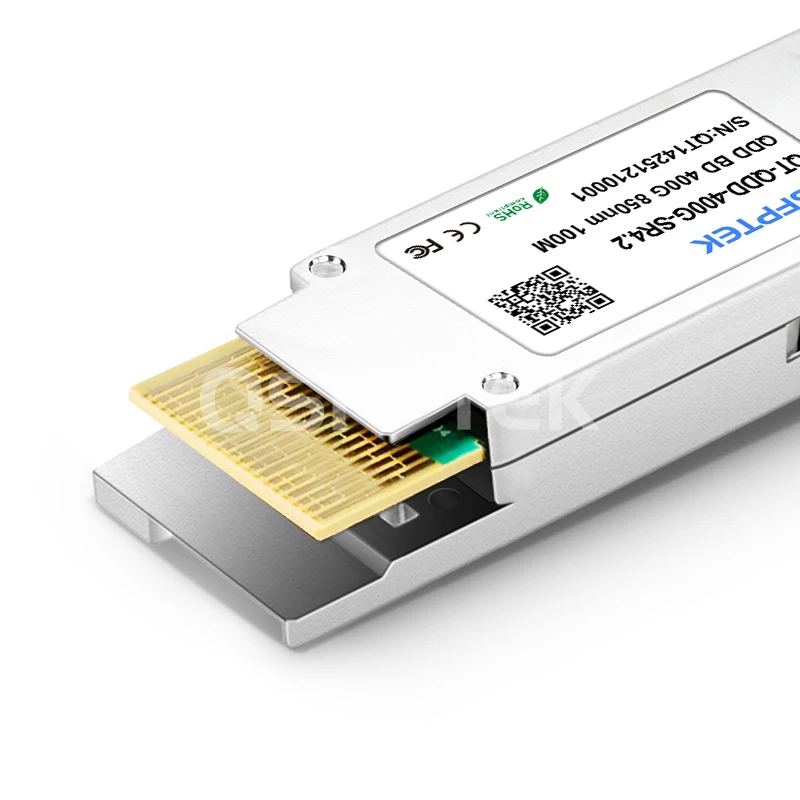

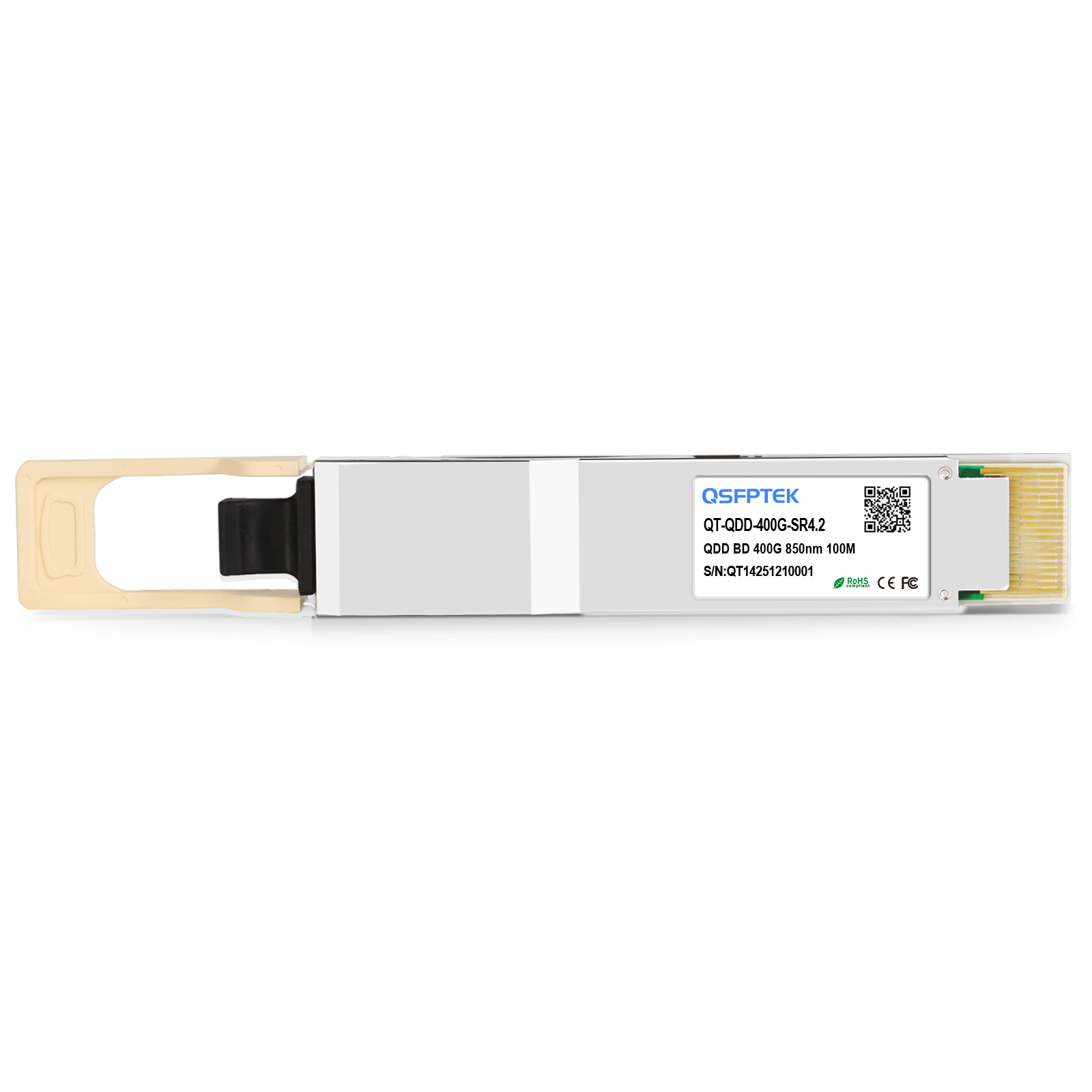

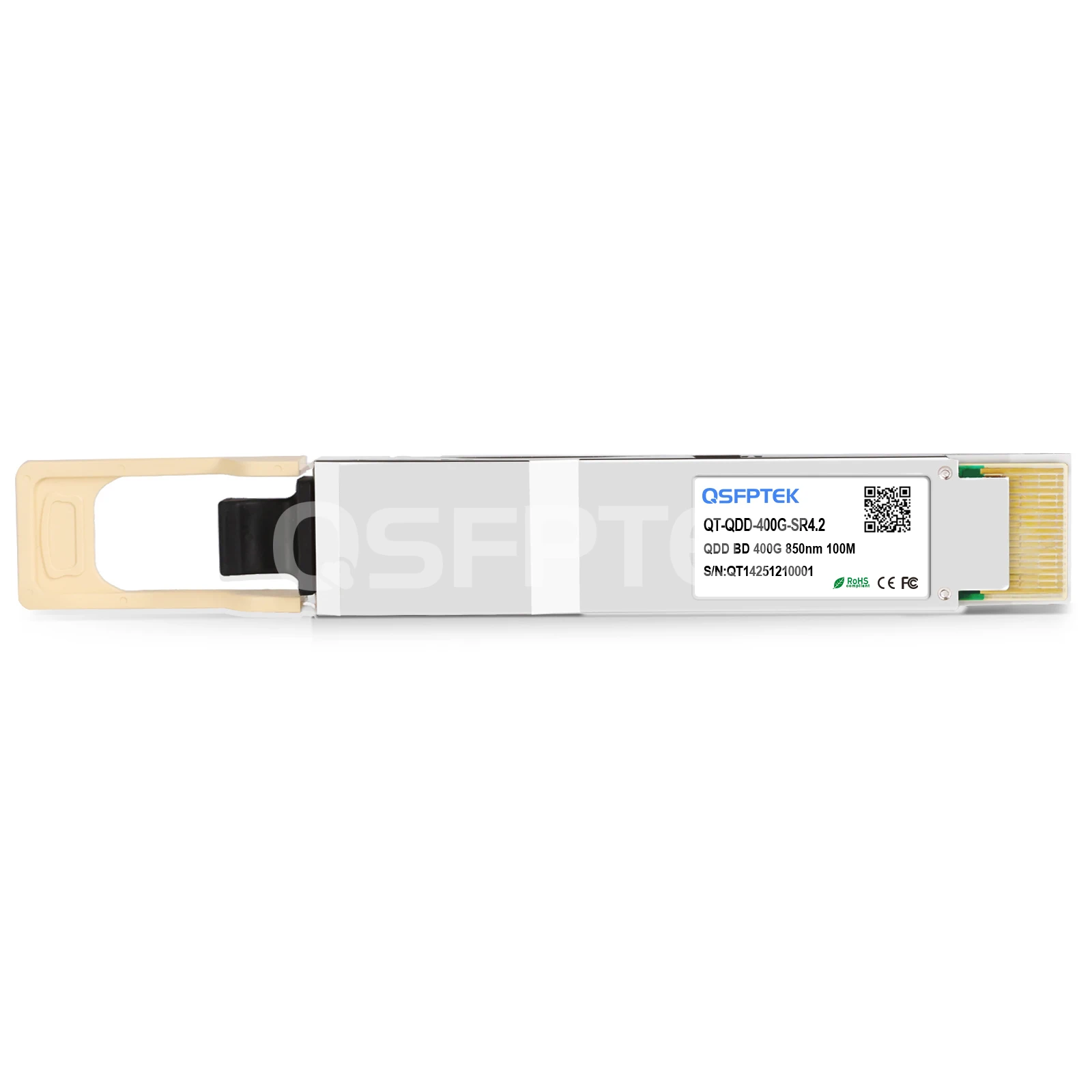

    NVIDIA/Mellanox Compatible 400GBASE-SRBD QSFP-DD PAM4 850nm 100m DDM MPO-12/APC MMF Optical Transceiver Module

    Product No: 103711
    0 Reviews
    0 Sold
    $799.00
    Compatible
    Transceivers type
    8 in real-time stock, 26Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 8x 53.125Gb/s PAM4 400GAUI-8 electrical interface
2. Built-in Broadcom DSP chip
3. InfiniBand NDR support
4. Max power consumption ≤12W
5. Compliant with QSFP-DD MSA, RoHS-6, IEEE 802.3-2015, and InfiniBand HDR, EDR
    See more

    Specifications

    NVIDIA/Mellanox Compatible 400G QSFP-DD SR4 BD PAM4 Optical Transceiver Module (850nm, 100m, MPO-12 APC Connectors, MMF, 0℃ to +70℃, DOM)



    NVIDIA/Mellanox Compatible 400GBASE-SRBD QSFP-DD module with MPO-12 APC connectors, max transmitter distance up to 150m over OM5 multi-mode fiber. It is a parallel Quad Small Form-factor Pluggable, double density (QSFP-DD) Bi-Direction optical module. The module accepts eight host electrical data and transmits them in two groups of optical bi-directional lanes (each group contains 4 pairs of optical lanes) to allow optical communication over optical multi-mode fibers. The QT-QDD-400G-SR4.2 module is built with DDM function, which can access operating parameters in real-time. This optical module is suitable for 400G Ethernet and Data Center interconnect.



    Part Number QT-QDD-400G-SR4.2 Vendor Name QSFPTEK
    Form Factor QSFP-DD Max Data Rate 425 Gbps (8x 53.125 Gbps)
    Wavelength 850nm, 910nm Distance 70m@OM3/150m@OM5
    Connector MPO-12 APC Cable Type MMF
    Transmitter Type VCSEL Receiver Type PIN
    TX Power -6.5 to +4dBm Receiver Sensitivity < -8.5dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤12W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP-DD MSA, IEEE 802.3-2015 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $12.60
    8.7K Sold
    79 Reviews

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      IEEE 802.3-2015 protocol and QSFP-DD MSA standard
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    400G to 400G Direct Connectivity:

    QT-QDD-400G-SR4.2 Direct Connectivity

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





    Questions & Answers

    • All (11)
    • 400G QSFP-DD (2)
    • QT-QSFP-DD-DR4 (3)
    • QT-QSFP-DD-SR8 (4)
    • QT-QSFP-DD-FR4 (1)
    • QT-OSFP-400G-SR8 (1)
    • What is the difference between using 4x100 vs 8x50 of 400G QSFP-DD transceivers?
      The main difference is that the optical signal transmission method, 4x100G means transmitting optic signals in 4 channels, and 100G each channel, while 8x50G is transmitted optic signal in 8 channels, and 50G each channel.
    • What's the meaning of ''DR4''?
      ''DR'' means that the 500m transmission distance and using Singlemode fiber, ''4'' implies there refers to 4 optical channels. The 4 independent optical channels inside the DR4 modules transmitting data on separate fibers make up a total of 8 fibers(4 Tx and 4 Rx). Each of the optical channel transmission rates is 100Gb/s.
    • What type of optical cable should be used with 400G-SR8?
      The 400G-SR8 optical module employs a single-row, angled (APC) MTP16 connector to establish a connection with parallel multi-mode fiber, facilitating the linkage of 8 fiber pairs. We recommend utilizing the QSFPTEK MTP-16 APC OM4 Cable for optimal performance.
