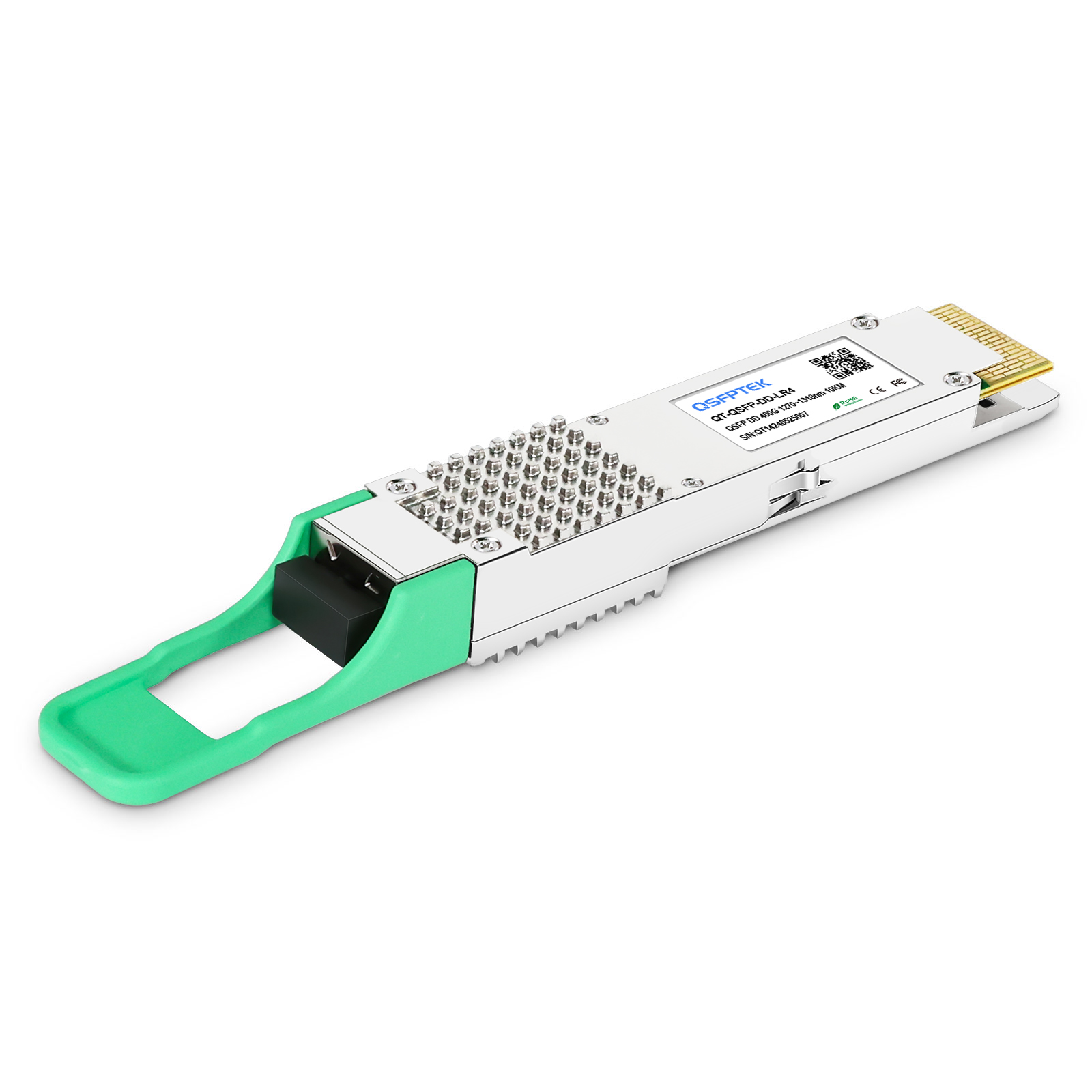

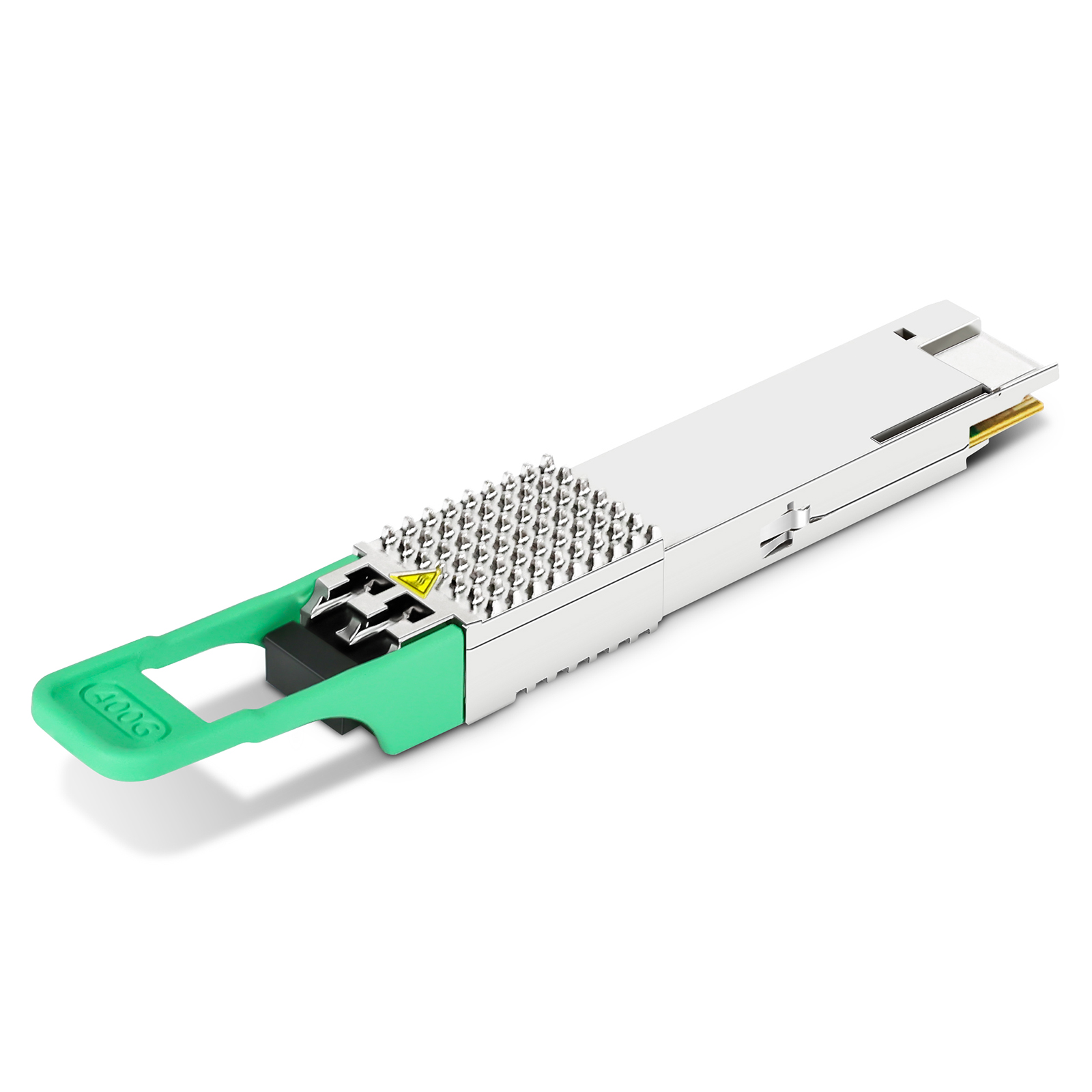

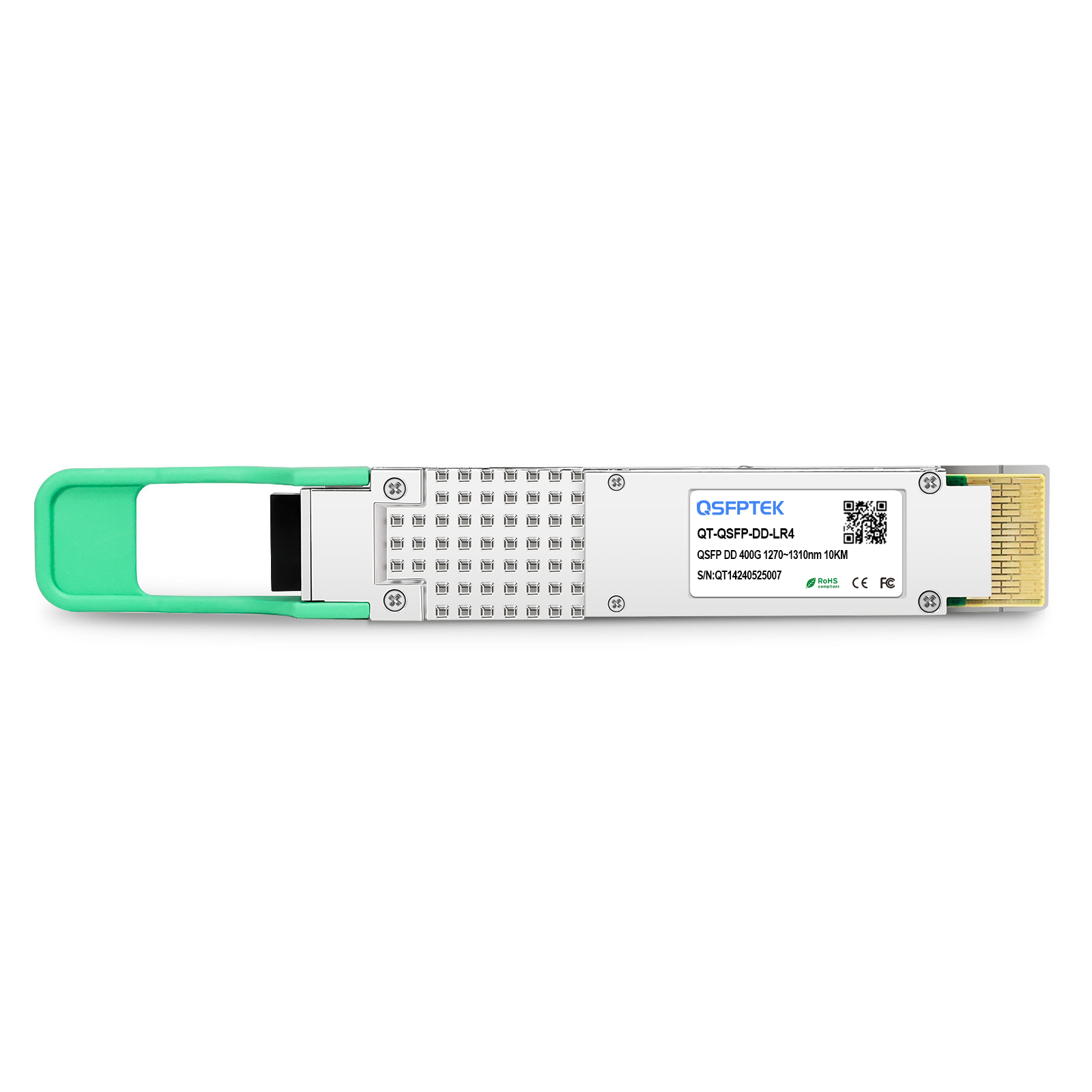

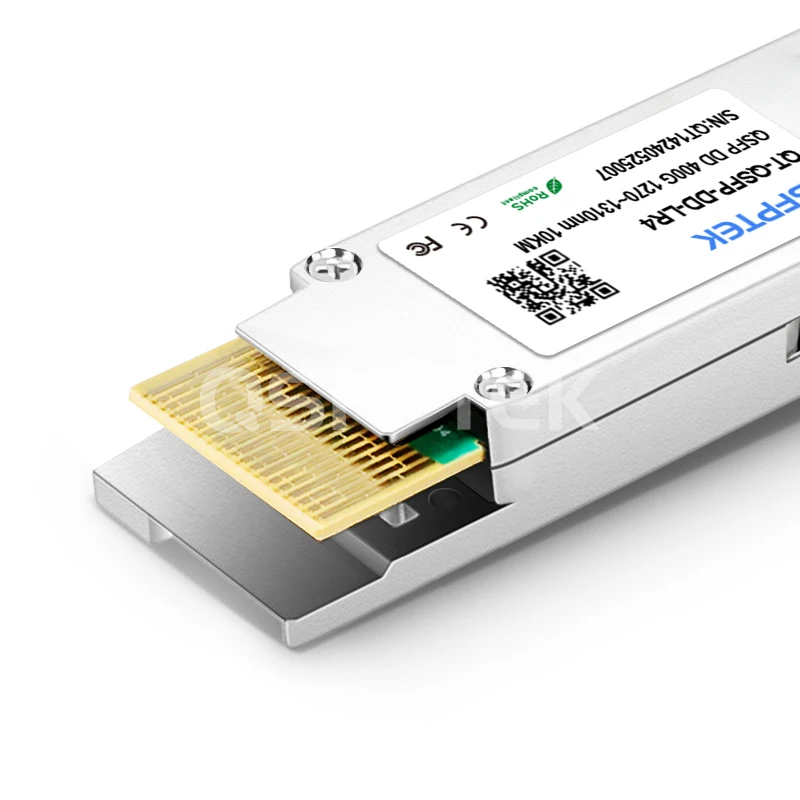

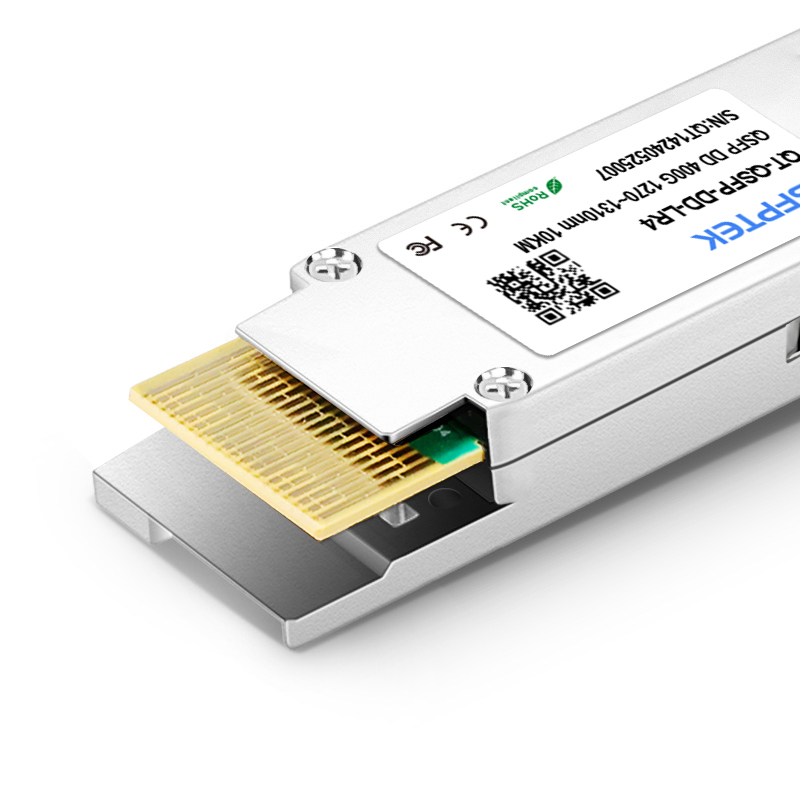

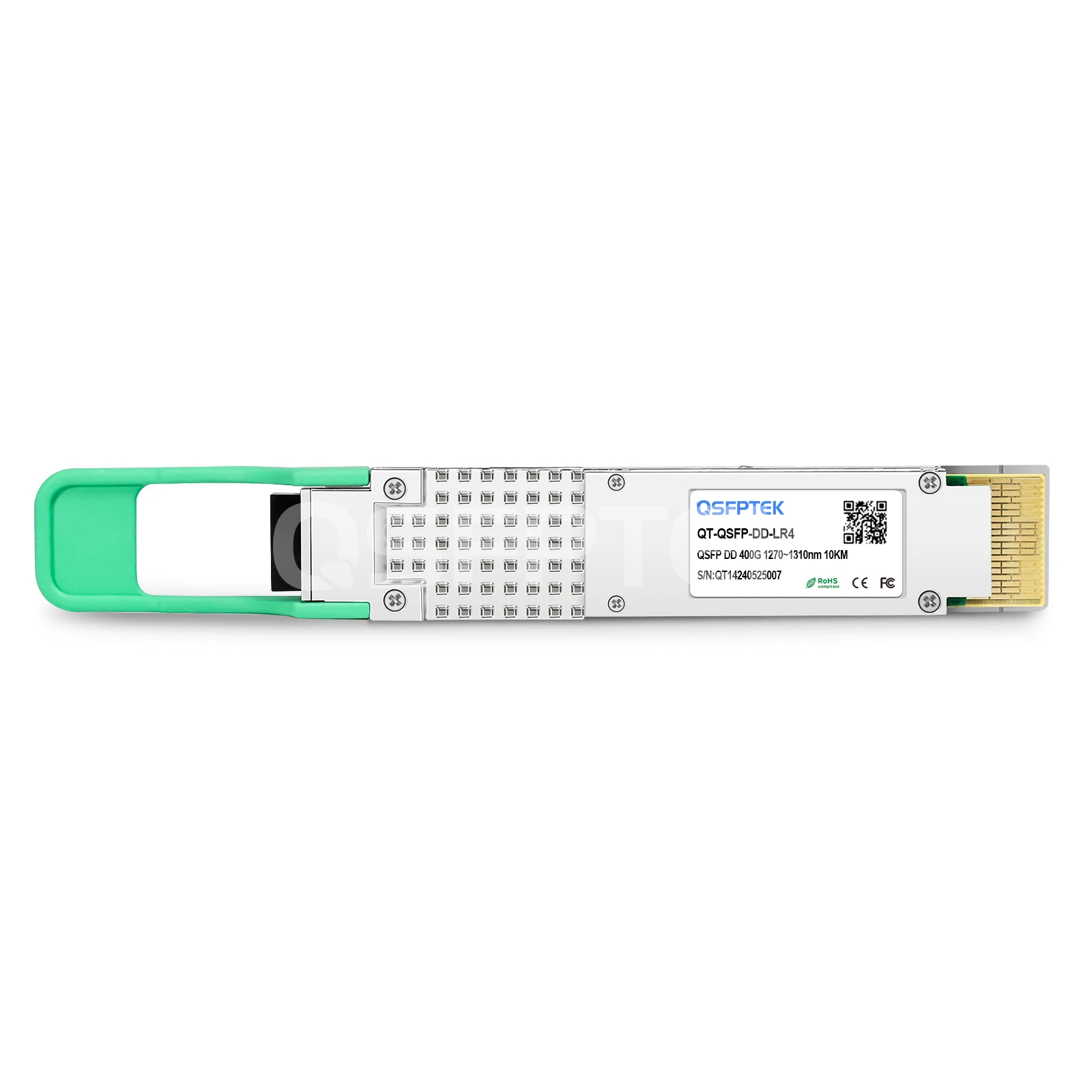

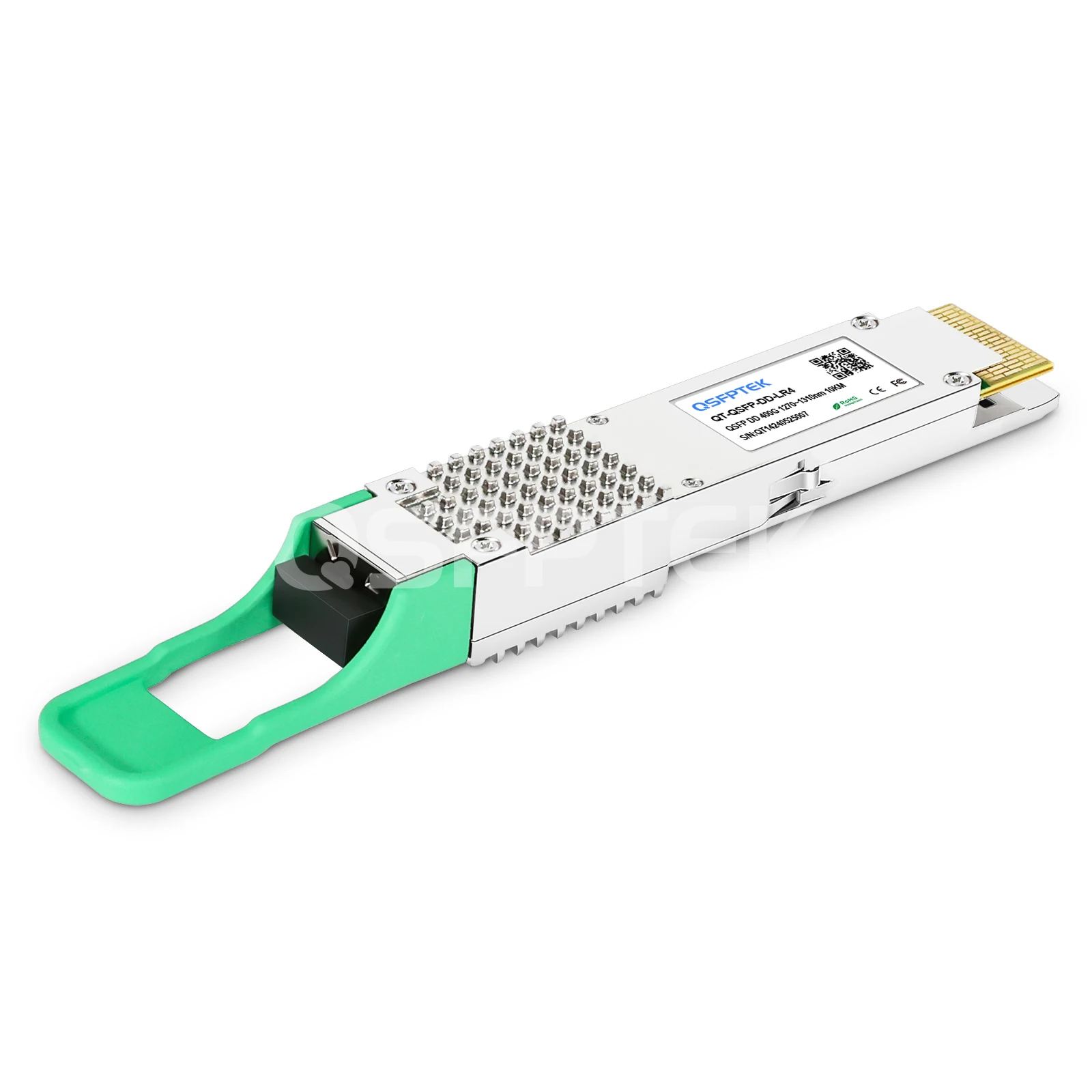

Mellanox MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD PAM4 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

Product No :100257
US$ 1274.99
Transceivers type
30 in stock
Free Shipping over US$ 84.9.
1. Hot Pluggable QSFP-DD form factor
2. Max power consumption 12W
3. Link length up to 10km via duplex LC connector
4. Built-in Inphi DSP Chip
5. Compliant to QSFP-DD MSA, 100G Lambda MSA, 400GBASE LR4, OIF 56G PAM4, IEEE 802.3bs
See more

Specifications

Mellanox MMS1V90-WR Compatible 400GBASE-LR4 QSFP-DD 1310nm 10km DOM Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)



The 400G LR4 module is designed to reach 10km distances over single-mode fiber (SMF) for 400 Gigabit Ethernet transmission. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths via a duplex LC connector.



QSFPTEK QDD-400G-LR4 400G QSFP-DD LR4 module is compliant with QSFP-DD MSA, 100G Lambda MSA 400G-LR4, IEEE 802.3bs, and OIF 56G PAM4 standards and is mainly applied in 400G Ethernet, Data Center, and Cloud Networks.



Model Name QT-QSFPDD-LR4 Vendor Name QSFPTEK
Form Factor QSFP-DD Data Rate 425 Gbps
Wavelength 1271nm,1291nm,1311nm,1331nm Distance 10km

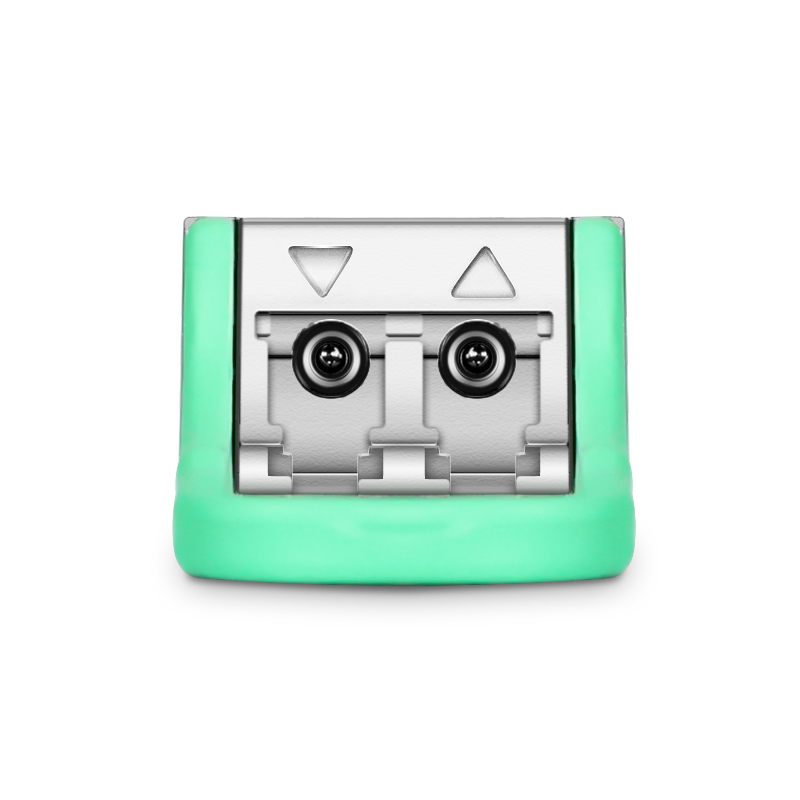

Connector Duplex LC Cable Type SMF
Transmitter Type CWDM EML Receiver Type PIN
TX Power -2.8~4.0dBm Receiver Sensitivity <-9.1dBm
Power Consumption ≤12W Extinction Ratio 3.5dB
DDM Support Working Temperature Range 0 to 70°C (32 to 158°F)
Protocols QSFP-DD MSA Compliant Warranty 3 Years

20

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Super High-density
    Industry’s highest bandwidth density 400G optical module for 400 Gigabit Ethernet connectivity.
  • 3. Protocols
    Compliant with QSFP-DD MSA, 100G Lambda MSA, 400GBASE LR4, OIF 56G PAM4, IEEE 802.3bs.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • What is the difference between using 4x100 vs 8x50 of 400G QSFP-DD transceivers?
    The main difference is that the optical signal transmission method, 4x100G means transmitting optic signals in 4 channels, and 100G each channel, while 8x50G is transmitted optic signal in 8 channels, and 50G each channel.
  • What's the meaning of ''DR4''?
    ''DR'' means that the 500m transmission distance and using Singlemode fiber, ''4'' implies there refers to 4 optical channels. The 4 independent optical channels inside the DR4 modules transmitting data on separate fibers make up a total of 8 fibers(4 Tx and 4 Rx). Each of the optical channel transmission rates is 100Gb/s.
