    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 1.6T OSFP224 / 203163
    Product image
    Product image

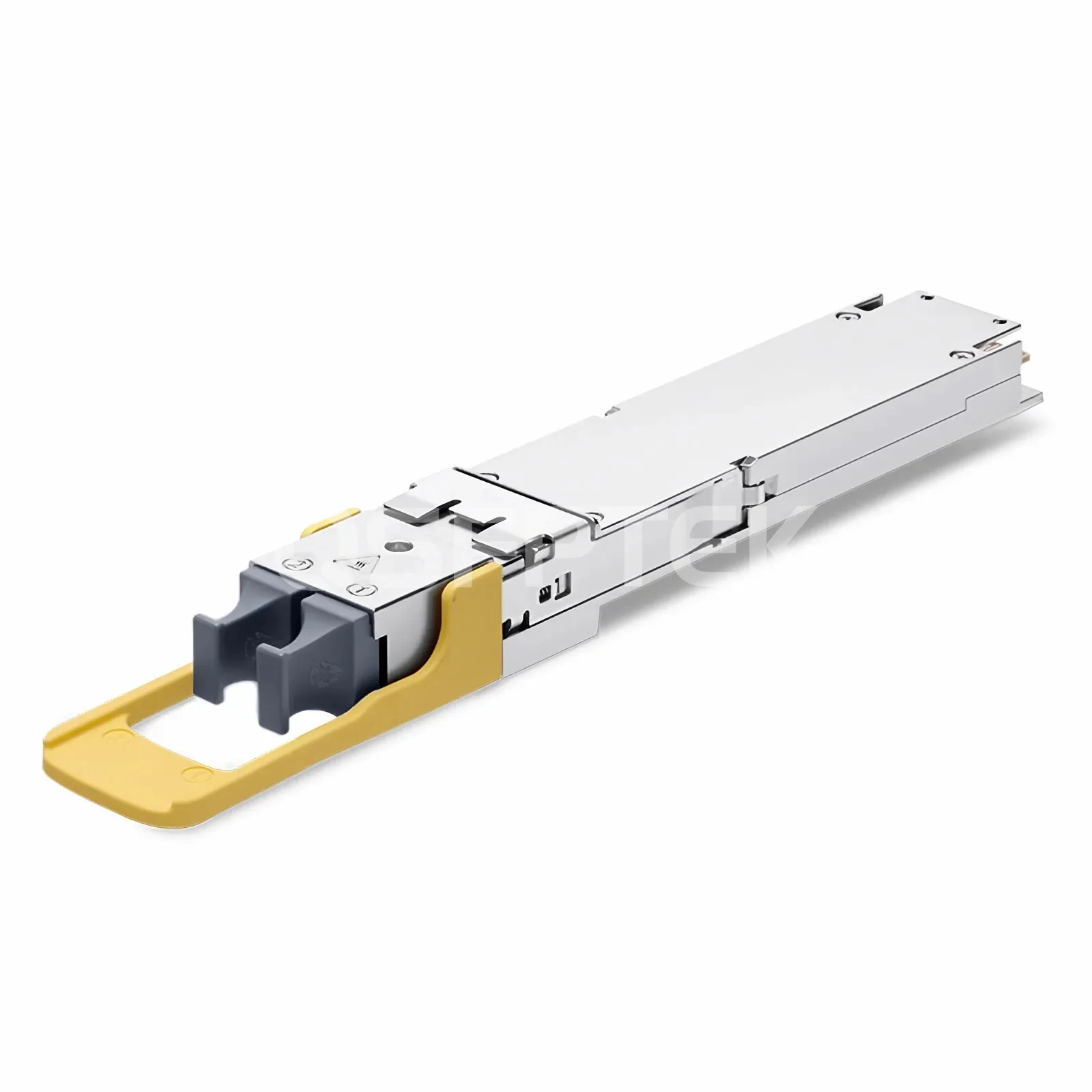

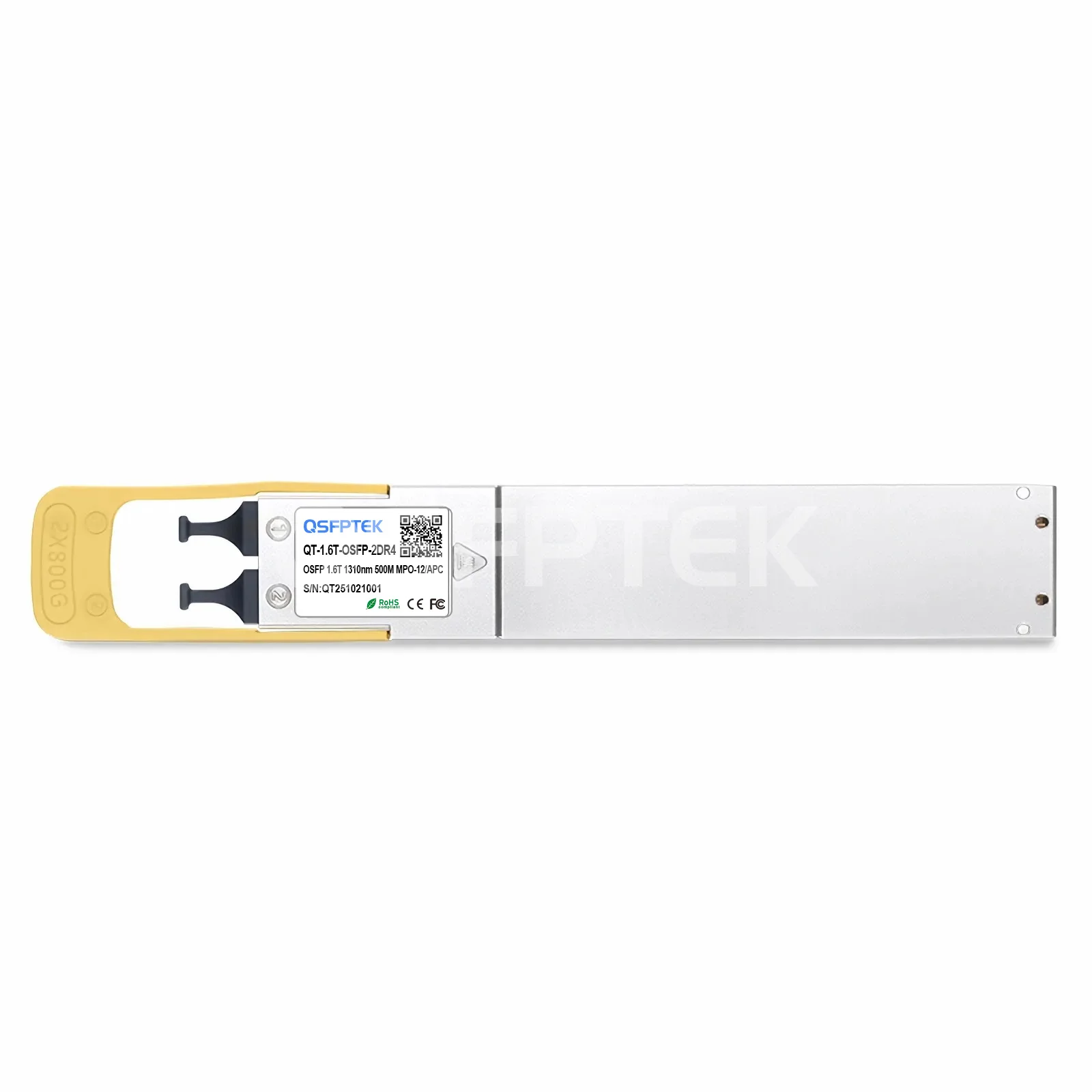

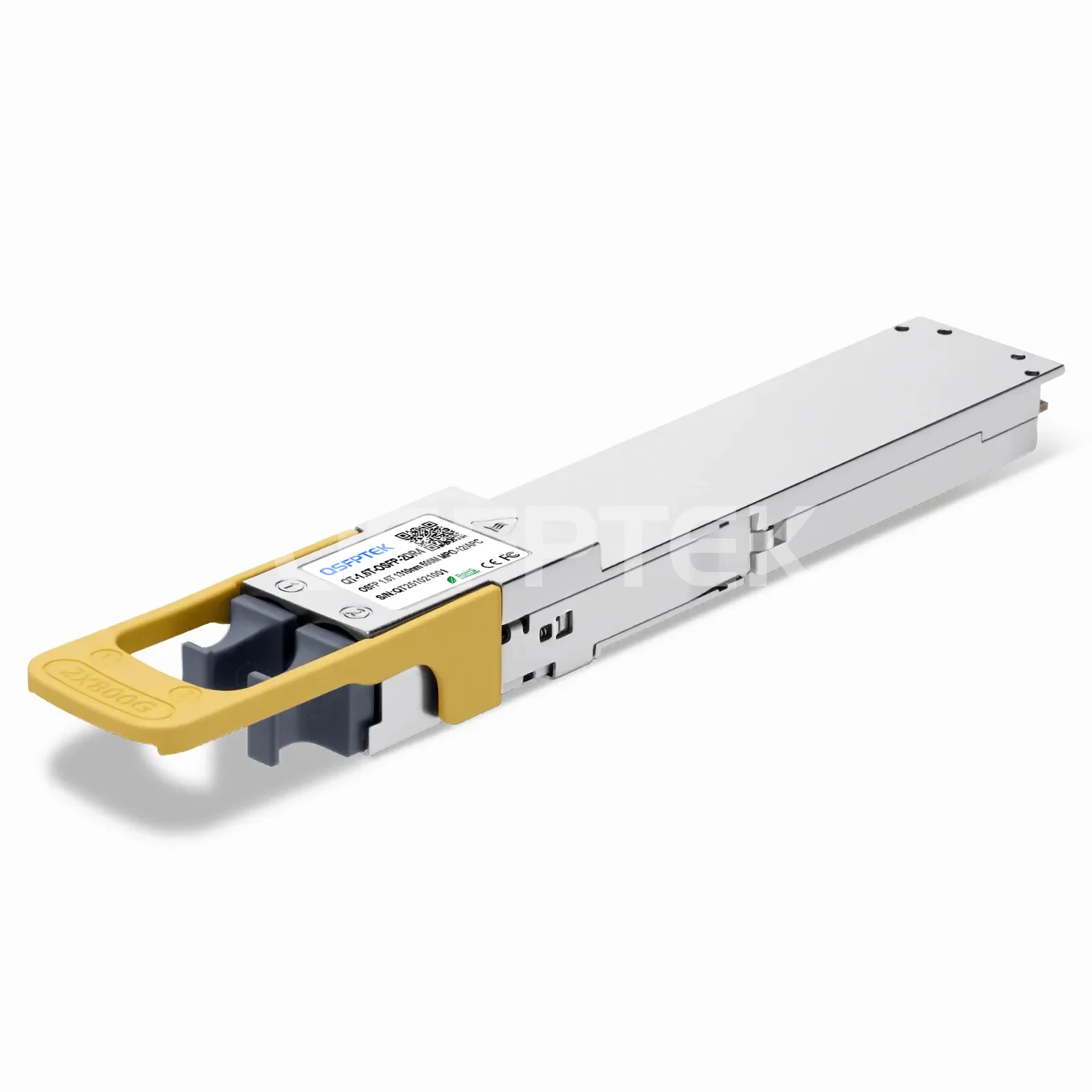

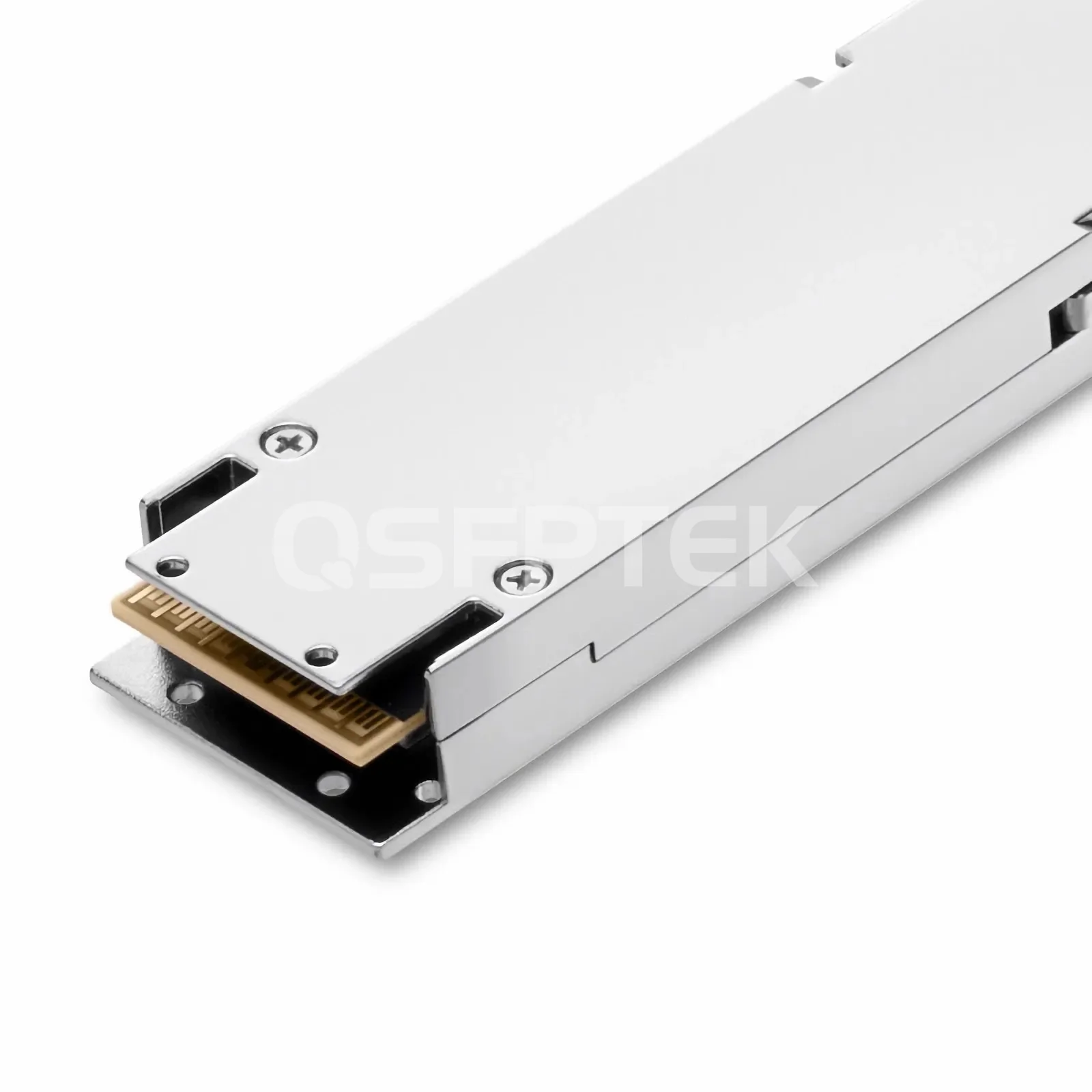

    NVIDIA/Mellanox MMS4C11/MMS4B10-XM-RHS (980-9IAU1-00XM00/980-9IAJ0-00XM00) Compatible SiPh 1.6T DR8 Twin-port OSFP224 RHS/Flat Top PAM4 1310nm 500m Dual MPO-12/APC SMF DDM Ethernet Transceiver Module for Spectrum-6 SN6600-LD Liquid-Cooled Switches

    Product No: 203163
    0 Reviews
    13 Sold
    $2,179.00
    Compatible
    Transceivers type
    11 in real-time stock, 04Nov, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Built-in Broadcom 3nm DSP and SiPh-based chip
2. Flat Top design for Spectrum-6 Liquid-Cooled switches and Vera Rubin NVL72 systems
3. Support the 800Gb/s Ethernet protocol
4. Support breakout to two 800G Links to switches or ConnectX-8/OSFP NICs for DGX B300/GB300 servers, etc
5. Maximum power consumption ≤32W

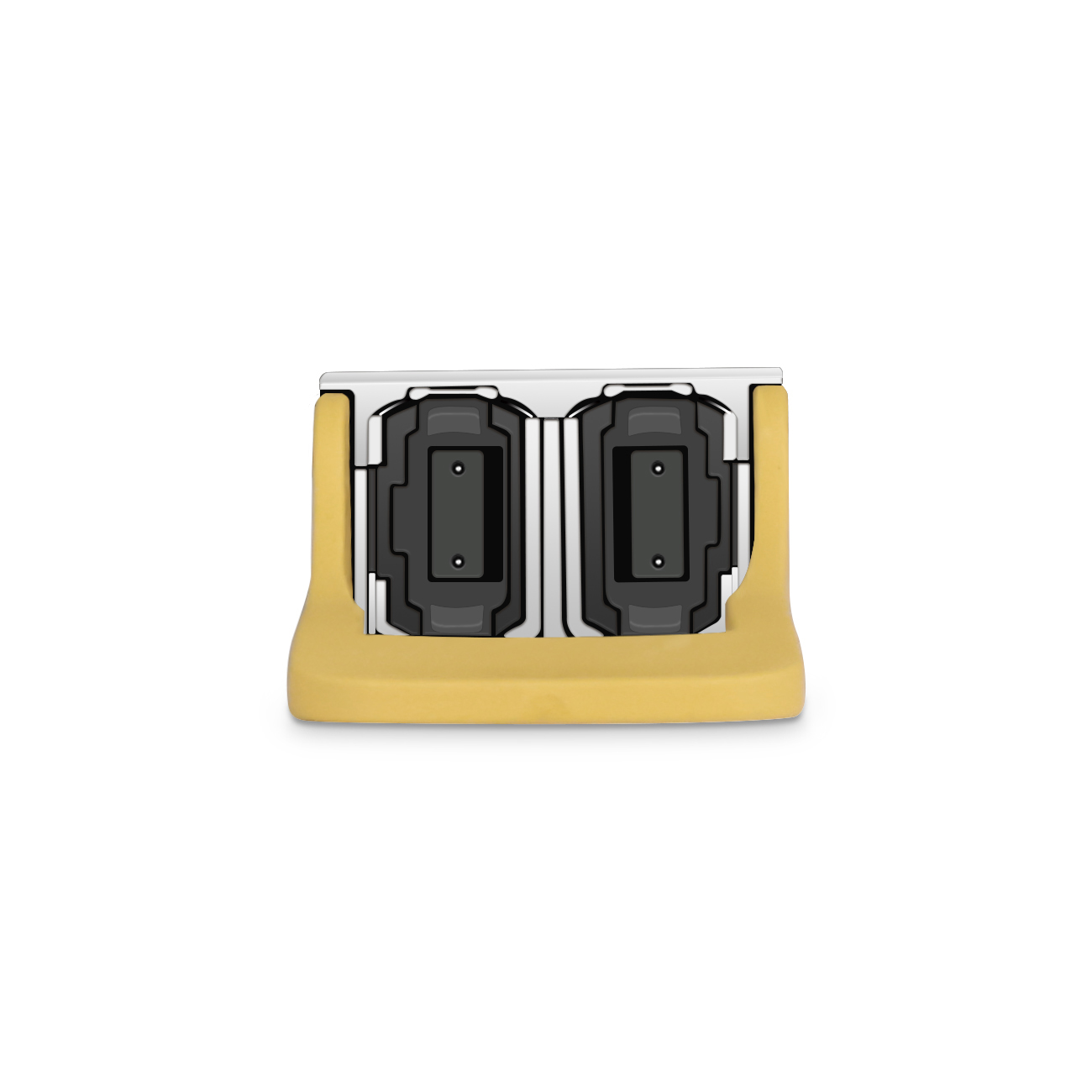

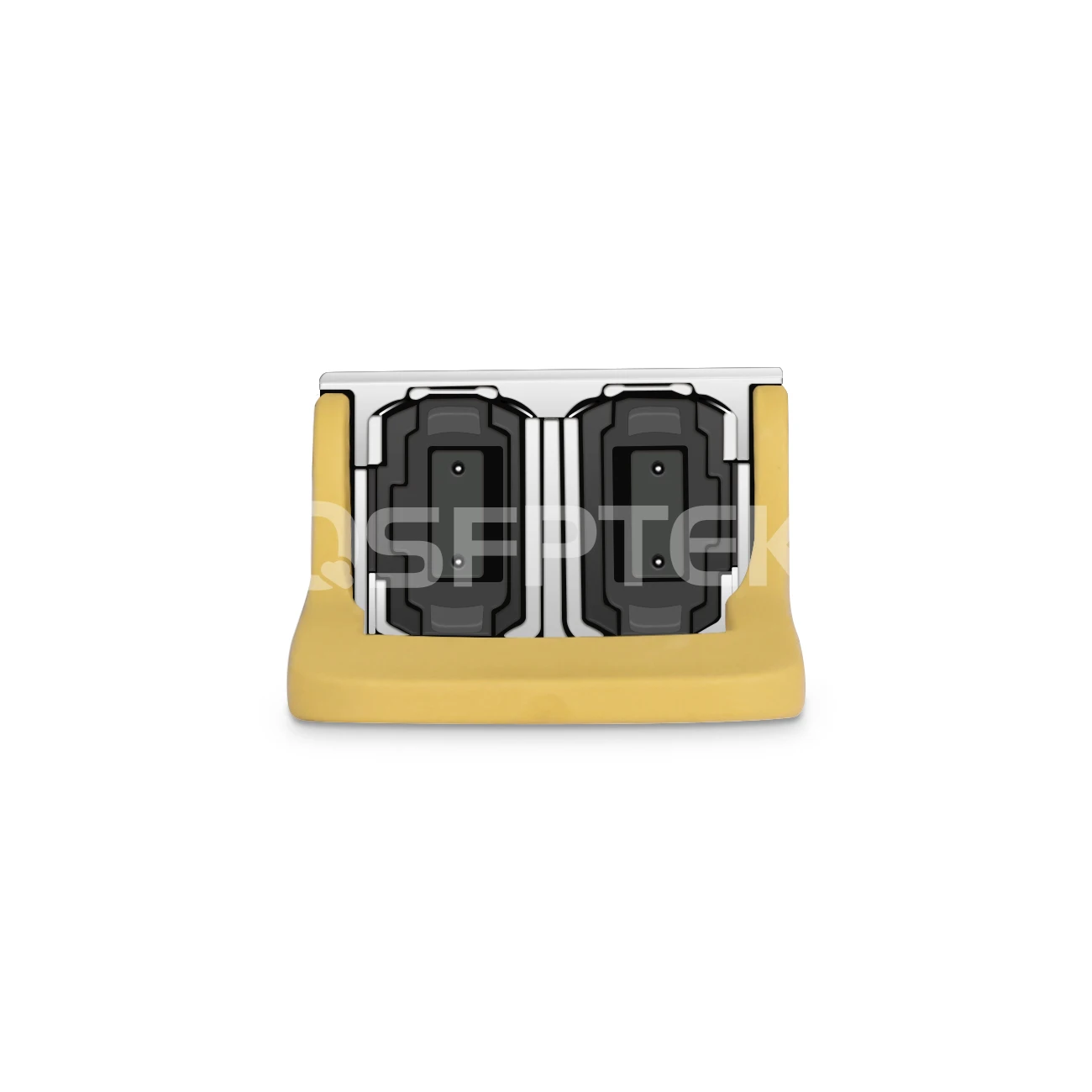

6. Dual MPO-12/APC connectors enable 2x800G breakout connectivity without breakout cables
    See more

    Specifications

    NVIDIA/Mellanox MMS4C11/MMS4B10-XM-RHS (980-9IAU1-00XM00/980-9IAJ0-00XM00) Compatible 1.6T DR8 (2x 800G DR4) OSFP224 RHS/Flat Top PAM4 Twin-port SiPh-Based Optical Transceiver Module (1310nm, 500m, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMS4C11 (980-9IAU1-00XM00) and MMS4B10-XM-RHS (980-9IAJ0-00XM00) compatible 1.6T OSFP224 DR8 (2x DR4) is an Ethernet twin-port SiPh-based transceiver module with dual MPO-12 APC connectors at 800Gb/s each. It enables the fiber link of 500m at 2x800Gb/s over single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the Datacenter Reach 4-channel (DR4) OSFP adopts 8-channels of 200G-PAM4 electrical modulation and two ports of 4-channel 200G-PAM4 optical Parallel modulation.



    The 1.6T 2DR4 OSFP224 supports Ethernet end-to-end systems. Designed for supercomputing and HPC, the main application of this 1.6T OSFP transceiver is to link two 1.6T (2x800G) switches (i.e.Spectrum-6 SN6600-LD) together up to 500 meters or breakout to two 800G switches or two 800G network adpter cards (i.e. ConnectX-8/OSFP) for storage or compute servers (i.e. DGX B300, B300 GPU). Its OSFP-RHS/Flat Top structure is designed for NVIDIA Spectrum-6 SN6600-LD Liquid-Cooled switches and Vera Rubin NVL72 systems.



    Part Number QT-1.6T-OSFP-2DR4-RHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-RHS/Flat Top Max Data Rate 1600 Gbps
    Wavelength 1310nm Distance 500m
    Connector Dual MTP/MPO-12/APC Cable Type SMF
    Transmitter Type CW (SiPh Based) Receiver Type PIN PD
    TX Power -3.3 to 4 dBm Receiver Sensitivity < -5.8 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤32W Modulation Format 8x 200G-PAM4 electrical to Dual 4x 200G-PAM4 optical Parallel
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, CMIS 5.1, IEEE P802.3dj, OIF 224G-VSR Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    79 Reviews
    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    79 Reviews

    Applications

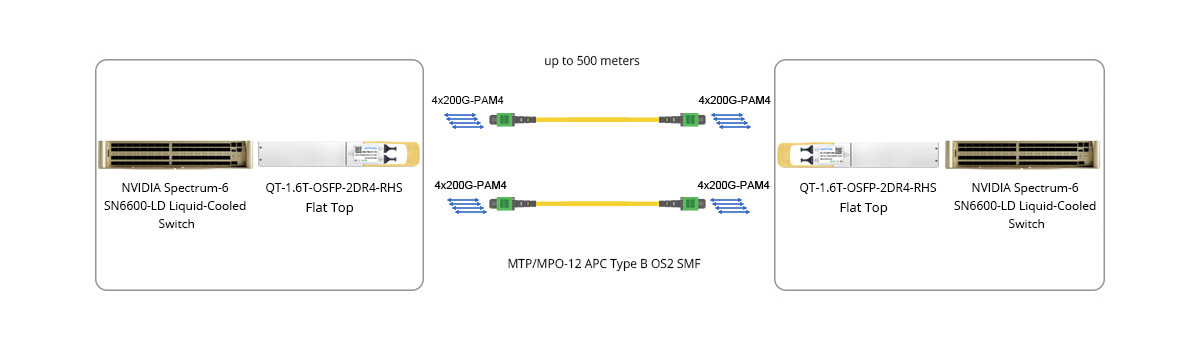

    Scenario 1: Twin-port 1.6T (2x 800G) Ethernet Liquid-Cooled Switch Direct Connectivity:



    Twin-port 1.6T (2x 800G) Ethernet Liquid-Cooled Switch Direct Connectivity:



    Product details

    1.6T Ethernet Optical Transceivers Contrast Table



    Part Number

    QT-1.6T-OSFP-2DR4-IHS

    QT-1.6T-OSFP-2DR4-RHS


    NVIDIA Part Number

    MMS4C11 (980-9IAU1-00XM01)

    MMS4C11 (980-9IAU1-00XM00)

    Data Rate

    2x 800Gb/s

    2x DR4

    2x 800Gb/s

    2x DR4

    Form Factor

    Twin-port OSFP-IHS/Closed Finned Top

    Twin-port OSFP-RHS/Flat top

    Optical Connector

    Dual MPO-12/APC

    Dual MPO-12/APC

    Cable Type

    MTP/MPO-12/APC OS2 SMF

    MTP/MPO-12/APC OS2 SMF

    Wavelength

    1310nm

    1310nm

    Reach

    500m

    500m

    Modulation

    8x 200G-PAM4 electrical to Dual 4x 200G-PAM4 optical Parallel

    8x 200G-PAM4 electrical to Dual 4x 200G-PAM4 optical Parallel

    Transmitter + Receiver Type

    CW (SiPh Based) + PIN PD

    CW (SiPh Based) + PIN PD

    Max Power Consumption

    32W

    32W

    Application

    Ethernet Spectrum-6 air-cooled switches

    Ethernet Spectrum-6 liquid-cooled switches
