Home/ Fiber Optic Cables / MTP Cables / MTP Trunk Cables

1m (3ft) MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product No :99504
US$ 36.55  US$ 45.70
Series
Length
1000 in stock
Bulk Order Quotes Shop Online
1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
See more

Specifications

MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable



The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. This MTP female to MTP female OS2 single mode trunk cable is specially optimized for 100G QSFP28 PSM4 optics direct connection, data centers and telecommunications systems applications.

Connector A:

MTP Female

Connector B:

MTP Female

Fiber Count:

12 Fibers

Fiber Type:

OS2 SMF 9/125μm

Polish Type:

APC to APC

Wavelength:

1310nm/1550nm

Armoured:

 No

Cable Material:

 LSZH

Insert Loss:

0.25dB

Return Loss:

≥50dB

Approximate Diameter:

3.0mm

Length:

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius

(Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

 -20℃~+70℃

Storage Temperature:

-40℃~+80℃
Quality Certifications

Features

  • 0.25dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 10mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 6kg Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

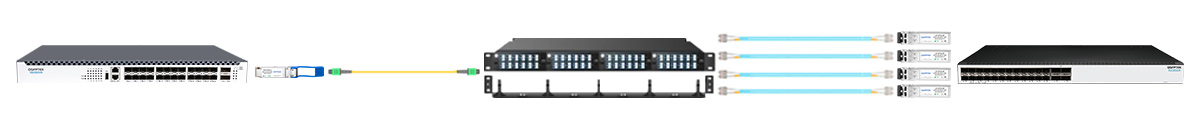

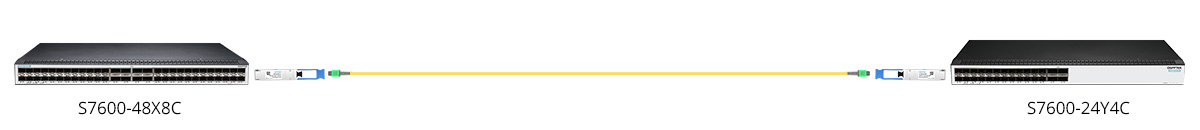

Applications

Data Center and Campus Network Singe-Mode Solution for 100G Gigabit Ethernet Switches（up to 10km）

Relative products:

QSFP28-100G-PSM4(click here)





Questions & Answers

more+
  • Hi, I just want to wonder what is the difference between MTP and MPO cables? I am always confused about the two cables.
    In fact, it is easy to distinguish them. The key difference between them lies in their different connectors. MTP trunk cables use MTP® connector, this is an enhanced version so that MTP cables have better mechanical designs and optical performances.
  • What is the maximum throughput?
    The maximum data throughput is 400G.

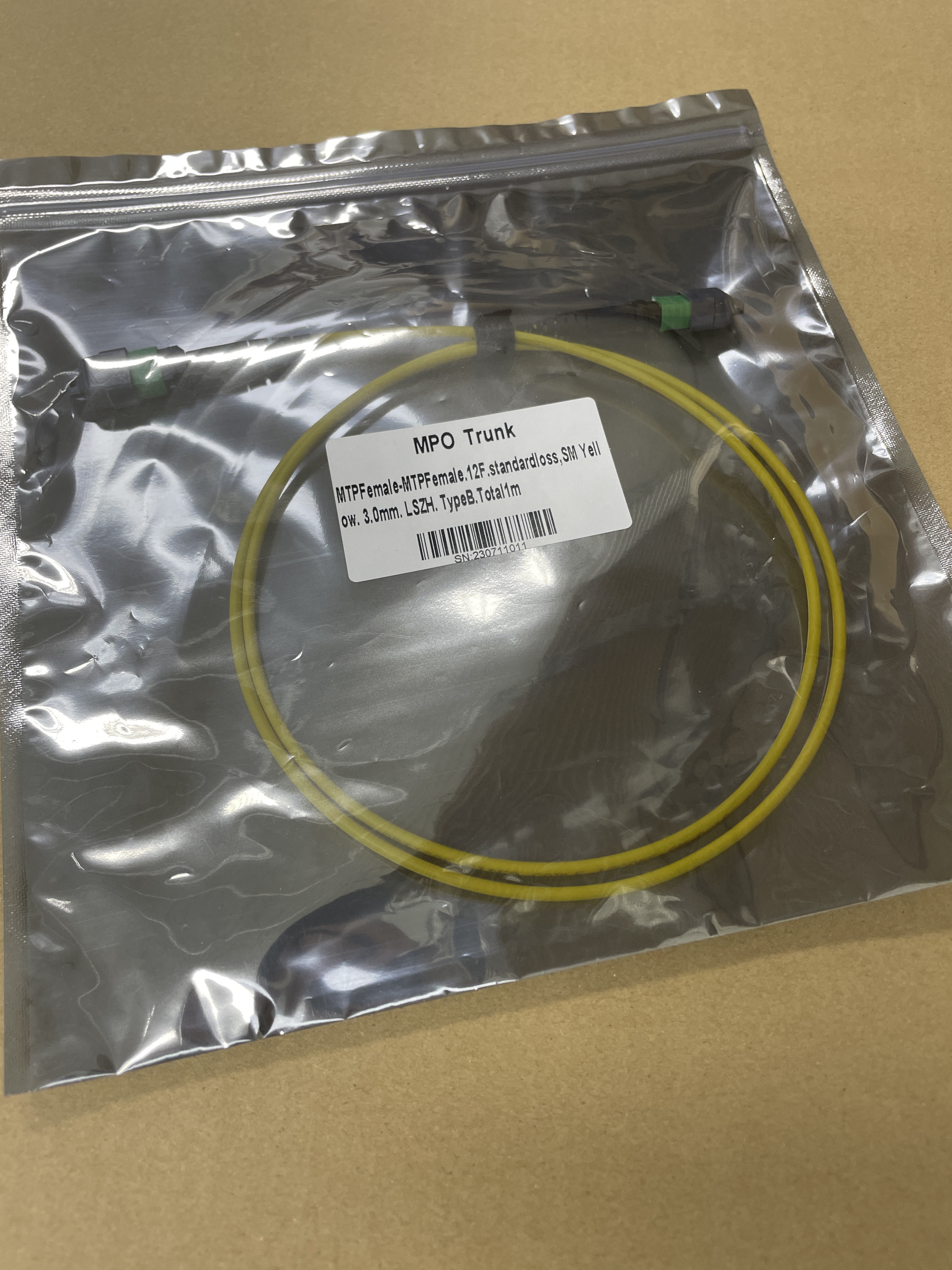

Customer Reviews
