    Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 203250

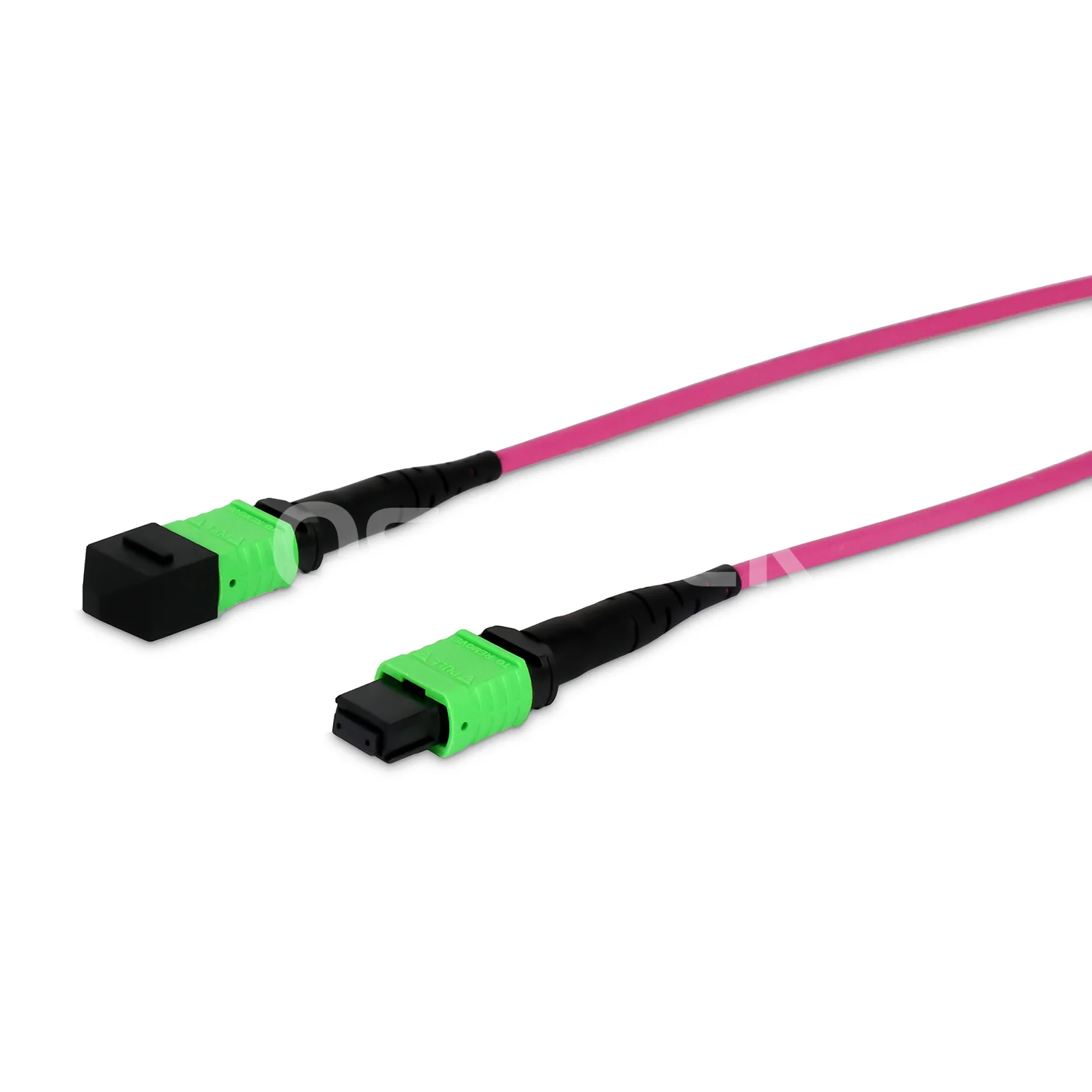

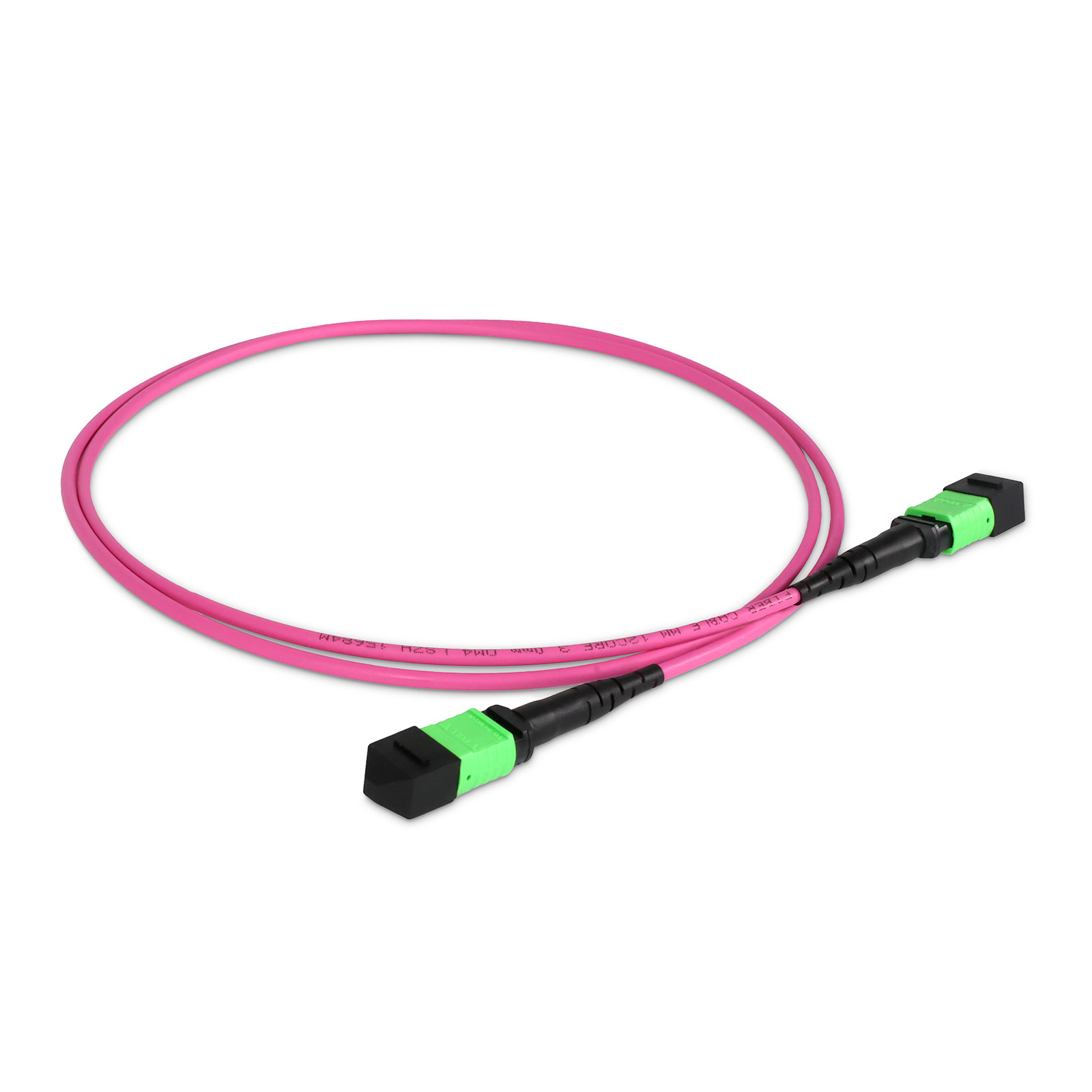

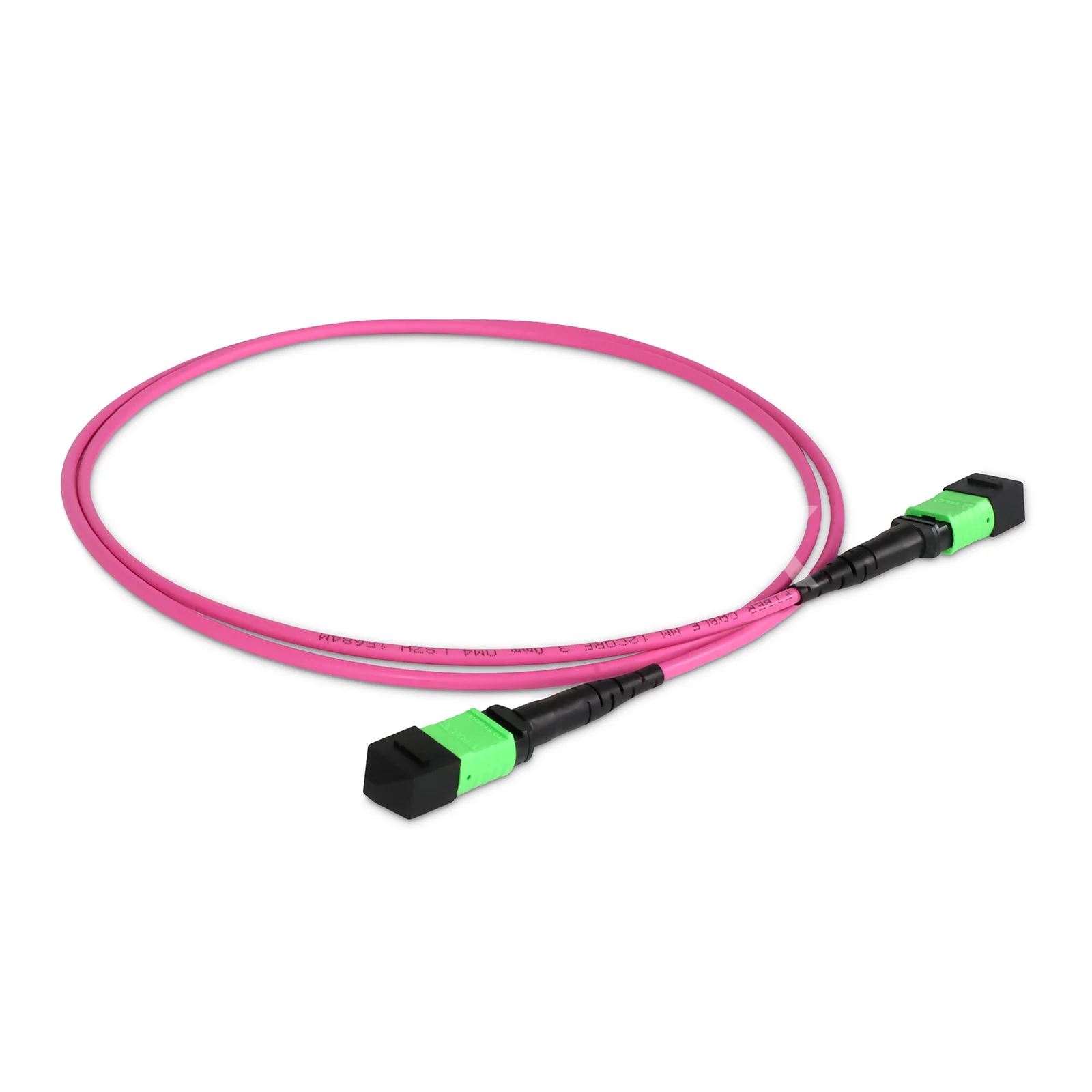

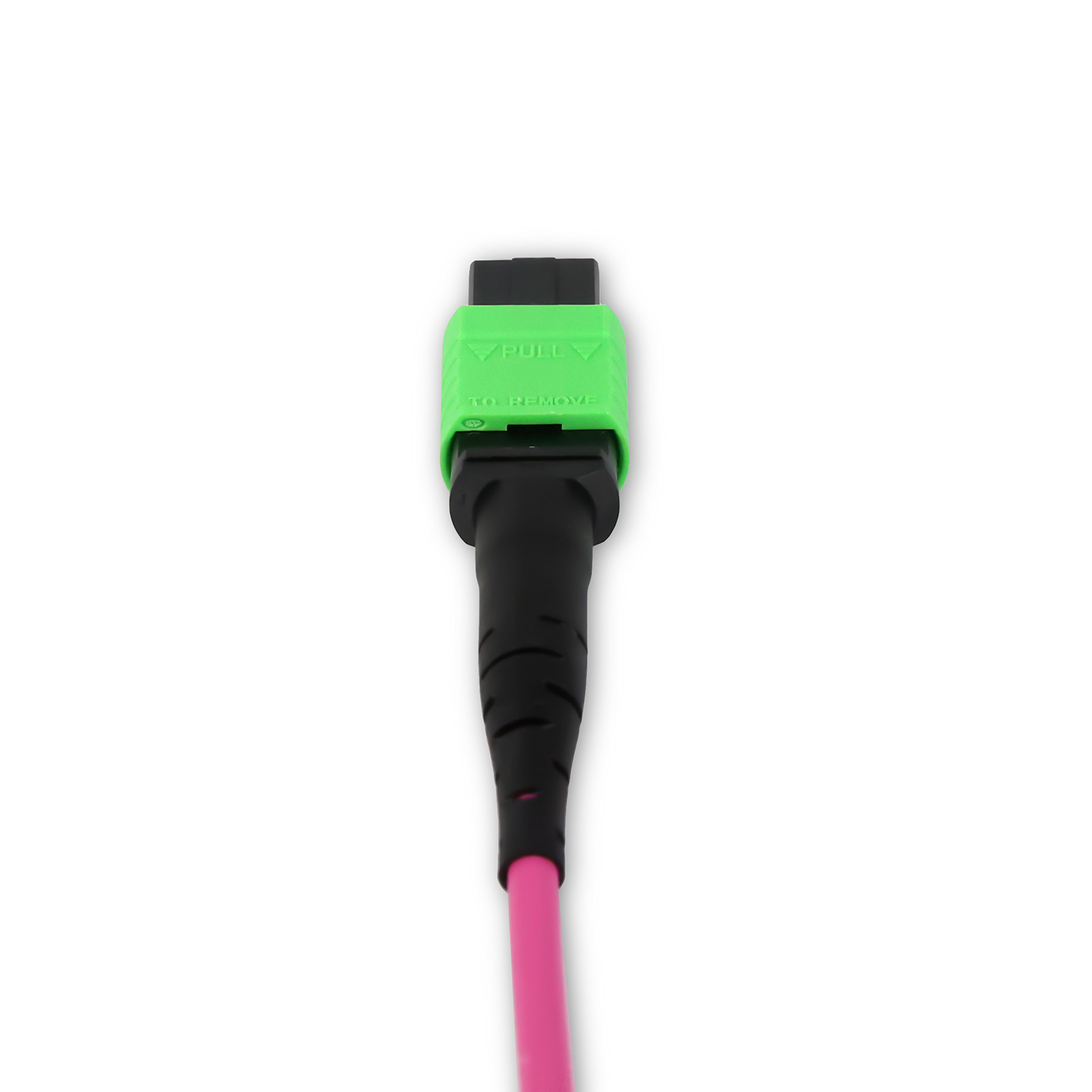

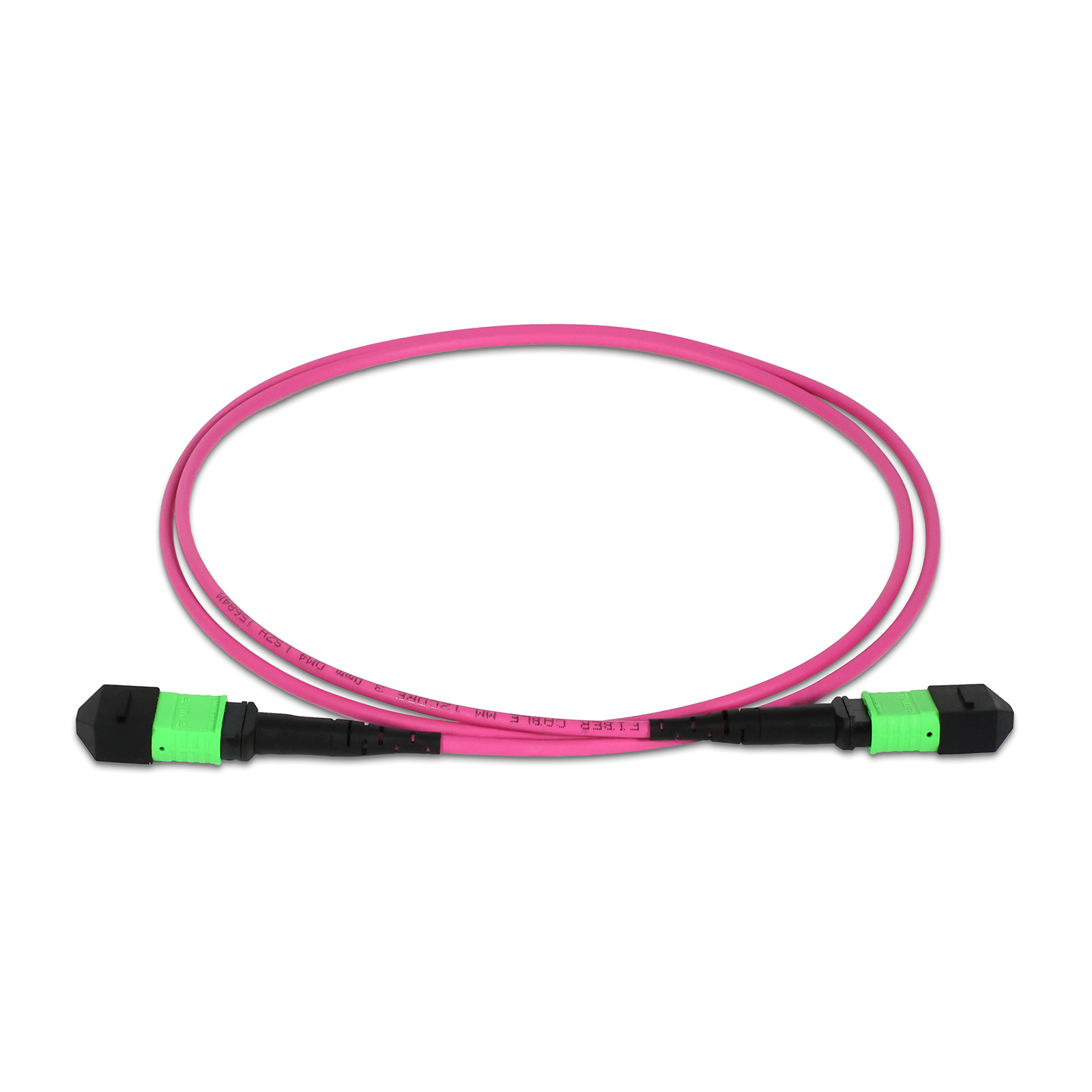

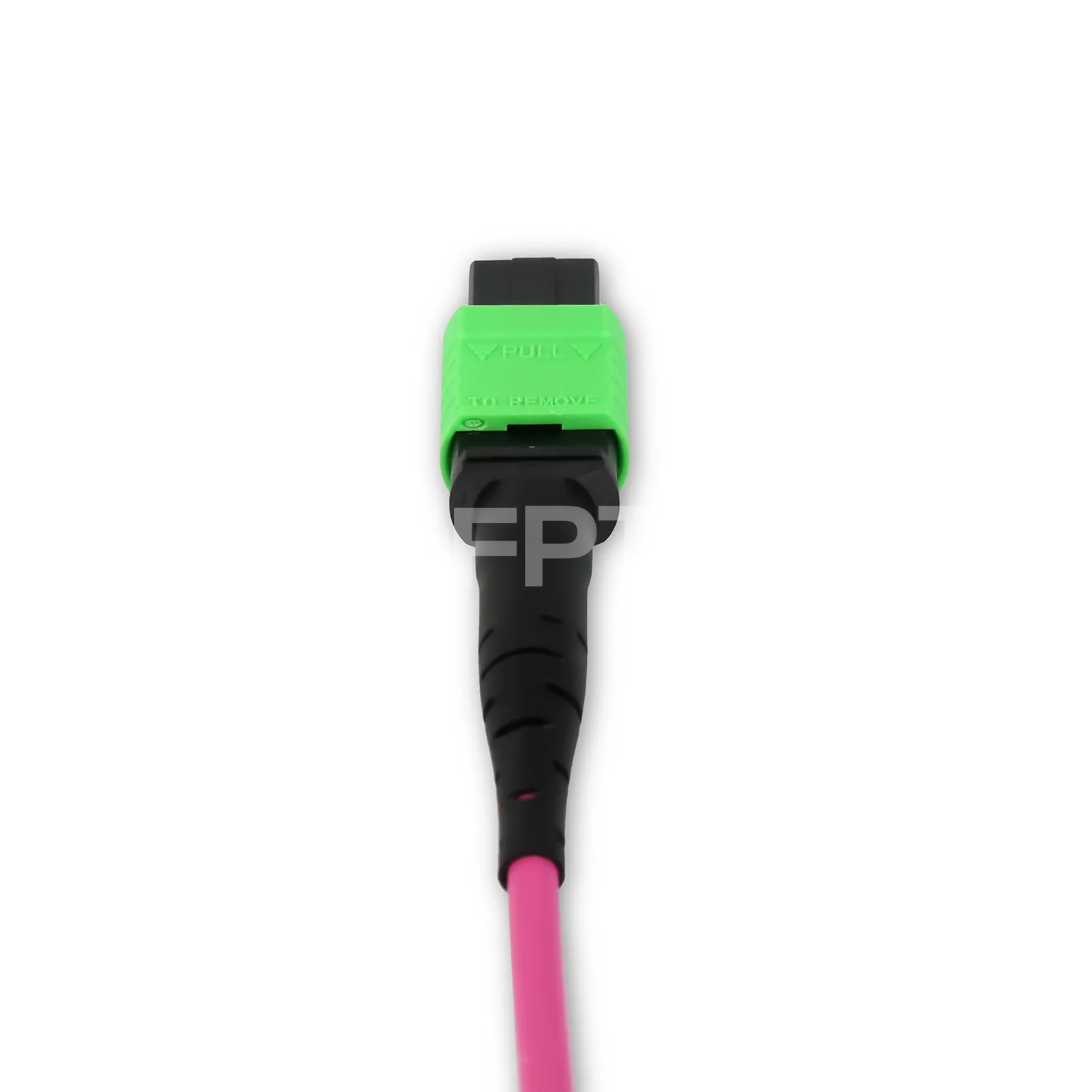

    NVIDIA/Mellanox MFP7E10-N025 Compatible 25m (82ft) MPO-12 APC (Female) to MPO-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    Product No: 203250
    0 Reviews
    321 Sold
    US$ 75.00
    Series
    Length
    97 in real-time stock, 25 Sep, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Supports InfiniBand and Ethernet.
2. For switch to switch or to NVIDIA ConnectX-7 NICs/BlueField-3 DPUs in compute and storage servers.
3. Designed for linking MM twin-port OSFP, single-port OSFP and QSFP112 transceivers together.
4. Flexible 7.5mm Min. Bend Radius.
5. With 0.35dB low insertion loss.
6. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
7. High-density cabling solutions for 800G/400G data centers.
8. Meticulous design and standard testing ensure stable high-speed data transmission.
    See more

    Specifications

    NVIDIA/Mellanox MFP7E10-N025 Compatible 25m (82ft) MPO-12 (Female) APC to MPO-12 (Female) APC OM4 Elite Trunk Cable, 12 Fibers, Type B, LSZH, APC



    The QSFPTEK for NVIDIA/Mellanox MFP7E10-N003 compatible MPO-12 APC OM4 multimode trunk fiber cable is specially designed for InfiniBand and Ethernet.applications. It is used for provideing end-to-end fiber solution for short-range high-speed multimode transcivers, including 800G twin-port OSFP, single-mode 800G/400G OSFP and QSFP112. The typical use scenarios of MFP7E10-Nxxx is twin port OSFP switch-to-switch or connecting switch to NVIDIA ConnectX-7 NICs or BlueField-3 DPUs in compute and storage servers.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 12 Fibers Fiber Type OM4 MMF 50/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured no Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 7.5mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

    Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

    Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3





    Scenario 3: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3




    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.
