    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Multi Mode Trunk Cables / 203257
    Product image
    Product image

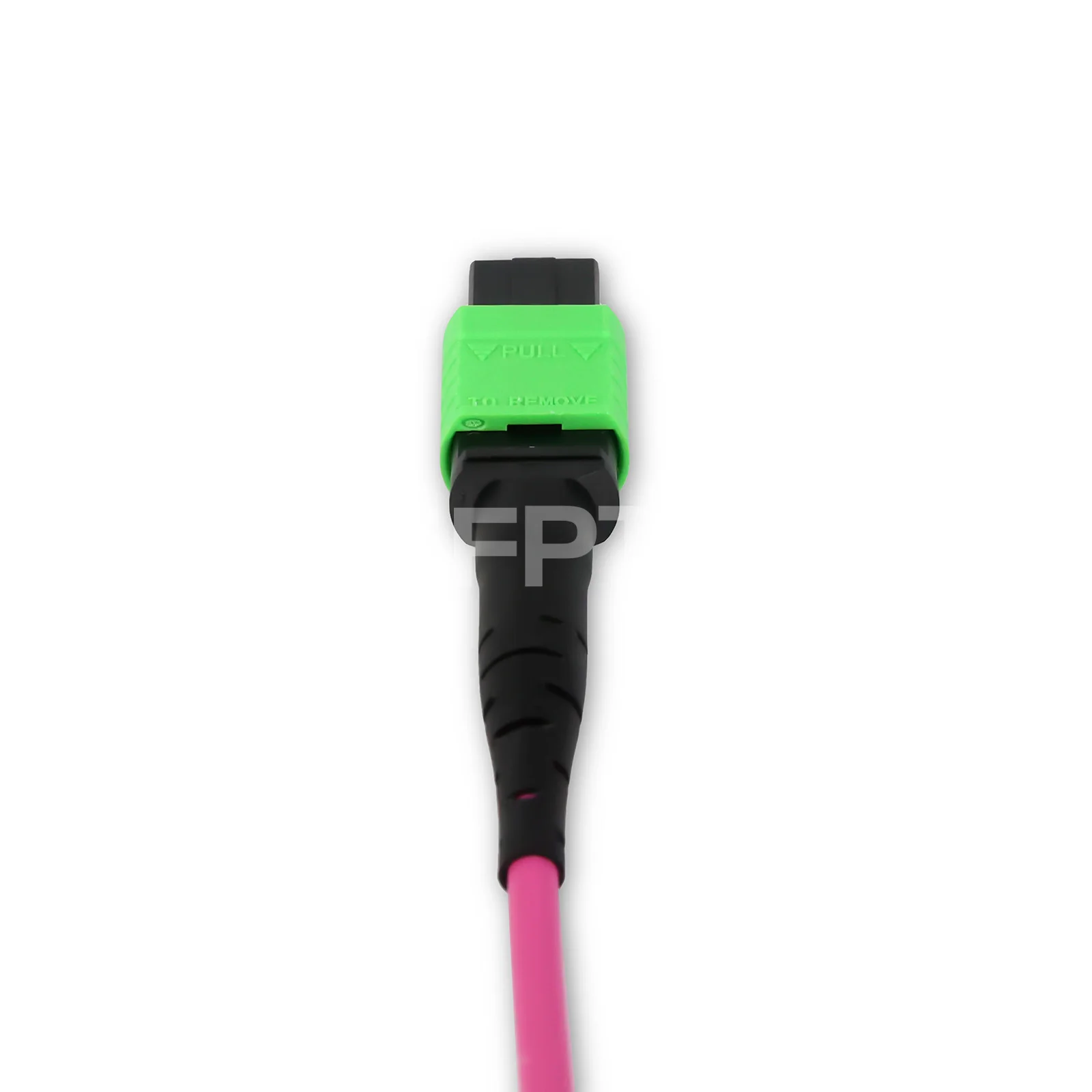

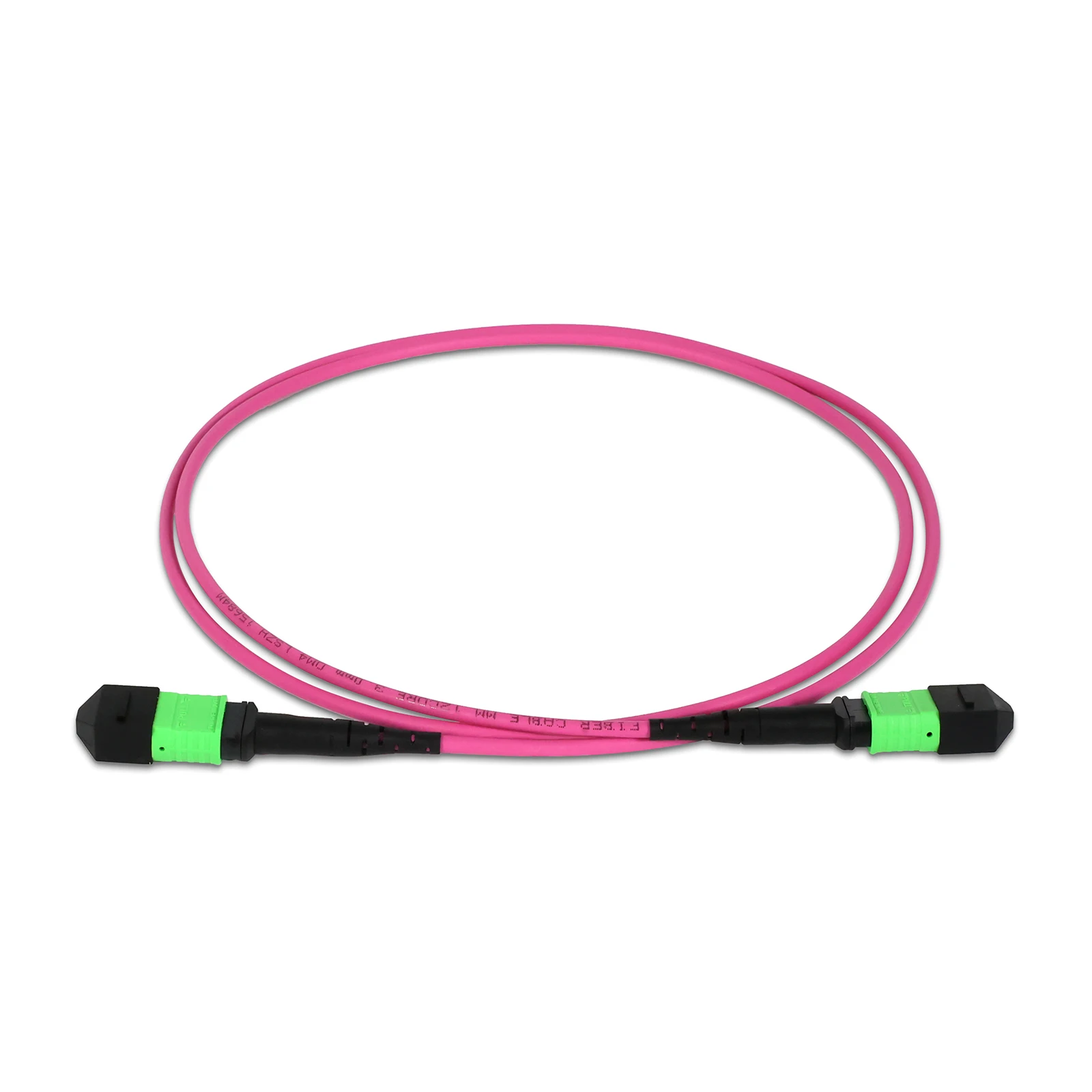

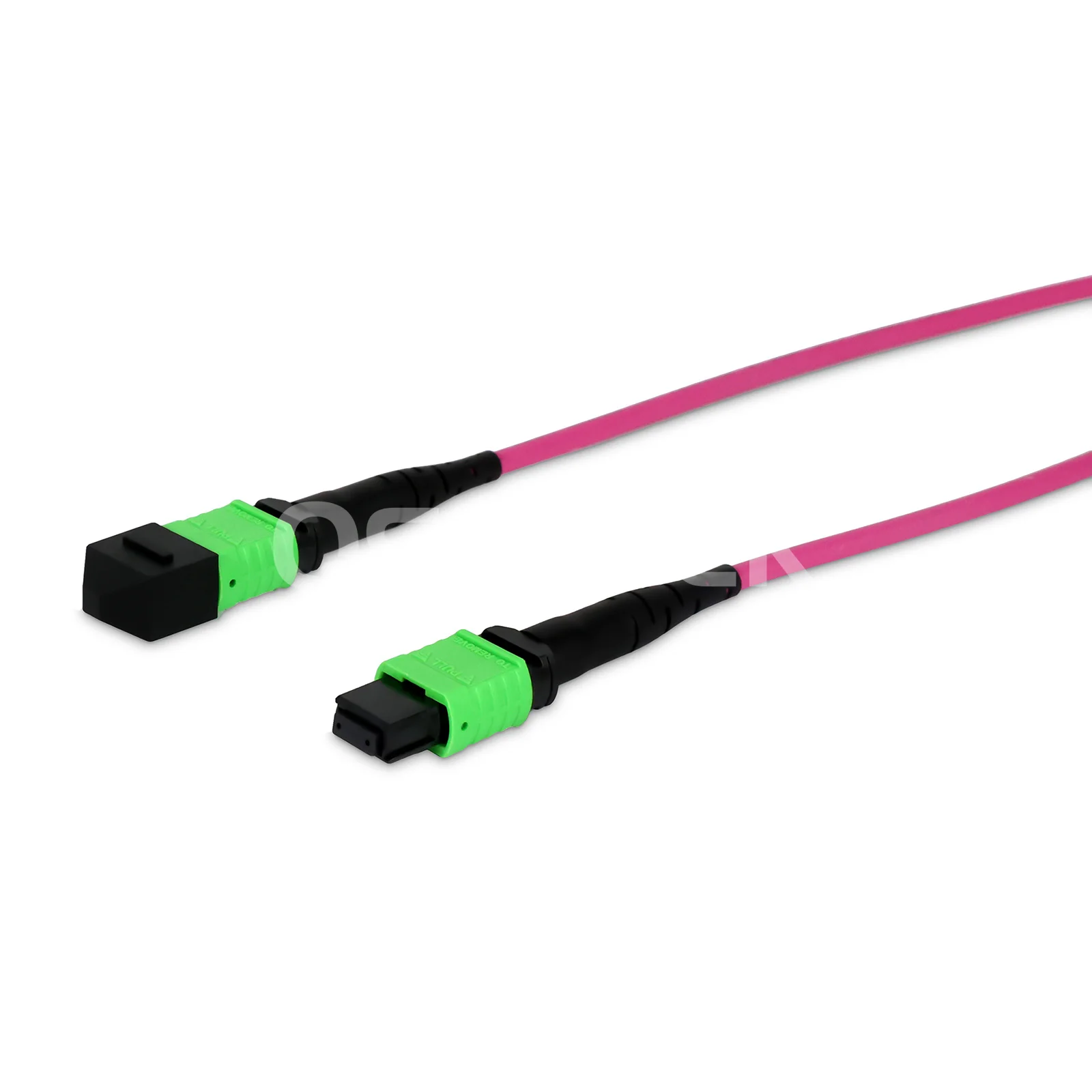

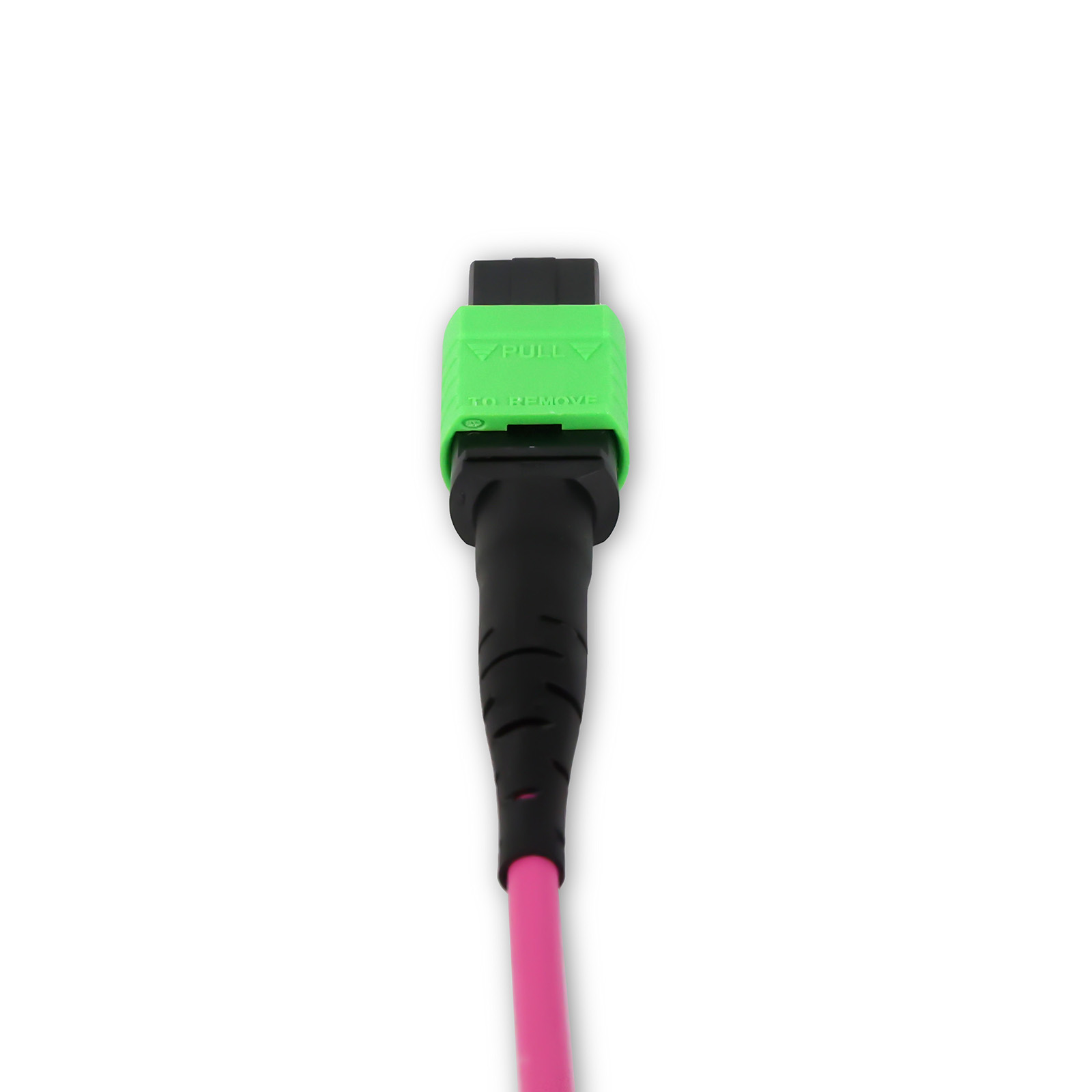

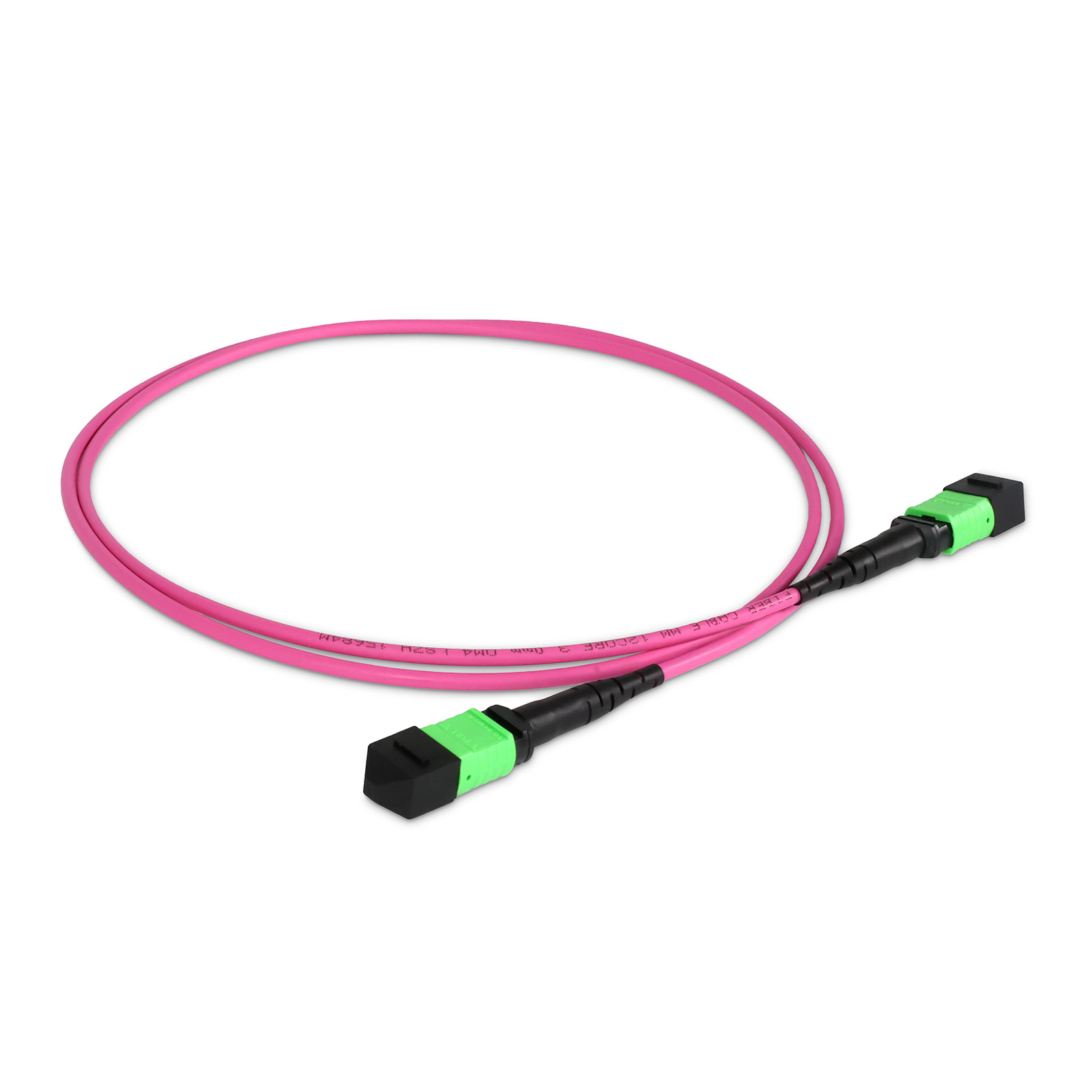

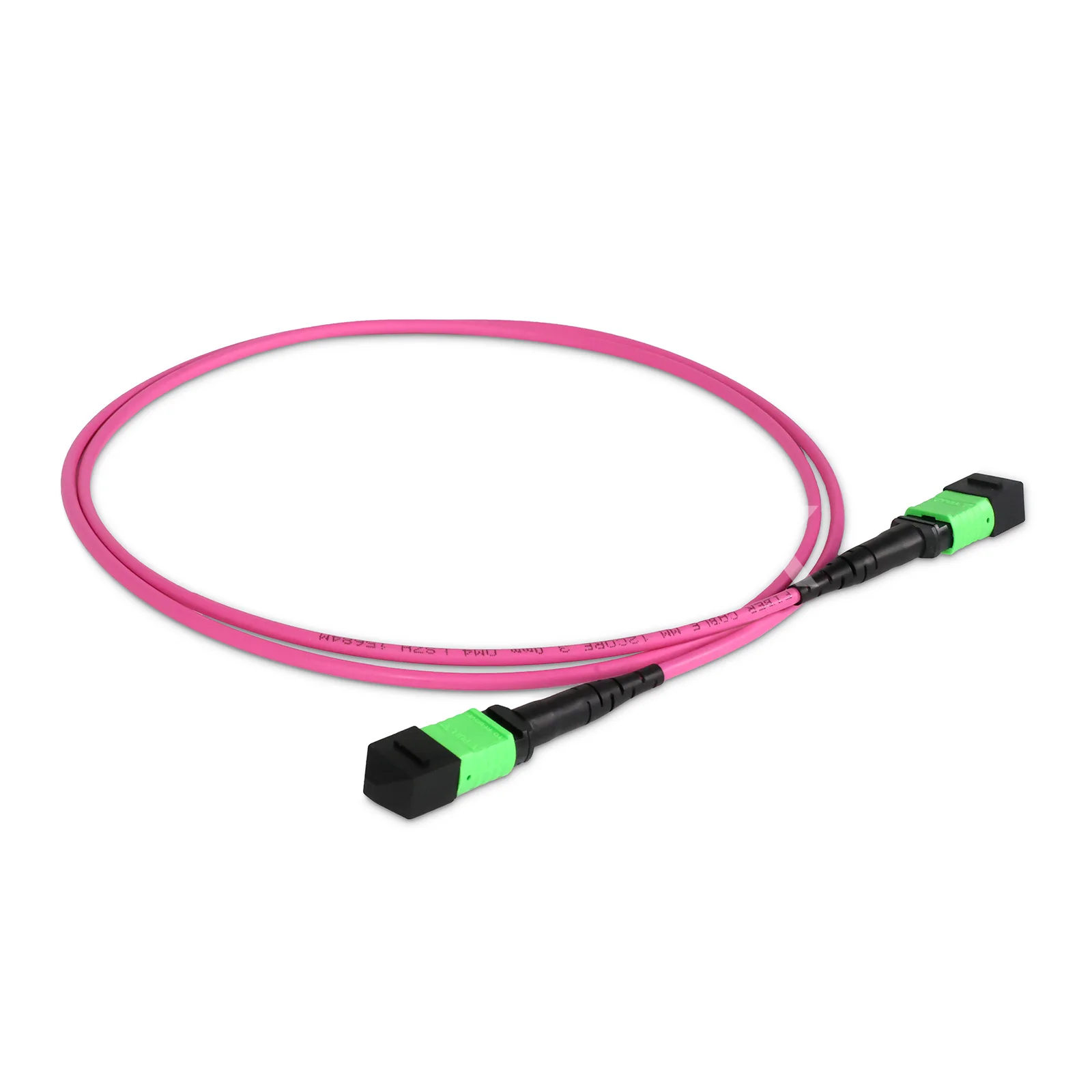

    NVIDIA/Mellanox MFP7E10-N015 Compatible 15m (49ft) MPO-12 APC (Female) to MPO-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    Product No: 203257
    0 Reviews
    355 Sold
    $49.00
    Series
    Length
    62 in real-time stock, 07Nov, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Supports InfiniBand and Ethernet.
2. For switch to switch or to NVIDIA ConnectX-7 NICs/BlueField-3 DPUs in compute and storage servers.
3. Designed for linking MM twin-port OSFP, single-port OSFP and QSFP112 transceivers together.
4. Flexible 7.5mm Min. Bend Radius.
5. With 0.35dB low insertion loss.
6. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
7. High-density cabling solutions for 800G/400G data centers.
8. Meticulous design and standard testing ensure stable high-speed data transmission.
    See more

    Specifications

    NVIDIA/Mellanox MFP7E10-N003 Compatible 15m (49ft) MPO-12 (Female) APC to MPO-12 (Female) APC OM4 Elite Trunk Cable, 12 Fibers, Type B, LSZH, APC



    The QSFPTEK for NVIDIA/Mellanox MFP7E10-N015 compatible MPO-12 APC OM4 multimode trunk fiber cable is specially designed for InfiniBand and Ethernet.applications. It is used for provideing end-to-end fiber solution for short-range high-speed multimode transcivers, including 800G twin-port OSFP, single-mode 800G/400G OSFP and QSFP112. The typical use scenarios of MFP7E10-Nxxx is twin port OSFP switch-to-switch or connecting switch to NVIDIA ConnectX-7 NICs or BlueField-3 DPUs in compute and storage servers.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 12 Fibers Fiber Type OM4 MMF 50/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured no Wavelength 850/1300nm
    Insert Loss ≤0.35dB Return Loss ≥30dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 7.5mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    NVIDIA/Mellanox MMA4Z00-NS Compatible 800GBASE-SR8 (2xSR4) Twin-port OSFP IHS/Closed Finned Top PAM4 850nm 50m Dual MPO-12/APC DDM MMF InfiniBand NDR Optical Transceiver Module

    $599.00
    106 Sold
    38 Reviews

    NVIDIA MQM9700-NS2F Quantum-2 NDR 400G InfiniBand Switch, 64 x 400Gb/s Ports, 32 OSFP Cages, 1U Non-blocking Managed Data Center Switch

    $28470.60
    0 Sold
    0 Reviews

    NVIDIA MQM9790-NS2F Quantum-2 NDR 400G InfiniBand Switch, 64 x 400Gb/s Ports, 32 OSFP Cages, 1U Non-blocking Unmanaged Data Center Switch

    $22941.20
    0 Sold
    0 Reviews

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $47.60
    12.0K Sold
    79 Reviews

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OM4 Multimode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Magenta

    $12.60
    8.7K Sold
    79 Reviews

    NVIDIA/Mellanox MMA4Z00-NS400 (980-9I51S-00NS00) Compatible 400GBASE-SR4 OSFP RHS/Flat Top PAM4 850nm 50m DDM MPO-12/APC MMF Optical Transceiver Module for InfiniBand NDR (IB) and Ethernet (ETH) Used in ConnectX-7/OSFP Adapter Cards

    $459.00
    219 Sold
    7 Reviews

    NVIDIA/Mellanox MMA1Z00-NS400 (980-9I693-00NS00) Compatible 400GBASE-SR4 QSFP112 RHS/Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Ethernet Optical Transceiver Module

    $459.00
    12 Sold
    8 Reviews

    NVIDIA/Mellanox MMA4Z00-NS (980-9I510-00NS00) Compatible 800GBASE-SR8 Twin-port OSFP IHS/Open Finned Top PAM4 850nm 50m Dual MPO-12/APC DDM MMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    $599.00
    3.5K Sold
    50 Reviews

    NVIDIA/Mellanox MCX75310AAS-NEAT ConnectX-7 InfiniBand & Ethernet Adapter Card NDR/400GbE, 1-Port OSFP, PCIe 5.0 x16, Secure Boot

    $1311.00
    0 Sold
    1 Reviews

    Applications

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

    Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

    Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3





    Scenario 3: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3




    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Questions & Answers

    • All (6)
    • Hi, I just want to wonder what is the difference between MTP and MPO cables? I am always confused about the two cables.
      In fact, it is easy to distinguish them. The key difference between them lies in their different connectors. MTP trunk cables use MTP® connector, this is an enhanced version so that MTP cables have better mechanical designs and optical performances.
    • What is the maximum throughput?
      The maximum data throughput is 400G.
    • What's the difference between the male and female connectors of an MTP cable?
      The difference between the male and female connectors of an MTP cable lies in the position of the alignment key. The male connector features an alignment key located at the top, while the female connector has an alignment key positioned at the bottom.
