A Comparison Of Different Types of Optical Amplifiers: EDFA vs. Repeater vs. Transponder

Author Moore

Date 04/17/2024

Explore the distinctions among EDFAs, repeaters, and transponders within optical network contexts by delineating their operational principles and typical usage scenarios.

The progress of optical networks is crucial in modern communication systems, requiring robust and dependable performance. Optical Network Enhancers, such as the Erbium-Doped Fiber Amplifier (EDFA), Repeater, and Transponder, are essential components within this framework. This article delves into these devices' detailed operations, applications, and comprehensive comparative analysis, aiming to offer insights into their performance characteristics and suitability across various scenarios.

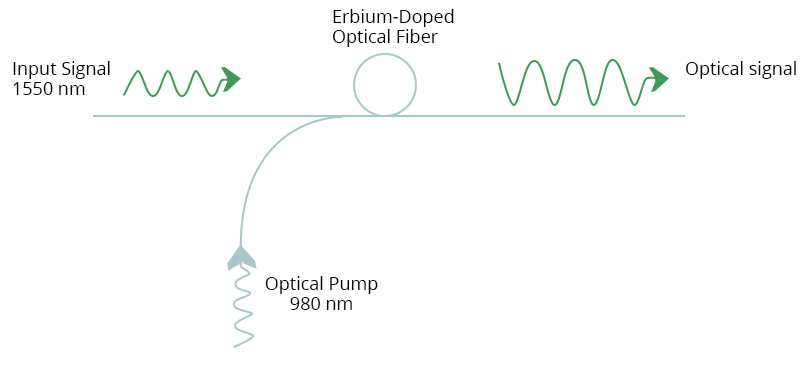

What is Erbium-Doped Fiber Amplifier (EDFA)?


The Erbium-Doped Fiber Amplifier (EDFA) is a crucial element of optical communication systems. It boosts signals within the 1550 nm wavelength range by stimulating the emission of photons in erbium-doped glass fibers. Built upon the principles of stimulated emission, the critical components of an EDFA include erbium-doped fibers, a pump laser, wavelength division multiplexers, and optical isolators. Its wide amplification bandwidth, particularly in the C and L bands, is essential for extending the reach of optical signals and preserving signal integrity in contemporary fiber-optic networks.


EDFAs are typically integrated into optical networks at receiving ends or relay stations to counteract signal attenuation in fiber, thereby enhancing signal transmission distance and quality.


What is The Fiber Optic Repeater?


Fiber Repeaters are critical in extending and reinforcing Ethernet data signals over multimode and single-mode fiber, enabling transmission distances up to 160km. When you need to convert between single-mode and Multimode fibers or extend a Multimode network, Fiber Optic Repeaters are the optimal solution. They excel in connecting different fiber types, spanning various distances, and accommodating different wavelengths (including WDM, CWDM, and DWDM) across diverse topologies and network architectures to facilitate extended data transmission distances.


Strategically positioned within the network for long-distance fiber optic transmissions, Repeaters ensure signal strength and quality, allowing signals to travel considerable distances reliably.

Fiber Optic Repeater

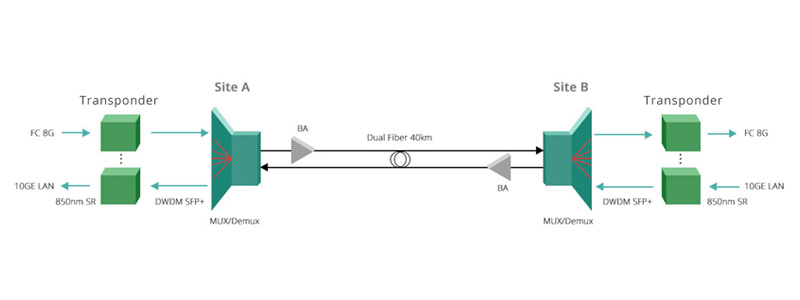

What is The Transponder?


In optical communication, a Transponder is a vital device that manages signal modulation and demodulation, facilitating the seamless integration of data into optical networks. The transponder can convert electrical signals into optical signals for transmission over fiber-optic channels. It plays a crucial role in wavelength-division multiplexing (WDM) systems by receiving incoming electrical signals, modulating them onto specific optical wavelengths, and transmitting them over optical fibers. Conversely, the transponder demodulates the information back into electrical signals when receiving optical signals. This process streamlines data transmission efficiency and supports the utilization of multiple data channels on a single optical fiber, enhancing the capacity and flexibility of modern optical communication networks.


Transponders are instrumental in optical networks for signal format and wavelength conversion, enabling the conversion of optical signals to different wavelengths and allowing for flexible optical path configurations in multi-wavelength systems.


The Difference Between EDFA vs. Repeater vs Transponder


Connectivity forms the cornerstone of modern optical networks. These networks rely on advanced components like Erbium-Doped Fiber Amplifiers (EDFAs), Repeaters, and Transponders to bolster signal strength, combat attenuation challenges, and enable wavelength flexibility. As the demand for high-speed data transmission escalates, the collaborative use of these components is instrumental in constructing resilient and efficient optical networks, guaranteeing dependable connectivity for diverse applications spanning long-haul communications, data centers, and metropolitan networks.


The distinctions among these components are as follows:


EDFAs are primarily engineered for optical signal amplification without necessitating conversion into electrical form. They harness erbium-doped fibers to amplify signals within the optical domain directly.


Compared to repeaters, EDFAs can accommodate more wavelengths and higher data rates since they are not reliant on the modulation format or signal bandwidth.


Transponders function as optical-electrical-optical (OEO) conversion devices. They convert optical signals into electrical form and back into optical signals, enabling format and wavelength conversion.


Repeaters amplify and, if necessary, regenerate optical signals. They effectively address signal attenuation across extended distances, and unlike EDFAs, repeaters may involve signal conversion and regeneration.


Repeaters are more adaptable to upgrades and reconfiguration than amplifiers, as they can adjust signal parameters and protocols according to network requirements.


While EDFAs specialize in optical signal amplification, Repeaters focus on signal strengthening and mitigating transmission losses, and Transponders manage signal format and wavelength conversion. These components synergize to ensure efficient and reliable long-distance transmission of optical signals within optical networks.


The Application of EDFA vs. Repeater vs Transponder


Erbium-Doped Fiber Amplifier (EDFA): EDFAs are widely utilized in long-haul optical communication networks, including transcontinental and undersea fiber optic links. Positioned strategically at amplifier sites along the network, EDFAs compensate for signal attenuation without needing signal conversion. They play a crucial role in optical backbone networks by enhancing signal strength efficiently.


Repeater: Repeaters are essential components in optical networks designed for ultra-long-haul and submarine communication systems. Placed at regular intervals, Repeaters amplify and regenerate optical signals to counteract the cumulative effects of fiber attenuation. In scenarios involving extensive distances, repeaters maintain signal integrity and prevent degradation.


Transponder: Transponders are integral to wavelength-division multiplexing (WDM) networks and high-capacity data transmission systems. Transponders enable wavelength conversion in WDM systems, allowing flexible allocation and reallocation of optical channels. They support dynamic optical signal management by facilitating conversion between different wavelengths and formats in optical cross-connect, metropolitan area network (MAN), and data center applications.



Regarding functionality, applications, and connectivity, EDFAs offer cost-effective solutions for signal amplification, Repeaters combat signal degradation in long-haul scenarios, and Transponders provide versatile optical-electrical-optical conversions. By integrating these components comprehensively, network designers can optimize signal performance, effectively manage network dynamics, and balance performance and cost considerations. This holistic approach ensures efficient and reliable operation of optical networks across various applications and environments.
