Exploring the Power of 400G ZR
As data traffic grows and bandwidth demand rises, 400G optics has gradually become one of the core driving forces of network infrastructure. Among them, the 400G ZR transceiver module is mainly used for long-distance data transmission. This article will cover the 400ZR definition, advantages, working principles, applications, and different form factors of 400G ZR optical transceivers.
What is 400G ZR?
Although there are already different types of 400G modules on the market, they have limitations in long-distance transmission. For application scenarios that require data transmission over longer distances, traditional 400G optical modules often cannot meet the needs, and the 400G ZR module breaks through these limitations.
400GBase-ZR Definition

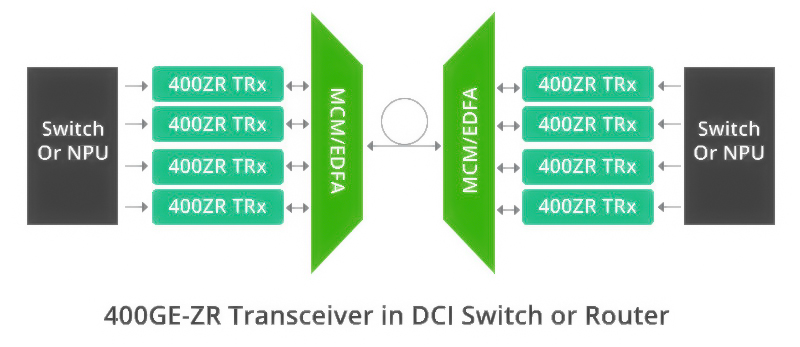

The 400ZR is a network Implementation Agreement (IA) developed by the Optical Internetworking Forum (OIF) for pluggable digital coherent optical communications (DCO) modules. The 400ZR standard uses dense wavelength division multiplexing (DWDM) technology and high-order modulation to transmit 400G payloads over DCI links up to 80 km. Its goal is to enable long-distance transmission using single-carrier 400G, which employs 16QAM modulation at a rate of approximately 60 Gbaud. This is made possible through coherent detection and advanced digital signal processing (DSP) technology. 400G ZR optical modules are suitable for point-to-point and ring network topologies.
400GBase-ZR Benefits
High transmission rate: 400G ZR optical transceiver can achieve a single carrier transmission rate of 400Gbps, improving data transmission efficiency and meeting the growing demand for data traffic.
Long-distance transmission: 400GBase-ZR supports a transmission distance of 80 kilometers, which makes them ideal for long-distance transmission, especially in backbone networks across cities and countries.
High reliability: These 400G modules use advanced optical technology and digital signal processing algorithms to maintain stable performance in complex and changing transmission environments. They also have strong error correction capabilities, which can reduce the bit error rate and ensure the reliability of data transmission.
Strong compatibility: 400G ZR transceiver supports multiple modulation formats and transmission protocols, such as QPSK, 16QAM, and 64QAM, and can flexibly adapt to different network architectures and application scenarios. They comply with the Open ROADM MSA specification and have good interoperability with equipment from other manufacturers.
Compact design: In order to adapt to the high-density deployment needs of data centers and transmission networks, the 400ZR adopts a compact design, which is small in size and easy to install and maintain.
However, while enjoying the above advantages, we must also face some difficulties that cannot be ignored. Although coherent technology can improve signal performance, its complex modulation and demodulation schemes and the need for high-performance digital signal processors (DSPs) undoubtedly increase the cost and power consumption of devices such as lasers and optical chips. In addition, stricter standardization and interoperability requirements have been put forward for compatibility between different manufacturers and usage scenarios.
How Do 400G ZR Optics Work?
The working principle of the 400G ZR optical module is based on electro-optic conversion and coherent detection technology. Specifically, the 400G ZR optical module converts electrical signals into optical signals and transmits them at high frequency over optical fibers to enable high-speed data transmission and meet long-distance requirements. Its core technology is coherent reception technology. This technology improves the sensitivity, anti-interference ability, and spectral efficiency of the signal by utilizing the frequency information, amplitude, and phase of the optical signal, thereby achieving long-distance and efficient transmission without the need for relay amplifiers.
400ZR Applications
Hyperscale Data Centres/Cloud Service Providers
As data centers continue to expand, hyperscale data centers and cloud service providers require network solutions that can handle extremely large traffic volumes. 400ZR optical modules have become a key technology for connecting these huge data centers and providing cloud services due to their high bandwidth, high transmission rate, and low latency characteristics. By using 400ZR modules, data centers can achieve efficient data transmission to meet the growing demand for data processing.
Distributed Campus and Urban Areas
Building hyperscale data centers is not practical for many organizations, especially in distributed campus and urban network environments. Within these regions, distributed data centers need to manage multiple data centers to communicate with each other through high-speed interconnects, share data, balance workloads, and provide backup. The 400G ZR optics can realize the efficient interconnection between remote data centers and provide the required reliability and flexibility for distributed data centers.
Telecommunications Providers
Like data centers, telecommunications companies are grappling with an explosion in network traffic as consumers demand higher connection speeds, whether at home or work, including 5G mobile communications. Applications such as video streaming, online video gaming, video conferencing, and online backup services will benefit greatly from the 400Gb/s speeds.
400G ZR Transceiver Types
There are 2 main types of 400G ZR optical modules: OSFP 400G ZR and QSFP-DD 400G ZR, and the biggest difference lies in their form factors.
OSFP 400G ZR Optical Modules
The 400G OSFP (Octal Small Form-Factor Pluggable) optical module is a high-speed, high-bandwidth, and high-density optical module specially designed for large-capacity data transmission in data centers and communication networks. Supports a total of 400Gbps bandwidth to meet the high-speed transmission needs of modern data centers and ultra-large-scale computer systems.
The OSFP optical module can be regarded as an upgraded version of the QSFP optical module. The OSFP optical module is slightly larger than the QSFP optical module and is incompatible with each other.
QSFP-DD 400G ZR Optical Modules
400G QSFP-DD (Quad Small Form-Factor Pluggable Double Density) optical modules are another mainstream optical module type that supports 400Gbps Ethernet and Optical Transport Network (OTN) applications. 400G QSFP-DD ZR optical modules feature compact construction and high compatibility for effective deployment in space-constrained environments where long-distance connectivity and high-bandwidth support are required.
FAQs About 400ZR Optics
Q: 400ZR vs. 400ZR+ vs. OpenZR+, what is the difference?
A: The main difference lies in their application scenarios. 400ZR is designed for 400GE data center interconnects, while 400ZR+ is intended for longer distances (≥ 120km). OpenZR+ is a multi-source agreement-based standard developed to combine the best features of 400ZR+ and Open ROADM standards, targeting long-distance, regional networks.
Q: Can 400ZR be used in metropolitan area networks (MANs)?
A: Yes, 400ZR is well-suited for Metropolitan Area Networks. This module supports long-distance data transmission with high bandwidth.
Conclusion
The 400G ZR optical module is a prime example of achieving long-distance transmission. With advanced technology and optimized design, the 400ZR optical transceiver meets the urgent demand for high bandwidth and long-distance transmission in data centers and telecommunications operators. As the market evolves, the 400G ZR modules will play a significant role in more application scenarios, driving the upgrade and development of network infrastructure.
