The Ultimate Guide to OSFP 400G DR4 Optical Modules

The OSFP (Octal Small Form-Factor Pluggable) 400G DR4 optical module plays a critical role in today's high-speed data communication networks. With the ability to transmit data at speeds of up to 400 Gbps over single-mode fiber, the 400GBASE-DR4 module is the perfect fit for the growing bandwidth needs of data centers and telecom facilities. The module design utilizes laser technology to efficiently transmit signals over long distances while keeping response times and power consumption within reasonable limits. In this article, we'll take a closer look at the specifications, operating principles, and application scenarios of OSFP 400G DR4 transceivers to help you better understand the continuous innovation and development of this technology in optical networking.

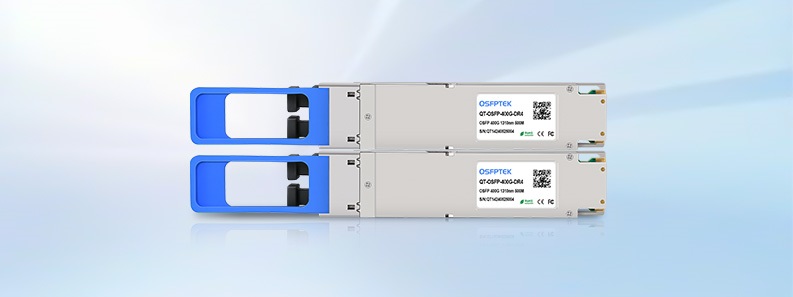

What Is The OSFP 400G DR4 Transceiver?



The OSFP 400G DR4 module uses 1310 nm wavelength and is designed for high-speed data transmission over single-mode fiber (SMF) up to 500 meters. It utilizes a 4-channel architecture that can support 100 Gbps data rates per channel, resulting in an overall 400 Gbps transmission capacity. The module follows the IEEE 802.3bs standard and complies with the OIF standard for optical modules. As a low-power device, the OSFP 400GBASE-DR4 typically consumes between 8 and 10 watts of power, making it ideal for high-density data center environments. Moreover, its OSFP form factor supports hot-swappable mounting, simplifying installation and maintenance of the device.



How Does DR4 Enable High-speed Data Transfer?



The OSFP 400GBASE-DR4 module's strength is in its 4-channel parallel optical data transfer technology, which lets it handle large data streams. Since all channels can send packets at the same time, this boosts the 100 Gbps rate per channel, giving you a faster bandwidth and lower latency. Measuring the time takes away from the traditional serial transfer, while with the parallel design, each channel operates independently. Moreover, the deployment of PAM4 modulation overcomes the challenge of dispersion, thereby preserving signal integrity and meeting the high-reliability standard required by today's advanced data centers. The 400G OSFP DR4 modules have low power loss, so they are suitable for large-scale, high-speed networks while taking into consideration energy efficiency.



Benefits of Using OSFP Transceivers in Data Centers



OSFP modules have a number of advantages for data center applications. First, the OSFP form factor supports higher connection density, which means you can install more ports in the same space, improving the space utilization of your equipment. Second, OSFP transceivers are hot-swappable, which makes it easy to perform maintenance and upgrades without affecting the normal operation of the entire network, greatly reducing downtime and improving network stability. In addition, OSFP transceivers support a wide range of data rates (up to 400 Gbps), and they are also compatible with many other network technologies such as PAM4 or FEC, increasing their applicability. Most importantly, the low power consumption of OSFP technology helps reduce operating costs and energy consumption, which is critical for modern data centers seeking high energy efficiency. Taken together, OSFP transceivers are unquestionably ideal for today's data center needs.



The next table will introduce three QSFPTEK OSFP module models.







How Does OSFP PAM4 Technology Improve Transmission Efficiency?



The Basics of PAM4 Technology



PAM4 (Pulse Amplitude Modulation with Four Levels) is a modulation technique that utilizes four different levels for signal transmission. Considered a breakthrough in modern high-speed communications, PAM4 is capable of transmitting more data per signal cycle than traditional NRZ (non-return-to-zero) signals, which transmit 1 bit of information per cycle by using two states, high and low, to represent digital logic 1 and 0. The PAM4 signal, on the other hand, uses four levels (00, 01, 10, 11) and is capable of transmitting 2 bits of information per cycle; therefore, the bit rate of PAM4 is twice that of NRZ in the same symbol period. PAM4 technology is widely used in 50G, single-wave 100G, and 400G (non-ZR) optical modules.



This efficient signaling makes PAM4 ideal for meeting the requirements of data centers and high-speed networks in environments where bandwidth demands are growing rapidly. By increasing the signal level, PAM4 ensures 400G OSFP DR4 signal stability and integrity through efficient error correction and adaptive equalization. This technology enables data transmission rates of 100 Gbps or higher, providing strong support for high-speed network environments.





Why is PAM4 critical for 400G Ethernet?



Traditional NRZ modulation, single-wave up to 25G, which limits the rate, PAM4 can reach single-wave 50G and 100G, which makes 8-lanes 50Gbps or 4-lanes 100Gbps signal to compose higher rate of 400Gbps Ethernet with PAM4 modulation.



PAM4 technology is critical for 400G Ethernet because it significantly improves data transfer performance without increasing bandwidth requirements. As network traffic continues to increase, especially the demand for more bandwidth, PAM4 technology offers the potential for efficient data transmission over 400G Ethernet. PAM4 technology improves the spectral efficiency of the signal by modulating two bits of data per symbol without compromising the transmission distance.



Also, single-mode fiber at 1310nm has a high transmission efficiency, which means it can transmit data over distances of up to 10km. Its performance is great for both range and speed, which makes it perfect for modern broadband networks and data centers. PAM4 technology is a great solution for 400G Ethernet applications, and it can handle the growing demands of future networks.



The Synergy Between PAM4 and FEC Technologies



To ensure efficient and stable data transmission in real-world network environments, many companies have added forward error correction (FEC) to PAM4 technology, which effectively compensates for signal errors during transmission and ensures data integrity. Leading vendors such as Cisco, Broadcom, and Marvell have implemented a combination of PAM4 and FEC technology in their 400G Ethernet products, which has resulted in both higher transmission rates and increased reliability of data transmission.



Future Outlook for 400G OSFP DR4 Technology



Future Trends in Optical Interconnect Technology



As data volumes continue to grow, future 400G OSFP or QSFP-DD optical interconnect technology will evolve toward higher bandwidth, energy efficiency, and intelligence. Here are some of the key trends:



Bandwidth increase: future optical network development will focus on increasing bandwidth, which is expected to exceed the current 400G.

Integration of AI and ML: Through AI and machine learning technologies, networks will be able to self-optimize and predict faults, improving overall performance.

Optimization of energy efficiency: Further reduction of energy consumption will be one of the key objectives of future optical interconnect technology.

Miniaturization of Optical Devices: Advances in materials and engineering technologies will make optical modules even smaller, further improving data center space utilization.

Co-packaged optics: Integration of optics with electronics reduces latency and power consumption and improves overall performance.



Potential Transition to 800G OSFP Modules



As the need for higher bandwidth grows, 800G OSFP modules are set to become the data center solution of the future. These modules are set to boost data transfer rates and play a big part in areas like AI and cloud services. By combining optics and other components, the 800G modules will help cut latency and boost energy efficiency. Plus, they're compatible with existing network setups, making the switch from 400G to 800G a breeze.



Impact on Data Centers



The adoption of 800G OSFP modules will have a big impact on data center networks and storage architectures. They're great for handling large-scale data streams and real-time analytics because they have high bandwidth, low latency, and greater power efficiency. Data center operators will also find that 800G network architectures are more flexible and easier to deploy, which means they can support future expansion.



Conclusion



The OSFP 400G DR4 optical transceiver module is the ultimate solution for modern data centers and high-speed communication networks. It's the ideal choice for today's digital world, where data needs to move faster and faster. It can deliver 400 Gbps of data over single-mode fiber with low power consumption and high density, making it an essential component in meeting the growing bandwidth demands of today's digital world. The OSFP 400G DR4 uses cutting-edge tech like PAM4 modulation and FEC to make sure your data is transmitted efficiently, reliably, and at high speed, even in challenging situations.



Looking ahead, the evolution of optical interconnect solutions, such as the transition to 800G OSFP modules, will likely push the boundaries of data transmission speeds, bandwidth capacity, and energy efficiency even further. As data traffic keeps on growing across all kinds of industries, these new technologies will be key in building networks that can handle next-generation apps. The OSFP 400G DR4 and its successors will be big players in the future of global data communication.
