Troubleshooting a Fiber Optic Transceiver: Step-by-Step Guide

Have you encountered challenges while utilizing transceivers within a network infrastructure? While clients can efficiently address common issues like compatibility concerns and the use of incorrect fiber optic cables, more intricate problems, such as transmission issues, may arise when employing transceivers. This article aims to concentrate on the fiber optic transceiver troubleshooting and resolution of challenges related to transmission, information retrieval, and hardware failures.



Troubleshooting and Resolving Transmission Issues



Commonly, transmission difficulties present in various forms regarding port status, encompassing link failures, absence of packet transmission or reception despite an active port, an unreliable link, and occurrences of CRC errors. Resolving these concerns involves an examination from four distinct angles:



Link Disruption



Taking the example of 10 Gigabyte transceiver, when the optical port of a switch linked to other network devices is inactive, investigating the port status and the connected fiber optic transceivers entails considering the following aspects:



Initially, scrutinize whether the two connected ports' operational modes align or if the interface housing the SFP+ module's operating mode corresponds to the optical transceiver's working state. Utilize the "show interface brief" command for verification. In cases of disparity, rectify it by configuring the speed and duplex modes through relevant commands.



Next, evaluate the status of the ports on both network devices necessitating transceiver insertion through a Loopback test. As an illustration, connect the two 10G SFP+ ports on the switch using a 10G SFP+ DAC cable (or utilize two 10G SFP+ optical modules and a fiber patch cable). If activity is detected in the 10G SFP+ ports, it indicates a malfunction in the corresponding network device, and vice versa.



Thirdly, scrutinize the fundamental parameters of the fiber optic transceivers.

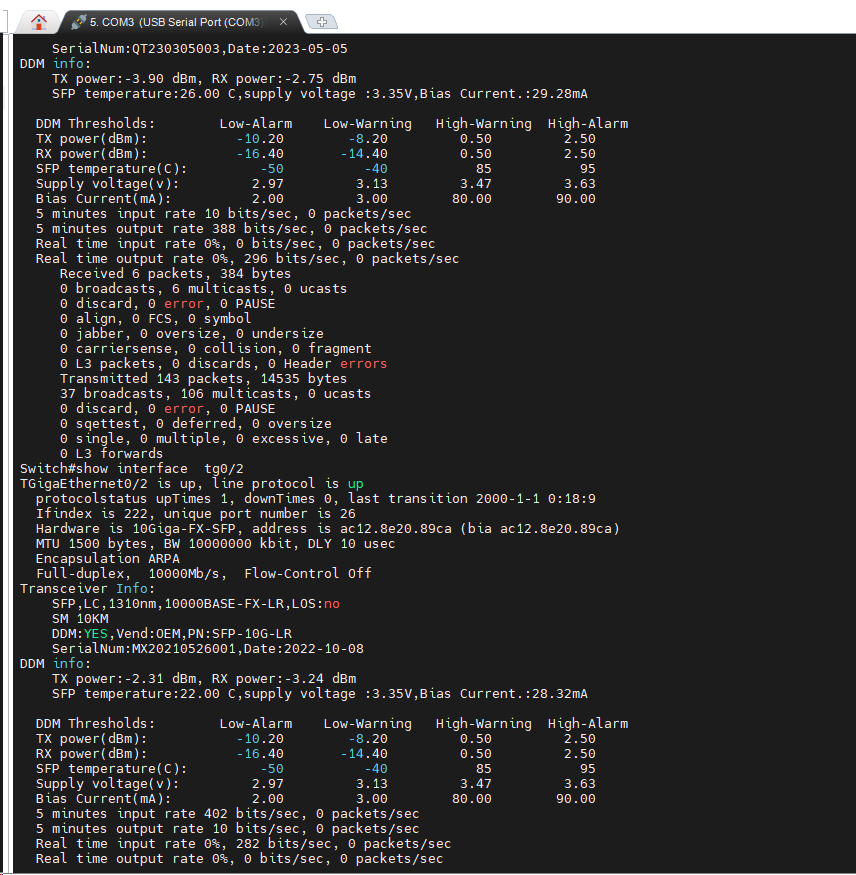

DDM: Utilize the "show interfaces transceiver detail" command to verify the parameters for normalcy. An alarm signifies that the module is not functioning optimally or that the optical module does not match the type of the visual interface.



Optical power: Employ an optical power meter to ascertain whether the transmission and reception power of the interface falls within the accepted range.



Wavelength/transmission distance: Execute the "show transceiver interface" command to confirm if the wavelengths and transmission distances of the optical modules at both ends align.



Lastly, inspect the fiber optic cables. Single-mode SFP+ transceivers must pair with single-mode optical fiber cables, while multimode SFP+ modules necessitate using multimode fiber optic cables. Mismatched components should be substituted with the appropriate optical cables.



Should the transceiver link persistently fail despite these examinations, it is advisable to seek technical support from the supplier.



No Data Transmission Activity



In instances where the port status indicator light remains illuminated without any packets being received or sent, troubleshooting can be carried out through three distinct methods:



Firstly, examine the packet statistics of the port. Verify if the status of both ports is consistently up and observe whether the packet count increases at both ends.



Next, scrutinize the port configuration. Ensure the port has been configured accurately, or delete the configuration if needed. Additionally, confirm the MTU value; if it exceeds 1500, make the necessary adjustments to the configuration.



Lastly, assess the functionality of the port and link. Transfer the transceiver to an alternate port or alter the connected device to determine if the issue of no packets being received or sent persists. If so, consider replacing the fiber optic transceiver.



Should the transceiver link experience difficulties after these examinations, it is advisable to seek technical support from the supplier.



PS: This post in Reddit provides how to troubleshoot optical fiber, you may also need it!



Intermittent Link Stability



When faced with persistent instability in the entire link, characterized by sporadic on-off cycles of the port status indicator light, initiate the following steps. First, inspect the modules using alarm information. Alternatively, check the DDM of the module to examine the optical power. If the transmitting optical power approaches the threshold value, replace the transceiver and fiber patch cables for cross-validation. Investigate the opposite optical module and the connected optical fiber cables to receive optical power close to the threshold value. In unstable link issues with copper modules, attempt configuring the duplex mode for the optical transceiver. If challenges persist, seeking assistance from your supplier is recommended.



CRC Error Resolution



Initiate the troubleshooting process for CRC errors by initially employing the "display interface" command to inspect packet statistics.



If the input port registers CEC, frame, or throttle error packets with a continuous increase, perform an instrument-based test to assess the integrity of the link. Consider replacing the fiber optic or copper cables accordingly in the event of a faulty link. Should the error packets persist, attribute it to a backplane failure. In cases where replacing the port with a standard one doesn't rectify the issue, the problem may lie with the opposing device or an intermediary transmission link.



Examine for overrun error packets in the input port, observing a continuous rise in their count. Repeatedly execute the "display interface" command to track input errors. An escalating count signifies increased overruns, suggesting potential congestion or blockage in the switch's backplane.



Inspect for giant error packets in the input port, monitoring ongoing increases. Verify the consistency of Jumbo configurations at both ends.



Next, scrutinize the optical power of the fiber optic transceiver. Employ the "display transceiver interface detail" command to assess the current DDM parameters. If visual power anomalies are detected, consider replacing the module.



Verify the port configuration using the "display interface brief" command—inconsistencies in duplex mode and the port rate at either end warrant reconfiguration through speed and duplex commands.



Assess the normalcy of the port and link by substituting it with a new port. If the issue persists, scrutinize the intermediary device and transmission media for regular operation. If typical, consider replacing the optical module.



Conclude the troubleshooting process by executing the "display interface" command to examine pause frames on the port. An increase in pause frames indicates a high influx of FC (flow control) frames. Additionally, assess whether input and output traffic on the port are excessive and evaluate the opposite device's capacity to manage the flow.



Troubleshooting Information Retrieval



Unsupported Module for Network Devices



Upon reviewing the system log, if instances of reported unauthorized optical module information, such as unapproved, unqualified, or unknown, come to light, an examination of the encoding details is necessary. If encoding inaccuracies are identified, proceed to re-encode the transceiver. In cases of correct encoding, seek technical support from the supplier for resolution.



Transceiver Incompatibility with DDM



Employ the "display transceiver interfaces detail" command to verify the transceiver's DDM compatibility. Alternatively, contact the supplier to confirm if DDM functionality is provided. If the module supports DDM, but issues persist, seek assistance from your supplier.



DDM Malfunction



When encountering operational difficulties with the optical module, troubleshoot using the following three steps:



Scrutinize the alarm information of the module. Investigate potential fiber optic cable or port issues if standard packet transmission is hindered. In cases of current or voltage irregularities, inspect local ports.



Execute the "display interfaces transceiver detail" command to assess the receiving and transmitting optical power. Alternatively, verify whether parameters such as optical power, temperature, voltage, and current fall within the acceptable range.



Investigate whether the transceiver, opposing device, or intermediate link is defective. Conduct cross-validation by swapping modules and connecting optical cables.



If you still have problems after completing these steps, contact your supplier for further technical support.

Hardware Issues Troubleshooting & Solutions



Ensuring Transceiver Quality Compliance



Maintaining the integrity of hardware components is paramount for sustained network performance. Users must ensure that transceivers comply with industry standards, such as the Multi-Source Agreement (MSA), to guarantee optimal compatibility and reliability within the network infrastructure.



Physical Inspection for Damage



Conducting a thorough physical inspection is essential in addressing hardware-related issues. Users should check for scratches on golden pins, which can hinder proper connections, and inspect for interface pollution or damage. Replacing the affected or uncertified modules is recommended in cases where damage is detected to prevent further network performance degradation.



Conclusion



In conclusion, troubleshooting information reading and hardware issues in network transceivers demands a meticulous approach. Addressing module compatibility DDM functionality, and ensuring hardware compliance with industry standards are vital steps toward maintaining a robust network infrastructure. Emphasizing the selection of reliable and high-quality optical modules and adherence to professional operation methods reinforces correct network device functioning and contributes to overall network efficiency.
