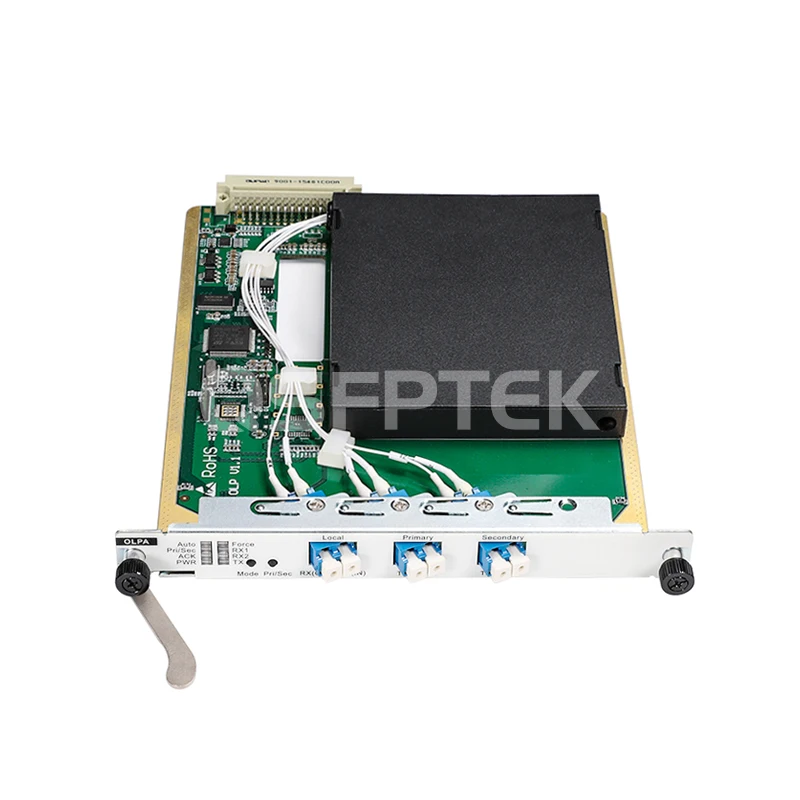

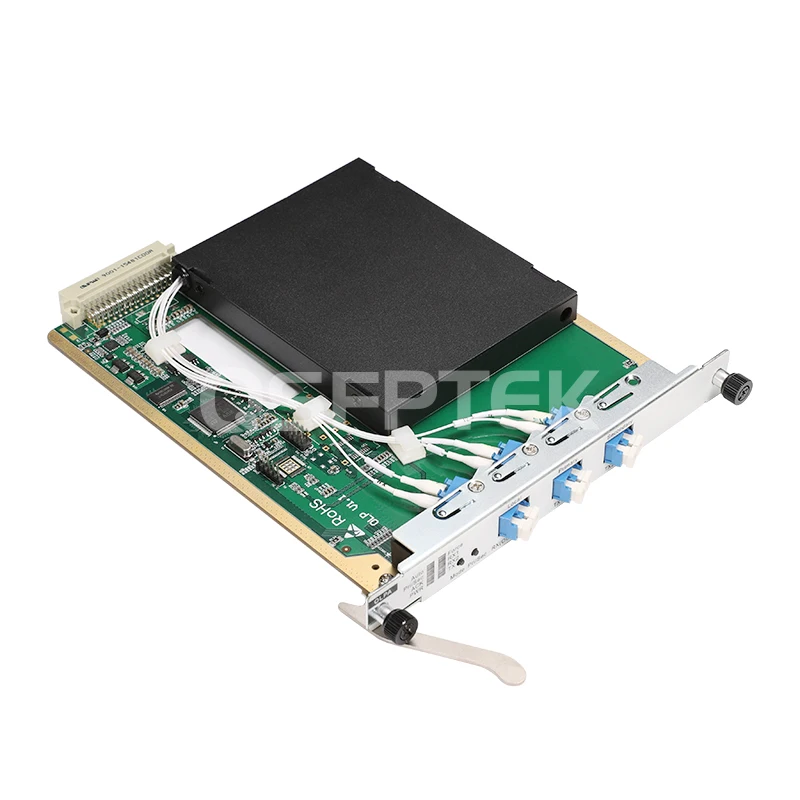

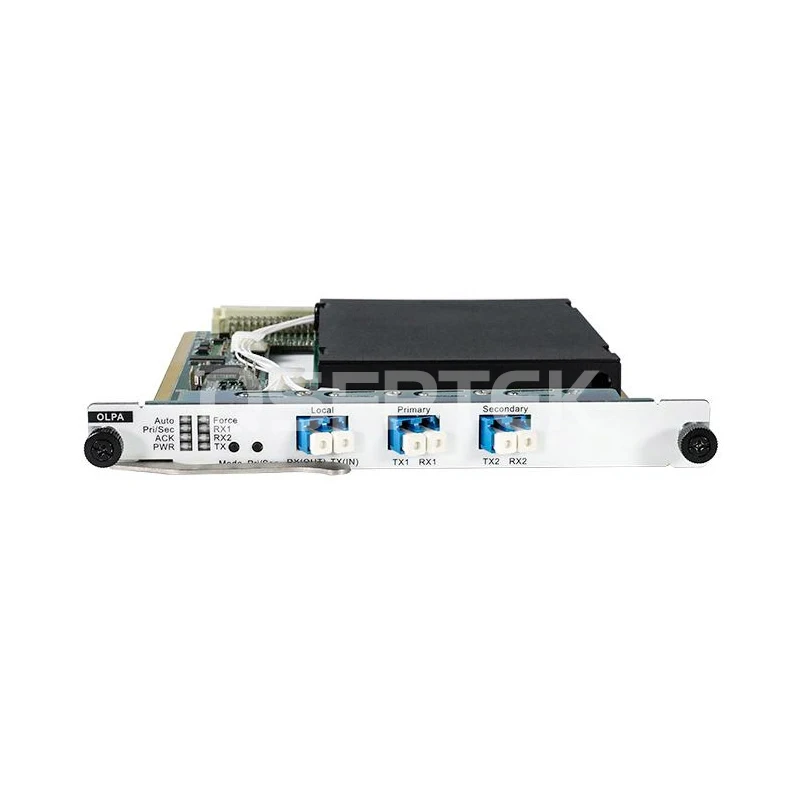

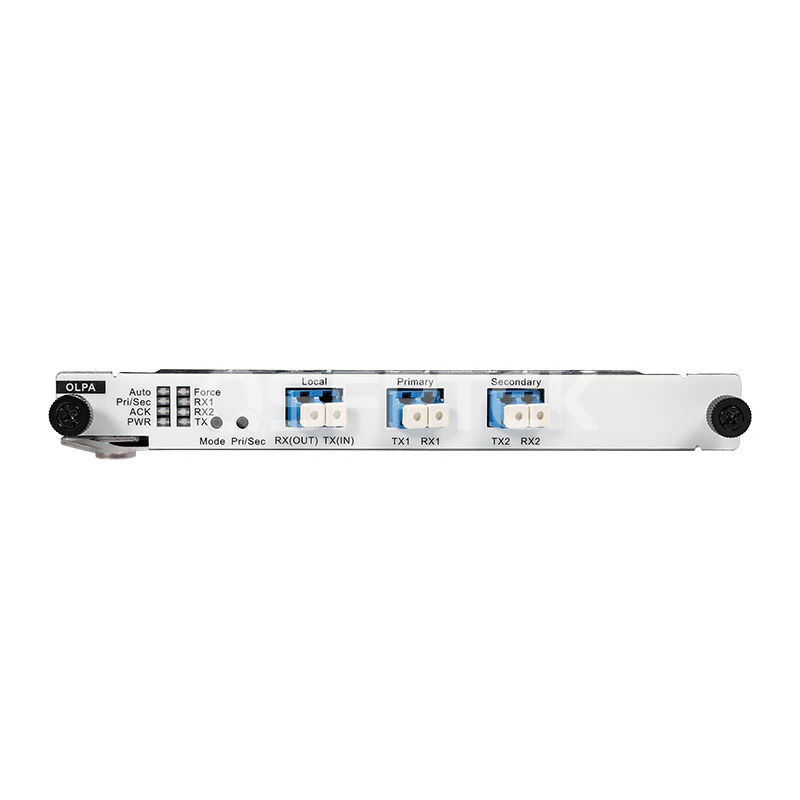

QT860-OLP, 1+1 Optical Line Protection & Wavelength Protection System

Product No :100156
US$ 313.90  US$ 389.90
Series
100 in stock
;jsessionid=E2D183031611537F5A7A43258D6D94EF
-
+
1. Optical line 1+1 protection and optical wavelength 1+1 protection
2. Switching time < 20ms
3. Real-time monitoring of optical power, active switching
4. Large optical power detection range, down to -50dBm
5. Supports various management types including Telnet、SNMPv2、Web
See more

Specifications

1+1 Optical Line Protection & Wavelength Protection System



The main function of the OLP optical protection board is to assist the wavelength division system to complete optical layer protection solutions such as optical line 1+1 protection, optical wavelength 1+1 protection, etc. It can monitor the optical path signal status of the main and standby routes in real-time. Deterioration of performance, automatic security on the main and standby routes.

Switching ensures the rapid recovery of the optical signal of the system; OLP technology completes the routing switching operation at the optical layer, and the optical layer protection has the incomparable advantages of upper-layer service protection and is the best solution to provide users with non-blocking communication.



Operating Wavelengths 1260nm~1650nm Return Loss ≥50dB
Insertion Loss <5dB Monitoring Power Range -50 dBm ~+25dBm
Switching Speed <20ms Typical Power Consumption Full Configuration <25W
Connectors LC UPC Switching mechanism 220mm x 442mm x 220mm
Operating Temperature -10 to 60°C Storage Temperature -40 to 85°C
Quality Testing Program
Quality Certifications

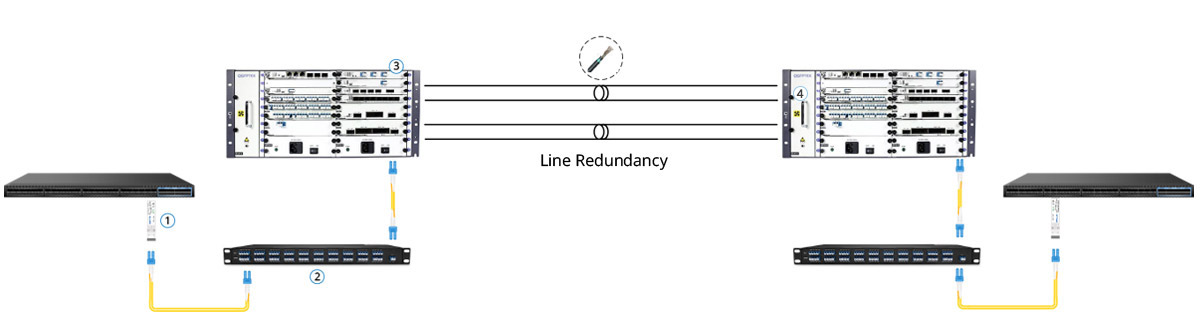

Applications

Connectivity Solution



10G DWDM SFP+

40 Channel C21~C60 Mux Demux

③ 1+1 OLP

5U Managed Chassis Platform








Faster Recovering Optical Switching by 1 + 1 OLP Switch



The OLP 1 + 1 is designed with dual transmitting and selective receiving methods,

featuring lower cost, and faster-switching speed.



Product details

Back-Up Fiber Line for Reliable Transmission



The OLP card module enables auto-identifying the signal status and fast switching from a working fiber

to a standby fiber to prevent link failure, ideal for the fiber protection system.







OLP for Highly Converged WDM Platform



The OLP switch can be integrated into the QT860 series OTN Chassis Platform and works together

with other QT860 series OTN products such as EDFA amplifiers, DCM, Transponders, etc.



Questions & Answers

more+
  • What is the QT900-OLP2 switching method?
    The QT900-OLP2 supports locking, forced switching, manual switching and automatic switching.
  • Hi, I want to know the difference of QT860-OLP and QT900-OLP2 switch time.
    The QT860-OLP switch time is less than 20ms, and QT900-OLP2 switch time is less than 5ms.
  • What is the switch time for QT860-OLP and QT900-OLP2?
    The QT860-OLP switch speed is <20ms, and the QT900-OLP switch time is <5 ms.
