QT860-PG1620, 20dB Gain DWDM EDFA Pre-Amplifier, 16dBm Output

Product No :100158
US$ 861.90  US$ 999.00
Series
Model
100 in stock
;jsessionid=3CAA2215AEC09ABE692038C6858535B8
-
+
Add to Cart Bulk Order Quotes

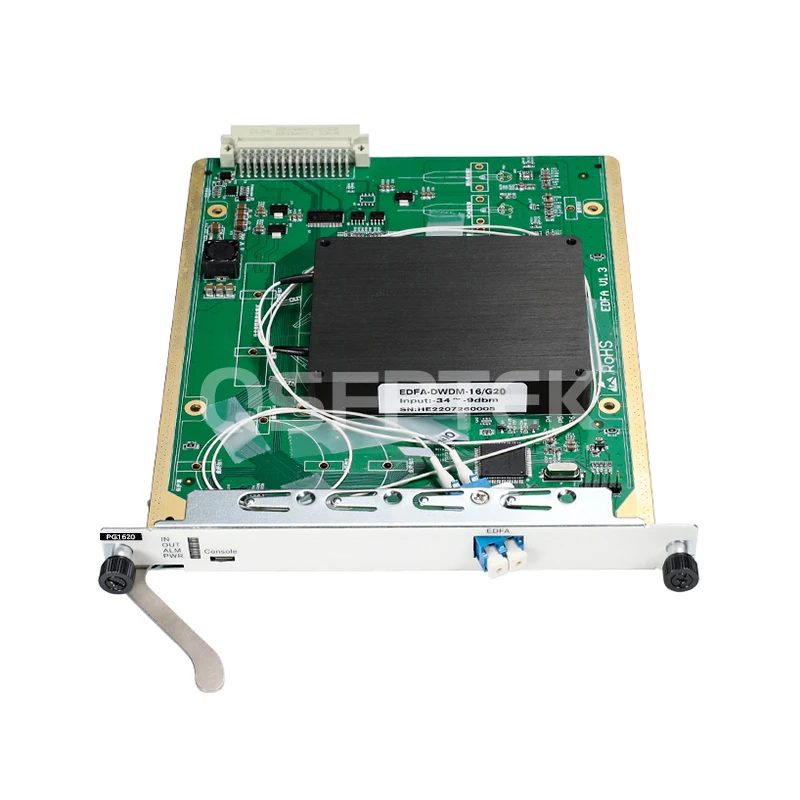

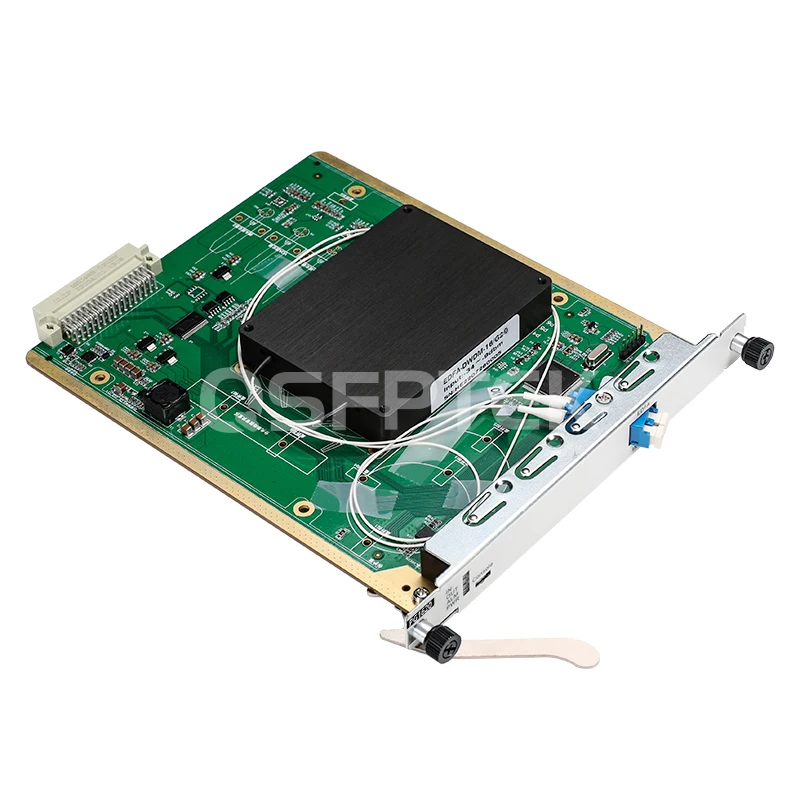

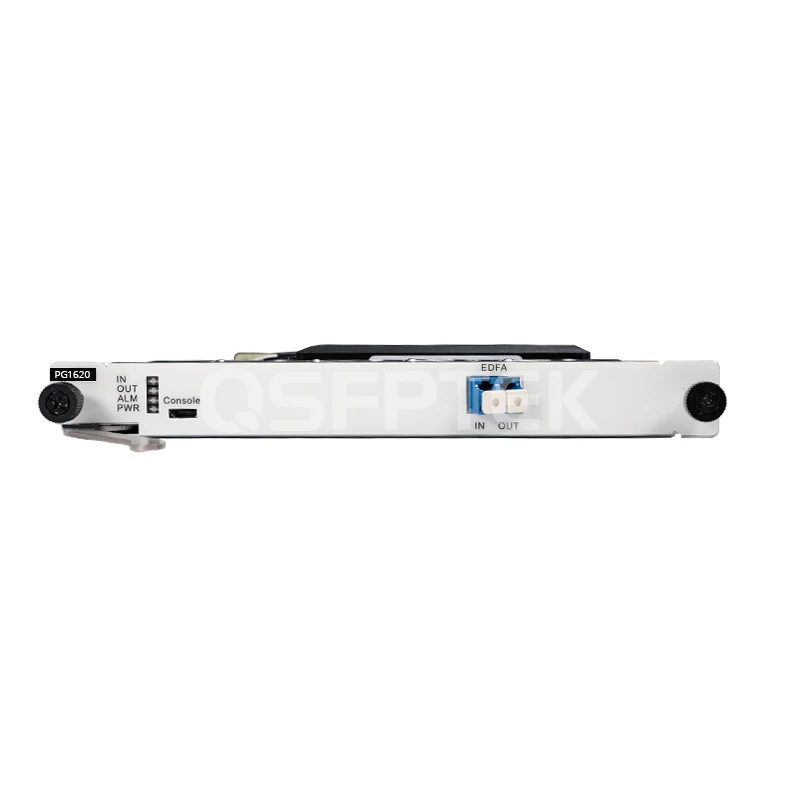

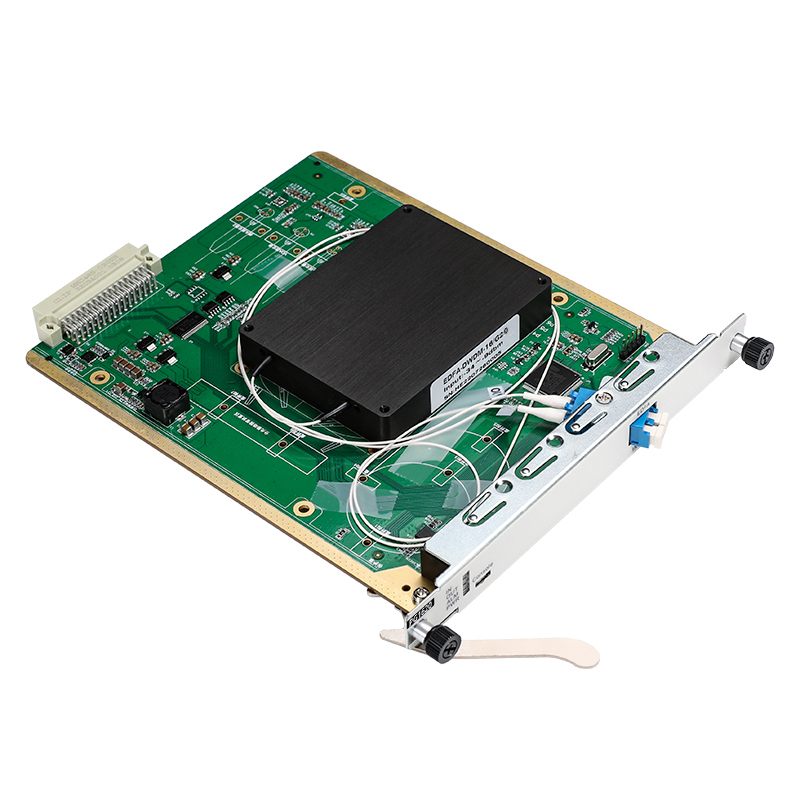

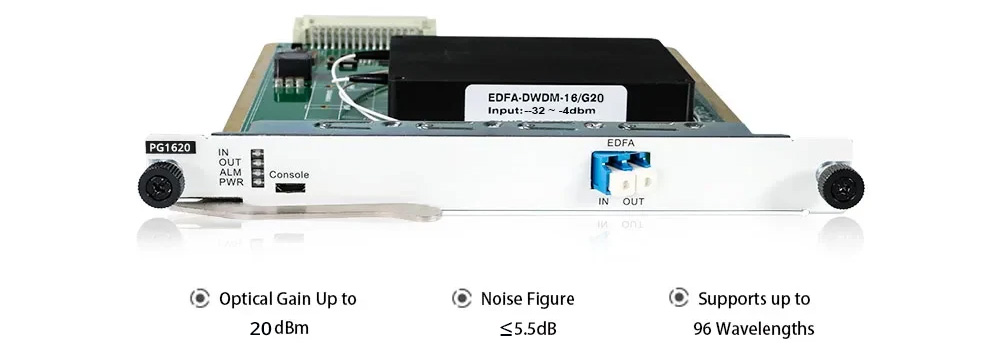

1. Supports up to 96 Wavelengths（50Ghz）
2. Noise figure as low as 5.5dB
3. Gain is adjustable, 20dB±3dB. Supports AGC/APC Modes
4. Gain flatness less than 1.5dB
5. Supports Web, SNMPv2, network management
See more

Specifications

QT860-PG1620, 20dB Gain DWDM EDFA Pre-Amplifier, 16dBm Output



The main function of the EDFA (Erbium Doped Fiber Amplifier) optical amplifier board is to perform power compensation for the signal light in the transmission link, and can simultaneously amplify up to 48 channels in the C-band (channel spacing is 100GHz) or 96 channels (channel spacing is 50GHz) It has the characteristics of flat gain, adjustable gain, and low noise figure. This EDFA can be highly integrated in the chassis of the QT860 series.



Amplifier Type Pre-amplifier Operation Wavelength 1529nm~1561nm(Typical)
1528nm~1568nm(Extend)
Optical Gain 20±3dBm Gain Flatness 1.5dB (Typical)
Input Power -32dBm~--4dBm Saturated Output Power 16dBm
Noise Figure ≤5.5dB Return Loss ≥50dB
Optical Connector LC/UPC Management Telnet、SNMPv2、Web
Power Consumption

＜15w

Full Configuration ＜60w

 Operation Mode AGC/APC
EVOA Optional Two-stage signal amplification Optional
Operation Temperature -10 to 60°C
Storage Temperature		 -40 to 85°C
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Applications

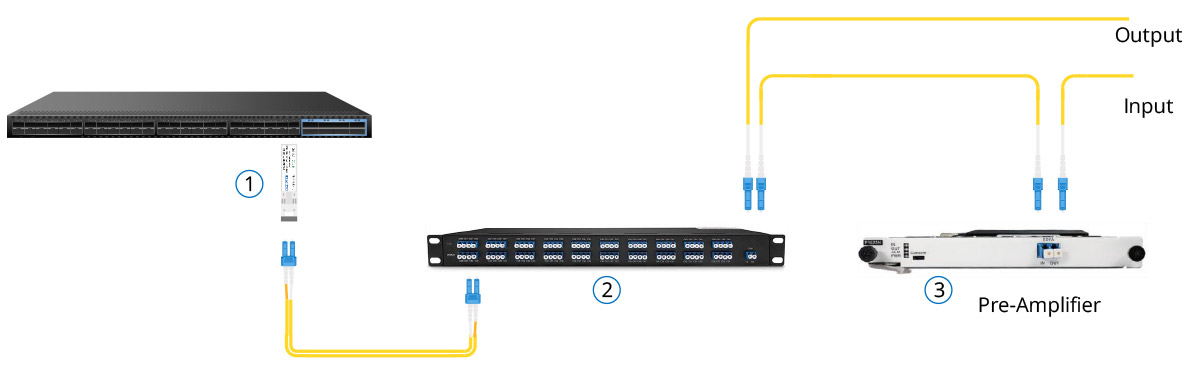

Connectivity Solution



① 10G DWDM SFP+

② 40 Channel C21~C60 Mux Demux

③ EDFA Pre Amplifier (PA)

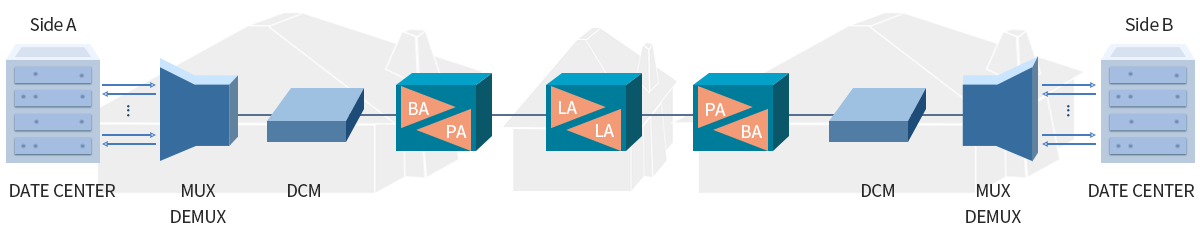

Point-to-Point Long-Haul DWDM Solution



EDFA amplifiers have wide adoption in distance extension applications, to compensate for the power loss in the Demux that is close to the receiver for DWDM wavelength or single wavelength.



Product details

Compensate Power and Amplify Signals



QT860-PG1620

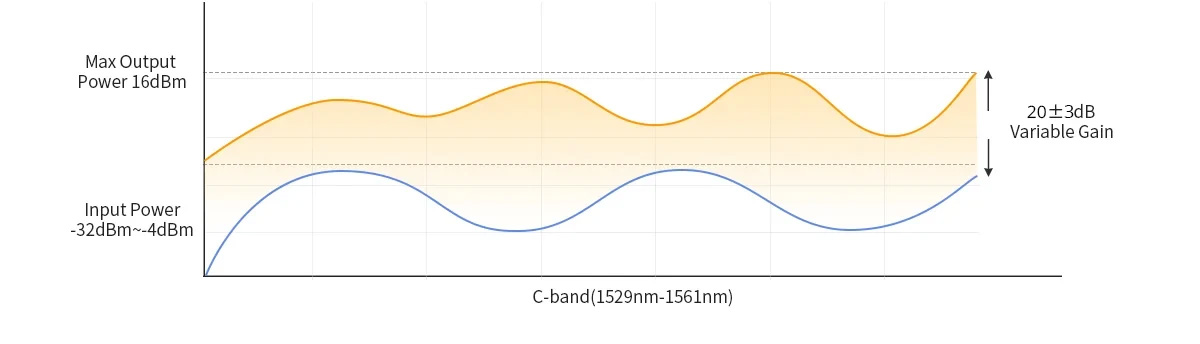

Adjustable Gain (20dB±3dB) and Optical Power



Adjustable Gain (20dB±5dB) and Optical Power





EDFA for Highly Converged WDM Platform



The EDFA Pre-amplifier (PA) can be integrated into the QT860 series OTN Chassis Platform and works

together with other QT860 series OTN products such as OLP, DCM, Transponders, etc.

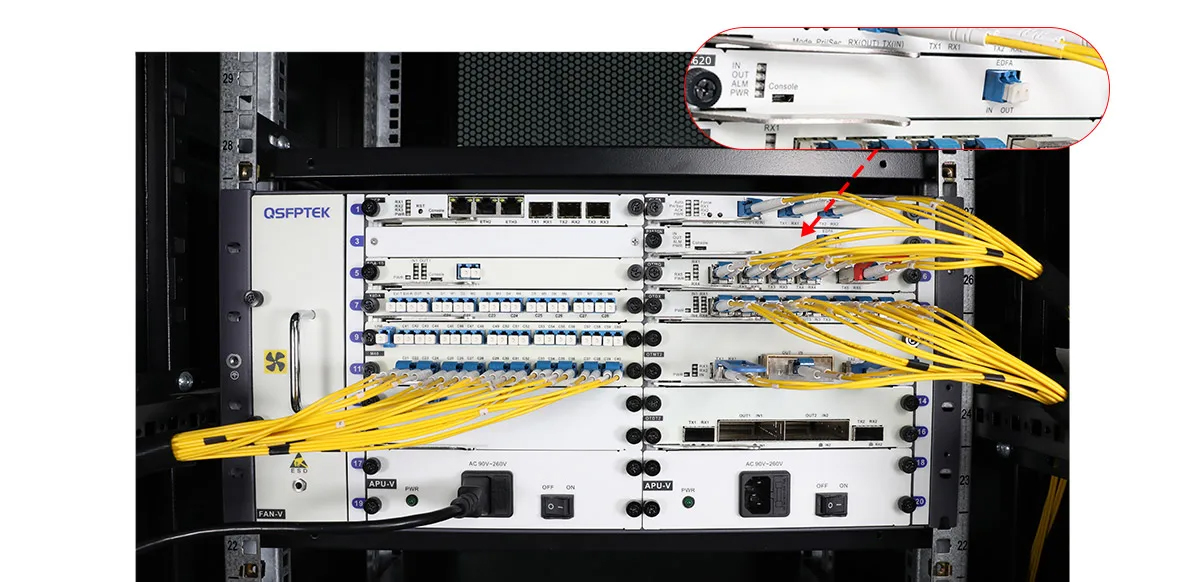

QT860-PG1620 on the QT860 series

Questions & Answers

more+
  • I need some optical amplifier boards, but I couldn't find the Optical Gain and Input Power parameters I need on the website. Can I customize them?
    Yes, you can customize the parameters of the EDFA card. If you would like more information about customization, please contact your account manager.
  • Does this device come with a power supply, and do I need any additional equipment?
    No, this EDFA Amplifier Module is used together with the chassis and is powered by the chassis, such as QT850, QT860, QT900 chassis.
  • I'm confused whether I need this EDFA Amplifier Module, can you tell me what are the scenarios where I need to use it?
    It is applicable for scenarios with extensive actual distances between optical cables, significant attenuation in the optical cable, and a requirement for optical signal amplification. You can adapt EDFA according to the performance of the module currently used in your actual optical link environment. For example, if the optical link length is 50KM but the maximum transmission distance of the optical module is only 40KM, then you need to use an EDFA amplifier module because it helps reduce Optical signal attenuation.
See more
