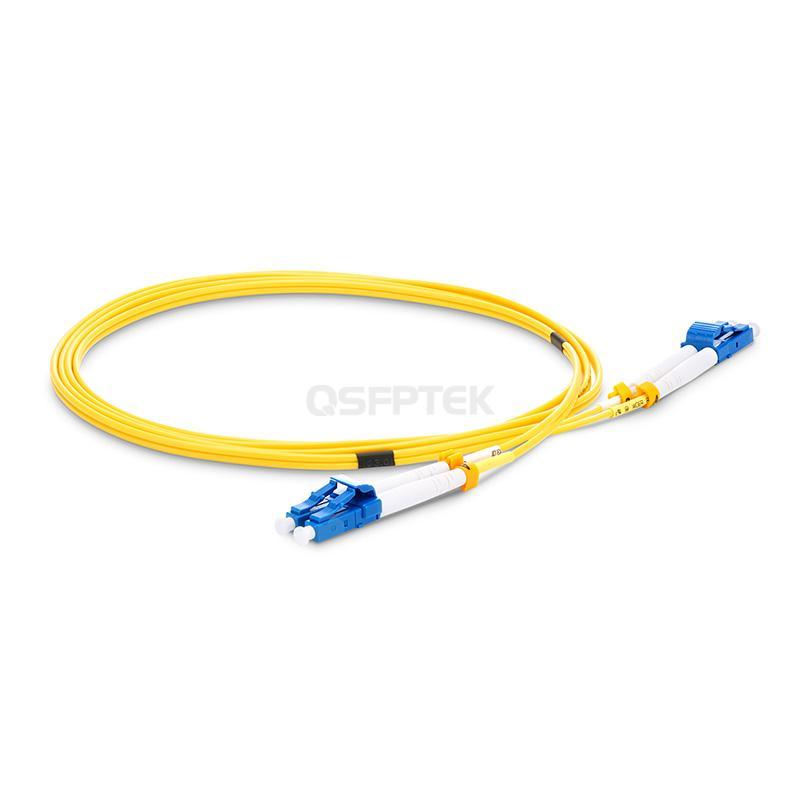

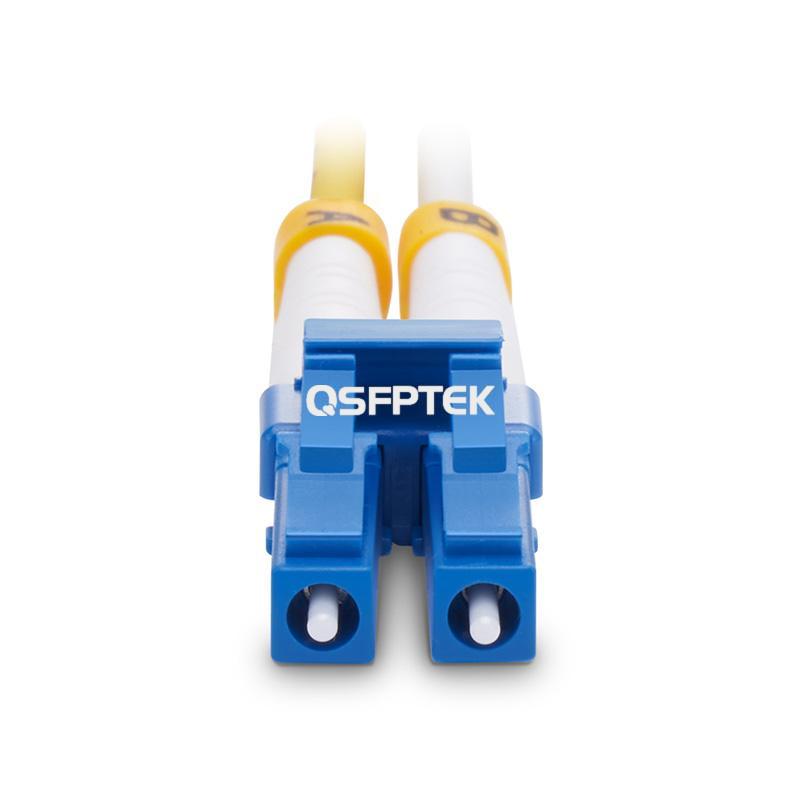

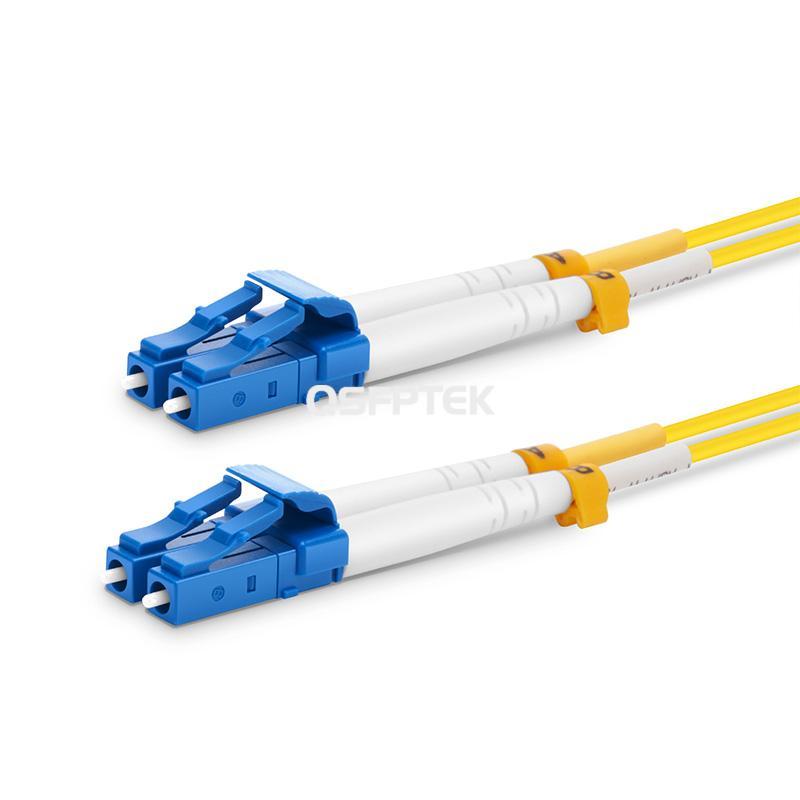

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

Product No :99386
US$ 2.66  US$ 3.10
Series
Length
872 in stock

576 In US Warehouse

296 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=3406A39A9DD0E221D7897439BD5A9F3D
-
+
Add to Cart Bulk Order Quotes
1. Ultra-low Inset loss ≤0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m



The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



Fiber Count 2 Fibers Fiber Type OS2 SMF 9/125μm
Connector Type LC UPC to LC UPC Wavelength 1310nm/1550nm
Armoured No Cable Material PVC
Insert Loss 0.25dB Return Loss ≥50dB
Approximate Diameter 2.0mm Length 0.5m/1m/1.5m/2m/3m/5m/7m/10m
Min. Bend Radius (Fiber Cable) Dynamic 10mm Min. Bend Radius (Fiber Cable) Static 10mm
Operating Temperature -20~+70°C Storage Temperature -40~+80°C

Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • Wide Application
    LC to LC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
  • Exceptional Transmission Performance
    Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
  • Rigorously Quality Test
    Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
  • Quality Certifications
    Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Applications

Scenario 1:



Related Products:

Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

S7600-24X2Q, 24-Port Ethernet L3+ 10G Switch, 24 x10Gb SFP+, with 2 x40Gb QSFP+ Uplinks, Support MLAG, VXLAN

Cisco SFP-10G-LRM2 Compatible 10GBASE-LRM2 SFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Intel X710-BM2 Network Interface Card, 10G 2 × SFP+ Port , PCIe 3.0 X 8, Half & Full Bracket



Scenario 2:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch, 48 x100M/1000M/2.5GBASE-T, with 4 xGE/10GE SFP+ and 2 x40GE QSFP+ Uplink, Support BGP

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission







Reliable Transmission Quality with Carrier-Grade Cables


Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.





Addressing Various Indoor Installation Requirements



Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.



Questions & Answers

more+
  • What are the maximum transmission distances for 100G data using OS2 fiber?
    When utilizing a 1310nm transceiver, OS2 fiber can transmit 100G data up to a distance of 10km. However, with a 1550nm transceiver, the maximum transmission distance increases to 40km for the same data rate.
  • Is OS2 better than OS1?
    Yes, OS2 is considered better than OS1. OS1 cables have a higher attenuation rate of 0.36 dB/km, whereas OS2 cables have a lower attenuation rate of 0.22 dB/km. This lower attenuation rate allows OS2 cables to maintain a stronger signal over longer distances, making them the preferred choice for longer-distance applications.
  • I already bought 10G BIDI modules from your website, should I buy OS2 simplex patch cables or duplex patch cables?
    For your purchased 10G BIDI modules, opt for OS2 simplex patch cables.
See more

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

103 Reviews

4 stars

0 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (3)
  • Premium Service (1)
  • Shopping Experience (1)
  • High Reliability (2)
  • High Performance (1)
  • Good Price (1)
  • Fast Delivery (1)
  • l 1 China
    2024-03-26

    Exceptional value! Competitive pricing for top-quality fiber optic cable. Outstanding service, prompt responses, and reliable product. Highly recommend for anyone seeking affordability without compromising on performance. A trustworthy choice for all your networking needs. Will definitely return for future purchases!

    Length1m

    SeriesLC to LC OS2 PVC

    Verified Purchase

    Helpful

    0

  • LJ United States of America
    2023-08-14

    I've purchased fiber optic patch cords of different lengths and I'm continually impressed. The reliability of a consistent supplier makes reordering a breeze. Always my go-to choice! Flawless performance. Worked perfectly as soon as I unpacked it!

    Length1m

    SeriesLC to LC OS2 PVC

    Verified Purchase

    Helpful

    0

  • Martin G. United States of America
    2023-08-08

    Impressive rates and swift delivery, accompanied by amiable assistance, ensuring absolute client contentment. An exceptional experience for procuring fiber optic patch cables. Order received seamlessly. Grateful for the smooth transaction. All appears as anticipated, as per my knowledge.

    Length1m

    SeriesLC to LC OS2 PVC

    Verified Purchase

    Helpful

    0

Resources

  • Standard Fiber Patch Cables.pdf

  • Fiber Optic Patch Cables Quick Start Guide.pdf
