Intel I350-AM2 Based Network Interface Card, 1G Dual-Port SFP, PCIe 2.0 X 4, Half & Full Bracket

Product No :100609
US$ 97.00  US$ 129.00
Types
Accessory Models
60 in stock
Bulk Order Quotes Shop Online
1. Support of up to 8 VMs per port (1 queue allocated to each VM)
2. PCIe 2.0 x 4 Host Interface and 1GbE Dual-Port Transmission
3. IEEE802.3az for reduced power consumption during low link utilization periods
4. NC-SI (DMTF NC-SI) or SMBus for Manageability connection to BMC
5. IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications
See more

Specifications

1G Dual Port SFP Intel I350-AM2 Ethernet Network Interface Card

The network interface card (NIC) with 2×1Gb ports is built on the Intel I350-AM2 controller to enhance server connectivity and network virtualization. The adapter utilizes a PCIe 2.0 X 4 host interface, providing ample bandwidth for line rate traffic on 1Gb ports. The NIC offers enhanced virtualization capabilities, making it an ideal choice for virtualized environments. Its design ensures broad interoperability, optimized performance, and improved flexibility for enterprise IT, cloud, and communication network solutions.



Ports Dual Controller Intel I350-AM2
Supported Ethernet Speeds 1G Host Interface PCIe 2.0 X 4
Cabling Type SFP Transceiver, AOC and DAC Link Rate 5.0 GT/s
Connectivity (VT-c) Yes
OS Support
Windows, Linux, VMware, FreeBSD
Bracket Height Half & Full
Max. Power Consumption		 3.3w
Storage Humidity 90% max. non-condensing relative humidity at 35ºC
Storage Temperature		 -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity 85% max. non-condensing relative humidity Operating Temperature 0 °C to 55 °C (32 °F to 131 °F)
Card PCB Dimensions (WxD) 128*68.1*1.6mm RoHS R6 Compliant Yes
Quality Certifications

Features

Applications

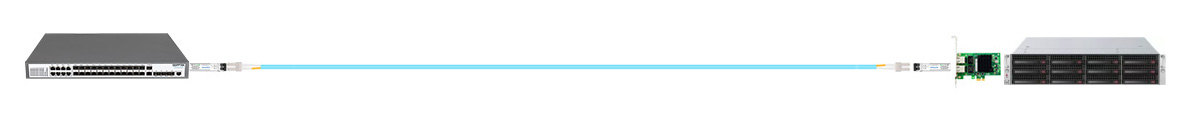

Scenario 1

Related Products:

S5300-24S8T6X, 24-Port Ethernet Managed SFP Switch, 24x GE SFP Ports, 8x GE RJ45 with 6x 10GE SFP+ Uplink, Support Stacking

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

LC UPC to LC UPC Duplex Om3 2.0mm PVC Fiber Optic Patch Cable 0.5m

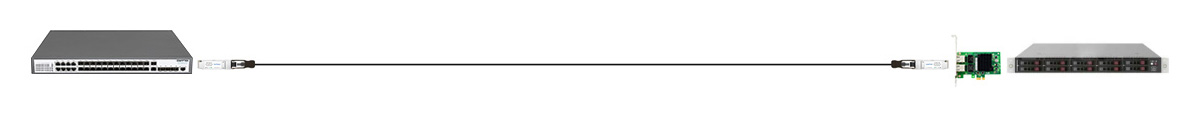

Scenario 2

Related Products:

S5300-24S8T6X, 24-Port Ethernet Managed SFP Switch, 24x GE SFP Ports, 8x GE RJ45 with 6x 10GE SFP+ Uplink, Support Stacking

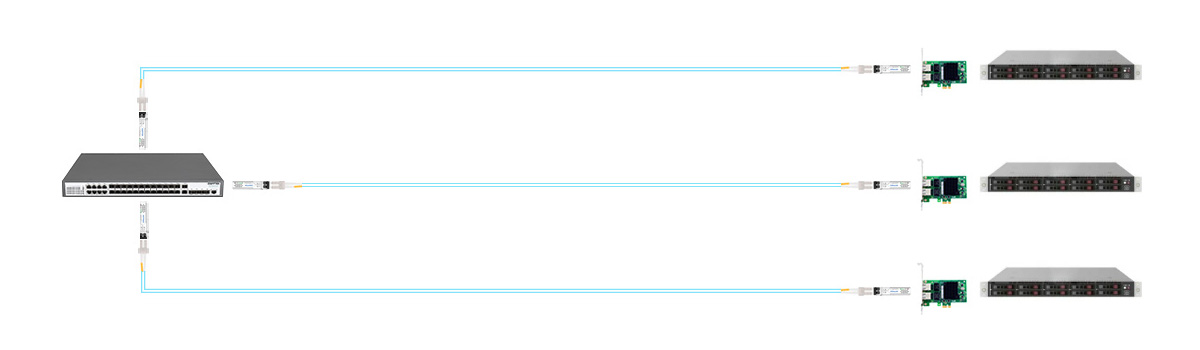

Scenario 3

Related Products:

S5300-24S8T6X, 24-Port Ethernet Managed SFP Switch, 24x GE SFP Ports, 8x GE RJ45 with 6x 10GE SFP+ Uplink, Support Stacking

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

LC UPC to LC UPC Duplex Om3 2.0mm PVC Fiber Optic Patch Cable 0.5m

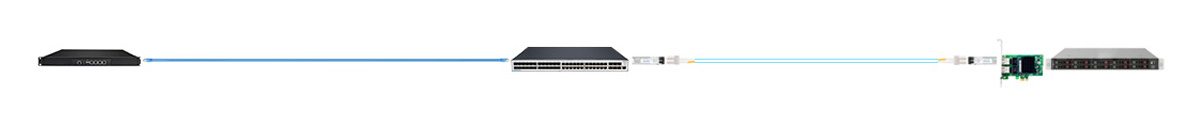

Scenario 4

Related Products:

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24x GE RJ45 Ports, 24x GE SFP Ports with 6x 10GE SFP+ Uplink, Support Stacking

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

LC UPC to LC UPC Duplex Om3 2.0mm PVC Fiber Optic Patch Cable 0.5m



Product details

Flexible Server Connectivity with Intel I350-AM2 Chip



Boost agility in Cloud, Communications and Enterprise IT networks with the versatile and interoperable Intel I350-AM2 Chip





Simplified I/O Virtualization with Intel VT



Intel VT eliminates VMM channels, and improves I/O performance, and availability while reducing overall cost



Simplifying FC SAN Architecture with FCoE



FCoE allows direct FC communication over Ethernet, reducing the complexity and costs of SAN architecture





Intel Ethernet Adapters Compatible with Mainstream Servers

Intel Ethernet adapters work with Dell, HP, IBM, Supermicro, Inspur, Lenovo servers, and other mainstream devices



Compatibility of Intel Ethernet Adapters with Major OS

Intel Ethernet Adapters are compatible with various network operating systems including Windows, Linux, VMware, FreeBSD, and UEFI
