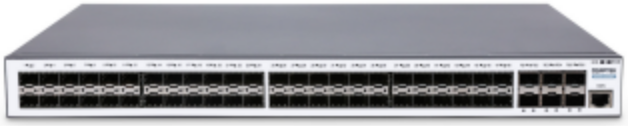

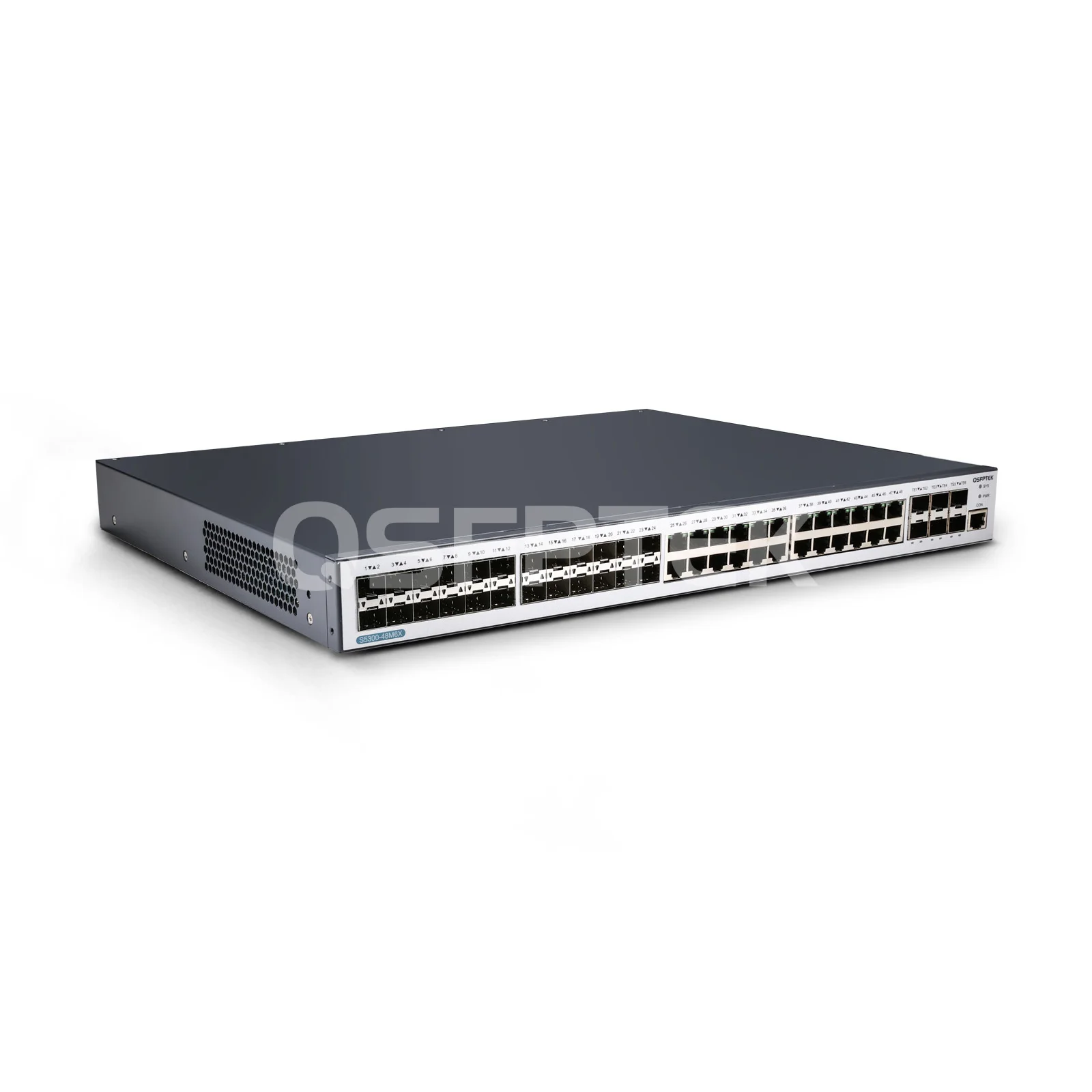

S5300-48M6X, 48-Port Gigabit Ethernet Managed L3 Switch, 24x 1G RJ45 Ports, 24x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking

Product No :100492
US$ 1176.90  US$ 1499.00
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=208E5E00535A1EA1A1D70B4E6B9D9BCF
-
+
1. Low-power and 2 built-in smart fans design support left-to-right airflow
2. Industry-level EAPS and ERPS for 50ms recovery time
3. 1+1 redundant hot-swap AC 220V power supply for long-lasting operation
4. Supports ACL, QinQ, QoS, ISSU, IPv6, VLAN, LACP, etc.
5. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
6. Supports Ethernet OAM, 802.3ah, 802.1ag and ITU-Y.1731, etc.for management
7. Supports IEEE 802.1x, Radius, Tacacs+, etc.for security
8. Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability
9. Carrier-Level Ethernet Access Switch for carrier's IP MAN and enterprise networks
See more

Specifications

S5300-48M6X, 48-Port Gigabit Ethernet  Managed  L3 Switch,  24x 1G  RJ45 Ports, 24 x 1G SFP Ports, with 6x 10G SFP+  Uplinks , Support Stacking



The S5300-48M6X is a managed access Ethernet L3 switch with 24x GE RJ45, 24x GE SFP downlink, and 6x 10GE SFP+ uplinks. With the ability to support the stacking of up to eight S5300 Series switches, these stackable switches can be seamlessly treated as a single logical entity, facilitating convenient management. This 48-port switch is equipped with 1+1 redundant hot-swappable power slots and built-in 2 intelligent fans to enhance network reliability. Effortlessly control and manage the switch through both CLI and WEB interfaces. The S5300-48M6X layer 3 managed switch is an excellent choice for enterprise network requirements, campus networks, and SMBs.



Part Number S5300-48M6X Vendor Name QSFPTEK
Ports 24x 1G RJ45 | 24x 1G SFP | 6x 10G SFP+ Packet Buffer 2 MB
Switching Capacity 216 Gbps Forwarding Rate 162 Mpps
MAC Address 32K ARP Table 8189
VLAN IDs 4K Jumbo Frame 9K
Flash Memory 16 MB RAM 512 MB
Airflow Left-to-right Fan 2 built-in fans
Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 hot-swap AC power supply (default)
1+1 redundant power slots, DC optional
Stackability 8 MTBF >200,000 hours
Dimensions (H x W x D) 44.5 x 442.5 x 350 mm
(1.75 x 17.42 x 13.78")
Weight 5.5 kg
Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. Comprehensive IPv6 Solutions
    Supports the IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6 and Path MTU discovery, IPv6 multicast with MLD and MLD Snooping support.
  • 2. Enhanced QoS
    Support CAR traffic restriction and 802.1P/DSCP priority re-marking, support SP, WRR, SP+WRR and other queue scheduling methods, support Tail-Drop, WRED and other congestion avoidance mechanisms.
  • 3. High-reliability
    Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability. Supports redundant 1+1 power backup and static/LACP link aggregation, as well as cross-service card link aggregation.
  • 4. Easy Management and Maintenance
    Supports CLI/Telnet/SSH/SSL/SNMP/WEB for easy management.

Applications

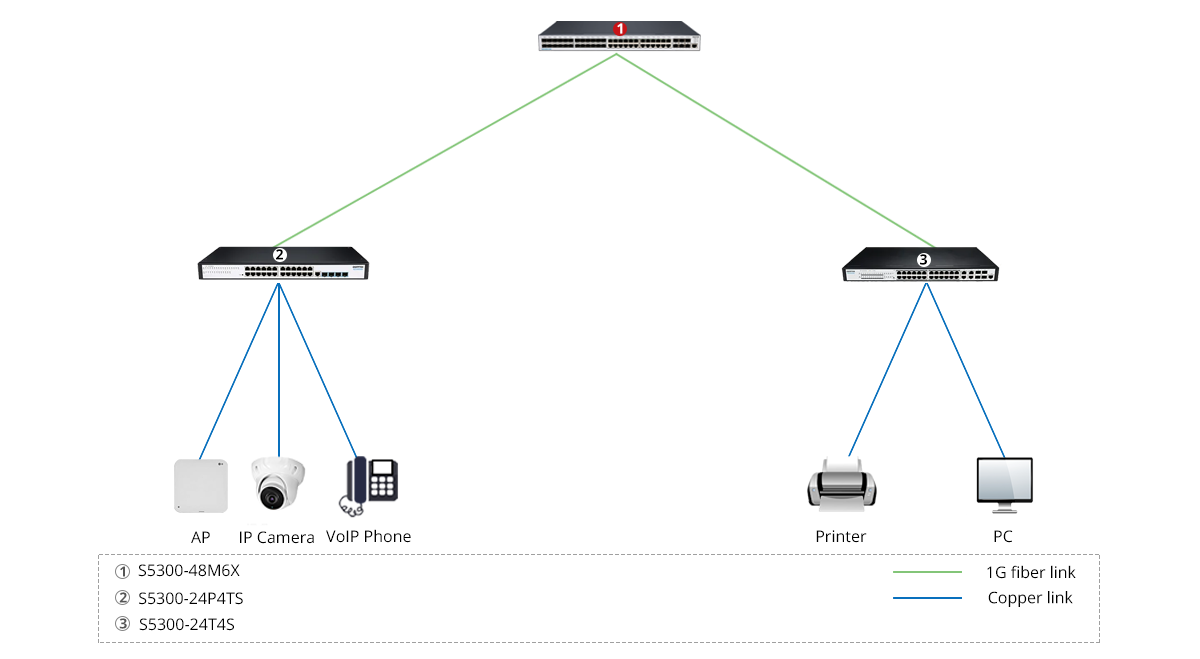

Scenario 1:




Scenario 2:



Related Products:

Network Switches:

S7300-48X2Q4C, 48-Port Ethernet L3 Campus Switch, 48x 10Gb SFP+, with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks, Stackable

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48x GE RJ45 Ports with 6x 10GE SFP+ Uplink, Support Stacking



10G fiber link:

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable

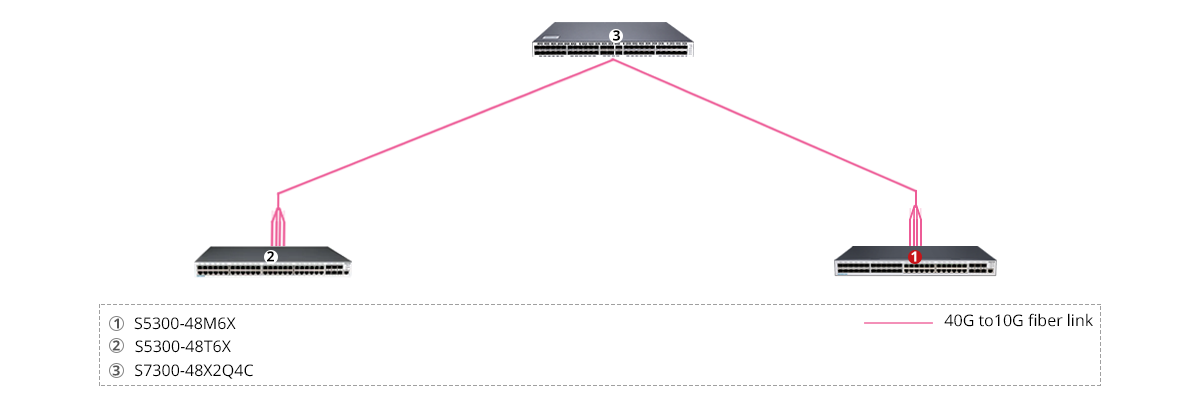

Scenario 3:


Related Products:

Network Switches:

S7300-48X2Q4C, 48-Port Ethernet L3 Campus Switch, 48x 10Gb SFP+, with 2x 40Gb QSFP+ and 4x 100Gb QSFP28 Uplinks, Stackable

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48x GE RJ45 Ports with 6x 10GE SFP+ Uplink, Support Stacking



40G to 10G fiber link:

Cisco QSFP-40G-SR4 Compatible 40GBASE-SR4 QSFP+ 850nm 150M DDM MTP/MPO MMF Optical Transceiver Module

Cisco SFP-10GB-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable

Product details

1G/10G High-capacity Interface Combinations



S5300-48M6X switch is available in a variety of high-capacity interface combinations, including high-density 48x GE RJ45 ports and 6x 10GE SFP+ uplink ports, providing 216 Gbps switching capacity and 162 Mpps forwarding performance.

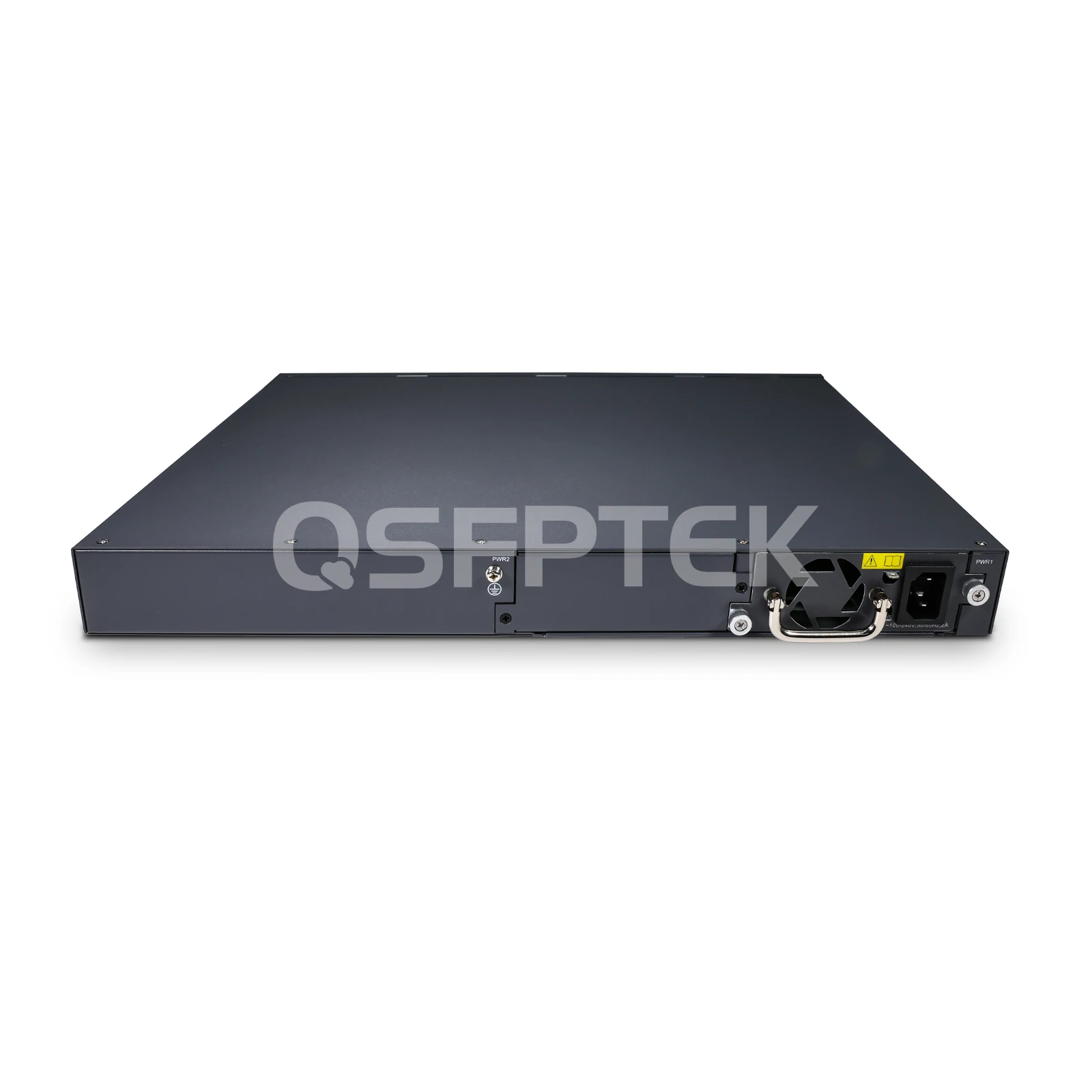

Smart Fans and Redundancy Power Design

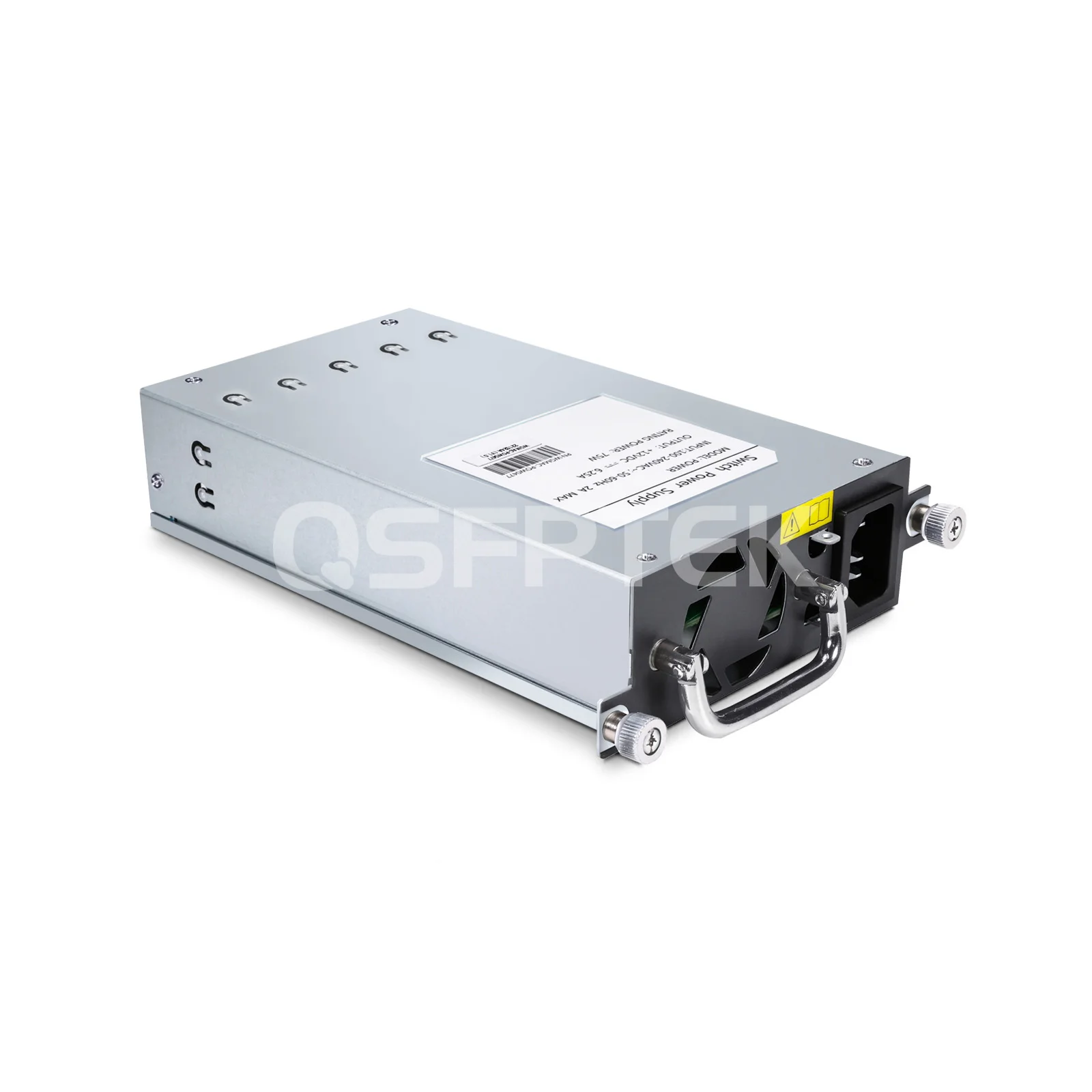

Hot-swappable 1+1 redundant power supplies allow power supplies to be replaced without shutting down the system. The airflow design from left to right can intelligently adjust the operation of the fan to control energy consumption and increase the service life of the fan.

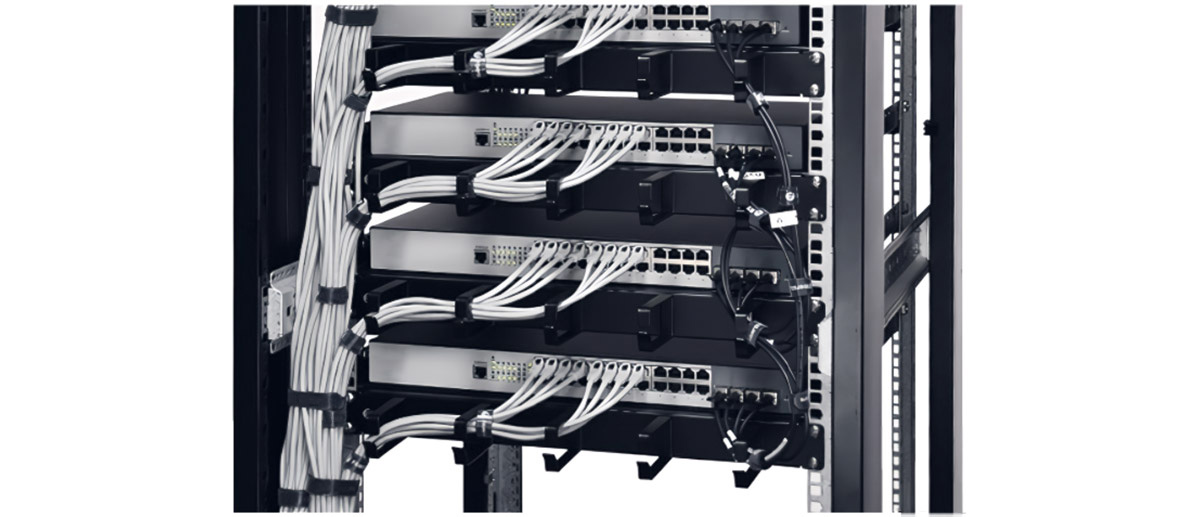

8 Units Stackability to Increase Network Capacity



Use 10G ports for stacking via transceiver or special cables to increase port capacity, the maximum stack number is up to 8. These stackable switches can be logically regarded as a switch, which makes management more convenient.






QSFPTEK S5300/S5310 Series L3 Switches Options





Model S5300-24T6X S5310-48P6X S5300-48T6X S5300-48M6X S5300-24S8T6X
RJ45 Ports 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T 24x 10/100/1000BASE-T 8x 10/100/1000BASE-T
Fiber Ports 6x 10G SFP+ 6x 10G SFP+ 6x 10G SFP+ 24x 1G SFP | 6x 10G SFP+ 24x 1G SFP | 6x 10G SFP+
PoE Not Support IEEE 802.3af/at Not Support Not Support Not Support
Management Layer L3 Managed L3 Managed L3 Managed L3 Managed L3 Managed
Power Supply 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan 2 Built-in Fans 3 Built-in Fans 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans
Stackability 8 Units 8 Units 8 Units 8 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP Static routing, RIP v1/v2, OSPF, BGP
Security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security IGMP Snooping, DHCP snooping, Port security
IPv6 IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+ IPv6 Static Routing, RIPng, OSPFv3, BGP4+
Reliability BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR BFD, QoS, LLDP, VRRP, PBR
