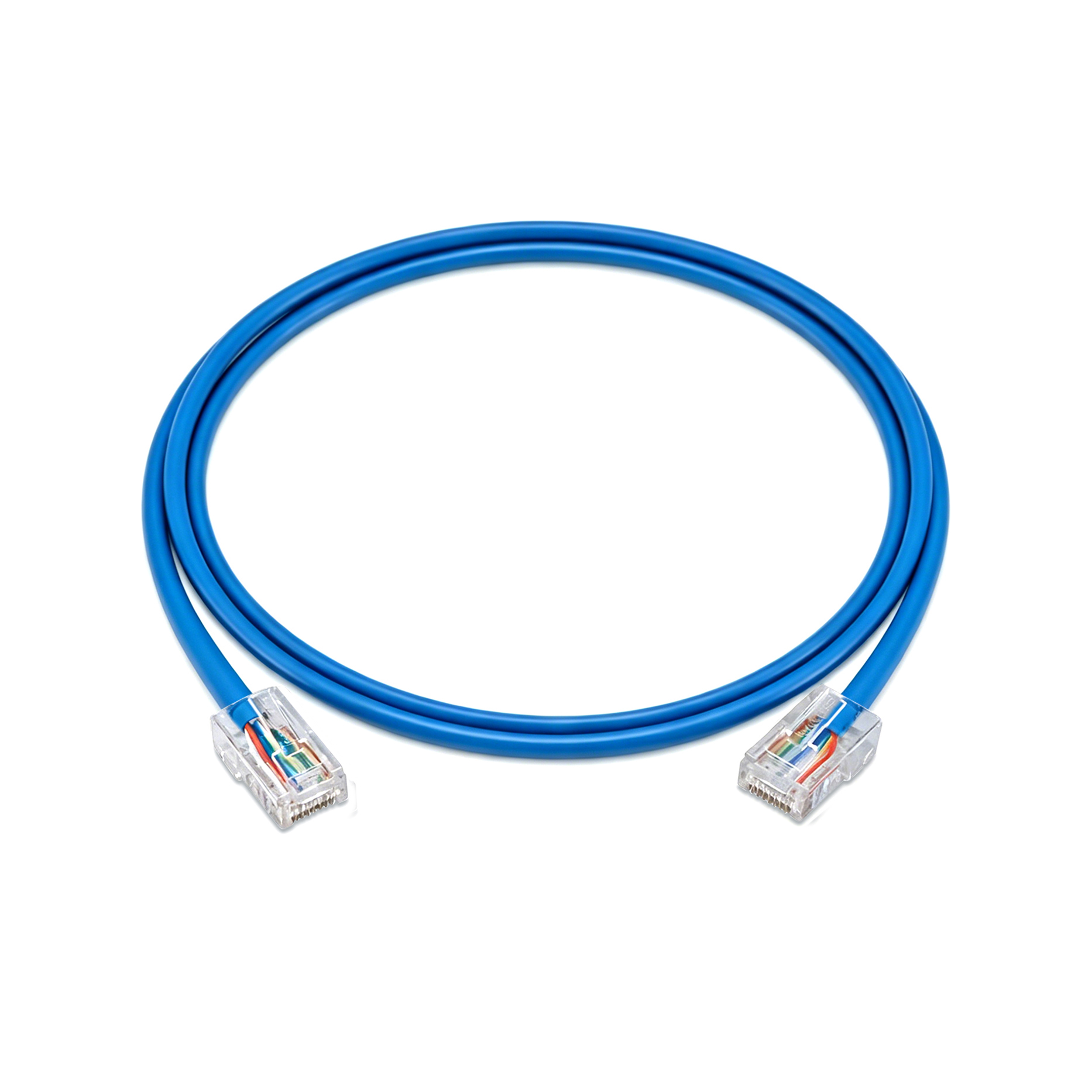

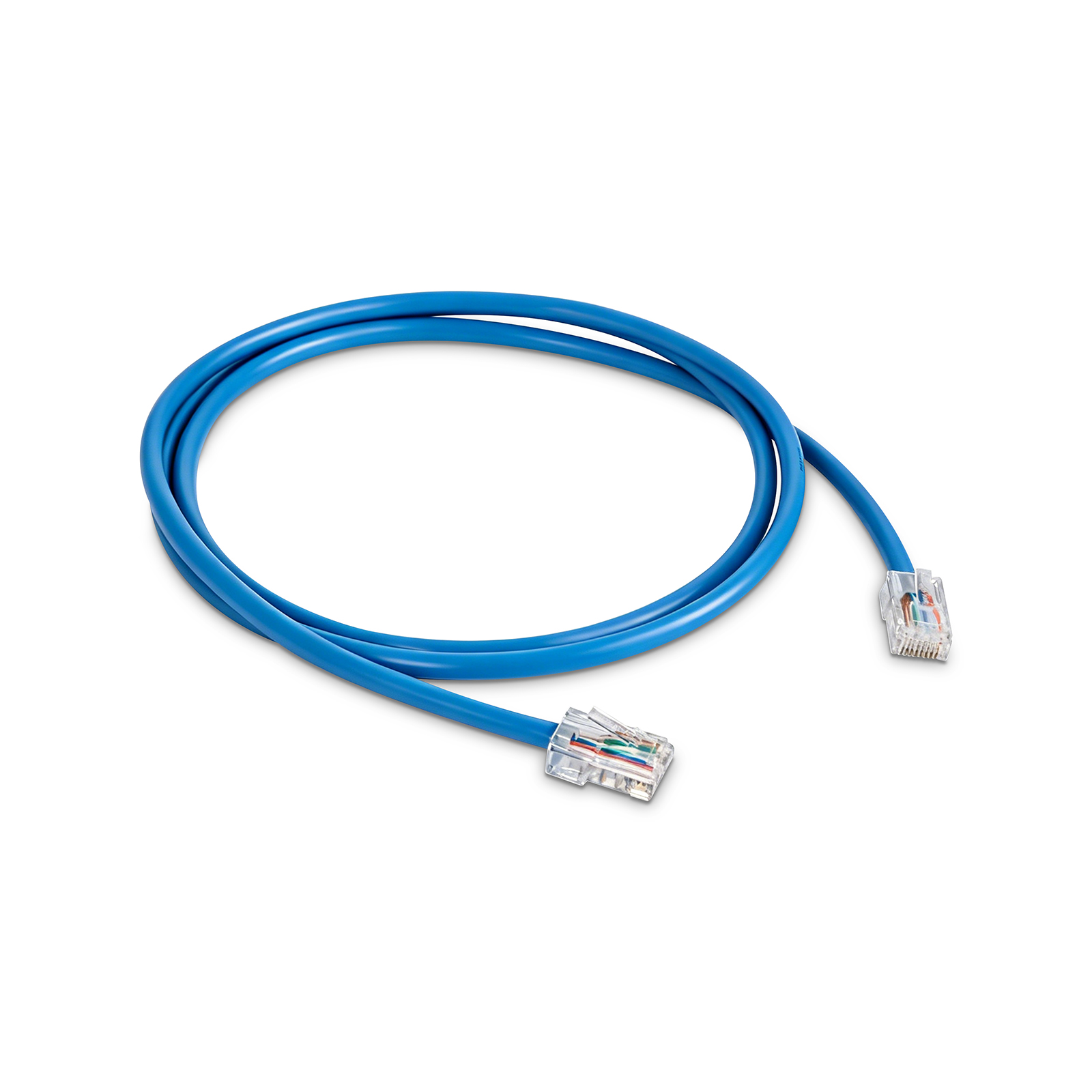

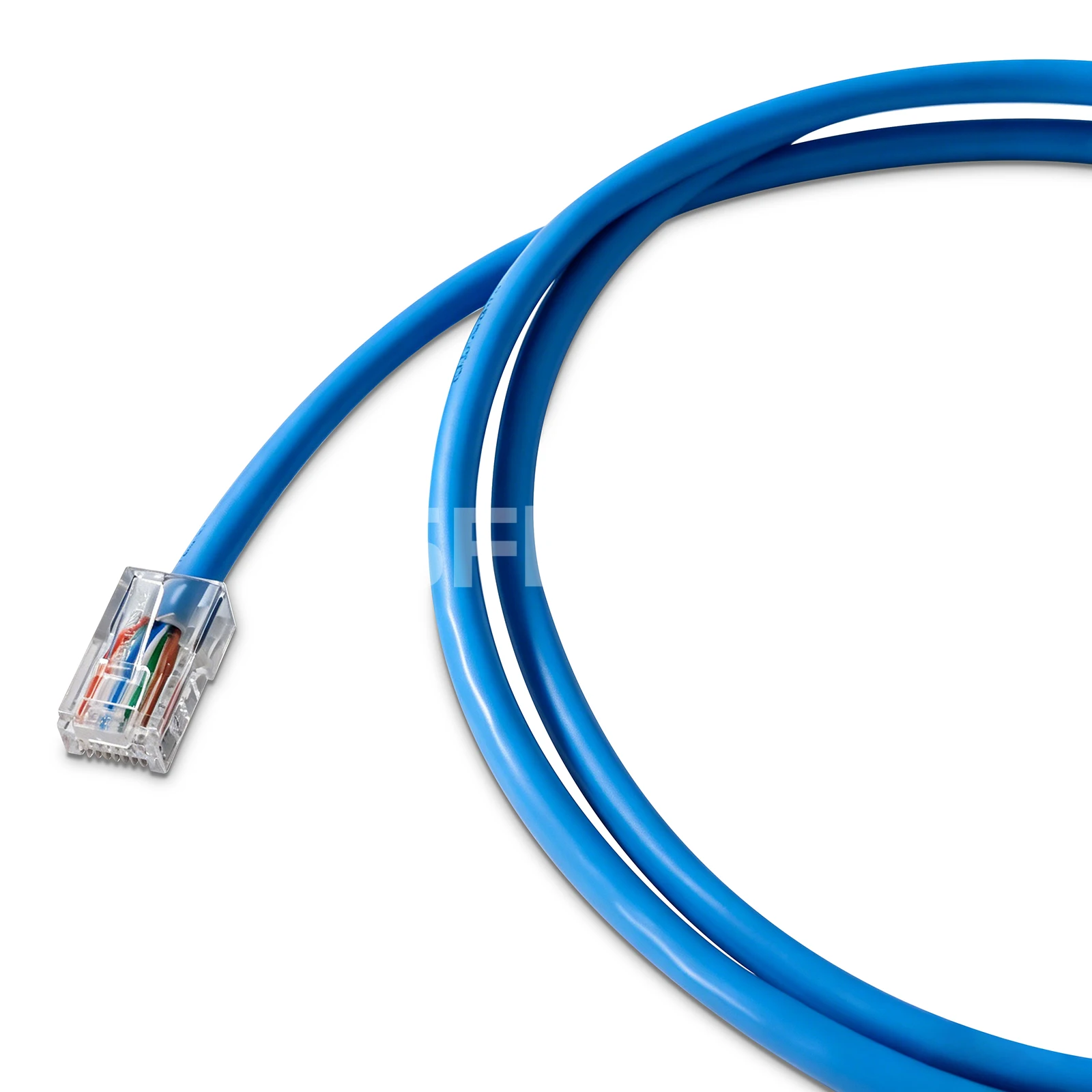

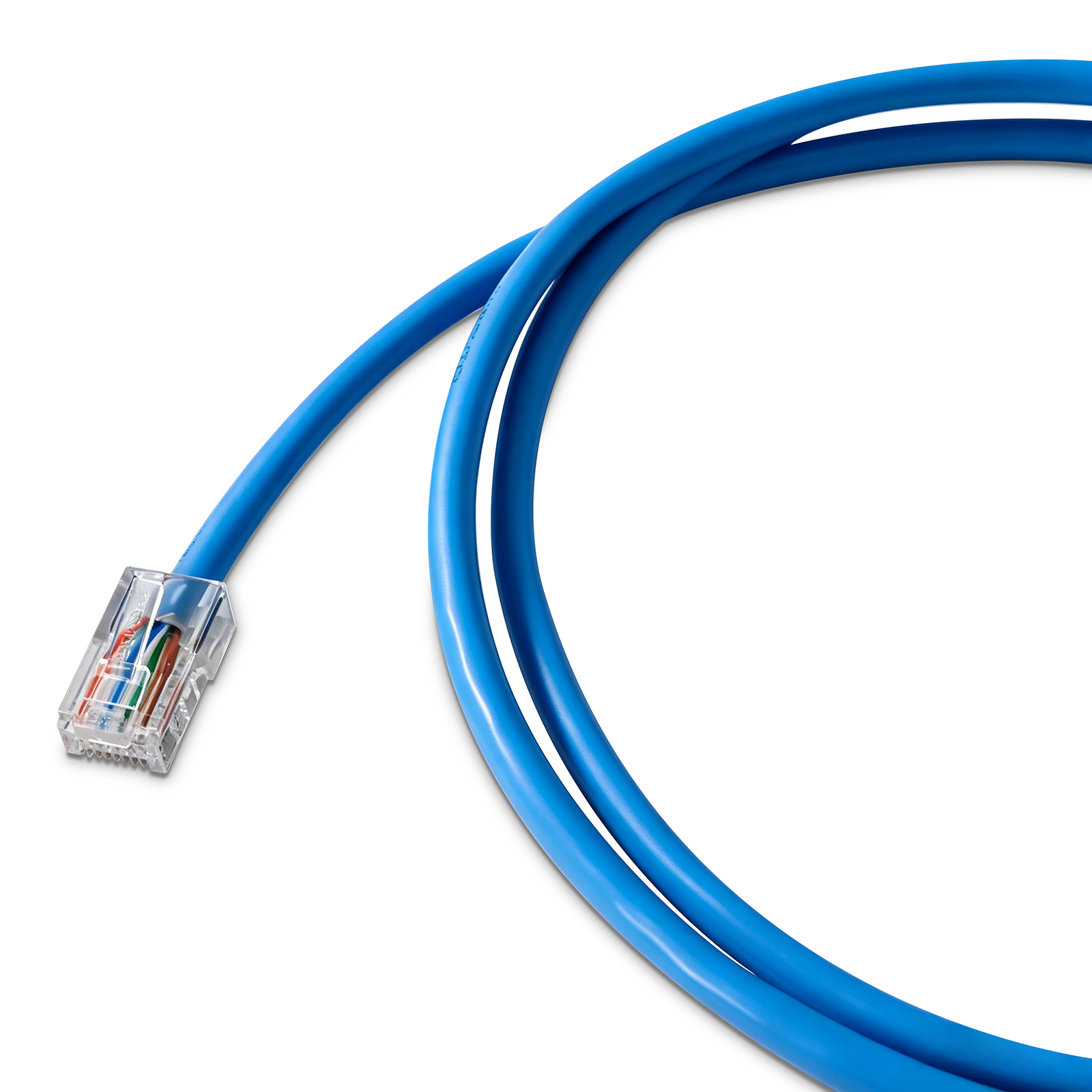

1ft (0.3m) Cat5e Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue

Product No :100633

US$ 1.50 ~~US$ 3.00~~

Types

Cat5e

Length

1ft (0.3m) 1.5ft (0.45m) 3ft (0.9m)

100 in stock

Bulk Order Quotes Shop Online

1. Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) and Reach Speeds up to 250MHz with 1G Capabilities
2. Surpasses ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class E Standards for High-quality Performance
3. Tested for Performance Using Fluke and Wired T568B Methods
4. Strain Relief and a Flexible Boot for Easy Moves, Additions, and Changes

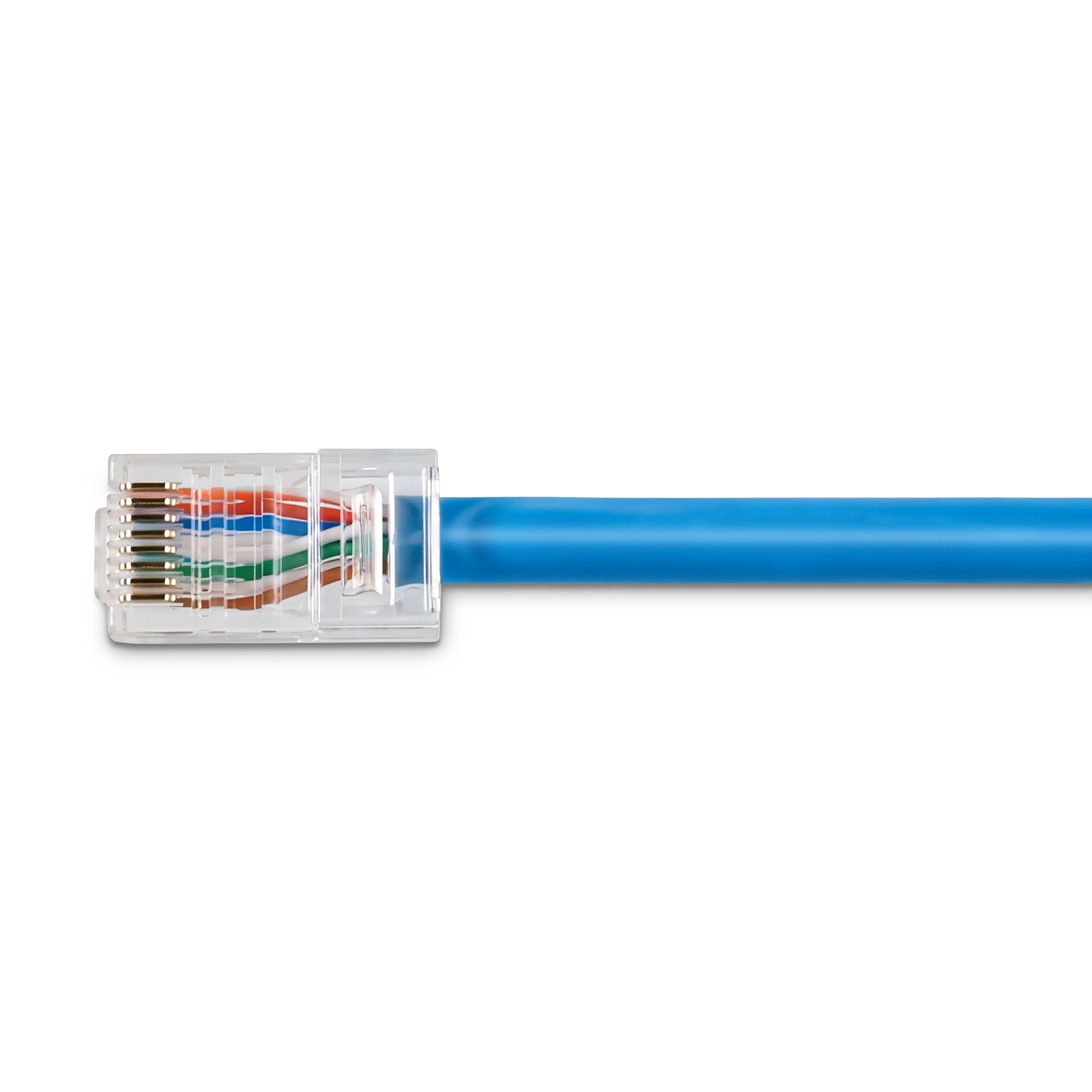

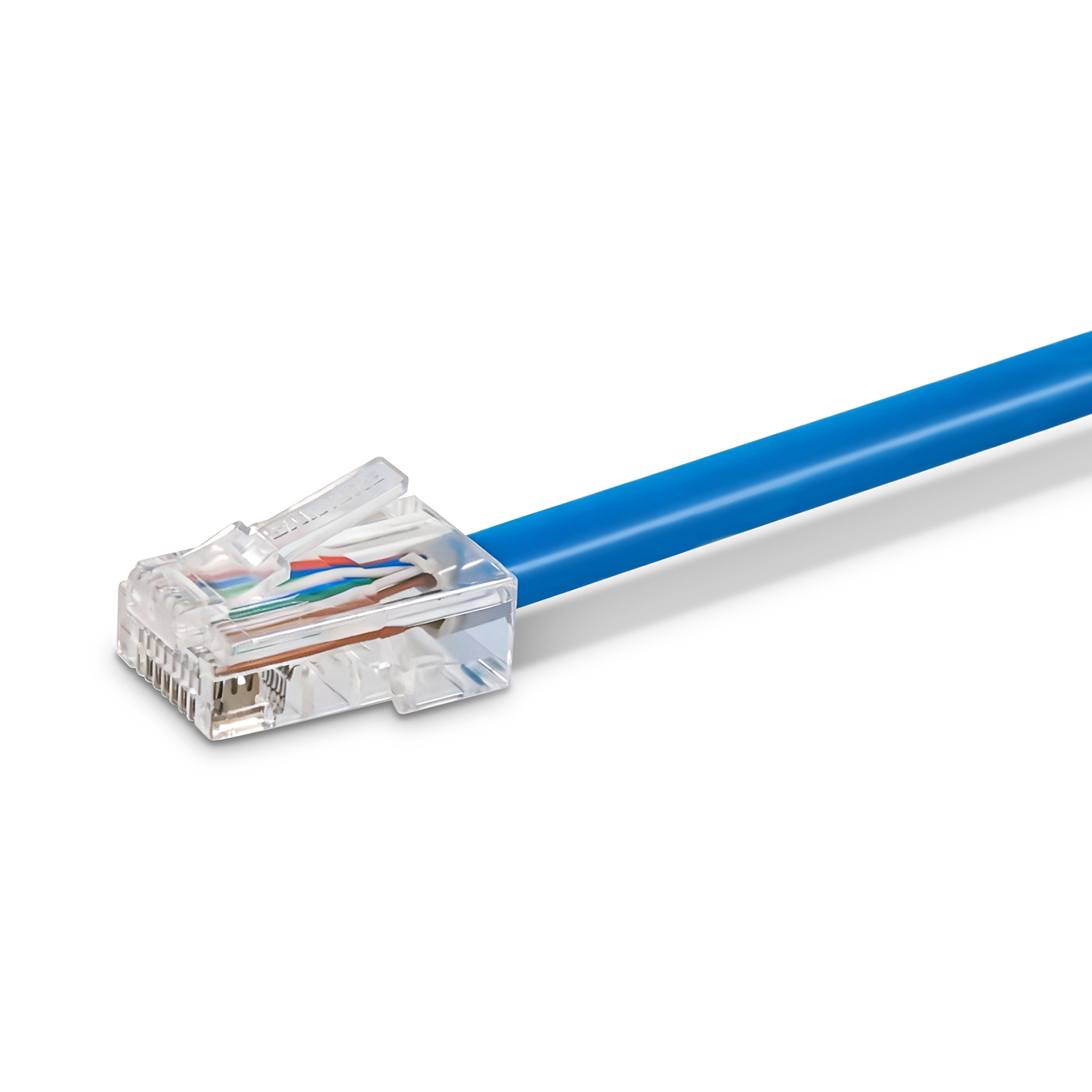

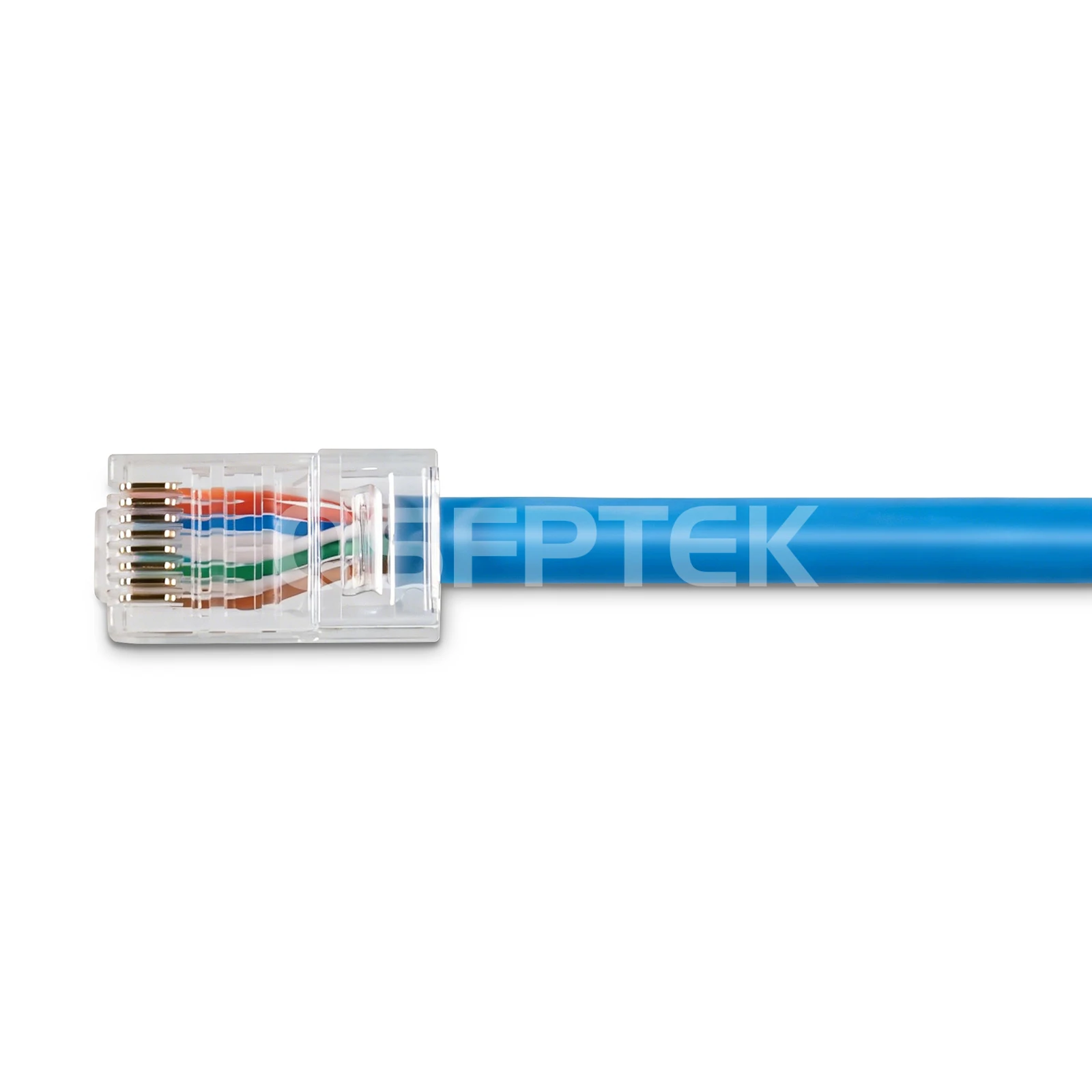

5. Made with Stranded Cable and RJ45 Modular Plugs That Have 50μ'' Gold-plated Contacts
6. Application for Voice/Video/VoIP Systems in Local Area Network
7. Compatible with Current and Future Category 5e/5 Applications

Specifications

Cat5e Ethernet Network Patch Cable Snagless Unshielded (UTP), 24AWG, 1000Base-T

The Cat5e UTP patch cable is equipped with 24AWG stranded copper cable twisted in an unshielded pair, with a high-performance modular plug at both ends. Its snagless design safeguards the RJ45 connectors' locking clips from any harm or breakage during installation. This cable surpasses the Cat5e Ethernet network cable standard, providing a cost-effective solution for indoor Gigabit Ethernet data center applications, and supports up to 1000Mbps and 250MHz within 100 meters of cable.

Cable Type	Cat5e Snagless	Shielding Type	Unshielded
Cable Outer Jacket	PVC CM (Round)	Length	1ft (0.3m) (Including Plugs)
Data Rate	10/100/1000BASE-T	Maximum (Tested) Frequency	250MHz
Conductor Type	Stranded Pure Bare Copper	Connectors	RJ45 (Male)
Gauge (AWG)	24 (7/0.20mm)	Cable Outer Diameter	5.5mm ± 0.4mm
PoE Compatibility	PoE/PoE+/PoE++	Wire Scheme	T568B, Straight
Operating Temperature	-20 to +75°C	Installation Temperature	-10 to +50°C

Quality Certifications

Features

Applications

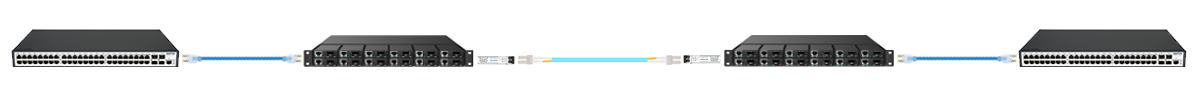

Scenario 1

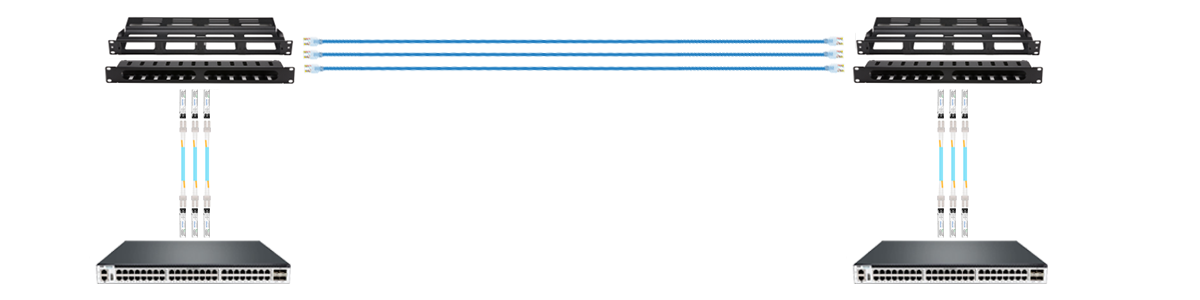

Scenario 2

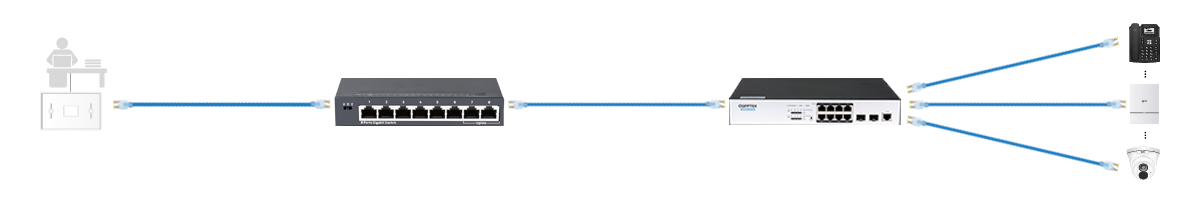

Scenario 3

Product details

High-Bandwidth Transmission

Supports a maximum bandwidth of 250MHz at 1Gbps, making it ideal for Fast Ethernet and Gigabit Ethernet.

transceiver compatibility tests

Multiple Shielded Ethernet Cabling

The cable is easy to plug, and well-protected with an RJ45 modular plug and PVC jacket, which greatly improves the service life of the cable, making it highly compatible with routers, switch boxes, network printers, and other devices.
