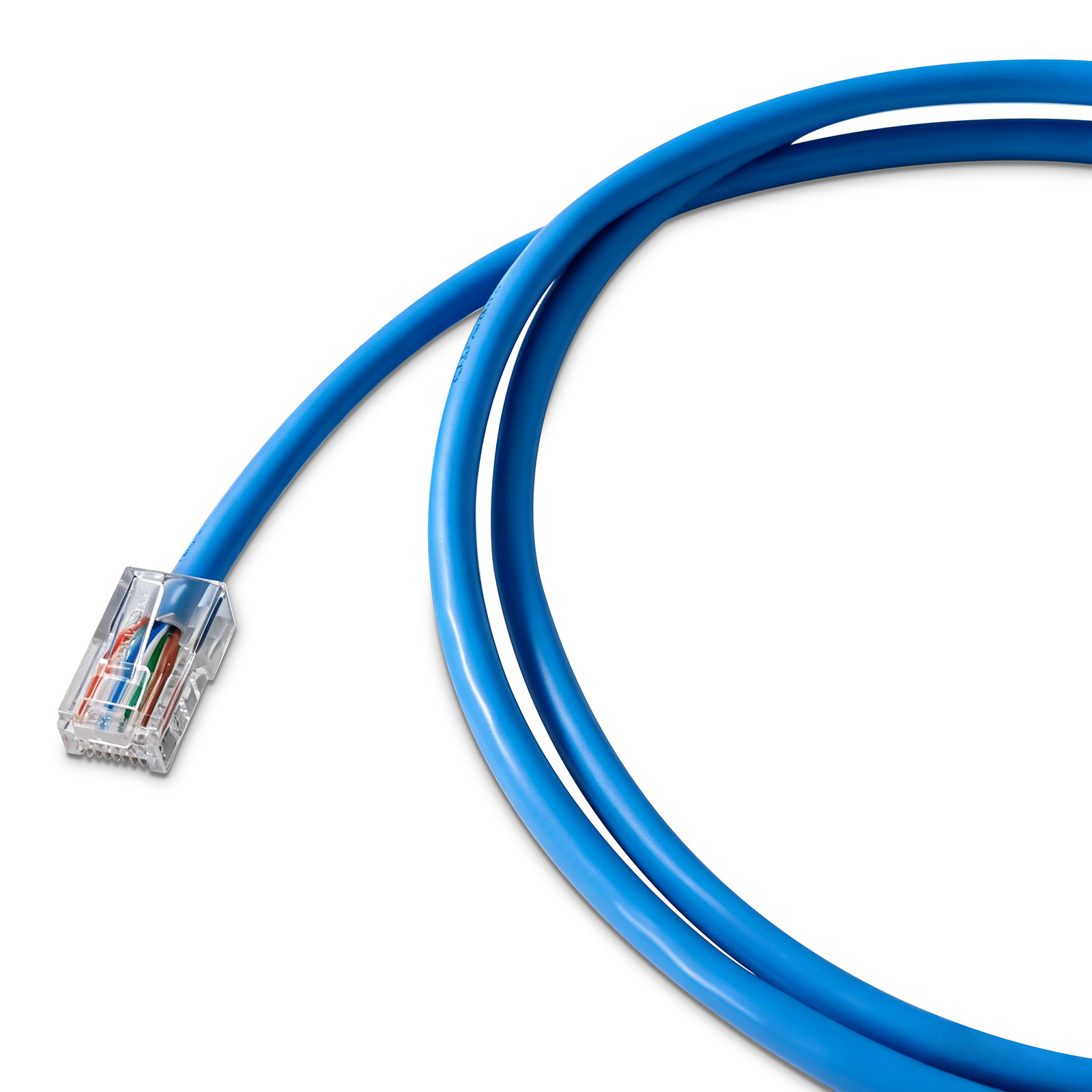

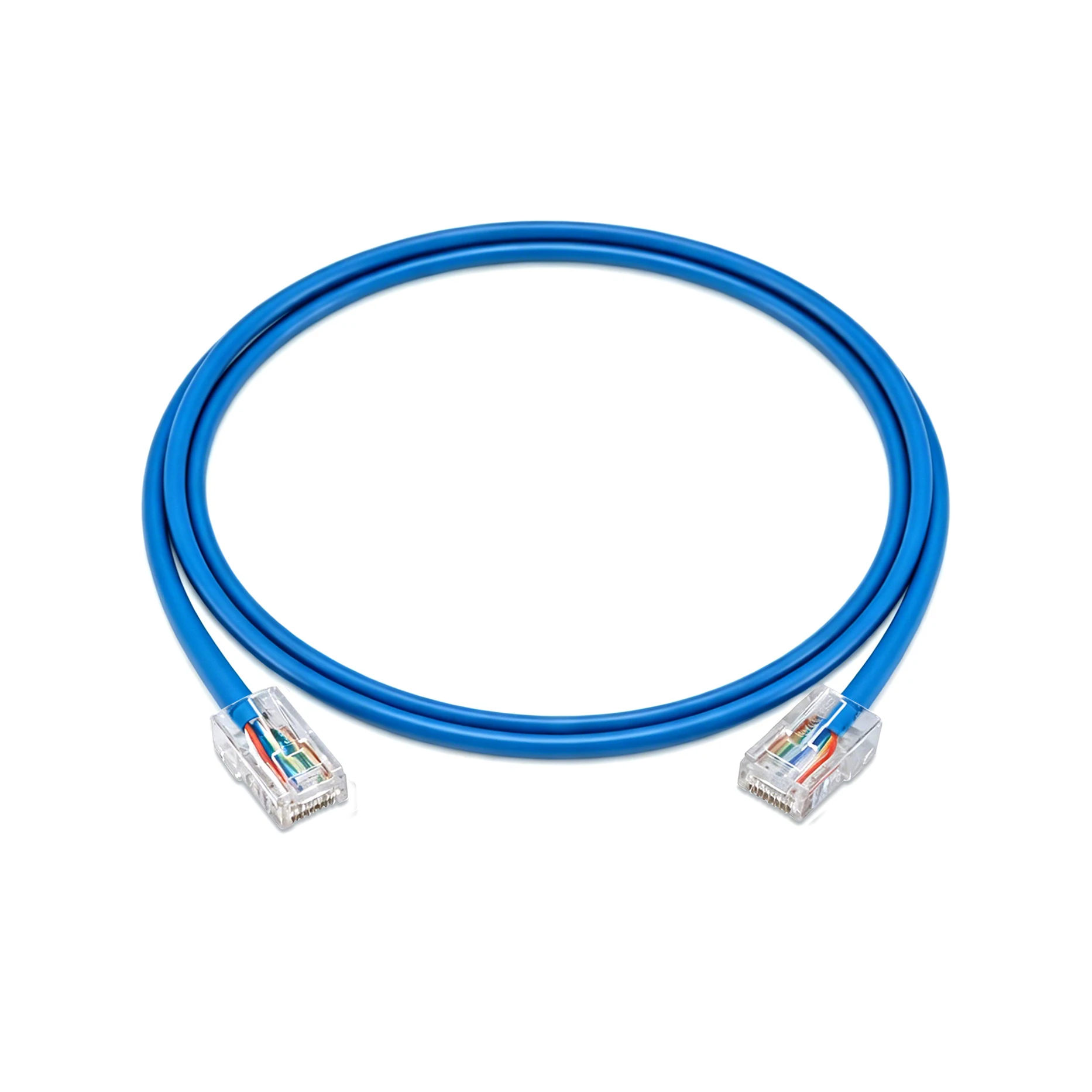

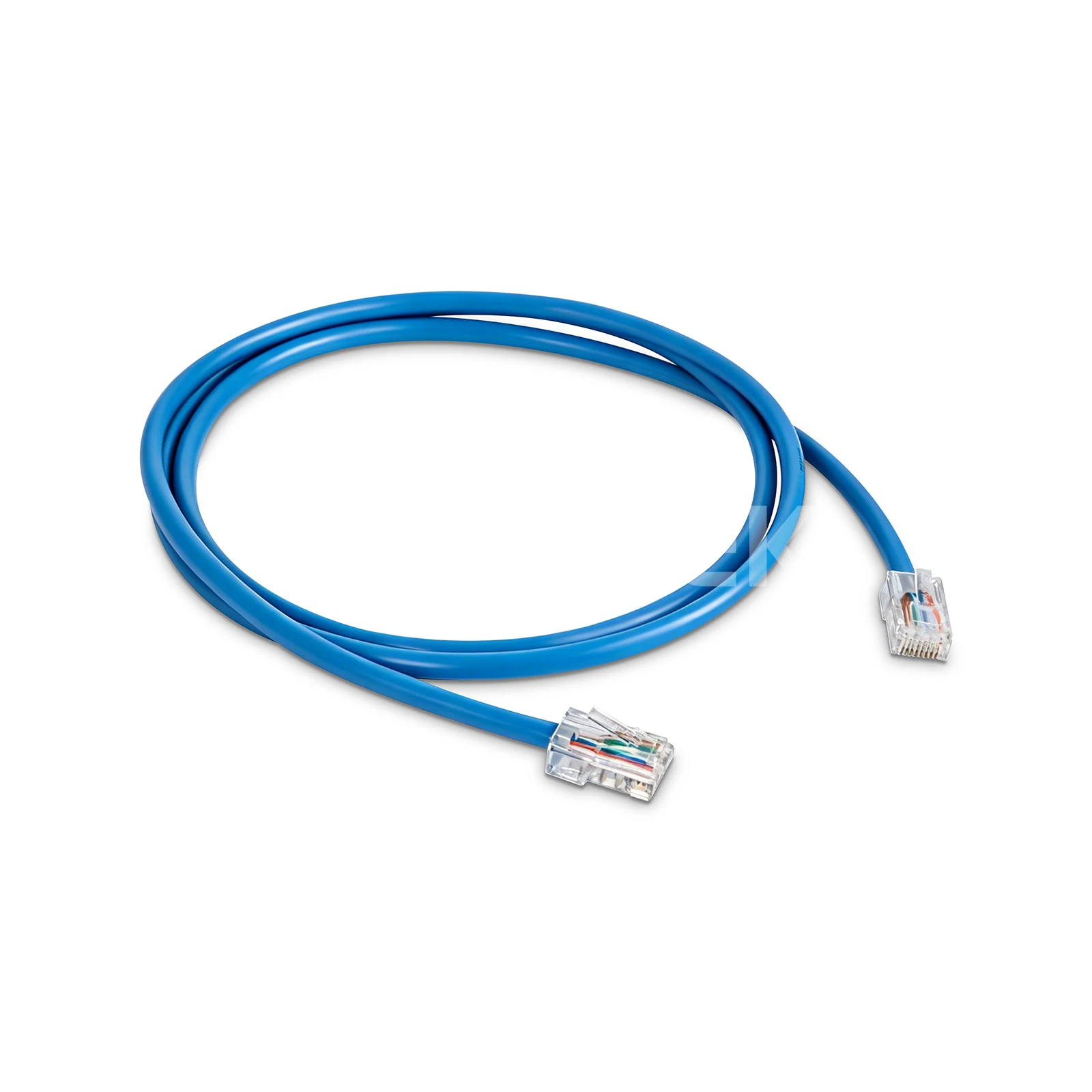

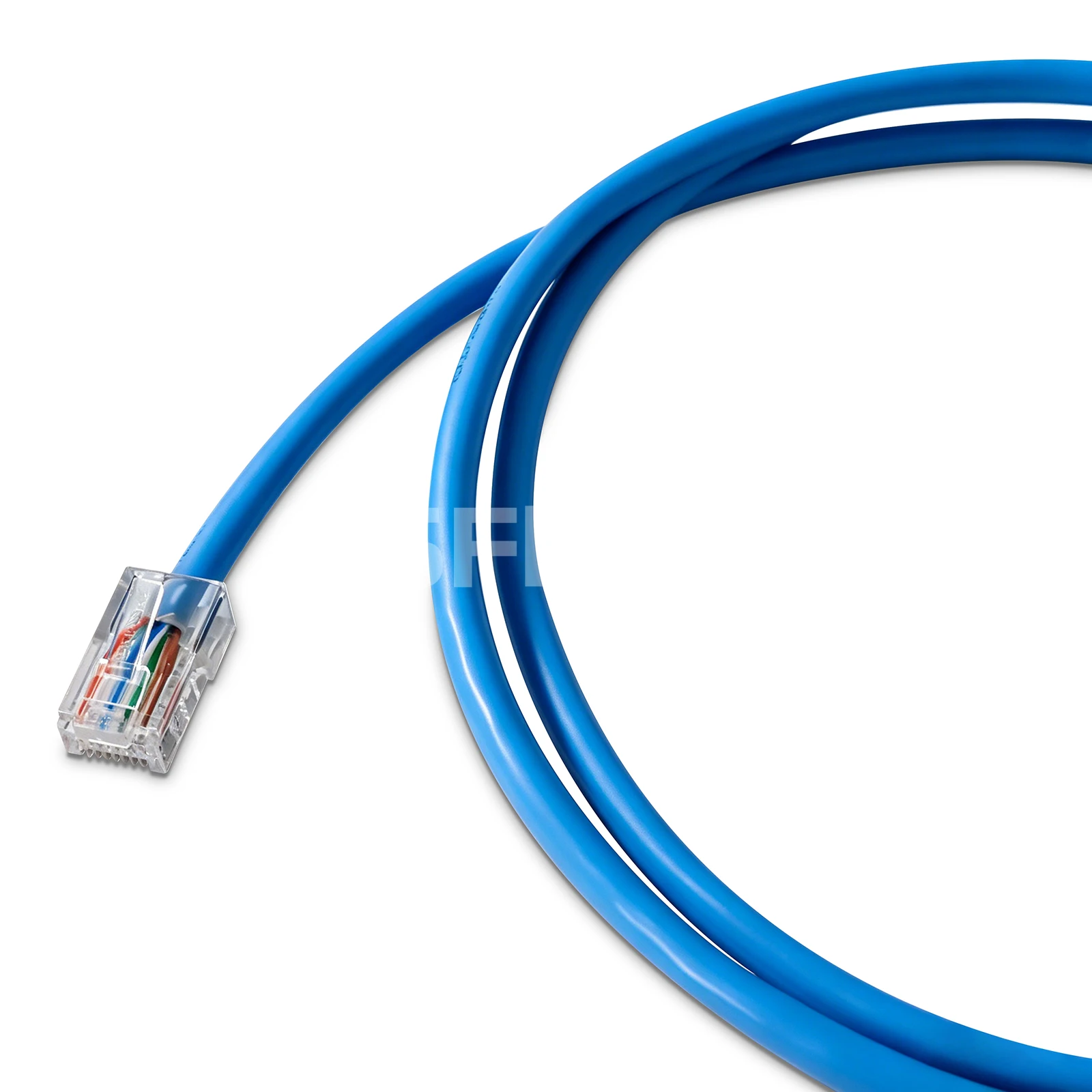

1.5ft (0.45m) Cat5e Network Ethernet Patch Cable Snagless Unshielded (UTP), PVC CM, Blue

Product No :100636
US$ 2.00  US$ 2.90
100 in stock
;jsessionid=2E1F5E9F6026C2CADB8CEE9E6B541866
-
+
1. Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) and Reach Speeds up to 250MHz with 1G Capabilities
2. Surpasses ANSI/TIA-568-D.2 Category 5 and ISO 11801 Class E Standards for High-quality Performance
3. Tested for Performance Using Fluke and Wired T568B Methods
4. Strain Relief and a Flexible Boot for Easy Moves, Additions, and Changes

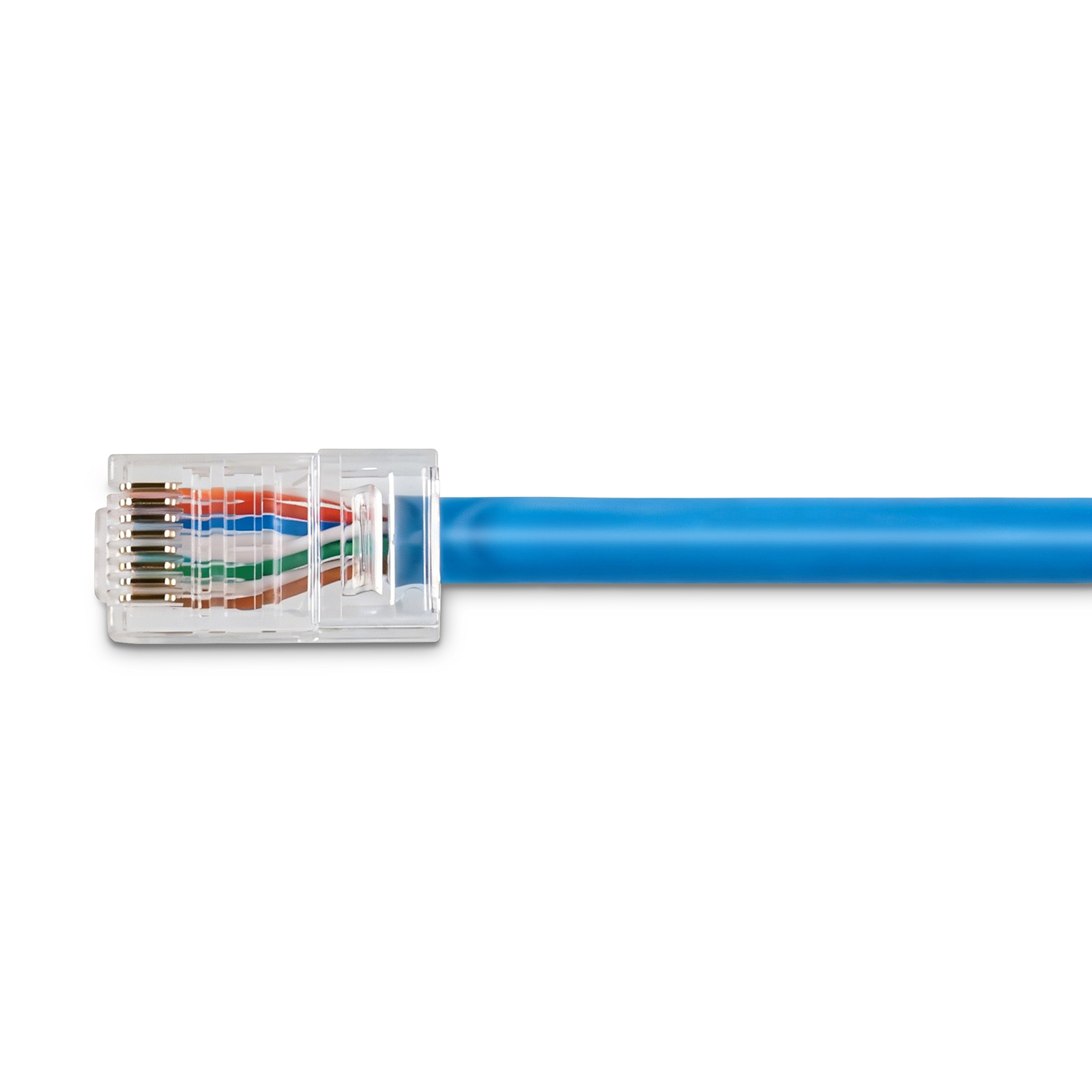

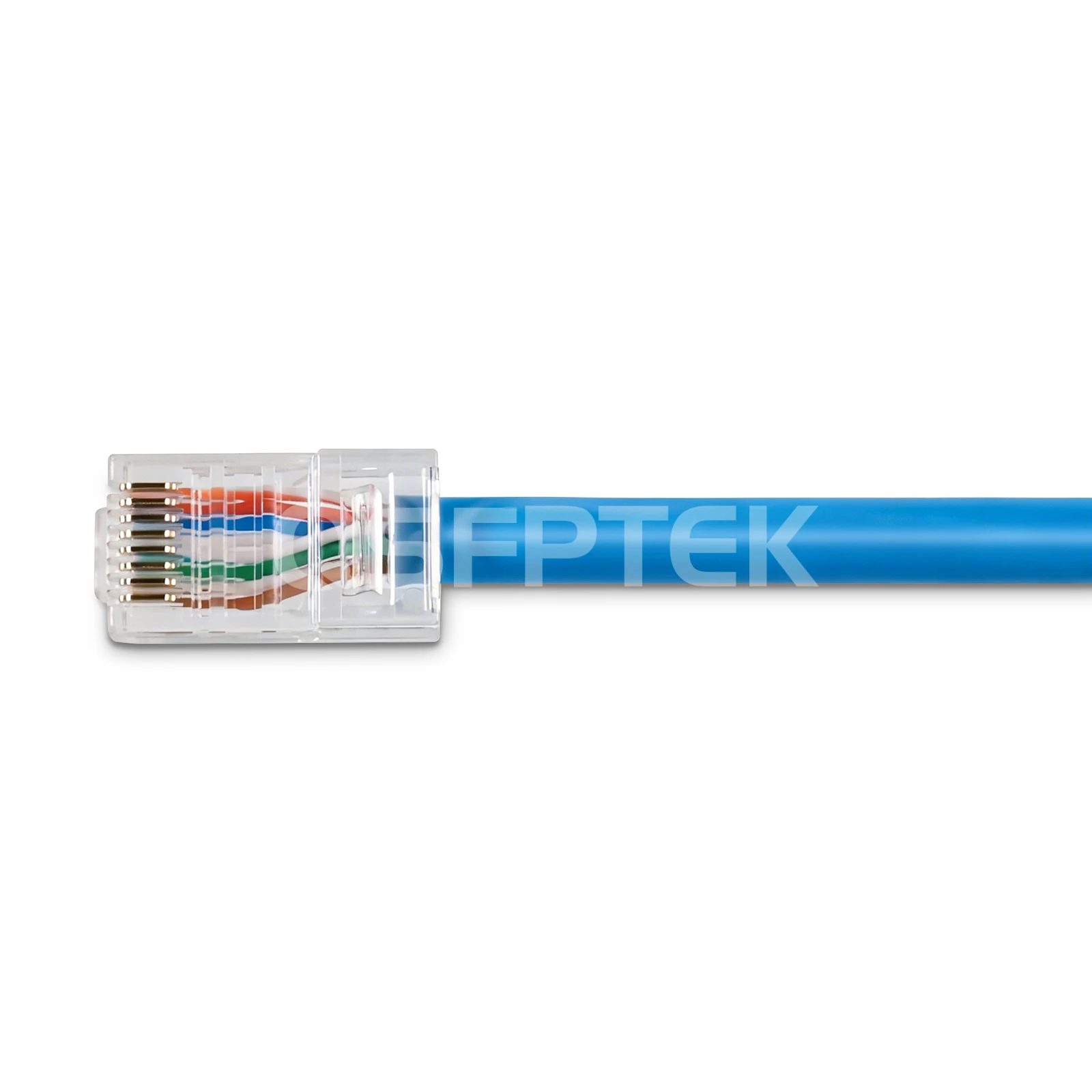

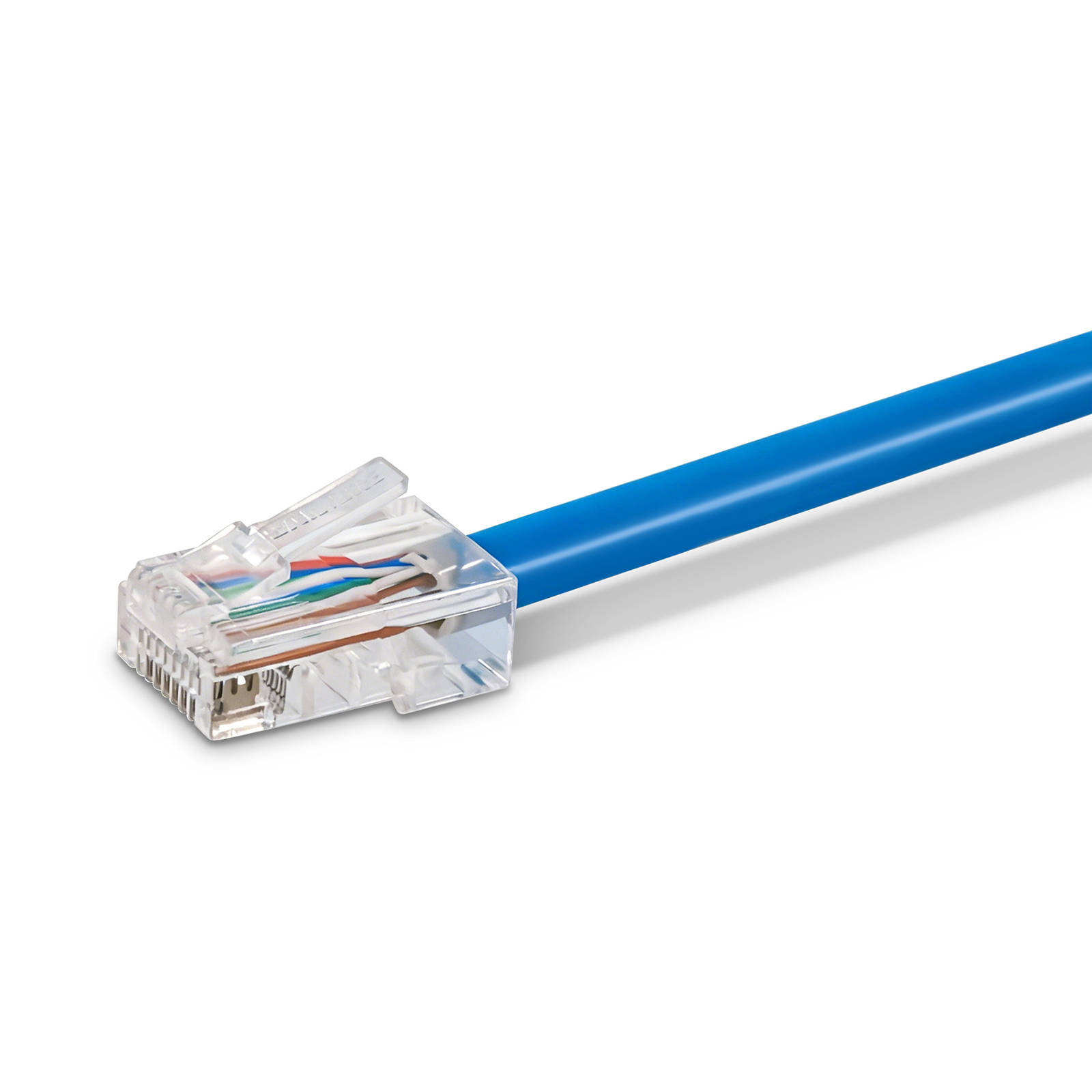

5. Made with Stranded Cable and RJ45 Modular Plugs That Have 50μ'' Gold-plated Contacts
6. Application for Voice/Video/VoIP Systems in Local Area Network
7. Compatible with Current and Future Category 5e/5 Applications
See more

Specifications

Cat5e Ethernet Network Patch Cable Snagless Unshielded (UTP), 24AWG, 1000Base-T



The Cat5e UTP patch cable is equipped with 24AWG stranded copper cable twisted in an unshielded pair, with a high-performance modular plug at both ends. Its snagless design safeguards the RJ45 connectors' locking clips from any harm or breakage during installation. This cable surpasses the Cat5e Ethernet network cable standard, providing a cost-effective solution for indoor Gigabit Ethernet data center applications, and supports up to 1000Mbps and 250MHz within 100 meters of cable.



Cable Type

Cat5e Snagless

Shielding Type

Unshielded

Cable Outer Jacket

PVC CM (Round)

Length

1.5ft (0.45m) (Including Plugs)

Data Rate

10/100/1000BASE-T

Maximum (Tested) Frequency

250MHz

Conductor Type

Stranded Pure Bare Copper

Connectors

RJ45 (Male)

Gauge (AWG)

24 (7/0.20mm)

Cable Outer Diameter

5.5mm ± 0.4mm

PoE Compatibility

PoE/PoE+/PoE++

Wire Scheme

T568B, Straight

Operating Temperature

-20 to +75°C

Installation Temperature

-10 to +50°C

Quality Certifications

Product details

High-Bandwidth Transmission



Supports a maximum bandwidth of 250MHz at 1Gbps, making it ideal for Fast Ethernet and Gigabit Ethernet.



transceiver compatibility tests






Multiple Shielded Ethernet Cabling



The cable is easy to plug, and well-protected with an RJ45 modular plug and PVC jacket, which greatly improves the service life of the cable, making it highly compatible with routers, switch boxes, network printers, and other devices.






Ethernet Network Patch Cable for Data Center Application



The durable cable provides stable transmission and slim space-saving features, enabling perfect performance in small enterprises and data centers.






Professional Fluke Testing Procedures



Each network cable must be strictly tested by Fluke and Wired T568B to ensure superior performance.




;jsessionid=2E1F5E9F6026C2CADB8CEE9E6B541866

Questions & Answers

more+
  • Can I request a customized length for the network Ethernet patch cable?
    Sorry, we don't support customized lengths yet, may be possible in the future. Thank you for your understanding.
  • Is the Cat5e patch cable compliant with the POE standard?
    Certainly, the Cat5e is compliant with PoE/PoE+/PoE++ standard for power supply.
  • Hi, Can I use this Cat5e in temperatures up to 50 degrees?
    I think yes, the operating temperature of this network cable ranges from -20 to +75°C.
