    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 102463
    Product image
    Product image

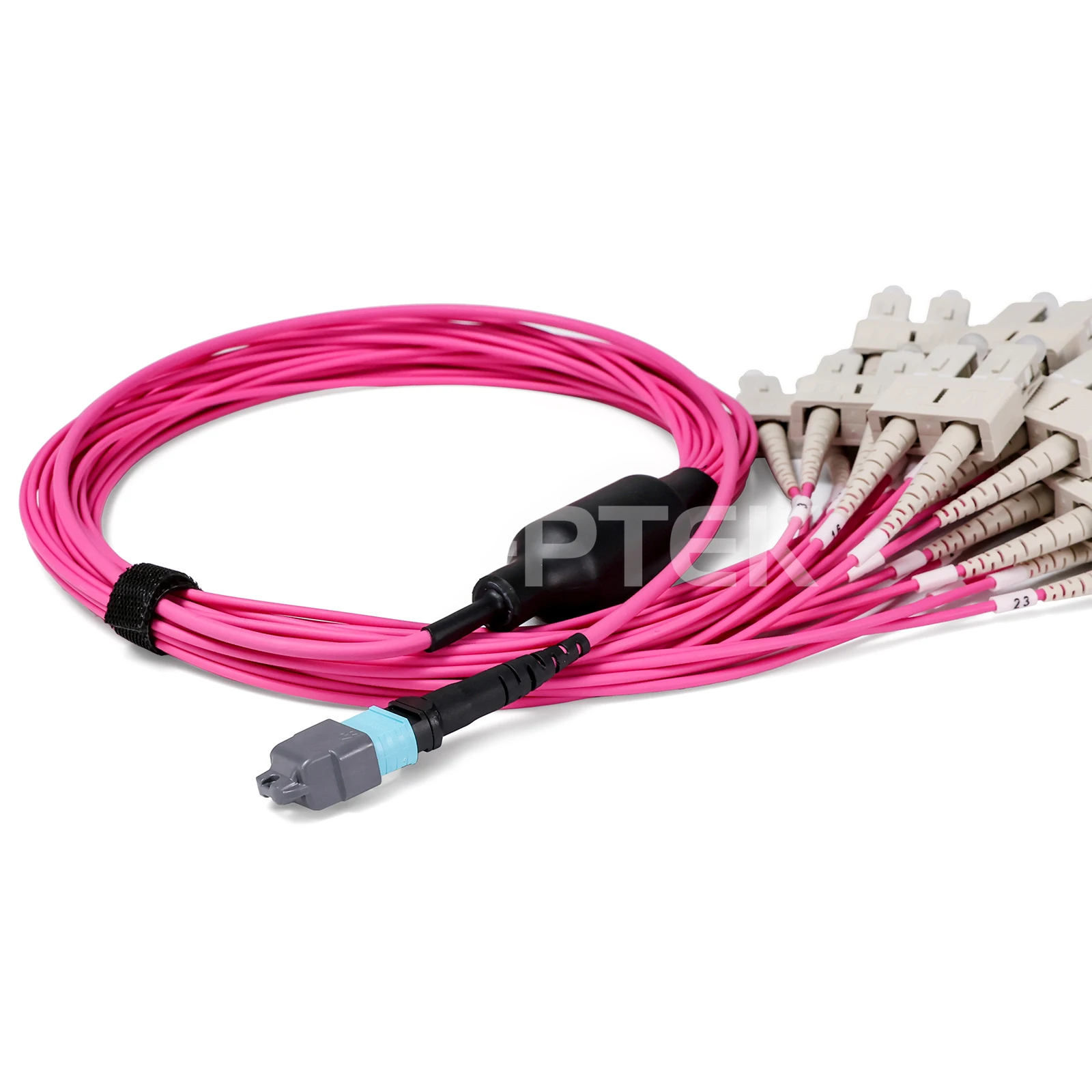

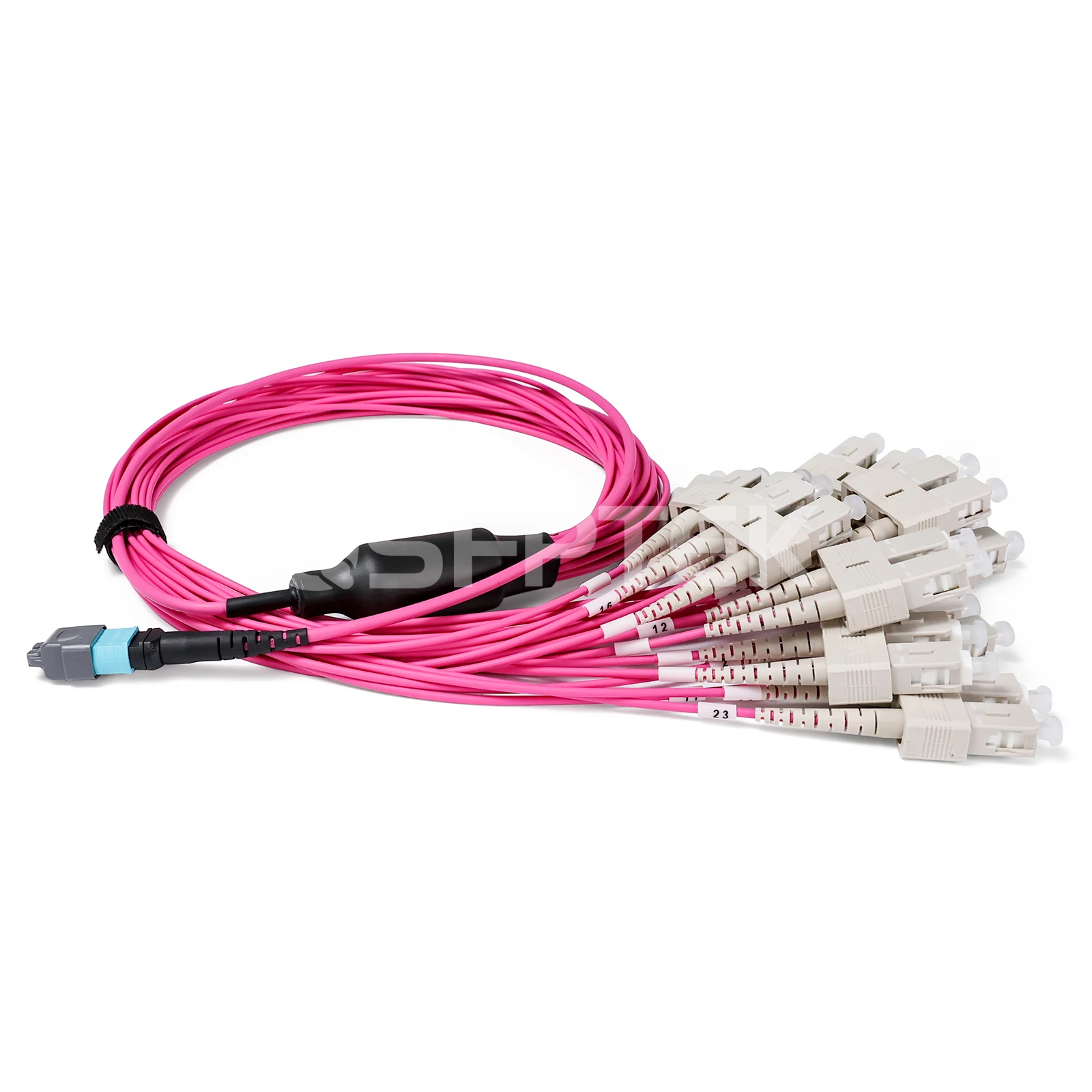

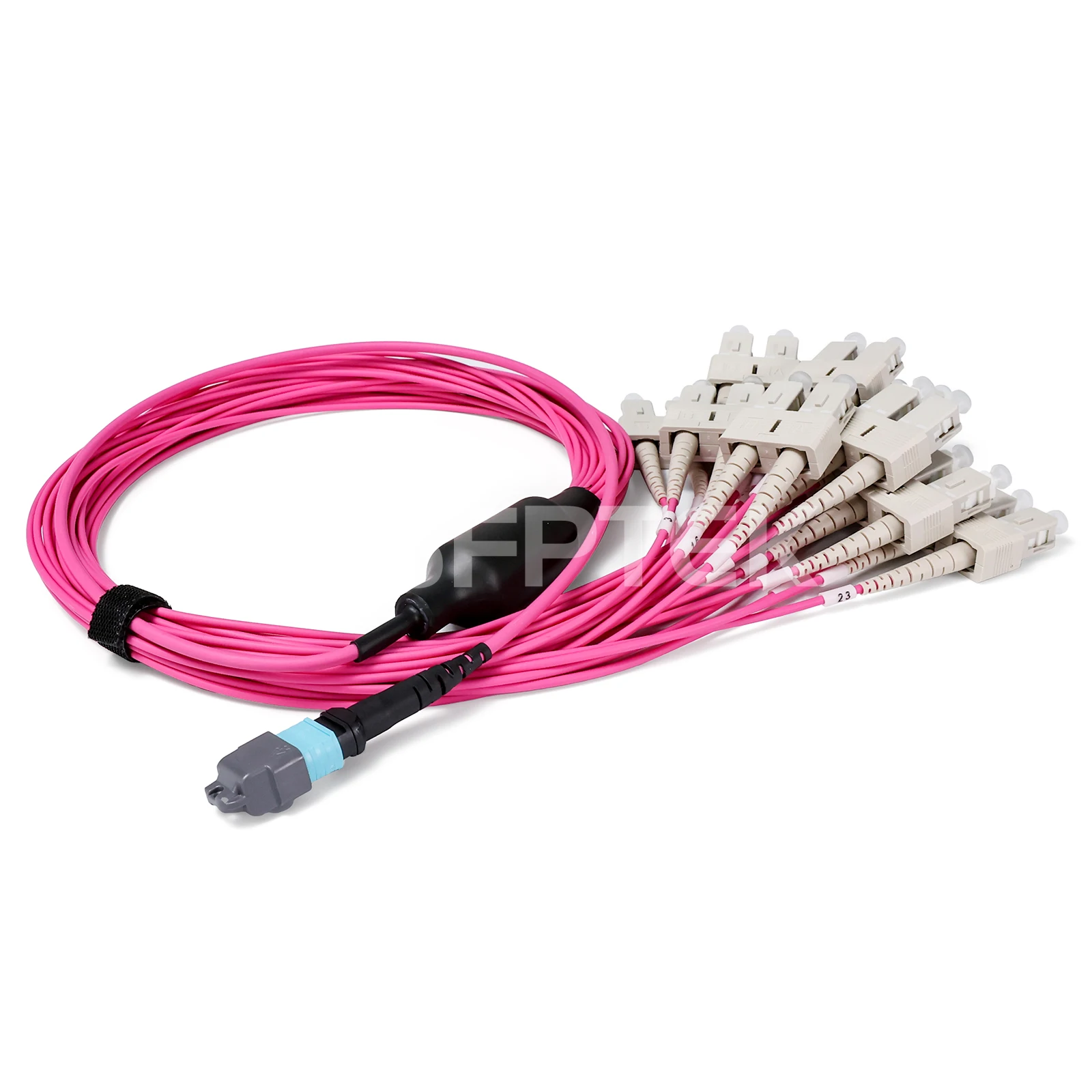

    15m (49ft) MTP-24 UPC (Female) to 12x SC UPC Duplex OM4 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Magenta

    Product No: 102463
    0 Reviews
    92 Sold
    $165.00
    Series
    Length
    16 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 24 Fibers
5. Compliant with ROSH 2.0 and MCD
    See more

    Specifications

    15m (49ft) MTP Female to 12 SC UPC Duplex 24 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable



    The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an SC duplex connector. This MTP female to 12 SC UPC Duplex OM4 multimode breakout cable is used for connecting switches or MPO/MTP cassettes.

    Connector A:

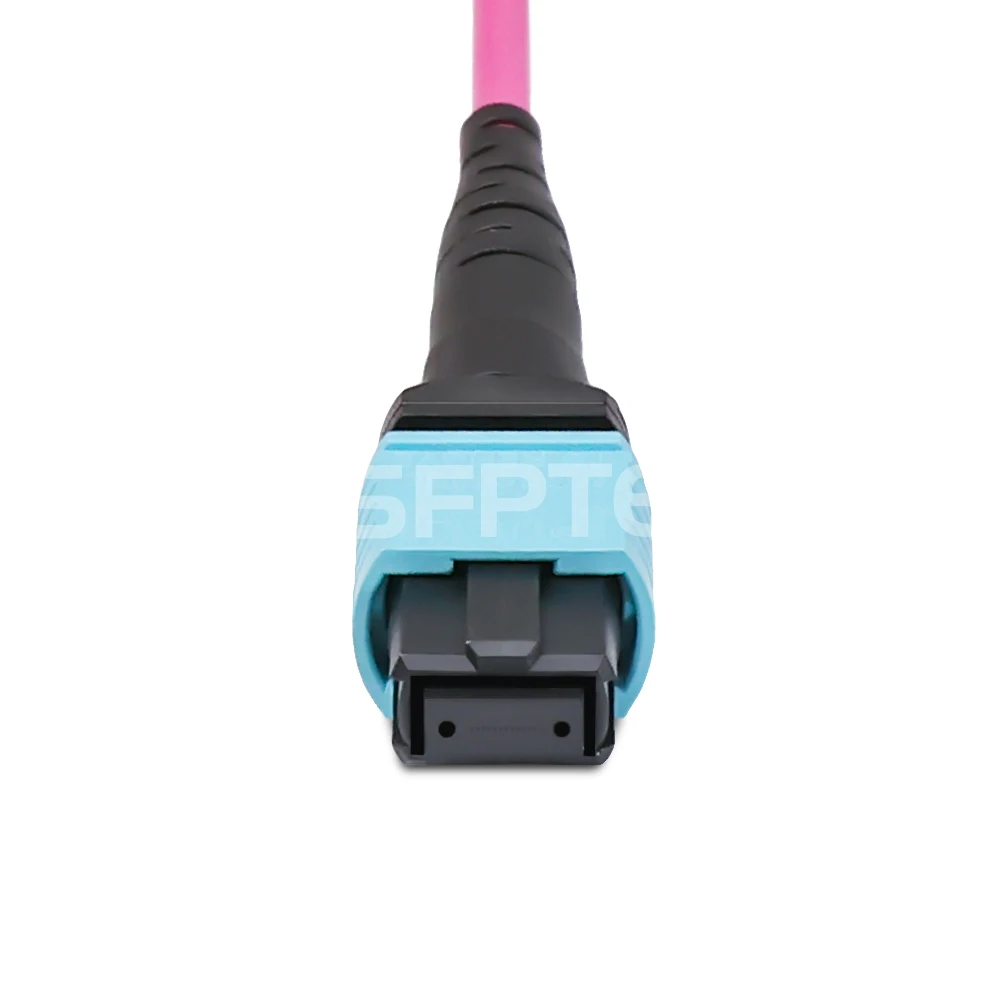

    MTP Female

    Connector B:

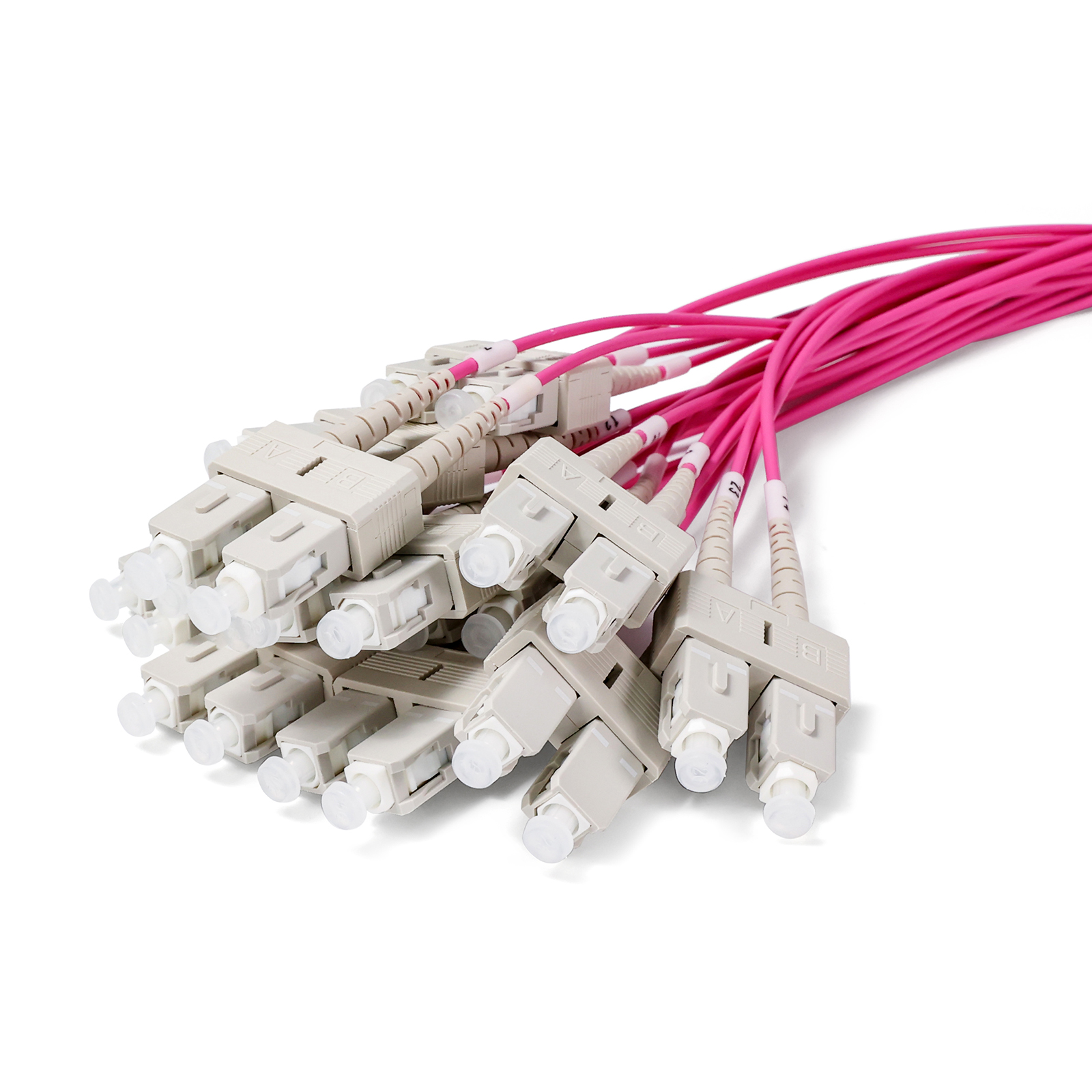

    SC UPC Duplex

    Fiber Count:

    24 Fibers

    Fiber Type:

    OM4 50/125μm

    Polish Type:

    UPC to UPC

    Wavelength:

    850nm/1310nm

    Armoured:

     No

    Cable Material:

     LSZH

    Insert Loss:

    0.35dB

    Return Loss:

    ≥30dB

    Trunk Diameter:

    3.0mm

    Fan-Out Diameter

    2.0mm

    Min. Bend Radius

    (Fiber Cable) Dynamic:

    10mm

    Min. Bend Radius (Fiber Cable) Static:

    10mm

    Operating Temperature:

     -20℃~+70℃

    Storage Temperature:

    -40℃~+80℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    $2409.40 $2999.00
    123 Sold
    171 Reviews

    Features

    • 10mm Min. Bend Radius
      Allow tighter cable bends for slack storage and routing.
    • 0.35dB Max. IL
      Always provide stable signal and realize flexible system design.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    Connection 1: 24 Fibers MTP to 12xSC OM4 LSZH

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



    MTP Breakout OS2





    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    OM4 Cable





    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.



    MTP Breakout OM4 Maintaining

    Questions & Answers

    • All (6)
    • Does the fiber optic cable need to clean the end face?
      The fiber optic cable needs to clean the end face, similar to the module, if the dust on the end face is not cleaned in time, it will affect the signal transmission and equipment performance.
    • What's the different between LSZH and PVC?
      LSZH cables generate less smoke and toxic gases during combustion, while PVC cables release toxic smoke and acidic gases when burned.
    • How many times can I mate/demate the MTP connector and still maintain good performance?
      If the connector is always in a suitable operating environment and properly cleaned, it can still maintain the best performance after 1000 times of mate and demate.

    Customer Reviews

    Write a Review
    Sign in to write a review
    Write a Review

    5 stars

    0 Reviews

    4 stars

    0 Reviews

    3 stars

    0 Reviews

    2 stars

    0 Reviews

    1 star

    0 Reviews

    Read reviews that mention

    • All (0)

    Resources

    • PDF Document
      MTP and MPO Breakout Cables Datasheet.pdf
    • PDF Document
      MTP and MPO Fiber Cables Quick Start Guide.pdf
    • PDF Document
      Fiber Optic Cabling Solutions.pdf
