    Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 102456

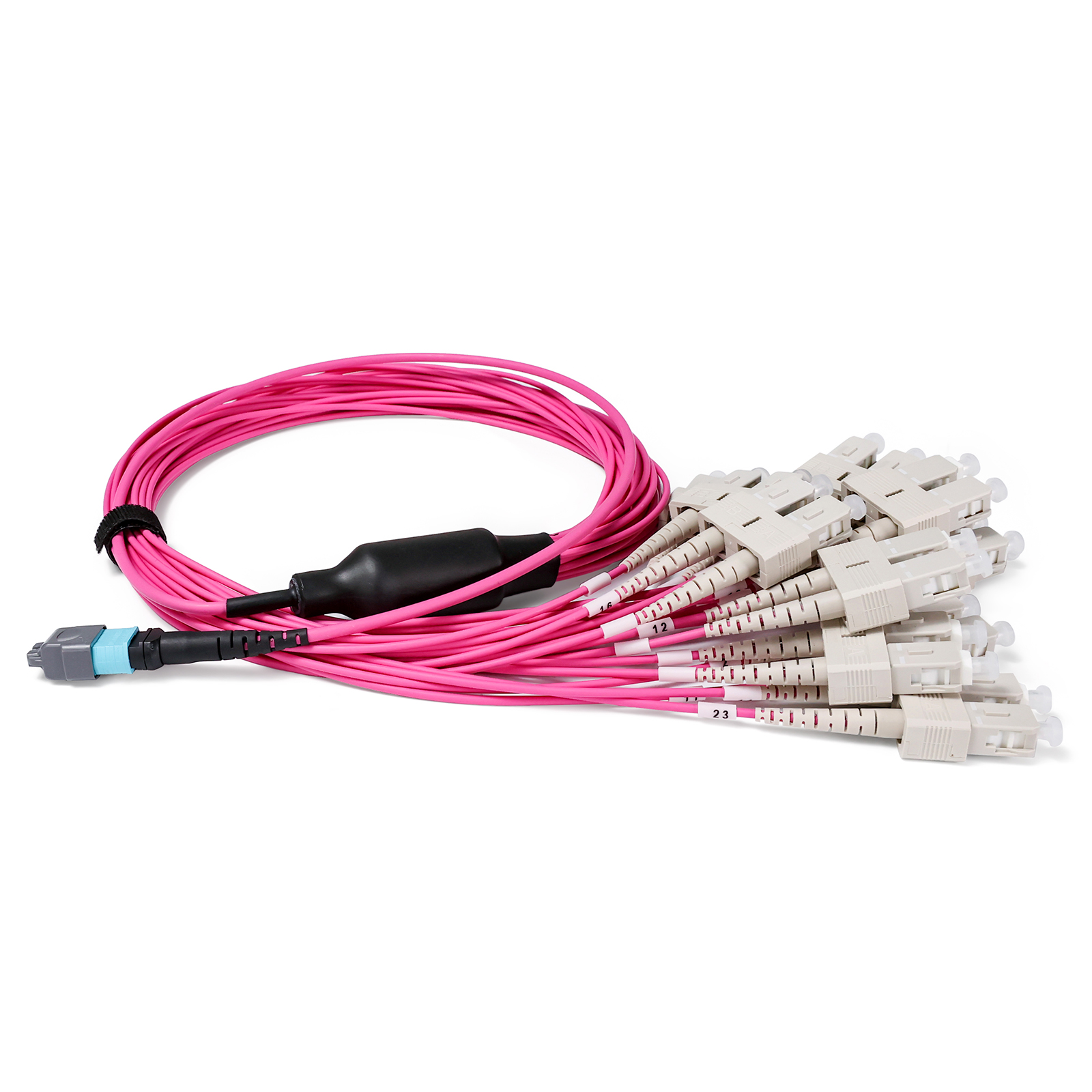

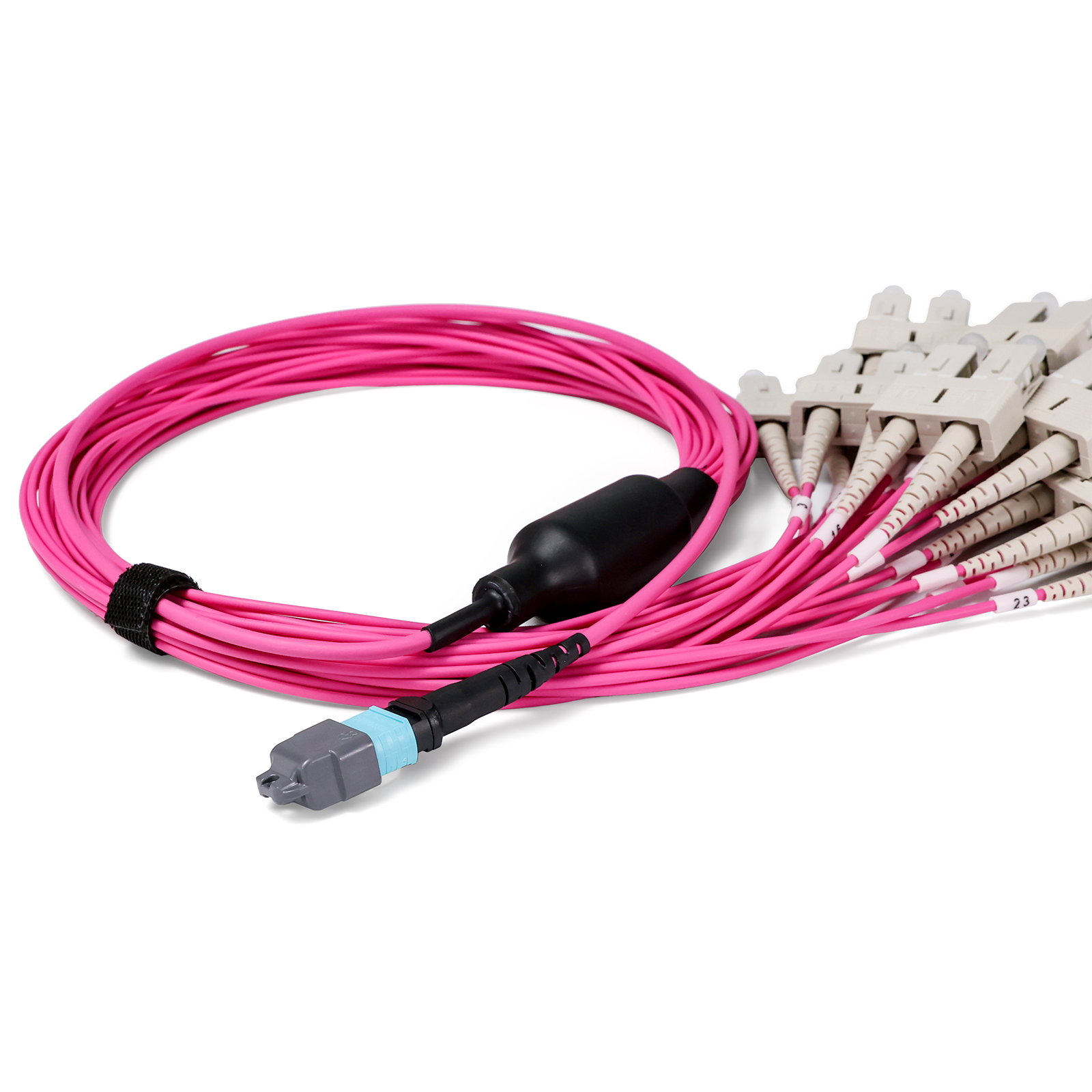

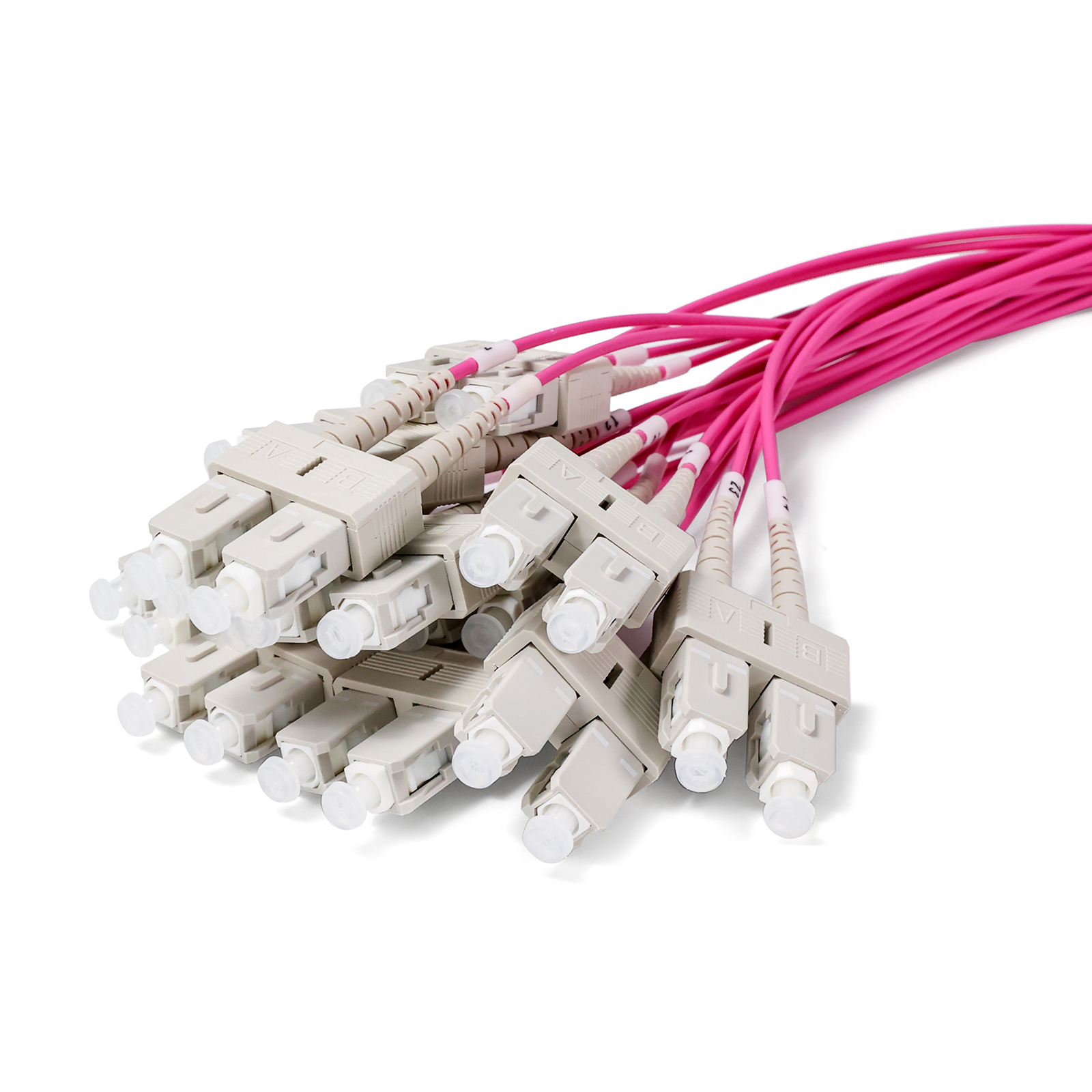

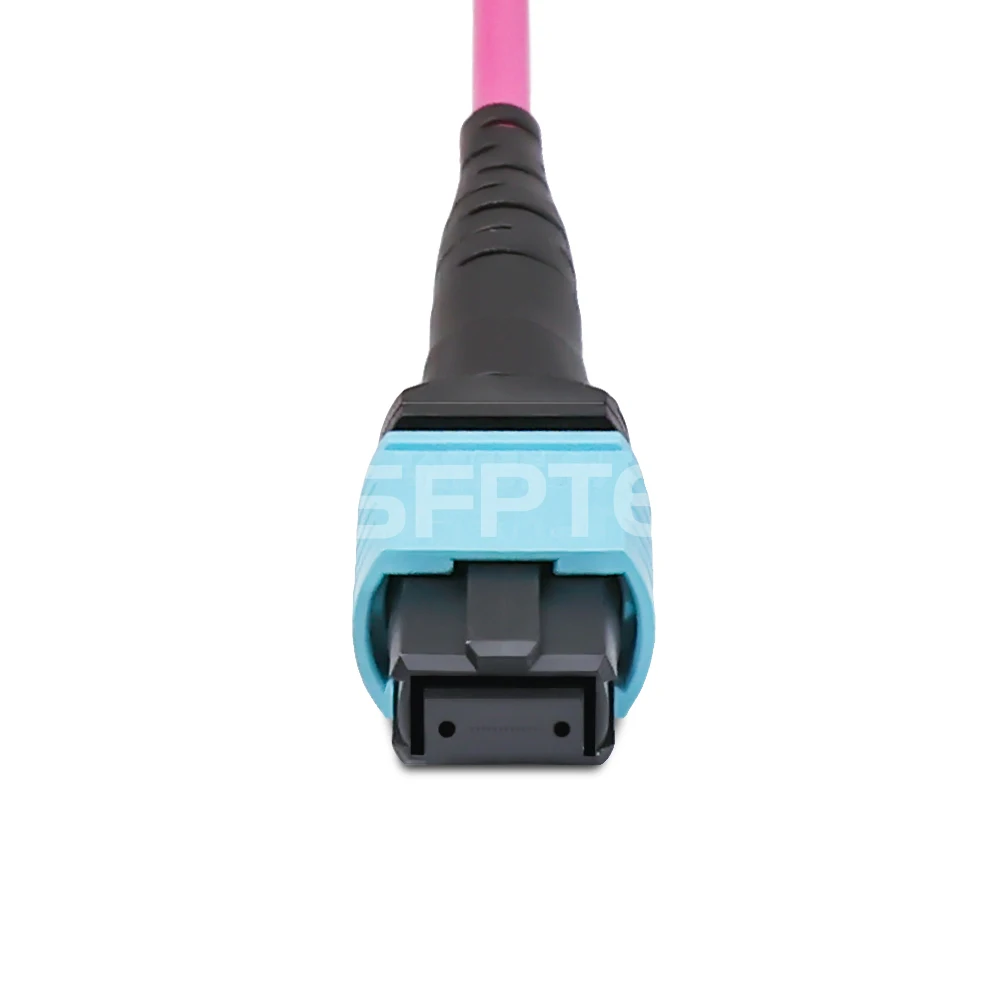

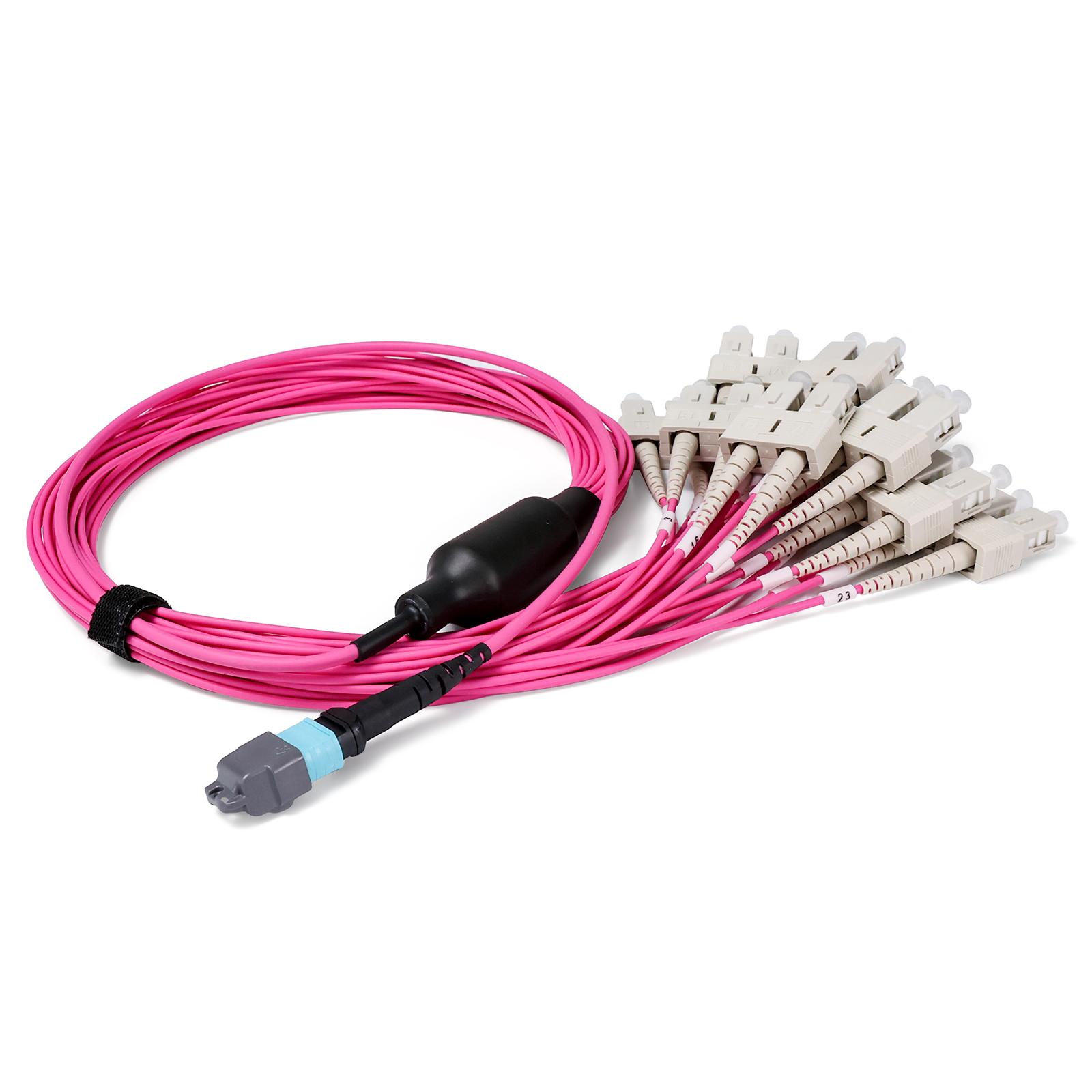

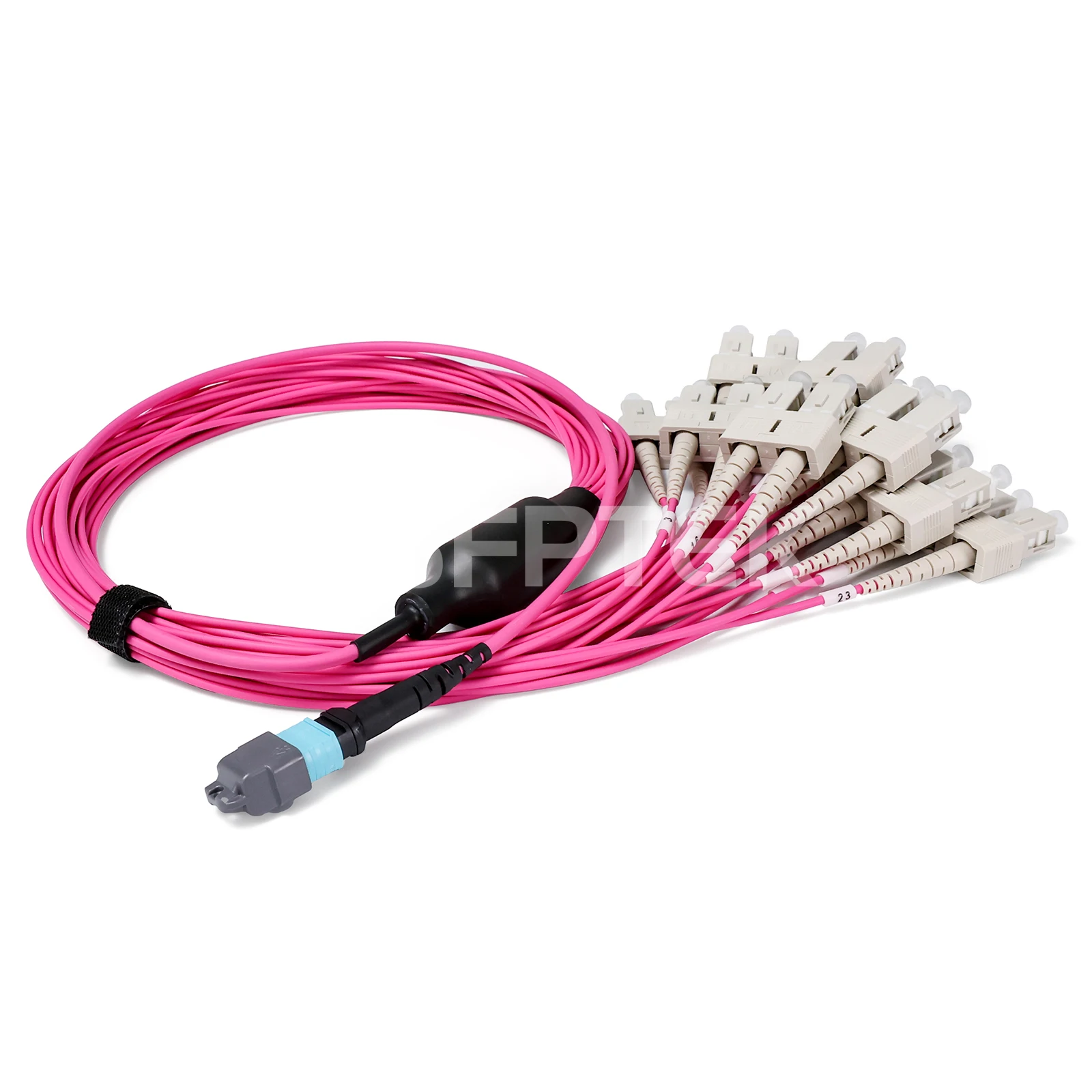

    4m (13ft) MTP-24 UPC (Female) to 12x SC UPC Duplex OM4 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Magenta

    Product No :102456
    20 Reviews
    2.4K Solds
    US$ 93.50
    Series
    Length
    29 in real-time stock, 11Jul, 2025

    30-Day Returns & Exchange

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    -
    +
    Add to Cart Bulk Order Quotes
    1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 24 Fibers
5. Compliant with ROSH 2.0 and MCD
    See more

    Specifications

    4m (13ft) MTP Female to 12 SC UPC Duplex 24 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable



    The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an SC duplex connector. This MTP female to 12 SC UPC Duplex OM4 multimode breakout cable is used for connecting switches or MPO/MTP cassettes.

    Connector A:

    MTP Female

    Connector B:

    SC UPC Duplex

    Fiber Count:

    24 Fibers

    Fiber Type:

    OM4 50/125μm

    Polish Type:

    UPC to UPC

    Wavelength:

    850nm/1310nm

    Armoured:

     No

    Cable Material:

     LSZH

    Insert Loss:

    0.35dB

    Return Loss:

    ≥30dB

    Trunk Diameter:

    3.0mm

    Fan-Out Diameter

    2.0mm

    Min. Bend Radius

    (Fiber Cable) Dynamic:

    10mm

    Min. Bend Radius (Fiber Cable) Static:

    10mm

    Operating Temperature:

     -20℃~+70℃

    Storage Temperature:

    -40℃~+80℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 10mm Min. Bend Radius
      Allow tighter cable bends for slack storage and routing.
    • 0.35dB Max. IL
      Always provide stable signal and realize flexible system design.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MTP Breakout OM4 Connection

    Related Products:

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



    MTP Breakout OS2





    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    OM4 Cable





    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.



    MTP Breakout OM4 Maintaining
