Generic Compatible 800GBASE-DR8 QSFP-DD PAM4 1310nm 500m DDM MPO-16/APC SMF Optical Transceiver Module, Support 2 x 400G-DR4 and 8 x 100G-DR

Product No :102570
US$ 1429.90  US$ 3699.00
Compatible
Transceivers type
0 in stock

Free Shipping over US$ 79.8

14-day Return and Refund

;jsessionid=D7063991BA8E9DFCCE39BA02E9FC082C
-
+
Add to Cart Bulk Order Quotes
1. 8 optical channels, MTP/MPO-16 APC connectors
2. Support 800G to 2x 400GBASE-DR4 and 8x 100G-DR breakout application.
3. 8x 106.25G PAM4 modulation
4. EML + PIN Laser
5. Max power consumption ≤16.5W
See more

Specifications

Generic Compatible DR8 QSFP-DD 800G PAM4 Optical Transceiver Module (1310nm, 500m, MPO-16/APC, SMF, 0℃ to +70℃, DDM)



Generic Compatible DR8 QSFP-DD 800G transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with MPO-16 connectors. The 800 Gigabit Ethernet signal is carried over 1310nm wavelengths. QSFPTEK manufactured  800G QSFPDD-DR8 complies with IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the DR8 QSFP-DD achieves 800 Gigabit Ethernet through 8x 106.25 PAM4 Retimed 2x400GAUI-4 C2M electrical interface. The 800G DR8 QSFP-DD is widely used for 800 gigabit Ethernet, data centers, 800G to 2x 400G DR4, or 8x 100G DR applications.



Part Number QT-QSFP-DD-800G-DR8 Vendor Name QSFPTEK
Form Factor QSFP-DD Max Data Rate 850 Gbps (8x 106.25 Gbps)
Wavelength 1310nm Distance 500m
Connector MTP/MPO-16 Cable Type SMF
Transmitter Type EML Receiver Type PIN
TX Power -2.9-4.0dBm Receiver Sensitivity -10.3dBm
Power Consumption ≤16.5W Modulation Format PAM4
DDM Yes Temperature 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0 Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. Advanced Technology
    Features PAM4 modulation technology and built-in DSP chip.
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Complies with IEEE 802.3cu-2021, IEEE P802.3ck D3.0, QSFP-DD MSA HW Rev 6.01, CMIS Rev 5.0
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

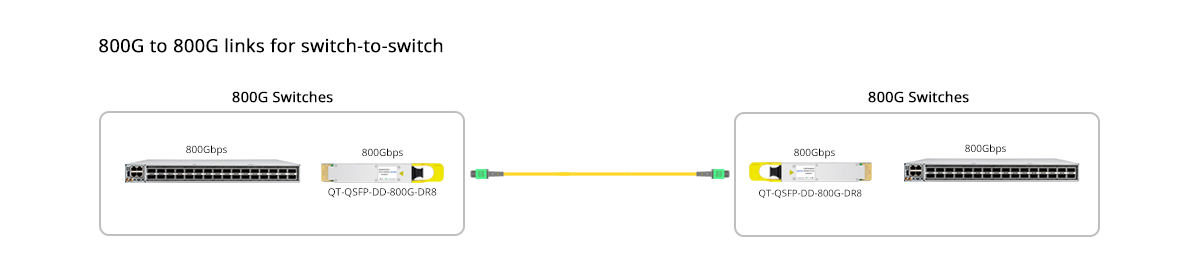

Scenario 1: 800G to 800G Direct Connectivity

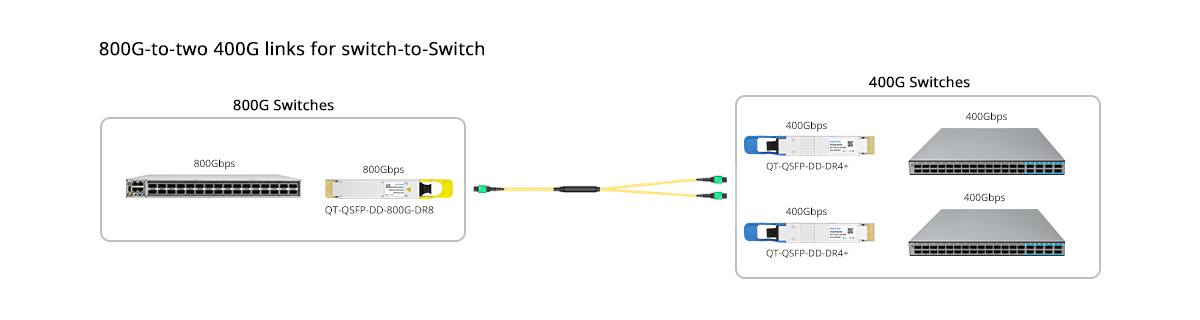

Scenario 2: 800G to 2x 400GE Breakout Connectivity





Related Products:

QDD-4X100G-FR-S 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km MTP/MPO-12 SMF Transceiver

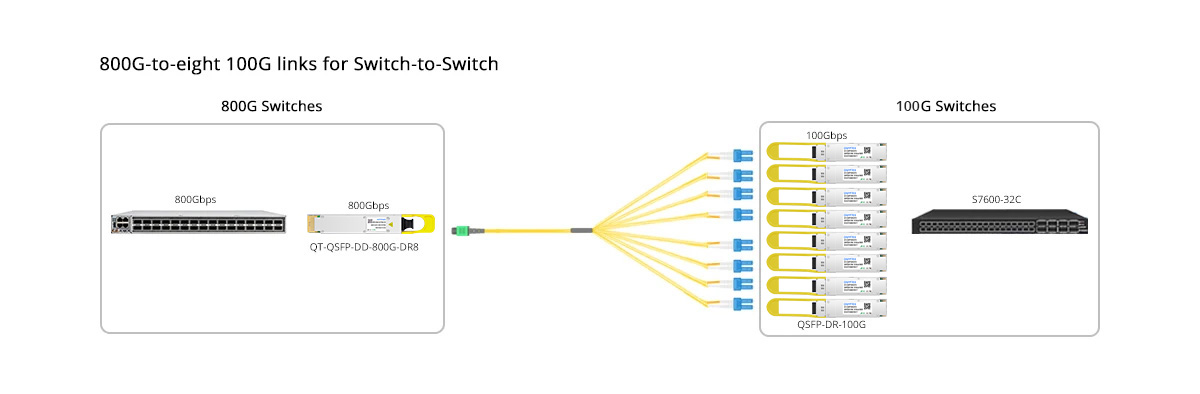

Scenario 3: 800G to 8x 100GE Breakout Connectivity



Related Products:

QSFP-100G-DR-S 100GBASE-DR QSFP28 1310nm 500m Duplex LC SMF Transceiver



Product details

8x 100Gbps PAM4 Modulation Technology



Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.








Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show





Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack





Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices





800G Optical Transceievers Contrast Table



Part Number

QT-QSFP-DD-800G-DR8

QT-OSFP-800G-FR4

QT-QSFP-DD-800G-2FR4


Center Wavelength

1310nm

1271nm, 1291nm, 1311nm and 1331nm

1271nm, 1291nm, 1311nm and 1331nm

Connector

MTP/MPO-16 APC

Dual LC Duplex

Dual CS Duplex

Cable Distance (Max.)

500m

2km

2km

Modulation

8x 106.25G PAM4

8x 106.25G PAM4

8x 106.25G PAM4

Transmitter + Receiver Type

EML + PIN

EML + PIN

EML + PIN

TX Power

-2.9~4.0 dBM

-3.2~4.4 dBM

-3.2~4.4 dBM

Receiver Sensitivity

<-5.9 dBM

-7.2 dBM

-7.7 dBM

Power Consumption

≤16.5W

≤16.5W

≤18W

Temperature

0℃ to 70℃

0℃ to 70℃

0℃ to 70℃

Application

Ethernet

Data Center

800G to 2x400G

Ethernet

Data Center

800G to 2x400G

Ethernet

Data Center

800G to 2x400G Breakout

800G to 8x100G Breakout

Questions & Answers

more+
  • I want to connect this QSFP-DD 800G 2FR4 module to my 400G switches, which 400G optics and fiber patch cable should I use?
    Hello, to connect the QSFP-DD 800G 2FR4 module to 400G switches, you can use QSFP-DD-400G-FR4 for 400G switches. Since QSFP-DD 800G 2FR4 has two duplex CS connectors while QSFP-DD-400G-FR4 has a single duplex LC connector, you should link QSFP-DD 800G 2FR4 to two QSFP-DD-400G-FR4 via two CS to LC Duplex OS2 single mode fiber. Please kindly check the application section of the product details page.
  • The 800G 2FR4 optical module has two separate connectors, can I use only one port of the module?
    Yes, if only one of the ports is used, the rate is 400G.
  • Can I plug 400G OSFP modules into 800G OSFP ports?
    Yes, 800G OSFP ports are backward compatible with 400G OSFP as long as the physical form factor is compatible.
