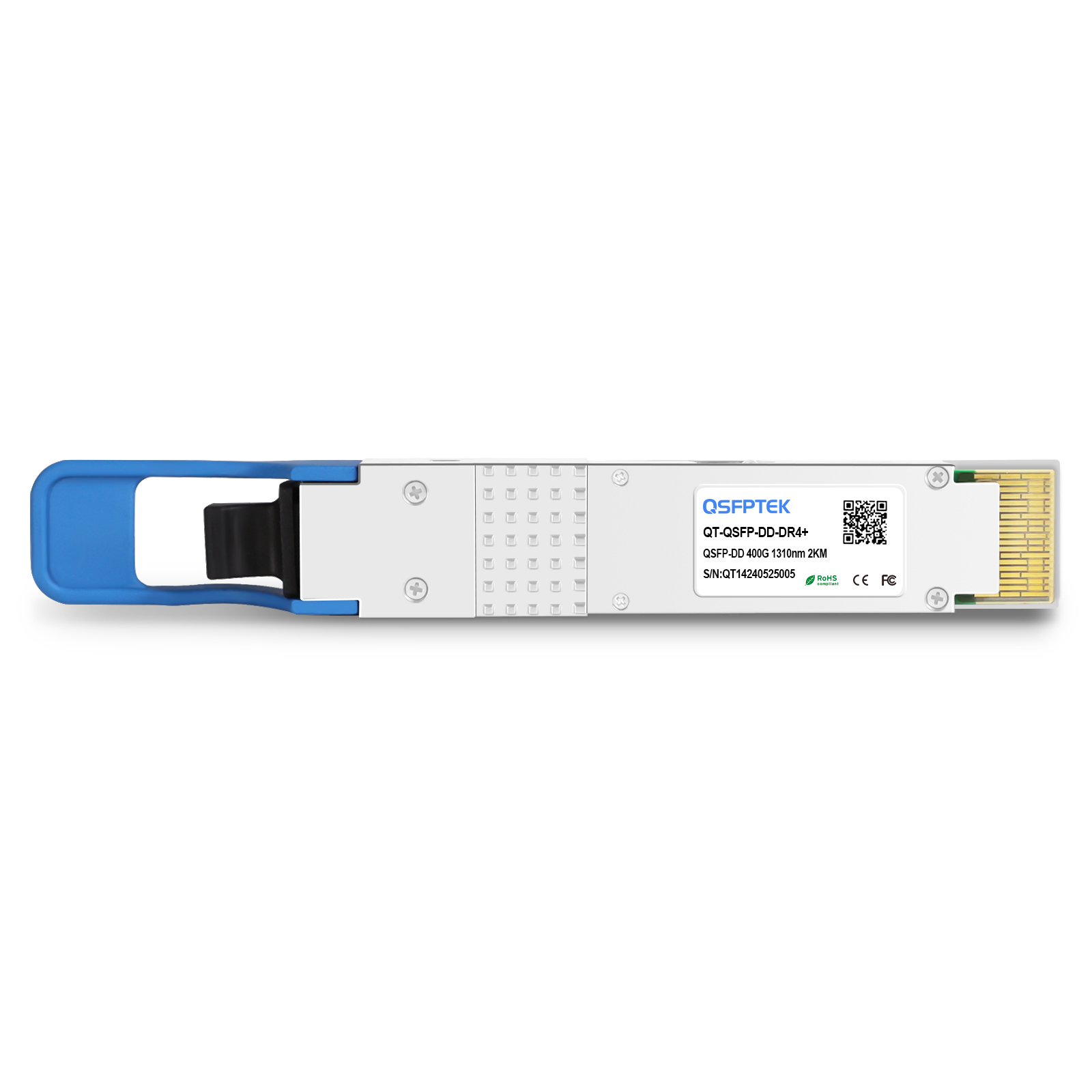

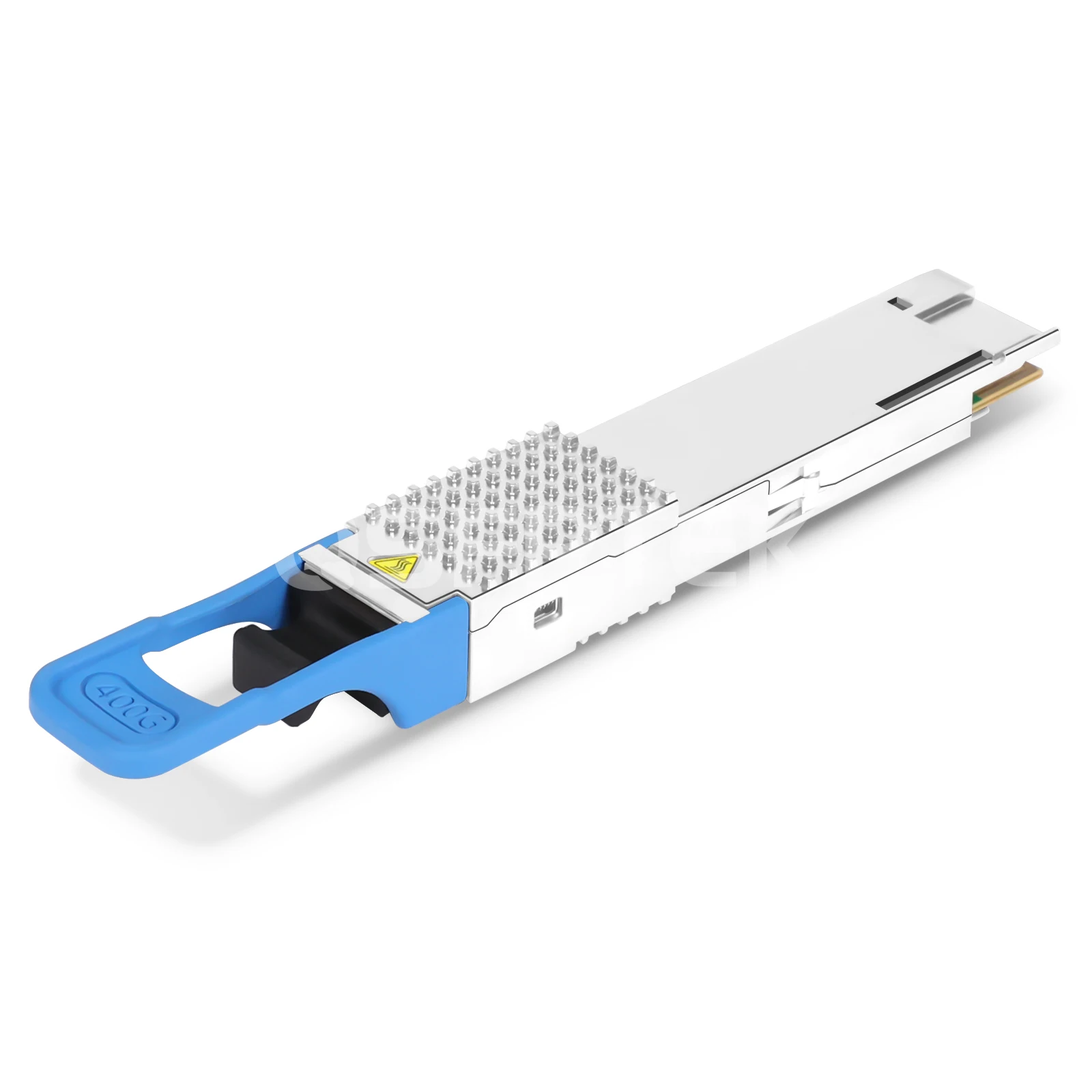

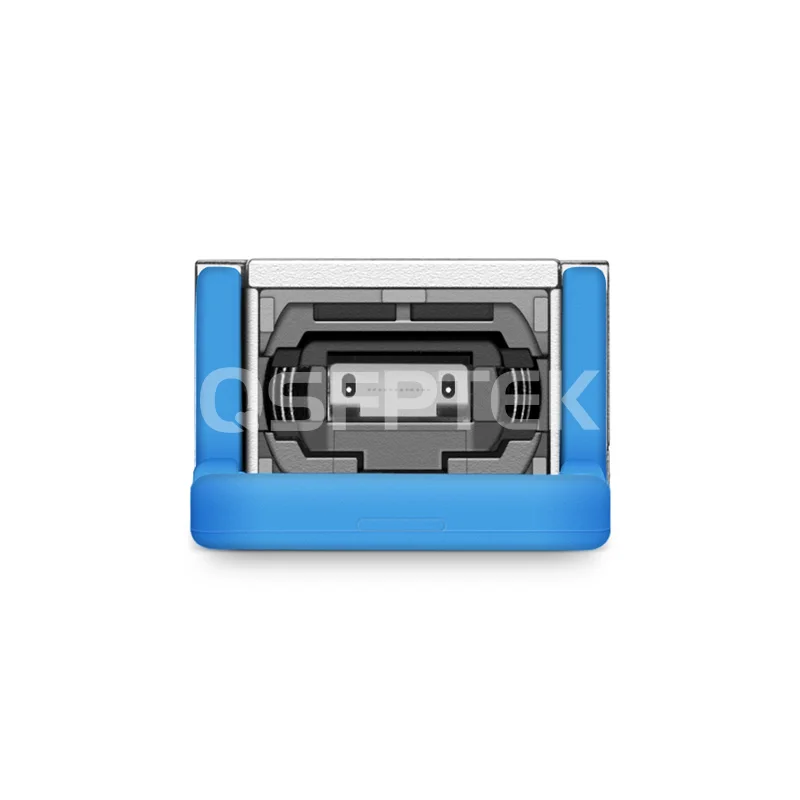

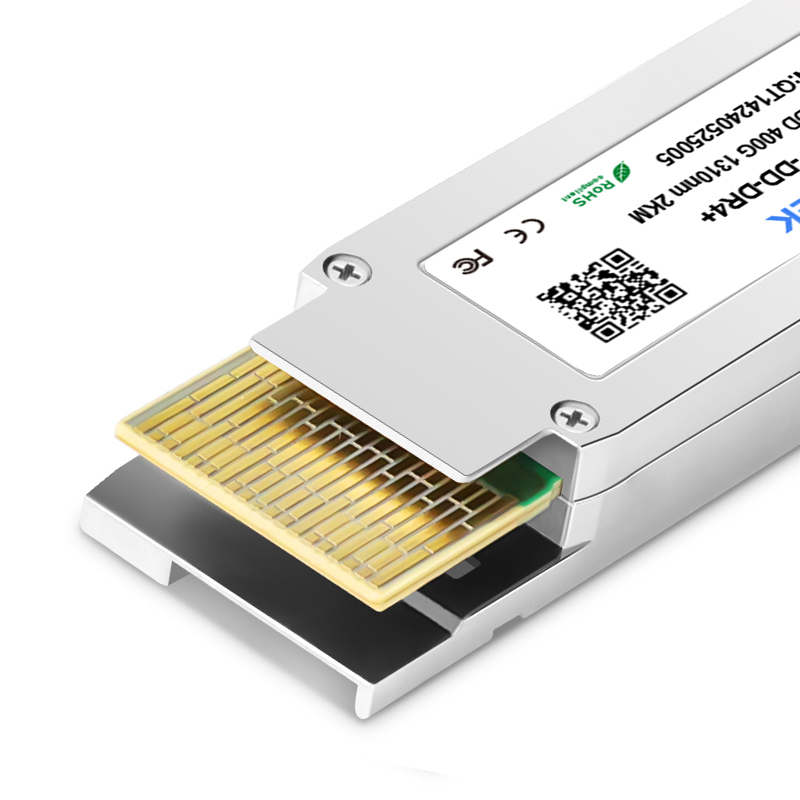

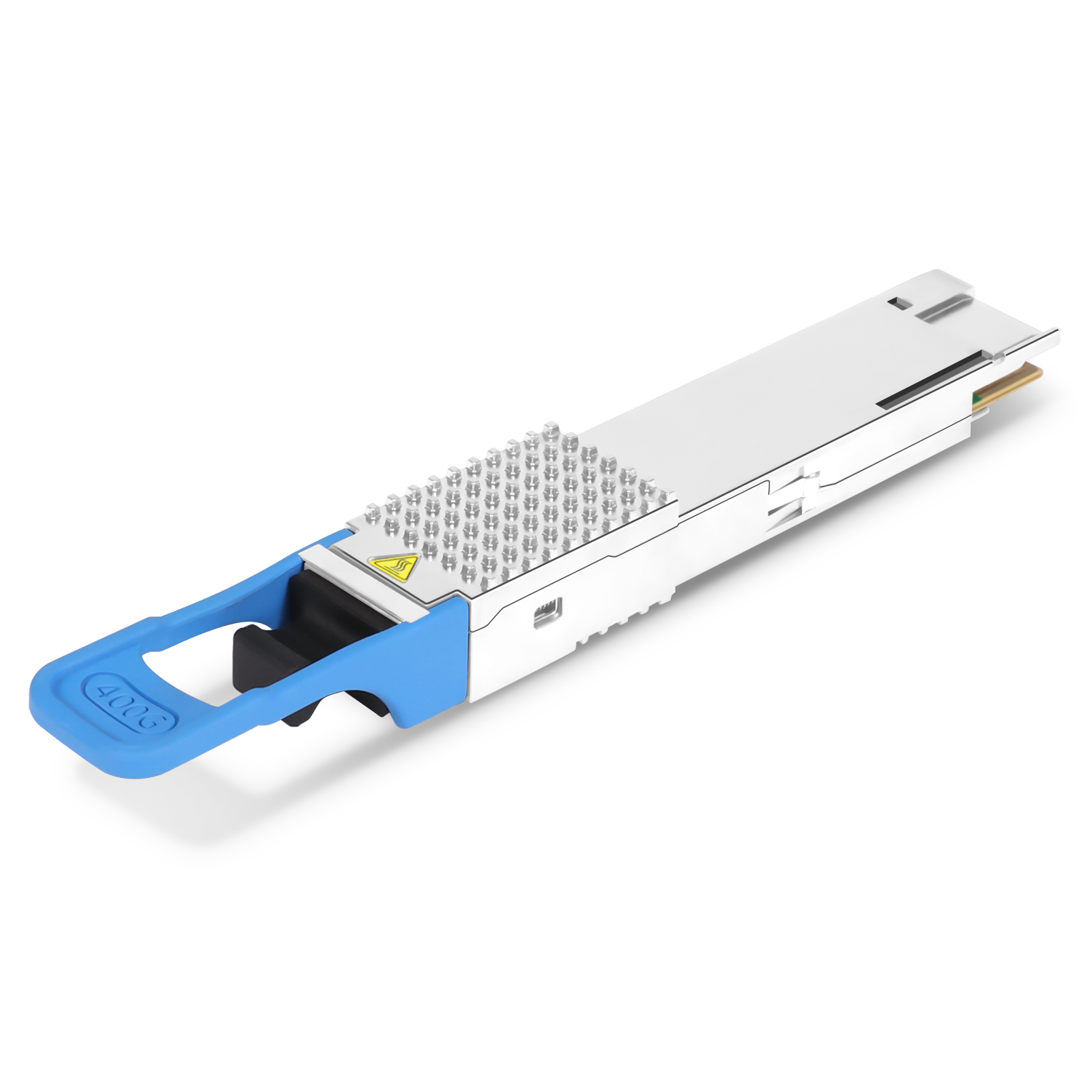

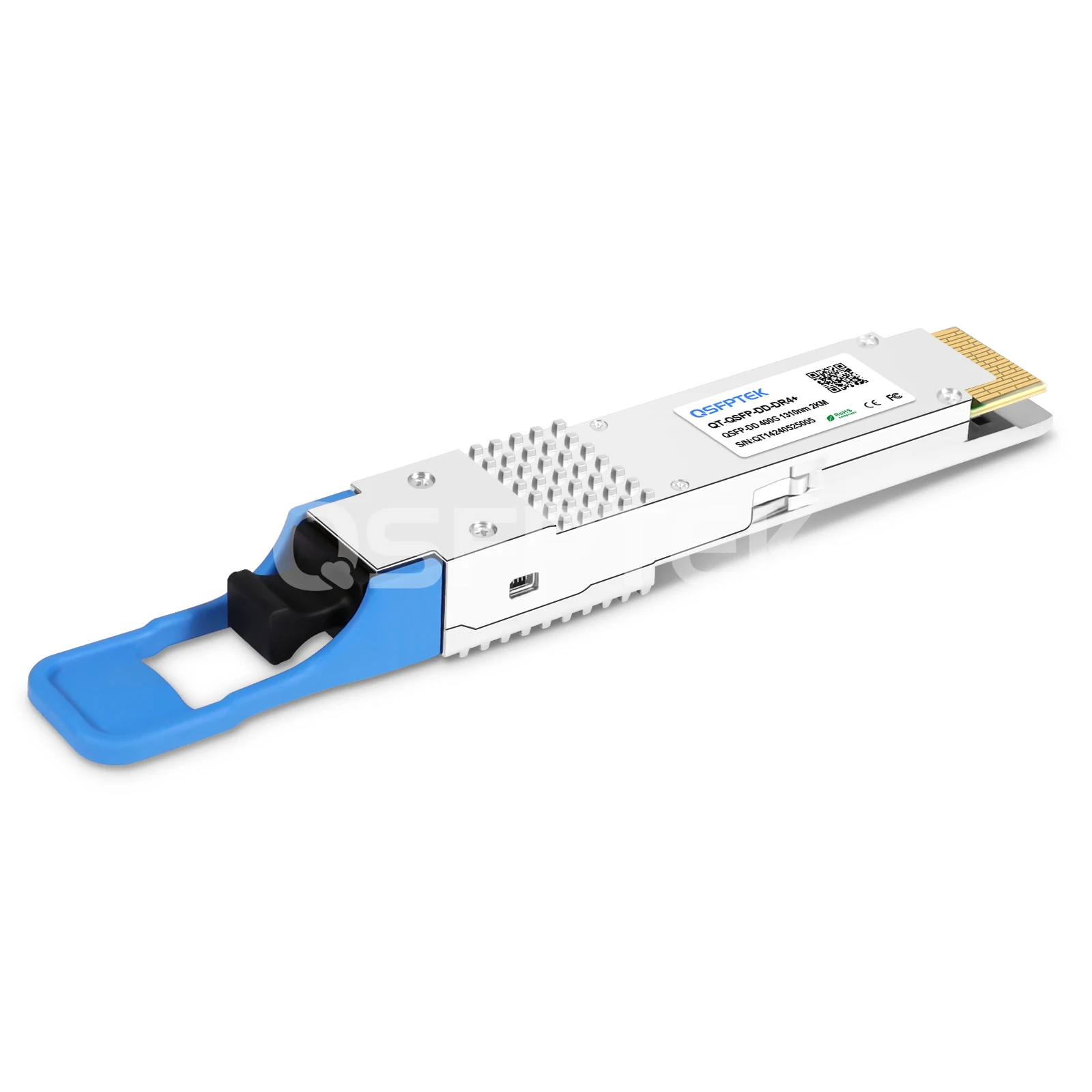

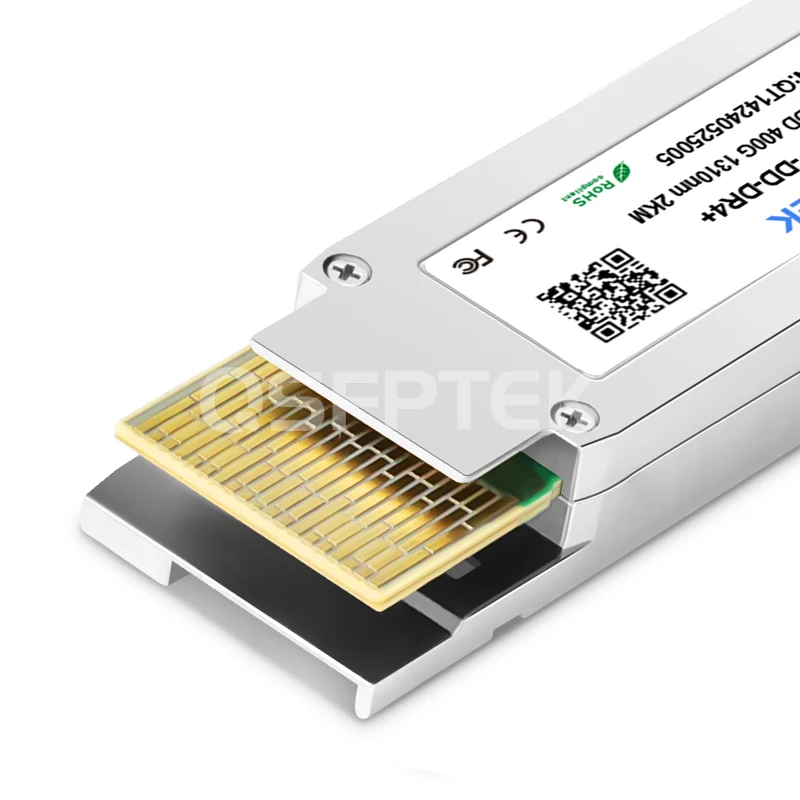

Cisco QDD-4X100G-FR-S Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km DOM MTP/MPO-12 SMF Optical Transceiver Module

Product No :100250
US$ 530.90  US$ 934.90
0 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=8AD31590CB3287D37AB7CDCB08796B53
-
+
1. Hot Pluggable QSFP-DD form factor
2. Max power consumption 12W
3. Link length up to 2km via MTP/MPO-12 connector
4. Support 4x100G breakout connectivity
5. Compliant to QSFP-DD MSA, 100G Lambda MSA 400G-DR4+, CMIS 4.0, IEEE 802.3bs
See more

Specifications

Cisco QDD-4X100G-FR-S Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km DOM Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)



QDD-400G-XDR4 400G QSFP-DD optical module, namely QDD-4X100G-FR, or 400GBASE-DR4+, is designed to reach 2km distances over single-mode fiber (SMF). The 400 Gigabit Ethernet signal is carried over four parallel and independent Single Lambda 100G PAM4 lanes. 400GBASE-XDR4 uses MTP/MPO-12 connector, supporting breakout mode. It can be applied in the 4x100G breakout connectivity of QSFP-DD to QSFP28 100G-DR, 100G-FR, and 100G-LR.



QSFPTEK QDD-4X100G-FR 400GBASE-DR4+ module is compliant with QSFP-DD MSA, 100G Lambda MSA 400G-DR4+, CMIS 4.0, and IEEE 802.3bs and is mainly applied in 400G Ethernet, Data Center, and Cloud Networks.



Model Name QT-QSFP-DD-DR4+ Vendor Name QSFPTEK
Form Factor QSFP-DD Data Rate 425 Gbps
Wavelength 1310nm Distance 2km
Connector MTP/MPO-12 Cable Type SMF
Transmitter Type 1310nm EML Receiver Type PIN
TX Power -3.1~4.0dBm Receiver Sensitivity <-7.1dBm
Power Consumption ≤12W Extinction Ratio 3.5dB
DDM Support Working Temperature Range 0 to 70°C (32 to 158°F)
Protocols QSFP-DD MSA Compliant Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Super High-density
    Industry’s highest bandwidth density 400G optical module for 400 Gigabit Ethernet connectivity.
  • 3. Protocols
    Compliant with QSFP-DD MSA,100G Lambda MSA 400G-DR4+, IEEE 802.3bs.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

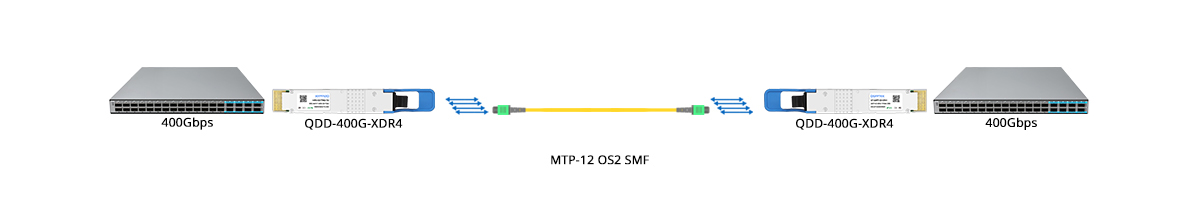

Scenario 1: 400G to 400G Direct Connectivity

Related Products:

MTP-12 (Female) OS2 Elite Trunk SMF

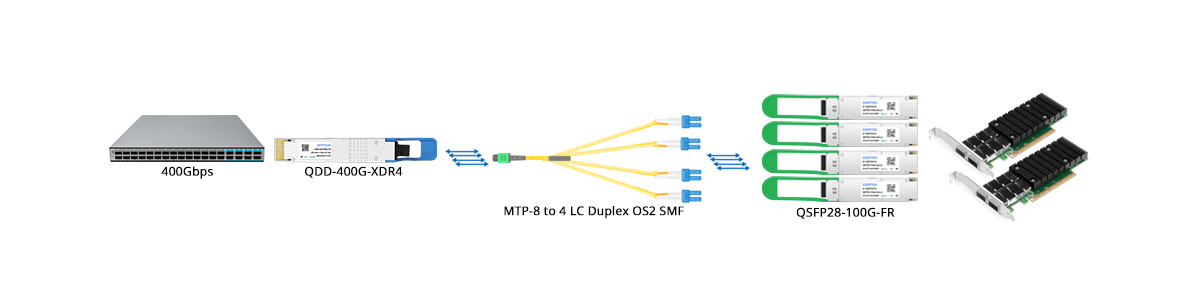

Scenario 2: 400G to 4x 100GE Breakout Connectivity

Related Products:

QSFP-100G-FR-S 100GABSE-FR Single-Lambda QSFP28 1310nm 2km Duplex LC Transceiver

Intel E810-CAM2 Based 100G Dual Port QSFP28 Network Interface Card

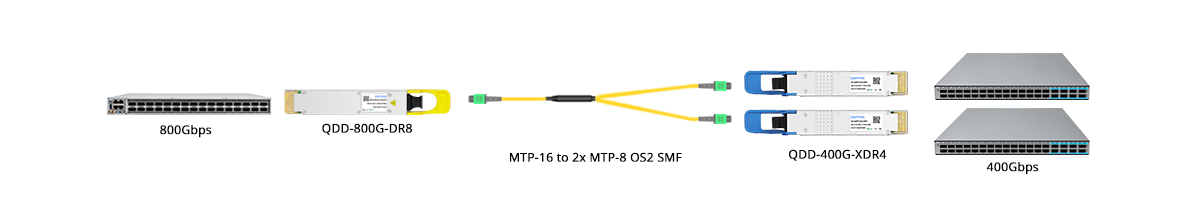

Scenario 3: 800G to 2x 400GE Breakout Connectivity

Related Products:

QDD-800G-DR8 800GABSE-DR8 QSFP-DD PAM4 1310nm 500m MPO-16 APC SMF Transceiver



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

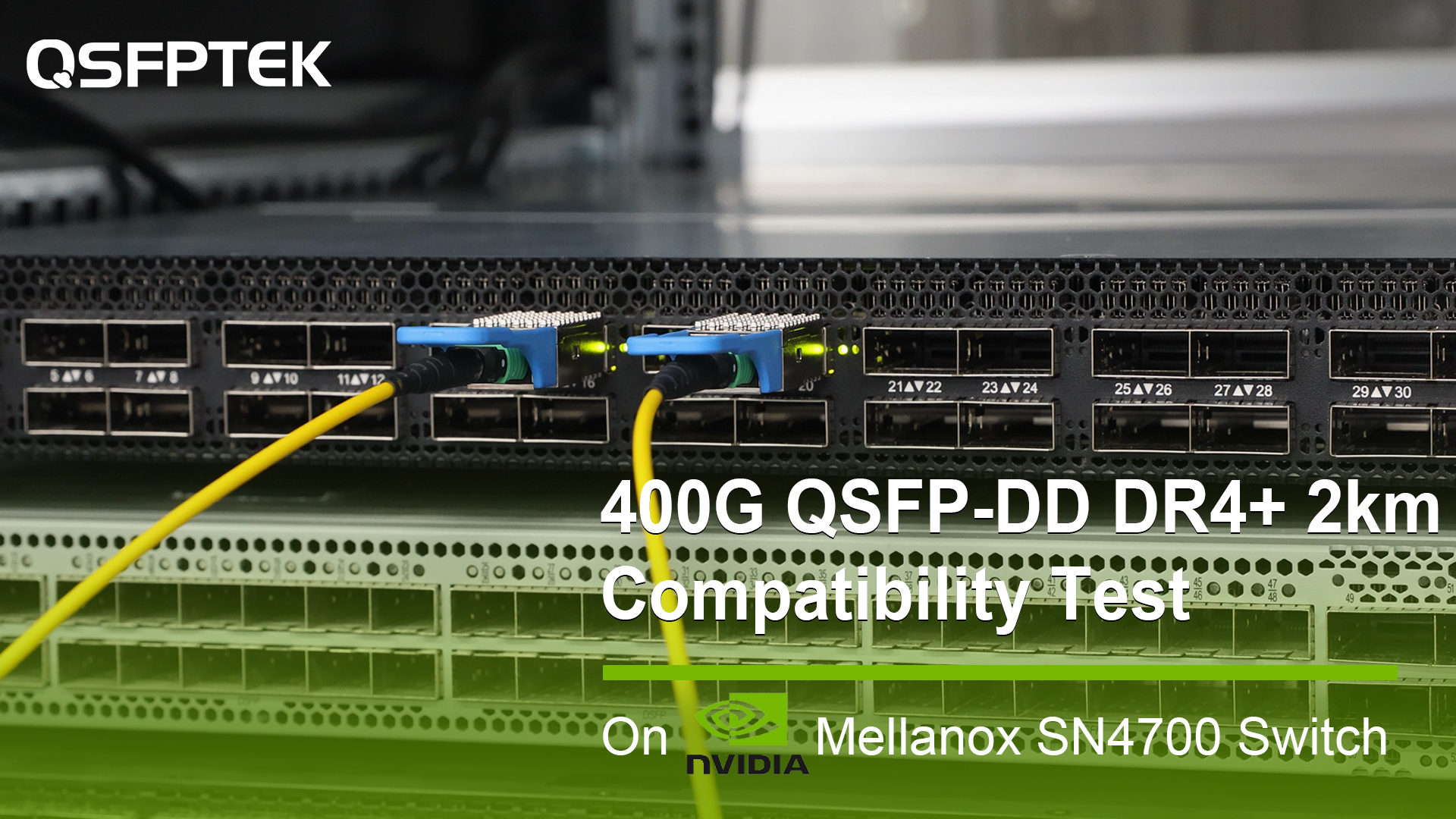

Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • Does 400GBASE-SR8 support DSP?
    Yes, The 400GBASE-SR8 incorporates DSP (Digital Signal Processing) technology, offering greater flexibility than CDR. DSP allows for tailored configuration adjustments to accommodate diverse application requirements.
  • I want to build a 850m optical link, can I use The 400GBASE-FR4?
    Yes, The 400GBASE-FR4 optical module's maximum transmission distance is 2 km, so it can be used for an 850m connection.
  • What type of optical cable should be used with 400G-SR8?
    The 400G-SR8 optical module employs a single-row, angled (APC) MTP16 connector to establish a connection with parallel multi-mode fiber, facilitating the linkage of 8 fiber pairs. We recommend utilizing the QSFPTEK MTP-16 APC OM4 Cable for optimal performance.
See more

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

9 Reviews

4 stars

0 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

Video

Resources

  • QT-QSFP-DD-DR4+ QDD-400G-XDR4 Datasheet.pdf

Contact us
Write a Review
Cisco QDD-4X100G-FR-S Compatible 400GBASE-XDR4 QSFP-DD PAM4 1310nm 2km DOM MTP/MPO-12 SMF Optical Transceiver Module

Compatible Cisco

Transceivers type QDD-4X100G-FR-S | 2km

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

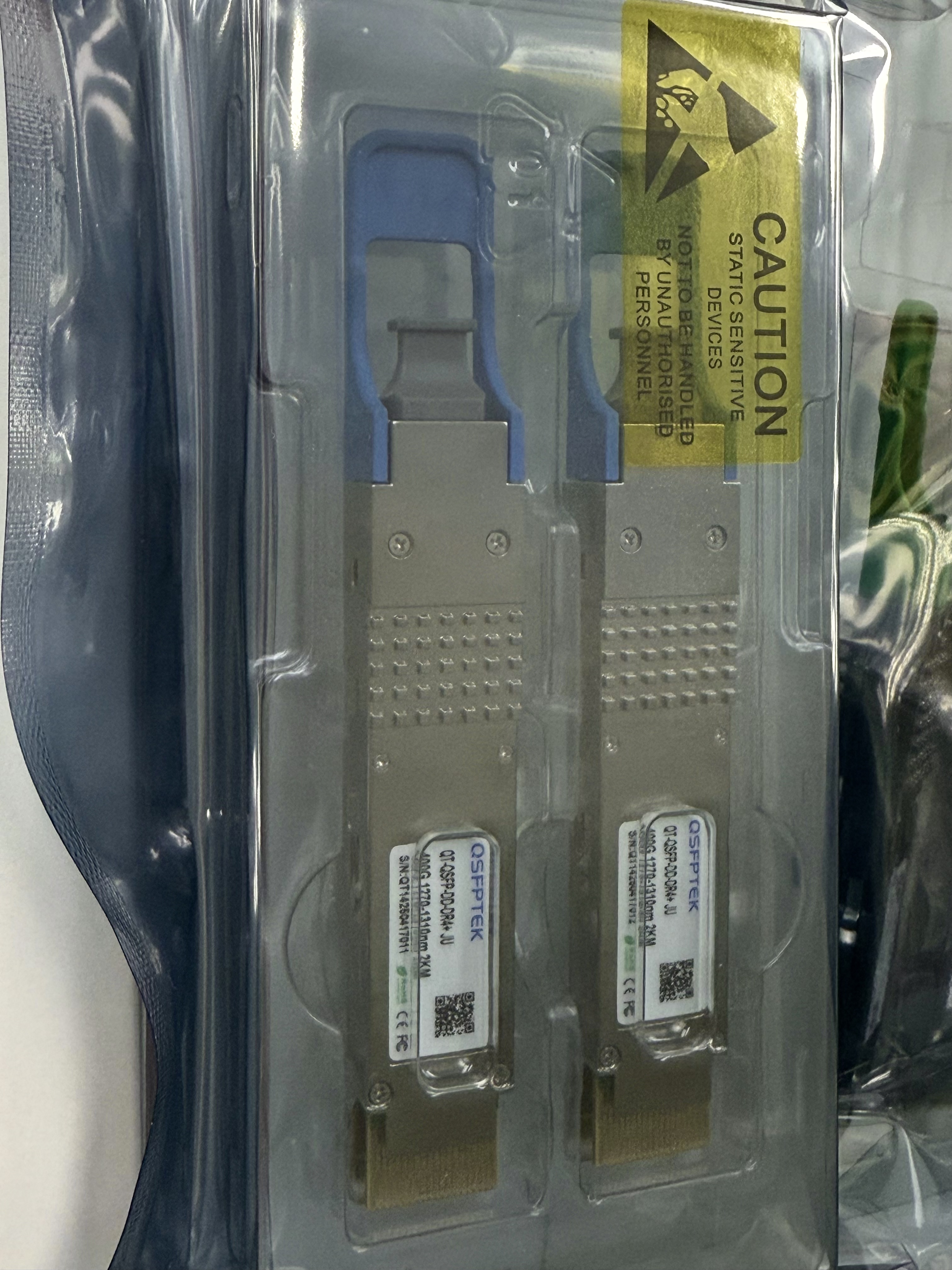

Mark
