    Products / Transceivers / Direct Attach Cables (DACs) / 100G QSFP28 Breakout DAC / 102972
    Product image
    Product image
    Product image

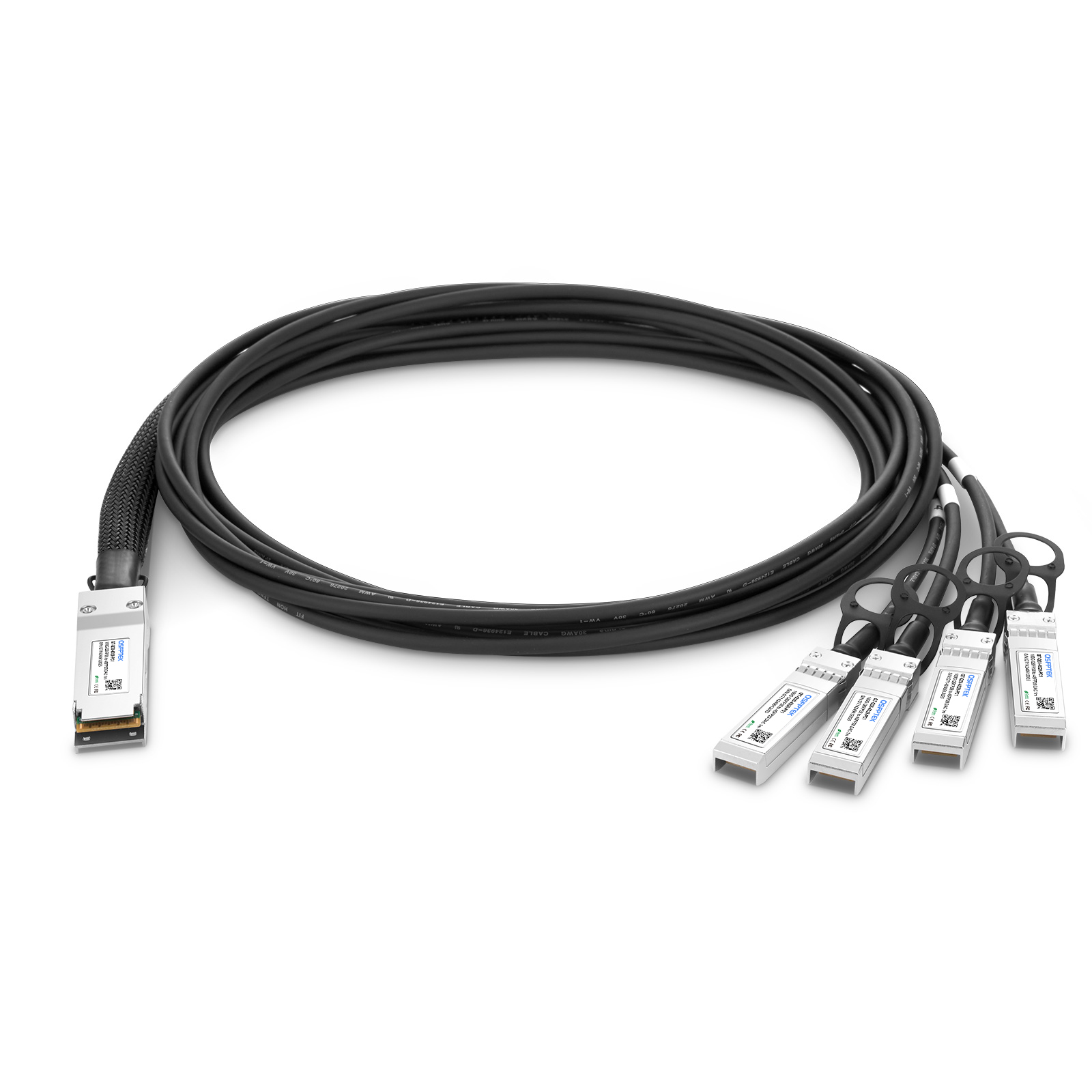

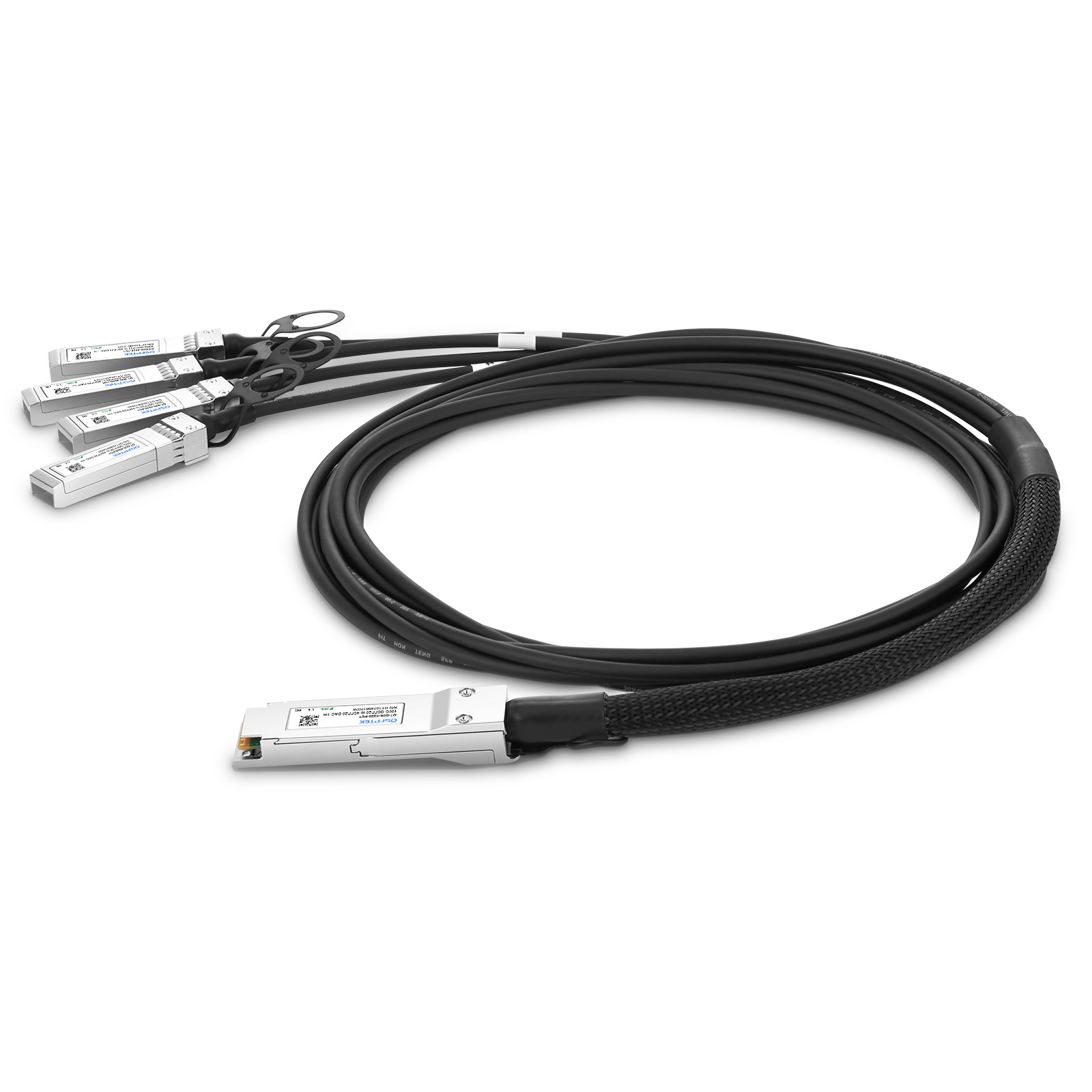

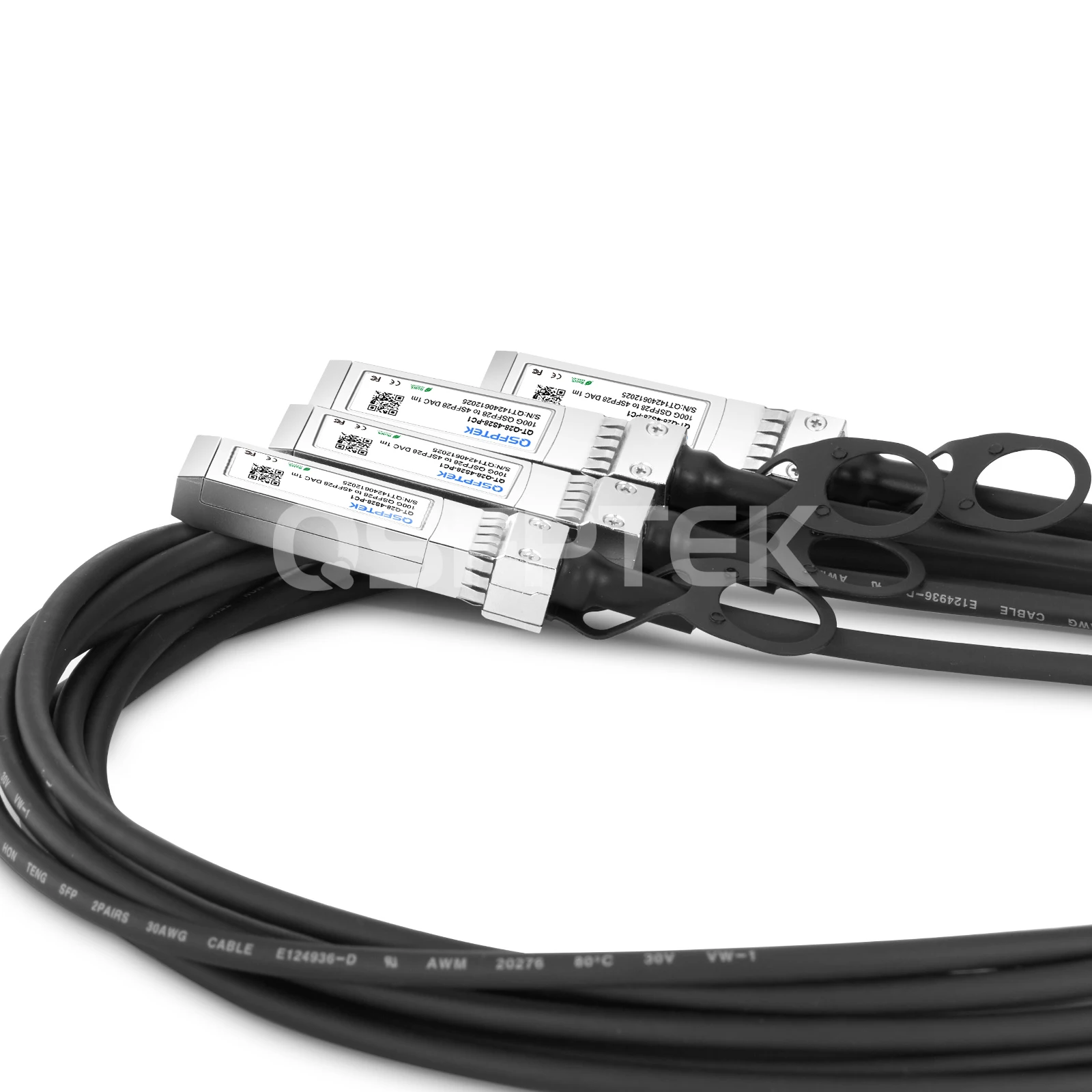

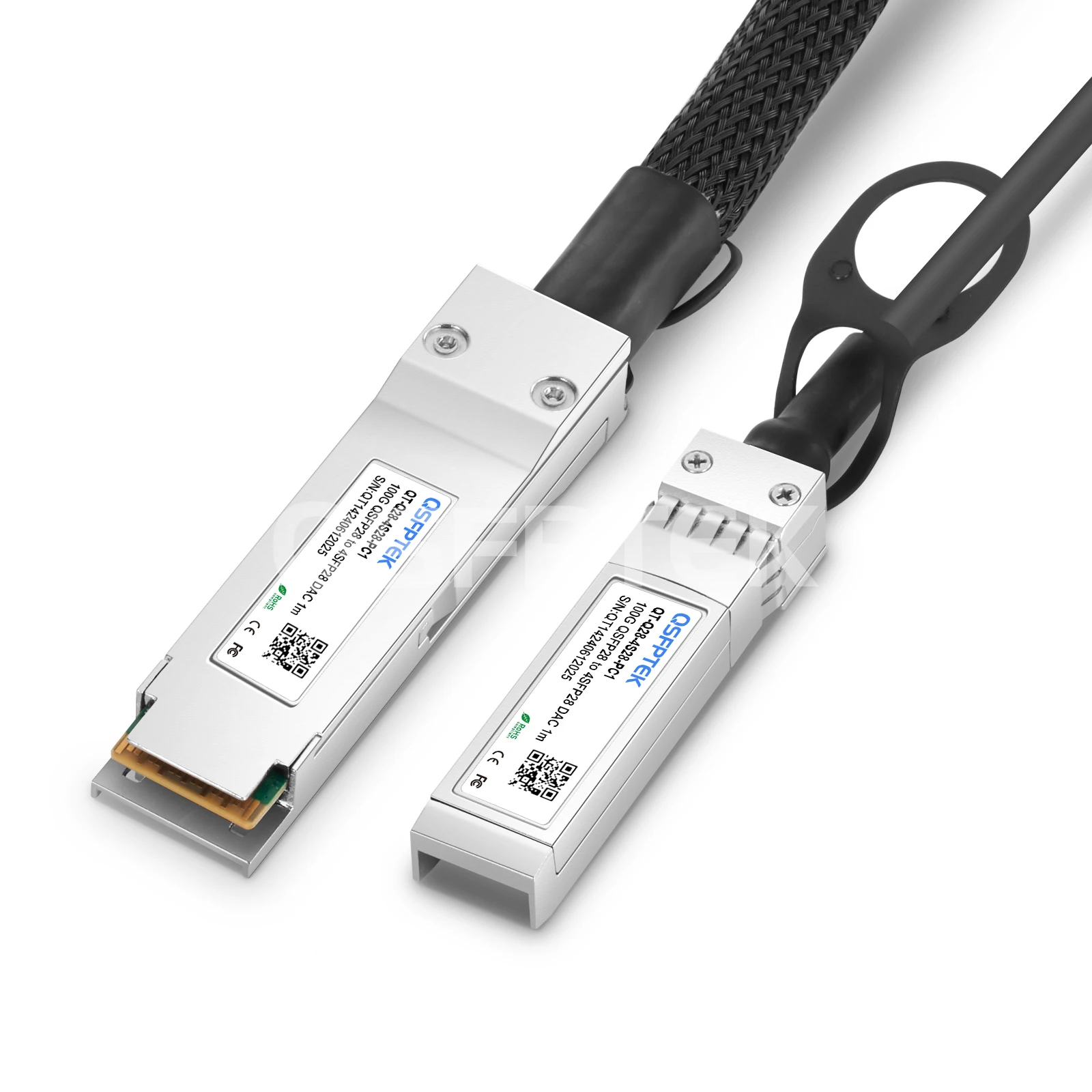

    1m Dell DAC-Q28-4SFP28-25G-1M Compatible 100G QSFP28 to 4x25G SFP28 Passive Direct Attach Copper Breakout Cable

    Product No: 102972
    0 Reviews
    200 Sold
    $39.00
    Compatible
    Transceivers type
    162 in real-time stock, 25Oct, 2026
    Delivered in 5 business days in the U.S.
    5-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100G QSFP28 to 4 SFP28 Connetor
2. Low Latency and Power Consumption
3. Compatible with 200+ Vendors
4. Applied in 100G Ethernet Hub, Switches, Routers, Servers, etc.
5. QSFP28 MSA Compliant
    See more

    Specifications

    Dell DAC-Q28-4SFP28-25G-1M Compatible 100G QSFP28 DAC Breakout Cable (1-meter, Passive, 100G QSFP+ to 4x25G SFP28)



    Dell DAC-Q28-4SFP28-25G-1M compatible 100G QSFP28 DAC breakout cable is comprised of a Twinax copper cable terminated with a QSFP28 form factor module on one end and four SFP28 form factor modules on the other end. It is verified to interoperate with a wide range of original Dell platforms, including the PowerSwitch edge switches (E3200-ON series, N3248TE-ON, S3248T-ON) and data center switches (S5200-ON series, S4348-ON series, S4100-ON series). This cable has the advantage of convenient installation since the structure of modules is permanently attached to each end.



    100G QSFP28 to 4x25G SFP28 breakout cable is suitable for very short-distance transmission. It provides a cost-effective and low-power consumption solution for 100G to 25G breakout applications.



    Part Number QT-Q28-4S28-PC1 Vendor Name QSFPTEK
    Connector Type 100G QSFP28 to 4x25 SFP28 Data Rate 100 Gbps
    Minimum Bend Radius 25mm Wire AWG 30AWG
    Cable Length 1m Cable Jacket PVC (OFNR)



    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    S7600-48X8C, 48-Port Ethernet L3+ Switch, 48x 10G SFP+, 8x 100G QSFP28, Support MLAG, VXLAN

    $4157.00 $5099.00
    200 Sold
    171 Reviews

    Features

    • 1. High Reliablility and Best Price
      Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade prices.
    • 2. Wide Application Scenarios
      Ideal for ToR, adjacent racks, and 100-25G breakout solutions.
    • 3. Protocols
      Compliant with QSFP28 MSA, InfiniBand SDR/DDR/QDR, SFF-8436, and SFF-8431.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

    Connection 1: 100G to 4x 25G Breakout Connectivity

    Connection 1 100G to 4x 25G Breakout Connectivity



    Product details

    Various Switch Tests



    Every cable is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



    QSPFTEK LAB All Brands Switches Show



    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack



    Comprehensive Testing



    Every cable is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



    QSFPTEK Test Devices

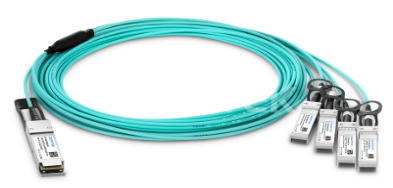

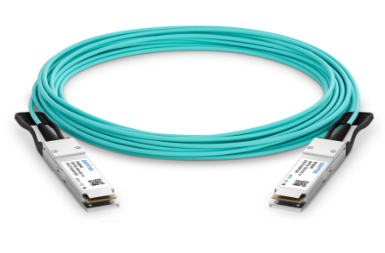

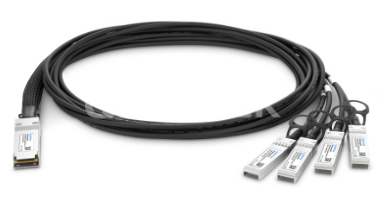

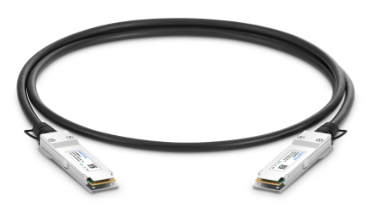

    100G QSFP28 Cables Contrast Table



    Part Number QT-Q28-PCx QT-Q28-4S28-PCx QT-Q28-Ax QT-Q28-4S28-Ax
    Cable Type Passive Direct Attach Copper Passive Direct Attach Copper Breakout Active Optical Cable Active Optical Cable Breakout
    Max Data Rate 100Gbps 100Gbps 100Gbps 100Gbps
    Connector Type QSFP28 to QSFP28 100G QSFP28 to 4x25 SFP28 QSFP28 to QSFP28 100G QSFP28 to 4x25 SFP28
    Wire AWG 30AWG 30AWG / /
    Minimum Bend Radius 33mm 25mm 7.5mm 7.5mm
    Media Copper Copper Optic Fiber Optic Fiber
    Jacket Material PVC (OFNR) PVC (OFNR) LSZH LSZH

    Questions & Answers

    • All (5)
    • Once I place an order for my direct attach cables, how long will it take to receive them?
      QSFPTEK has been maintaining adequate stock level of kinds of Direct Attach Copper Cables in the warehouse. As long as the products you order are all in stock, we will ship them out the same day you place your order. As for some specific products or products that have a short stock, we will keep you informed ahead of time before you place your order.
    • Why should I trust QSFPTEK compatible direct attach cables?
      Exceting the price advantage we have compared to branded cables, QSFPTEK DACs also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our DACs are tested multiple times in mainstream original brand switches in our test center before shipped out. What's more, using compatible optics in brand devices will not negatively affect manufacturers' warranty if that's your concern.
    • Can I have different compatibilities for each end of my direct attach cables?
      Yes, QSFPTEK offers customized dual compatibility solutions for direct attach cables so that you can choose compatibilities for each end individually. Just contact your sales rep. for detailed compatible customization on dual ends.
