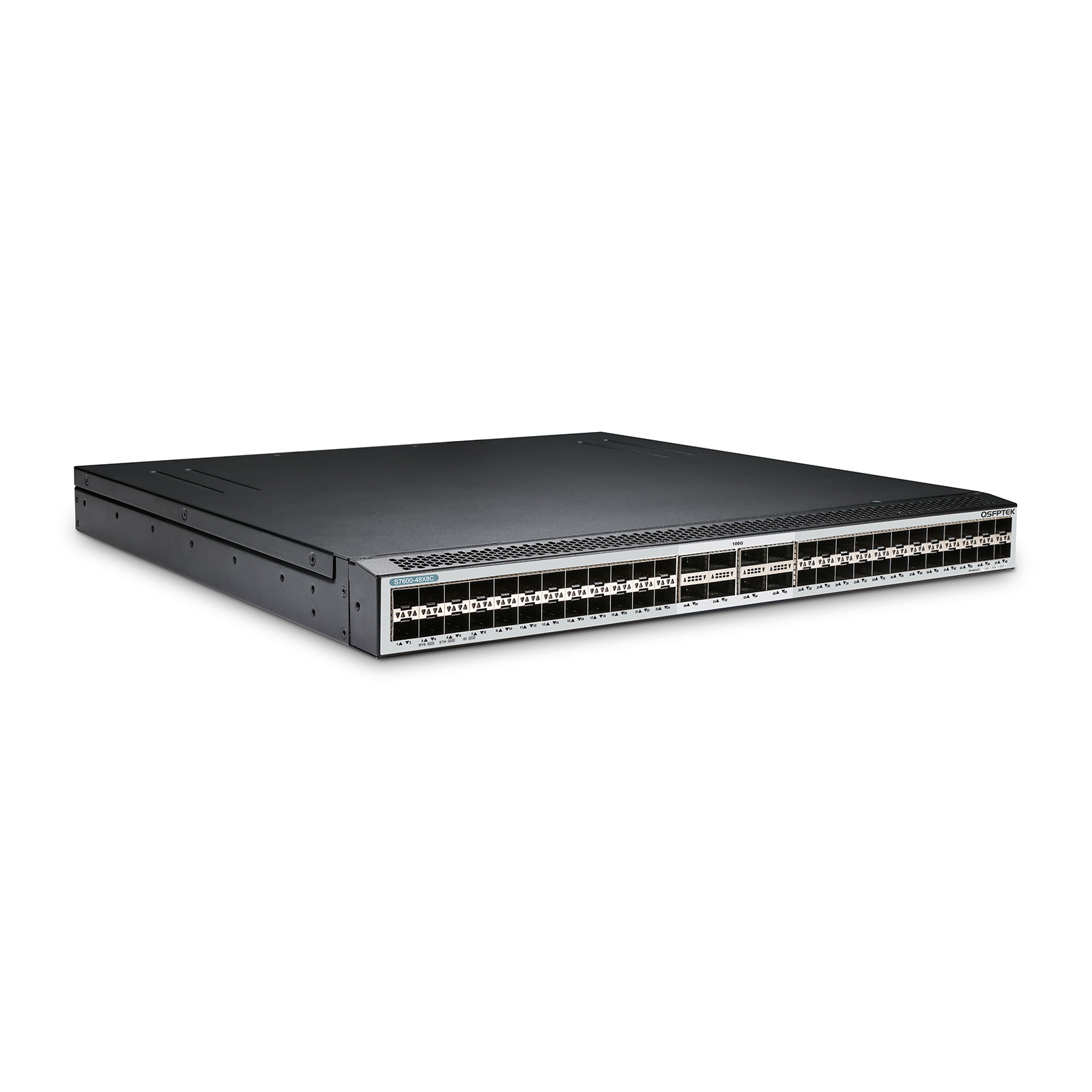

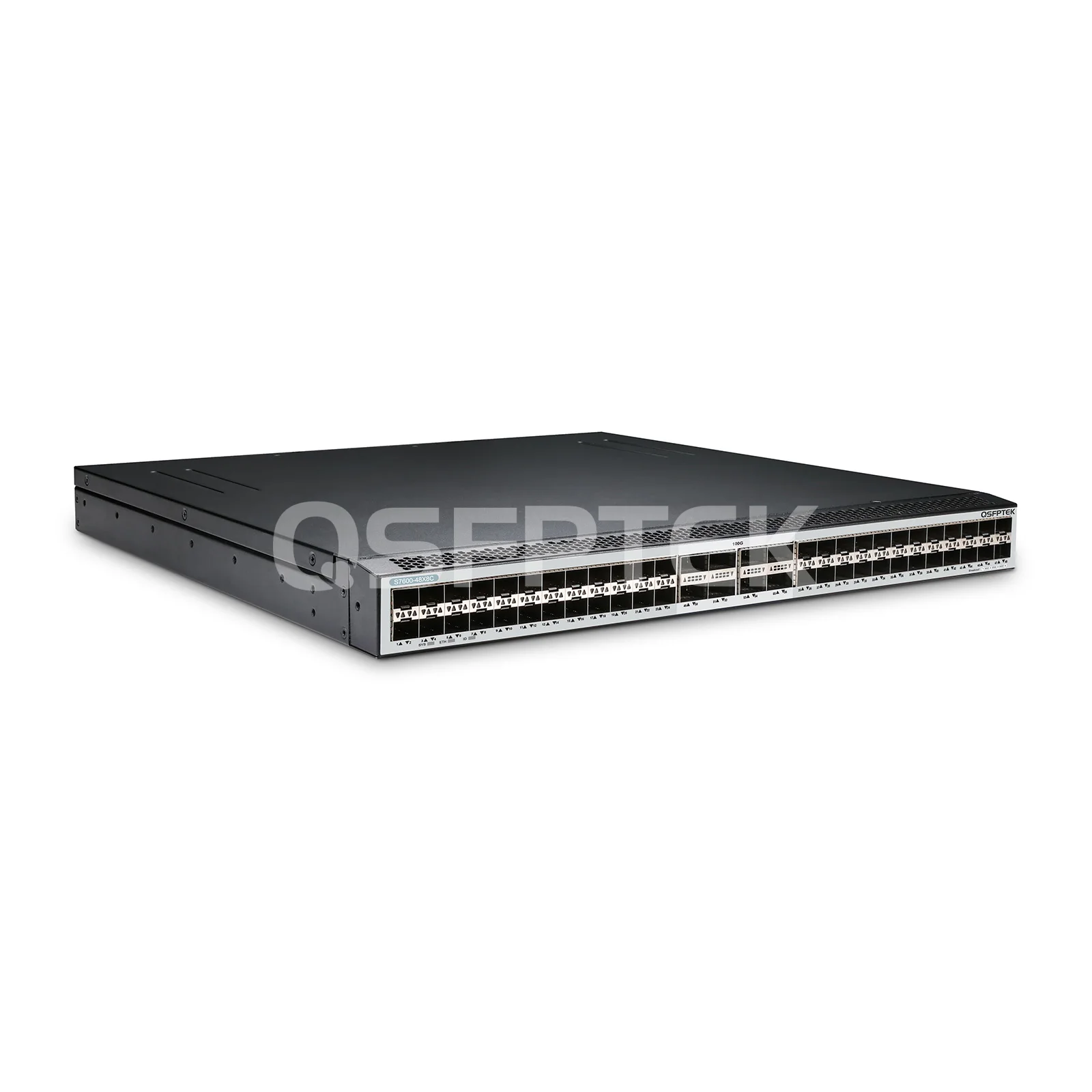

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x 10Gb SFP+, 8 x 100Gb QSFP28, Support MLAG

Product No :100491
US$ 4150.90  US$ 5099.00
50 in stock
1. Support Maximum 48 10GE Ports and 8 100GE  QSFP28 Uplink Ports.
2. Up to 2.56 Tbps Switch capability and 1905 Mpps forwarding rate.
3. Features high stacking capability.
4. RDMA reduces latency and CPU consumption.
5. Support Data Center features including VARP, VXLAN, EVPN, GRE, and NVGRE.
6. Support MLAG (Multi-Chassis Link Aggregation) for Networking Reliability.
7. 1+1 Hot-swappable Power Supplies, 4 Hot-swappable Fans.
8. Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / to protect the network traffic all around effectively.
See more

Specifications

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x 10Gb SFP+, 8 x 100Gb QSFP28, Support MLAG



The S7600-48X8C 48-port 10 GB ethernet layer 3 switch is a large capacity and high-density switch in a compact 1U form factor. The switch supports advanced Data center features, including MLAG, NVGRE, VXLAN, GENEVE, PFC, ECN, etc., The S73000-48X8C is equipped with hot-swappable power supply modules and supports AC/DC 1+1 redundancy; Smart fans support 2+2 redundancy; Intelligent FAN adjustment and real-time power consumption monitoring technology provide cost for maintenance redundancy and help create green and energy-saving data center. With high capacity, low power consumption, and easy maintenance features, the S7600 series meet the requirements of the next-generation enterprise, data center, metro, and HCI (hyper-converged infrastructure) networks.



Ports

48x 10G SFP+ | 8x 100G QSFP28

Packet Buffer

36 MB

Switching Capacity

2.56 Tbps

Forwarding Rate

1905Mpps

MAC Address

62K

ARP Table

16384

VLAN IDs

4094

Jumbo Frame

9600 bytes

IPv4 Routes

60K

IPv6 Routes

4096

FLASH

8 GB

RAM

2 GB

Latency

700ns

Airflow

Front-to-Back

Power Supply

2 (1+1 redundant) hot-swappable

Fan Number

(2+2 redundancy) hot-swappable

Max. Power Consumption

160W

MTBF

162,213 hours

Operating Temperature

0°~45°C (32°~113°F)

Weight

8.85kg

Dimensions (H×W×D)

4.4

x 44.2 x 42.25 cm

(1.73 x 17.4 x 16.63 in.)

Warranty

5 Years





Features

  • High capacity, high availability and multi-service support
    Support 1G/10G/40G/100G ports to meet different network requirements.
  • Support diverse data center features
    The S7600 series supports leading edge Data Center features: MLAG, VXLAN, EVPN, Priority Flow Control (PFC), explicit Congestion Notification (ECN), and Data Center TCP, etc.
  • Highly controlled QOS and security function
    Support WDRR, SP, TD, and other multi-level scheduling technologies, WRED to prevent congestion. Support flexible queue scheduling mechanism to shape queue or port traffic. IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packets respectively.
  • Convenient and easy-to-use management
    Support multiple management interfaces, including Console port/inband network port/outband network port/USB interface. Support SNMP v1/v2/v3, support CLI (Command Line Interface), Web management, Telnet and FTP connections.

Applications

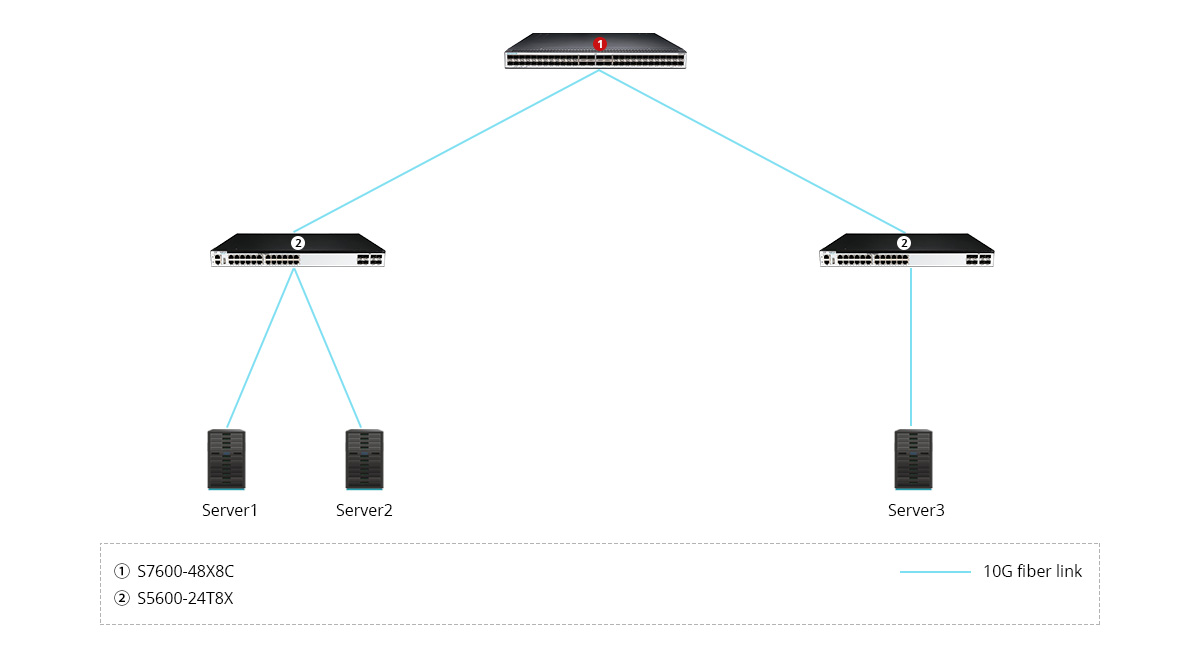

Scenario 1:

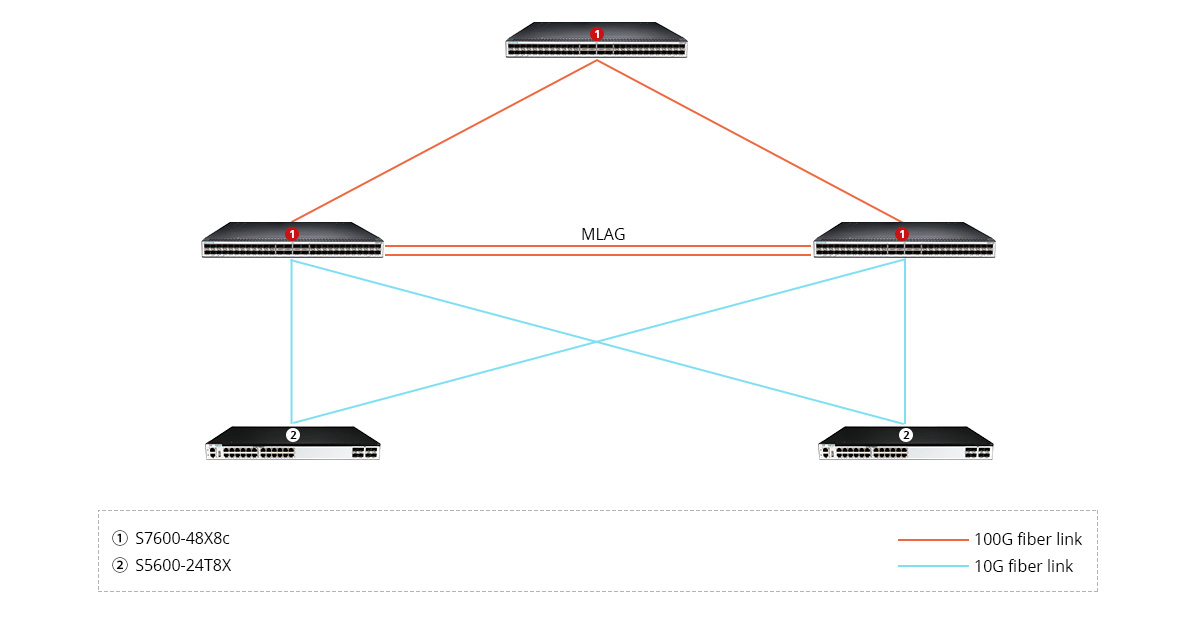

Scenario 2 (Two S7600-48X8C switches in an MLAG Pair):





Related Products:



10G SFP+ Optical Transceiver Modules



100G QSFP28 Optical Transceiver Modules



S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG





Product details

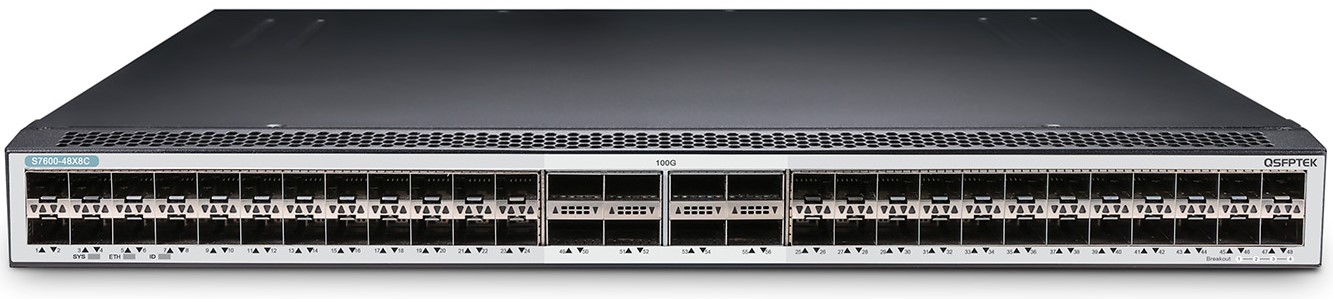

48x10G/8x100G Ports for a Variety of Client Types



10G SFP+ ports for access or aggregation switches, 100G uplinks for core switches. 56 Ports Meet the Needs of High-density Deployment






MLAG Implements Device-Level Link Reliability



The switch running MLAG can be connected through a peer-link link and perform link aggregation negotiation with the host in the same state. After the M-LAG member devices receive the traffic sent by the access device through link bundling and load sharing, they can jointly perform negotiate link aggregation traffic forwarding.




ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

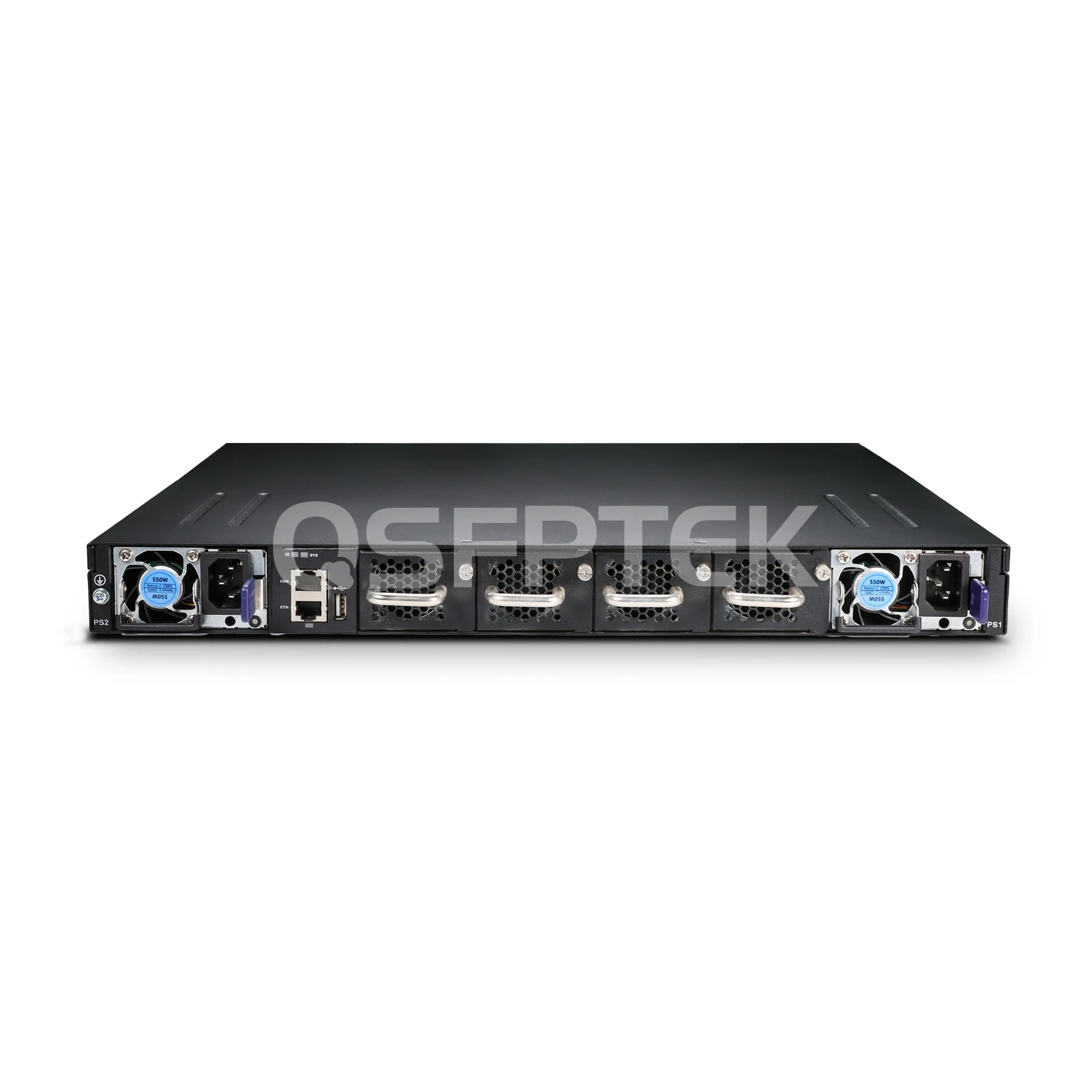

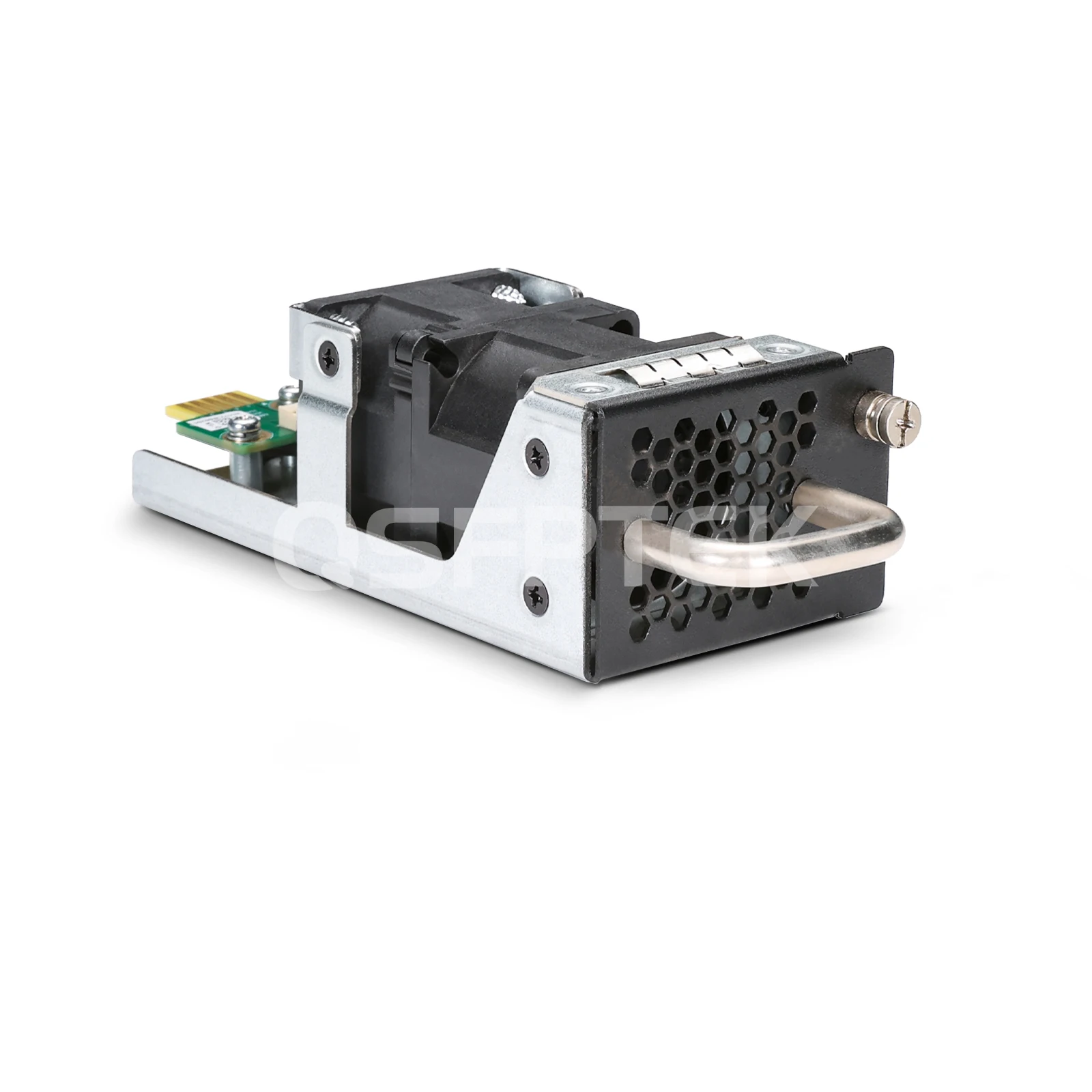

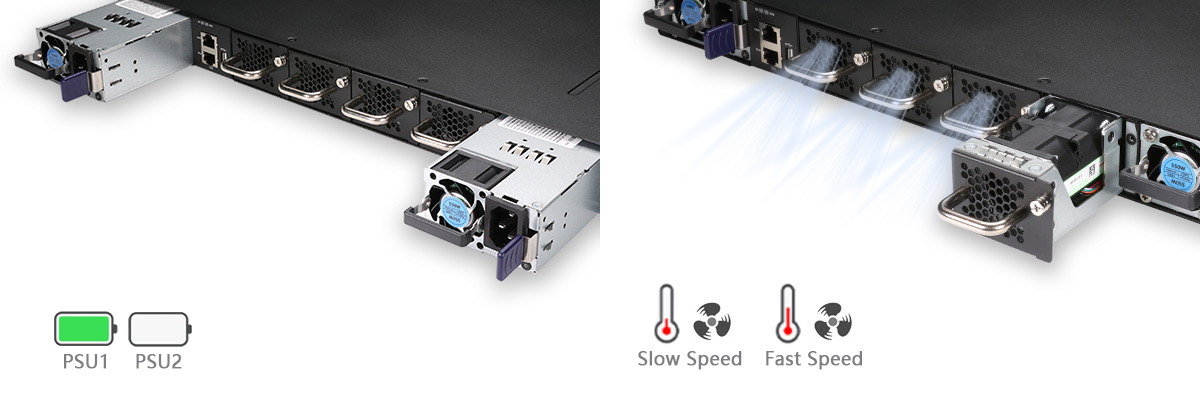

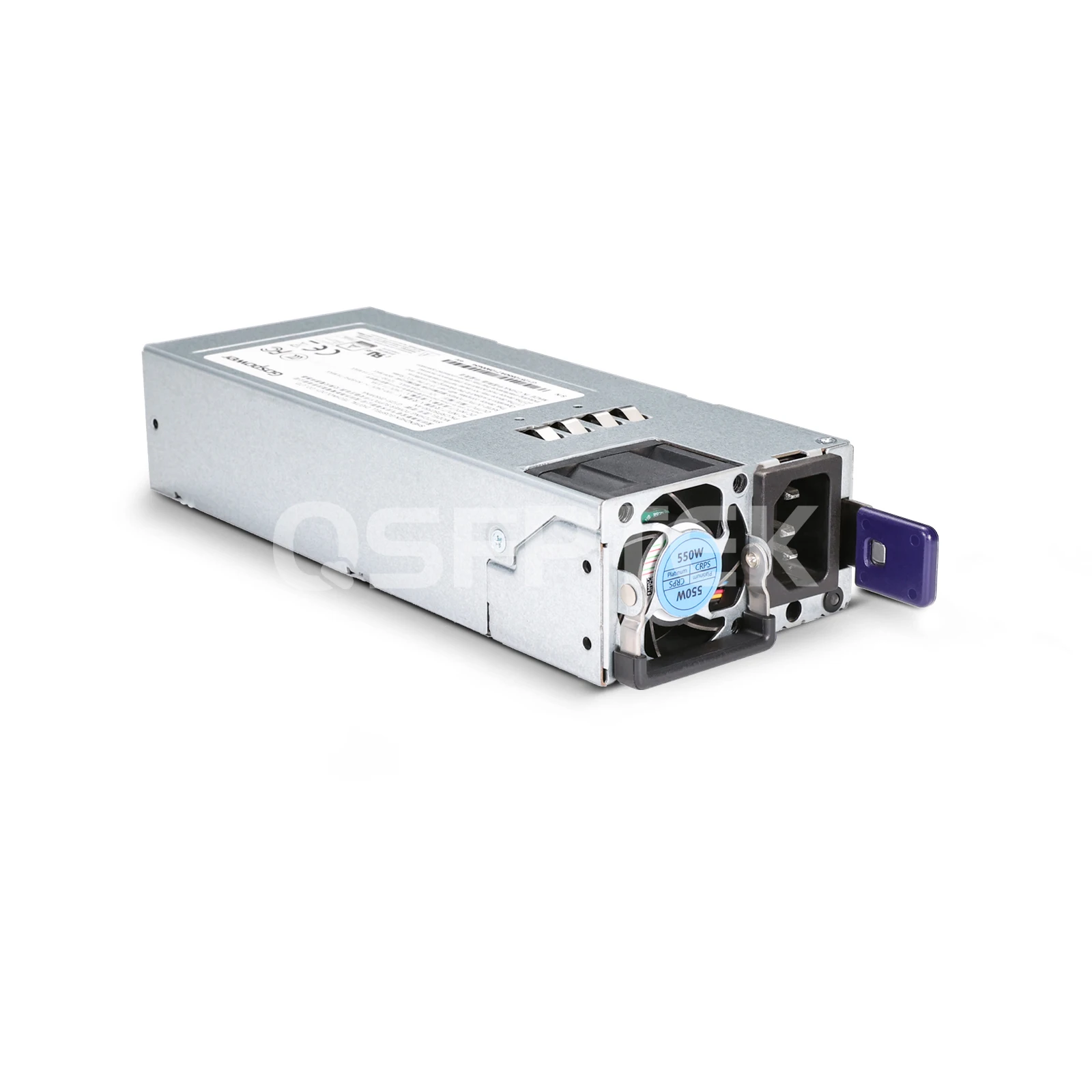

1+1 Hot-Swappable Power Supplies and 4 Modular Pluggable Fans



Dual power supplies allow for on-the-fly replacements, the chassis features front-to-back airflow, and fans automatically adjust speed to control noise and power consumption.






Questions & Answers

more+
  • Do your S5600 or S7600 series switches support NG-mVPN?
    Sorry, Our S5600 and S7600 series switches support BGP EVPN, L2VPN, and L3VPN, but don't support NG-mVPN.
  • What is the difference between S7600-48Y8C and S7600-48X8C?
    The main difference between the two is that the downstream port of 48Y8C is SFP28 port, which supports 10G/25G, while the downstream port of 48X8C is SFP+ port. The rest of the features and functions are basically the same.
  • What is MLAG? What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
