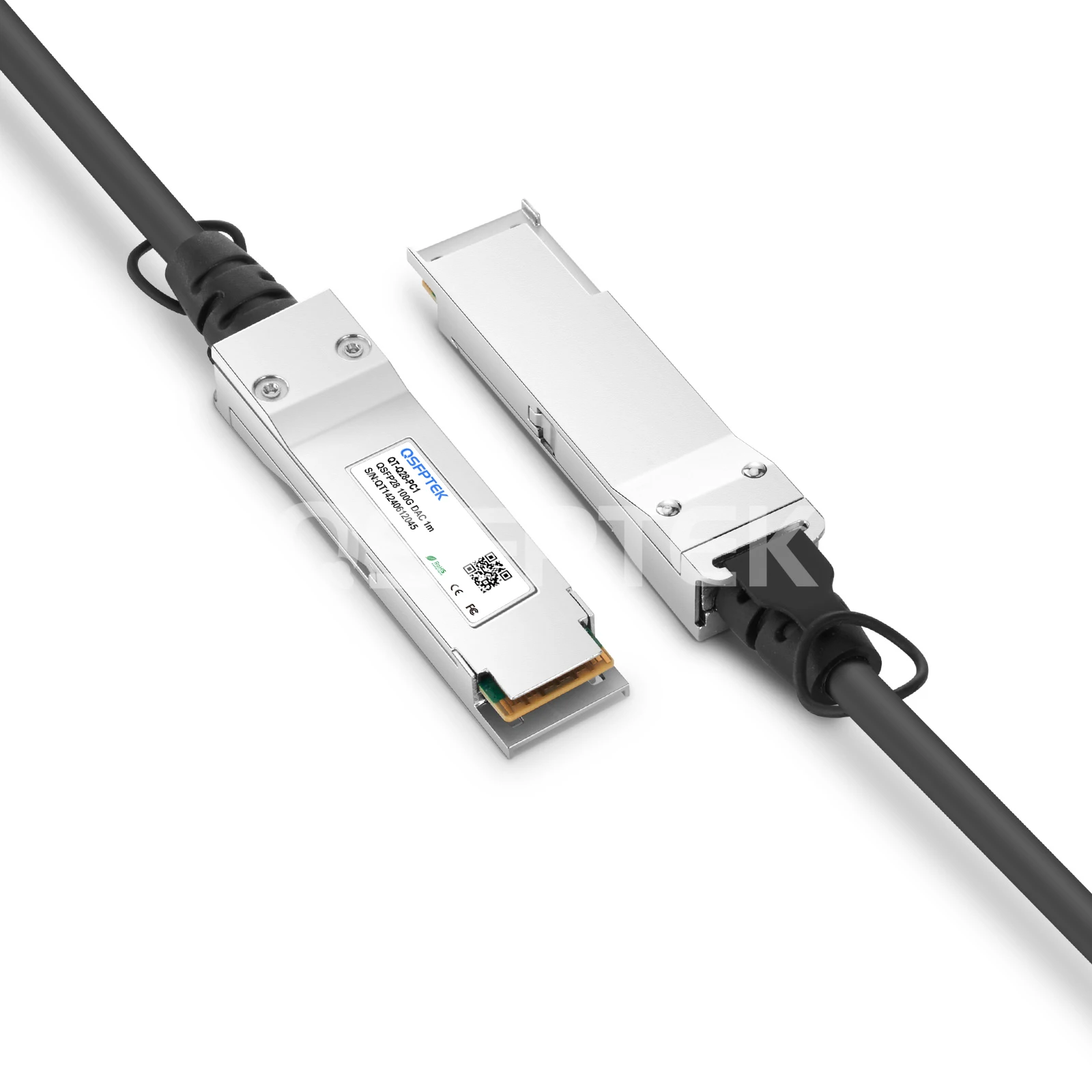

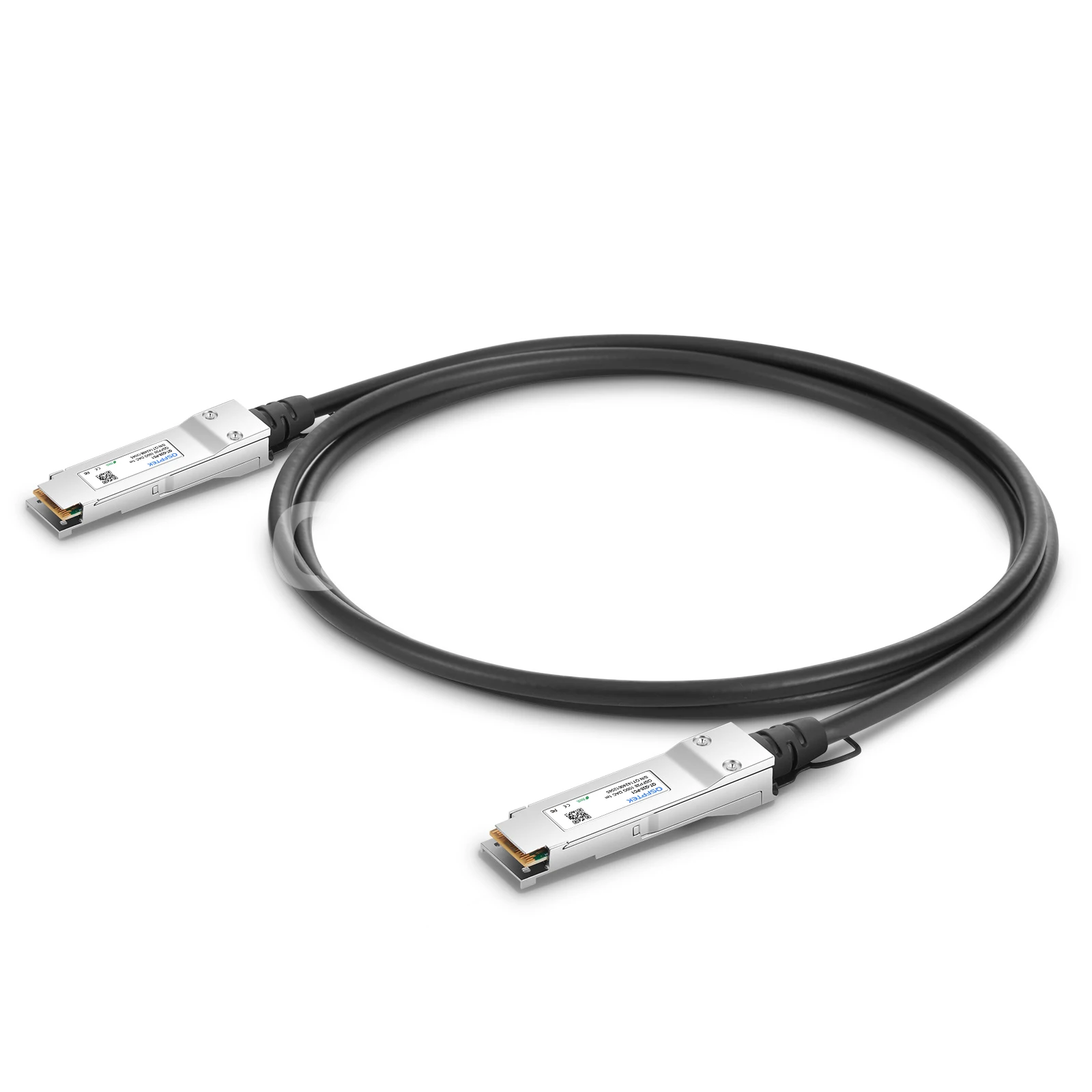

1M Cisco QSFP-100G-CU1M Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable

Product No :99236
US$ 25.50  US$ 30.88
284 in real-time stock, 02Jul, 2025
Delivered in 5 business days in the U.S.
-
+
1. 100G QSFP28 to QSFP28 Connetor
2. Low Latency and Power Consumption
3. Compatible with 200+ Vendors
4. Applied in 100G Ethernet Hub, Switches, Routers and Servers, etc.
5. QSFP28 MSA Compliant
See more

Specifications

Cisco QSFP-100G-CU1M Compatible 100G QSFP28 Direct Attach Cable (DAC) Twinax Cable (1 meter, Passive, QSFP28 to QSFP28)



Cisco QSFP-100G-CU1M compatible 100G QSFP28 DAC is comprised of a Twinax copper cable terminated with QSFP28 form factor modules on both ends. It is verified to interoperate with original Cisco switches, including the Catalyst 9400, 9500, 9600 and the Nexus 9200, 9300, 9500, 3000 series. 100G DAC cable has the advantage of convenient installation since the structure of modules is permanently attached to each end.



QSPF28 to QSFP28 100G DAC cable is suitable for very short-distance transmission. It provides a cost-effective and low power consumption way to build a 100Gb link between QSFP28 ports of switches or routers with racks and across adjacent racks.

Part Number

QT-Q28-PC1

Vendor Name

QSFPTEK

Connector Type

QSFP28 to QSFP28

Data Rate

100Gbps

Minimum Bend Radius

33mm

Wire AWG

30AWG

Cable Length

1M

Cable Jacket

PVC (OFNR)



Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Ideal for ToR, adjacent racks and short-range server-to-switch connections.
  • 3. Protocols
    Compliant with QSFP28 MSA, IEEE802.3bj and 100GEBASE-CR.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Connection 1: 100G Switch to 100G Switch Direct Connectivity

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG






Connection 2: 100G Switch to 100G NIC Direct Connectivity

Related Products:

S7600-48X8C, 48-Port Ethernet L3+ Data Center Switch, 48 x10Gb SFP+, 8 x100Gb QSFP28, Support MLAG

Intel E810-CAM2 Based Network Interface Card, 100G Dual Port QSFP28, PCIe 4.0 X 16, Half & Full Bracket

Product details

Various Switch Tests



Every cable is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



QSPFTEK LAB All Brands Switches Show




Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack




Comprehensive Testing



Every cable is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices

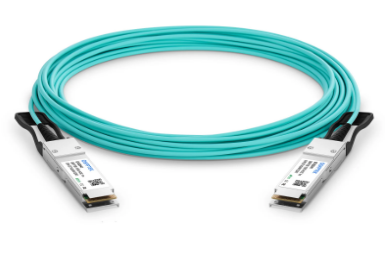

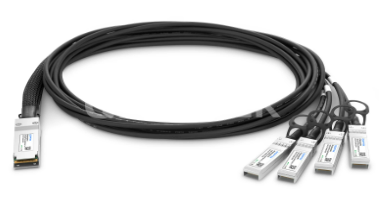

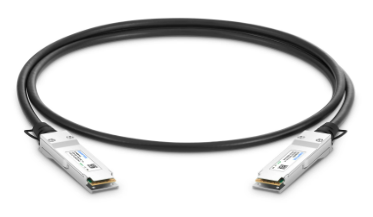

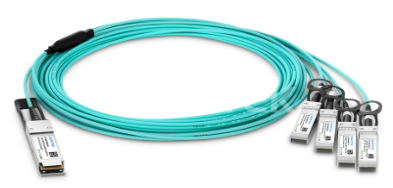

100G QSFP28 Cables Contrast Table



Part Number QT-Q28-PCx QT-Q28-4S28-PCx QT-Q28-Ax QT-Q28-4S28-Ax
Cable Type Passive Direct Attach Copper Passive Direct Attach Copper Breakout Active Optical Cable Active Optical Cable Breakout
Max Data Rate 100Gbps 100Gbps 100Gbps 100Gbps
Connector Type QSFP28 to QSFP28 100G QSFP28 to 4x25 SFP28 QSFP28 to QSFP28 100G QSFP28 to 4x25 SFP28
Wire AWG 30AWG 30AWG / /
Minimum Bend Radius 33mm 25mm 7.5mm 7.5mm
Media Copper Copper Optic Fiber Optic Fiber
Jacket Material PVC (OFNR) PVC (OFNR) LSZH LSZH
