    Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO OS2 Single Mode Trunk Cables / 103089

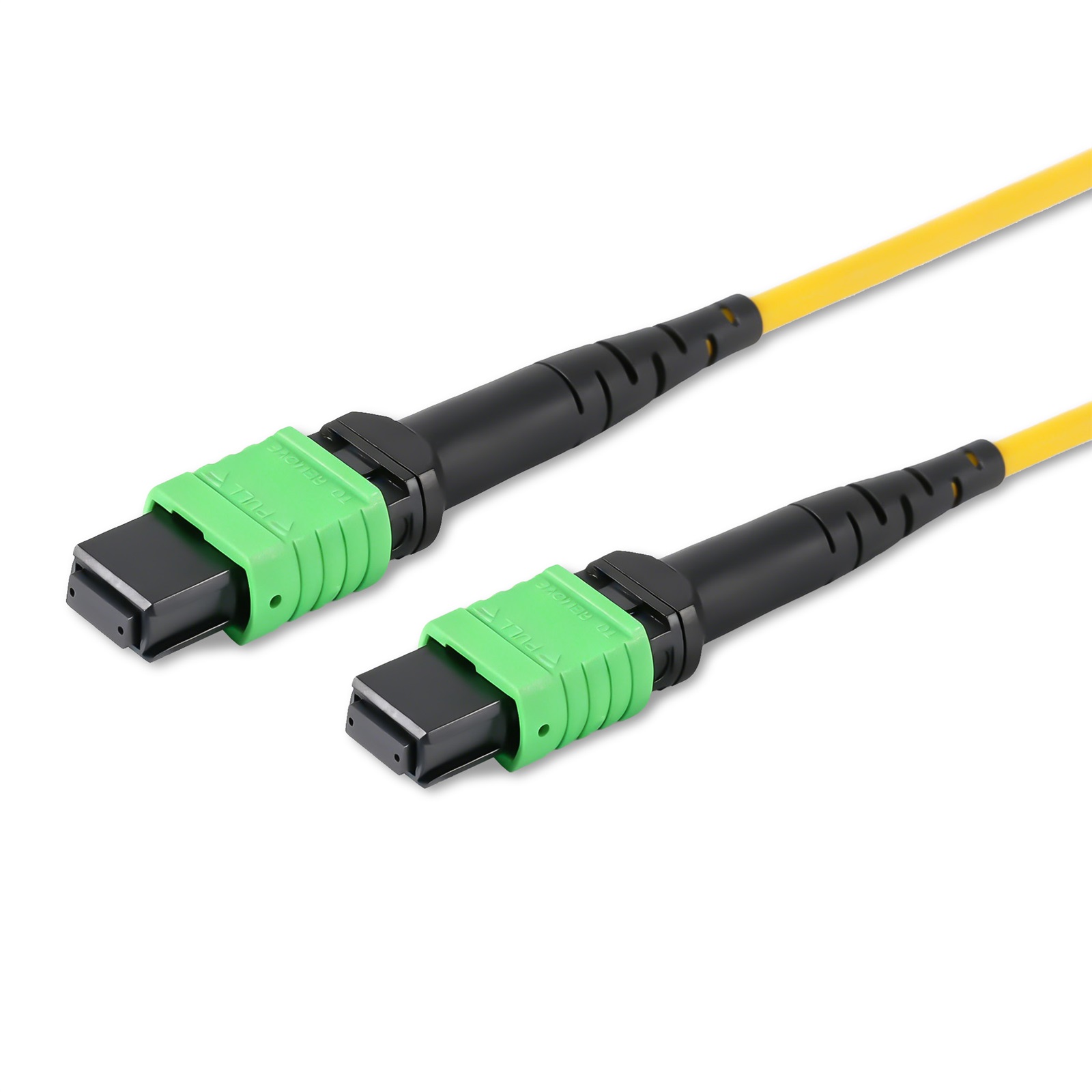

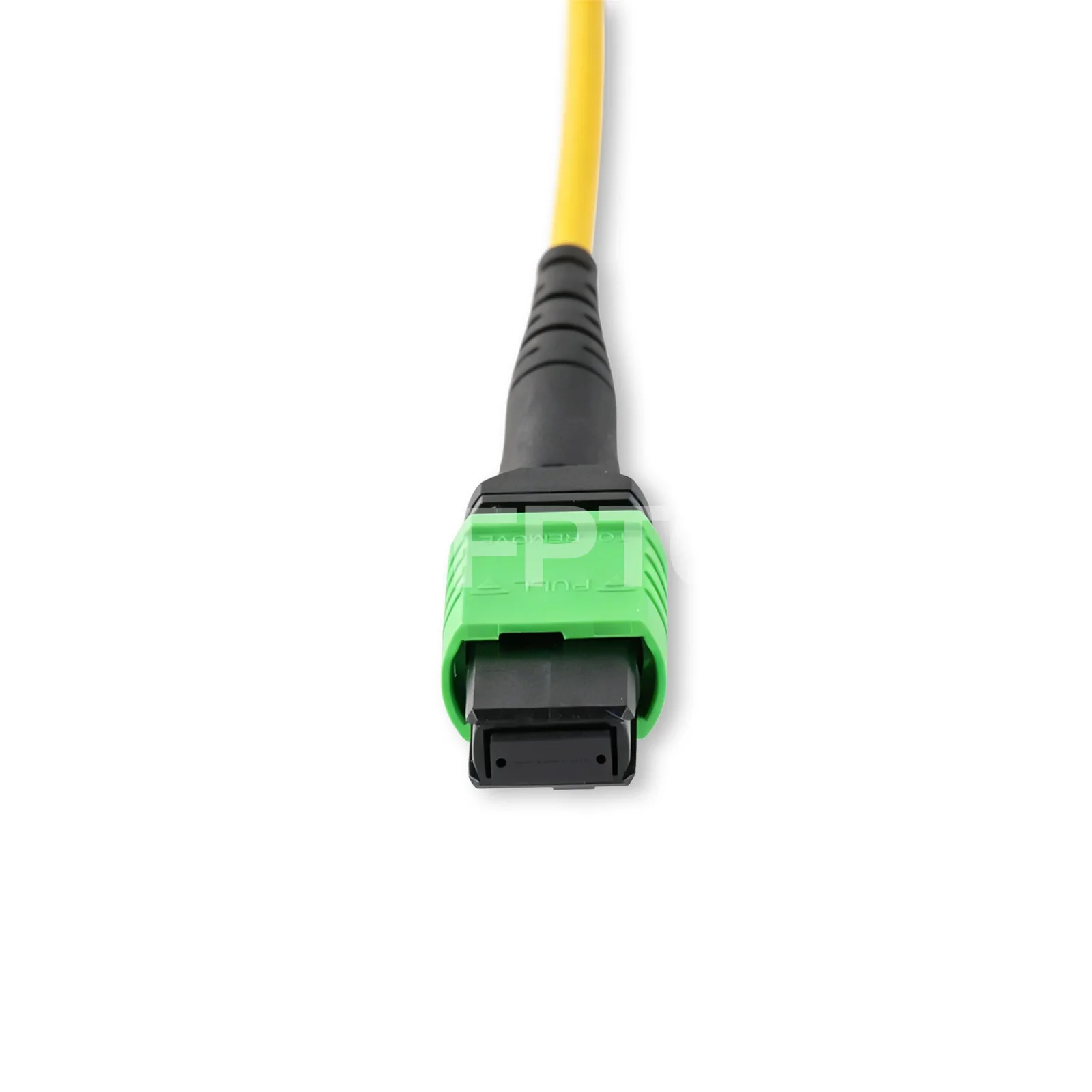

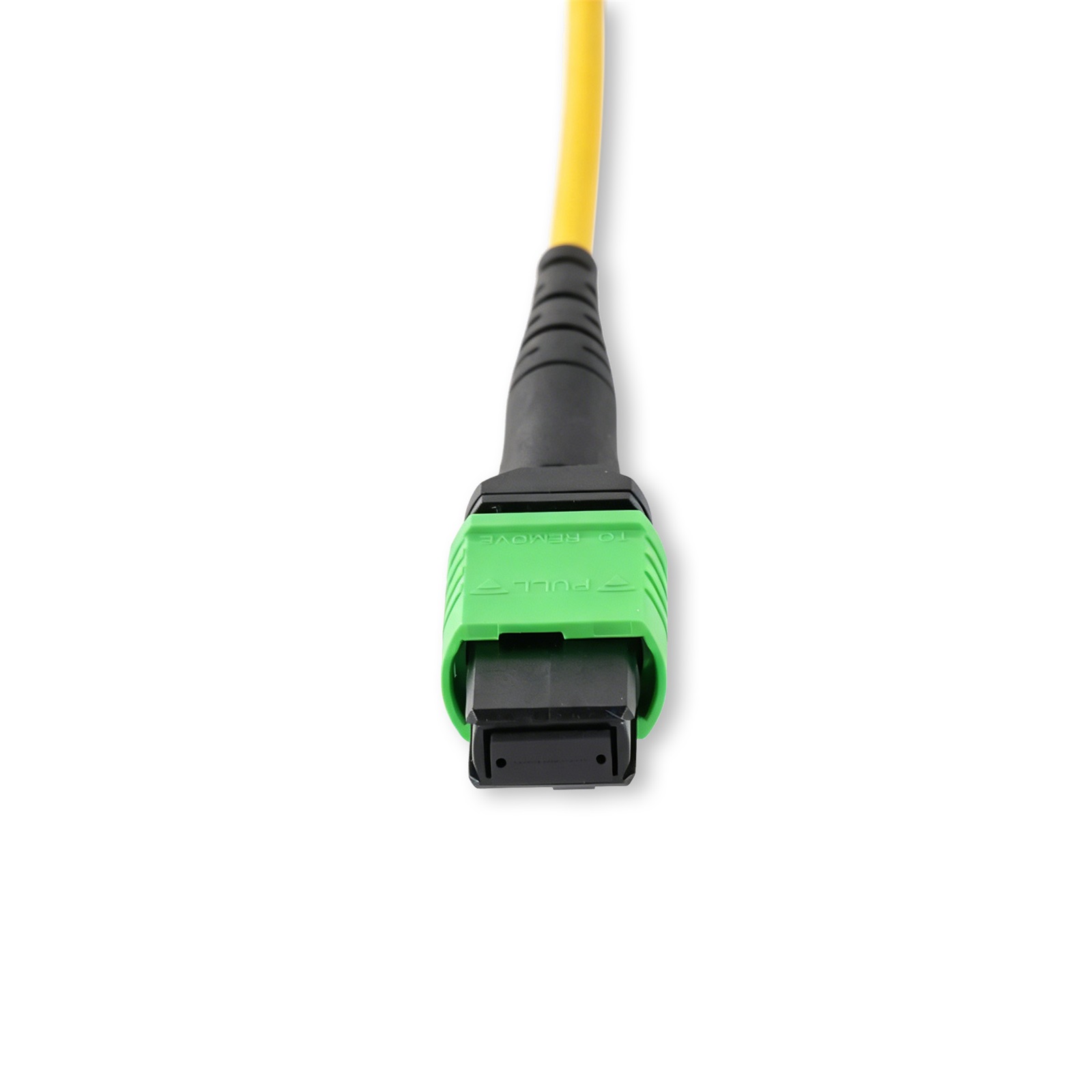

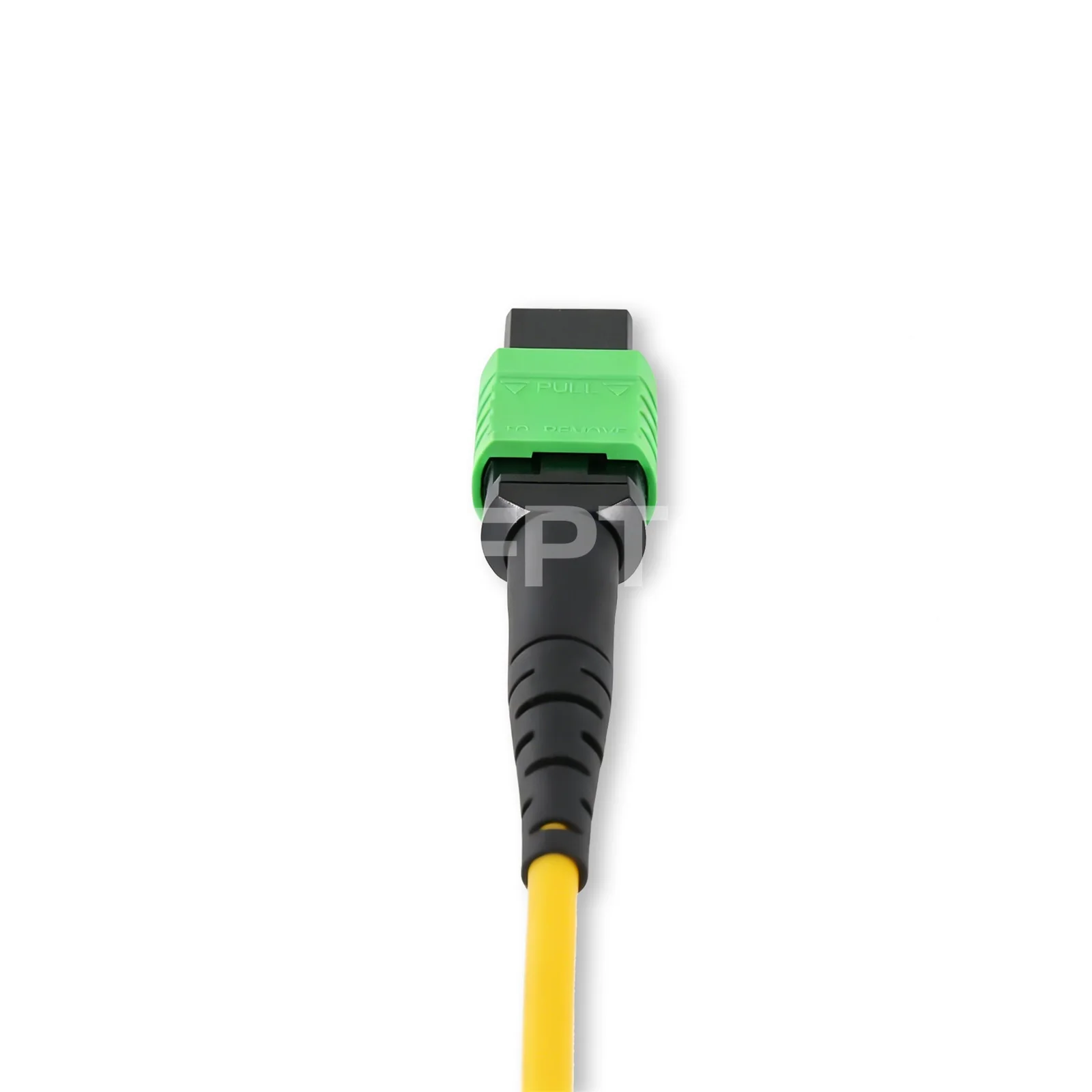

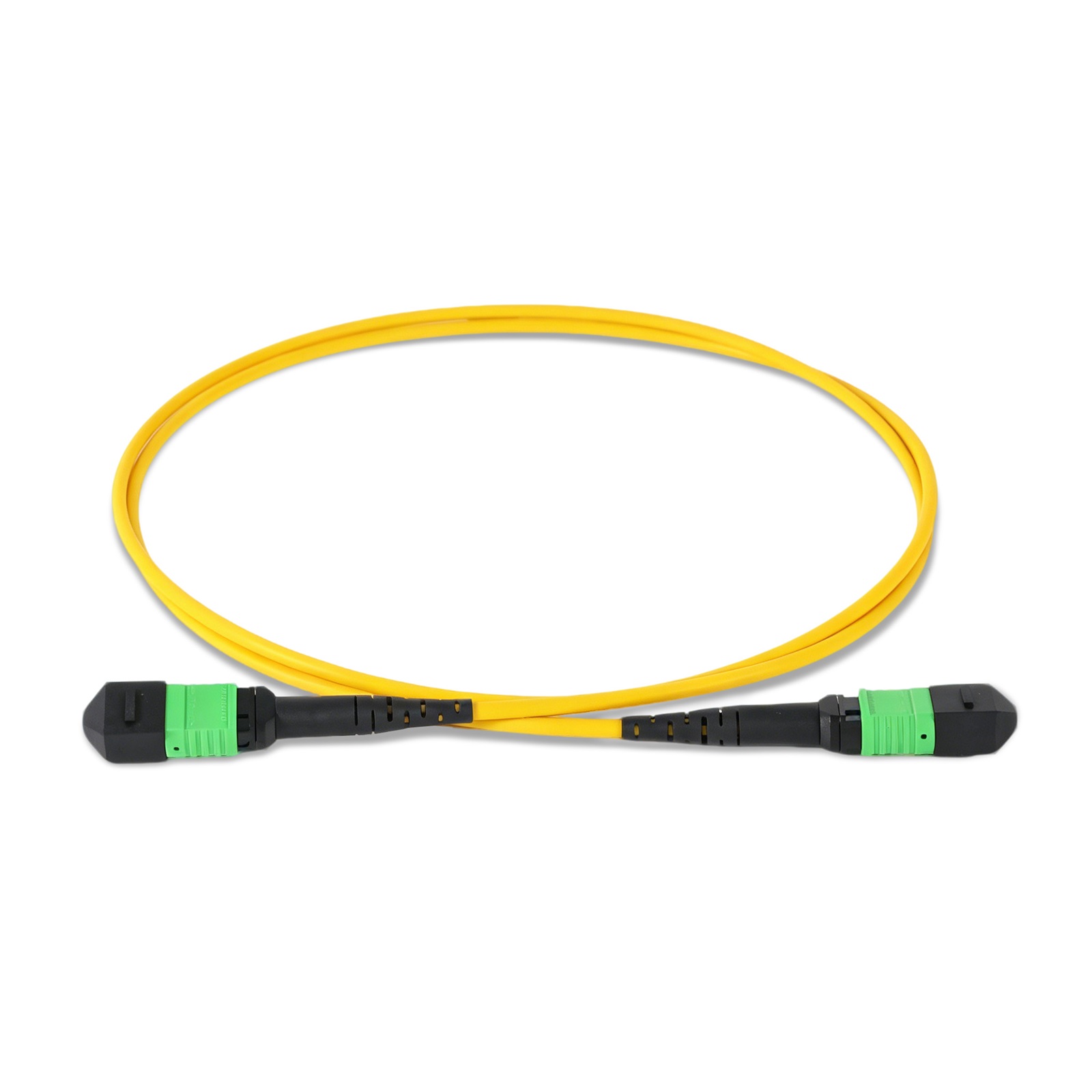

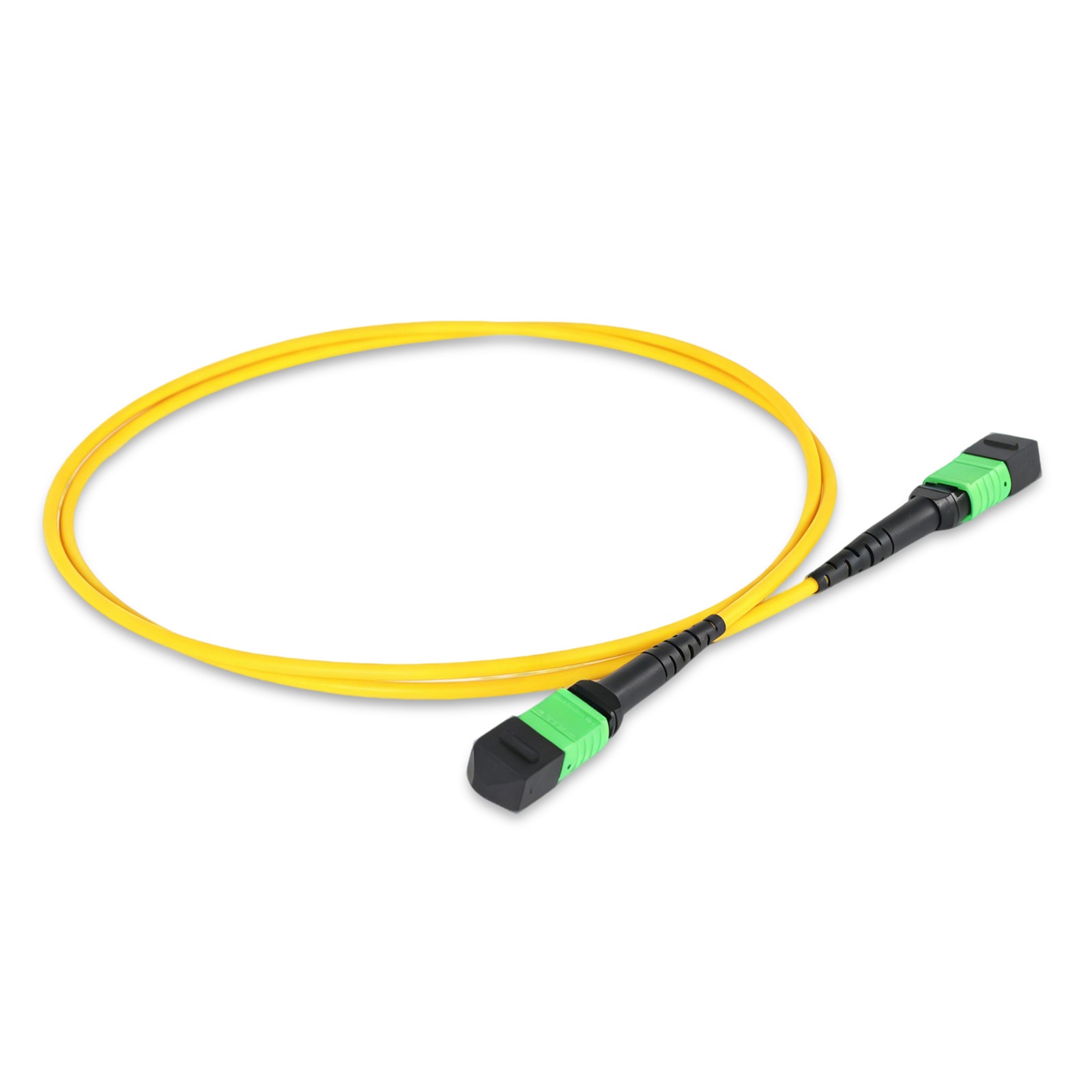

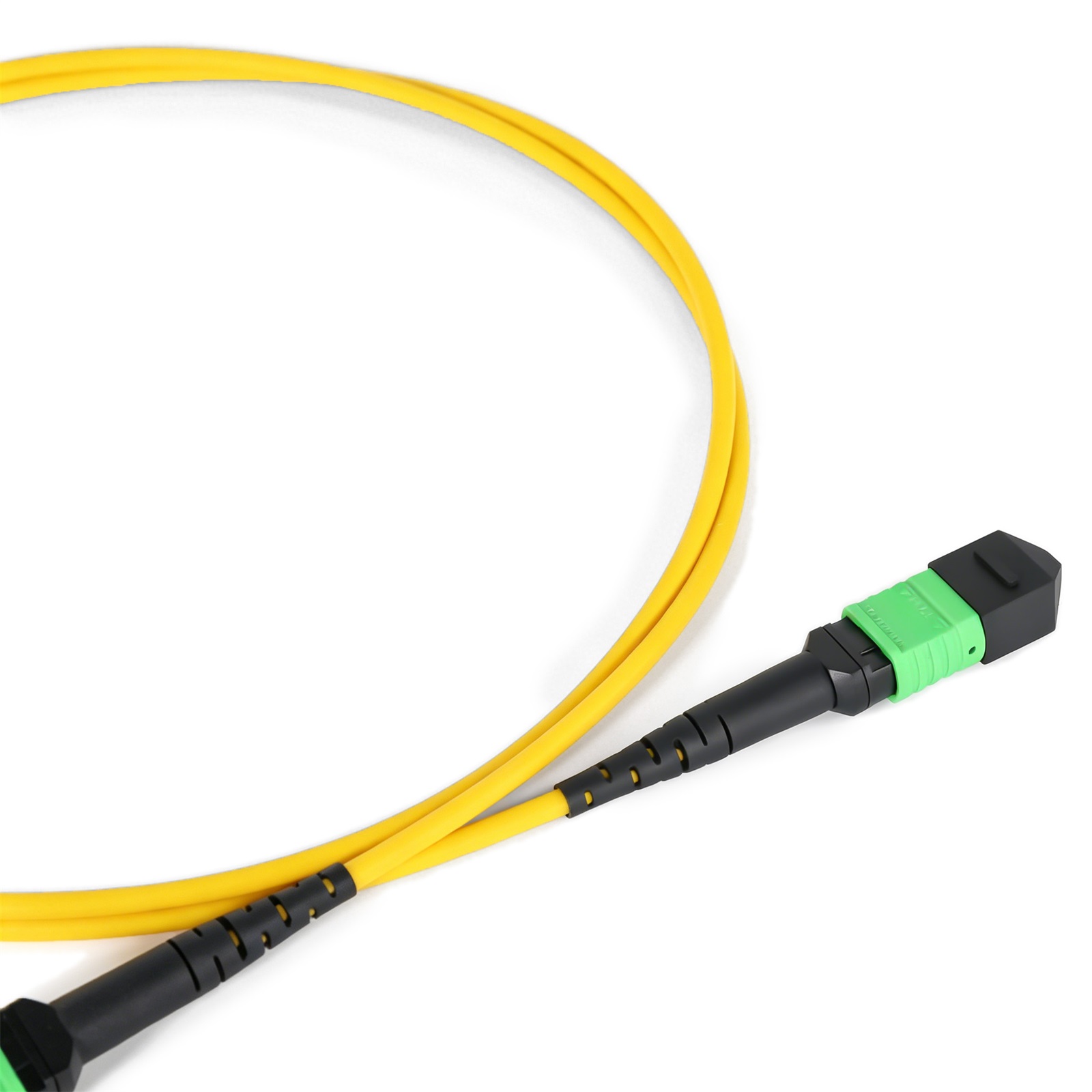

    1m (3ft) MPO-16 APC (Female) to MPO-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers, Type B, LSZH, Yellow

    Product No: 103089
    79 Reviews
    10.2K Sold
    US$ 33.48
    Series
    Length
    93 in real-time stock, 09 Jun, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 10mm Min. Bend Radius.
2. With 0.35dB low insertion loss.
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
4. High-density cabling solutions for 800G data centers.
5. Meticulous design and standard testing ensure stable high-speed data transmission.
    See more

    Specifications

    1m (3ft) MPO-16 APC (Female) to MPO-16 APC (Female) OS2 Singlemode Elite Trunk Cable, 16 Fibers Jumper, Type B, LSZH, Yellow



    The MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 8 times the density of a standard duplex fiber optic cable connector. This 16 fibers MPO female to MPO female OS2 single mode trunk cable is specially optimized for 800G optics direct connection, data centers and telecommunications systems applications.



    Connector A MPO Female Connector B MPO Female
    Fiber Count 16 Fibers Fiber Type OS2 SMF 9/125μm
    Polish Type APC to APC Cable Material LSZH
    Armoured No Wavelength 1310/1550nm
    Insert Loss ≤0.35dB Return Loss ≥60dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 10mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤0.32 at 1310nm, ≤0.18 at 1550nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 10mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term) Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    800G Direct Connect Cabling：

    MTP-MPO-16 APC Female to MTP-MPO-16 APC Female

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    These cables prioritize attention to detail and high-quality construction. Additionally, MPO-16 connectors adopt optimized design and precise manufacturing processes, effectively reducing signal loss during optical transmission, ensuring the stability and reliability of data transmission.



    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



    Flexible High-Density Cabling Solutions



    Deploying a single MPO-16 patch cord can connect 8 pairs of duplex optical channels between two racks, significantly improves deployment speed, simplifies cable management, and reduces installation costs.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.
